USER MANUAL SP700 JABRA

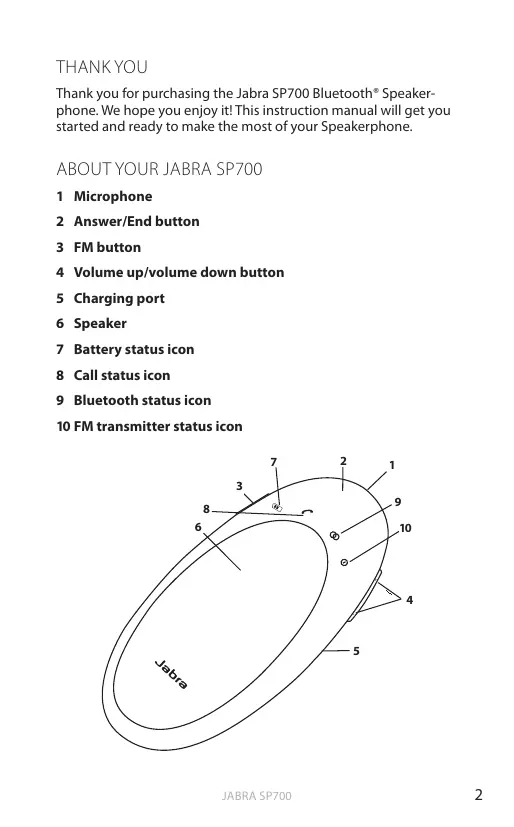

THANK YOU Thank you for purchasing the Jabra $P700 Bluetooth® Speaker- phone. We hope you enjoy it! This instruction manual will get you Started and ready to make the most of your Speakerphone.

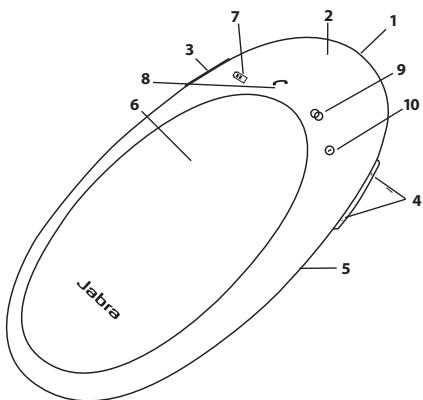

Your Jabra SP700 lets you do all this: Answer calls End calls Reject calls* Voice dialing* Last number redial” Mute Transfer calls Night driving mode Adjust volume Transmit calls or mobile music to your car stereo via FM trans- mitter Specifications Talk time up to 14 hours (using FM transmitter) / Standby time up to 255 hours FM transmitter Voice announcements in 10 languages Noise reduction & Echo cancellation via DSP Weight 85 grams Operating range up to 33 feet (approximately 10 meters) Supported Bluetooth profiles: HFP HSP, A2DP Bluetooth specification (see glossary) version 2.0. Internal rechargeable battery charged by provided car charger or USB cable. “ Phone dependent

GETTING STARTED The Jabra SP700 is easy to operate. You should follow three steps before using your speakerphone

1. Charge your speakerphone

2. Turn your speakerphone on

3. Pair your speakerphone to your mobile phone

Instruction Duration of press Tap Press briefly Press Approximately 1 sec Press and hold Approximately 5 sec

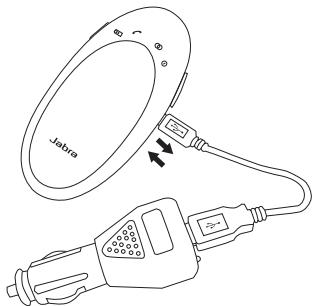

CHARGE YOUR SPEAKERPHONE

Make sure that your speakerphone is fully charged for two hours before you start using it. Use the USB cable to connect $P700 to the car charger. Plug the car charger into your cars power outlet. The Battery Status Icon will light up red while charging. When fully charged the Battery Status Icon will turn green. SP700 can be charged outside your car by only using the USB cable. SP700 can be used while charging Use only the chargers provided in the box - do not use chargers from any other devices as this may damage your speakerphone.

Please Note: The lifetime ofthe battery will be significantly reduced if device is left uncharged for a long period of time. We therefore recommend that you recharge your device at least once a month.

TURNING YOUR SPEAKERPHONE ON AND OFF

Normal mode = Press Answer/End button for 2 seconds to turn your speaker phone on = Press Answer/End button for 4 seconds to turn your speaker- phone off Locking mode To prevent accidental key presses that could turn your speaker- phone on e.g. while carrying it in a bag, the speakerphone can be turned into locking mode. Press simultaneously the Answer/End button and FM button for 4 seconds while the speakerphone is turned on. The speakerphone is now turned off and can only be turned on again by pressing Answer/End button and FM button simultaneously for 2 seconds. Automatic power off When disconnected from the mobile phone, the speakerphone turns off automatically after 10 minutes.

PAIRING WITH YOUR PHONE

Speakerphones are connected to phones using a procedure called “pairing' By following a few simple steps, a phone can be paired with a speakerphone in à matter of minutes,

1. Putthe Speakerphone in pairing mode

When ou turn on your Jabra SP700 for the first time, the speakerphone will automatically start up on pairing mode - ie. it is discoverable by your phone. When the speakerphone is in pairing mode you will hear the voice announcement"Pairing Mode” and the Bluetooth Status Icon will flash constantiy. Set your Bluetooth phone to ‘discover'the Jabra SP700 Follow your phones instruction guide. First make sure that Bluetooth is activated on your mobile phone. Then set your phone to discover the speakerphone. This usually invoives go- ing to a setup/'connect'or'Bluetooth'menu on your phone and selecting the option to ‘discover’'or'add'a Bluetooth device.” Your phone will find the Jabra SP700 Your phone will find the speakerphone under name “Jabra SP700° Your phone then asks if you want to pair with the speakerphone. Accept by pressing"Yes’or"OK'on the phone and confirm with the passkey or PIN = 0000 (4 zeros). Your phone will confirm when pairing is complete. In case of unsuccessful pairing, put the Jabra SP70( mode manually: Make sure the speakerphone is off. Press and hold the answer/end button until you hear the voice announcement “Pairing Mode’ and the Bluetooth Status Icon will flash constantiy.

CONNECTING WITH YOUR PHONE

Speakerphone only work when it is connected to the mobile phone. When connected the message "Connected" will be anno- unced and the Bluetooth Status Icon will turn solid blue. After pairing, the speakerphone connects automatically to your mobile phone. the devices are paired but not connected press the Answer/End button. Ifthe devices are disconnected, the speakerphone will remain in auto reconnection mode for 10 minutes.

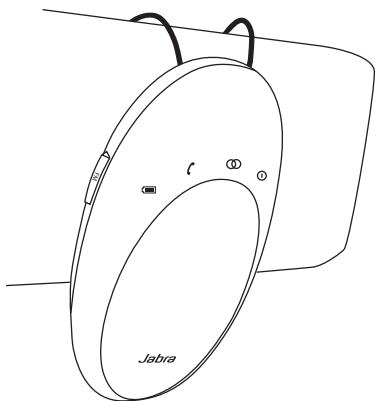

PLACE THE SPEAKERPHONE IN YOUR VEHICLE

The Jabra SP700 sits discreetly and conveniently on the sun visor using the attached clip.

HOW TO Answer a call + Tap Answer/End button End a call + Tap Answer/End button Reject a call * -_ Press Answer/end button. À busy tone will be sent to the caler. Make a cal = When you make 2 call from your mobile phone, the call will automatically transfer to your speakerphone. I your phone does not allow this feature, press on the Answer/End button to transfer the call to the speakerphone Activate voice dialing® + Press the Answer/End button. For best results, record the voice dialing tag through your speakerphone. Please consult your phone‘ user manual for more information about using this feature

+ Double tap the Answer/End button Adjust sound and volume = Tap the volume up or volume down to adjust the volume level {in FM mode you are not able to adjust volume via SP700 - use Your car stereo) Mute/Un-mute + To mute an ongoing cal press volume down button. The mute beep tone will be heard every 5 seconds = To un-mute press volume up or down button. Transfer call last number * + To transfer a call from the speakerphone to the mobile phone press Answer/End button until you hear a beep. + To transfer a call from the mobile phone to the speakerphone press Answer/End button until you hear a beep. Night driving mode = Press FM and volume up button simultaneously when the speakerphone is on. The light will then turn off. You can turn “ Phone dependent

the lights back on with another press. The speakerphone will always turn on with the lights turned on.

• Functions marked with * are dependent on your phone support- ing these features. Check your phones user manual for further information.

WHAT THE LIGHTS MEAN

Speakerphone Status LED Indicator Pairing mode Bluetooth Status Icon flashes quickly Connected Bluetooth Status Icon on Standby/ ide Bluetooth Status Icon flashes every 2 seconds Incoming call Call Status Icon flashes every 1 second Active call Call Status Icon on FM mode FM Status Icon on Frequency scanning FM Status Icon flashes every 1 second Language selection Call Status Icon and Bluetooth Status Icon flashes Low battery Battery Status Icon on (red)

ADDITIONAL FEATURES Change voice announcement language Voice announcements give you a more convenient and safe use of SP700. There are 10 supported languages in the following order: 1 UK English 2 US English 3 French 4 Italian German 6 Spanish 7 Mexican Spanish 8 Brazilian Portuguese 9° Mandarin Chinese 10 Russian Voice announcements Off (Beep tone) Default language is UK English. To change language follow these steps: Enter pairing mode by press and hold Answer/End button when SP700 is off until voice announces: "Pairing mode” Press FM button until current language is announced. Tap Volume Up or Volume Down button to select a new lan- guage. Select preferred language and press FM button until the new language is announced. Note: is possible to turn off the voice announcement function. When tapping the Volume Up or Volume Down buttons to select the desired language, the beep tone indicates the voice announcement function is off. When beep tone is heard press FM button and the voice announcement function will be off.

Play music Make sure that speakerphone and mobile phone are connected. When you play music from your mobile phone it will automatically transfer to your speakerphone. your phone does not allow this feature, press the Answer/End button to transfer the music to the speakerphone. Music will automatically be paused when you have an incoming call. When call is ended it will start playing again. Using FM transmitter The FM transmitter in the speakerphone allows you to transmit calls and music from your mobile to the car stereo when speaker- phone and car radio are set to the same frequency. Connect your mobile phone and speakerphone. Press FM button to enter FM mode. The FM Status Icon will turn solid red and a FM frequency will be announced. Manually turn your radio into the same FM frequency and you are now ready to transmit calls or music from your phone to Your car stereo. FM transmitter will automatically turn off after 10 minutes if function is not used Changing FM frequency When you enter FM mode the speakerphone will always transmit calls and music on the latest used FM frequency. For the FM trans- mitter to work well a free radio frequency must be found. À free radio frequency is one that no commercial and public radio sta- tion is broadcasting on. As you drive and change environment the FM audio quality could potentially be reduced due to frequency interferences. Ifsound performance is unsatisfactory i is possible to select a new FM frequency. Enter FM mode. Press Volume up button until"Searching'is announced. When a new frequency is found and announced, tune your radio manually into the same FM frequency. The speakerphone will automatically save the new frequency. A tap on the Volume up/Volume down button will change the frequency on your speakerphone by 0.1 MHz allowing you to fine tune the signal.

Using FM transmitter when ve is off voice announcement function is turned off you can select any of the pre-programmed frequency channels in the following order: je announcement function LED indication Pre- {FM Frequency selection mode) Channel | programmed F5 Frequency Batery | call Bluetooth | FM status [status | status status 1 881 MHz | off off on 2 883MHz | off on off 3 885MHz [on off off 4 887 MHz | off on on Flash 5 889MHz [on off on 6 89.1 MHz [on on off 7 893MHz [on on on To select the desired FM frequency channel, follow these steps: Connect your mobile phone and speakerphone. Press FM button to enter FM mode. The default frequency channel is 88.1MHz Press the Volume Up or Volume Down button to move to the next/previous channel. Manually tune your radio to the same FM frequency and you are now ready to transmit calls or music from your phone to Your car stereo. Notel:While changing frequencies, FM Status Indicator flashes every 1 second Note2:While changing frequencies, a repeated beep-tone will be heard and frequencies can be recognized by the combinations of Status Indicators. (See the table above) Caller ID When you have an incoming call the speakerphone will announce the number ofthe caller. I your radio supports RDS Text the phone number will furthermore be showed on the radio display.

Software upgrade Itis possible to upgrade the speakerphone software following these steps: + Download the latest version of jabra700update.exe from wwwjabra.com/SP700. Click the exe file to start up the program and follow the instructions. Turn off the speakerphone. Connect the speakerphone to the computer using the USB cable. Press simultaneously FM button and Volume Up button. When entering Software upgrade mode, the designated ring tone can be heard. Make sure the “Jabra SP700” appears listed in the Windows device manager. When you are prompted to install the driver, install the Jabra provided driver. After the "Jabra SP700" appears in the Windows device man- ager the car kit software can be upgraded. TROUBLESHOOTING & FAQ Thear crackling noises -_ Bluetooth is a radio technology, which means it is sensitive to objects between the speakerphone and the connected device. Itis designed for the speakerpone and the connected device to be used within 33 feet (10 meters) of each other, with no major objects in the way (wall, etc.) cannot hear anything on my speakerphone -_ Increase the volume on the speakerphone = Ensure that the speakerphone is paired to a device that is playing + Make sure your phone is connected to the speakerphone by tapping the Answer/End button. Lam having pairing problems + You may have deleted your speakerphone pairing connection in your mobile phone.

Follow the pairing instructions. lwant to reset the pairing list on my speakerphone The speakerphone registers a list of up to 7 mobile phones. To remove the list, press and hold the Answer/End button, Volume up button and FM button at the same time. À beep indicates the list was removed from the speakerphone memory. The next time you power on, the speakerphone will go into p: mode as the first time you powered your new SP700 on. Will the Jabra SP700 work with other Bluetooth equipment? = The Jabra SP700 is designed to work with Bluetooth mobile phones. I can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or higher and support a headset, hands-free and/or advance audio distribution profile. l'or voice dialing These features are dependent on the ability of your phone to support a hands-free profile. Even if the handsfree profile is imple- mented reject call, call hold and voice dialing are optional features which are not supported by all devices. Please consult your device manual for details. ing I cannot use Reject call, call on hold, Redi I can not connect speakerphone and radio via FM transmitter + Make sure the radio is turned on and speakerphone is in FM mode (FM Status Icon is on). your radio when searching is not able to find the FM fre- auency set by your speakerphone, the FM frequency must be tuned in manually on the radio. Please read radio manual to find out how to manually change frequency on your radio. I your radio is in TA (Traffic Announcement) mode, switch TA off and your radio should be able to find your speakerphone when using the search function on the radio. If not tune in manually. The sensitivity of the search function on your radio determines whether it is able to find the frequency set by your speaker- phone. On some radios you are able to adjust the sensitivity thus making it possible to find the speakerphone frequency when searching. f not tune in manually. In urban areas it might be difficult to find a clear frequency. It is therefore advisable to use a frequency in the lower or upper end ofthe FM frequency band (e.g. 88.1 or 107,7 MHz) were you will have the best chance to find a clear frequency.

(for the latest support info and online User Manuals)

Always store the Jabra SP700 with the power off and safely protected Avoid storage at extreme temperatures (above 45°C/113°F - in- dluding direct sunlight — or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance. Do not expose the Jabra SP700 to rain or other liquids. WARNING! Never operate your SP700 speakerphone while drivingl SAFETY INFORMATION = Do not attempt to use this device ifit is or has been submerged in liquid Use of car speakerphone will impair your ability to hear other sounds. Use caution while using your car speakerphone when You are engaging in any activity that requires your full attention. This package contains small parts that may be hazardous to children and should be kept out of reach from children. This product is not a toy - never allow children to play with t product. Always store the product out of reach of children. The bags themselves or the many small parts they contain may cause choking if ingested. Nevertry to dismantle the product yourself. None ofthe components can be replaced or repaired by users. Only authorized dealers or service centers may open the product. If any parts of your product require replacement for any reason, including normal wear and tear or breakage, contact your dealer. Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you.

= Ifthis product overheats, ifthe product has been dropped or damaged, ifthe product has à damaged cord or plug, or ifthe product has been dropped in a liquid, discontinue use and contact GN Netcom, Inc. Never mount or store the product over any air bag deployment area as serious injury may result when an airbag deploys” Remember always drive safely, avoid distractions and follow local laws Use caution while using your speakerphone when you are engaging in any activity that requires your full attention. While engaging in any such activity, tuning your speakerphone off will keep you from being distracted, so as to avoid accident or injury. Do not take notes or read documents while you are driving. Pairing and/ or connecting your SP700 speakerphone with your mobile phone or car stereo should always be completed before you start to drive. ACATS028 - Ignition of flammable atmospheres Do not use the car speakerphone in environments where there is à danger of ignition of flammable gases. CHARGER CARE: = Do not attempt to charge your speakerphone with anything other than the AC adaptor provided. The use of any other types may damage or destroy the speakerphone and may invalidate any approval or warranty, and may be dangerous. For availability of approved enhancements, please check your dealer. Charger Warning! When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord. Never use à charger that is damaged. Do not attempt to disassemble the charger as it may expose you to dangerous electric shock. Incorrect reassembly can cause electric shock or fire when the product is subsequentiy used. Avoid charging your speakerphone in extremelÿ high or low temperatures and do not use the charger outdoor or in damp areas. Charge the speakerphone according to the instructions supplied with this product.

Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or tree complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but will eventually wear out. Recharge your battery only with the provided approved chargers designated for this device. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. Hleft unused, a fully charged battery wil lose its charge over time. Leaving the device in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). À device with a hot or cold battery may not work temporary, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing, Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Battery warning! -_ "Caution" - The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not attempt to open the product or replace the battery. It is built-in and not changeable. Use of other batteries may present a risk of fire or explosion and the warranty will be terminated. Recharge your battery only with the provided approved chargers designated for this device. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. Always store the product out ofthe reach of children!"

WARRANTY Limited One (1) -year Warranty: GN Netcom, Inc. warrants this product to be free from defect: materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase ("Warranty Period”). During the Warranty Period, GN will repair or replace (at GNS discretion) this product or any defective parts (’Warranty Service”). If repair or replacement is not commercially practicable or cannot be timely made, GN may choose to refund to you the purchase price paid for the affected product. Repair or replacement under the terms ofthis warranty does not give right to any extension or a new beginning of the period of warranty. Claims under the Warranty: To obtain Warranty Service, please contact the GN dealer from which you purchased this product or visit www jabra.com for further information about customer support. You will need to return this Product to the dealer or ship it to the dealer or to GN (if s0 indicated on www.jabra.com) in either its original packaging or packaging affording an equal degree of protection. You will bear the cost of shipping the product to GN. the Product is covered by the warranty, GN will bear the cost of shipping product back to you after the completion of service under this warranty. Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair. The Following information must be presented to obtain Warranty Service: (a) the product, and (b) proof of purchase, which clearly indicates the name and address ofthe seller, the date of purchase and the product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address, {d) daytime telephone number, and (e) a detailed reason for return. As part of GN/Jabraf efforts to reduce environmental waste you understand that the product may consist of reconditioned equipment that contains used components, some of which have been reworked. The used components all live up to GN/Jabras high quality standards and comply with the GN product performance and reliability specifications. You understand that replaced parts or components will become the property of GN.

ation of Warranty: This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty provided by GN in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold'as is” and without any warranty. Specifcally exempt from warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative finishes, batteries, and other accessories. This warranty is invalid if the factory-applied serial number, date code label, or product label has been altered or removed from this product. This Warranty does not cover defects or damages that result from: (a) improper storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface ofthe product resulting from misuse; (b) contact with liquid, water rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the products or accessories for commercial purposes or subjecting the product or accessories to abnormal usage or conditions; or (d) other acts which are not the fault of GN. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than GN or a GN dealer which is authorized to do GN warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover defects or damages that result from the use ofnon-GN branded or certified products, accessories, or other peripheral equipment. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. GN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY 15 EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT. LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.

NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to location. Some jurisdictions do not allow the exclusion or limitation ofincidental or consequential damages or implied warranties, so the above exclusions may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.

CERTIFICATION AND SAFETY APPROVALS

This device complies with part 15 ofthe FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom, Inc.) will void the user's authority to operate the equipment. See 47 CFR Sec. 15.21. This equipment has been tested and found to comply with the limits: for a Class B digital device, pursuant to part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

The device and its antenna must not be co-loaded or operatin conjunction with any other antenna or transmitter. Industry Canada Operation is subject to the following two condi- tions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5. The term”IC:" before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifica- tions were met. It does not imply that Industry Canada approved the equipment. CE: This product is CE marked according to the provisions ofthe R &TTÉ Directive (99/5/EC). Hereby, GN Netcom A/S, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult httpy/wwwjabra.com Bluetooth: The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Other trademarks and trade names are those of their respective owners. Dispose of the product according o local standards and regulations. mm svnijebra com/wece

1. Web: wwwrjabra.com/nasupport

1. Web: wwwrjabra.com/nasupport

CRETE C € KX OBluetooth DPEsPn0 ‘© 2008 GN Netcom US, Inc. All rights reserved. Jabra® is a registered trademark of GN Netcom AS. All other trademarks indluded herein are the property of their respective ‘owners. The Bluetooth® word mark and logs are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifcations subject to change without notice) mwwjabracom 81-02915 8
