USER MANUAL Energysilence Aero 4320 Invisible CECOTEC

Safety instructions 9

1. Parts and components 69

2. Before use 69

3. Installation 70

4. Operation 72

5. Cleaning and maintenance 73

6. Troubleshooting 74

7. Technical specifications 74

8. Disposal of old electrical appliances 75

9. Technical support and warranty 75

10. Copyright 76

11. Simplified Declaration of Conformity 76

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.

• Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and only use parts and components provided and recommended by Cecotec.
• To avoid risk of electric shock, disconnect the main power supply by turning off the power switches before installing or repairing the fan.
• The electrical wiring must be in accordance with local regulations.
• The wire must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Battery instructions

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries and keep them away from children. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.

• Do not use any batteries that are not designed for use with the appliance.

• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.

• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Potencia motor: 35 W DC

Potencia luz: 22 W LED

IPX4

T

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Lamp plate
8. Decorative cover
9. Remote control
10. LED lamp
11. Screw kit

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Ceiling fan
• Remote control
• 1.5 V AAA batteries (x2)
• Assembly kit
• Instruction manual

3. INSTALLATION

Tools required for installation (not included)

Fig. 2

A. Electrical tape
B. Spanner
C. Flat-blade screwdriver
D. Crosshead screwdriver
E. Ladder
F. Wire cutting pliers

Preparation

• To avoid any damage, make sure to hang the fan at least 2.3 m from the ground and 76 cm away from any walls or obstacles. Fig. 3
• Ensure that the mounting bracket is securely fastened to the building structure and can support the full weight of the fan.
• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on normal ceilings as well as on vaulted or sloped ceilings. The hanging length can be extended by using a longer downrod.

3.1 Mounting bracket installation

Concrete ceiling

Drill two holes of a proper depth (an 8-mm diameter) and insert two expansion screws into the holes; then, fix the mounting bracket to the expansion screws with the wood screws and tighten them with the expansion screw nuts. Fig. 4

Wooden ceiling

Fix the mounting bracket to the wooden ceiling with 4 wood screws (of at least 7-cm thickness).

Fig. 5

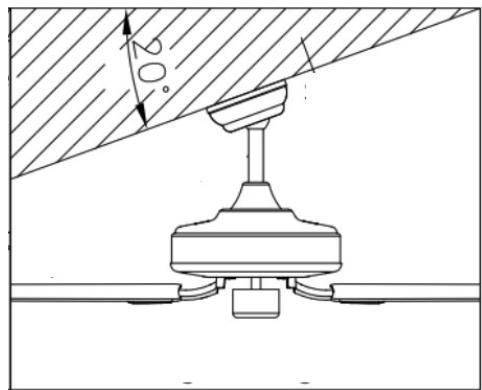

Sloped ceiling

Sloped installation is recommended for vaulted or slanted ceilings.

Maximum 20° tilt. Fig. 6

3.2 Installation of the hanging system

Fig. 7

If you want the fan to hang lower, remove the hanging ball from the supplied 15 cm (6-inch) downrod (3) in order to use it with a longer downrod (also included). To remove the hanging ball,

loosen the fixing screw and remove the pin and clip. Slide the hanging ball off the downrod, and slide it onto the longer downrod (note that the top of the rod has a hole for the fixing screw). When the hanging ball is in the desired position, insert the pin. Make sure that the pin is aligned with the holes inside the hanging ball and tighten the fixing screw securely.

Loosen the fixing screws of the motor main body anchor (8). Then remove the pin (5) and downrod clip (6) (if you have not already done so). Slide the downrod through the canopy's hole (2).

Pass the electrical wires (1) through the downrod and pull the wires protruding from the top of the downrod end (3).

Place the downrod into the motor main body anchor (7) and insert the pin (5) and clip (6) previously removed. Tighten the fixing screws (8) securely. Lower the decorative cover onto the motor housing (4).

Fig. 7

1. Electrical wires
2. Canopy
3. Downrod
4. Decorative cover
5. Pin
6. Downrod clip
7. Main body
8. Main body anchor

3.3 Electrical installation

To carry out the electrical installation, follow the steps shown in figure 8.

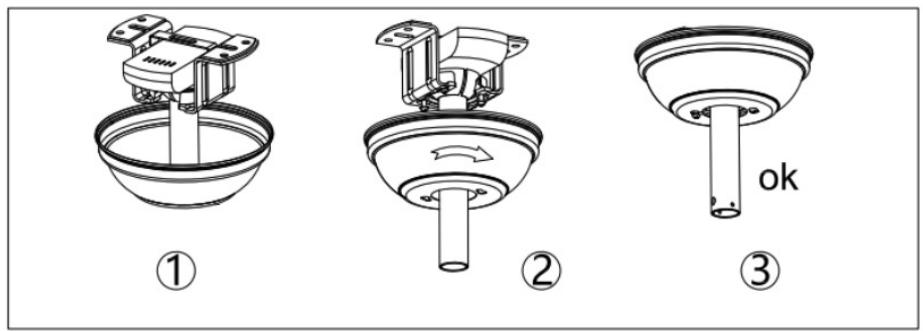

3.4 Canopy assembly

Fig. 9

Lift the canopy to the ceiling to cover the mounting bracket (make sure that the canopy is fixed on the two bracket screws), turn the canopy to ensure the screw head is at the narrow end of the canopy holes and tighten the screws.

Note: Have someone else hold the ladder securely and bring the fan closer to you once it is on the ladder.

3.5 LED lamp assembly

Fig. 10

Remove the screws. Attach the LED lamp to the bottom of the fan by inserting the screws into the corresponding holes and screwing them in. Then connect the fan wires to the LED lamp.

Fig. 10

1. Screw
2. Plug
3. LED lamp plate

Note: During the installation or when the LED lamp is removed, keep the insulation pads intact. Over-tightening the screws may damage them.

3.6 Lampshade assembly

Align the slot on the lampshade with the slot on the main body of the fan, then turn the lampshade gently until it is fixed into place. Fig. 11

3.7 How to balance the "invisible" fan

• The fan has been balanced before shipping, but this balance may be affected during transport.
• Balance the fan following the following steps if the fan is unstable during the installation:
• Take the two magnetic parts from the balance kit and place them in the upper surface of the fan, and turn on the fan to check if it is still unstable. Repeat the process until you find the position in which it is stable.
• Remove the magnetic parts and stick the other part of the balance kit in place.

4. OPERATION

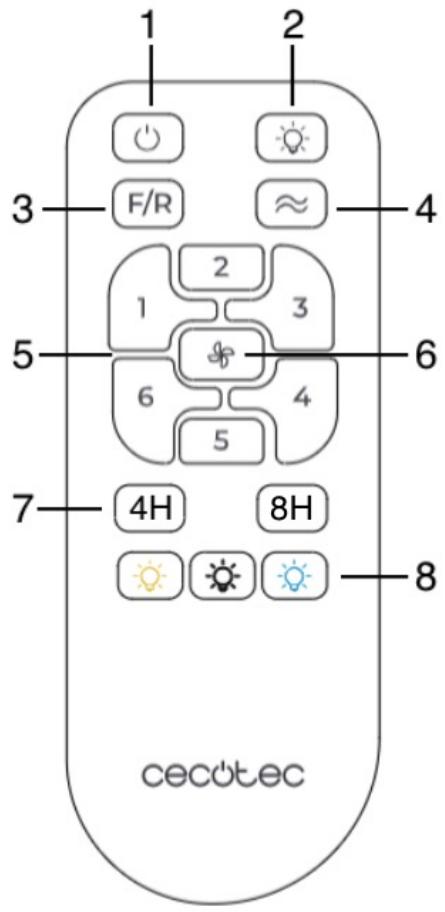

This ceiling fan is operated using the remote control.

Fig. 12

1. Power button
2. On/off light button
3. Winter/summer mode
4. Breeze mode
5. Fan speed (1-6)
6. On/off fan spin button

7. Timer (4-8 h)

8. Light shade change (warm, neutral or cool)

Once you have installed the ceiling fan, you can start using it.

• Press the button (5) to choose the desired fan speed, this way you can set the blades spin speed.
• Press the on/off light button (2) to turn the LED light on or off.

• You can also modify the light shade from neutral, warm or cool by pressing the light shade change button (8).

• This ceiling fan has a timer function (7), press the button with the desired time you want the fan to run for. The different options are 4 and 8 hours.

• Press the winter/summer mode button (3) to reverse the direction of rotation of the blades. In summer mode the blades spin to generate a pleasant breeze, while in winter mode the blades spin to push the warm air concentrated on the ceiling to the floor.
• Press the button (4) to select the breeze mode. In this mode, the fan will generate a breeze-like air flow.
• If you wish to turn off the fan completely, press the power button (1). To stop the movement of the fan blades but not the light, press the on/off fan spin button (6).

WARNING

• If the fan or the light cannot be controlled through the remote control, check if the batteries are in good condition and make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the appliance voltage. If the voltage is too low,
• the remote control may not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

Changing the remote control batteries

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

• Disconnect the fan from the power supply and allow it to cool down before cleaning it.
• Never immerse the fan in water or other liquids.
• Clean the fan with a soft, dry cloth.
• Do not use any cleaning chemicals such as detergents and abrasive products.
• Do not allow condensation to come into contact with any of the electrical parts of the fan.
• Do not use a wet cloth to clean the motor. Keep the fan clean and dry.
• It is recommended to use neutral detergent and a soft cloth. Do not use solvents, acid detergents, petrol, alcohol, etc. to clean the plastic parts, as they may be damaged.
• Do not allow water to enter the motor or touch the cable during cleaning.

6. TROUBLESHOOTING

The fan does not work

1. Make sure the cable connections on the fan are correct.
2. Make sure the power inlet is suitable.

The fan makes too much noise

1. Check that all assembled screws are tightened.
2. Make sure that the cable nut connections do not rub against each other or against the interior wall of the switch housing.

If you have any queries, please contact the official Cecotec Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: EU01_108467 / EU01_108469 / EU01_108470 / EU01_108468

Product:

EnergySilence Aero 4300 Invisible White

EnergySilence Aero 4320 Invisible Wood&White

EnergySilence Aero 4320 Invisible Wood&Black

EnergySilence Aero 4300 Invisible Steel

Voltage: 230 V\~

Frequency: 50 Hz

Motor power: 35 W DC

Light power: 22 W LED

IPX4

T

Description	Symbol	Value	Unit
Fan maximum flow	F	115.9	m^3/min
Fan power consumption	P	29.3	W
Service value	SV	4.0	(m^3/min)/W
Power consumption on standby mode	P_SB	0.5	W

Fan sound power level	L_WA	45.0	dB (A)
Maximum air speed	C	2.0	m/sec
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910Alfafar (Valencia), Spain

This product features a light source with an energy efficiency grade E.

The power consumption in standby mode is 0.5 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local

authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union.

This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity

can be found at the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

Trocar as pilhas do controlo remoto

6. PROBLEEMOPLOSSING

3.5 LED lamba tertibati

Şema. 10

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

www.cecotec.es
