Brand	Cecotec
Model	Proclean 2010 Inverter
Product Type	Microwave
Reference	01338 / EU01_100004
Power Supply Voltage	230 - 240 V~
Frequency	50 Hz
Microwave Frequency	2450 MHz
Nominal Power	1020 W
Microwave Power	700 W
Power Levels	5 levels: Low (17%), Medium-Low (33%), Medium (55%), Medium-High (77%), High (100%)
Control Type	Mechanical (rotary selectors)
Timer	Yes, mechanical up to 30 minutes (estimated)
Turntable	Yes, glass
Plate Diameter	Approximately 25 cm (estimated)
Capacity	20 liters (estimated)
Functions	Cooking, reheating, defrosting
Door Lock System	Yes, safety mechanism
Interior Lighting	Yes, varies by power
Compatible Materials	Glass, ceramic, microwave-safe plastic, paper
Maintenance	Clean with a damp cloth, avoid abrasives
After-Sales Service	Cecotec: [phone]
Warranty	According to applicable regulations
Country of Manufacture	China (designed in Spain)

Frequently Asked Questions - Proclean 2010 Inverter CECOTEC

How to install the turntable?

First place the rotating ring on the base, then insert the shaft in the center. Finally, place the glass plate on the shaft, making sure it rotates freely.

Which utensils can I use in the microwave?

Use containers made of glass, ceramic, microwave-safe plastic, or paper. Avoid metal, aluminum foil, and metallic decorative items.

What if the microwave does not heat?

Check that the door is properly closed, that the plug is connected, and that the fuse has not blown. If the problem persists, contact technical support.

Can I heat hard-boiled eggs in the microwave?

No, eggs with shells or hard-boiled eggs can explode even after cooking. It is not recommended to heat them in the microwave.

How to clean the inside of the microwave?

Wipe with a damp cloth after each use. For a deep clean, heat half a lemon in 300 ml of water for 10 minutes at full power.

Why is the lighting dim?

The lighting dims when you select a low power level. That is normal.

Can I run the microwave empty?

No, never run the microwave without food inside. This can damage the magnetron.

What are the available power levels?

Five levels: Low (17%), Medium-Low (33%), Medium (55%), Medium-High (77%), High (100%).

How to avoid TV interference?

Place the microwave away from televisions and radios. Interference is normal and temporary.

Where to find the declaration of conformity?

The EU declaration of conformity is available at: https://www.storececotec.fr/fr/information/declaration-of-conformity.

USER MANUAL Proclean 2010 Inverter CECOTEC

Safety instructions 9

1. Parts and components 58

2. Before use 58

3. Appliance installation 59

4. Operation 60

5. Cleaning and maintenance 62

6. Troubleshooting 63

7. Technical specifications 64

8. Disposal of old electrical and electronic appliances 64

9. Technical support and warranty 64

10. Copyright 65

11. Simplified EU Declaration of Conformity 65

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• Do not use outdoors.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
  This symbol means: CAUTION: hot surface. Accessible surfaces of the microwave may reach high temperatures during operation. Be careful not to burn yourself.
• WARNING: if the door or its gaskets are damaged, do not operate the appliance until it has been repaired by a qualified person.
• WARNING: it is dangerous for anyone other than a qualified person to perform maintenance or repair tasks involving the removal of a cover that provides protection against exposure to microwave energy.
• WARNING: liquids and other food should not be heated up in sealed containers, as they may explode.
• Use this appliance only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.
• This appliance is intended for heating beverages and food. Drying of food or clothing and heating of pillows, shoes, sponges, wet clothes and similar items may involve risk of injury, ignition, or fire.
• Heating up beverages may cause them to boil. For this reason,

precautions must be taken when handling the container.

• The contents of bottles and jars of baby food should be swirled or shaken, and the temperature should be checked before consumption to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwaves, since they may explode even after microwave heating has ended.
• Do not operate the microwave when empty.

• This microwave is not intended to be built-in or installed in furniture. It must be freely positioned ensuring the following separation distances:

• Top: at least 20 cm apart.

• Between the appliance and any adjacent wall: at least 5 cm.
• Rear: leave 10 cm of separation.

• From the microwave to the ground: 85 cm.

• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified personnel to avoid hazards or injuries.

• Do not operate the microwave if it has a defective cord or plug or if it is not working properly. In case of malfunction or breakdown, please contact official Cecotec Technical Support Service.
• You must be careful to ensure that the turntable does not shift when the containers are removed from the appliance.
• Only use cookware that is suitable for microwave use. Make sure cookware does not touch the interior walls during operation.
• Do not use the appliance for storage purposes.
• Do not attempt to fry food in the microwave.
• In order to reduce fire risk:

A. Do not overcook food.

B. Remove wire twist-ties from paper or plastic bags before placing them inside the microwave.

C. The microwave should be watched when heating food in plastic or paper containers.

- In case of smoke or fire inside the appliance, keep the door closed, turn the appliance off, and unplug it from the power supply.

- Do not place hot or frozen food or cookware on the turntable to prevent breakage.

- After operation, the container is likely to be very hot. Use gloves to avoid burns and injuries.

- The appliance must be cleaned regularly, and you must remove any food remains. You must clean the door gaskets, cavities, and adjacent parts of the microwave as indicated in the cleaning and maintenance section.

- The appliance cannot be cleaned with steam.

- Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the appliance and cause hazards.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- This appliance is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and

spark erosion equipment. Class B equipment is suitable for domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.

• Metal food and beverage containers must not be used during microwave cooking.
• The appliance is not intended to be operated by means of external timers or separate remote-control systems.

INSTRUCTIONS DE SÉCURITÉ

A- Control panel
B- Turntable shaft
C- Turntable ring assembly
D- Turntable
E- Viewing window
F- Door
G- Lock system

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Microwave
• Glass turntable
• Turntable ring assembly
• Instruction manual

Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. APPLIANCE INSTALLATION

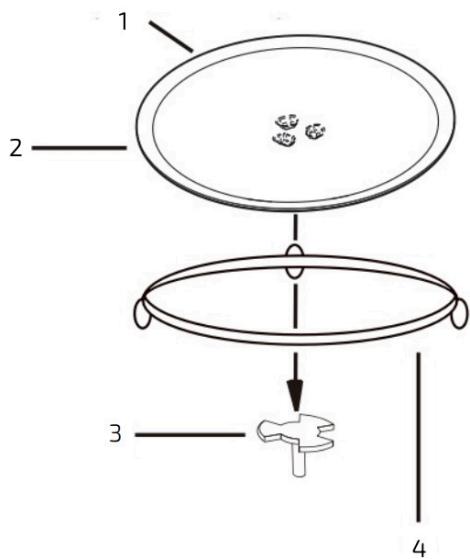

Turntable installation (Fig. 2)

The turntable installation, with shaft and ring assembly, requires several steps.

1. First, the ring assembly must be positioned on the base of the microwave, making sure that it is correctly aligned and locked into place.
2. Then, the shaft must be placed at the centre of the ring assembly, checking that it is securely fastened and that it can rotate freely.
3. Once the ring assembly and shaft are in position, the bottom part of the turntable is placed on the shaft, making sure that it fits snugly against the shaft and can rotate smoothly.

NOTE: It is important to check that the turntable is levelled and centred for an optimal microwave operation.

1. Once everything is in place, you can switch on the microwave and use the turntable as needed.

Fig. 2 key

1. Turntable
2. Bottom part of the turntable
3. Shaft
4. Ring assembly

NOTES:

• Never place the turntable upside down. The rotary motion of the turntable must never be blocked.
• The turntable, shaft and ring assembly must always be installed before starting the microwave.
• Food and containers must always be placed on the glass turntable.
• If the glass turntable or the turntable ring assembly cracks or breaks, please contact the official Cecotec Technical Support Service.

Worktop installation

1. Remove all packing material and accessories.
2. Check the microwave to see if it is damaged.

NOTE: Do not install the microwave if it is damaged.

1. Remove any protective film from the surface of the microwave.

NOTE: Do not remove the mica plate protecting the magnetron inside the microwave cavity.

Installation instructions and specifications

Fig. 3

1. Place the microwave on a level surface. Make sure that there is nothing obstructing the

ENGLISH

air inlet and outlet grilles.

1. The minimum installation height must be 85 cm.
2. The rear of the appliance must be placed against a wall. Leave a minimum clearance of 30 cm above the microwave. A minimum clearance of 20 cm is required between the microwave and adjacent walls.
3. Do not remove the feet from the bottom of the microwave.
4. Obstruction of the air inlet and outlet grilles could damage the microwave.
5. Place the microwave as far away from radios and TVs as possible. Using the microwave nearby may cause interference to your radio or TV reception.
6. Plug the microwave into a standard household socket. Make sure that the voltage and frequency match those on the rating label.

Warning: Do not install the microwave on top of heat-generating appliances or kitchen hobs. The accessible surface of the appliance can reach high temperatures during operation.

4. OPERATION

Control panel

Fig. 4 key

A- Power

B- Time

Start-up

1. To adjust the cooking power, turn the power knob to the desired level.
2. To adjust the cooking time, turn the timer knob to the desired time according to the cooking guide.
3. The microwave will automatically start cooking after setting the power level and time.
4. Once the cooking time has finished, the appliance will beep.
5. If the appliance is not in use, always set the time to "0".

Power	Performance	Use
Low	17%	Softening ice cream
Medium-low	33%	Warming soup, softening butter or defrosting
Medium	55%	Heating stews and fish
Medium-high	77%	Heating up rice, fish, chicken and minced meat
High	100%	Reheating, heating milk, boiling water, cooking vegetables or heating beverages

Note:

• When removing food from the microwave, make sure that the microwave is turned off by turning the time knob to the "0" position.
• If this is not done and the microwave is operated without food inside, overheating may occur, resulting in damage to the magnetron.

Container testing

Check the containers that are suitable for use. There are some non-metallic containers that are not suitable for microwave use. If in doubt, please contact your distributor.

Microwave-safe materials/containers

Container	Comments
Browning dish	Follow the manufacturer's instructions. It must be at least 5 mm above the turntable, otherwise it may break.
Cookware	Suitable for microwaves only. Follow the manufacturer's instructions. Do not use chipped or cracked containers.
Glass jars	Always remove the lid. Use them only to slightly heat food. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant microwave glassware only. Make sure that there are no metallic decorative elements. Do not use cracked or chipped dishes.
Oven/microwave cooking bags	Follow the manufacturer's instructions. Do not use metal zips. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave microwave unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat (under supervision and for a short time).
Vegetable paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Some plastic containers soften, as the food inside gets hot. Cooking bags and plastic bags that are sealed must be perforated according to the instructions on the packaging.
Cling film	Microwave-safe only. Use it to cover food during cooking and retain moisture. Avoid contact with food.
Thermometers	Microwaveable only (meat thermometers and baking thermometers)
Wax paper	Use as a cover to prevent splattering and retain moisture.

Containers/materials NOT SUITABLE for microwaving

Container	Comments
Aluminium tray	Sparks may be produced. Transfer food into microwave-safe containers.
Cardboard food packaging with metal handle	Sparks may be produced. Transfer food into microwave-safe containers.
Metal containers or containers with decorative metal elements	The metal diverts energy away from the food. Metallic decorative elements could cause sparks.
Metal zips	They may cause sparks and flames inside the microwave.
Paper bags	May cause a fire in the microwave.
Polystyrene foam	It may melt and contaminate the inside of the microwave when exposed to high temperatures.
Wood	Wood may dry out when used in the microwave and may crack or brake.

5. CLEANING AND MAINTENANCE

Be sure to unplug the appliance from the mains.

To clean the microwave, follow the instructions below:

1. After using it, wipe the inside of the microwave with a slightly damp cloth.

2. Wash the accessories with soap and water.

3. The frame, door seal and adjacent parts should be carefully cleaned with a damp cloth when dirty.
4. Do not use abrasive cleaners or sharp metal scrapers to clean the glass on the door, as they may scratch the surface, which could cause the glass to break.
5. Cleaning Tip---For easy cleaning of the inside walls of the microwave: Put half a lemon in a bowl, add 300 ml of water and heat at 100% power in the microwave for 10 minutes. Clean the appliance with a soft and dry cloth.

6. TROUBLESHOOTING

Normal
Microwave interferes with TV signal	Radio and television signals may be interfered with when the microwave is in operation. The same applies to other small appliances such as blenders, vacuum cleaners and electric fans.This is normal.
Microwave light is dim	If you select a low power setting, the microwave light will dim. This is normal.
Steam builds up in the door and hot air escapes from the ventilation grilles	During cooking, steam comes out from food. Most of it will come out through the ventilation grilles. But it can accumulate in cold places such as the door. This is normal.
The microwave has been started without food in it.	It is not permitted to use the microwave without food inside. It is very dangerous.

Problem	Description	Solution
The appliance does not switch on	(1) The power cable is not plugged in correctly.	Unplug the appliance and plug it in again after 10 seconds.
	(2) Fuse blown or faulty residual current circuit breaker.	Replace the fuse or reset the circuit breaker. If you need help, please contact the official Cecotec Technical Support Service.
	(3) Problem with the socket.	Test the plug with another electrical appliance.
The appliance does not heat up.	(4) The door is not properly closed.	Close the door correctly.

7. TECHNICAL SPECIFICATIONS

Product reference: 01338 / EU01_100004

Product: Proclean 2010 Inverter / Proclean 2010 Inverter White

Voltage: 230 - 240 V \~

Frequency: 50 Hz; 2450 MHz (microwave)

Rated power: 1020 W; 700 W (microwave)

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

3. INSTALLATION DU PRODUIT

3. INSTALLATIE VAN HET APPARAAT

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./ Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

L

(KG)

1.0
B
Fig./Img./Abb./Afb./Rys./Obr. 4

www.cecotec.es
