USER MANUAL T700 KODAK

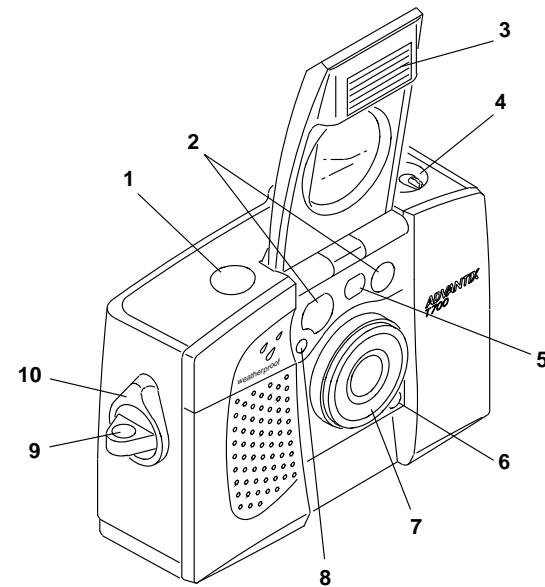

Shutter button Auto-focus sensors Lens cover/flash Format-selector dial Viewfinder Self-timer lamp Lens Meter-cell window Strap post Film-door lever

Consumer Imaging EASTMAN KODAK COMPANY Rochester, NY 14650

© Eastman Kodak Company, 2000 Unfold the front and back flaps of this manual to view the camera’s parts.

ENGLISH/ESPAÑOL/FRANÇAIS Unfold the front and back flaps of this manual fo view the camera’s parts.

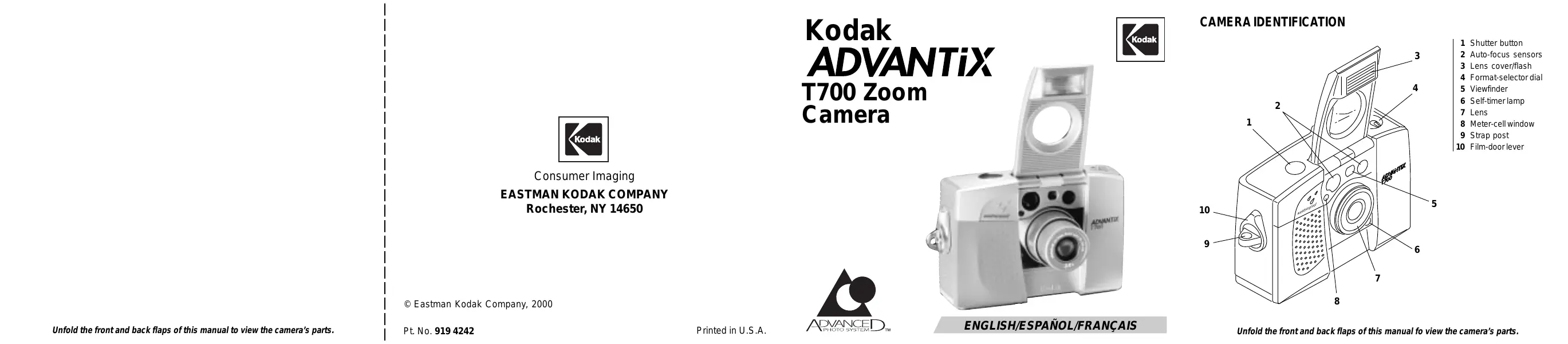

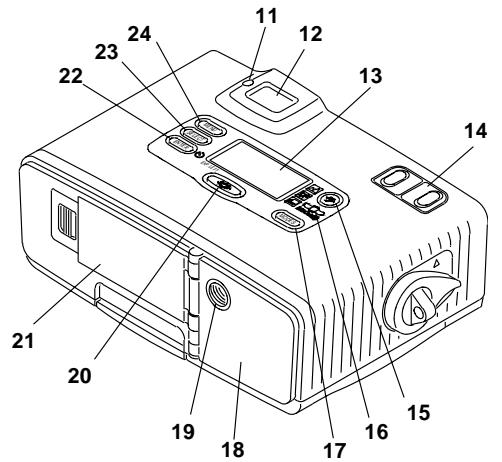

Camera Identification

LCD backlight button Battery door Enter/self-timer button Select button Menu button

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following: — Reorient or relocate the receiving antenna. — Increase the separation between the camera and the receiver. — Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations

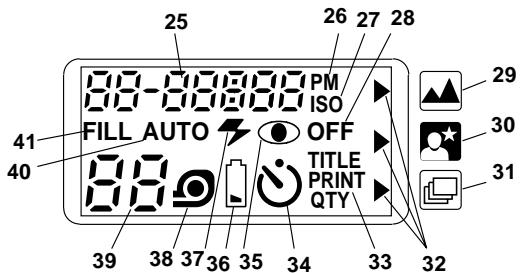

25 Date display 26 PM indicator 27 ISO filmspeed display 28 Flash-off indicator 29 Infinity-focus icon 30 Night-view icon 31 Continuousdrive icon 32 Mode-selector arrow 33 Title/printquantity display 34 Self-timer indicator 35 Red-eyereduction indicator 36 Battery symbol 37 Flash indicator 38 Film-presence indicator 39 Frame counter 40 Auto-flash indicator 41 Fill-flash indicator

Welcome to the world of the Advanced Photo System! And thank you for buying this KODAK ADVANTIX Camera.

NEED HELP WITH YOUR CAMERA? Go to our Web site at http://www.kodak.com (for US) or http://www.kodak.ca (for Canada) or call: Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1 (800) 242-2424.

ENGLISH KODAK ADVANTIX T700 Zoom Camera

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1 (800) 465-6325, ext. 36100; for the Toronto area, call (416) 766-8233, ext. 36100. When you call, please have your camera available. For warranty purposes, please keep your sales receipt as proof of the date of purchase. © Eastman Kodak Company, 2000

ADVANCED PHOTO SYSTEM FEATURES AVAILABLE WITH THIS CAMERA Weatherproof • Special seals keep out moisture for a sure carefree performance in any weather. While you cannot use the camera underwater, you can use it in light rain or snow or on the beach or ski slopes.

Triple format selection • You can take three different size pictures: Classic (C), Group/ HDTV (H), and Panoramic (P) pictures from the same film cassette. The masking inside the viewfinder changes to match each format selection.

Date and time/title imprinting • The date, time, and cassette ID number are printed on the back of your prints, which makes it easy to organize pictures and order reprints. You can choose from one of 41 preprogrammed titles (12 languages available) to print on the back of the prints. See your photofinisher for a full description of available services.

Flip flash • Provides extra red-eye reduction with the extension of the flip flash and the red-eye-reduction mode. The extended flash also prevents hand obstruction in front of the flash.

Double exposure protection (DEP) • You don’t need to worry about accidentally re-exposing your film. Your camera reads the Film Status Indicator (FSI) on the film cassette to prevent double exposures.

Picture quality information exchange (PQix) • This camera records vital scene data on the film’s magnetic information strip and communicates that information to the photo lab to optimize lighting and color for better-looking prints.

Easy, drop-in loading • Easy, drop-in loading is fast and virtually error-free, eliminating blank rolls and double exposures. The camera uses KODAK ADVANTIX Film. The film cassette, unlike the traditional 35 mm cartridge, communicates the status of film and becomes the carrier and storage container for the processed film.

Mid-roll change (MRC) • You can remove your film in midroll and later reload it and continue to take pictures. MRC lets you: – switch film speeds in mid-roll to match scene requirements – organize by dedicating individual film rolls to specific subjects, and – share a family camera in which the members use their own roll of film.

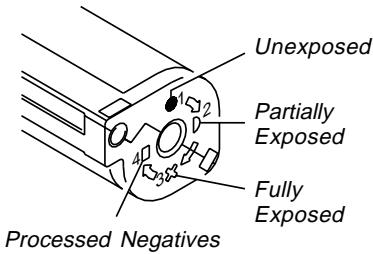

Film status indicator (FSI) • A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

19 19 19 19 19 20 21 21 21 21 23 24 24 26 26 27 27 27 28 29 30

GETTING STARTED Load the battery (see LOADING THE BATTERY on page 9), and then set the language and the date and time on the camera.

Setting the language US English is initially set into the memory of this camera, but you can select another language (12 options available). See the table on page 6 for the List of languages and the LCD (Liquid Crystal Display) abbreviated codes.

2 Press the menu button (24) once. MENU SELECT ENTER EXP. LEFT

3. Press and hold the select button (23) for approximately 4 seconds until “US” blinks on the LCD panel (13). MENU

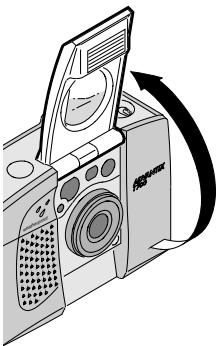

1. Completely lift up the lens cover/flash (3) to uncover the lens (7) and to turn on the camera.

SELECT ENTER EXP LEFT

4. Press the right or left side of the zoom button (14) or select button (23) to cycle to your selection.

List of languages Languages US English

5. Press the enter/self-timer button (22) to complete your selection.

MENU SELECT ENTER EXP. LEFT

S Date and time imprinting Traditional cameras print date and/or time information directly onto the film. Your camera uses the film’s magnetic data-recording capability to record date and time information, which your photofinisher can imprint only on the back of your photographs. This camera has a quartz clock and automatic calendar through the year 2099.

Setting the date and time Choose from three formats: (month/day/year, year/month/day, or day/month/year) and time format (hour/minute) with PM display.

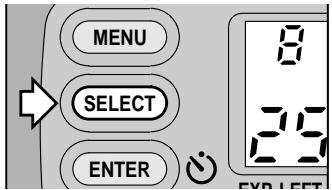

2. Press the select button (23). MENU SELECT ENTER EXP LEFT • The first number(s) in the date- or time-option mode will “blink.”

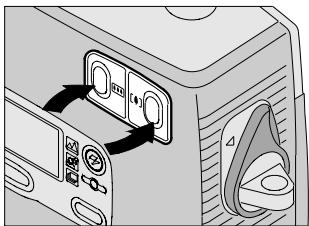

3. Press the zoom button (14) or the select button (23) to change the number(s).

1. Repeatedly press the menu button (24) to scroll and select the desired function. MENU

• Press the right side of the zoom button to increase the number and the left side to decrease the number.

SELECT ENTER EXP LEFT

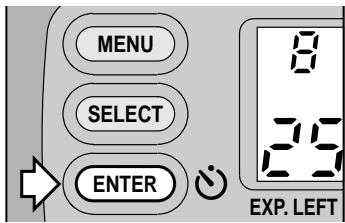

4. Press the enter/self-timer button (22) to store the selected number(s) and to activate the next “blinking” number(s).

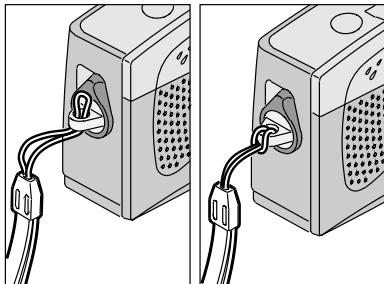

1. Insert the shorter looped end of the adjustable strap through the hole of the strap post (9). 2. Thread the longer end of the strap through the shorter loop.

3. Pull the strap tight.

ENTER EXP. LEFT 5. Follow steps 3 and 4 to continue your selection or press again the enter/ self-timer button to stop the number(s) from blinking and to end your selection.

ATTACHING THE NECK STRAP CONTROL-BUTTON ACTIVATOR LOADING THE BATTERY You can use the knob on the clasp of the camera strap to activate the small control buttons on the camera.

This camera uses one 3-volt lithium KODAK KCR2 (or equivalent) Battery that supplies power for all camera operations. 1. Slide the batterydoor latch to open the battery door (21).

2. Insert the battery into the battery chamber. 3. Snap the battery door closed. • After you load a new battery into the camera, reset the date and time.

Low-battery indicator It’s time to replace the battery when— • the battery symbol (36) “blinks” on the LCD panel (13) or • none of the indicators, except for a steady battery symbol, appear on the LCD panel and the shutter button (1) cannot be operated.

• Remove the battery from the camera when the camera is not going to be used for an extended length of time. • In the unlikely event that battery fluid leaks onto your skin, contact Kodak Health, Safety and Environment Information at 1-716-722-5151 in the U.S.

• Keep a spare battery with you at all times.

• In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center (KIC) at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative.

• Read and follow all warnings and instructions supplied by the battery manufacturer.

Battery tips • Dispose of batteries according to local and national regulations.

• Keep batteries away from children. • Do not try to take apart, recharge or short circuit the battery, or subject it to high temperature or fire. • Store batteries in their original packaging prior to use. • Do not use rechargable batteries. 10

To save battery power, the camera automatically goes into a sleep mode when it is not operated for more than 2.5 minutes. You can press almost any of the control buttons, except for the format-selector dial (4), to awaken the camera. When the camera is not used for an extended time, close the lens cover/flash to completely turn off the camera.

LOADING THE FILM You can load film into the camera with the lens cover/flash opened or closed.

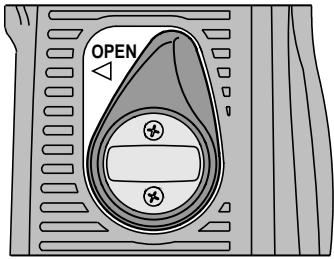

1. Rotate the film-door lever (10) to open the film door (18). • The film door opens only when the film chamber is empty or the film in the camera is completely rewound into the film cassette and the motor stops running.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

2. Insert the film cassette completely into the film chamber. Make sure the Film Status Indicator (FSI) on the film cassette is at ● (#1 position) for a new cassette or at ◗ (#2 position) for a partially exposed cassette.

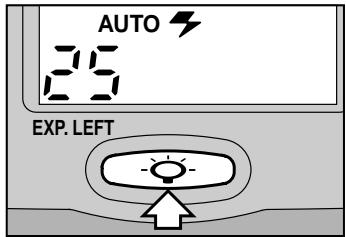

USING THE LCD BACKLIGHT This camera features an LCD backlight for easy viewing and use in low-light or nighttime settings. 1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera.

2. Press the LCD backlight button (20) to turn on the light.

• Do not force the film cassette into the film chamber. 3. Close the film door to start the autofilm advance. The frame counter (39) on the LCD panel (13) shows the number of pictures remaining on the film cassette.

• The backlight automatically turns off in 15 seconds, or when you take a picture or rewind the film. Press the LCD backlight button a second time to manually turn off the backlight.

TAKING PICTURES You can take Classic (C), Group/HDTV (H)*, and Panoramic (P) pictures on the same film cassette. See table on page 14 for Typical print sizes (formats). Your photo-processing cost may be based on the format size(s) that you use to expose the film.

2. Turn the format-selector dial (4) to select C, H, or P format. The viewfinder changes to show the selected field of view.

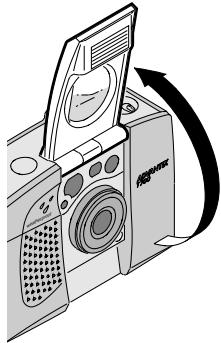

1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera.

3. Look through the viewfinder eyepiece (12) placing the Auto Focus (AF) brackets on the subject. For a sharp picture, stand at least 2 ft (0.6 m) from your subject.

* High Definition Television (HDTV) prints are the same aspect ratio as the TV for CD interface capabilities.

4. Partially press down the shutter button (1) until the flash/camera-ready lamp (11) turns green. Fully press down the shutter button to take the picture.

Typical print sizes (formats) C Classic 3.5 x 5 in. or 4 x 6 in. (88.9 x 127 mm or 102 x 152 mm)

H Group (HDTV) 3.5 x 6 or 4 x 7 in. (88.9 x 152 mm or 102 x 178 mm)

P Panoramic 3.5 x 8.5 in. to 4 x 11.5 in. (88.9 x 216 mm to 102 x 292.7 mm)

NOTE: Your photofinisher generally provides 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178, and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5, 3.5 x 6, and 3.5 x 8.5 in. (88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes.

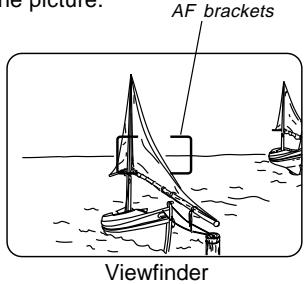

Using the focus lock This camera automatically focuses on whatever is within the Auto Focus (AF) brackets of the viewfinder eyepiece. To get a sharp picture, make sure the AF brackets are on your main subject. If you want to take a picture with the subject positioned outside of the AF brackets, use the focus lock as follows: 1. Place the AF brackets on the subject that you want focused in the picture. AF brackets

3. While still partially depressing the shutter button, move the camera until your subject is where you want it within the viewfinder eyepiece (12).

Viewfinder 4. Fully press down the shutter button to take the picture.

Tips for better pictures

Viewfinder 2. Partially depress and hold the shutter button (1) to lock the focus position and wait for the flash/camera-ready lamp (11) to turn green.

• Move close enough to your subject so it fills the viewfinder but not closer than 2 ft (0.6 m). • Take pictures at the subject’s level. Kneel down to take pictures of children and pets.

• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or a single person. • Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence. • Keep the sun behind you. This provides the best subject illumination. • Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures. • Turn on all room lights and have your subject look at the red-eye-reduction light to reduce red eyes in flash pictures.

USING THE ZOOM LENS This camera has a motorized-zoom lens that lets you select the ideal lens-focal length for taking pictures. When you turn the camera on, it is initially set to the wide-mode position. 1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera. 16

2. Press the right side of the zoom button (14) to zoom closer to the subject in the telephoto mode or the left side to zoom away from the subject in the wide-angle mode.

3. Look through the viewfinder eyepiece (12). 4. Press the shutter button (1) to take the picture. • The lens barrel automatically returns to the wide-angle position after 2.5 minutes.

TAKING FLASH PICTURES In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera features an automatic flash that fires when you need it. The flip-up flash helps to minimize red eyes in flash pictures and to prevent hand obstruction in front of the flash.

4. When the flash/camera-ready lamp (11) glows green, fully press down the shutter button to take the picture (see Flash/warninglamp signals on page 18).

1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera. 2. Keep the subject within the recommended distance range for the speed of film in your camera. Do not take pictures beyond the maximum distance or your pictures will be dark. 3. Partially press down the shutter button (1).

Flash-to-subject distance ISO Film Wide Speed (25 mm) 50 2 to 11 ft (0.6 to 3.4 m) 100 2 to 15 ft (0.6 to 4.6 m) 200 2 to 21 ft (0.6 to 6.4 m) 400 2 to 30 ft (0.6 to 9.1 m) 800 2 to 42 ft (0.6 to 12.8 m) 1600 2 to 59 ft (0.6 to 18 m)

Tele (50 mm) 2 to 6 ft (0.6 to 1.8 m) 2 to 8 ft (0.6 to 2.4 m) 2 to 11 ft (0.6 to 3.4 m) 2 to 16 ft (0.6 to 4.9 m) 2 to 22 ft (0.6 to 6.7 m) 2 to 31 ft (0.6 to 9.4 m)

• Camera ready for picture-taking • Subject between 8 in. (20 cm) and 2 ft (0.6 m) from camera. Shutter button locks. • Flash not fully charged • Camera shake warning • Beyond the flash range

SELECTING THE FLASH MODES Auto flash without red-eye reduction

Besides the auto-flash mode without redeye reduction (initial default setting of the camera), you can select auto-flash with red-eye reduction, fill flash, fill flash with red-eye reduction, or flash off. Choose the flash mode that best suits your subject and surroundings.

Use this feature to take pictures of subjects other than people.

Repeatedly press the flash-mode button (15) to view the choices on the LCD panel (13) and to make your selection.

AUTO Some people’s eyes (and some pets’) can reflect flash with a red glow. The extended flash and the red-eyereduction lamp on the camera help to minimize red eyes in flash pictures.

FILL When bright light indoors or outdoors comes from behind the subject (backlighting), dark shadows (especially on faces) may occur. Use fill flash to lighten these shadows.

MENU SELECT Auto flash with red-eye reduction

AUTO AUTO ENTER EXP. LEFT MODES Fill flash with red-eye reduction

FILL Use this feature when you want to minimize red eyes in fill flash pictures taken indoors. 19

OFF When you do not want to use the flash, especially indoors where flash is prohibited or capture the ambiance of existing light, use the flash-off feature. Use a tripod or place the camera on another firm support, and use highspeed film because the shutter speed in these situations will most likely be slow. 1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera. 2. Repeatedly press the flash-mode button (15) until the desired indicator(s) for auto flash without redeye reduction (indicator [40]), auto flash with red-eye reduction (indicators [40] & [35]), fill flash (indicator [41]), fill flash with red-eye reduction (indicators [41] & [35]) or flash off (indicator [28]) appear on the LCD panel (13). 3. Frame your subject within the viewfinder eyepiece (12).

4. Partially depress the shutter button (1). When the flash/cameraready lamp (11) glows green, fully depress the shutter button to take the picture.

The fill-flash and flash-off modes cancel when you turn off the camera, select a different flash mode, or when the camera powers down. The autoflash modes remain selected in these instances.

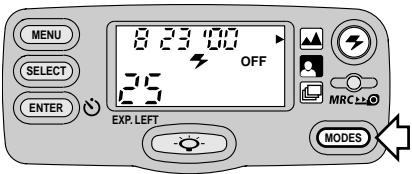

SELECTING THE SPECIALOPTION MODES Repeatedly press the modes button (17) to scroll through the selections. The special-option modes let you tailor the camera’s fully automatic operation to provide optimal camera settings for infinity-focus, nightview, and continuous-drive.

MENU OFF SELECT ENTER EXP. LEFT Infinity-focus mode In this mode, you can capture sharp, distant scenery when you take pictures outdoors during the day or through windows.

Night-view mode In this mode, the camera balances the flash and existing light exposure so that you can take beautiful pictures of people at sunset or at night. Use a tripod (tripod socket [19]) or place the camera on another firm support, and use highspeed KODAK ADVANTIX Film because the shutter speed at night will most likely be slow.

MODES Continuous-drive mode In this mode, the camera continuously takes pictures and advances the film as long as the shutter button is held down.

1. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera. 2. Repeatedly press the modes button (17) until the mode-selector arrow (32) points to the infinity-focus icon (29), night-view icon (30), or continuous-drive icon (31). • In the infinity-focus mode, the camera is automatically set for flash off. • In the night-view mode, only autoflash with or without red-eye reduction options are available. • In the continuous-drive mode, all flash options are available, but recommended for pictures without flash. 3. Frame your picture in the viewfinder eyepiece (12).

4. Infinity-focus mode or night-view mode: – Simply press the shutter button (1) to take the picture. Continuous-drive mode: – Press the shutter button down and hold. The shutter continues to release and advance the film as long as the shutter button is held down. The selection cancels when you turn off the camera, select a different option mode, or when the camera powers down.

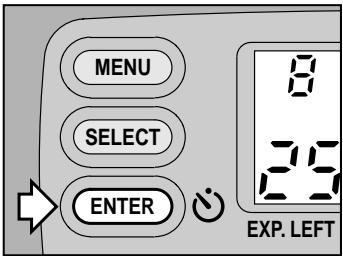

USING THE SELF-TIMER

4. Look through the viewfinder eyepiece (12) to compose the picture and to allow room for yourself in it.

Use the self-timer feature when you want to include yourself in pictures.

5. Press the shutter button (1).

1. Attach a tripod to the camera tripod socket (19) or place it on another firm support. 2. Completely lift up the lens cover/ flash (3) to uncover the lens (7) and to turn on the camera 3. Press the enter/self-timer button (22).

6. Quickly position yourself in the composed picture making sure that you see the self-timer lamp (6). • The self-timer lamp on the front of the camera blinks for approximately 10 seconds before the picture is taken. • To cancel the self-timer selection before the shutter releases, press again the enter/self-timer button or close the lens cover/flash. • The self-timer automatically turns off after the shutter releases.

2. Press the select button (23).

You can choose a print title from the TITLE-SELECT LIST and choose a language (see Setting the language on page 5) before you take the picture. The title you select will be recorded on the film’s magnetic data strip. At certified Advanced Photo System labs, the selected title will be printed on the back of your photograph.

• “TITLE PRINT” and “_ _” blinks on the LCD panel.

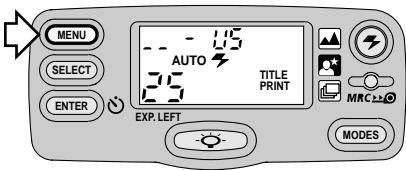

1. Press the menu button (24) until “TITLE PRINT” appears on the LCD PANEL (13).

3. Press the right or left side of the zoom button (14) or the select button (23) to select a title number. See the TITLESELECT LIST table on page 25 for the title-number selections. 4. Press the enter/self-timer button (22) to store the information. • The print-title selection continues through out the roll. • To cancel the title for subsequent pictures, follow steps 1 through 4, but for step 3, select Title “ _ _” (None) or you can select a different title.

MENU SELECT TITLE-SELECT LIST AUTO TITLE PRINT ENTER EXP. LEFT MODES

• The LCD panel displays“TITLE PRINT” and “ _ _” (for title-selection code) with language designator. 24

The following table indicates the title numbers for in-the-camera stored titles.

Title Number 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20

Title Christmas Birthday Vacation Honeymoon Wedding Hanukkah Graduation Family Party Holiday Anniversary Friends School Event Trip I Love You Thank You Season’s Greetings Happy Birthday Congratulations Merry Christmas Festival

Title Number 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Title First day of School Tour New Year’s Easter Happy New Year Reunion Father’s Day Mother’s Day Memories Baptism Halloween Happy Holiday Independence Day Thanksgiving Rosh Hashanah Yom Kippur Memorial Day Labor Day Valentine’s Day Canada Day None 25

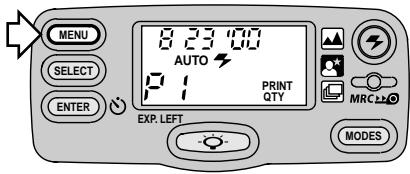

PRINT-QUANTITY SELECTION Before you take a picture, you can choose the number of prints from 0 to 9 you will receive from the photofinishing lab. This service is dependent on the photofinisher’s capability. 1. Repeatedly press the menu button (24) until “PRINT QTY” and “P 1” appears on the LCD panel (13).

MENU SELECT AUTO PRINT QTY ENTER EXP. LEFT MODES

2. Press the select button (23). • “PRINT QTY” and P “1” blinks on the LCD panel. 3. Press the right or left side of the zoom button (14) or the select button (23) to select the number of prints you want.

4. Press the enter/self-timer button (22) to store the information. • After you take the picture, the print quantity defaults to 1. Remember you must select a print quantity before you take a picture.

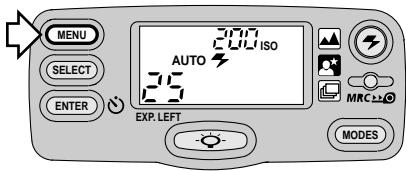

ISO FILM-SPEED DISPLAY You can view on the LCD panel (14) the ISO film speed of the film that is loaded in the camera when you first turn on the camera or when you press the menu button (24) three times. The LCD panel displays the ISO speed for approximately 3 seconds and then returns to the date display.

MENU ISO SELECT AUTO ENTER EXP. LEFT MODES

2. Rotate the film-door lever (10) to open the film door (18).

1. Wait for the film to completely rewind into the film cassette and for the motor to stop running. • When the motor stops running, the frame counter (39) indicates 0 and the “film-presence indicator (38)” blinks on the LCD panel (13).

The camera automatically rewinds the film into the cassette after the last exposure.

3. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film. • The FSI on the fullyexposed film cassette is at ✖ (#3 position) and “E” blinks on the LCD panel. 4

UNLOADING THE FILM Mid-roll change (MRC) You can remove your film in mid-roll and later reload it and continue picture-taking. The Film Status Indicator (FSI) on a partially exposed film cassette is set to ◗ (#2 position). When you reload the film cassette into the camera, the camera automatically advances the film to the first unexposed frame. Film can be rewound and reloaded until the last picture is taken. The camera automatically rewinds the film and sets the FSI to ✖ (#3 position) when the last picture is taken. 27

1. Gently press the mid-roll-change button (16) with the control-button activator on the camera strap to start the auto-film rewind.

CARING FOR YOUR CAMERA • Protect the camera from dust, moisture, sudden impact, and excessive heat. CAUTION: Do not use solvents or harsh or abrasive cleaners on the camera body. • If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or lens-cleaning tissue. Never wipe a dry lens.

2. See Automatic rewind, steps 1-3. • You can either reinsert the partially exposed film cassette into the camera to take more pictures or take it to your photo lab for processing.

CAUTION: Use solvents or solutions designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eye glasses. • Remove the battery when you store the camera for an extended time. CAUTION: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself, or immerse the camera in water or other liquids.

TROUBLESHOOTING What happened

Camera will not operate

Battery weak, dead, missing, or improperly loaded

Replace or reload the battery

Film does not advance or rewind

Battery weak, dead, missing, or improperly loaded

Replace or reload the battery

Battery weak, dead, missing, or improperly loaded

Replace or reload the battery

Camera in sleep mode

Press mode-selector button or close and reopen lens cover/flash

Lens cover/flash closed

Open lens cover/flash

Flash not fully charged

Wait for lamp to glow green

Subject beyond the flash range

Move closer to subject

Flash/camera ready lamp glows red and shutter button locks

Subject between 8 in (20 cm) and 2 ft (0.6 m) from camera

Move back and recompose picture

Film door does not open

Film cassette loaded in film chamber

Press the mid-roll-change button. See Mid-rollchange (MRC) on page 27 or continue taking pictures

Flash/camera ready lamp “blinks” red

SPECIFICATIONS Film type:

KODAK ADVANTIX Film for color and black-and-white pictures

KODAK EKTANAR Lens, all-glass, 25 – 50 mm motorized zoom

Active, single-spot auto-focus system, 190 zones

DXIX (ISO) 50–1600 for color and black-and-white films

IEC 60529 Weatherproofing Class 2

Main power: one 3 V lithium KODAK KCR2 (or equivalent) Battery

5.3 oz. (150 g) without film or battery

Kodak, Advantix, Ektanar, Sensalite, and the Advanced Photo System symbol and logotype are trademarks.
