Model No.

Indoor Unit

WH-ADC0309H3E5

Outdoor Unit

WH-UD03HE5-1

WH-UD05HE5-1

WH-UD07HE5-1

WH-UD09HE5-1

Indoor Unit

WH-ADC1216H6E5

Outdoor Unit

WH-UD12HE5

WH-UD16HE5

WH-UX09HE5

WH-UX12HE5

Indoor Unit

WH-ADC0916H9E8

Outdoor Unit

WH-UD09HE8

WH-UD12HE8

WH-UD16HE8

WH-UX09HE8

WH-UX12HE8

WH-UX16HE8

WH-UQ09HE8

WH-UQ12HE8

WH-UQ16HE8

Panasonic

Grid-based directional and play button icons including rotate, triangle, double arrow, play button, grid, and play button with a play button icon

CE

Manufactured by:

Panasonic Appliances Air-Conditioning Malaysia Sdn. Bhd.

Lot 2, Persiaran Tengku Ampuan, Section 21,

Shah Alam Industrial Site, 40300 Shah Alam,

Selangor Darul Ehsan, Malaysia.

Quick Menu Guide

Air-to-Water Hydromodule + Tank

Installation Instructions attached.

Serial number and production year please refer to name plate.

Please read the Operating Instructions thoroughly before using the Quick Menu.

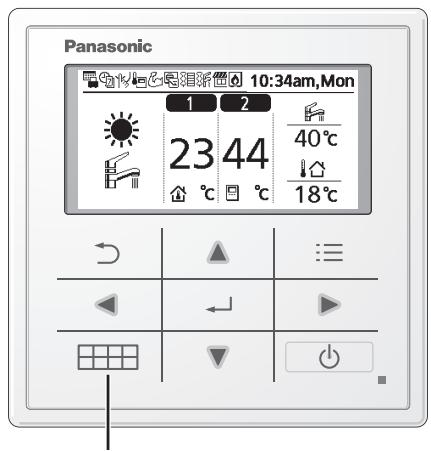

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

Select each setting and confirm the setting according to the instructions displayed at the bottom of the screen. (The icons refer to each selection key.)

To return to the Main Screen,

Press 📄 or ↻ .

Notes on operation icon

Example:

- Operation icon indicate with “............” = OFF

- Operation icon indicate with “——” = ON

Pure mechanical diagram showing a lever mechanism without any text or symbols

Force DHW

Select this icon to turn the Tank DHW on or off.

Press ← to confirm your selection.

- Force DHW is turned off.

- Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press ← to confirm your selection.

(The powerful operation starts approximately 1 minute after ← is pressed.)

Note:

- Powerful is disabled when operation is turned OFF.

Abstract pixelated line drawing with no text or symbols

Quiet

Select this icon to operate quietly.

Press ← to confirm your selection.

(The quiet operation starts approximately 1 minute after ← is pressed.)


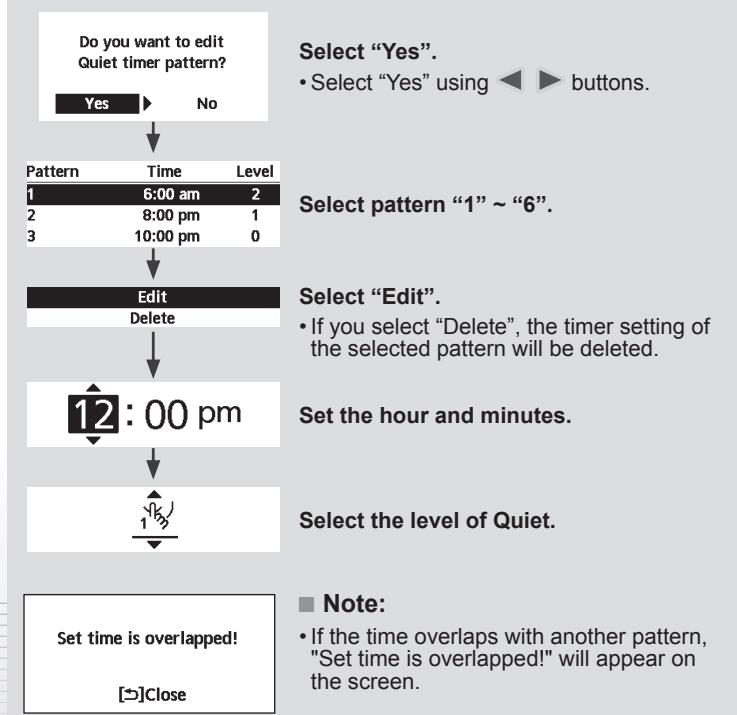

    A["Do you want to edit Quiet timer pattern?"] --> B{Yes}
    B -->|No| C["Select &quot;Yes&quot;. Select &quot;Yes&quot; using <▲▶ buttons."]
    C --> D["1 6:00 am 2\n2 8:00 pm 1\n3 10:00 pm 0"]
    D --> E["Edit\nDelete"]
    E --> F["12 : 00 pm"]
    F --> G["Set the hour and minutes."]
    G --> H["Select the level of Quiet."]
    H --> I["Set time is overlapped!\n[="]Close]

Simple icon showing a sun and a wavy tree, no text or symbols present

Force Heater

Select to force the Heater on.

Press ← to confirm your selection.

(The Force Heater mode starts approximately 1 minute after ← is pressed.)

Note:

- Force Heater is disabled whenever operation is already on and ‘Disabled due to operation ON!’ will be displayed.

Disabled due to operation ON!

[→]Close

Simple icon showing a clock and two overlapping documents (no text or symbols)

Weekly Timer
Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press ← to confirm your selection.

Select "Yes".

- If you select "No", the screen will return to the Main Screen.


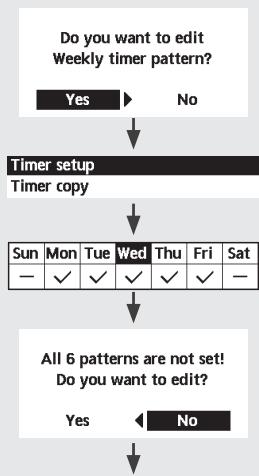

    A["Do you want to edit Weekly timer pattern?"] --> B{Yes}
    B -->|Yes| C["Timer setup"]
    B -->|No| D["Timer copy"]
    C --> E["Sun Mon Tue Wed Thu Fri Sat"]
    E --> F{All 6 patterns are not set! Do you want to edit?}
    F -->|Yes| G{No}
    F -->|No| H["End"]

- Timer setup: Select Timer setup to edit the Weekly Timer.

- Timer copy: Select to copy a timer setting.

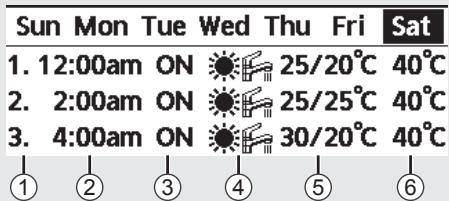

[Example of a Timer setup]

Select the day(s) which you wish to edit using ▲▼ buttons.

If all 6 patterns are not preset, this screen will be displayed.

Sun Mon Tue Wed Thu Fri Sat 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

① Select pattern “1” \~ “6”.
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

• Select mode using ▲▼ buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp Zone1 ON 25 °C Zone2 ON 25 °C 45 °C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Force Defrost

Select to defrost the frozen pipes.

Press ← to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[→]Close

Simple black arrow pointing left inside a gray rounded square frame (no text or symbols)

Error Reset

Select to restore the previous settings when error has occurred.

Press ← to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[→]Close

- Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

Simple icon of a padlock inside a rounded square frame (no text or symbols)

R/C Lock

Select to lock the Remote Controller.

Press ← to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control? Yes ▶ No

Select "Yes".

(The Main Screen will be locked.)

- If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen) Press ↩, ← and ▶ continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

(The screen will be off after 3 seconds.)

Pure mechanical diagram showing a lever mechanism without any text or symbols

ACS forzado

Simple line drawing of a flexed arm inside a rounded square frame (no text or symbols)

Potente

Abstract pixelated line drawing with no text or symbols

Silencioso

Simple icon showing a tree and sun, no text or symbols present

Calefactor forzado

Icon showing a clock and a document with the number 7, enclosed in a rounded square frame.

Temporiz. semanal

Dom Lun Mar Mie Jue Vier Sab 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Desescarche forzado

Pixelated icon of a padlock inside a rounded square frame (no text or symbols)

Bloqueo R/C

Pure mechanical diagram showing a lever mechanism without any text or symbols

ACS forzato

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Abstract pixelated line drawing with no text or symbols

Modalità silenziosa

Simple icon showing a tree and sun, no text or symbols present

Forza resistenza

Icon showing a clock and a document with the number 7, enclosed in a rounded square frame.

Progr. settimanale

Dom Lun Mar Mer Gio Ven Sab — ✓ ✓ ✓ ✓ ✓ —

Dom Lun Mar Mer Gio Ven Sab 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Sbrinamento forzato

Pure mechanical diagram showing a lever mechanism without any text or symbols

Forceren warmtapwater

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Extra vermogen

Abstract pixelated line drawing with no text or symbols

Geluidsreductie

Simple icon showing a tree and sun, no text or symbols present

Geforceerd verw.

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Week-timer

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Forceren ontdooien

Pure mechanical diagram showing a lever mechanism without any text or symbols

Simple line drawing of a flexed arm inside a rounded square frame (no text or symbols)

Tryb intensywny

Abstract pixelated line drawing with no text or symbols

Praca cicha

Simple icon showing a sun and a wavy tree, no text or symbols present

Wymuś pracę grzałki

Simple icon showing a clock and two overlapping documents (no text or symbols)

Harm. tygodniowy

Ndz Pon Wt Śr Czw Pt Sob — ✓ ✓ ✓ ✓ ✓ —

Ndz Pon Wt Śr Czw Pt Sob 1. 12:00am WŁ 25/20°C 40°C 2. 2:00am WŁ 25/25°C 40°C 3. 4:00am WŁ 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Pixelated abstract shape resembling a flower or star (no text or symbols)

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Resetowanie błędu

Pure mechanical diagram showing a lever and shaft without any text or symbols

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Ισχυρό

Abstract pixelated line drawing with no text or symbols

Αθόρυβο

Simple icon showing a windmill and a sun, no text or symbols present

Disabled due to operation ON!

[→]Close

Icon showing a clock and a document with the number 7, enclosed in a rounded square frame.

Επιλέξτε "Yes".

Sun Mon Tue Wed Thu Fri Sat 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Saturday: Pattern 1: Set Temp

Zone1	☀️	Zone2	☀️	☀️
ON	25 °C	ON	25 °C	45 °C

Pixelated abstract shape resembling a flower or star (no text or symbols)

Do you want to lock remote control?

Yes

No

Επιλέξτε "Yes".

1. Password is reset to 0000

2.Remote control is unlocked

Επιλέξτε "Reset".

Pure mechanical diagram showing a lever mechanism without any text or symbols

Vynutit TUV

Touto ikonou zapnete/vypnete nádrž TUV.

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Výkonný

Abstract pixelated line drawing with no text or symbols

Tichý režim

Simple icon showing a sun and a wavy tree, no text or symbols present

Nucený ohřev

Simple icon showing a clock and two overlapping documents (no text or symbols)

Týdení časovač

Ne Po Út St Čt Pá So — ✓ ✓ ✓ ✓ ✓ —

Pixelated abstract shape resembling a flower or star (no text or symbols)

Vynutit odmražení

Reset chyb

Zámek R/C

Pure mechanical diagram showing a lever mechanism without any text or symbols

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Chauffage Turbo

Abstract pixelated line drawing with no text or symbols

Silence

Simple icon showing a tree and sun, no text or symbols present

chauffage forcé

Simple icon showing a clock and two overlapping documents (no text or symbols)

Prog. hebdo

Dim Lun Mar Mer Jeu Ven Sam 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Forcer le dégivrage

Simple diagram with a dot and arrow inside a square frame (no text or symbols)

Pure mechanical diagram showing a lever and shaft without any text, numbers, or symbols

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Leistungsbetrieb

Abstract pixelated line drawing with no text or symbols

Flüsterbetrieb

Simple icon showing a tree and sun, no text or symbols present

Man. E-Heizung

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Wochentimer

So Mo Di Mi Do Fr Sa — ✓ ✓ ✓ ✓ ✓ —

So	Mo	Di	Mi	Do	Fr	Sa
1.	12:00am	EIN		25/20°C		40°C
2.	2:00am	EIN		25/25°C		40°C
3.	4:00am	EIN		30/20°C		40°C
1	2	3	4	5	6

Pixelated abstract shape resembling a flower or star (no text or symbols)

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Fehler-Reset

Pure mechanical diagram showing a lever mechanism without any text or symbols

Zorlu DHW

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Güçlü

Abstract pixelated line drawing with no text or symbols

Sessiz

Simple icon showing a tree and sun, no text or symbols present

Elekt. ısıtıcı

Icon showing a clock and a document with the number 7, enclosed in a rounded square frame.

Simple line drawing of a flower with petals and a star-like shape inside a rounded square frame (no text or symbols)

Zorlu Buz Çözme

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Hata Sifirlama

Simple line drawing of a padlock icon inside a rounded square frame (no text or symbols)

U/K Kilidi

Pure mechanical diagram showing a lever and shaft without any text or symbols

Tvinga VV

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Kraftfull

Abstract pixelated line drawing with no text or symbols

Tyst läge

Simple icon showing a tree and sun, no text or symbols present

Manuell värm.

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Veckotimer

Simple line drawing of a flower with petals and a star-like shape inside a rounded square frame (no text or symbols)

Tvinga avfrostning

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Felåterställning

Simple line drawing of a padlock icon inside a rounded square frame (no text or symbols)

R/C-lås

Pure mechanical diagram showing a lever mechanism without any text or symbols

Tvungen DHW

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Velg dette symbolet for å la varme-/kjølesystemet gå ved full effekt.

Abstract pixelated line drawing with no text or symbols

Stillemodus

Velg dette symbolet for stille drift.

Simple icon showing a tree and sun, no text or symbols present

Tvangsstyrt varme

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Ukeplan

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Tvungen avising

Pure mechanical diagram showing a lever mechanism without any text or symbols

Pakota DHW

Simple line drawing of a flexed arm inside a rounded square frame (no text or symbols)

Powerful

Abstract pixelated line drawing with no text or symbols

Hiljainen

Simple icon showing a tree and sun, no text or symbols present

Pakota lämmitin

Simple icon showing a clock and two overlapping documents (no text or symbols)

Viikkoajastin

Su Ma Ti Ke To Pe La — ✓ ✓ ✓ ✓ ✓ —

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Pakota sulatus

Pixelated icon of a padlock inside a rounded square frame (no text or symbols)

R/C-lukko

Pure mechanical diagram showing a lever and shaft assembly without any text or symbols

Tving DHW

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Powerful

Abstract pixelated line drawing with no text or symbols

Lydsvag

Vælg dette ikon for at stille drift.

Simple icon showing a tree and sun, no text or symbols present

Start el backup

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Ugeprogram

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Kraftig optøning

Pure mechanical diagram showing a lever mechanism without any text or symbols

DHW kényszerítése

Pixelated abstract shape resembling a stylized arm or weapon, enclosed in a rounded square frame (no text or symbols)

Abstract pixelated line drawing with no text or symbols

Csendes

Simple icon showing a windmill and a sun, no text or symbols present

Fűtés kénysz.

Icon showing a clock and two overlapping documents with the number 7, enclosed in a rounded square frame.

Heti időzítő

Pixelated abstract shape resembling a flower or star (no text or symbols)

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text or symbols

Zaženi DHW (topla sanitarna voda)

Izberite to ikono, da vklopite/izklopite Rezervoar tople sanitarne vode (DHW).

Pritisnite ←, da potrdite izbiro.

Opomba:

• Zaženi DHW je onemogočena, ko je vklopljen Zaženi Grelnik.
• Ko je Zaženi DHW vklopljena, se bosta delovanje in način spremenila nazaj v prej memoriziran status.

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Močno

Abstract pixelated line drawing with no text or symbols

Tiho

Izberite to ikono za tiho delovanje.

Pritisnite ←, da potrdite izbiro.

Simple icon showing a sun and a wavy tree, no text or symbols present

Pospeš. Grelnika

Izberite, da zaženete Grelnik.

Pritisnite ←, da potrdite izbiro.

(Način Zaženi Grelnik se začne približno eno minuto, ko je ← .)

• Zaženi Grelnik je izklopljen (off).

• Zaženi Grelnik je vklopljen (on).

Opomba:

Icon showing a clock and a document with the number 7, enclosed in a rounded square frame.

Tedenski časovnik

Ned Pon Tor Sre Čet Pet Sob 1. 12:00am ON 25/20°C 40°C 2. 2:00am ON 25/25°C 40°C 3. 4:00am ON 30/20°C 40°C ① ② ③ ④ ⑤ ⑥

Simple line drawing of a flower with petals and stem, enclosed in a rounded square frame (no text or symbols)

Zaženi odtajanje

Pure mechanical diagram showing a lever mechanism with no text or symbols

Aktiviraj DTV

Pixelated abstract shape resembling a stylized arm or muscle, enclosed in a rounded square frame (no text or symbols)

Jakom snagom

Za grijanje/hlađenje sustava jakom snagom odaberite ovu ikonu.

Za potvrdu odabira pritisnite ←.

(Rad jakom snagom počinje približno 1 minut nakon pritiska na ←.)


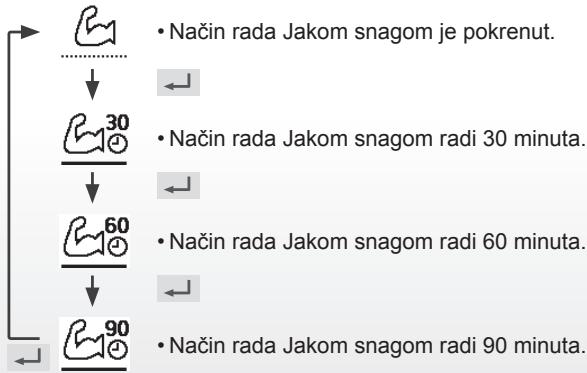

    H --> I["Način rada Jakom snagom je pokrenut."]
    C --> J["←"]
    E --> K["←"]
    F --> L["←"]
    G --> M["←"]
    I --> N["Način rada Jakom snagom radi 30 minuta."]
    K --> O["Način rada Jakom snagom radi 60 minuta."]
    L --> P["Način rada Jakom snagom radi 90 minuta."]

Napomena:

- Jakom snagom je onemogućeno kad je rad ISKLJUČEN.

Abstract pixelated line drawing with no text or symbols

Tiho

Simple icon showing a tree and sun, no text or symbols present

Forsirano grijanje

Odaberite aktivirati uključivanje Grijača.

Za potvrdu odabira pritisnite ←.

(Način rada Aktiviraj grijač počinje približno 1 minut nakon pritiska na ← .)

Napomena:

- Aktiviraj grijač je onemogućeno kad god je rad već uključen i bit će prikazano „Onemogućeno jer je UKLJUČENO“.

Simple icon showing a clock and two overlapping documents (no text or symbols)

Tjedni vrem. Prog.

Pixelated abstract shape resembling a flower or star (no text or symbols)

Aktiviraj odmrzavanje

Simple black arrow pointing right with a dot above, enclosed in a gray rounded square frame (no text or symbols)

Resetiranje pogreške

Odaberite kako biste povratili prethodne postavke kad se pojavi pogreška.

Za potvrdu odabira pritisnite ←.

(Kad je prihvaćen ovaj način rada, prikazivat će se donji zaslon.)

Zahtjev prihvaćen!

[→]Zatvori

© Panasonic Corporation 2017

Printed in Malaysia

Country	Hotline Phone Number
Hungary	[phone]
Netherlands	[phone]
Norway	[phone]
Poland	[phone]
Spain	[phone]
Sweden	[phone]
Switzerland	0800 - 001074
UK/Ireland	[phone]

Authorised representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

AEEE Compliance with Turkey Regulations
