USER MANUAL PEXS 270 A1 RANDOM ORBITAL SANDER PARKSIDE

RANDOM ORBITAL SANDER PEXS 270 A1

GB IE

RANDOM ORBITAL SANDER

Operation and Safety Notes

Translation of original operation manual

SE

EXCENTERSLIP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

F1

Intended utilisation.. Page 6
Features and Fittings.. Page 6
Items supplied.. Page 6
Technical data.. 6

General safety advice for electrical power tools

1.Workplace safety.
2. Electrical safety.. Page 7
3. Personal safety.. Page 8
4. Careful handling and use of electrical power tools Page 8
Safety advice relating specifically to random orbital sanders.. Page 9
Original accessories/tools.. Page 10

Before use

Selecting the Grinding Disc.. Page 10
Changing sanding sheets. Page 10
Dust/Swarf Removal by Suction Page 10

Commissioning

Switching on and off.. Page 10

Working instructions

Grinding Surfaces.. Page 11

Maintenance and Cleaning

Service centre

Warranty

Disposal

Declaration of Conformity/Manufacturer

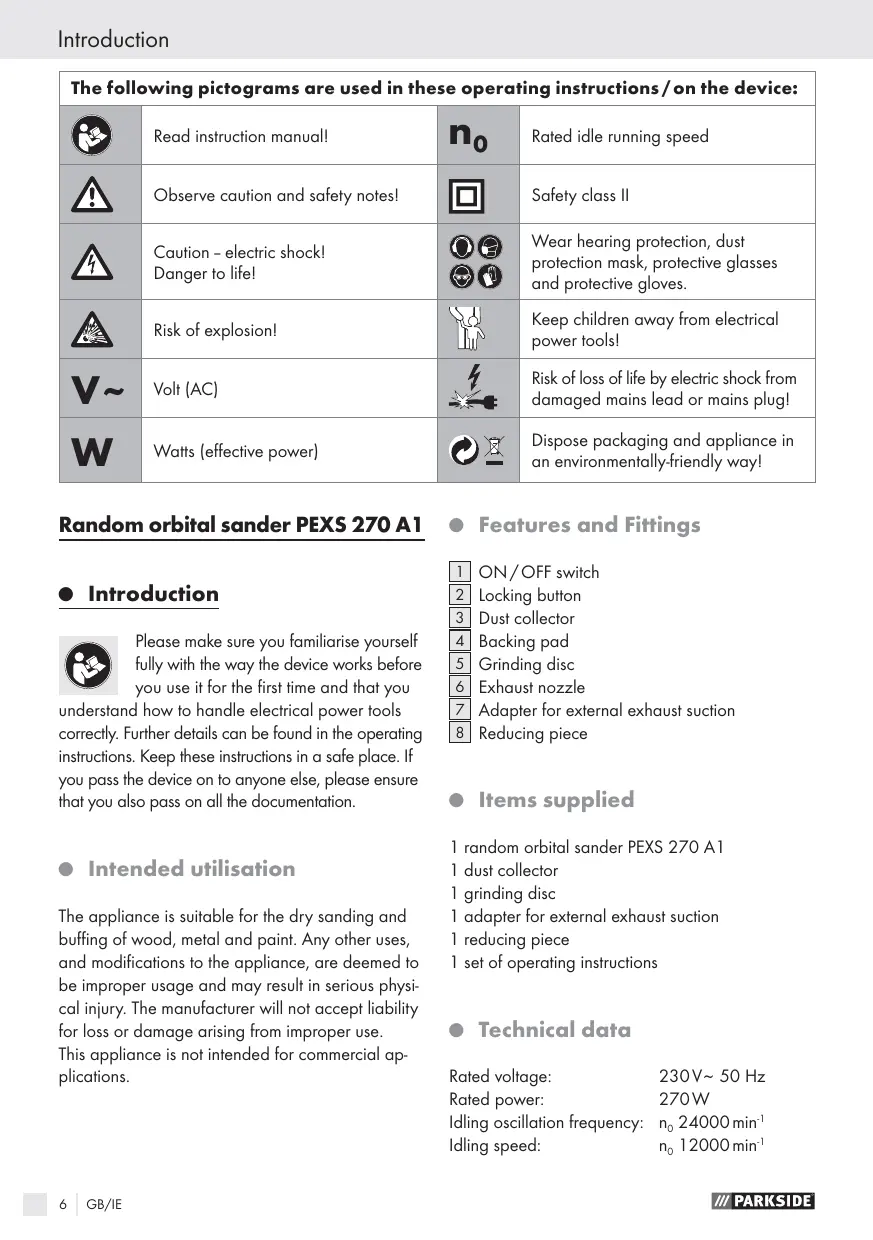

The following pictograms are used in these operating instructions/ on the device:
	Read instruction manual!	n₀	Rated idle running speed
	Observe caution and safety notes!		Safety class II
	Caution - electric shock! Danger to life!		Wear hearing protection, dust protection mask, protective glasses and protective gloves.
	Risk of explosion!		Keep children away from electrical power tools!
V~	Volt (AC)		Risk of loss of life by electric shock from damaged mains lead or mains plug!
W	Watts (effective power)		Dispose packaging and appliance in an environmentally-friendly way!

Random orbital sander PEXS 270 A1

Introduction

Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you

understand how to handle electrical power tools correctly. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

The appliance is suitable for the dry sanding and buffing of wood, metal and paint. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physical injury. The manufacturer will not accept liability for loss or damage arising from improper use. This appliance is not intended for commercial applications.

- Features and Fittings

ON/OFF switch
2 Locking button
3 Dust collector
4 Backing pad
Grinding disc
6 Exhaust nozzle
7 Adapter for external exhaust suction
8 Reducing piece

- Items supplied

1 random orbital sander PEXS 270 A1
1 dust collector
1 grinding disc
1 adapter for external exhaust suction
1 reducing piece
1 set of operating instructions

Technical data

Rated voltage: 230V 50Hz

Rated power: 270W

ldling oscillation frequency: n_024000min^-1

ldling speed: n_0 12000 min^-1

Sanding plate: 0 125mm

Protection class: II/回

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 83 dB(A)

Sound power level: 94 dB(A)

Uncertainty K: 3 dB

Wear ear protection!

Vibration total values determined according to EN 60745:

Vibration emission value a_h = 5 m / s^2 ,

Uncertainty K < 1.5 m/s^2 .

WARNING! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN 60745 and can be used to compare devices. Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the electrical power tool is used regularly in particular circumstances.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

General safety advice for electrical power tools

AWARNING! Read all the safety advice

and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts.

Electrical power tools create sparks, which can ignite dusts or fumes.

c) Keep children and other people away while you are operating the electrical tool.

Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat,

oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.

e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it. Accidents can happen if you carry the device with your finger on the ON/OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will

be in a better position to control the device in unforeseen circumstances.

f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use

the device. Many accidents have their origins in poorly maintained electrical power tools.

f) Keep cutting tools clean and sharp.
Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

Safety advice relating specifically to random orbital sanders

When working in outside areas, protect yourself against leakage current by fitting an FI protection switch with a max. activation rating of 30mA .
Use exclusively an extension cable that is certified for use outdoors
Secure the workpiece firmly. Use clamps or a vice to firmly hold the workpiece. This results in a safer grip than with your hand.
Under no circumstances should you place your hands next to or in front of the appliance or on the area to be worked, you could be seriously injured if you slip or stumble.
In event of danger, immediately remove the power plug from the socket.
Always run the power cable away from the appliance to the rear.
Ensure that nobody is endangered by flying sparks. Remove combustible materials from the immediate vicinity. Flying sparks are produced when metals are ground.

CAUTION! DANGER OF FIRE! Ensure that the material being ground and the grinder itself

do not overheat. Always empty the dust container before taking a break from work.

Grinding dust in the dust sack, microfilter, paper sack (or in the filter sack or filter of the vacuum cleaner) can ignite automatically under unfavourable conditions such as flying sparks when metal is being ground. There is a particular hazard if the grinding dust is mixed with paint or polyurethane residues or other chemical substances and the material being ground is hot after being worked on for a prolonged period.

A WARNING! TOXIC VAPOURS!

The working of materials that can produce harmful/ toxic dusts presents a health risk for the operator and for people located in the close vicinity.

Wear safety glasses and a dust protection mask!

• When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate external suction device.
  Provide for sufficient ventilation when working plastics, varnishes and paints.
• Do not soak materials or surfaces to be worked with liquids containing solvents.
  The electric tool must only be used for dry grinding. The penetration of water into the electric device increases the risk of an electric shock.

• Avoid sanding lead-based paints or other materials that are hazardous to health.
  Material containing asbestos may not be worked. Asbestos is considered to be a carcinogen.
  Avoid contact with the moving sanding sheet.
  Use the appliance only with a sanding sheet in place.
  Never use the appliance for purposes other than those intended and only with original components/accessories.
  Introduce the appliance to the work piece with it switched on. On task completion, lift the appliance from the work piece and then switch it off.

• Permit the switched off appliance to come to a complete standstill before putting it down.
  The appliance must always be kept clean, dry and free of oil or grease.

• Keep your workplace clean. Material mixtures are particularly dangerous. Light metal dust can burn or explode.
• Do not use the electric tool with a damaged lead. Do not touch the damaged lead and remove the mains plug if the lead becomes damaged while you are working with the device. Damaged leads increase the risk of an electric shock.

- Original accessories/tools

Use only the accessories detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

Before use

- Selecting the Grinding Disc

Metal Removal and Surface:

The rate of metal removal and the surface quality are determined by the grain size of the grinding disc.

• lease note that corresponding grinding discs with different grain sizes should be used for processing different materials.

- Changing sanding sheets

WARNING! RISK OF INJURY! Before

carrying out work on the appliance, always remove the plug from the power socket.

The rotary sander is fitted with a velcro rapid attachment, making possible a quick and easy exchange of sanding sheets.

• Lift the grinding disc 5 at the side and pull it off from the backing pad 4 in order to remove it.

Note: Before securing a new sanding sheet 5 , remove all dust and dirt from the sander plate 4 .

Ensure that the openings in the sanding sheet concur with the boreholes of the sanding plate.

Dust/Swarf Removal by Suction

Please note the "Safety instructions" section.

Removal by Suction with Dust Collector:

Push the dust collector 3 completely onto the device.
In order to empty the dust collector 3 pull it off the device.

Note: Empty the dust collector 3 in good time and regularly in order to ensure the optimum removal of dust by suction.

External Exhaust Suction (see Illustration A): Connection:

Push the adapter for external exhaust suction 7 on to the exhaust nozzle 6 and turn it clockwise to fix it in place. If necessary, use the reducing piece 8 by pushing it into the adapter for external exhaust suction 7.
Push the hose of an approved suction device (e.g. a workshop vacuum cleaner) on to the adapter for external exhaust suction 7, using the reducing piece if necessary 8.

Removal:

Pull the hose of the suction device off the adapter for external exhaust suction
Turn the adapter for external exhaust suction [7] in an anticlockwise direction and pull it off with the reducing piece [8] if necessary.

Commissioning

- Switching on and off

Note! Always switch the rotary sander on before applying it to the material to be worked, then make contact with it.

When operating the device you can select between intermittent or continuous operation mode:

To switch on intermittent operation mode:

Press the ON/OFF switch 1.

To switch off intermittent operation mode:

Release the ON/OFF switch 1.

Switching on continuous operation:

Press the ON/OFF switch 1, keep it pressed down and press the locking button 2.

Switching off after sustained operation:

Press the ON/OFF switch 1 and then release it.

- Working instructions

Wait until the electric tool has stopped moving before you put it down.

Grinding Surfaces

Turn the electric tool on, place the entire grinding surface on the substrate that is to be worked on and move it with moderate pressure across the workpiece (see Illustration B, C, D).
Note: The rate of metal removal and the grinding pattern are essentially determined by the grinding disc that has been selected and the grinding pressure. Only grinding discs that are in perfect condition will provide good grinding performance.
Please ensure that the grinding pressure is even. An excessive increase in the grinding pressure leads not only to a higher rate of metal removal, but also greater wear and tear on the grinding disc.
You should not use a grinding disc that has been used for working metal for other materials.

- Maintenance and Cleaning

WARNING! RISK OF INJURY! Before

carrying out work on the appliance, always remove the plug from the power socket.

The rotary sander is maintenance free.

Clean the appliance regularly, preferably directly on completion of the task.
Use a dry cloth to clean the device. Under no circumstances should you use petrol, solvent or cleaners which attack plastic.
- Keep the ventilation openings clear at all times.
Remove dust clinging to the sander with a brush.

Service centre

A!WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.

Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

e-mail: [e-mail]

IE

Kompernass Service Ireland

Tel: [phone] (0,082 EUR/Min.)

Standard call rates apply.

Mobile operators may vary.

e-mail: [e-mail]

Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2002/96/EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Declaration of Conformity/ Manufacturer C

We, Kompernaß GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EU Low Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2004/108/EC)

Applicable harmonized standards

EN 55014-2:1997/A1:2001/A2:2008

EN 55014-1:2006, EN 55014-2/A2:2008

EN 60745-1:2009, EN 60745-2-4:2009

EN 61000-3-2:2006, EN 61000-3-3:2008

EN 62233:2008

IEC 60745-1:2006, IEC 60745-2-4/A1:2008

IEC 60745-1:2006, IEC 60745-2-4:2002

Type/Device description:

Random orbital sander PEXS 270 A1

Date of manufacture (DOM): 09-2010 Serial number: IAN 56848

Bochum, 30.09.2010

Hans Kompernaβ

• Managing Director -

We reserve the right to make technical modifications in the course of further development.

Johdanto

Tryck in PÄ/AV-knappen 1.

Date of manufacture (DOM): 09-2010

Serienummer: IAN 56848

Bochum, 30.09.2010

Hans Kompernaβ

Nominal effect: 270W

Svingningstal i tomgang: n_0 24000 min^-1

Omdrejingstal i tomgang: n_0 12000 min^-1

Slibetallerken: 125mm

© by ORFGEN Marketing

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information - Stand der Informationen:

09/2010 - Ident.No.: PEXS 270 A1092010-3
