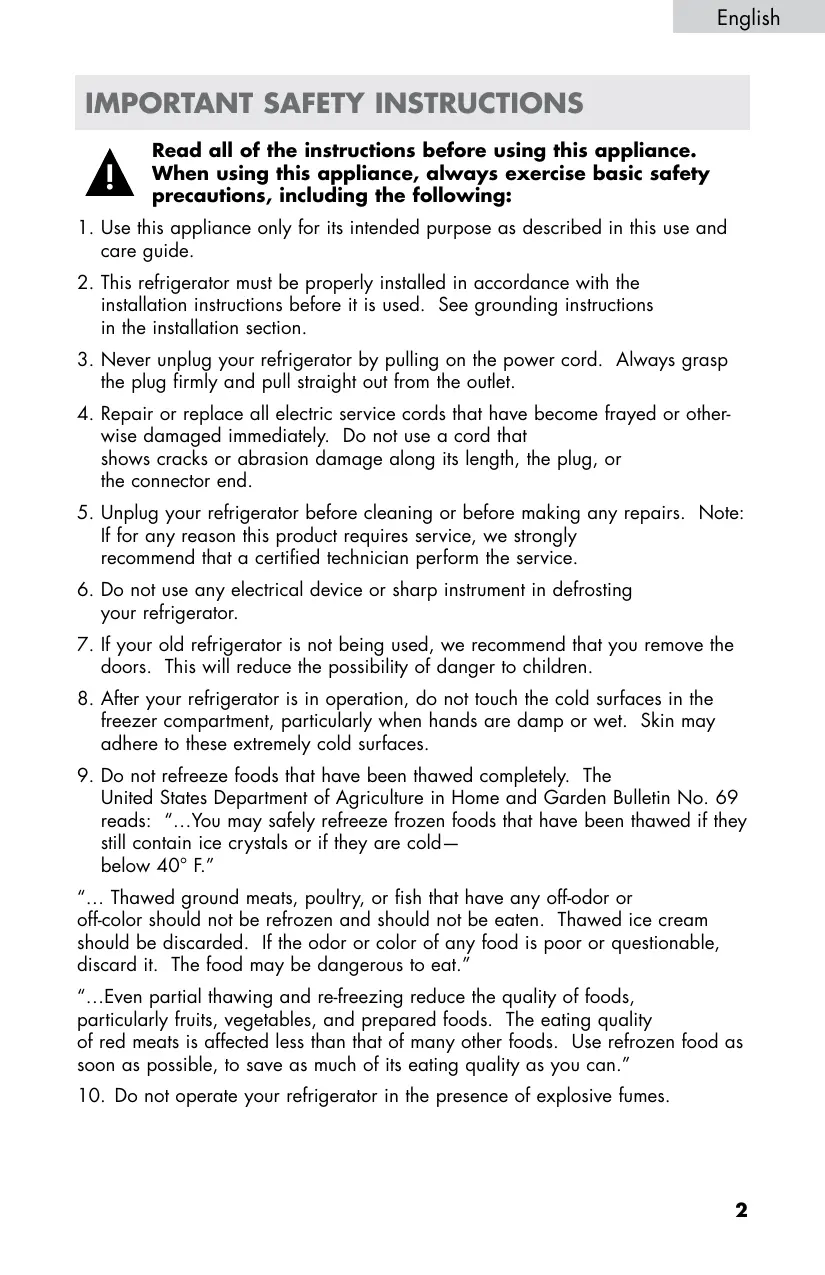

English important safety instructions

Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:

se this appliance only for its intended purpose as described in this use and care guide.

2. T his refrigerator must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installation section.

ever unplug your refrigerator by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

epair or replace all electric service cords that have become frayed or otherwise damaged immediately. Do not use a cord that shows cracks or abrasion damage along its length, the plug, or the connector end.

nplug your refrigerator before cleaning or before making any repairs. Note: If for any reason this product requires service, we strongly recommend that a certified technician perform the service.

o not use any electrical device or sharp instrument in defrosting your refrigerator.

7. If your old refrigerator is not being used, we recommend that you remove the

doors. This will reduce the possibility of danger to children.

fter your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

o not refreeze foods that have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “…You may safely refreeze frozen foods that have been thawed if they still contain ice crystals or if they are cold— below 40° F.” “… Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat.” “…Even partial thawing and re-freezing reduce the quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen food as soon as possible, to save as much of its eating quality as you can.”

10. Do not operate your refrigerator in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

DANGER Risk of child entrapment. Before you throw away your old refrigerator or freezer, take the doors off. Leave the shelves in place so that children cannot easily climb inside. IMPORTANT

ENERGY SAVER INSTRUCTIONS

*This product is equipped with energy saver feature. The refrigerator is shipped with the energy saver feature enabled. Over time, moisture can form on the front surface of the refrigerator cabinet and cause rust. If moisture does appear on the front surface of the refrigerator cabinet, horizontal mullion or top of freezer drawer, turn off the energy saver feature by following the instruction on page 18. Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your refrigerator. Remember to record the model and serial number. They are on a label inside of the refrigerator. Model number Serial number Date of purchase Staple your receipt to your manual. You will need it to obtain warranty service.

English installing your refrigerator Note: Refrigerator is for freestanding purpose. Unpacking Your Refrigerator

all packaging material. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before

powering on the refrigerator. Proper Air Circulation

• T o ensure that your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.
• T he following are recommended clearances around the refrigerator: Sides…………….1" (25mm) Top....................1" (25mm) Back..................1" (25mm) Electrical Requirements ake sure there is a suitable power outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator. void the use of three-plug adapters or cutting off the third grounding in order to accommodate a two-plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard. Use of Extension Cord void the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to, or greater than, the electrical rating of the appliance. Install Limitations o not install your refrigerator in any location not properly insulated or heated, e.g. garage etc. Your refrigerator was not designed to operate in temperature settings below 55˚ Fahrenheit. elect a suitable location for the refrigerator on a hard, even surface away from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the front bottom corners of the refrigerator.

English PARTS & FEATURES Fresh Food Section Fresh food storage floodlight Water filter Dairy product stored here Glide Shelf Gallon Door Bin Meats, fruit and vegetable crispers Full-width pantry Freezer lower drawer Freezer Section Upper storage bin Ice cube bin Lower storage basket Note: W hen reviewing this manual for your features some models may differ in appearance from what is shown in the manual.

You may not need to remove the doors, but if you have trouble getting the unit into its final location, please follow the below door removal and installation instructions. It is suggested, for your safety, to have two or more people to assist you in completing the below task to avoid bodily injury, product damage, or property loss. It is extremely important for the water line connector and tubing on the back panel to be reattached properly. Failure to do so can result in a leak at the connection or dripping at the dispenser. How to Disconnect the Water Line (Only applicable to HB21FC75*)

nplug unit from power source and remove the top hinge cover (5 screws) and water line cover (1 screw).

isconnect the plastic water line from the connector on the back panel by first removing the black locking clip on one end of the connector. (Illustration 1) [Illustration 1] Black Locking Color Mark

epress the white end of the union inward while pulling the tubing outward. Repeat for the other end. (Illustration 2) [Illustration 2] White End of the Union

ull the water line A out of cabinet from the front of unit as seen in Illustration

5) T o disconnect the electrical wires, push down on the locking tab of the plastic

connectors and gently pull the two ends apart.

emove the top hinges (4 screws on each side) and lift off the doors. Remove the middle hinges (3 screws) if necessary. [Illustration 3] Water Line Cover Water Line A Connector Water Line B Screw B Screw A Black Locking Clips [Illustration 4] Electrical Conectors Hinge Screws Water Line A How to Reconnect the Water Line (Only applicable to HB21FC75*)

einstall the cabinet side tubing (Water Line A, Illustration3) to the connector by firmly pushing the tubing into the union as far as it will go. Follow the color mark on the tube as seen in Illustration 1. Do not depress the end of the union when inserting the tube. Replace the black locking clip.

epeat at the back panel of the union (Water Line B), again making sure that the tubing is inserted as far as it will go. Follow the color mark on the tube. Replace the black locking clip.

e careful not to bend or distort the tubing. Also check to ensure there are no foreign objects in the connector, union, or tubes. Disconected Disconected the cable,crew the cable,crew cable,crew out the outearth the earth earth line.Disconected line.Disconected the the the Disconected the out the line.Disconected waterwater water pipe on pipe the onback the back back theat atsame the same same time,pull time,pull out the outpipe the from pipe from from pipe the the time,pull out the pipe Left French Door Removal and Installation the cabinet,then the cabinet,then cabinet,then take the take door the door off.(only door off.(only off.(only PBFS21* PBFS21* and PRFS25*) and PRFS25*) PRFS25*) the take the PBFS21* and

1. First remove the top hinge cover as below.

2. Disconnect the wire cable connector and ground wire from the unit.

3. Remove the middle hinge, if needed.

4. Re-install the door in the reverse order.

When lifting the hinge as it separates from the door, be careful it doesn’t lean forward and fall, causing bodily harm or damaging the door.

English Right French Door Removal and Installation

emove the screws on the top hinge cover, then set aside the top hinge cover and lay it down for installing later.

sing a proper tool, remove the top hinge screws. Remove the hinge, then take the refrigerator door off and place it aside for the time being. Disconected the cable water pipe on the bac the cabinet,then take t

3. Remove the middle hinge, if needed.

4. Re-install the refrigerator door in reverse sequence.

When lifting up the refrigerator hinge and separating it from the door body, please be careful not to drop the door. causethebodily harm or damage. Disconected the cable,crew out the line.Disconected the Disconected the cable,crew out It the earth line.Disconected Disconected the cable,crew outcould the earth earth line.Disconected the the the time,pull out the waterwater pipe pipe on the at the time,pull out the fromfrom water pipe onback the back back atsame the same same time,pull outpipe the pipe pipe from the the off.(only PBFS21* the cabinet,then take take the door off.(only PBFS21* and and PRFS25*) the cabinet,then cabinet,then take the door door off.(only PBFS21* and PRFS25*) PRFS25*) Removing and Installing Freezer Drawer (IF REQUIRED)

1. F irst open the drawer as far as possible, and then remove the screw on each

side of the drawer as seen in illustratin 5.

2. T hen pull the drawer body up and towards you, and put it aside in a safe

place as seen in illustratin 6.

3. Re-install the drawer in the reverse order.

Caution: K eep children from playing inside the freezer drawer as a hiding place. Use caution after drawers are removed, due to the possibility of the plastic track protruding from unit. Illustration 5 Illustration 6

English Connecting the Water Supply Line Note: It is consumer's responsibility, if not using a licensed plumber, to follow your local plumbing codes. Install the “shut off” valve on the water pipe.

1. T urn off the main water supply pipe. Turn on the

nearest tap until the water pipe is cleaned completely.

hoose the position of the valve. Choose a position for the valve that is easy to install and reach. It is recommended to install the valve on the side of a vertical water pipe. It is better to connect the valve to a level water pipe on the upside of the water pipe, not the downside, so the sediment may flow out from the water pipe.

rilling the “shut off” valve hole: Drill a 1/8” diameter hole on the water pipe using a sharp drill. Clean off burrs left on the water pipe by the drill. Use caution to prevent any water flowing into the drill.

4. T ightening the “shut off” valve: Tighten the valve

on the cold water pipe using a pipe nip. Follow the rules specified in the 248CMR of Massachusetts Federal Piping Standard. Saddle-backed valves are unlawful in Massachusetts and forbidden. Please consult a plumber if you are unsure of the correct method to install the valve.

5. T ightening the pipe tip: Tighten the bolts of the

pipe tip until the closing circle begins to expand. Don’t let the bolts of the pipe tip be too tight, otherwise the water pipe is pressed flat and will cause a leak.

ositioning the water line to the refrigerator: Position the water line between the cold water pipe and the refrigerator. Drill a hole in the wall or on the floor that is near the wall and the location for the fridge. Add extra length for the water supply line, about 8 feet (2.4 meters) and make three circles with the diameter of each circle about 1 foot, so there is extra line to move the fridge in and out for cleaning (unit away from the wall).

onnecting the water line to the “shut off” valve: Put the tightened nut over the copper or plastic water line, then the compression fitting, and insert the copper (or plastic) end inside the “shut off” valve. Make sure the pipe end sits all the way inside the valve. Tighten (but don’t over-tighten) the nut. Follow the descriptions specified in 248CMR of Massachusetts Federal Piping Standard. Saddle-backed valve is unlawful in Massachusetts and is forbidden. Please consult a licensed plumber if you are unsure of the assembly.

lear the water line supply: Turn on the main water supply until the water in the pipe becomes clear and clean. Turn off the water valve after having used water for about 30 seconds – 1 minute.

9. Connect the water supply line to the refrigerator.

Note: B efore connecting the water line to the refrigerator, make sure the water line is not draped over the power cord to the refrigerator or power outlet. (1) T ighten the water supply line at the fridge water valve by sliding the nut over the water line end. (2) T hen, as shown in the figure, connect the end side of the water supply line to the water valve; tighten the water supply line nut with a crescent wrench. Note: P lease make sure that the 1/4" water tube is fully inserted into the water valve prior to tightening. Open the water supply valve and check for leaks, before positioning the unit in place.

English Preparing before Use

1. Remove all packaging material.

heck to make sure all parts and materials are available in the fridge. Consult the seller for help if you find parts are missing.

3. Place the refrigerator in a good location (See Install Limitations on page 4).

4. T oe grille installation: Open the freezer drawer and remove the basket inside.

Install toe grille with screws from bag.

5. F or the convenience of record keeping, the model and serial number,

purchase date, and receipt should be copied and taped to this manual for safekeeping.

6. It is recommended to clean the refrigerator before use. Before putting food in

the refrigerator, please clean the inside and outside with water and diluted baking soda. Dip clean cloth in gallon of water and spoonful of baking soda.

osition the fridge then plug it in. After the refrigerator is placed on a flat surface and cleaned, turn on the power then let it run a few hours, then begin loading it with food. Initial Usage

1. Plug in the power cord.

2. Change the settings to the temperature desired.

utting the food into the refrigerator: The refrigerator will be cooled completely after a period of a few hours. After that, frozen and fresh foods can be put into the refrigerator for normal use. When changing internal temperatures, a new balance temperature will occur after a period of time. The length of this period of time depends on the degree of the temperature change, the ambient temperature, the frequency of door openings, and the amount of stored food in the fridge.

English Setting the Control Functions Exterior Refrigerator Control Center (Only for HB21FC75*)

Press the button “A”, the Express Chill icon “T” will light and the refrigerator will be in Express Chill mode. The refrigerator will stop the Express Chill mode if the actual storage temperature is 2 degrees Fahrenheit or 1 degree Celsius lower than the set temperature or after 3 hours. Press the button “A” again if you wish to exit Express Chill mode, icon “T” will go out then.

English (2) Express Freeze setting *

The function of Express Freeze is to refreeze the food in the shortest time. Press the button ”B”, the Express Freeze icon “S” will light and the freezer will be in the Express Freeze mode. It will remain in this mode for 21h to 42h, depends on the actual situation. You can press button “B” if you wish to end the express freeze mode early. (3) Quick Ice setting* You can select Quick Ice if you need to increase ice cube production.

Press the button “C”, the Quick Ice icon “V” will light and the freezer will be in Quick Ice mode. 24 hours later it will exit Quick ice mode automatically. Press the button “C” again if you wish to end the Quick ice mode, icon “V” will go out then.

The ice maker must be set to ON for the "Quick Ice" function to work. Please ensure that the ice maker is ON when you select “Quick Ice”.

• F or the functions of Express Chill, Express Freeze, Quick Ice can be activated or deactivated either on the interior controls or exterior controls.

English (4) Alarm/ Lock and Unlock

The door open alarm will activate after 60 seconds. Press the “D” button for a second to silence the alarm. The door open alarm will re-activate after 5 minutes if the door remains open. Press and hold the button “D” for 3 seconds in an unlocked status, after the first beep, icon “W” will light, it shows the controls on the dispenser panel is locked. Press and hold the button “D” for 3 seconds again, the unit will beep and the icon “W” goes out, then the unit has exited the locked status. (5) Time Setting In the unlocked status, press and hold the buttons “A” & “C” at the same time for 3 seconds, the unit will beep and the clock indicator “O” will flash. Press button “A” to set the hour (1-12) and press the button “C” to set the minute (00-59). AM and PM will shift at every 12 hours. (6) Room Temperature Display “Q” shows the room temperature of the refrigerator at present. (7) Ice maker on-off The ice maker is initially set to ON, the icon “U” on the dispenser will light if ice maker under normal operation.

To activate or deactivate function please see page 17, "Ice Maker On / Off".

M N J. Refrigerator Temperature Decrease Adjusting Button F. Freezer Temperature Decrease Adjusting Button K. Refrigerator Temperature Increase Adjusting Button G. Freezer Temperature Increase Adjusting Button L. Refrigerator Quick-chill Button H. Freezer Temperature Indicating Area M. Water Filter Reset and Energy Saver Button

I. Refrigerator Temperature

Indicating Area N. Water Filter Indicator Light (1) Fresh Food temperature adjustment ENERGY SAVER

Press Button J or Button K: The fresh food temperature control center will flash. When the temperature is set, the temperature range is 34 to 46 degrees F. Each time you press Button K, temperature will increase a level, until the highest temperature level is reached. Each time you press J, the temperature will decrease a level, until the lowest temperature level is reached. (2) Freezer temperature adjustment ENERGY SAVER

Press Button F or Button G on the freezer temperature control center: Area H will flash. When the temperature is set, the range of the freezer is -6 to 6 degrees F. Each time you press Button G, the freezer temperature will increase a level, until the highest temperature level is reached; each time you press Button F, the freezer temperature will decrease a level, until the lowest temperature level is reached.

English Setting the Control Functions (cont'd) (3) Freezer Express-freeze setting ENERGY SAVER

Press Button E: The Express-freeze button indicator lamp will light and the freezer will be in the Express-freeze mode. It will remain in this mode for 21-42 hours. You can press Button E if you wish to end the Express-freeze mode early and the Express-Freeze button indicator lamp will go out and the freezer will exit ExpressFreeze. (4) Fresh Food Express-chill setting ENERGY SAVER

Press Button L: The Fresh Food Express-chill refrigerator button indicator lamp will light and the refrigerator will be in the Express–chill refrigerator mode. The refrigerator will stop Express–chill mode if the storage temperature is 2 degrees Fahrenheit or 1 degree Celsius lower than its desired temperature or after 3 hours. If you want the refrigerator to exit Express-chill mode, press Button L again. The Express-chill button indicator will go out, and the refrigerator will exit Express-chill. Caution! W hen the refrigerator is in the Express-freeze or Express-chill modes, the refirgerator may run continuously to achieve the requested cooling function. This is a normal operating condition. (5) Quick–ice function ENERGY SAVER

M N Press Button "E" and "M" at the same time for three seconds: The indicator light N of the water filter will flash, and the freezer will be in the Quick–ice mode; 24 hours later it will exit the quick-ice mode automatically. Press Button E and M at the same time for three seconds again to exit the Quick–ice mode.

Press Button G and J at the same time for three seconds: The indicator lamp E will flash, and icemaker will turn off. When you press Button G and J at the same time for three seconds again, the icemaker will turn on again. (7) Sabbath function ENERGY SAVER

Press Button E and L at the same time for 3 seconds: The interior lights, LED displays and chimes will turn off. Press Button E and L at the same time for 3 seconds again and the chime will sound and the lights and displays will turn on ending the Sabbath mode. (8) Celsius/Fahrenheit conversion function ENERGY SAVER

Press Buttons F, G, and J on the control center at the same time for 3 seconds: Celsius Temperature Readings will be in effect after the first sound of the chime. Press Button F, G, and J on the control center at the same time for 3 seconds again to switch to Fahrenheit mode. Fahrenheit mode will be in effect after the first sound of the chime. (9) The water filter indicator setting (Only for 75 & 45 Models) ENERGY SAVER M N When the indicator light of the water filter is lit up, the water filter should be changed. After the water filter is changed, press and hold the water filter reset button M for one second. The indicator light of the water filter N will go out. Caution! When the water filter needs to be changed, please refer to the “water filter” section. MUST FLUSH 3.75 GALLONS THROUGH FILTER BEFORE USE (approximately 5 minutes.) Note: Our water filters comply with California Regulations.

English Setting the Control Functions (cont'd) (10) Energy Saver

1. T he energy saver button is initially set to ON. You can see "ES" on the right

display for 3 seconds when you open the refrigeration doors, then it will turn back to show the refrigeration temperature.

y pressing and holding the "energy saver" button M on the control panel for 5 seconds, you can turn on or off the Energy Saver feature. ENERGY SAVER

3. "ES" will appear only when the Energy Saver in the ON position.

1. Compressor and fan motors do not operate in the demo mode.

ress Button F, G, and K at the same time for 3 seconds: After the first sound of the chime, the demo mode will be in effect. The temperature displays will show "- -". Press Button F, G, and K at the same time for 3 seconds again, and the demo mode will be cancelled. (12) Power Surge protection The refrigerator is equipped for power surge protection. When a power surge is detected, the refrigerator will turn off automatically. The refrigerator will automatically restart after 5 minutes. (13) Loss of Power Return Setting When a power loss occurs, the settings of the refrigerator before the power break are memorized. This allows the refrigerator to return to the previous settings when it is turned back on. (14) Display If the display does not operate properly but you still hear accompanying tones when you press buttons, this means the buttons are still working. However, you should call an after-sales service engineer to fix the problem to ensure optimum performance.

English About the fresh food compartment hort term fresh or frozen food can be placed in the upper fresh food section or in the ice cream drawer. Keep raw foods near the lower area, away from ready to eat food in the top area.

• T he height of the cantilever shelves can be adjusted to fit your storage needs. When adjusting the height of the shelf, first remove any foods placed on the shelf. Then lift up by tilting the front up and pull it up. This will unlatch the rear hooks. Then place the hooks in a new ladder slot location and tilt back down into position on an even, horizontal plane. Caution! Make sure that the two sides of the shelf are in balance, otherwise, the shelf may fall down or the food may slide. risper use The refrigerator is designed to include a fruits, vegetables, and/or deli crisper. The inside temperature can be adjusted according to the type of food being stored.
• T urn up the humidity control button on the right side of the crisper, for a high humidity, to store cucumbers, grapes, oranges, apples, peaches, lettuce, and other produce that’s high in moisture.
• T urn down the humidity control button on the right side of the crisper to lower the humidity. This is suitable for storing meats, cheeses, onions, tomatoes and other drier foods.
• F ull-width pantry and its usage The refrigerator is specially designed to include a full-width pantry. The inside temperature can be adjusted, depending on the type of food to be stored there. Note: To avoid damage do not press the air-adjusting button too hard. Door bin height adjustment and cleaning To change location, lift up the door bin while holding it by its two sides, and pull it straight out. After being cleaned, the door bin can be installed in the reverse manner, and the position can be adjusted according to the height of the food to be stored. Crisper cover removal Lift up the shelf, then pull it straight out. Caution! W hen adjusting the height of the door bin, it is better to keep the dairy bin above the door bin.

English Food Storage Tips (cont'd)

• It is recommended to keep some space between foods for good cold air circulation. The temperatures in the refrigerator are slightly warmer near the top and colder near the base.
• Changing the Fresh Food Light Bulbs The voltage and wattage of the fresh food bulbs are: 115volt, 60 Hz – 40W. (Never use bulbs with power over 40W.) The lamp holder is type E17 intermediate size. When changing the light bulbs:
• Pull out the power cord plug from the wall outlet, cutting off the power.

1. Remove the screw securing the light shield.

se your hands to press down at the back of the light-shield, releasing two tabs.

3. Hold the light-shield and pull it out.

• T urn the bulb in a counterclockwise direction, and put in a new bulb by turning it clockwise. e-install the light-shield back in the tabs in the reverse order, and snap back in place.
• Removing and installing air curtain (only for servicing if needed).

1. Remove the water filter.

2. Take off the fresh food light-shield, and unscrew the bulb.

3. Remove the screws of the air curtain frame, using a screwdriver.

4. T ake down the fresh food air curtain, using your hands to press down

on the air curtain with a little bit of pressure.

• Re-install the air curtain by following these steps in the reverse order.

English FRESH Food Storage Tips Before putting hot foods into the refrigerator, first let cool until they reach room temperature. Foods stored in the refrigerator should be cleaned and the water drops patted off after cleaning. Before foods are put into it the refrigerator to be stored, it is recommended that the foods should be pressurized, so that the water cannot vaporize, fruits and the vegetables can keep fresh, and the smells of the foods will not mix together. Stored foods can be marked in bags. Store the foods independently according to the different kinds of foods. Daily eaten foods should be stored in the front of the shelf. Try avoiding frequent door openings as it reduces food shelf life. When storing food in the fresh food section make adequate space for air flow circulation. This helps maintain the shelf life of the food. When you store the foods, you should make sure that the foods stored in the refrigerator are not too close to the liner to avoid foods freezing on the back or side walls of the refrigerator. It is suggested for radishes and other root vegetables to trim the leaves before storage. This keeps nutrients in the root so the leaves do not absorb them. Put the refrigerated foods into the fresh food area to let them defrost. The low temperature of the refrigerated foods reduces the formation of bacteria and extends food life. Some foods like onions, garlic, bananas, and root vegetables are better stored at room temperature than in the fridge. Melon, pineapples, and bananas can go directly into the freezer after preparing if storing over longer period.

• T he freezer is suitable for storing food for a long time. The temperature inside the freezer is low (between -6 and 6 degrees F). It keeps foods fresh for a long period of time. Frozen foods should be wrapped and marked when stored to track storage time period. The electrical rating of the bulb is: 115V, 60 Hz-40W. The lamp holder is type E17. (Never use bulbs with power over 40W.) How to change the freezer light bulb:
• Pull out the power cord plug to cut off the power.
• L ift the light-shield slightly in the direction upward, and then pull it out in the direction shown.
• T urn the bulb counterclockwise and drop it down, then install a bulb of the same rating.
• Re-install the light-shield in the reverse order.

English Precaution when Freezing Food Before hot foods are put into the refrigerator, first let them cool until their temperature reaches the room temperature. Divide the food into small portions, so it is easier for it to be stored in the fresh food area. Each portion should be marked so the contents and date can be checked before cooking. Each portion of the food should be not more than 5.5 pounds (2.5 kg). The food should be in packages before it is frozen. Keep the surface of the package dry. This keeps the packs from freezing together. The package material of the foods should be odorless and airproof so different stored foods may be mixed without affecting their quality. Food should be stored based on use. Food should be classified according to its use. Write the date, expiration date, and food name on the outside of packing materials so you can be assured of the food and when it is safe to eat. Take food from the freezer to defrost when needed. Defrosted food cannot be frozen again unless it is cooked. Otherwise, it will affect food quality and safety. Do not put too much fresh food into the freezer at once. This could go beyond the freezer’s cooling capacity. (Refer to “Technical Data.”) Usage of Icemaker

1. Preparation before using the icemaker:

a) C ut the water pipe according to need, and avoid bending the water pipe too much. Usually the length should be less than 18ft. (5 m). If the water pipe is too long, the ice maker capacity will be affected because there is not enough water pressure. b) The water pipe cannot stand heat. Keep it away from heat sources. c) You may want to have a service engineer install the water pipe. d) W ater supply pipe instructions: The cold water pressure should be between 21-123 psi for automatic ice making. e) T he water filter is for removing chlorine and odors from the water. It cannot sterilize or destroy anything–therefore, make sure to connect the water pipe to a drinkable water source.

a) T o prevent the pipe from freezing, do not install the water pipe in a place below 32° F. b) O pen water valve to flush pipe, and check leakage in water pipe joints until water is clean. c) W hen temperature of icemaker is equal to or below 5˚F, the icemaker will begin to make ice. (Throw out the first several batches of ice cubes if you make ice after not having made it for a long time.) d) A fter the fridge is installed, put the water supply pipe in a proper place to prevent pressing and damage. e) T he filter in the water pipe is there to filter impurities in the water and to make ice clean and hygienic. Therefore, the filter will absorb impurities during normal use. After a long time of usage, if the cubed ice becomes smaller, it may mean that the filter is blocked from the impurities. After 6 months of use, the “Change Filter” indicator light will turn on. At this time, we suggest going to your local authorized Haier after-sale service center or call 1-877-337-3639. After you change the filter, press and hold the water filter reset button for one second, the indicator light will turn off. The refrigerator comes with a filter installed; after this you have to buy and change the filter yourself. f) The ice maker should only be connected to a source of drinkable water.

3. Icemaker Operation:

The icemaker tray periodically receives an automatic flow of water to the icemaker ice cube tray. Once the water freezes a sensor on the tray recognizes cubes have been made and automatically twists the tray to drop the ice cubes into the ice bucket. Capacity of the icemaker depends on the ambient temperature, frequency of freezer door openings, and freezer compartment cooling temperature setting. Typically ice harvest per day is 4 pounds of ice.

4. If this is your first icemaker:

Occasionally you may hear some sounds, like flowing of water or ice cubes dropping. These sounds are normal. Occasionally, in periods of infrequent ice use, cubes may stick together. This is normal.

5. If you do not use ice often:

Older ice cubes can get stale. Clean the ice container periodically with warm water. Before putting it back, dry it well so cubes do not stick to surfaces.

English Usage of Icemaker (cont'd)

6. When you do not use the ice bucket for long periods of time:

If you will not be using the ice container for a long time, throw out the remaining ice cubes, wash the container with warm water, dry it with a towel, and place it back in the fridge. Then close the water supply valve to the fridge. Note:

our upper left freezer compartment is arranged to load ice cubes, the right compartment is for ice cream or small size frozen food.

hen opening the ice tray avoid rapid pullout, which can cause ice cubes to fall into the lower deep freeze drawer.

hen icemaker is dropping ice into the center drawer ice bucket, a signal of circling dashes will appear on the dispenser clock screen. It is recommended for the user to wait for the ice cubes to drop before opening the ice tray.

4. If the cubes coming from the ice maker are small/ deformed, an adjustment of

the water inflow time may need to be made. Press and hold the buttons F, G, J, and K at the same time for 3s, the unit will beep. Then water inflow time of the ice maker can be regulated. The freezer temperature display area “H” will show the water inflow time. Press button F to decrease the water inflow time and press button G to increase the water inflow time. The factory inflow time is set to 6.5 seconds.

English Defrosting and Cleaning

• Defrosting Defrosting is done automatically, so there’s no need to manually defrost this fridge.
• Cleaning To keep internal odors to a minimum, it is best to periodically clean the inside shelves, crispers, bins, and walls. For your safety, before cleaning, pull out the power cord plug. Clean the fridge using a soft cloth or sponge with warm water. When done, dry off the areas with a dry clean cloth.

1. T he fridge is heavy. When you move the fridge for cleaning or maintenance,

be careful to protect the floor. When you move the fridge, keep it vertical. Do not tilt the fridge. This helps prevents damage to the floor.

uring cleaning, do not spray or rinse the fridge with water or liquids. This could harm the electrical parts.

hen you clean near the electrical parts, like the light switch or bulb, use a dry cloth.

o not clean the fridge with a stiff or wire brush. Do not use solvent such as detergent, petrol, lacquer, thinner, acetone, or acid. Warm water is best.

ake sure your hands are not wet when you touch cold steel parts, to prevent your skin from sticking to the steel parts.

uring cleaning, do not use hot water to clean the glass shelves, or they may break or crack. This could cause personal injury and/or damage the fridge.

7. Door gaskets often collect dirt so please clean them off with a damp cloth.

English Changing Water filter

• When the “water filter indicator light” is on: If the “water filter indicator light” is on, it is indicating that you should change the water filter. You should change the water filter at least every six months or when the water capacity or the ice-making capacity has shown an obvious decrease. Please pay attention to the water condition you are receiving, as you may need to change the water filter frequently due to the difference between water properties in different areas. Please note: D epending on the water source quality, you may need to change your water filter more frequently than every 6 months.
• Changing the water filter:

1. Remove the old filter by turning the filter cartridge handle counterclockwise.

2. The cartridge will eject slightly from the filter housing.

3. Pull out the cartridge from the filter housing.

Caution! W ater may be retained in the old filter cartridge. This could cause some water spillage through the filter housing drain.

emove the protective heat seal from the new filter cartridge. Insert it into the filter housing with the filter cartridge handle in the vertical position. Then push the filter cartridge into the housing until it stops.

ently turn the cartridge handle clockwise until it stops. The cartridge handle should now be horizontal.

un the refrigerator water dispenser for 3-5 minutes after replacing the filter to flush out the water tank. Discard this water.

7. After replacing the Haier filter cartridge, reset the water filter indicator lamp.

1. The ice maker can not be used without the water filter.

2. F or filter replacement questions or information on your Haier appliances,

contact your dealer or call 1-877-337-3639. Note

o not use water filter or icemaker with water that is microbiologically unsafe. If you are not sure that it is safe, do not use without disinfecting the water before or after it goes through the system.

fter installing a new water filter, discard all ice produced during the first 24 hours.

3. If the icemaker has not been used actively for an extensive period of time, or if

ice cubes have an unpleasant taste or odor, change the water filter.

ir trapped in the system may cause water and filter cartridge to eject. caution when removing. Use

English Shutting off the Refrigerator

• Handling Power Failure Foods can be stored well after several hours of a power failure, even during the summer. After a power failure, do not put new food into the fridge, and open the door as infrequently as possible. If you are aware there will be a power failure ahead of time, make ice cubes and put it in the upper part of the fresh food compartment. Note: If the temperature becomes warmer in the freezer due to a power failure or other malfunction, the expiration date on frozen food may change, and food quality may decrease.
• Discontinuing Use If you do not want to use the fridge for a long period of time, pull out the power cord plug. Cut off all power supply and water sources. Clean the fridge as directed in this manual. Leave the fridge door open to prevent any odors from accumulating. Note: N ormally, the fridge performs best when it is left on to run continuously rather than unplugging it and energizing frequently.
• Vacation If you will be on vacation for a long time, cut off the power source and water supply, and take out all food. Clean the interior of the fridge after any frost melts. Wipe it clean to remove any food residue that could cause odors. If the ambient temperature is below freezing, call qualified service personnel to drain the water system. This prevents leakage and keeps the pipes from bursting due to frozen water.
• During Transport Pull out the power cord plug and cut off the power. Remove all food. Fix all moveable parts with good adhesive tape, such as fresh food and freezer shelves, and crispers. Close the fridge doors and drawers and fix with tape to prevent opening during transport. During transport, the maximum slant angle must not be over 45 degrees (from vertical standing) to prevent damage to the cooling system. During transport, do not hold the handle of the fridge. This could cause property damage and is a threat to personal safety. Note: It is suggested that you do not lay the refrigerator flat while transporting. This could cause oil to drain from the compressor. If you must transport this way allow the fridge to stand vertically for 4-6 hours so oil can return into the compressor before turning on the fridge power.

English Troubleshooting Before calling for service, please first read the following table. This could save you time and money. In this table, common problems are discussed which can be corrected with minor adjustments by you. Problem Cause Solution The temperature is too low. The

• The refrigerator is in deep compressor freeze cooling. doesn’t work

• T he refrigerator isn’t powered on.
• T he fuse or the circuit breaker for room has tripped off.
• There is no line electricity. The fridge runs frequently or runs for a long time.

• T he room temperature or outside temperature is too high.
• T he automatic icemaker is in operation.
• T he doors or drawers are frequently being opened and closed.

• T his case is normal for a fridge automatically. The period of deep freeze cooling lasts about 30 minutes. ake sure the power cord plug is inserted all the way into the power outlet. heck and change to a new 15A fuse and/or reset the circuit breaker. heck the power line in the room. Call the local electric company.
• In this case it is normal for the fridge to operate continuously.
• T his is normal since the icemaker adds an extra workload in the fridge.
• T ry to reduce frequency of door or drawer openings.

• T he control settings are
• Raise up the compartment settings in freezer and temperatures slightly and fresh food are set to a cold allow 24 hours to reach level. new balance.
• Clean off the gaskets and/or gasket seals may be dirty, heat slightly with hair dryer so frayed, or cracked. gasket takes contour of metal frame.
• The condenser is dirty.

English Problem Cause Solution The compressor frequently cycles on and off. The compartment temperature sensors keep the fridge at the set points causing the compressor to cycle. This is normal. The fridge compressor will provide required cooling. The tempera- The temperature inside the ture inside freezer section is set too low. the freezer is too low, but the fresh food temperature is fine. Set the temperature in the freezer slightly higher, and then wait 24 hours for new balance to be achieved. The tempera- The temperature inside the fresh food area is set too ture inside the fresh low. food is too cold, while the freezer sections are fine. Set the temperature inside the fresh food section slightly warmer. The temperatures will reach new balance within 24 hours. The foods stored in the full width pantry are frozen.

• T he control setting in the fresh food area is set too cold.

et the fresh food control setting higher. The new set point temperature will reach a balance within 24 hours. The foods stored in the crisper are frozen.

• T he settings for the fresh food compartment are too cold.

aising the fresh food control settings to a slightly higher temperature and/or lowering the humidity control setting will prevent frost or ice forming. Readings on the display are showing error codes

n electronic operating problem has been encountered.

• Call your Haier service engineer, who can diagnose the problem and make corrections.

English Problem Cause Solution The temperature is too high. The freezer

• The doors or drawers are opened frequently or for drawer sections or too long of a time. fresh food
• The doors or drawers are compartment left opened. temperatures are too high.
• The condenser is dirty.

• T ry to reduce frequency of opening doors and drawers. The tempera- • The temperature setting ture is too in the freezer is set too warm. warm in the freezer but fine in the fresh food section.

et the temperature colder for the freezer section. Then allow it to balance within 24 hours at new colder temperature.

• T ake extra care to keep gaskets sealing well around the perimeter of the doors. Keep gaskets clean and dirt free. eriodically clean the condenser coil with a vacuum cleaner attachment. The tempera- • The temperature setting in
• Set the fresh food temperature ture is too the fresh food section is set display slightly colder. The warm in the too warm. new colder temperature can be fresh food achieved within 24 hours. section but fine in the freezer. The tempera- • The fresh food set ture inside temperature is too warm. the crisper is too warm.

et the fresh food temperature colder and let it balance to the colder temperature for 24 hours.

English Problem Cause Solution Water, humidity, frost/ice in the fridge. Moisture

• It is in a hot or humid formation on environment. the inside of • The door or drawer of the the fridge. fridge is left opened.
• T he door or drawer is opened too frequently or for too long of a time.

• T ry raising the temperature slightly in the affected compartment. heck to make sure the door gaskets are clean and sealing well against the metal cabinet frame.

• F ood containers or liquids are left opened.

educe the frequency of door openings. Water droplets collect in the lower crisper drawer areas.

umidity settings are set too high.

• It is normal for some wet air to collect inside the enclosed crisper. To reduce the accumulation of moisture, lower the humidity setting and/ or raise the fresh food compartment temperature. Water forms at underside of the crisper glass covers.

oisture is given off from wet foods or door seal leaks or frequent door openings in humid environment.

hen placing foods in the fridge, first pat them off with a dry cloth to remove excess moisture.

• L et hot foods cool to room temperature and cover foods and liquids.

heck door gaskets and reduce door openings. Possibly raise fresh food temperature. Water, humidity, frost on the outside of the fridge. Wet air forms droplets of water on the outside edges of the fridge.

arm, humid air in the environment mixes with cooler air at the door gasket areas of the fresh food and freezer compartments causing condensation.

small amount of dew or water moisture is normal. It is best to wipe it down with a dry cloth to improve performance. slight increase in the compartment temperatures can reduce this moisture formation. heck door gasket for proper seal and cleaning.

English Problem Cause Solution Automatic icemaker The icemaker has stopped making ice.

• T he ice cube height sensor arm has detected a full tray condition.
• T he water supply valve is closed. The ice making capacity is low.

• T o make more ice cubes you may need to distribute your ice to the center drawer right side (or lower drawer) to increase ice cube harvest volume.
• Turn on the water supply valve.

• T he freezer section is not cold enough.

djust the setting in the freezer to a colder setting and allow it to balance within 24 hours.

• T he water source saddle valve is somehow blocked.

heck the water supply saddles valve for obstruction and replace it if damaged.

• T he freezer drawer area is not cold enough.

et the freezer drawer to a colder setting.

• T he water supply valve does not have enough pressure or does not open all the way.
• T he icemaker sensor arm is restricted or out of position. The
• The icemaker level sensor icemaker is stuck in the down runs position. continuously.

ake sure the water pressure is between 25-121 psi and add water booster if too low. ake sure the water valve supply is open all the way. ake sure the water filter is distributing enough water and is not clogged. ake sure the drawer gaskets are sealing and kept clean from dirt and debris. heck the movement of the icemaker sensor arm so it rests in the “up” position. ake sure no frozen packs or objects are obstructing the icemaker sensor arm.

English Problem Cause Solution Automatic icemaker The ice cubes have a bad odor.

ncovered or unwrapped foods are stored near the ice cube container.

over, wrap, and position frozen foods away from the ice cube container.

• T he water filter has approached the end of its useful life.

heck and replace the water filter.

• T he ice cubes have sat for too long a period of time.

• Dump out the stale ice cubes. Drinkable cold water is not dispensing. Cold water not dispensing.

• T he water supply pipe is not open.

pen the water supply line all the way.

• The water filter is blocked.

• Replace the water filter.

• The water line is blocked.

heck that no water tubes are kinked or restricted. The water has a strange odor.

• T he water is stored too long without use.

emove 10-12 cups of water and throw away, then check if odor improves. The water supply pressure is too low.

ell water pressure level is below specification minimum of 25 psi.

• T he local potable water source is suspect.

ontact your local water supply company to check quality of the water. ontact local plumbing supply dealer to install water booster to obtain 25-121 psi water pressure rating. English Problem Cause Solution The fridge has a bad odor. The inside of • The inside walls, shelves, the fridge is and door bins need dirty. cleaning.

• T he foods within the fridge have been stored beyond their useful life.

lean all inside surfaces with warm water and a clean soft damp cloth, then wipe dry. rap and cover foods to extend useful food life. The door or drawer is hard to open and/or close. The door has a problem closing

• T he door may have food articles or packages that are obstructive.

e-position the shelves, door bins, or internal containers to allow for door to close.

• T he refrigerator is not level, causing the door to shift out of position.

nsure that the floor is level using sturdy materials that are also non-flammable.

• T he door could be hitting against adjacent cabinets or appliances.

rovide a good 1” clearance on all 3 sides and top of cabinet so doors can open and close freely.

• T he door hinge alignment may require adjustment. The drawers • The foods are interfering are hard to with the slide mechanism. move in or
• The drawer slides are dirty out, or won’t from food particles. close

djust hinges and add spacer clips supplied. osition the foods away from the drawer sides and spread out the foods evenly in the drawers. lean the drawer and wipe down the slides periodically so the slide ball bearings move freely.

English Problem Cause Solution The light bulb is out. The light bulb is out.

• T he light bulb is damaged or unscrewed.

ee section on changing light bulbs.

• T he light switch is blocked somehow with debris or food particles.

isconnect the power supply cord plug. Then locate the light switch on the food liner wall and move it to see if food can be dislodged by pressing in and out on the switch a few times.

• The fridge power is off.

ake sure the power cord plug is fully engaged into the wall outlet socket. If you hear: A beeping noise inside the fridge.

ne door or drawer of the • This is normal and will repeat fridge is open for over 60 every 1 minute until the door seconds. or drawer is closed. English LIMITED WARRANTY What is covered and for how long? This warranty covers all defects in workmanship or materials for a period of: 12 months labor (In-Home Service) 12 months parts 5 years sealed system The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered. EXCEPTIONS: Commercial or Rental Use warranty 90 days labor (carry-in only) 90 days parts No other warranty applies What is covered.

1. T he mechanical and electrical parts, which

serve as a functional, purpose of this appliance for a period of 12 months. This includes all parts except finish, and trim.

2. T he components of the sealed system

e.g. hermetic compressor, condenser and evaporator from manufacturing defects for a period of 5 years from the date of purchase. Any damages to such components caused by mechanical abuse or improper handling or shipping will not be covered. What will be done?

e will repair or replace, at our discretion any mechanical or electrical part which proves to be defective in normal usage during the warranty period so specified.

2. T here will be no charge to the

purchaser for parts and labor on any covered items during the initial 12 month period. Beyond this period only parts are covered in the remaining warranty. Labor is not provided and must be paid by the customer.

ontact your nearest authorized service center. For the name of the nearest service center please call 1-877-337-3639.

THIS WARRANTY COVERS

APPLIANCES WITHIN THE

CONTINENTAL UNITED STATES, PUERTO RICO AND CANADA.

THE FOLLOWING: Damages from improper installation. Damages in shipping. Defects other than manufacturing. Damage from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage. Damage from other than household use. Damage from service by other than an authorized dealer or service center. Decorative trims or replaceable light bulbs. Transportation and shipping. Labor (after the initial 12 months). THIS LIMITED WARRANTY IS GIVEN IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED

OR, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state. Haier America New York, NY 10018

To activate or deactivate function please see page 17, "Ice Maker On / Off".
