USER MANUAL HC27SF22RW HAIER

ENGLISH Ŷ Use this appliance only for its intended purpose as described in this user manual. Ŷ This appliance must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section. Ŷ Plug into a grounded 3 prong outlet. Ŷ Do not remove ground prong. Ŷ Do not use an adapter or extension cord. Ŷ Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. Ŷ Disconnect power before servicing. Ŷ Replace all parts and panels before operating. Ŷ Use nonflammable cleaner. Ŷ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Ŷ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Ŷ Before discarding or removing from service, remove the door. This will reduce the possibility of danger to children. Ŷ To avoid serious injury or death, children should not stand on, or play in or with the appliance. Ŷ Children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Ŷ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications. REFRIGERATOR SAFETY CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions. Ŷ Keep fingers out of the “pinch point” areas; clearances between the door and cabinet are necessarily small. Be careful closing door when children are in the area. Ŷ Do not refreeze frozen foods which have thawed completely. Ŷ Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.

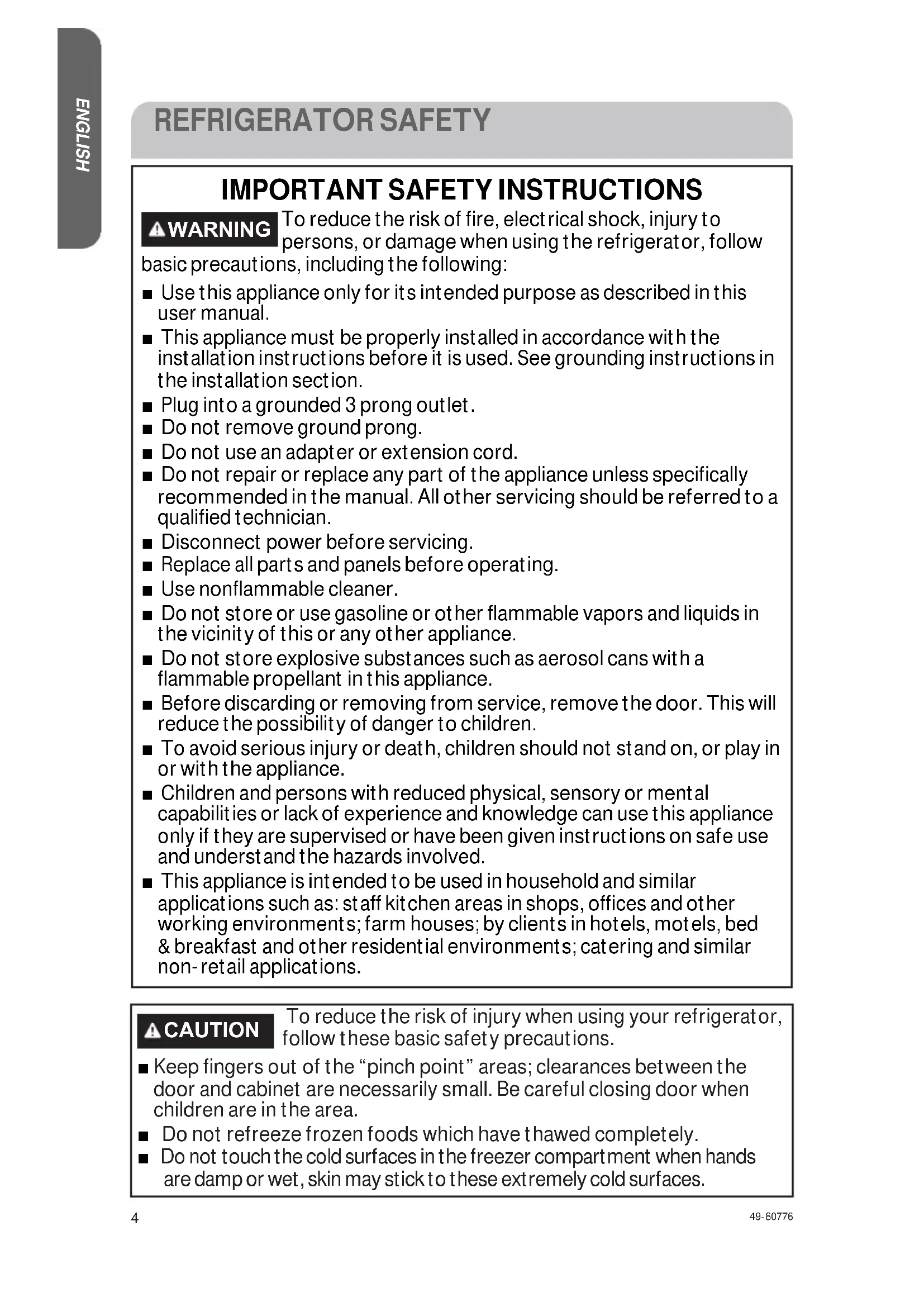

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electrical shock, injury to persons, or damage when using the refrigerator, follow basic precautions, including the following:5 49-60776ENGLISH STATE OF CALIFORNIA PROPOSITION 65 WARNINGS: WARNING This product contains one or more chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. REFRIGERATOR SAFETY

SUFFOCATION AND ENTRAPMENT HAZARD

Failure to follow these disposal instructions can result in death or serious injury.IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old appliance, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old Appliance:Ŷ Take off the door. Ŷ Leave the shelves in place so that children may not easily climb inside. WARNING EXPLOSION HAZARD Flammable Refrigerant This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

1) When handling, installing and operating the appliance, care should be

taken to avoid damage to the refrigerant tubing.

2) Service shall only be performed by authorized service personnel. Use

only manufacturer-authorized service parts.

3) Dispose of refrigerator in accordance with Federal and Local

Regulations. Flammable refrigerant and insulation material used require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.

4) Keep ventilation openings in the appliance enclosures or in the built-in

structure clear of obstruction.

5) Do not use mechanical devices or other means to accelerate the

defrosting process.6) Do not damage refrigerant circuit.

7) Do not use electrical appliances inside the food storage compartment

of the appliance.49-60776 ENGLISH

1. Freezer Compartment

Refrigerant and Foam Disposal: Dispose of refrigerator in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.

READ AND SAVE THESE INSTRUCTIONS

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside. 2. Inspect and remove any remains of packing, tape or printed materials before powering on the refrigerator.

LEVELING YOUR REFRIGERATOR

• Your refrigerator has two leveling legs which are located in the front bottom corners of your refrigerator. After properly placing your refrigerator in its final position, you can level your refrigerator. • Leveling legs can be adjusted by turning them counterclockwise to raise your refrigerator or by turning them clockwise to lower your refrigerator. The refrigerator door will close easier when the leveling legs are extended.

PROPER AIR CIRCULATION

• To ensure your refrigerator works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections. • The following are recommended clearances around the refrigerator: Sides ......... 4” Top ........... 4” Back .......... 4 DOOR ALIGNMENT 1. Remove the top hinge cover by using a flathead screwdriver. Place the head under the front edge of the cap and gently lift. 2. Loosen the top hinge screws using a Phillips head screw driver. 3. Adjust the door or put a spacer in between and tighten the screws. 4. Replace the top hinge cover by aligning the rear of the cover with the rear of the hinge. Press firmly on the front of the cover until it snaps in place.ENGLISH INSTALLATION INSTRUCTIONS WARNING EXPLOSION HAZARD Do not puncture refrigerant tubing. Flammable refrigerant used. Handle with care when moving refrigerator to avoid either damaging the refrigerant tubing or increasing the risk of a leak.49-60776

INSTALLATION INSTRUCTIONS ENGLISH CONNECTING ELECTRICITY Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an authorized service part from the manufacturer. When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. WARNING

ELECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.9 49-60776ENGLISH REFRIGERATOR USE INSTALLATION LIMITATIONS

• Do not install your refrigerator in any location not properly insulated or heated, e.g. garage, etc. Your refrigerator was not designed to operate in ÷èðóèõä÷øõèöè÷÷ìñêöåèïòú%%ȋϤ!"ȋÌ¥

• Select a suitable location for the refrigerator on a hard even surface away from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking appliances, etc. Any floor unevenness should be corrected with the leveling legs located on the front bottom corners of the refrigerator. NOTE: As the door gets pressed in during shipping, after reversing the door, the gasket may have to be reset. This is done to prevent the cool refrigerated air from escaping. If there is a gap between the door gasket and the cabinet, set the gasket by gently pulling it out to seal the gap. GENERAL FEATURES NOTE: If the refrigerator has been placed in a horizontal or tilted position for any period of time wait 30 minutes before plugging the unit in. Adjustable temperature dial: Your refrigerator will automatically maintain the temperature level you select. The temperature control dial has 7 settings plus “OFF”. 1 is the warmest. 7 is the coldest. At first, set the dial to 3 and allow 24 hours to pass before adjusting the temperature to your needs. Freezer Compartment / Ice Cube Trays This compartment is designed for making ice cubes and for short-term food storage (a few days at most). If ice cube tray freezes to the bottom of the compartment, pour a little warm water around it to loosen it. Do not use boiling water, which can damage plastic parts, or sharp metal objects such as a knife or screwdriver, which can damage the cooling system tubing. Wash the ice cube tray in lukewarm water only. Do not wash in the dishwasher. REFRIGERATOR USE WARNING This compartment is not cold enough to freeze foods safely for more than 5 days.49-60776

• When storing fresh food that is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes.

• Wipe containers before storing to avoid needless spills.

• Eggs should be stored in an upright position in their original carton to maximize shelf life.

• Fruit should be washed and dried, then stored in sealed plastic bags before storing in the refrigerator.

• Vegetables with skins should be stored in plastic bags or containers.

• Leafy vegetables should be washed and drained and then stored in plastic bags or containers.

• Hot food should be allowed to cool before storing in the refrigeration. This will prevent unnecessary energy use.

• Fresh seafood should be used the same day as purchased.

• When storing meats in the fresh food section, keep in the original packaging or re-wrap as necessary. Follow the suggestions below for safe storage:

• Smoked/Cured Meats . .7-10 Days

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off. REFRIGERATOR USE Refrigerator Interior Shelves To remove or replace a full-width slide-out shelf:

1. Gently tilt the shelf up and slide forward

until the shelf has been completely removed.

2. To replace the shelf, gently slide the shelf

back.11 49-60776 REFRIGERATOR CARE CLEANING General

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your refrigerator. Door Gaskets

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and ensure a good seal. Defrost Defrost whenever frost on the wall of the freezer compartment becomes 1/8” thick. To defrost, remove foods and ice cube tray from the freezer compartment. Make sure the drip tray is in place and unplug the unit. Defrosting usually takes a few hours. To defrost faster, keep the door open and place a bowl of warm water in the refrigerator. After defrosting, empty water from the drip tray and wash the drip tray in warm water. ENGLISH WARNING To avoid electric shock, always unplug your refrigerator before cleaning. Ignoring this warning may result in death or injury. CAUTION Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage. DANGER EXPLOSION HAZARD Risk of Fire or Explosion due to puncture refrigerant tubing. Flammable refrigerant used. Do not use metal instruments to defrost refrigerator. Do not puncture refrigerant tubing.49-60776

REFRIGERATOR CARE MAINTENANCE Power Interruptions

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from wall outlet when a power outage occurs. When power has been restored, replug power cord to wall outlet. If outage is for a prolonged period, inspect and discard spoiled or thawed food in freezer and refrigerator. Clean refrigerator before reusing. Vacation and Moving Care

• For long vacations or absences, empty food from refrigerator and freezer, move the temperature dial to the “OFF” position and clean the refrigerator and door gaskets according to “General Cleaning” section. Prop doors open, so air can circulate inside. When moving, always move the refrigerator vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur. Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.

• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer and thus increases energy consumption. Foods that refrigerate too slowly may lose quality or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing in the refrigerator.

• The shelves should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the refrigerator ïèööèĦæìèñ÷

• Organize food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible. ENGLISH WARNING

EXPLOSION OR FIRE HAZARD

Risk of Fire or Explosion. Flammable refrigerant used. Do not puncture refrigerant tubing. To be repaired only by trained authorized service personnel. Consult Repair Manual before attempting to service this product. All Safety Precautions Must be followed. Component parts shall be replaced with like components to minimize the risk of possible ignition due to incorrect parts or improper service.13 49-60776 ENGLISH TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call.

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Refrigerator does not run. Refrigerator is unplugged. Plug refrigerator into a grounded 3 prong outlet. The circuit breaker is ÷õìóóèç¦÷øõñèçòģòõ÷ëè fuse is blown. Reset/Turn on circuit breaker or replace fuse. The temperature control is in the OFF position. Turn the temperature control to a setting between 1 and 7. Compressor runs too frequently The room temperature is hot and/or humid. This is normal to maintain constant temperature during high temperature, humid days. Refrigerator door is ajar. Close the door completely The door gasket is not sealing properly. Clean the door gasket. See Cleaning. Frequent or prolonged door openings. Limit door openings to maintain the internal temperature. Door is blocked open. Rearrange or remove items that are keeping the door from closing completely. Door does not close properly Refrigerator is not level or door is not aligned. Level refrigerator or align the door. Door is blocked open. Rearrange or remove items that are keeping the door from closing completely. Food temperature is too warm The door is opened frequently. Limit door openings. A large amount of food was recently added. Allow time for recently added warm food to cool. The door is not sealing properly. Clean the door gasket. See Cleaning. The control is not set to a cold enough temperature. Adjust the temperature control to a colder setting. Food temperature is too cold The control is set to a too cold setting. Adjust the temperature to a less cold setting.49-60776

TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call.

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Refrigerator has an odor. The refrigerator needs cleaning. Clean refrigerator. See Cleaning. Improperly wrapped food is êìùìñêòģäñòçòõ Wrap and seal food tightly before storing in the refrigerator. Moisture build up on interior or exterior of the refrigerator The room temperature is hot and/or humid. This is normal during high humidity periods. Frequent or prolonged door openings. Limit door openings. The door gasket is not sealing properly. Clean the door gasket. See Cleaning. Popping or cracking sound when compressor comes on Refrigerator is not level. Level the refrigerator. See ÕèùèïìñêÒé÷ëèĥòòõìöøñèùèñ you may need to place metal or wood shims underpart of the refrigerator. Ýëèĥòòõðäüåèøñèùèñòõ weak. Ëèöøõè÷ëèĥòòõæäñ adequately support the refrigerator. Level the refrigerator by putting wood or metal shims under part of the refrigerator. The refrigerator is touching a wall. Move the refrigerator away from the wall and re-level, if necessary. ENGLISH15 49-60776 ENGLISH ENGLISH LIMITED WARRANTY 12 Months on Parts and Labor For 12 months from the date of original retail purchase, GE Appliances will replace any part of the refrigerator that fails due to a defect in materials or workmanship. GE Appliances will choose, at its discretion, to replace or service the defective unit. Should GE Appliances decide to service the unit, GE Appliances will provide any part which fails due to a defect in materials or workmanship free of charge, along with any labor and related service costs to replace the defective part. During this period, should GE Appliances choose to replace the unit, it may do so by providing you with a certificate redeemable at a retailer for a replacement product. Product must be accessible, without encumbrance and installed properly to receive warranty repair service. NOTE: This warranty commences on the date the item was purchased, and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered.

FOR WARRANTY SERVICE

For US Customers, all warranty service must be performed by our Factory Service centers or an authorized Customer Care Technician. To schedule service, call 1-877-337-3639. Please have serial number and model number available when calling for service. In Canada, call 1.877.470.9174. EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. What is not covered by this warranty: Service trips to your home to teach you how to use the product. Improper installation, delivery, or maintenance. Failure of the product if it is abused, misused, or used for other that the intended purpose or used commercially. Loss of food due to spoilage. Damage caused after delivery. Replacement of house fuses or resetting of circuit breakers. Replacement of the light bulbs. Damage to the product caused by accident, fire, floods or acts of God. Incidental or consequential damage caused by possible defects in this appliance. Product not accessible to provide required service. Associated costs when GE Appliances chooses to issue the consumer a certificate as a form of product replacement.49-60776

LIMITED WARRANTY RECORD KEEPING For US Customers: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential çäðäêèöÝëìöúäõõäñ÷üêìùèöüòøöóèæìĤæ legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local òõö÷ä÷èæòñöøðèõäģäìõöòĦæèòõüòøõö÷ä÷èđö Attorney General. Warrantor US: GE Appliances, a Haier company For Customers in Canada: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Burllington, Ontario, L7R 5B6 Thank you for purchasing this Haier product. This user manual will help you get the best performance from your new refrigerator. For future reference, record the model number, serial number, and the date of purchase. The model/serial number plate is located on the inside wall of the refrigerator. Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

Date of purchase ENGLISH17 49-60776 SOMMAIRE
