USER MANUAL GDE 450 AW HAIER

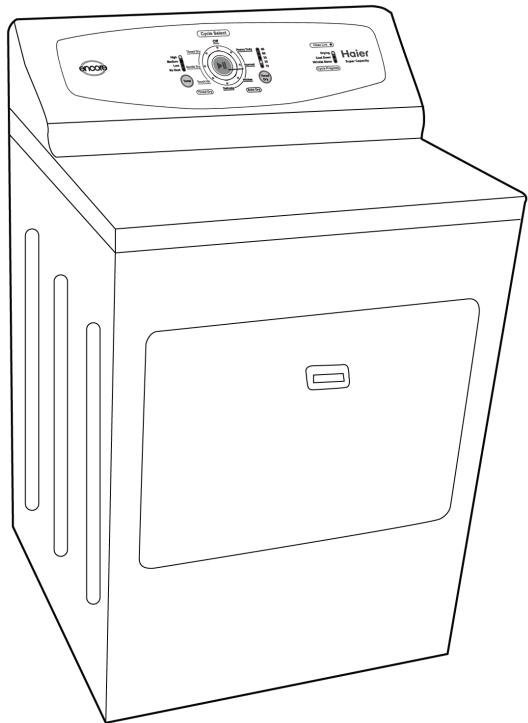

(Picture for illustration purposes only. Actual model may vary per model purchased.)

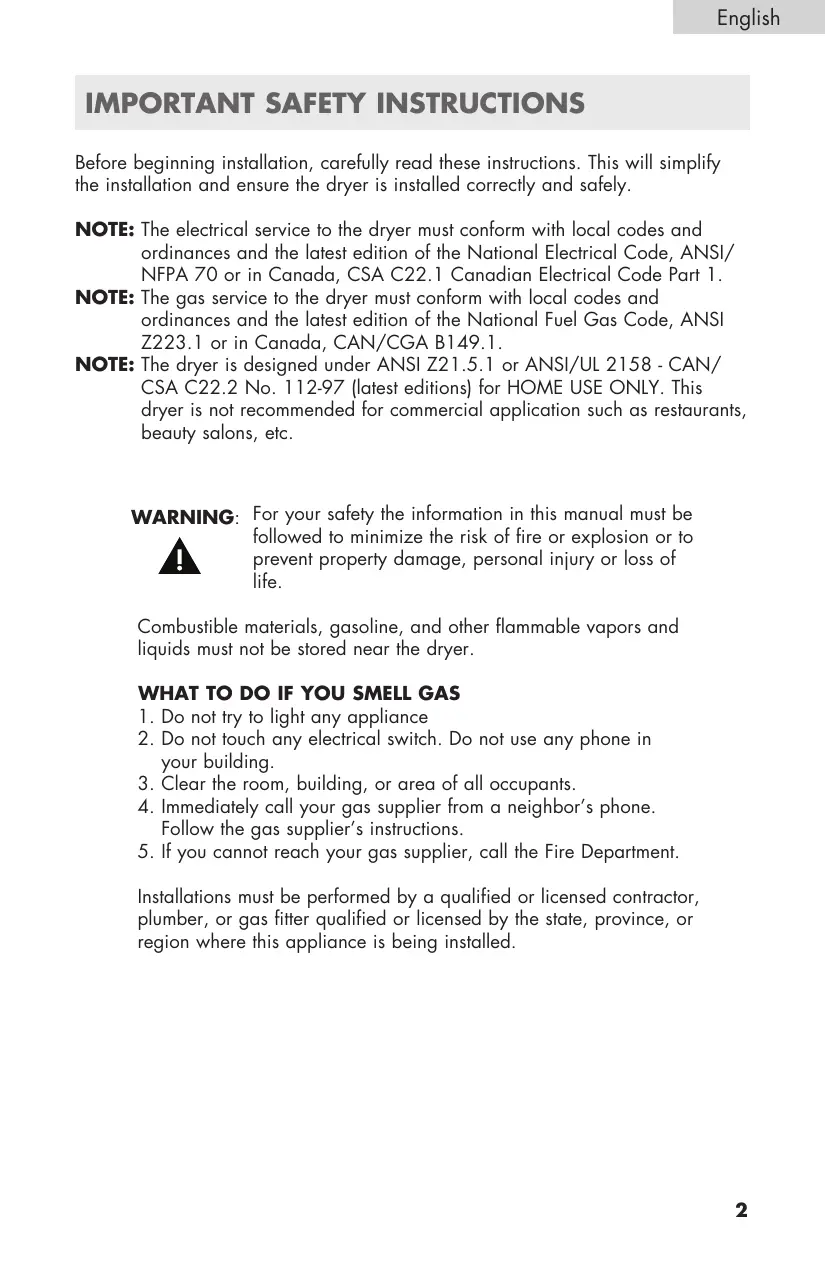

IMPORTANT SAFETY INSTRUCTIONS

Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the dryer is installed correctly and safely. NOTE: T he electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/ NFPA 70 or in Canada, CSA C22.1 Canadian Electrical Code Part 1. NOTE: The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code, ANSI Z223.1 or in Canada, CAN/CGA B149.1. NOTE: The dryer is designed under ANSI Z21.5.1 or ANSI/UL 2158 - CAN/ CSA C22.2 No. 112-97 (latest editions) for HOME USE ONLY. This dryer is not recommended for commercial application such as restaurants, beauty salons, etc.

WARNING: For

your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Combustible materials, gasoline, and other flammable vapors and liquids must not be stored near the dryer. WHAT TO DO IF YOU SMELL GAS

1. Do not try to light any appliance

2. Do not touch any electrical switch. Do not use any phone in

3. Clear the room, building, or area of all occupants.

4. Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

5. If you cannot reach your gas supplier, call the Fire Department.

Installations must be performed by a qualified or licensed contractor, plumber, or gas fitter qualified or licensed by the state, province, or region where this appliance is being installed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow the basic precautions, including the following:

Read all of the instructions before using this appliance.

2. Don’t dry articles that have been previously cleaned in, washed in,

soaked in, or spotted with gasoline, dry clean solvents or other flammable explosive sub stains as they give off vapors which could ignite or explode.

3. Do not allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove

the door to the drying compartment.

Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to

water and/or to the weather.

Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-repair instructions that you understand and have skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturers of the fabric softener or product.

10. Do not use heat to dry articles or products to eliminate static unless

recommended by the manufacturers of the fabric softener or product.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. Keep the dryer area clear and free from items that would obstruct

the flow of combustion and ventilation air through the louvered panel located on the rear of the dryer.

14. The interior of the appliance and the exhaust duct should be cleaned

periodically by qualified service personnel.

15. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oil may contribute to a chemical reaction than could cause a load to catch fire.

16. If material has been used with any flammable liquids or solids, it

should not used in the dryer until all terraces of flammable liquids and its fumes have been removed.

17. T his dryer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installations sections.

18. P

roper grounding must be ensured to reduce the risk of electric shock and fire. Check with a qualified electrician or service personnel if you are in doubt as to whether the dryer is properly grounded.

19. Use the dryer only for its intended purpose: drying clothes.

20. A

lways disconnect dryer from electrical supply before attempting any service. Disconnect power cord by grasping the plug, not the cord.

21. Replace worn power cord and/or loose plugs.

22. T o reduce the risk of electric shock or fire, do not use extension cords

or adapters to connect dryer electrical power source.

SAVE THESE INSTRUCTIONS

DANGER Risk of child entrapment. Before you throw away your old dryer, take off the door so that children may not get trapped inside. Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your dryer. Remember to record the model and serial number. They are on a label in back of the dryer. Model number Serial number Date of purchase Staple your receipt to your manual. You will need it to obtain warranty service.

English INSTALLATION INSTRUCTIONS Risk of Fire: WARNING

1. Clothes dryer installation must be performed by a qualified installer.

2. Install the clothes dryer according to the manufacturer’s instructions and local

3. D

o not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed and trap lint. The conditions will obstruct clothes dryer airflow and increase the risk of fire.

4. To reduce the risk of severe injury or death, follow all installation instructions.

TOOLS AND MATERIALS REQUIRED

hillips-Head and flathead screwdrivers

• Channel-lock adjustable pliers
• 1/2-inch open-end wrench

igid or flexible metal 4 inch (102cm) duct

• Pipe thread sealer (Gas)

• Measuring tape (12ft. min.) Safety Warning:

1. B

efore starting installation, make sure that the gas shut off valve is in the off position.

2. All old gas connectors and gas piping should be discarded.

ELECTRICAL REQUIREMENTS Electric Dryer: (GDE450AW/CGDE450AW) Circuit Individual 30 Amp branch circuit fused with 30 Amp time-delay fuses or circuit breakers. Use separately fused circuits for washers and dryers, and DO NOT operate a washer and dryer on the same circuit. Power Supply 3 or 4 wire, 240 Volt, 1 Phase, 60Hz, AC (Canada - 240 Volt, 1 Phase, 60 Hz, AC)

English Power Supply Cord Kit (Not supplied when sold in US. Must be purchased to meet local electrical codes.) The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 Type SRDT rated at 240 Volt AC minimum, 30 Amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. (When sold in Canada - 4-wire power supply cord provided and attached on dryer) Dryers being installed in a manufactured (mobile) home MUST employ a 4-wire power supply cord NEMA 14-30 type SRDT or ST (as required) rated to 240 Volt AC minimum, 30 Amp, with 4 open-end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. See Electrical Connections for more information on a 4-wire system. Outlet Receptacle NEMA 10-30R receptacle should be located so the power supply cord is accessible when the dryer is in the installed position. (Canada - NEMA 14-30R receptacle) ELECTRICAL REQUIREMENTS Gas Dryer: (GDG450AW) Circuit Individual 15 Amp branch circuit fused with 15-Amp maximum time delay fuse or circuit breakers. Power Supply 3 wire, 120 Volt, 1 Phase, 60Hz, AC Power Supply Cord The dryer is equipped with a 120 Volt 3-wire power supply cord. Note: T his dryer is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged into a properly grounded three-prong receptacle. Do not under any circumstance cut or remove grounding prong from plug.

UNPACKING YOUR DRYER

1. R

emove all packaging material. This includes the foam base and all adhesive tape holding the dryer accessories inside and outside.

2. Inspect and remove any remains of packaging, tape or printed materials

before using the dryer.

English The following are specific requirements for proper and safe operation of your dryer. Failure to follow these instructions can create excessive drying times and fire hazards.

1. D

o not use plastic flexible duct to exhaust the dryer. Excessive lint can build up inside exhaust system and create a fire hazard and restrict air flow. Restricted air flow will increase drying time. If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure present duct is free of any lint prior to installing dryer duct.

2. T he dryer must not be exhausted into any gas vent, chimney, wall, ceiling or

any concealed space of a building. The dryer exhaust system MUST be exhausted to the outdoors. If the dryer is not exhausted outdoors, some fine lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.

3. E

xceeding the length of duct pipe or number of elbows allowed in the “Maximum Length” chart can cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, as well as increase drying times.

4. D

o not screen the exhaust ends of the vent system. Lint can become caught in the screen, increasing drying time. Use an approved vent hood to terminate the duct outdoors, and seal all joints with duct tape.

5. All male duct pipe fittings must be installed downstream with the flow of air.

6. E

xhaust duct must not be connected or secured with screws or other fastening devices which extend into the interior of the duct.

7. D

o not allow combustible material (clothing, draperies/curtains, paper, etc.) to come in contact with exhaust system. Explosion hazard: Do not install the dryer where gasoline or other flammables are kept or stored. Failure to do so can result in death, explosion, fire or burns. EXHAUST REQUIREMENTS: se only 4 inch (10.2cm) diameter (minimum) rigid of flexible metal duct and approved vent hood which has a swing-out damper hat open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches (30.5cm) clearance between the vent hood and the ground or any other obstruction. The vent flap should be able to move freely, although vertical orientation of the exhaust system is acceptable. Certain extenuating circumstances could affect the performance of the dryer:

1. Only rigid metal duct work should be used.

2. V

enting vertically through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.

3. R

unning the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.

4. C

ompression of crimping of the exhaust system will cause an increase in vent restriction.

5. In Canada, that only those foil-types flexible ducts, if any, specifically

identified for use with the appliance by the manufacturer shall be used. In the United States, that only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer and that comply with the UL Outline for Clothes Dryer Transition Duct, Subject 2158A (2006), shall be used.

6. In Canada, that the exhaust duct shall be 102mm in diameter. In the United

States, the required exhaust duct diameter.

7. The total length of flexible metal duct shall not exceed 2.4m.

T he exhaust system should be inspected and cleaned a minimum of every 12 months with normal usage. The more the dryer is used the more often you should check the exhaust system and vent hood for proper operation. RECOMMENDED MAXIMUM Exhaust Hood Types Recommended Use only for short run installations Note: Exhausting refers to removal of moist air from the drying compartment.

GAS SUPPLY REQUIREMENTS

WARNING: R

eplace copper connecting pipe that is not plasticcoated. Stainless steel or plastic-coated brass MUST be used. 1.Installation MUST conform with local codes. In the absence of local codes, installation must conform with the National Fuel Gas Code, ANSI Z223.1 (latest edition) or in Canada, the current CAN/CGA B149.1

2. The gas supply line should be 1/2 inch (1.27cm) pipe.

3. If codes allow, flexible metal tubing may be used to connect your dryer to the

gas supply line. The tubing MUST be constructed of stainless steel or plasticcoated brass.

4. T he gas supply line MUST have an individual manual shutoff valve installed

within 6 feet (183cm) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. In Canada, an individual manual shut-off valve MUST be installed in accordance with the B149.1, Natural Gas and Propane Installation Code.

5. A

1/8 inch (0.32cm) N.P.T. plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.

6. T he dryer MUST be disconnected from the gas supply piping system during

any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45kPa).

7. T he dryer MUST be isolated from the gas supply piping system during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

LOCATION OF YOUR DRYER

Do Not Install Your Dryer:

1. In an area exposed to dripping water or outside weather conditions.

2. In an area where it will come in contact with curtains, thick carpet, or anything

that will obstruct the flow of combustion and ventilation air.

3. O

n carpet, floor must be solid with a maximum slope of 1inch (2.54 cm). Any floor unevenness should be corrected with leveling legs located on the bottom of the dryer. Installation in Alcove or Closet:

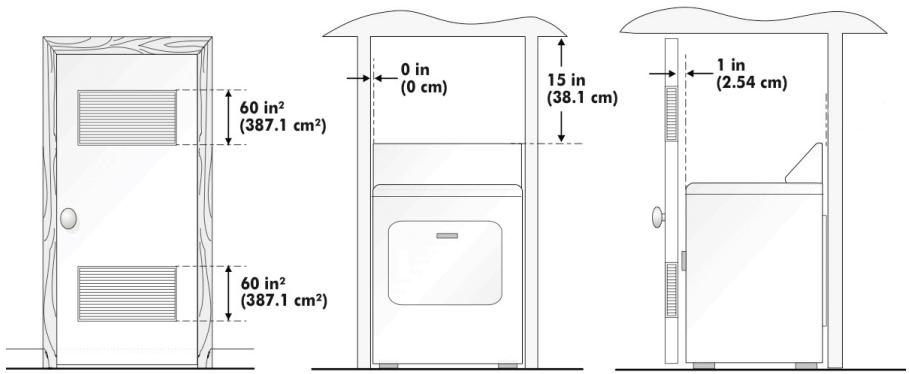

1. DO NOT install your dryer in a closet with a solid door.

2. A

dryer installed in a bedroom, bathroom, alcove or closet MUST be exhausted outdoors.

3. N

o other fuel burning appliance shall be installed in the same closet as the gas dryer.

4. R

efer to the images on this page to ensure the installation provides the minimum amount of clearance required for ventilation.

5. W

hen installing the dryer in a closet with a door, a minimum of 120 square inches (774.2 square cm) of ventilation in the door is required. Openings must be equally divided at the top and bottom of the door and airflow must be unobstructed. A louvered door with equivalent air openings for the length of the door is acceptable.

MANUFACTURED (MOBILE) HOME INSTALLATION

1. D

ryer MUST be exhausted outside (outdoors, not beneath the manufactured home) using metal ducting that will not support combustion. Metal ducting must be 4 inch (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.

2. If dryer is exhausted through the floor and area beneath the manufactured

home is enclosed, the exhaust system MUST terminate outside the enclosure with the termination securely fastened to the mobile home structure.

3. W

hen installing a gas dryer into a manufactured home, a provision must be made for outside make up air. This provision is to be not less than twice the area of the dryer exhaust outlet.

4. T his dryer MUST be fastened to the floor using. Manufactured Home

Installation Kit. Follow the instructions supplied with the kit.

5. Refer to previous sections for other important venting requirements.

6. Installation must conform to current Manufactured Home Construction & Safety

Standard (which is a Federal Regulation Title 24 CFR-Part 32-80) or when such standard is not applicable, with American National Standard for Mobile Homes. In Canada, the CSA Z240 is applicable.

English ELECTRICAL INSTALLATION WARNING The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or fire hazard. ELECTRIC DRYER (GDE450AW/CGDE450AW) Grounding Instructions This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This appliance must be connected to a grounded metal, permanent wiring system or an equipmentgrounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliances.

1. T his appliance must be properly grounded. Electrical shock can result if the

dryer is not properly grounded. Follow the instructions in this manual for proper grounding.

2. D

o not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electric shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the electrical requirements in this manual for the proper power cord to be purchased.

3. A

UL approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.

4. D

o not use an aluminum wire receptacle with copper-wired power cord and plug (or vice versa ). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper-wired power cord with a copper-wired receptacle. Note: D ryers operating on 208 Volt power supply sill have longer drying times than operation on 240 Volt power supply.

WARNING: Improper connection of the equipment grounding conductor can

result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded. GAS DRYER (GDG450AW)

1. G

as dryers are equipped with a factory installed three-prong 15 Amps ~120 Volts (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

English ELECTRICAL CONNECTIONS ELECTRIC DRYER (GDE450AW) 3-Wire Cord Connection (US models only)

1. R

emove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer’s upper corner.

2. Install a UL approved strain relief into the power cord entry hole of the

mounting bracket. Finger tighten the nut only at this time.

3. T hread a UL Approved 30 Amp. Power cord, NEMA 10-30 Type SRDT,

through the strain relief.

4. A

ttach the power cord neutral (center wire) conductor to the brass colored center terminal on the terminal block. Tighten the screw securely.

5. A

ttach the remaining two power cord outer conductors to the outer brass colored terminals on the terminal block. Tighten both screws securely.

WARNING: Do not make a sharp bend or crimp wiring/conductor at

6. R

eattach the strain relief mounting bracket to the back of the dryer with two screws. Tighten screws securely.

7. Tighten the screws securing the cord restraint firmly against the power cord.

8. Tighten the strain relief nut securely so that the strain relief does not turn.

9. Reinstall the terminal block cover.

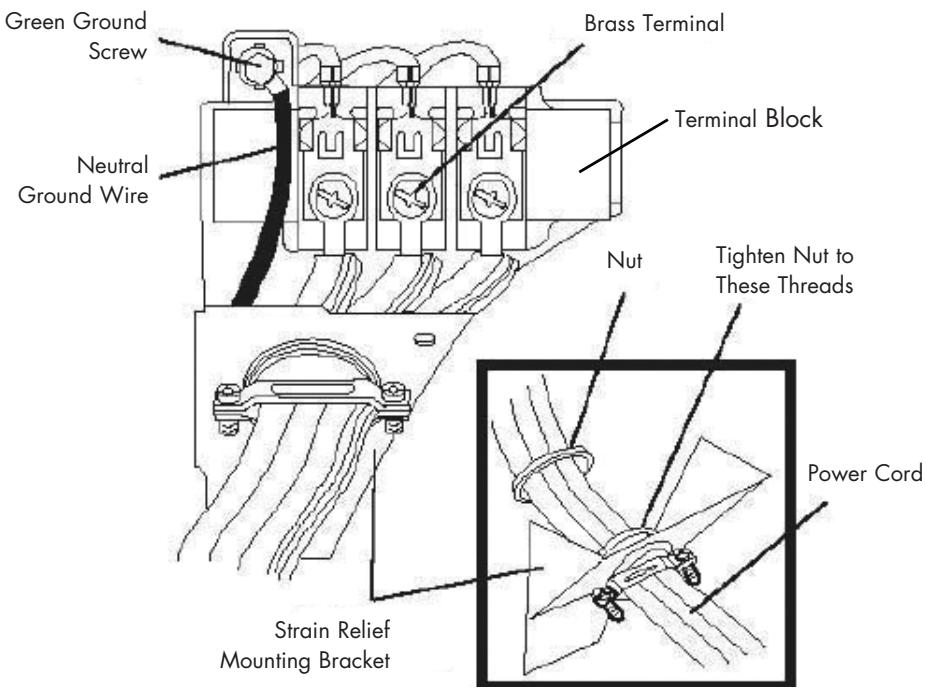

Green Ground Screw Brass Terminal Terminal Block Neutral Ground Wire Nut Tighten Nut to These Threads Power Cord Strain Relief Mounting Bracket

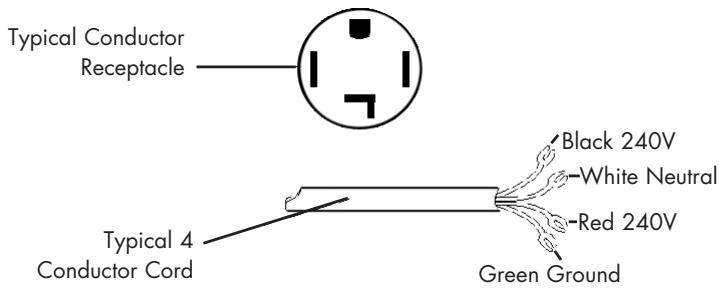

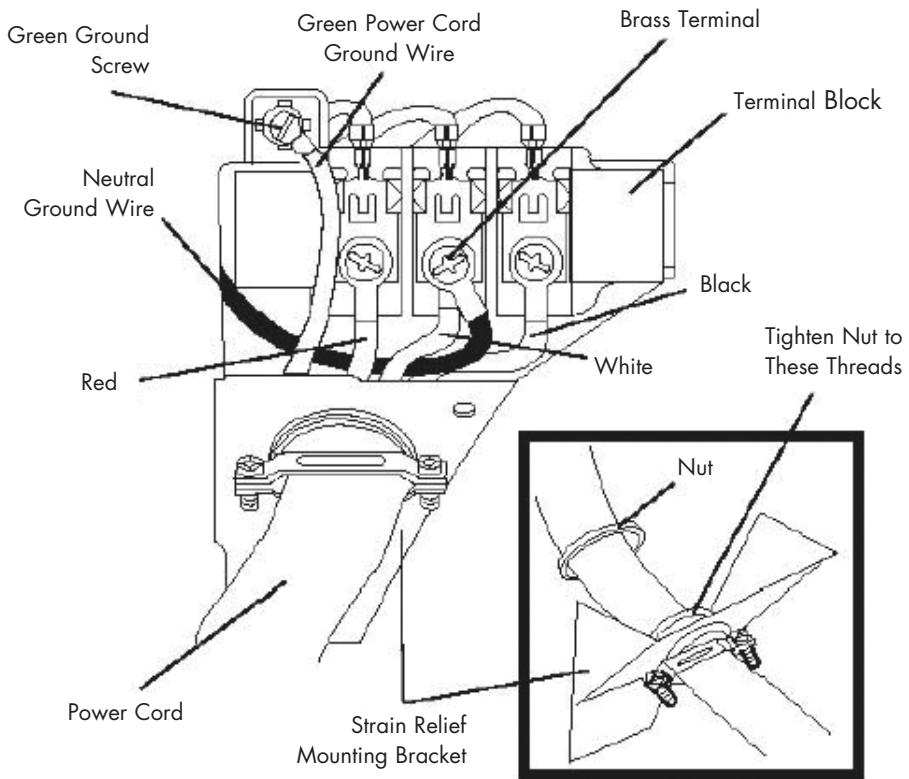

English ELECTRIC DRYER (GDE450AW) 4-Wire Cord Connections (US Models Only) Green Ground Screw Green Power Cord Ground Wire Brass Terminal Terminal Block Neutral Ground Wire Black Tighten Nut to These Threads White Red Nut Power Cord Strain Relief Mounting Bracket

1. R

emove the screws securing the terminal block access cover and the strain relief mounting bracket located on the back of the dryer upper corner.

2. Install a UL approved strain relief into the power cord entry hole of the

mounting bracket . Finger tighten the nut only at this time.

3. R

emove the green neutral ground wire from the green ground screw located above the terminal block. Typical Conductor Receptacle Black 240V White Neutral Typical 4 Conductor Cord Red 240V Green Ground

4. T hread a UL approved 30 Amp power cord. NEMA 14-30 type ST or SRDT

through the strain relief.

5. A

ttach the green power cord ground wire to the cabinet with green ground screw.

6. A

ttach the white (neutral) power cord conductors and the green ground wire from the dryer harness to the brass-colored center terminal on the terminal block. Tighten the screw securely.

7. A

ttach the red and black power cord conductors to the outer brass-colored terminals on the terminal block.

WARNING: Do not make a sharp bend or crimp the wiring /conductor at

8. Tighten the screws securing the cord restraint firmly against the power cord.

9. Tighten the strain relief nut securely so that the strain relief does not turn.

10. Reinstall the terminal block cover.­

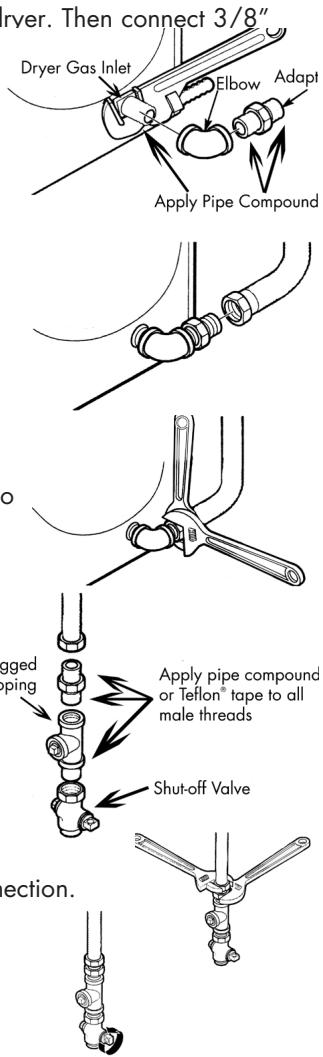

GAS CONNECTIONS GAS DRYER (GDG450AW) NOTE: D O NOT connect the dryer to L.P. gas service without converting the gas valve. An L.P. Conversion Kit must be installed by a qualified gas technician.

1. Remove the shipping cap from gas pipe at the rear of the dryer.

2. C

onnect a 1/2 inch (1.27cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8 inch (0.96cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8 inch (1.27cm to 0.96cm) reducer for a connection. Apply an approved thread sealer that is resistant to the corrosive action of liquefied gases on all pipe connections.

3. Open the shutoff valve in the gas supply line.

4. T est all connections by brushing on a soapy water solution. NEVER TEST FOR

GAS LEAKS WITH AN OPEN FLAME.

5. C

onnect the exhaust duct to the outside exhaust system. Use duct tape to seal all joints.

6. W

ith the dryer in its final position, adjust one or more of the legs until the dryer is resting solid on all four legs. Place a level on top of the dryer. THE DRYER MUST BE LEVEL AND RESTING SOLID ON ALL FOUR LEGS. CAUTION

7. P

lug the power cord into a grounded outlet. NOTE: check to ensure power is Off at circuit breaker/fuse box before plugging the power cord into the outlet.

8. Turn on the power at the circuit breaker/fuse box.

Before operating the dryer, make sure the dryer area is clean and free from combustible materials, gasoline, and other flammable vapors. Also see that nothing (such as boxes, clothing, etc.) obstructs the flow of combustion and ventilation air through the louvered panel located on the rear of the dryer.

9. Run the dryer through a cycle check for proper operation.

NOTE: O n gas dryers, before the burner will light, it is necessary for the gas line to be bled of air. If the burner does not light within 45 seconds the first time the dryer is turned on, the safety switch will shut the burner off. If this happens, turn the dryer to “Off” and wait 5 minutes before making another attempt to light. NOTE: Follow instructons supplied with kit. CONNECTING THE DRYER TO THE GAS SUPPLY A) Connect female 3/8” NPT elbow to gas inlet on dryer. Then connect 3/8” flare union adapter to female elbow. IMPORTANT: T o prevent the inlet from twisting, please use a pipe wrench to secure the dryer gas inlet. Affix Teflon® tape or pipe compound to adapter and gas inlet. B) A ttach the flexible metal gas line connector to the adapter. C) M ake sure flexible gas line seal is secure. Use two wrenches for the best possible connection. D) T o check gas inlet pressure, attach 1/8” NPT plugged tapping to dryer gas line shut-off valve. Then connect flare union adapter to plugged tapping. Affix Teflon® tape to the threads of the adapter and plugged tapping to ensure seal. E) Use two adjustable wrenches to tighten every connection. IMPORTANT: Do not overtighten! F) Open gas shut-off valve.

English REPLACEMENT PARTS Replacement parts and accessories for US and Canada can be purchased through Haier America at 1-800-313-8495

WARNING: L abel all wires prior to disconnection when servicing controls.

Wiring errors can cause improper and dangerous operation. Check unit for proper operation after servicing.

WARNING: D

iscard or destroy the carton and plastic bags after the dryer is unpacked. Children should not be allowed to use them to play with. Cartons covered in rugs, bedspreads or plastic sheets can become an airtight chamber and cause suffocation leading to death. Make all packing materials inaccessible to children.

WARNING: T he instructions in this manual and all other literature included with

this dryer can not cover every possible condition and situation that may occur. Good safe practice and caution must be applied when installing, operating, and maintaining any appliance. If you are in doubt after installing, call a certified electrician to install and wire the dryer.

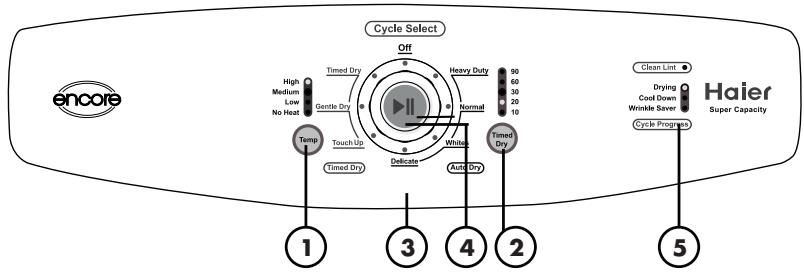

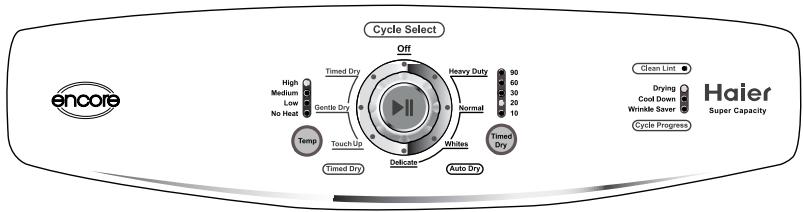

English OPERATING INSTRUCTIONS To reduce the risk of fire, electric shock, or injury to persons, read all of the IMPORTANT SAFETY INSTRUCTIONS before using this appliance. Understanding the Control Panel

Temp Button: (1) sed to set drying temperatures. There are four available drying temperatures to choose from: High, Medium, Low, and No Heat. Timed Dry: (2) sed to set drying time. There are five available drying times to choose from: 10 min., 20 min., 30 min., 60min., 90min. Cycle Select Dial: (3)

• Select from 4 Auto-Dry cycles (Heavy Duty, Normal, Whites and Delicates), or 3 Time Dry Cycles (Touch up, Gentle Dry, Timed Dry)

English Temp High Auto Dry Timed Dry Medium Timed Dry Low

Heavyweight material such as jeans or bath towels Heavy Dry

Normal Drying Whites

For whites such as linens and sheets Delicates

Drying small quantity clothes and delicate fabric Touch

Selecting proper temperature and time for custom drying

• : Only 0: Selectable X: Cannot be selected /: No Signal Start/Pause Button (4)
• Push to start after selecting the dry cycle and setting the temperature. Push once to pause. Push again to start after pushing. Cycle Progress: (5)
• This indicates the process the cycle is currently in. At the end of the dry cycle the dryer will automatically go in the wrinkle saves mode. Here the dryer tub will tumble periodically for 1 hour after the dry cycle is completed. To stop simply open the door and remove the clothes. Note: C lean lint indicator is just a reminder to clean the lint filter before every use.

PREPARATIONS BEFORE DRYING

• Sort clothes of the same kind (cotton, synthetics, woolen) to dry. ark and light colored clothes should be separately dried. Fabrics prone to losing lint and those prone to adhering lint shall be separately dried. Clothes prone to falling lint should be turned inside out before putting into the dryer. ake sure buttons and ornaments on the clothes are high temperature resistant and won’t damage drum surface. Before loading, the clothes should have their zippers zipped up, buttons and hooks done up and belts tied so as to avoid entanglement or other obstacles.
• If possible, turn out the clothes pockets for uniform drying. heck if clothes remain soiled. If so, wash them again, otherwise soils may be permanently set. mall articles should be collected in a mesh bag before loading and drying, so as to avoid entanglement and ensure easy removal. ake sure the power socket is reliably grounded. The grounding terminal should not be connected to gas or tap water pipelines.
• Make sure exhaust duct has been properly connected. ake sure lint filter is clean and properly installed. If lint filter is not in place, tumbling items could enter the exhaust system and cause damage to the dryer. Note: Applies to Auto Dry cycle and Timed Dry cycle.

LOAD CLOTHES INTO DRYER

• T he appropriate load should be 1/3 ~ 1/2 of the drum volume. Avoid too much load, as space is needed to allow clothes free rotation for uniform and wrinkle-proof drying. hen drying big articles, only 2-3 pieces should be loaded at a time and supplemented with small and medium-sized articles.
• F or delicate clothes or less load, two towels may be added to get better drying and wrinkle-proof effects. o not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electro-static charge accumulation, and/or more lint.

AUTO DRY CYCLE

1. T urn the knob to any program except “Off” to power on. The control panel

will beep once and the dryer will change from “Off” to the operating status.

2. S

et the cycle select dial to required auto dry cycle. The temperature level is preprogrammed. To change this setting:

• Press the “Temp” button to set a suitable drying temperature.
• T here are four available drying temperature: High, Medium, Low, No Heat.
• “Temp” in the “Heavy Duty” cycle is “High”. This can not be changed;
• “Temp” in the “Normal” cycle can be choosen from “High, Medium, Low”;
• “Temp” in the “Whites” cycle can be choosen from “High, Medium, Low”.
• “Temp” in the “Delicate” cycle is “Low”. This can not be changed.
• Press Start/Pause button.
• When starting the machine, close the door first, then press this button.
• If a pause is needed during drying, press this button. Pressing again will resume operation. egardless of the dryer status (drying, pause or cool down), by turning the dial to “Off” position, the off indicator light will flash for 5 seconds and then the dryer will go into stand by mode. When machine is running, by turning the dial in any direction, the cycle will automatically turn “Off”. Note: To change the cycle press “Start/Pause”, turn dial to new selection and press “Start/Pause” again.

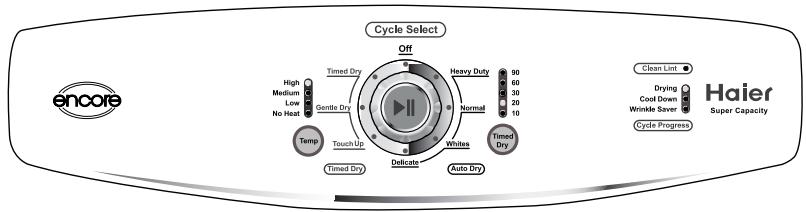

1. T urn the knob to any program except “Off” to power on. The control panel

will beep once and the dryer will change from “Off” to the operating status. If Start/Pause button is not pressed five minutes after powering on, the dryer will automatically return to Off status.

2. Set the cycle select dial to Timed Dry Cycle.

3. T here are 3 preprogrammed times, Timed Dry (5 Settings), Gentle Dry and

4. P

ress “Timed Dry” button to set the required drying time; Press “Temp” button to set the required drying temperature. In “Touch Up” cycle only a 20 minutes Timed Dry can be selected. Temp in “Touch Up” cycle is High Medium Low. Temp in “Gentle Dry” cycle is low only.

5. W

hen starting the machine close the door first, then press the “Start/Pause” button. If a pause is needed during drying, press this button. Pressing again will resume operation.

6. R

egardless of the dryer status (drying, pause or cool down), by turning the dial to “Off” position, the “Off” indicator light will flash for 5 seconds and then go into stand by mode. When the machine is running, turn the dial in any direction, the cycle will automatically turn “Off”. Note: To change the cycle press “Start/Pause”, turn dial to new selection and press “Start/Pause” again.

English Other Features Your dryer also has the following features for your convenience: Lint Filter: ll dryers come with a lint filter that needs to be cleaned before or after every use (read “Care and Cleaning Guide” Section). Leveling Legs: our dryer has four leveling legs which are located in the front and rear corners of your dryer. After installing your dryer in its final position, you can level your dryer.

• L eveling legs can be adjusted by turning them clockwise to raise your dryer or by turning them counterclockwise to lower your dryer. End of Cycle Signal:
• At the end of the dry cycle an audible signal will beep to alert you that the dryer has completed drying the load. Wrinkle Saver:
• At the end of the dry cycle the dryer will automatically go into the wrinkle saver mode. Here the dryer tub will tumble periodically for 1 hour after the dry cycle is completed. To stop simply open the door and remove the clothes.

NORMAL OPERATING SOUNDS

The following sounds are normal during the operation of the dryer.

• T umbling sound: this is normal as the heavy wet clothes in the dryer are continuously being tossed around. ir rushing noise: this happens as the dryer drum spins and the air is rushing through the dryer drum. Tips
• For best drying results, clean the lint filter before or after every use. o not overload the dryer. The appropriate load is 1/3 to 1/2 of the drum volume.
• Balance the dryer load evenly throughout the dryer for the best result. rying time depends on many variables: load size, type of fabric and moisture in it, heat and moisture in the room, electric voltage, length of the exhaust duct, etc.
• T o eliminate guessing and to conserve energy, it is recommend for certain clothes to dry on an auto-drying setting.
• Always follow the fabric care instructions supplied by the garment manufacturer.

CARE AND CLEANING GUIDE

• L int filter needs to be cleaned before or after each use for your unit to operate at optimum efficiency. The filter can be removed by pulling on the tabs located on the inside of the dryer door. The filter may be washed or vacuumed. Remove the excess Lint Filter water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. Lint built up in screen will restrict airflows, which causes longer drying times. After cleaning, slide the filter back in place. Do not use your dryer without the lint filter.
• Do not use any type of spray cleaner when cleaning the interior. azardous fumes or electric shock could occur. If dryer drum becomes stained, clean the drum with damp cloth. Remove any residue before drying next load. lean the cabinet with mild soap and water. Do not use harsh or abrasive cleaners, as this could damage the dryer. lean the duct and the vent on a regular basis to avoid clogging which could affect the efficiency of the dryer.

English TROUBLESHOOTING Dryer does not operate:

• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage. heck if the circuit breaker needs to be reset, or if the fuse needs to be replaced.
• Check if the unit is in the “Off” mode. Press start button again.
• Check if the door is open. Dryer is working but not drying the clothes:
• Unit may be overloaded. The dryer drum should be at most half full.
• Check exhaust ducts and vents. Vents should be free of obstruction.
• Check the duct length.
• Duct should be dust - and lint - free, and cleaned regularly. ryer load need to be resorted. Heavy clothes may need to be separated from regular clothes.
• Bulk clothes may require repositioning.
• If the clothes dries unevenly clothes in the dryer need to be resorted. Dryer makes noise when drying: heck for coins, loose change, buttons and other heavy objects that could be causing the noise.
• Dryer may need to be leveled.
• Read operating guide for normal operating sounds. Static:
• Caused by over drying. Adjust for shorter drying time.
• Sort and separate different fabric.
• Use a fabric softener.

English LIMITED WARRANTY Full ONE Year Warranty For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Second through Fifth Year. After only year from the original retail purchase date Haier shall provide a part at no cost, as indicated, to replace said part as a result or a defect in materials or workman ship, Haier is solely responsible for the cost of the part. All other costs such as the cost of the part. All other costs such as labor trip charge, etc are the responsibility of the owner. Haier will provide All Parts. NOTE: This warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered. Exceptions: Commercial or Rental Use warranty. 90 days labor from date of original purchase. 90 days parts from date of original purchase NO OTHER WARRANTY APPLIES. For Warranty Service Contact your nearest authorized service center. All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center please call 1-877-337-3639. Before calling please have available the following information: Model number and serial number of your appliance( found on the rear of the unit on the upper left hand side). The name and address of the dealer you purchased the unit from and the date of purchase. A clear description of the problem. A proof of purchase (sales receipt). This warranty covers appliances within the continental united States. Puerto Rico and Canada . What is not covered by this warranty: Replacement or repair of household fuses, circuit breakers, wiring or plumbing. A product whose original serial number has been removed or altered. Any service charges not specifically identified as normal such as normal service area or hours. Damage to clothing. Damage incurred in shipping Damage caused by improper installation or maintenance. Damage from misuse, abuse accident, fire, flood, or acts of nature. Damage from service other than on authorized Haier dealer or service center. Damage from incorrect electrical current, voltage or supply. Damage resulting from any product modification, alteration or adjustment not authorized by Haier. Adjustment of consumer operated controls as identified in the owners manual. Hoses, knobs, lint trays and all attachments, accessories and disposable parts. Labor, service transportation, and shipping charges for the removal and replacement of detective parts beyond the initial 12-month period. Damage from other than normal household use. Any transportation and shipping charges. THIS LIMITED WARRANTY IS GIVEN IN LIEU

OF ALL OTHER WARRANTIES EXPRESSED

OR INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages so the above limitations may not apply to you .Some states do not allow limitations on how long on implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state. Haier America New York, NY 10018

CONSERVEZ CES INSTRUCTIONS

Do Not Return This Product To The Store If you have a problem with this product, please contact the “Haier Customer Satisfaction Center” at 1-877-337-3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE IMPORTANT Haier America New York, NY 10018 Printed in China Issued: February 2010

GDE450AW / GDG450AW / CGDE450AW

©2010 Haier America Trading, LLC. All Rights Reserved. 100676 0608.
