USER MANUAL BD 103GC HAIER

DECLARATION OF CONFORMITY

The manufacturer of the product/s described herein, to which this description refers, declares on its sole responsibility that the product/s meet the relevant fundamental safety, health and protection requirements of the relevant EU guidelines and that the corresponding test reports are available for examination by the relevant authorities and can be requested from the seller of the appliance, especially with regard to CE Declaration of Conformity issued by the manufacturer or with the manufacturer's approval. Moreover, the manufacturer declares that the parts of the appliance described in this user manual, which come into contact with fresh food, do not contain any toxic substances.

CFD DECLARATION DE CONFORMITE

Contents 1 Installation e 2 Rating plate... 3 Connection to power supply 4 temperature selection 5 Indicator-lights.

Freezing/storage of fresh food 9 Maximum stacking height 10 Storage time. :

11. Precautions and advice

12 Cleaning and maintenance 13 Defrosting.. nee 14 Interior lighting.….............. 15 Resalving fauits on your own... 16 After-sales service . : 17 Guarantee 48 Troubleshooting guide { Storage Table. Components. Operating panel. what is when). PHuHaNEMUUER ER ER À 6 0 6 w NN NN Please read these instructions for use attentively to get a good and fast understanding of your new appliance. Underline any parts you consider particularly important for you. Look after this document so that you may consult it in future or pass it on to any future owners. You have purchased a good appliance which will serve you for many years if it is used and maintained correctly. The iliustration {FIG.} are on the last pages of this user manual. The performance data on the rating plate refer to ambient temperature within the range of +16°C to 32°C. Important! This appliance is designed for domestic use. If it is installed far professional or commercial use, the standards applicable to the respective trade must be observed. The seal of the appliance has been tested as to conform to the relevant legal safety standards. Should you have bought your new appliance in exchange of an old refrigerator /freezer, please pay attention to the fact, that it is essential to destroy possibly existing latch- or bolt-locks on the old appliance, before you put it aside. You prevent playing children from locking themselves in Please have the old appliance ecologically disposed off by a company specialised in environmental protections, (ask your civic centre), since the appliance may contain harmful components in the coolant, which have to be sucked off with a special equipment.

WARNING : Keep ventilation Openings.in the apptiance enclosure or in the built-in structure ,clear of obstruction

WARNING : Do not use mechanical devices or other means to accelerate the defrosting process other than

those reconnended by the manufacturer

WARNING :The refrigerant can be easily inflammable

Do not damage the refregetant circuit

WARNING :Do not use electrical appliances inside the food storage compartment of the appliance ,unliss they

are of the type recommended by the manufacturer

WARNING: After installation of the freezer, its plug should be accessible.

WARNING: Damaged electric cable of the freezer must be replaced with the cord provided by the manufac-

turer or its authorized after-sales service agent.

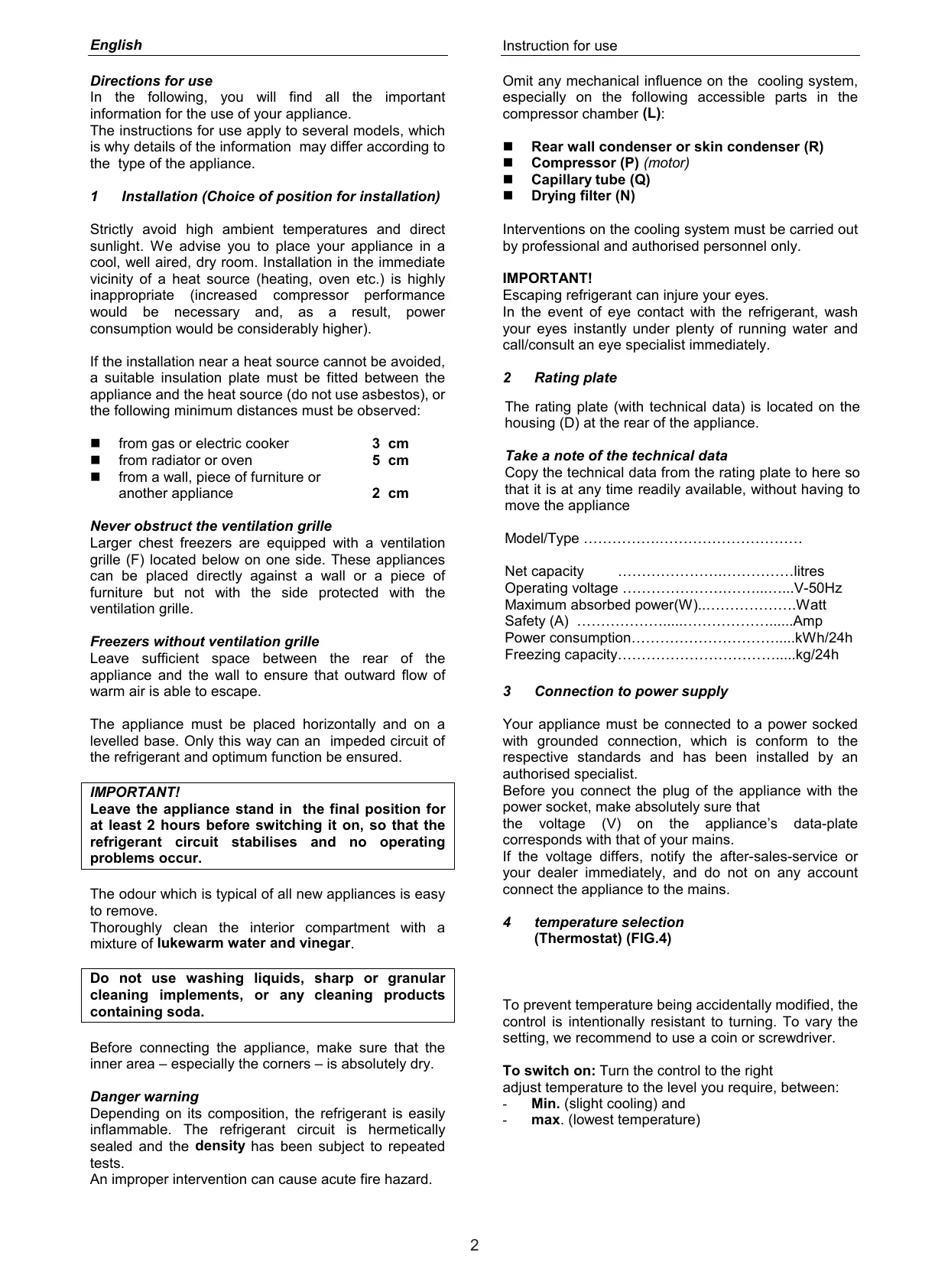

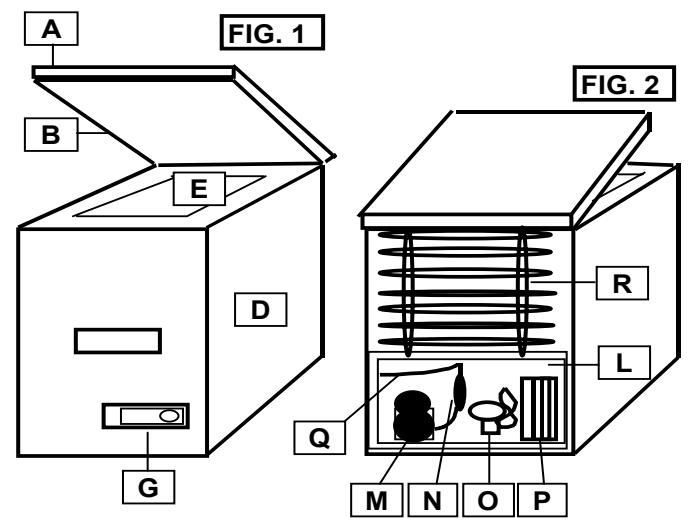

English Instruction for use Directions for use In the following, you will find all the important information for the use of your appliance. The instructions for use apply to several models, which is why details of the information may differ according to the type of the appliance. 1 Installation (Choice of position for installation) Strictly avoid high ambient temperatures and direct sunlight. We advise you to place your appliance in a cool, well aired, dry room. Installation in the immediate vicinity of a heat source (heating, oven etc.) is highly inappropriate (increased compressor performance would be necessary and, as a result, power consumption would be considerably higher). If the installation near a heat source cannot be avoided, a suitable insulation plate must be fitted between the appliance and the heat source (do not use asbestos), or the following minimum distances must be observed: M from gas or electric cooker 3 cm M from radiator or oven 5 cm M from a wall, piece of furniture or another appliance 2 cm Never obstruct the ventilation grille Larger chest freezers are equipped with a ventilation grille (F) located below on one side. These appliances can be placed directly against a wall or a piece of furniture but not with the side protected with the ventilation grille. Freezers without ventilation grille Leave sufficient space between the rear of the appliance and the wall to ensure that outward flow of warm air is able to escape. The appliance must be placed horizontally and on a levelled base. Only this way can an impeded circuit of the refrigerant and optimum function be ensured. IMPORTANT! Leave the appliance stand in the final position for at least 2 hours before switching it on, so that the refrigerant circuit stabilises and no operating problems occur. The odour which is typical of all new appliances is easy to remove. Thoroughly clean the interior compartment with a mixture of lukewarm water and vinegar. Do not use washing liquids, sharp or granular g implements, or any cleaning products Before connecting the appliance, make sure that the inner area — especially the corners — is absolutely dry. Danger warning Depending on its composition, the refrigerant is easily inflammable. The refrigerant circuit is hermetically sealed and the density has been subject to repeated tests. An improper intervention can cause acute fire hazard. Omit any mechanical influence on the cooling system, especially on the following accessible parts in the compressor chamber (L): = Rear wall condenser or skin condenser (R) M Compressor (P) (motor) M Capillary tube (Q) = Drying filter (N) Interventions on the cooling system must be carried out by professional and authorised personnel only. IMPORTANT! Escaping refrigerant can injure your eyes. In the event of eye contact with the refrigerant, wash your eyes instantly under plenty of running water and call/consult an eye specialist immediately. 2 Rating plate The rating plate (with technical data) is located on the housing (D) at the rear of the appliance. Take a note of the technical data Copy the technical data from the rating plate to here so that it is at any time readily available, without having to move the appliance Model/Type Net capacity Operating voltage Maximum absorbed power(W). Safety (A) Power consumption. .kKWh/24h Freezing capacity. 3 Connection to power supply Your appliance must be connected to a power socked with grounded connection, which is conform to the respective standards and has been installed by an authorised specialist. Before you connect the plug of the appliance with the power socket, make absolutely sure that the voltage (V) on the appliance’s data-plate corresponds with that of your mains. If the voltage differs, notify the after-sales-service or your dealer immediately, and do not on any account connect the appliance to the mains. 4 temperature selection (Thermostat) (FIG.4) To prevent temperature being accidentally modified, the control is intentionally resistant to turning. To vary the setting, we recommend to use a coin or screwdriver. To switch on: Turn the control to the right adjust temperature to the level you require, between: - Min. (slight cooling) and - max. (lowest temperature)

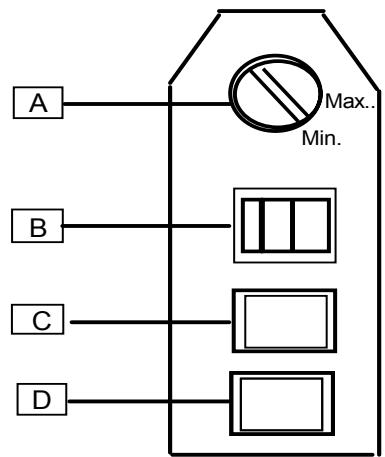

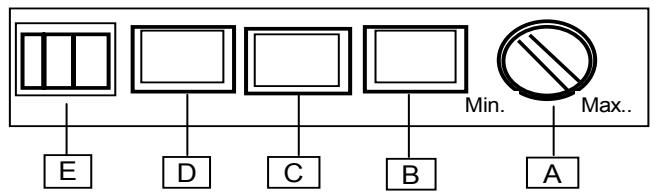

English Instruction for use Temperature settings must be according to: - ambient temperature of the appliance - _ quantity of stored foodstuff - frequency of opening We recommend a medium setting. You will soon learn which is the most suitable setting for your requirements. 5 Indicator-lights (FIG.4) If your appliance is equipped with indicator-lights, the following guide explains what is meant by each light up: - green = CONTROL The appliance is under current and operating The green control light must always be on when the appliance is connected to the mains and switched on. It is very important to pay attention to this, because in the event of a power failure, the red and yellow lights stop operating and do no longer provide a warning. - red = ALARM Interior temperature too high If the red indicator-light goes on, there may be several reasons for this, namely: m First start-up of appliance mn Restart after defrosting m Filing freezer with fresh food In these cases it is normal that the red indicator-light goes on. lt goes off automatically when the interior temperature reaches approximately -15°C. Switch on the SUPER FREEZE SWITCH (if equipped With) (FIG.4). (switch off again not more than 24 hours later or when the red light has gone off). Reopen the appliance, if possible, only after the red light has gone off. If the red control light nevertheless stays on after 12 to 24 hours, there may be serious problems. Consult the Troubleshooting guide “ what is when...” chapter at the end of this operating manual. -__ yellow = SUPER FREEZE SWITCH is on and the thermostat function is disabled. The compressor continues cooling until the SUPER FREEZE switch is turned off again. 6 Warning Buzzer (Acoustic alarm) If your appliance is supplied with a buzzer, it will sound when the red indicator-light goes on. The buzzer is silenced automatically when you turn on the SUPER FREEZER SWITCH. 7 Start-up 1... Fully unpack the appliance.

2. Remove the polystyrene parts in the compressor

chamber (if supplied).

3. Remove documents and any accessories from the

inside of the appliance.

4. Clean the interior with a mixture of lukewarm water

and vinegar, and dry thoroughly with a cloth. Close the appliance. Insert the plug in the socket Switch on the appliance by turning the temperature control (FIG.4) to the right (For the time being, turn the controller fully to the right to Max position). (green and red lights go on).

8. If equipped with a SUPER FREEZE SWITCH, turn

iton (yellow light goes on too).

9. Do not open the appliance any more for about 4

hours respectively as long as the red light is on, to allow the temperature in the inner compartment to drop to the necessary level.

10. You can now fill the appliance with any amount of

deep frozen food (purchased ready frozen goods). (Consult the following chapter “Maximum stacking height”).

11. Turn off the SUPER FREEZE SWITCH again after

24 hours at the latest.

12. If you wish to freeze fresh, unfrozen food, go on to

the following chapter “Freezing/storage of fresh food”. sos Important! Do not store any bottles containing liquids. Liquid expands when frozen and the bottle can explode. Never keep containers with explosive substances (gas lighters, petrol, ether and the like) in the freezer compartment of the appliance. When storing ready frozen food, you must observe the manufacturer's instructions on the food packaging. Deep frozen ice-cream and ice lollies must be eaten only a few minutes after being taken from the appliance to avoid injury to lips and tongue (danger of skin detachment). For the same reason, avoid touching the inner walls with wet hands. We advise you to use defrosted or slightly frozen products within short time. As a rule, such products are not suitable for re-freezing. 8 Freezing / storage of fresh food Almost all fresh products are suitable for freezing and storage in the appliance. For the most common of these products, we provide a table with instructions on acceptable storage times and the most suitable packing material (see “storage table” at the back of this user manual). Label the fresh products clearly as they are not easy to identify when deep frozen in transparent freezer-bags. We advise you to use commercially available labels for frozen foods. Pack fresh products in portions suitable for your household to prevent defrosting of quantities that are too large for consumption in one day in your household.

English Instruction for use Label the portions with at least the following information: Product name (e.g. beef fillet) Weight of portion Quantity (fotal of pieces) Freezing date Use by date (consumption date) (see “storage table”) Then continue as follows a) We recommend you place fresh foods in the pre- freezing compartment at the side (1) (not all models are equipped) or on the bottom of the freezer. This is the coldest part. Avoid to put fresh foods directly in contact with deep frozen food. Deep frozen food could defrost and may not outlast the foreseen storage time. b) Fill in within 24 hours, only the quantities of fresh food that are suitable for the freezing capacity of your appliance. See information on the rating plate (XX kg/24h). c) If available, switch on the SUPER FREEZE SWITCH (FIG.4) (not absolutely necessary when filling in already frozen (e.g. deep-frozen food) items. d) After 24 hours, shift deep-frozen goods from the freezer bottom or the pre-freeze shelf to a hung basket (K), so that the pre-freeze shelf or freezer bottom are available for freezing additional fresh foods. e) Turn off the SUPER FREEZE SWITCH (yellow light goes off). f) Set the temperature control to one of the appliance's relevant filing capacities (see “Maximum stacking height). g) Keep the temperature in the storage shelf (E) under control, preferably by placing a thermometer with a scale range of up to -26°C. The storage temperature must always be at least -18°C. Refilling of fresh food (not frozen) Make sure that you refill fresh food, in quantities adequate to the freezing capacity (XXkg/24h) earliest 24 hours after the previous filling. (do not exceed maximum stacking height) 9 Maximum stacking height To ensure correct storage of frozen food, never fill the storage shelf (E) up to the edge. Always allow space between the lid and the frozen foods. Set the temperature control (FIG.4) strictly according to the filling capacity. To save energy when operating in normal ambient temperature (+18 to + 22°C), we recommend the following settings for the temperature control: Capacity Stacking mark Settinq pos. Full upper 12,00 h Half full medium 10.00 h 1/4 or less lower 08.00 h 10 Storage time The storage time for purchased deep-frozen products varies and depends on the type of product and its packaging. Therefore, strictly observe the producer's instructions on the packaging. For fresh food that you like to deep freeze, consult the storage table at the back of this user manual. After being defrosted, food must be consumed immediately but latest within the next 24 hours. 11 Precautions and advice m Whenever cleaning or defrosting, remove the power plug. m After closing the freezer lid, do not open it immediately and do not force it open under any circumstances. Any vacuum remaining on the m seal (B) is released after about 1 or 2 minutes, so that the lid can be opened normally once again. m To prevent condensation and ice forming, allow cooked food to cool down to ambient temperature before closing the lid of the dish and before storage. M Leave the freezer lid open as briefly as possible to avoid waste of energy and to prevent an excessive amount of ice forming in the appliance. mice forming in the appliance. m lfthe red indicator-light goes on unexpectedly or stays on for a long period, do not open the lid on any account and take the appropriate measures immediately (see guide “what is when ….." at the back of the this user manual). # Do not use a screwdriver or other metal objects to remove the layer of ice. The interior walls are very delicate and will not tolerate any sharp edges. Use only plastic or wooden scrapers. 12 Cleaning and maintenance For the upkeep of the external appearance of your appliance, now and again clean with furniture polish or other enamel protecting product (never, on any account, use it in the inside. Clean the seal (B) with warm water now and again without using any cleaning product. If your appliance has a condenser (R) in the rear inside, from time to time remove dirt and dust. Dust and dirt impede release of heat from the inner compartment and considerably increases consumption of energy. For best results, use a light brush or duster to remove dust from the condenser on the rear wall. If you leave your appliance out of use for an extended period (e.g. when on holidays), leave it open to prevent odours building up inside. For appliances with locks: when the chest lid is open, always set the lock in “closed” position and keep the key well away from small children to prevent accidents. When ice and frost layers form on the inner walls up to a certain thickness, they act as an insulation element and prevent the coldness being released from the inner walls. They must be removed from time to time.

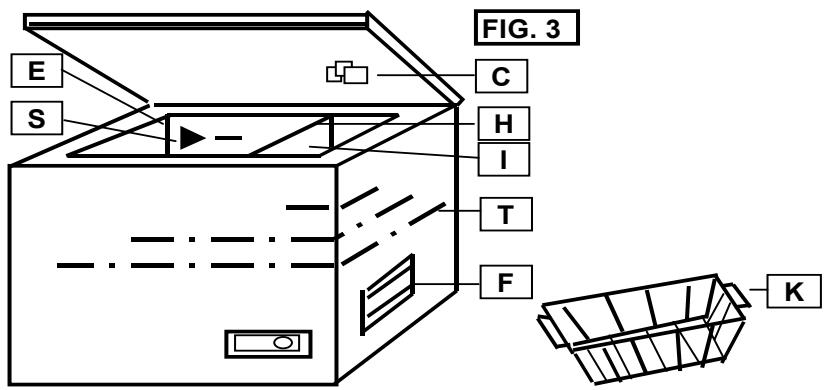

English Instruction for use To remove ice from the inner walls, use a plastic or wood scraper without sharp edges. Cover the frozen food with a cloth which aids to collect the scraped ice and enables a simple removal. 13 Defrosting Under normal conditions (3 to 4 openings per day) the freezer must be defrosted once or twice a year (more often in other cases). Danger warnings Never use electrical appliances to defrost the chest freezer, e.g. hair dryer, fan heater, or devices with a naked flame (e.g. candles). Plastic in the inner compartment can melt and escaping gas can be ignited by sparks or naked flames. Proceed as follows:

1. Provide a suitable non-metallic container (plastic

container or wash-basket).

2. Make absolutely sure that you remove the plug

from the power socket. 3 Dry your hands thoroughly to prevent skin damage by contact with ice (it is advisable to use gloves).

4. Remove all frozen food from the freezer, roll it

firmly in newspaper, put it into the container, place the container in a coo!, dry room.

5. Cover up the container all around with a thick

6. Lift the divider (H} {not all models are equipped)

upwards out of the guide-rail of the freezer.

7. Use the divider (so far as provided} as a defrosting

dish and push it on the side under the freezer — where the defrosting water drain-plug is located.

8. Pullthe plug (as far as provided) out of the freezer

bottom 8 As previously described, scrape the thickest ice carefully from the freezer inside and put it into the kitchen sink. for defrosting.

10. If necessary, speed up defrosting by placing a

large pot of warm (not toc hot) water on the freezer bottom.

11. In freezers not provided with a drain-plug,

continuously wipe up the water with a sponge.

12. Thoroughly clean the inside (compartment). Rinse

it with a mixture of warm water and vinegar, thereafter rinse with clear water.

13. Wipe the freezer with an absorbent cloth

thoroughly dry and allow to air for about 3 to 4 minutes.

14. Replace the drain-plug {if provided)

15. Empty the dry defrosting water dish (if provided)

and slide it as divider into the guide rails of the freezer.

16. Close the chest and plug it back into the socket.

17. Set the temperature control (FIG.1) to maximum

setting (green and red lamps go on) and switch on the SUPER FREEZE SWITCH (FIG.4}{if provided)(yellow lamp lights additionally).

18. Now refill the frozen food — the oldest items at the

top. To prevent frosted food from defrosting, carry out steps from 1 to 17 within max. two hours.

19. When the red lamp goes off, reset the temperature

control to à as per the filling capacity suitable storage temperature.

20. Switch off the SUPER FREEZER SWITCH (if

provided) after about 8 to 12 hours or, latest after 24 hours (the yellow light goes off). 14 interior light {not provided in all models) A switch is built into appliances equipped with lighting. When the appliance is opened the light goes on automatically and switches off automatically when closed. The lamp is protected with a transparent cover. Strictly use 15 W max. replacement bulbs. In case the lighting bulb needs to be changed, first remove the two shade-fastening screws, then unscrew the troubled bulb by turning counterclockwise and replace with a new one of the same spec, and then remount the shade and fasten it up with the screws. 15 Resolving faults on your own High quality manufacturing processes and Use of latest cooling and freezing technology will principally ensure trouble-free function of your appliance. If you suspect any fault, before contacting the after- sales service directly or via your dealer, make sure you have observed all instructions and advice in this user manual. Repairs by the after-sales service, of faults that have occurred because of non-adherence to the information and advice given in this manual have to be charged to the customer and are not covered by your dealer's guarantee. Attention The compressor {M) (also known as motor) must not operate continuously. It is controlled by the thermostat which you set with the temperature control (FIG.4). It switches on automatically when the set temperature in the storage compartment exceeds and switches off automatically when the correct temperature is reached again. Noise can be heard in every compressor — cooling system when the compressor is switched on. This noise is produced when the motor in the compressor operates and also by refrigerant flowing in the cooling system circuit. These noises are normal and do not indicate any functional trouble. In unheated rooms and in cold weather condition condensation can build up on the outer walls of the appliance. This does not mean trouble and disappears when the weather becomes warmer. Calling the Customers Support Service Call the after-sales service only, if after analysis of possible trouble/fauk factors you cannot find any cause for the defect or do not have the means to eliminate the trouble. Therefore first check under “What is when …." 16 After-sales service Consult the enclosed guarantee card or the separately enclosed after-sales centres list, to see which company is responsible for servicing your appliance. lf several after-sales centres are mentioned on the list, select the nearest one to you. If no after-sales service centres list is enclosed with your appliance, contact your dealer.

English Instruction for use In order to receive immediate help, make sure you have ready the following essential data to identify your appliance: Brand of appliance Model / Type Kind of trouble Date of purchase Purchased from whom? 17 Guarantee Please note the general guarantee terms and the guarantee period are stated in the attached guarantee card. If the appliance documentation does not include a guarantee card, please contact your dealer. 18 What is whel a) No function (appliance not running) Attention! In the event of problems or of a power failure, the insulation of the appliance walls provides 10 to 12 hours storage time after the beginning of such failures. Considerably more time is available in specially insulated appliances. Ask your dealer what is the suitable “storage time after problems” for your appliance. If it takes longer to eliminate a problem, the frozen food in the appliance begins to defrost. Therefore, take prompt action to eliminate the problem and, if necessary, shift frozen food into another appliance (possibly neighbour). b) Appliance not cooling sufficiently Freezing process too long Compressor operating too often Possible causes/Remedies: m Did you have the appliance t stand for at least 2 hours before switching it on? (stabilise the refrigerant flow-circuit). See: “Start-up”. If not: unplug when the chest is closed, lift the chest for a brief moment and then put it back down to its original position. After 2 hours put the plug back in. Do not open the chest during this period and a further 12 hours afterwards, ie. until the red light goes off. m Is the plug in good condition and is it properly plugged into the socket? m Is the socket under current? (if necessary, test by connecting a small appliance such as a hand-mixer, etc.). m The lid of the appliance does not close properly. The seal does not firmly press. Test: place a piece of writing paper between the seal and the edge of the chest, and close the lid. It should be difficult to pull out the paper from any side. If you can pull out the paper without any resistance from one ore more sides, notify your after-sales service centre. M Heavyice formation on the inner walls. (see “cleaning and maintenance”) = The appliance is exposed to direct sunlight or is installed near a heat source (oven, radiator, etc.) Protect the appliance against direct sunlight; check the distance to the heat source; place isolating (see “ Installation (Choice of position for installation”) = The filling of food does not correspond with the excess freezing capacity of your appliance (see rating plate: XXkg/24h), or you did fill in too warm food (see: ” Refilling of fresh food”). The manufacturer works constantly at the further development of all products. Please therefore bear this in mind as the form, set up and technology are subject to change, without prior notice. The symbol ms on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

English STORAGE TABLE Fresh food Suitable packaging Ta TT Tr Mincemeat Polyethylene freezer bag e Sausages > |Polyethylene freezer bag e Small fish > |Polyethylene freezer bag e Heart / liver Polyethylene freezer bag e Ice cream Plastic container e Fruit Plastic container e Cheese Polyethylene freezer bag e Bread Polyethylene freezer bag e Large fish > |Polyethylene freezer bag e Cake / biscuits > [Glass container e Pork Aluminium foil e Beef > [Aluminium foil e Rabbit > [Aluminium foil e Lamb Aluminium foil e Mushrooms > |Polyethylene freezer bag e Asparagus > |Polyethylene freezer bag e Vegetables (cut) Polyethylene freezer bag e Strawberries Polyethylene freezer bag e Flans Aluminium foil e Chicken Aluminium foil e Turkey Aluminium foil e Duck > [Aluminium foil e Goose > [Aluminium foil e Cauliflower Polyethylene freezer bag e Beans > |Polyethylene freezer bag e Pepperoni > |Polyethylene freezer bag e Preserves Glass container e Preserved fruit Glass container e Ice lollies > [Aluminium foil e
