Product type	Quick coupler (connector) for diving equipment
Brand	Suunto
Model	QR (Quick Release)
Use	Connect the submersible pressure gauge to the HP outlet of the regulator
Compatibility	European standard EN 250
Connection	Push and turn clockwise; disconnect by pushing and turning counterclockwise
Disconnection	Push and turn counterclockwise, then pull; use protective caps
Allowed gas mixture	Compressed air or nitrox up to 40% oxygen
Safety	Do not connect/disconnect under pressure; purge the system after closing the valve
Maintenance	Every 2 years or 200 dives by an authorized dealer
Internal O-rings	Model 3,80 x 1,50 90shA (ref. K5168)
Regulator connection O-ring	9,25 x 1,78 (ref. K1042)
Spare parts available	Cap (V5887), male part (5505), hose (K5165), hose protector (K5171), etc.
Repairability	Simple replacement of the internal O-ring; other repairs at an authorized workshop
Manufacturer	Suunto Oy, Finland
Europe contact	Tel. [phone]
Website	www.suunto.com

Frequently Asked Questions - QR_ SUUNTO

How to install the Suunto QR?

Suunto recommends having the QR installed by an authorized dealer. Otherwise, disconnect the hose, install the QR ends, check the O-rings before assembly.

How to connect the QR?

Push and turn clockwise until it clicks. Check the engagement by pulling hard and turning counterclockwise.

How to disconnect the QR?

Push and turn counterclockwise, then pull to separate. Use the caps to protect the ends.

What is the maximum allowed gas mixture?

Do not expose the QR to a mixture containing more than 40% oxygen, risk of fire or explosion.

Can the QR be connected or disconnected under pressure?

No, it is dangerous. Close the cylinder valve and purge the system before any connection or disconnection.

When should the QR be serviced?

Every two years or after 200 dives (whichever comes first) by an authorized dealer.

How to replace the internal O-ring?

Remove the old O-ring with a watchmaker's screwdriver, then push the new one (ref. K5168) into its groove with a wooden tip without damaging the sealing surfaces.

What spare parts are available?

Cap (V5887), male part (5505), internal O-ring (K5168), O-ring 9,25x1,78 (K1042), hose (K5165), hose protector (K5171), etc.

Is the QR compatible with any regulator?

The QR is designed for diving equipment compliant with EN 250. It is installed between the pressure gauge and the hose, or between the hose and the regulator.

Where can I contact Suunto customer service?

For Europe, call [phone]. More info at www.suunto.com.

USER MANUAL QR_ SUUNTO

European Call Center

Phone [phone]

Suunto Website

www.suunto.com

SUUNTO QR (QUICKRELEASE)

This SUUNTO QR (quick release) is a heavy duty connector for connecting SCUBA cylinder pressure gauge to regulator high pressure port. Connecting or disconnecting without the need for tools is enabled. The QR is installed between gauge and hose or between hose and regulator.

Though designed to withstand the rigors of scuba diving you must treat the QR with proper care and caution as any other diving equipment.

The SUUNTO QR has been tested and approved to be used in SCUBA equipment according to European standard EN 250.

WARNING!

Do not expose the QR to any gas mix containing more than 40% oxygen. Greater oxygen content presents a risk of fire or explosion and serious injury or death.

1.1. Installation

Suunto recommends that your QR is installed by an authorised dealer or distributor.

Disconnect the hose at the place where you want to install the QR. Install the QR ends to their respective places. The joint designs are identical to the ones without the QR. If the QR is installed at the gauge the swivel stem must be installed at the hose to QR joint. If the QR is installed at the regulator, one o-ring (9.25 × 1.78) must be installed on the QR before threading into HP port on regulator. When making the assembly check the condition of all the o-rings and replace if needed with supplied spare parts. Make sure all parts are clean before assembling.

If the QR is installed at the instrument end it may be necessary to open up the hose hole size in the console housing in order fit the QR connector.

1.2. Use of the QR

Connecting is made by pushing on and turning clockwise. Make sure the connector is locked by pulling hard and turning counterclockwise.

Disconnecting is made by pushing and turning counterclockwise and then pulling the connector off. Use the end plugs for protecting the open connector ends against dust or dents.

CAUTION!

Do not connect or disconnect the hose with the cylinder pressure present. Close cylinder

valve and purge system before connecting or disconnecting.

1.3. Service

Service your QR and hose assembly every two years or after 200 dives (whichever comes first) by an authorised dealer or distributor. This service will include a general operational check, replacement of worn parts, and pressure leak check. The service may require special tools and training. Therefore, it is advisable to contact an authorised SUUNTO dealer or distributor for biennial service. Do not attempt to do any service that you are not sure about how to do.

Under severe use the inside o-ring in the male connector may be damaged. It can quite easily be replaced with a spare o-ring (3.80x1.50 90shA). Pry out the old o-ring with a mini screwdriver. Push the new o-ring into its groove with a suitable small wooden stick. Do not damage the o-ring or the sealing surfaces!

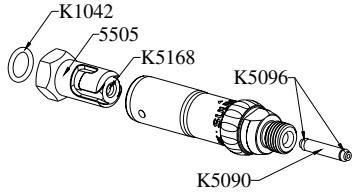

Spare parts (some are supplied in QR package):

End plug for QR V5887
- QR male part 5505
- Internal o-ring for QR male part (3.80x1.50 90shA) K5168
- Hose male end o-ring (9.25 x 1.78) K1042. - Also used between QR and gauge.
Hose K5165
Hose cover K5171
- Swivel stem with o-rings (service replacement in V5580 5-pack)
Stem for swivel joint K5090
- O-ring for swivel stem (1.42 x 1.52) K5096
