USER MANUAL RA20 CHAMBERLAIN

(h) WTMZ1
(i) TCRX3ED
(j) TCTX2ED
TCRX2ED
(k) WTMLS1
(I) TCL5E
(m) 703280

Description

Moteur 10Nm / 35mm

Moteur 14Nm / 45mm

Moteur 19Nm / 45mm

Moteur 36Nm / 45mm

Adaptateur rainure, 78mm

Adaptateur rainure, 85mm

Axe octogonal 40mm - 2m (40mm)

Axe octogonal 60mm - 1m

Axe octogonal 60mm - 2m

Axe octogonal 60mm - 3m

Caution! Non-compliance can result in serious injury.

Any work on the electrical installation including servicing may only be performed by a qualified electrician.

Do not allow children to play with the controls.

Check shutter or sun-blind system regularly for signs of wear and damage. Damaged systems should not be used under any circumstances until such time as they have been repaired.

Observe shutter or sun-blind system carefully whilst in operation.

Switch off shutter or sun-blind system and disconnect from mains supply, if any servicing or cleaning has to be done either on the system itself or in its immediate vicinity.

Ensure that the motor is accessible after installation.

Ensure sufficient room (at least 40~cm ) is left between any moving parts and nearby objects.

Ensure system cannot trap or cut persons and secure relevant parts.

Correct use

Type RA10 - RA50 tubular drives are designed for the exclusive purpose of operating shutters and sun-blind systems.

In compliance with standard EN 60 335-2-97:2000, the cable connecting the RA10 drive to the mains cable must be laid internally.

EJOT Delta PT 40x12 WN 5454 Torx (9900 000 545 4) is the only type of screw that can be used to fasten the connecting parts to the RA10 motor.

Any other form of usage is deemed to be incorrect. Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to property or consequential injury or damage occurring as a result of the use of the control units and / or drives for purposes other than those mentioned above or due to changes made to the equipment affecting the safety of the given system.

The details stipulated in the Operating Instructions in respect of the operation and repair of the system require strict observance. Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to property or consequential injury or damage occurring as a result of non-compliant actions.

IMPORTANT SAFETY INSTRUCTIONS FOR THE FITTER

Caution! Non-compliance can result in serious injury. Observe EN 60 335-2-97:2000 Safety Instructions in full.

Any work on the electrical installation may only be performed by a qualified electrician.

When electrical or electronic systems and appliances are in operation, certain components are live, which can constitute a risk. Any touching of and work performed on the equipment by persons not qualified to do so or non-compliance with safety instructions can result in personal injury or damage to property.

All the standards and regulations applying to electrical installations must be observed.

Only those spare parts, tools and other equipment as have been approved by Chamberlain may be used.

Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to property or consequential injury or damage occurring as a result of the use of non-approved third party products or changes made to any accessories.

Prior to performing installation work, de-activate all connections and control facilities that are not absolutely essential for operation of the given system.

Fit control facilities within sight of the product to be controlled at a height of at least 1.5m

Ensure sufficient room is left between any moving parts and nearby objects.

Torque rating and duty cycle must comply with the requirements of the product to be driven

Technical data - torque rating and duty cycle details can be found on the tubular drive's data plate.

Ensure system cannot trap or cut persons and secure relevant parts.

Observe safety margins as stipulated in DIN EN 294.

Please consult Chamberlain product information for further details.

Declaration of Conformity

Tubular Motor.. RA10 -RA20 - RA30 - RA50
is in conformity to the applicable sections of Standards .EN55014, EN610003, ETS RES 0908, EN60555, & EN60335-1
per the provisions & all amendments
of EU Directives. .73/23/EEC, 89/336EEC

Declaration of Incorporation

Tubular Motor Model RA10, RA20, RA30 and RA540, when installed and maintained according to all the Manufacturer's instructions in combination with a shutter which has also been installed and maintained according to all the Manufacturer's instructions, meets the provisions of EU Directive 89/392EEC and all amendments.

I, the undersigned, hereby declare that the equipment specified above and any accessory listed in the manual conforms to the above Directives and Standards.

Chamberlain GmbH

D-66793 Saarwellingen

March, 2002

Wu

Colin B. Willmott

Chief Engineer

1. Motor (1)
2. Hardwarebag
3. Adjuster pin (2)
4. Drive adapter safety catch(RA10 - RA30) (3) (RA50) (4)
5. Square pin (RA50) (5)
6. Square pin 25mm (RA10 - RA30) (6)

(3) Manual
(4)Drive adapter (7)
(5)Mounting bracket (8)

Before You Begin:

1. Carefully read all the information contained in this Owner's Manual before beginning installation procedures.
2. Check the shutter to be sure it is not broken or damaged, and that it opens and closes smoothly.
3. Determine whether the motor needs to be installed on the left side (a) or the right side, (b) of the shutter - Figure . Install it on the side where the manual pull is located. Close the shutter.
4. Ensure that the motor can be pushed in as far as the stop. The limit switch is controlled by the plastic ring which must be pushed fully on.

Tubular Motors with mechanical limit switches

Model	Diameter	Torque	Speed	Operating Voltage	Frequency	Current input	Motor Rating	Operating time	Limit Switch Range
	(mm)	(Nm)	(RPM)	(V)	(Hz)	(A)	(W)	(min)	(U)
RA10	35	10	14	230	50	0.40	100	4	38
RA20	45	14	15	230	50	0.67	155	4	38
RA30	45	19	15	230	50	0.77	175	4	38
RA50	45	36	15	230	50	1.18	230	4	38

Warranty for Tubular Motor

Chamberlain GmbH warrants to the first retail purchaser of this product that the product shall be free from any defect in materials and/or workmanship for a period of 60 full months (5 years) from the date of purchase for RA10, RA20, RA30 or RA50 Series Models. Upon receipt of the product, the first retail purchaser is under obligation to check the product for any visible defects.

Conditions: The warranty is strictly limited to the reparation or replacement of the parts of this product which are found to be defective and does not cover the costs or risks of transportation of the defective parts or products.

This warranty does not cover non-defect damage caused by unreasonable use (including use not in complete accordance with Chamberlain's instructions for installation, operation and care; failure to provide necessary maintenance and adjustment; or any adaptations of or alterations to the products), labor charges for dismantling or reinstalling of a repaired or replaced unit or replacement batteries.

A product under warranty which is determined to be defective in materials and/or workmanship will be repaired or replaced (at Chamberlain's option) at no cost to the owner for the repair and/or replacement parts and/or product. Defective parts will be repaired or replaced with new or factory rebuilt parts at Chamberlain's option.

If, during the warranty period, the product appears as though it may be defective, contact your original place of purchase.

This warranty does not affect the purchaser's statutory rights under applicable national legislation in force nor the purchaser's rights against the retailer arising from their sales purchase contract. In the absence of applicable national or EC legislation, this warranty will be the purchaser's sole and exclusive remedy, and neither Chamberlain GmbH nor its affiliates or distributors shall be liable for any incidental or consequential damages for any express or implied warranty relating to this product.

No representative or person is authorized to assume for Chamberlain GmbH any other liability in connection with the sale of this product.

INSTALLATION

• Rough- in or install conduit pipe to the connector box for the electrical connecting line according to local building and electrical codes.

A Place the tube drive adapter (7) on the motor and fix the drive adapter with the parts (3 or 4).
Fix the square pin with the screws on the motor (5 or 6).
B Fully unroll the shutter (a). Remove the shutter material from the tube (b). Remove the manual control (c).
C Remove the tube.
D Push the motor (1) completely into the tube. The limit switch operates only if the drive unit is fully inserted. Ensure that the adapter ring is pushed fully home. Do not force it or strike it. Do not damage the tubular motor by drilling!
E Proceed according to the specific requirements for left-sided (a) or right-sided (b) operation:
F Secure the mounting bracket (8) to the wall (use suitable screws and plugs).
G Insert the motor (a) into the mounting bracket (8) and secure it.

Make sure the set screws for the limit adjustments are accessible.

Don't return the shutter material to the tube yet!

H ELECTRICAL CONNECTION

Never connect more than one motor to a timer or wall switch without using a central module - (h) (available as an accessory), i.e. one central module fired for each connected motor.

The illustration also shows the wall bracket on the drive side (b), the motor (a); the steel tube (c); the end cap (d); and the opposite wall bearing (e).

For a left-side motor installation, follow the wiring diagram exactly as shown in the control accessory package.

For the correct direction of rotation in a right-side motor installation, electrical wires (brown & black) must be reversed between the control accessory and the motor. (See instructions packed with the accessory you have chosen).

Have the electrical hook-up done by a qualified electrician in compliance with your local electrical code.

Accessories can be found in section L on page 4.

1

SETTING THE LIMITS

Procedure for Adjusting

"Open" and "Close" Positions

(refer to figure I for lefthanded installation)

1 Limit Setting for "Shutter Open"

• = increase travel

• = decrease travel

2 Limit Setting for "Shutter Close"

• = increase travel

• = decrease travel

Please observe that the limits of the motor only operate in a complete installation.

Read the following instructions carefully before making any open or close limit adjustments.

To attach the shutter material on the tube, use ONLY the 3.9 × 6.5 mounting screws included (not suitable for RA10).

Otherwise, the drive might be damaged by screws which are too long.

This instruction applies particularly to model RA10 (no screws included). Use the appropriate fixing parts to secure the shutter material to the tube. The drive may be damaged by using screws which are too long.

IF ADJUSTMENTS ARE NEEDED, PROCEED AS FOLLOWS:

LIMIT ADJUSTMENT SCREW #1 - OPEN

Run the motor through an open cycle.

If motor stops before shutter is fully opened:

Turn set screw #1 toward + and open the shutter until desired position is reached.

If motor stops after shutter is fully opened:

• Close shutter below desired position. Turn set screw #1 toward - and open shutter again. Repeat this step as often as necessary to reach the desired position

LIMIT ADJUSTMENT SCREW #2 - CLOSE

Run the motor through a close cycle.

If motor stops too soon (before shutter is fully closed):

Turn set screw #2 toward + and close shutter again, until desired position is reached.

If motor stops after shutter is fully closed:

Retract shutter above desired position. Turn set screw #2 toward – and close shutter again. Repeat this step as often as necessary to reach the desired position.

TROUBLE SHOOTING

Motor does not run

• Public electricity supply failure. Check with a neighbor.
• Fuse has tripped or is blown. Check house overload protector. If necessary, have an authorized electrician redistribute the load.
• The switch is defective. Have it checked by an authorized electrician and replaced if necessary.
• Repeated operation may have tripped the motor overload protector switch. Wait 15 minutes and try again.

Motor runs intermittently

• Have the wiring connection between switch and motor checked by an authorized electrician. Replace if necessary.

Motor does not shut off

• Check to be sure tube adapter is positioned all the way up to the stop on the tube.
• Check to be sure the motor has been inserted all the way into the tube.

J

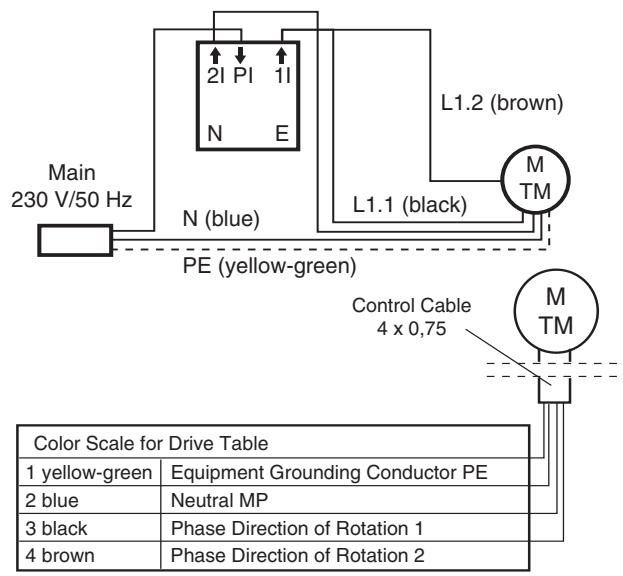

Leftsided Installation 703280

K

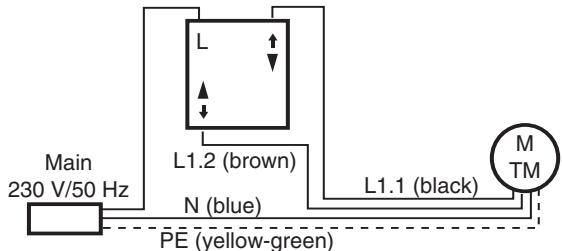

Connection of the
Model TCS1ED switch

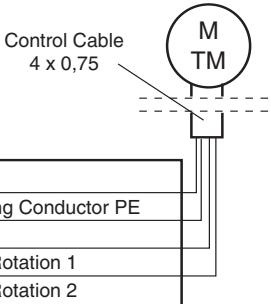

Color Scale for Drive Table
1 yellow-green	Equipment Grounding Conductor PE
2 blue	Neutral MP
3 black	Phase Direction of Rotation 1
4 brown	Phase Direction of Rotation 2

L

No

Part

(a)

RA10

Description

RA20

Motor

10Nm/35mm

RA30

Motor

14Nm / 45mm

RA50

Motor

19Nm / 45mm

(b)

TAR40B

Motor

36Nm / 45mm

TAP65B

Adapter round, 40

TAO70B

Adapter profile, 65mm

TAM78B

Adapter octagonal, 70mm

TAM85B

Adapter awning, 78mm

(c)

TAM85B

Adapter awning, 85mm

(c)

WT840-2

Octagonal tube 40mm - 2m (40mm)

WT860-1

Octagonal tube 60mm - 1m

WT860-2

Octagonal tube 60mm - 2m

WT860-3

Octagonal tube 60mm - 3m

(d)

120995

Endcap for octagonal tube 60mm

(e)

121084

Opposite wallbearing for

(f)

TCS1ED

Wall Switch (Rocker switch)

(g)

TCT2ED

Programmable Timer

TCTR2ED

Programmable Timer with integrated Receiver

TCTTX2ED

Programmable Timer with integrated Transmitter

(h)

WTMZ1

Central Module

(i)

TCRX3ED

Rolling Shutter Remote Control Receiver

(i)

TCTX2ED

Remote Control Wall Switch

TCRX2ED

Rolling Shutter Control with integrated Receiver

(k)

WTMLS1

Light Sensor

(1)

TCLS1ED

Remote Control Light and

Glass Breakage Sensor

(m

703280

Switch - flush mount
