USER MANUAL 5580-2 CHAMBERLAIN
800N, 230-240V/50Hz, 165W, Tn=8Nm
| LM1000A-2 | LM800A-2 | 5580-2 | LM60A | LM60K | LM60R-128 | |
| 7023CR3 | X | X | X | X | ||
| 7025CR3 | X | X | X | X | ||
| 7030CR3 | X | X | X | X | ||
| 7223CR3 | X | X | X | X | ||
| 7423CR3 | X | X | X | X | enthalten | |
| 7010CR3 | X | X | X | X | ||
| 8023CR3 | X | X | ||||
| 8025CR3 | X | X | ||||
| 8030CR3 | X | X | ||||
| 8223CR3 | X | X | ||||
| 8423CR3 | X | X | enthalten | |||
| 8430CR3 | X | X | ||||
| 8010CR3 | X | X |

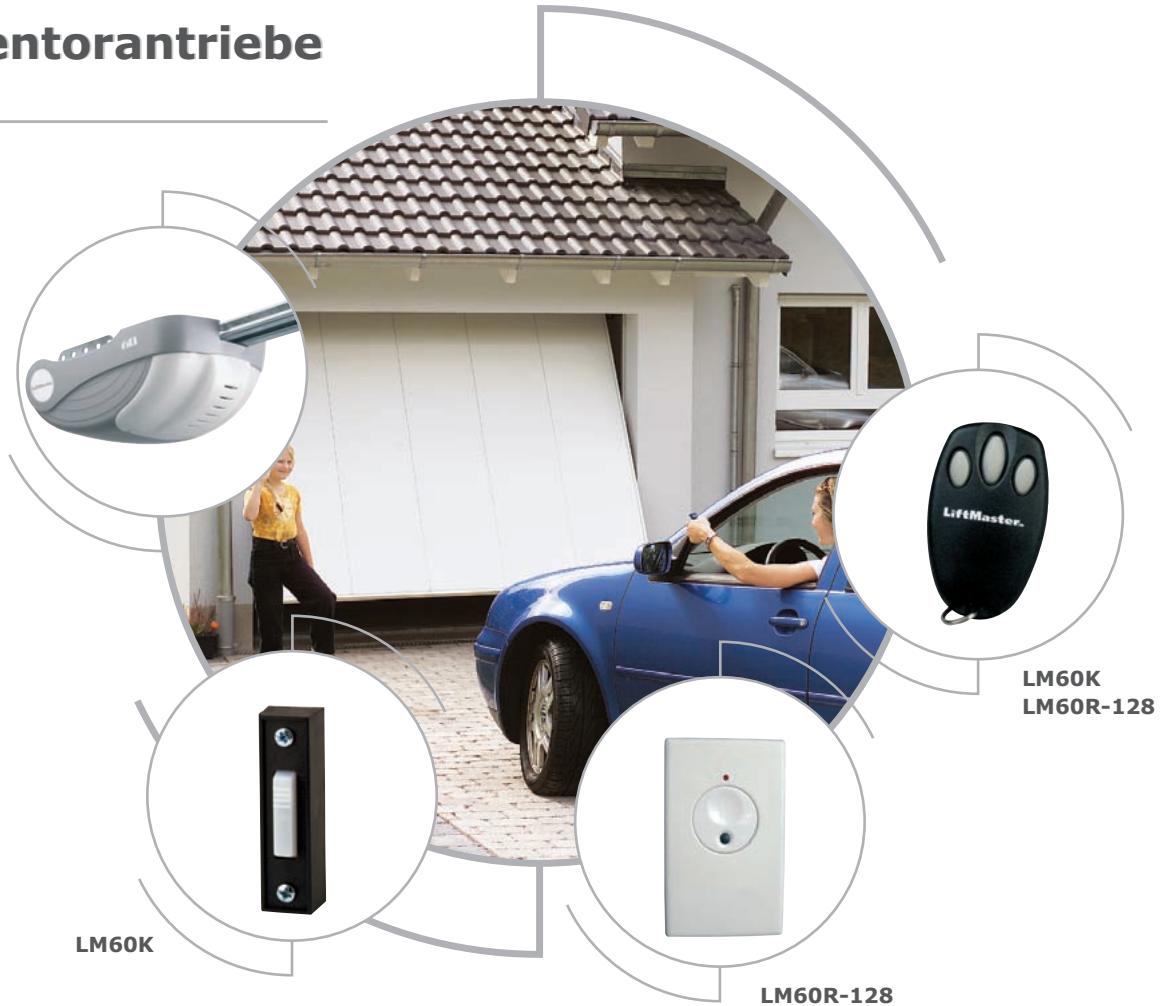

Garagentorantriebe Kits
Model LM60
Garagentorantrieb Kit LM60K
Lieferumfang:
24V Gleichstrommotor
Gerauscharm, Soft Start/Soft Stopp
Kette
Residential Garage Door Opener Systems

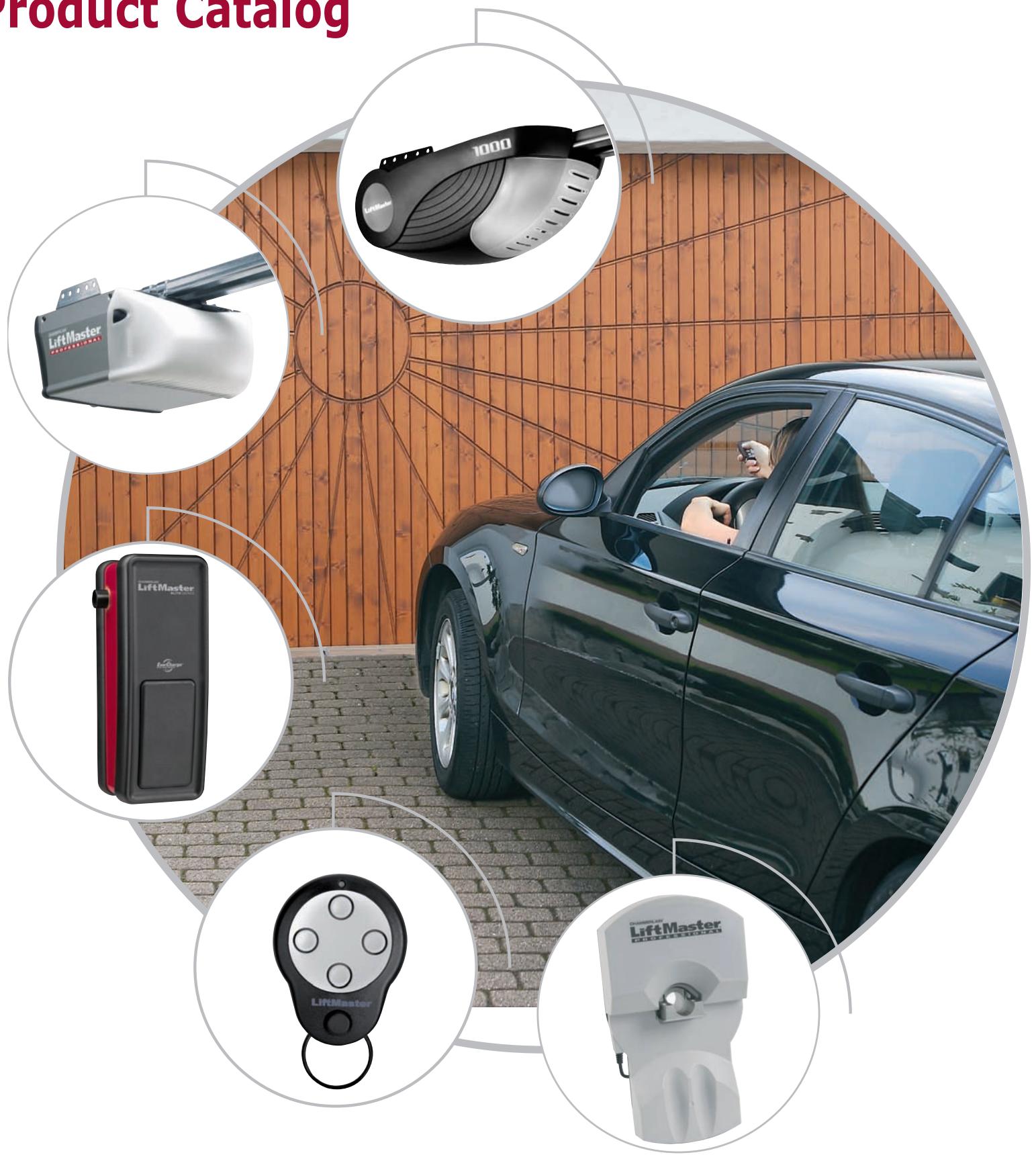

Product Catalog

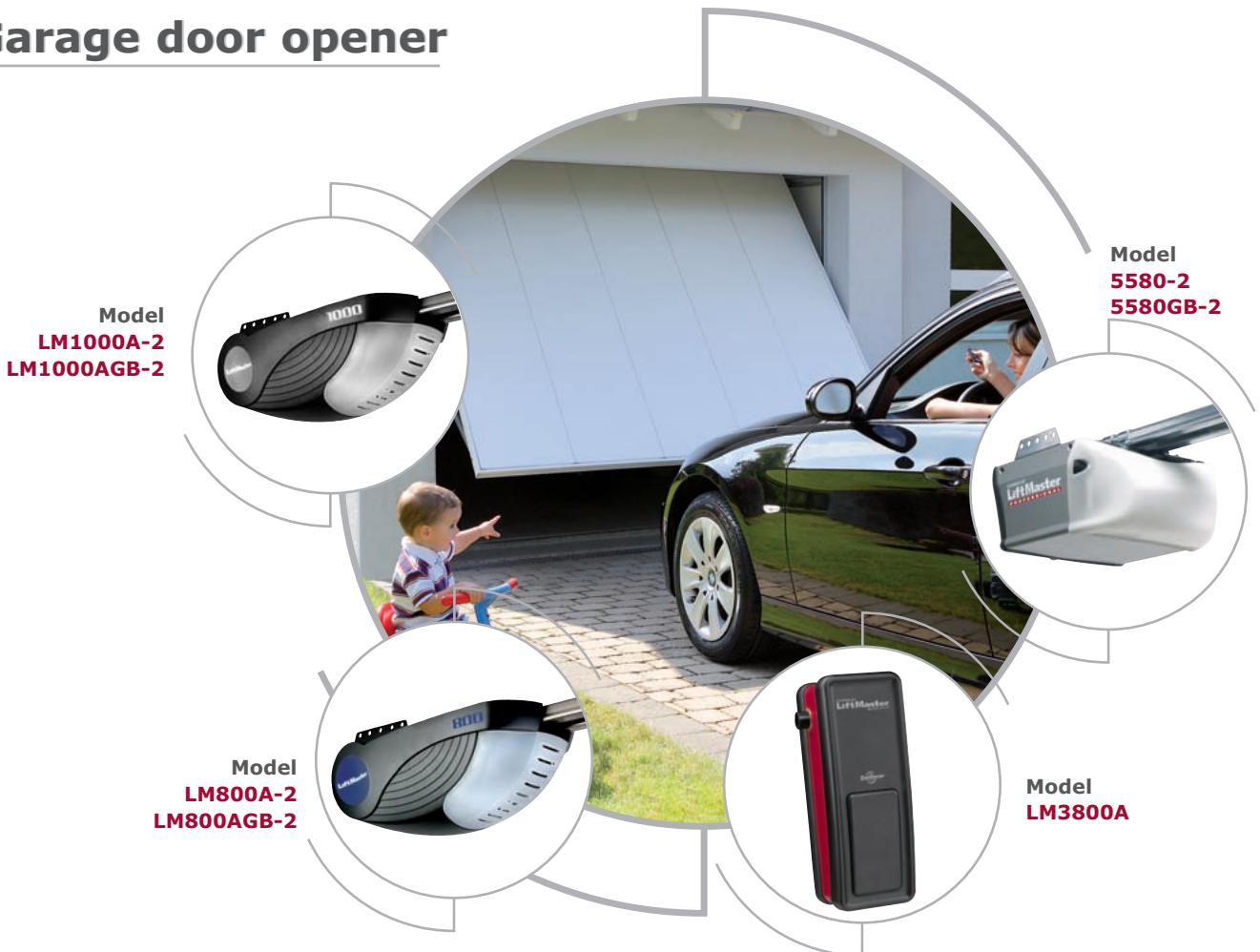

Garage door opener
All garage door openers (LM3800A partly) come with automatic-learn force sensing, easy to program electronic limits, rolling code technology, energy saving transformer, quick-connect wire terminals, logic board with diagnostics, 1-light*230V/40W with 2.5 minute adjustable light delay, antenna, door-in-door and flashing light connection.
Specify operator head and 30mm chain or belt steel C-rail separately.
Garage door opener LM1000A- 2
Included:
24V DC motor
Smooth, soft-start/soft-stop
Chain or Belt drive
Automatic close timer
24V DC power terminal
Wireless Wallcontrol
Rail to head quick connect
C-rail low headroom bracket
5-Year Motor/2-Year Full warranty
TUV-tested to meet EN12453
For doors up to 130kg / 13,5m^2
Garage door opener LM800A-2
Included:
24V DC motor
Smooth, soft-start/soft-stop
Chain or Belt drive
Automatic close timer
24V DC power terminal
Multi-function control p.
Rail to head quick connect
C-rail low headroom bracket
4-Year Motor/2-Year Full warranty
TÜV-tested to meet EN12453
For doors up to 110kg / 13,5m^2
Description:
1000N, 230-240V/50Hz, 190W, Tn=10Nm
Reduction means: Gear 63:1
Lifting capacity: Automatic 0-100kg
Travel rate: approx. 160mm/s
Shipping weight - head: 7.5kg
Stand-by power consumption: 5.5W
Radio:
433.92MHz Smart superheterodyne receiver
64 Memory registers
Two 4-channel mini remote control with rolling code
With 12-language EU instructions and Schukocord-set
With UK 3-pin fused cord-set (Model LM1000AGB-2)
Description:
800N, 230-240V/50Hz, 165W, Tn=8Nm
Reduction means: Gear 63:1
Lifting capacity: Automatic 0-80kg
Travel rate: approx. 160mm/s
Shipping weight - head: 7,5kg
Stand-by power consumption: 5W
Radio:
433.92MHz Smart superheterodyne receiver
32 Memory registers
Two 3-channel mini remote control with rolling code
Multi-function control panel
With 12-language EU instructions and
Schukocord-set
With UK 3-pin fused cord-set (Model LM800AGB-2)
Flip down light lens
Illuminated push button
C-rail low headroom bracket
2-Year Full Warranty
TUV-tested to meet EN12453
For doors up to 110kg / 13,5m^2
Description:
800N, 230-240V/50Hz, 400W, 2,5A
Reduction means: Gear 16:1
Lifting capacity: Automatic 0-80kg
Travel rate: approx. 133mm/s
Shipping weight - head: 12,2kg
Stand-by power consumption: 2,6W
Radio:
433.92MHz Smart superheterodyne receiver
8 Memory registers
Two 3-channel mini remote control with rolling code
With 12-language EU instructions and Schukocord-set
With UK 3-pin fused cord-set (Model 5580GB-2)
Garage door opener LM60A
Included:
24V DC motor
Smooth, soft-start/soft-stop
Chain drive
Illuminated push button
1 bulb 24V/21W
2-Year Full Warranty
TÜV-tested to meet EN12453
For doors up to 90kg / 10,7m²
Description:
600N, 230-240V/50Hz, 100W, Tn=5Nm
Reduction means: 63:1
Lifting capacity: Automatic 0-60kg
Travel rate: approx. 160mm/s
Shipping weight - head: 12,5kg
Stand-by power consumption: 4W
Radio:
433.92MHz Smart superheterodyne receiver
12 Memory registers
One 3-channel mini remote control with rolling code
With 17-language EU instructions and Euro-contact pin
Garage door opener LM3800A
Included:
24V shaft operator
Smooth, soft-start/soft-stop
Electronic control included
Clutch for 1" inch shafts
Slack rope switch with cable
Wall mounting bracket
Automatic close
2-Year Full Warranty
GS tested and tested to meet EN12453
For doors up to 130kg / 13,5m^2
Description:
10Nm (max. 40Nm), 230-240V/50Hz, 190W
Lifting capacity: Automatic
Travel rate: approx.: 24 & 36 rpm
Shipping weight - head: 13kg
Stand-by power consumption: 5W
Backup Battery possible
Radio:
433.92MHz Smart superheterodyne receiver
64 Memory registers
Two 3-channel mini remote control with
rolling code
With multilingual EU instructions and Schukocord-set
Premium accessories included
Wireless wallcontrol

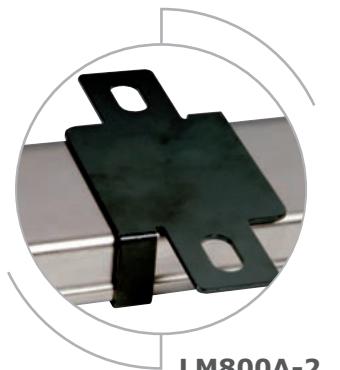

C-rail low headroom bracket
LM800A-2 LM1000A-2 5580-2
Rails
For LM1000A-2, LM800A-2 and 5580-2. LM60A, chain only.
Specify operator head and rail separately.
All rails come with automatic chain or belt tensioner device.
Required headroom clearance: C-rail - 30mm
CHAIN
Model
Description
7023CR3
1-piece C-rail, chain, for 2.3m door
7025CR3
1-piece C-rail, chain, chain, for 2.5m door
7030CR3
1-piece C-rail, chain, for 3.0m door
7223CR3
2-piece C-rail, chain, for 2.3m door
7423CR3
4-piece C-rail, chain, for 2.3m door
7010CR3
1.0m C-rail extension kit, chain, master links, splice
BELT
Model
Description
8023CR3
1-piece C-rail, belt, for 2.3m door
8025CR3
1-piece C-rail, belt, for 2.5m door
8030CR3
1-piece C-rail, belt, for 3.0m door
8223CR3
2-piece C-rail, belt, for 2.3m door
8423CR3
4-piece C-rail, belt, for 2.3m door
8430CR3
4-piece C-rail, belt, for 3.0m door
8010CR3
1.0m Extension kit for C-rail 8030CR3, replacement belt for 4.0m door, splice
Rail / Model Chart Recommendation
| LM1000A-2 | LM800A-2 | 5580-2 | LM60A | LM60K | LM60R-128 | |
| 7023CR3 | X | X | X | X | ||
| 7025CR3 | X | X | X | X | ||
| 7030CR3 | X | X | X | X | ||
| 7223CR3 | X | X | X | X | ||
| 7423CR3 | X | X | X | X | included | |
| 7010CR3 | X | X | X | X | ||
| 8023CR3 | X | X | ||||
| 8025CR3 | X | X | ||||
| 8030CR3 | X | X | ||||
| 8223CR3 | X | X | ||||
| 8423CR3 | X | X | included | |||
| 8430CR3 | X | X | ||||
| 8010CR3 | X | X |

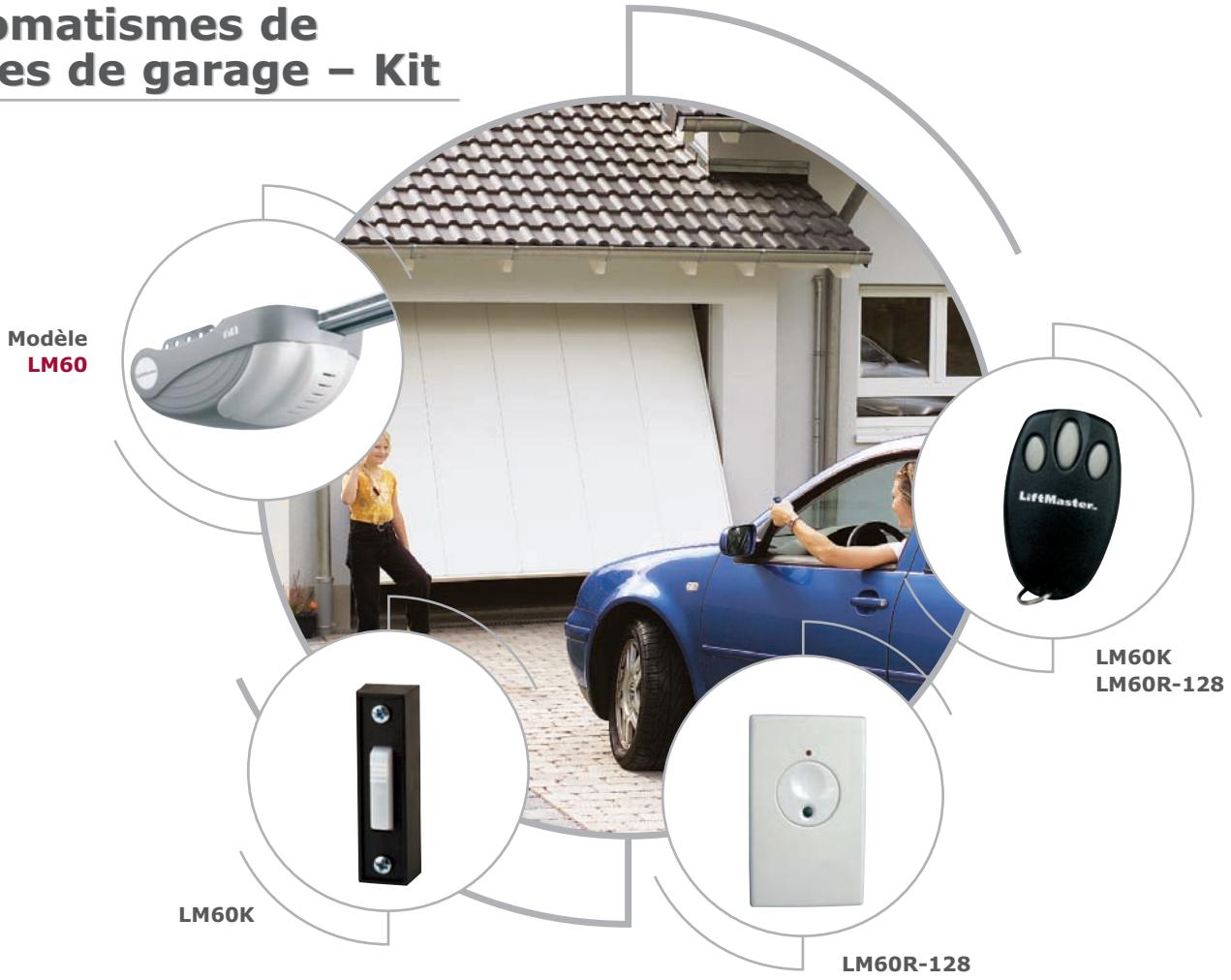

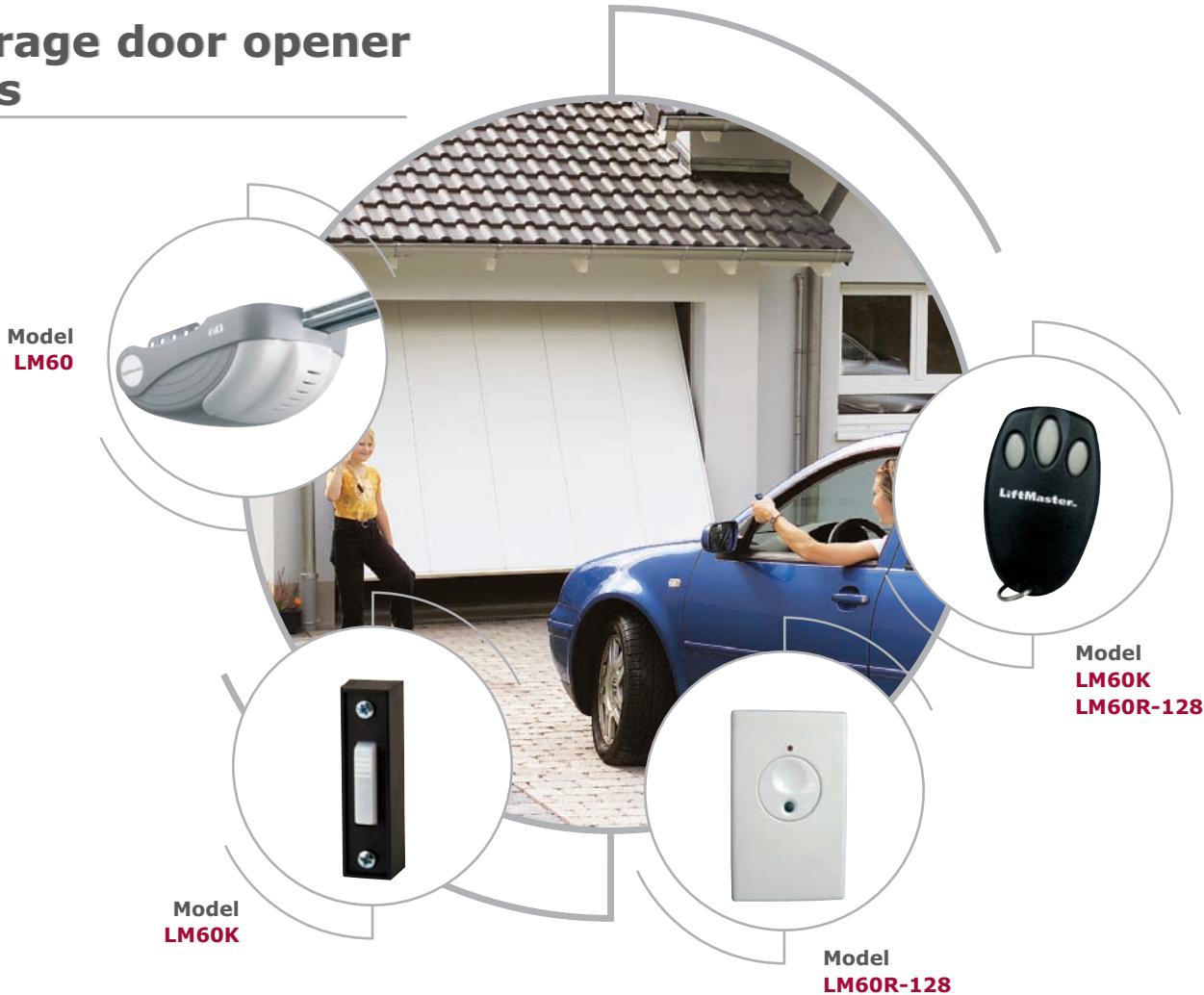

Garage door opener Kits
Garage door opener Kit LM60K
Included:
24V DC motor
Smooth, soft-start/soft-stop
Chain drive
Illuminated push button
4-piece C-rail for door up to 2.3m
1 bulb 24V/21W
2-Year Full Warranty
TÜV-tested to meet EN12453
For doors up to 90kg / 10,7m^2
Description:
600N, 230-240V/50Hz, 100W, Tn=5Nm
Reduction means: Gear 63:1
Lifting capacity: Automatic 0-60kg
Travel rate: approx. 160mm/s
Shipping weight - head: 18kg
Stand-by power consumption: 4W
Radio:
433.92MHz Smart superheterodyne receiver
12 Memory registers
One 3-channel mini remote control with
rolling code
With 17-language EU instructions and Euro-contact pin
Garage door opener Kit LM60R-128
Included:
24V DC motor
Smooth, soft-start/soft-stop
Belt
Wireless wallcontrol
4-piece C-rail for door up to 2.3m
1 bulb 24V/21W
2-Year Full Warranty
TÜV-tested to meet EN12453
For doors up to 90kg / 10,7m^2
Description:
600N, 230-240V/50Hz, 100W, Tn=5Nm
Reduction means: Gear 63:1
Lifting capacity: Automatic 0-60kg
Travel rate: approx. 160mm/s
Shipping weight - head: 18kg
Stand-by power consumption: 4W
Radio:
433.92MHz Smart superheterodyne receiver
12 Memory registers
One 3-channel mini remote control with
rolling code
With 17-language EU instructions and
Euro-contact pin

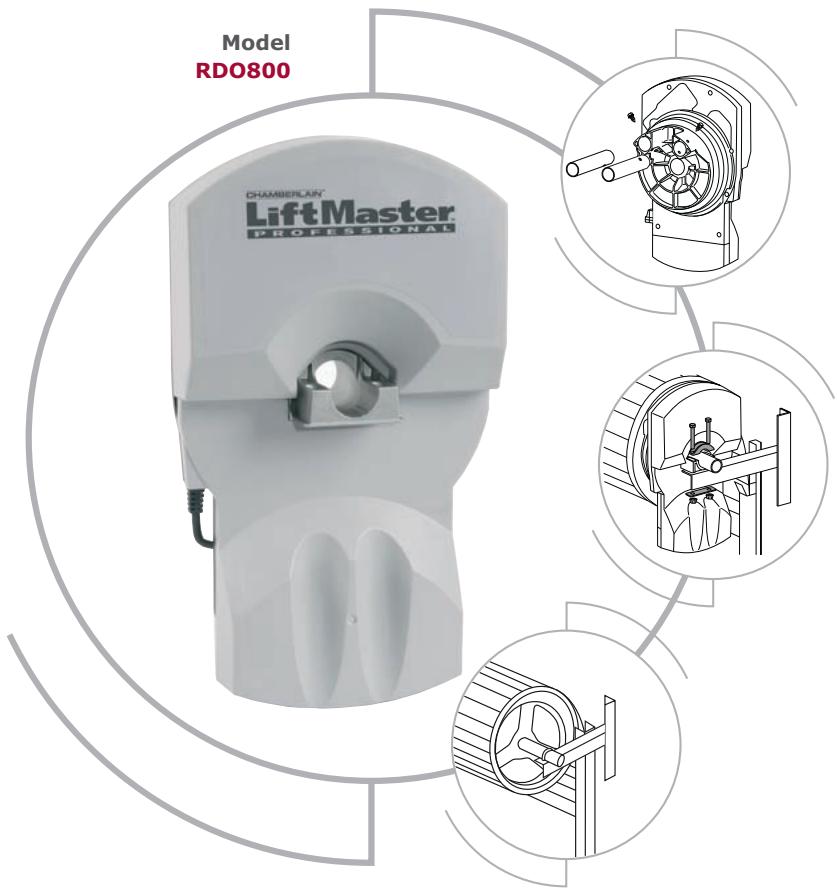

Rolling door operator RDO800
Included:
24V DC motor, 433MHz
For single and double car garage doors
Soft-start/soft stop
Automatic force adjustment
2-Year Full Warranty
TÜV-tested to meet EN12453
For doors up to 100kg / 12m²
Description:
550 N (nominal), Tn=18Nm, 230-240V/50Hz, 90W
Lifting capacity: Automatic 0-55kg
Shipping weight: 10kg
Stand-by power consumption: 5,5W
Backup Battery possible
Radio:
433.92MHz Smart superheterodyne receiver
64 Memory registers
Two 3-channel mini remote control with rolling code
With instructions in english and british 3-PIN plug.

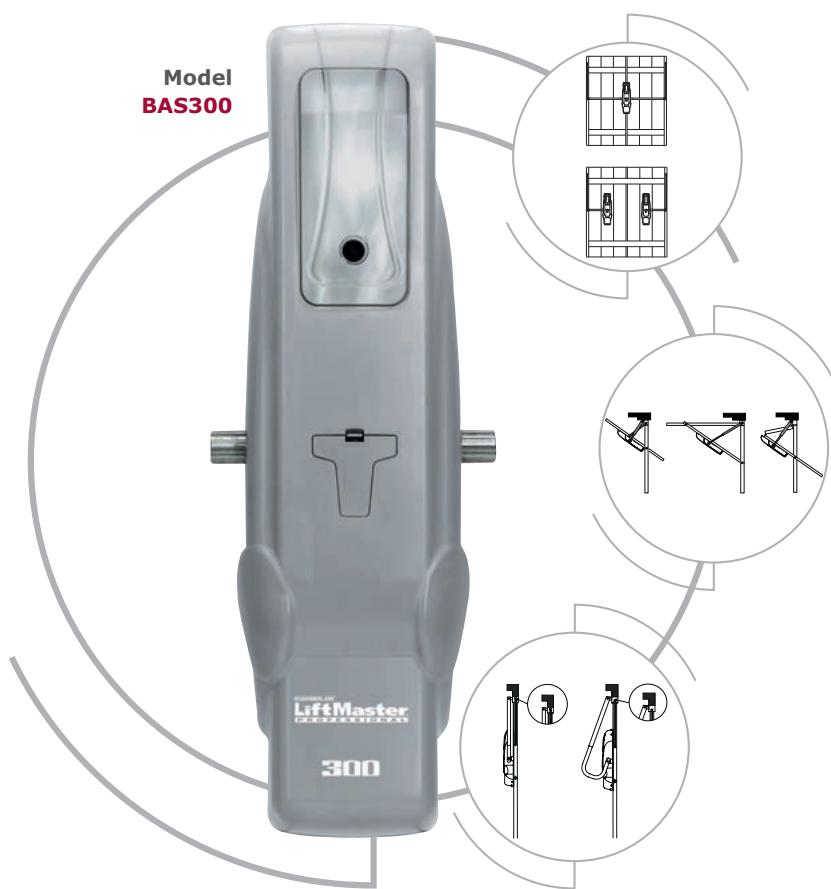

"Porte basculante" operator BAS300
Included:
- Heavy-duty AC motor
Built-in garage light - Push button on cover
- Manual release with key
Water resistant enclosure
Model:
BAS300K
With 1x 3-channel mini-transmitter (94335E), IR-Sensors (771E), limit switches, RPM-sensor, control board (CB3), 433MHz Superheterodyne rolling code radio
BAS300
For dual operator use
Description:
350Nm 230-240V/50Hz, 400W, 1,8A
Reduction means: Gear 700:1
Lifting capacity: 1 motor 8m^2 , 2 motoren 14m^2
Degree of protection: IP44
Travel rate: approx.: 14 sec (90^)
1 light: 1x230V/40W
Shipping weight - head: 11,5kg
Stand-by power consumption: 6W
Nemko tested to meet EN12453 with
IR sensors on doors up to 14.0m^2
LiftMaster Operator General Specifications
Convenience/Safety
Emergency quick release
Automatic trolley reconnect
Trolley disconnect mode setting
Ventilation/pet opening
Safety stop and full reverse
Up: Safety stop
Automatic close (dependent on model)
Flashing light connection (dependent on model)
Door-in-door switch (dependent on model)
General
Door Linkage: Adjustable door arm
Logic Type: Solid-state microprocessor with built-in surge suppressor
Solid-state light delay
Force Adjustment: Segmented - Automatic learn
Length of line cord: 1.2m
Digital Radio controls
Logic boards feature the exclusive Smart Button for programming transmitter codes to receiver memory.
RF Module: 433.92MHz - AM Superheterodyne
Rolling Code or Billion Code decoding
Operating Temperature: -30°C to +65°C
Battery (Remote Control): 2x3V or 1x3V (94335E)
Remote control may be programmed from operator or control panel.
Remote control may be programmed to control the opener light.
Remote control may be programmed to an open/close/stop function.
2-1/2 minute light timing adjustable to 1-1/2, 2-1/2, 3-1/2, 4-1/2 minutes.
Operator light may be programmed to turn on when IR beam is broken.
In order to guarantee a smooth operation, we help you to diagnose in case of a failure.
Through simple flashing signals you will know what to do quickly.
Example: LM1000A-2, LM800A-2, LM60
1 Flash: The Protector System™ open, misaligned or an object has broken IR beam for more than 4 seconds.
2 Flashes: The Protector System™ wire shorted or connected backwards.
3 Flashes: Door or wall control button wire shorted.
4 Flashes: IR sensor slightly misaligned (dim or flashing sensor LED) or partially blocked.
5 Flashes: No RPM in the first second of travel. Motor has stalled or the electronics did not see the RPM signal. The unit will stop or reverse in 1 second.
6 Flashes: RPM caused a reversal (low force setting).
7 Flashes: Bad logic board (Unplug and reconnect operator).
9 Flashes: No passport detected during travel.
Rapid Flashing: Transmitter code being received. (Operator not necessarily programmed to respond)
Install all operators to EN12453 and/or IEC60335-95-2
All LiftMaster operators meet or exceed all applicable EU regulations.
All trolley operator impact forces, force sensing, door, weight, and size ratings have been tested and verified by TÜV-Rheinland.
All operators carry TUV approval and CE marking.
All operators are HomeLink compatible.
Tel.: +49 (0) 68 38 90 72 50
Fax: +49 (0) 68 38 90 71 79
Tel.: +44 (0) 19 35 82 39 00
Fax: +44 (0) 19 35 82 38 99
Tel.: +33 (0) 03 87 98 62 84
Fax: +33 (0) 03 87 95 48 16
Tel.: +39 03 63 38 21 00
Fax: +39 03 63 81 70 23
Chamberlain GmbH
800N, 230-240V/50Hz, 165W, Tn=8Nm
| LM1000A-2 | LM800A-2 | 5580-2 | LM60A | LM60K | LM60R-128 | |
| 7023CR3 | X | X | X | X | ||
| 7025CR3 | X | X | X | X | ||
| 7030CR3 | X | X | X | X | ||
| 7223CR3 | X | X | X | X | ||
| 7423CR3 | X | X | X | X | compris | |
| 7010CR3 | X | X | X | X | ||
| 8023CR3 | X | X | ||||
| 8025CR3 | X | X | ||||
| 8030CR3 | X | X | ||||
| 8223CR3 | X | X | ||||
| 8423CR3 | X | X | compris | |||
| 8430CR3 | X | X | ||||
| 8010CR3 | X | X |
Automatismes deportes de garage - Kit
Eclairage: 1x230V/40W
800N, 230-240V/50Hz, 165W, Tn=8Nm
| LM1000A-2 | LM800A-2 | 5580-2 | LM60A | LM60K | LM60R-128 | |
| 7023CR3 | X | X | X | X | ||
| 7025CR3 | X | X | X | X | ||
| 7030CR3 | X | X | X | X | ||
| 7223CR3 | X | X | X | X | ||
| 7423CR3 | X | X | X | X | incluido | |
| 7010CR3 | X | X | X | X | ||
| 8023CR3 | X | X | ||||
| 8025CR3 | X | X | ||||
| 8030CR3 | X | X | ||||
| 8223CR3 | X | X | ||||
| 8423CR3 | X | X | incluido | |||
| 8430CR3 | X | X | ||||
| 8010CR3 | X | X |
