USER MANUAL PX150 ZIBRO

A. Brug/DD: beeskadigede kabler.
B. Kabel mä不同程度 klemme eller knækkes.
C. Anbringes pà et plant gulv.
D. Må ikke anbringes ved et Åbent vindue.
E. Må ikke komme i kontakt med kemikalier.
F. Må不同程度 and the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of the degree of

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this air conditioner. We strongly recommend keeping this manual in a safe place for future reference.

H

0

A. Do not use a damaged cable.

B. Do not clamp or bend the cable.
C. Do not place unevenly.
D. Do not place in front of an open window.
E. Do not bring in contact with chemicals.
F. Do not place near a heat source.

G. Do not immerse in water.
H. Do not spill.
I. Do not insert anything.
J. Do not use an extension cord.
K. Keep out of the reach of children.
L. Do not repair.

0

SICUREZZA

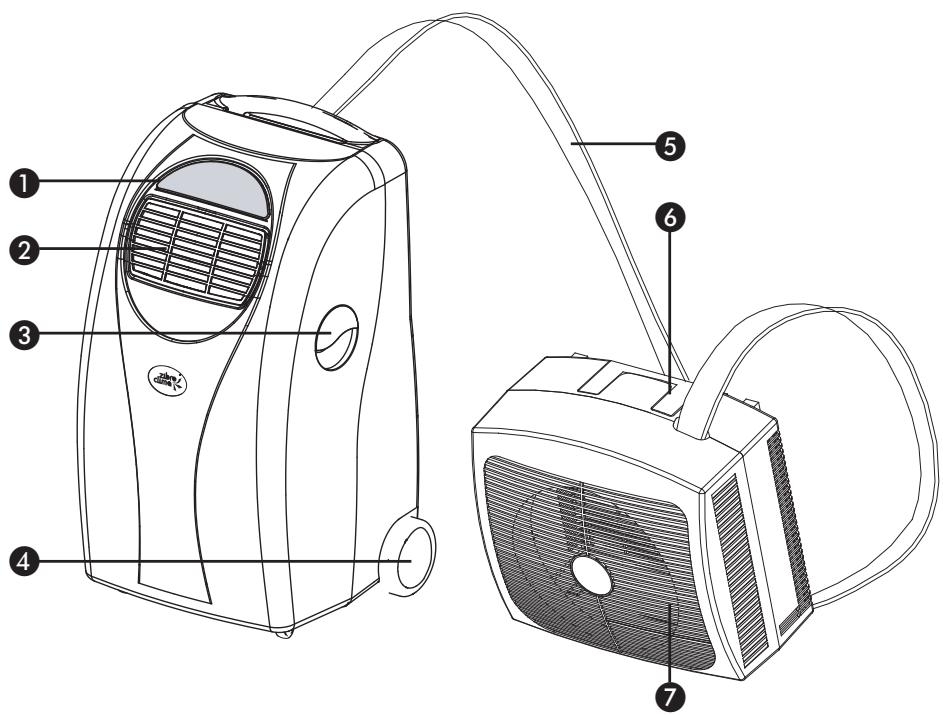

Control panel
Cool air outlet
3 Handle
4 Casters
5 Connection tube
6 Handle of outdoor unit
7 Exhaust air outlet

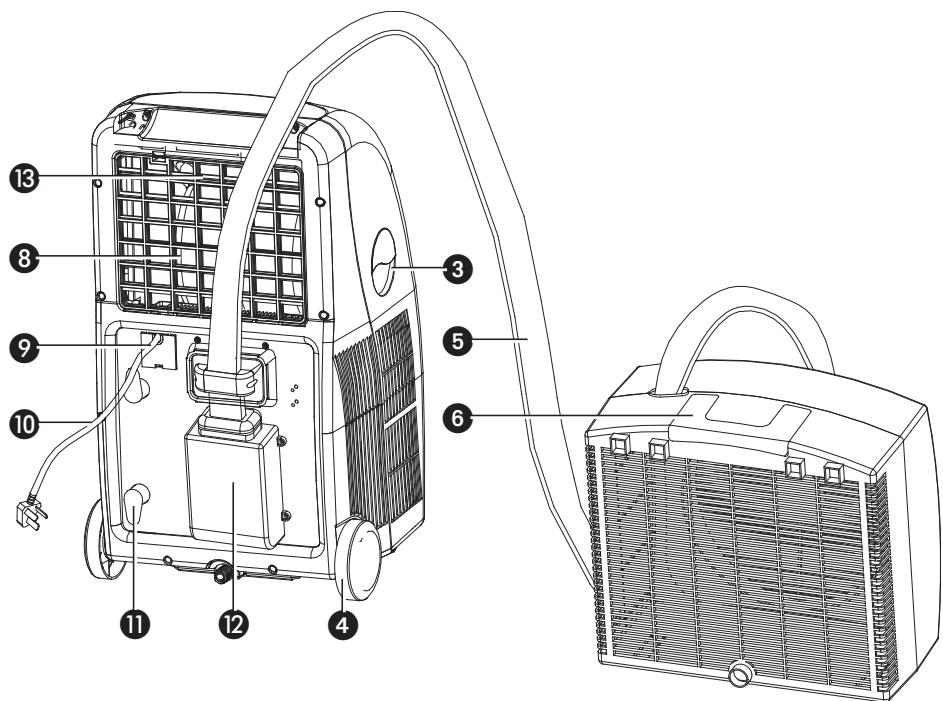

Air inlet
Power cable compartment
10 Power cord
Cord hanger
12 Connection box
Active carbon filter
14 Bracket fro mounting outdoor unit
15 Spanners
16 Spacer, screws, protection caps
Remote controller

14

15

16
中

17

1. READ THE DIRECTIONS FOR USE FIRST.

2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

Dear Sir, Madam,

Congratulations on the purchase of your Zibro Clima air conditioner. In addition to air cooling, this air conditioner has two other functions, namely air dehumidification and circulation. The mobile Zibro Clima air conditioner is extremely easy to operate and move. You have acquired a high quality product that will provide you with many years of pleasure, on condition that you use it responsibly. Reading these instructions for use before operating your Zibro Clima will optimise its life span. We wish you coolness and comfort with your Zibro Clima.

Yours sincerely,

PVG International b.v.

Customer service department

IMPORTANT

The unit is designed for indoor operation.

Rating: This unit must be connected to a 230V / 50Hz earthed outlet.

The installation must be in accordance with regulations of the country where the unit is used.

If you are in any doubt about the electrical installation, have it checked and if necessary modified by a qualified electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it with care.
• Keep out of the reach of children.
• Do not clean the air conditioner by spraying it or immersing it in water.
• Do not insert any object into the opening of the air conditioner.
• Disconnect from the mains before cleaning the unit or any of its components.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a licenced electrician.
• Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to do so could result in a loss of warranty.

WARNING

Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.

A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard.

WARNING

Before using the air conditioner it should be left in an upright position for at least 2 hours.

The air conditioner consists of an indoor mobile unit and an outdoor unit. The units are connected to each other by a 3 metre flexible tube. The outdoor unit can be placed on the floor (of a balcony) or hung on a wall.

The maximum distance from the top of the outdoor unit to the floor is 1.5m
- To avoid damaging the connection tube, leave the window ajar.

Installation of the outdoor unit

1 Apply the spacer (16) to the outdoor unit.
2 Firmly screw the bracket (14) to the wall.
3 Hang the outdoor unit.

Energy saving tips

• Use the unit in the recommended room size (see specifications).
• Do not locate the air conditioner where furniture or other objects can obstruct the airflow.
• Keep blinds/curtains closed during the sunniest part of the day.
• Close the fireplace damper and floor and wall grills so that cool air does not escape through the chimney or ductwork.
• Keep the filters clean.
• Set the unit to maximum cooling and high-speed fan initially, then adjust the unit to a comfortable setting.

C OPERATING THE AIR CONDITIONER

1 ON/OFF

Press to switch the unit on or off. The unit selects the mode depending on the room temperature:

• higher than 23^ C , cooling mode;
• between 20^ C and 23^ C , fan mode.

Time switch

Use to set a working time between 1 and 12 hours. The unit switches off when this time has run down.

3 Mode switch

Select with: automatic, cooling or fan. The corresponding LED will lit: , or .

4 Fan speed

Select with the fan speed: low, high. LED will show this.

5 Temperature selection

Set the temperature that must be maintained (in the range from 16^ to 30^ ) with switched and . The display will show the setting.

6 Digital display

When the unit is ON the display shows the room temperature ( 1 is on). Use or to see the set temperature (^-1 is on), after a few of seconds the room temperature will again be displayed.

7 'SLEEP' setting

This setting can only be used when the cooling function is activated. Press ^C . Every hour the temperature setpoint will raise with 1^ , after 2 hours the temperature remains the same. After 12 hours the air-conditioner will automatically turn off. Pressing ^C again de-activates this function. In 'SLEEP' mode the temperature set cannot be changed.

Remote control

The air conditioner can be operated with remote control. Two AAA-batteries are required to use the remote control.

NOTE!

• The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner.
• The cooling will switch off when the room temperature is lower than the set one. Ventilation will however continue to work on the set level. When the room temperature rises above the selected value, the cooling will work again.
• The air conditioner is equipped with an ANTI-FROST function. While using the heating function during low temperatures, heating will occasionally stop for a while in order to melt the internal frost. When this occurs, just wait for heating to resume.

AIR FILTER

The Zibro Clima comfort line air-conditioners are equipped with a 3 layer filter package to clean the circulated room air.

1. Screen filter; to remove bigger dust particles.
2. Active carbon filter sheet; to remove odours.
3. 3M Filtrete filter; to remove unhealthy particles from the air such as pollen, bacteria, animal dander and dust.

The filter holder on the backside of the unit can be opened. Active carbon filter and 3M Filtrete filter can be removed. Screen filter is part of the filter holder.

1. The Screen filter has to be cleaned regularly with a vacuum cleaner to avoid blocking of the air flow.
2. The Active carbon sheet can be cleaned with a vacuum cleaner when dusty but has to be changed at the same time as the 3M Filtrete filter.
3. The positive/negative electro statically charged 3M Filtrete filter is recommended to be changed every 3 months. Unusual dirt, construction work, pets, the presence of smokers and running the air-conditioning unit continuously can shorten the life time of the 3M Filtrete filter.

New filter Recommended change of filter

NOTE!

• Replacement filter packages are available at your dealer.
• To run the unit without Active carbon sheet and/or 3M Filtrete package does not bring any harm to the air-conditioner. In that case unhealthy dust is not removed.

E AIR FLOW

Turn the roller to control the air flow direction of the vertical louvres.

Move the air vent directly to adjust the air flow direction of the horizontal louvres.

F DRAINAGE

The unit is equipped with an automatic drainage function. The condensed water will be discharged from the hole placed at the back of the indoor unit. You may also connect a water tube (dia. 14.5mm ) to the discharge hole to channel the water away. Make sure the water always drains away freely.

G DISCONNECTING THE INDOOR AND OUTDOOR UNIT (FOR QUALIFIED PERSONNEL)

If the indoor unit needs to be disconnected from the outdoor unit, to place it in a more suitable position, follow these steps:

Disconnecting

1 Open the tube connection box (12) situated at the back of the indoor unit.
2 Disconnect the drain tube (C).
3 Disconnect the electrical cable (A).
4 Disconnect the refrigerant tubes (B and D) using the spanners (15) provided. The terminals are fitted with automatic self-sealing valves to prevent the gas from leaking. Loosen the nuts quickly, so the seal is made promptly. During the operation take extreme care not to break the refrigerant tubes.
5 Cap the terminals with the caps (16) provided to protect them from dust. Mount the outdoor unit on the bracket as described on page 5.

Connecting

1 Pass the connection tube through the hole (at least dia. 50~mm ) if present.
2 Remove the protection caps (if used previously).
3 Reconnect the refrigerant tubes (tighten the nuts quickly to make a good seal), the drain tube and the electrical cable.
4 Close the connection box on the indoor unit.

HCLEANING

First of all switch off the unit and pull the plug.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions. Clean the screenfilter regularly with a vacuum cleaner. See also chapter D "Air filter".

NOTE!

Never use the air conditioner without screenfilter.

STORAGE

1 Drain the condensed water completely. To remove remaining water, tip the unit over and remove the rubber stop.
2 Clean (or replace) the filter.
3 Put the unit on a sunny day in fan mode for a couple of hours to ensure that the inside becomes completely dry.

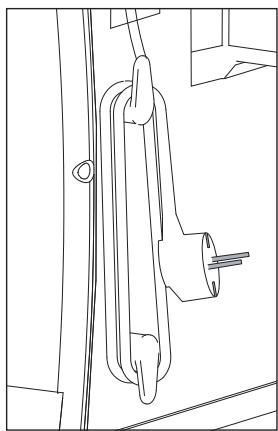

Store cable as shown, protect the unit against dust and store in a dry place not accessible for children.

Problem	Cause	Solution
The unit does not function		Connect to a functioning outlet and switch on
	Room temperature outside operating temperature range
The unit does not seem to perform	In direct sunlight	Close curtains
	Windows or doors open, many people or heat source in room
	Dirty filter	Clean or replace filter
	Air inlet or air outlet blocked	Remove blockage
	Room temperature lower than selected value	Change temperature selection
The unit is noisy	Unit stands uneven	Place on even surface (less vibrations)
The compressor does not work	Overheat protection probably activated	Wait until room temperature lowers

Never try to repair or dismantle the air conditioner yourself. Incompetent repairs result in loss of warranty and can endanger the user.

K GUARANTEE CONDITIONS

The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1 We expressly refuse all further damage claims, including claims for collateral damage.
2 Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or repairs are carried out by third parties.
4 Components subject to normal wear, such as the filter, are not covered by the guarantee.
The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7 Transportation costs and the risks involved during the transportation of the air conditioner or air conditioner components shall always be for the account of the purchaser.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.

TECHNICAL DATA

To be used as indication, subject to modifications

Model		PX150
Cooling capacity *
- enthalpy difference (nom)	Btu/hr	14000
- enthalpy difference	kW	4.1
- conform EC regulation	W	3000
Power consumption	W	1180
Current nom.	A	5.3
Mains (1PH)	V / Hz	220-240 / 50
Air delivery max.	m³/h	430
Dehumidification max. **	L/24h	33
Room size	m³	100
Compressor model		rotary
Refrigerant	gr	R407C / 670
Thermostat range	°C	16 - 30
Fan speeds		2
Noise level indoor unit	dB	52-58
Noise level outdoor unit	dB	< 64
Length flexible tube	mm	300
Dimensions indoor unit (b x d x h)	mm	380x400x750
Dimensions outdoor unit (b x d x h)	mm	450x240x580
Weight indoor unit	kg	29
Weight outdoor unit	kg	12
Unit protection indoor unit		IP20
Unit protection outdoor unit		IP24

• Cooling capacities are measured at 27^ C, 60 % RH
  ** Moisture removal at 32^ , 80% RH
