USER MANUAL A20 ZIBRO

Congratulations on the purchase of your air purifier. You have acquired a high quality product that will give you years of pleasure if you use it sensibly. Read this manual first in order to optimise the life span of your air purifier.

On behalf of the manufacturer, we provide a two-year guarantee on possible material or manufacturing defects.

Enjoy your air purifier.

Yours sincerely,

PVG International B.V.

1 FIRST READ THE MANUAL.

2 IF IN DOUBT, CONSULT YOUR DEALER.

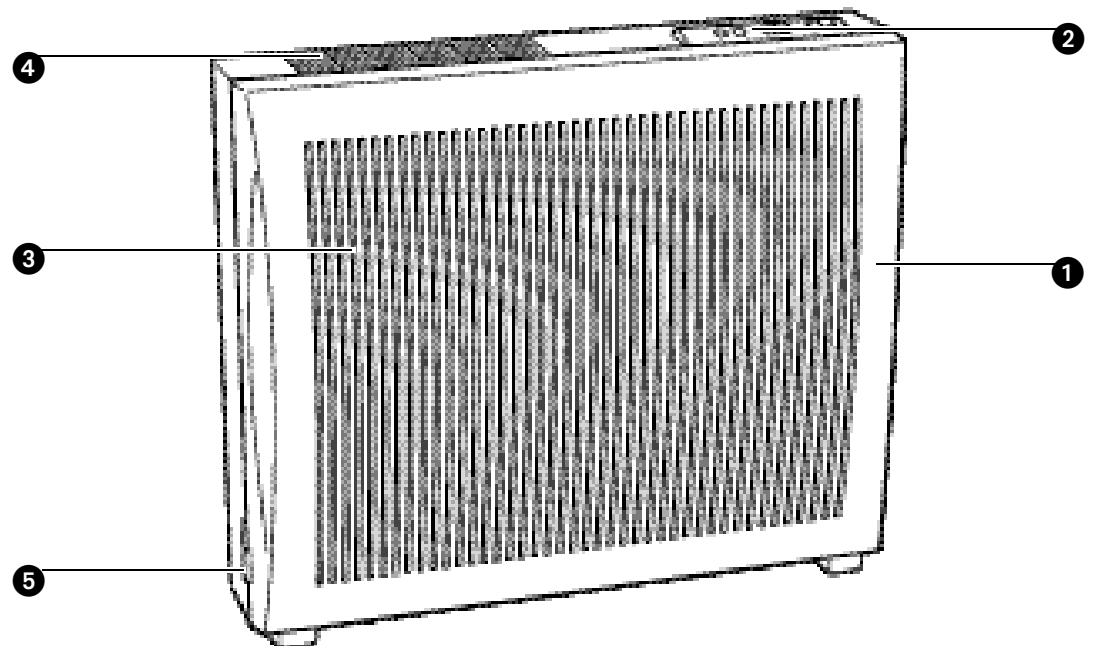

IMPORTANT COMPONENTS

Front panel
Control panel
Air inlet
Air outlet
5 Fastening mechanism

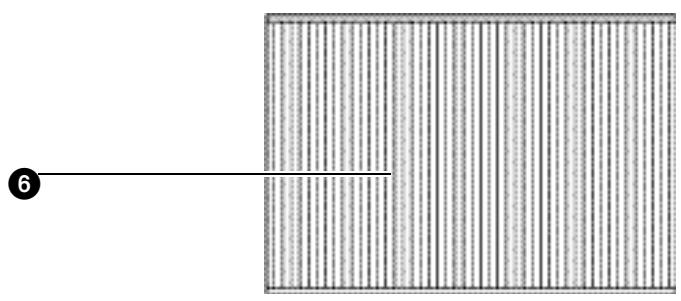

HEPA filter (High Efficiency Particulate Air filter)

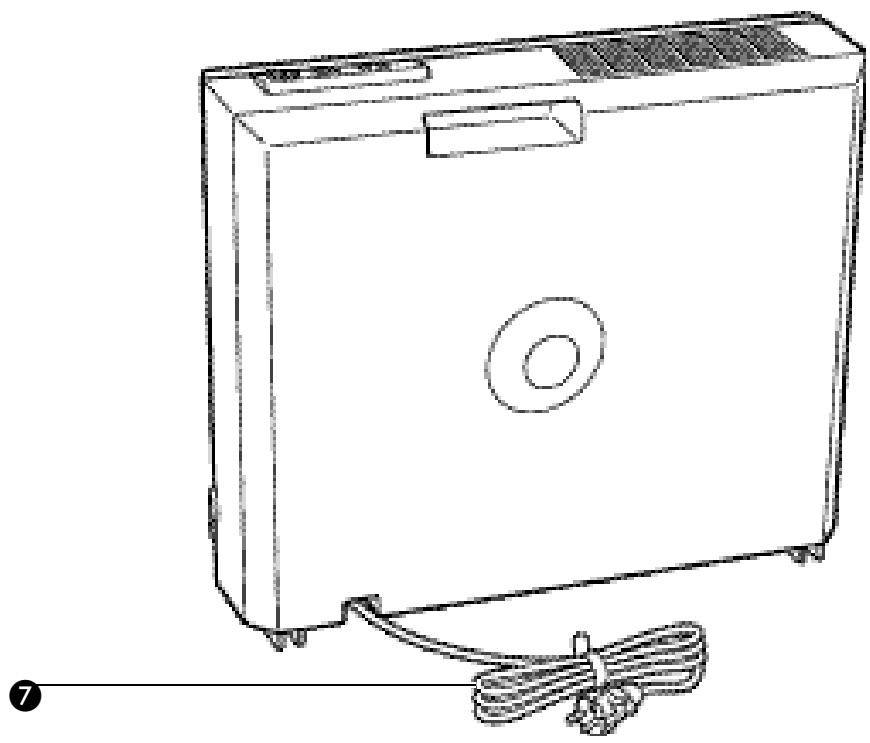

Plug and cord

A. WHAT YOU MUST KNOW IN ADVANCE

GENERAL

Take the following actions to obtain an optimum result.

• Place the air purifier in an elevated location (e.g. on a table or cupboard) in order to allow it to filter small particles such as smoke. Place the air purifier near or on the ground to enable it to filter large dust particles such as pollen.
  Always maintain a free space of 30~cm around the device.
• Read these instructions carefully and follow the directions.

SAFETY REGULATIONS

• The installation must be completely in accordance with local regulations, ordinances and standards.
  The device is suitable exclusively for use in dry places, indoors.
• Check the mains voltage. This device is suitable exclusively for earthed sockets - connection voltage 220-240 Volt/ 50 Hz.
• The device MUST always have an earthed connection. You may absolutely not connect the device if the power supply is not earthed.
  The plug must always be easily accessible when the device is connected.
• Do not connect the device with an extension cord.
• Never use the device with a damaged cord or plug.
• The device must be connected to the power supply with an earthed plug. Ensure that the power cord is not entangled or rolled up.
• Always switch the device off before pulling the plug out from the wall outlet. When you pull out the plug from the socket, grip the plug to avoid damaging the cord.
  It is forbidden for children to play with the device. The device may only be used by adults.
  It is dangerous and forbidden to modify the device.
  It is forbidden to cover the device or to insert foreign objects into the device as a fire or electric shock could occur.
• Do not make the device wet.
• Avoid using spray cans (insect spray, hairspray, etc.) in the vicinity of the air purifier. This may damage the device and/or cause fires.
  The device may not be used in humid rooms such as bathrooms.
• A damaged electricity cable may only be replaced by the supplier or n authorised person/service point.

TIPS FOR SAFE USAGE

• Keep plastic bags and other packaging materials out of reach of children.
  The device was developed to purify air and not for any other application.
  Always contact your supplier if repair or maintenance is required.
• Do not place the device in the vicinity of heat sources, materials, installations, or near curtains, that may cause a fire hazard or in environments where explosions may occur.
  Always switch the device off and remove the plug from the socket before cleaning it.
  The floor must be stable and level.

B. INSTALLATION

1 Remove the front panel ① with the aid of the fastening mechanism ⑤ on both sides of the device.
2 Take the filter 6 out of the device and remove the packaging.
3 Put the filter back into the device, with the white side facing up.
4 Attach the front panel by pushing the three hooks on the top into the recesses in the device. Now click the bottom left and right of the front panel into position.
The device is now ready for use.

ATTENTION!

The HEPA filter must be inserted correctly in order to guarantee that it will function correctly.

C. AIR FILTER

The A20 air purifier is equipped with a 3 layer filter package to clean the circulated room air.

HEPA (High Efficiency Particulate Airfilter) filter captures allergens like bacteria, dust and pollen.
Active carbon filter removes unpleasant odours from the air.
- Screen filter captures large dust particles.

The HEPA filter and activated carbon filter continue to work for a long period of time after opening. Both must be replaced approximately 1 - 2 x per year. The frequency of use and operating conditions determine how often a filter must be replaced.

Switch the device off and remove the plug from the socket.
2 Remove the front panel 1 with the aid of the fastening mechanism 5 on both sides of the device.
3 Next to the filter you will see a sticker printed with a small grey and brown square. If the filter is one of these colours, replace it in the matter described in chapter B.
4 Install the new HEPA / active carbon filter (see chapter B) and close the front panel.
5 The dirty filter can be disposed with the household waste (not biologically degradable waste) without any problem.
New filters can be purchased from your dealer.

ATTENTION!

• Always use a new filter when the filter must be replaced. Never re-use a dirty filter, even after cleaning.
• Regardless of the frequency of use, we recommend replacing the HEPA filter with a new filter at least once per season.

D. OPERATION

ON
OFF

Push the plug into the socket.
2 Move the ON/OFF switch to the ON setting to activate the device. The ventilator LO or HI light will switch on.

Negative ions are generated and air purification commences.

3 Use the ventilator button to set the desired speed. You can select the (low) or the (high). The appropriate light - LO (low) or HI (high) - will then switch on.
4 Switch the device off by moving the ON/OFF switch to the OFF position.

E. CLEANING

Switch the air purifier off and remove the plug from the socket before cleaning.

THE EXTERIOR

Clean the exterior with a soft, dry cloth. If the device is extremely dirty, use a mild cleaning agent. Wipe the device with a slightly damp cloth. Never spray the device with water.

THE HEPA FILTER

Clean the grill of the front panel with a vacuum cleaner. It is not possible to clean the HEPA filter. It must be replaced when it becomes dirty (see section B).

Never use the device without the air filter.

F. STORAGE

If the machine will not be used for a long period of time, take the following steps:

1 Remove the plug from the socket.
2 Clean the air filter.
3 Remove the HEPA filter (see chapter C).
Store the device in a dust-free location, preferably covered with a sheet of plastic.

G. TROUBLE SHOOTING

Check the following before contacting technical support:

Problem	Cause	Solution
The device does not work	The plug is not in the socket	Push the plug into the socket
	The plug has been inserted into the socket incorrectly.	Push the plug into the socket correctly
	A fuse has blown.	Replace the fuse.
The device does not remove odours and/or dust	The HEPA filter is dirty.	Replace the filter
	The HEPA filter is missing.	Insert the filter.
	The HEPA filter is not placed correctly.	Place the filter in the correct manner.
The device makes a creaking sound.	This noise is caused by small particles of dust entering the device and is normal.	Contact your dealer if this noise is constant.
No/insufficient air circulation.	The air flow is blocked.	Remove the blockage.
		Replace the HEPA filter.

H. GUARANTEE CONDITIONS

We provide a two-year guarantee on your air purifier from the date of purchase. All material or manufacturing defects will be repaired free of charge.

The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the air purifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Shipment costs and the risks associated with the shipment of the air purifier or parts of the air purifier are always borne by the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the air purifier to your dealer for repair.

I. TECHNICAL SPECIFICATIONS

Type		A 20
Mains power	V/Hz/F	220-240/50/1
Power consumption (min./max.)	W	18/30
Amperage (max.)	A	0.15
Noise level (min./max.)	dB	24-38
Air debit (min./max.)	m³/hour	60/120
Net weight	kg	4
Dimensions (w×h×d)	mm	430 x 366 x 131
Suitable for rooms to	m²	40
Generated negative ions	number/cc	30,000 - 50,000

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
