USER MANUAL SIESTA RISE PURE

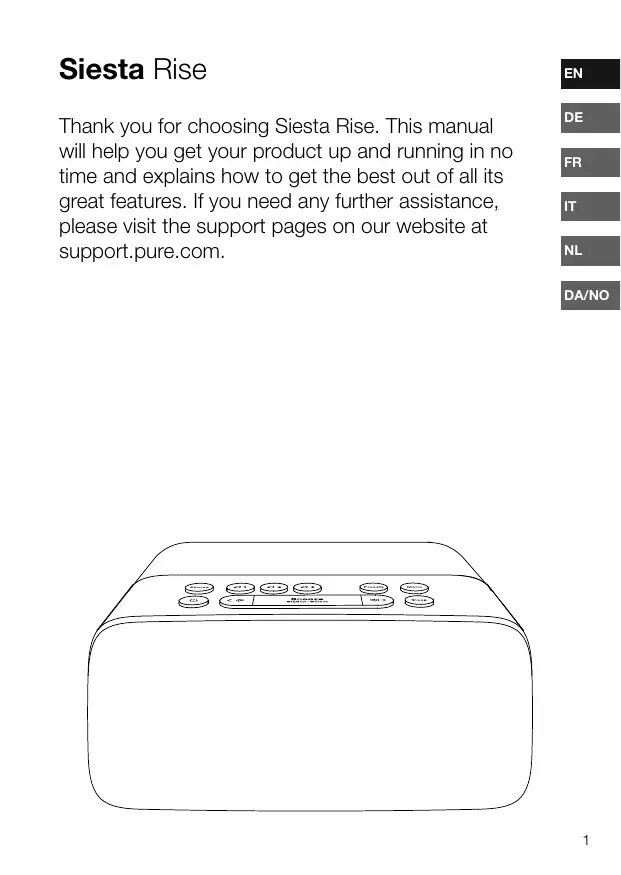

Siesta Rise Siesta Rise Thank you for choosing Siesta Rise. This manual will help you get your product up and running in no time and explains how to get the best out of all its great features. If you need any further assistance, please visit the support pages on our website at support.pure.com.

1. WARNING: Do not use the included power supply (with model number

ZDD055200 or ZDD055200BS) to power up another apparatus as this may cause damage. Use only power supplies listed in the user manual/user instructions (supplied by Pure with model number ZDD055200 or ZDD055200BS).

3. Fit the mains adapter to an easily accessible socket, located near the radio

and ONLY use the mains power adapter supplied.

4. WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on apparatus.

5. WARNING: The direct plug-in adapter is used as a disconnect device, the

disconnect device shall remain readily operable.

6. Keep the radio away from heat sources such as radiators, heaters or other

appliances that produce heat.

7. Do not expose the unit to direct sunlight.

8. Do not use the radio near water.

9. Avoid objects or liquids getting into the radio.

10. Do not remove screws from or open the radio casing.

11. Should not be immersed in water, used in shower or bathroom if plugged

12. The mark label is on the exterior of the bottom of the apparatus.

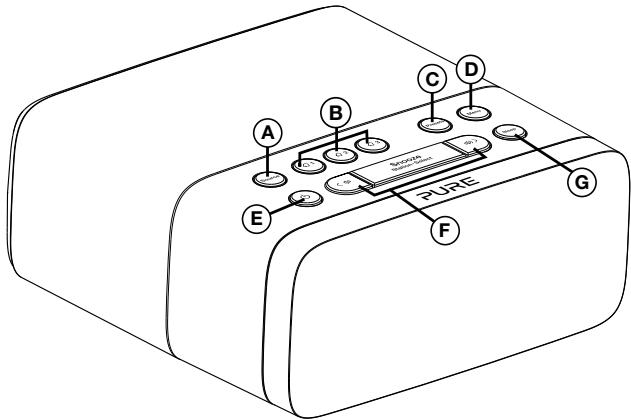

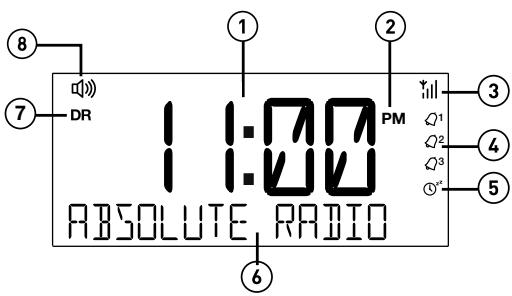

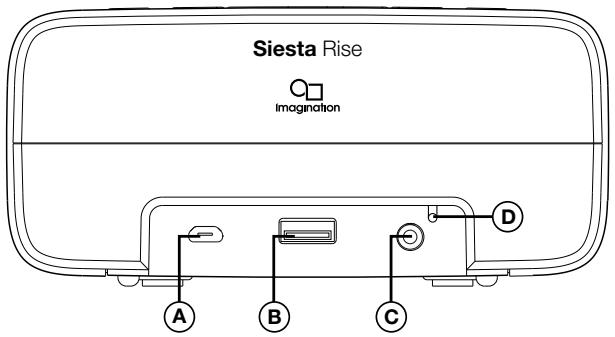

Top panel controls Rear panel connectors Display

Storing and selecting presets

Setting a radio alarm Setting a tone alarm Switching an alarm on/off Snoozing a sounding alarm Cancelling a sounding alarm 13 Setting the sleep timer 13 Setting the kitchen timer 14 Options and settings

Source button: Press to switch between listening to digital radio and FM radio. Alarm buttons: Set or cancel individual alarms. Preset button: Store up to 10 digital or 10 FM radio preset stations (see page 9 for more information). Menu button: Press to change various settings on Siesta (see page 14). Power button: Push to switch Siesta between on and standby. Volume/Select buttons: Press to adjust volume. Press the and Select buttons to change radio stations (see page

USB connector for charging phone or tablet

Stereo headphone socket

Displays current time

Volume indicator Getting started

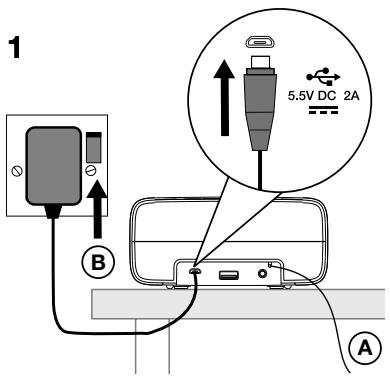

• Position aerial (A) and connect power (B)

Snooze Station Select

• Wait for Autotune to complete.

Listening to radio Press the Source button to switch to ‘DAB’.

1. Press the Station button so that the < >

symbols are shown on the display.

2. Scroll < > to the desired station.

to tune into the station. PRESET RECALL 5PRESET 10:00 6EMPTY DIGIROCK Listening to FM radio Press the Source button to switch to ‘FM’. Seek tuning

so that the < > 6EMPTY DIGIROCK 10:00 symbols are shown on the display.

2. Hold either the scroll up or scroll down < >

button until Siesta starts to automatically scan for the next station. The scan will stop when a PRESET RECALL 5PRESET station with a strong signal is found.

10:00 6EMPTY DIGIROCK Manual tuning

1. Press the Station button so that the < >

symbols are shown on the display.

2. Scroll < > to the required frequency.

Storing and selecting presets

You can store up to 10 digital and 10 FM radio stations for quick access and for PRESET RECALL 5PRESET use when setting a radio alarm.

1. Tune into the station that you want to store.

2. Press the Presets buttons so that the < >

4. Press and hold the Select button to store the

radio station as a preset. STORED 4 Note: To overwrite a radio preset, tune into the station that you want to store and follow the above PRESET RECALL 5PRESET steps.

2. Scroll < > to the station that you want to listen to.

Using the alarms Siesta Rise has three alarms. The alarms switch the radio on (if in standby) and RECALL 5PRESET tune to a digital or FM radio station or sound a tone. PRESET

4. Scroll < > to set the minute for the alarm and

and buttons to set the volume of the radio station when the alarm sounds and PRESET RECALL 5PRESET press the Select button to confirm.

9. The icon of the alarm you have set will appear

6. Scroll < > to specify the radio station that you

want to play when the alarm goes off. You have the option of selecting one of your preset stations or you can select ‘LAST USED’ to select PRESET RECALL 5PRESET the station that you were last listening to. Press 6EMPTY DIGIROCK the Select button to confirm. Note: See page 9 to find out how to set up a preset station. 10:00

< 4 ABSOLUTE SAVED SCANNING SAVED

3. Scroll < > to set the hour for the alarm and

3. Scroll < > to set the hour for the alarm and

4. Scroll < > to set the minute for the alarm and

and buttons to set the volume the radio will play at when the alarm sounds and press Select to confirm.

9. The icon of the alarm you have set will appear

9-53 Switching an alarm on/off Press the 1 , 2 or 3 button to toggle an alarm on or off. The icon of the alarm that you have switched on will display to indicate that an PRESET alarm is set. RECALL 5PRESET

10:00 6EMPTY DIGIROCK Snoozing a sounding alarm Press the Snooze button to snooze a sounding alarm (default 10 minutes). See page 17 for more information on setting the snooze time. Siesta will display a countdown timer to show how long the alarm will snooze for. The alarm will reactivate after the snooze time has expired. Cancelling a sounding alarm Press any back row button to cancel a sounding alarm. Snooze Press the Standby ( ) button to turn SiestaStation off. Select

Setting the sleep timer

2. Scroll < > until the amount of time that you

want to set the sleep timer to is displayed PRESET RECALL 5PRESET (15-90 minutes) and press the Select button 6EMPTY DIGIROCK to confirm.

10:00 The sleep timer icon timer is set. will appear when a sleep ABSOLUTE RADIO ABSOLUTE RADIO Setting the kitchen timer Siesta includes a countdown kitchen timer which will sound an alarm after a set PRESET RECALL 5PRESET time period.

2. Scroll < > to ‘KITCHEN TIMER’ and press the

3. Scroll < > to change the

4. Scroll < > again to change the minutes and push

to confirm and start the countdown timer. The alarm will sound after the time period you have set whether the radio is on or in standby. Cancel the beeping alarm tone by pressing any button on the back row. Press the Standby ( ) button to turn Siesta off. Snoo Station S

Options and settings General settings Changing the language shown on the display To switch the display language on Siesta between English, French, German, Italian and Spanish:

1. Press the Menu button.

2. Scroll < > to ‘SETTINGS’ and press the Select button.

3. Scroll < > to ‘LANGUAGE’ and press the Select button.

4. Scroll < > and press the Select button to choose the language that you want

Siesta to display. Resetting Siesta to factory settings Resetting your Siesta radio removes all presets, clears the station list and resets all options to defaults. To carry out a factory reset:

1. Press the Menu button.

2. Scroll < > to ‘SETTINGS’ and press the Select button.

3. Scroll < > to ‘FACTORY RESET’ and press the Select button.

4. Scroll < > to ‘YES’ and press the Select button.

Displaying Siesta’s software version To display software version that is currently running on Siesta:

1. Press the Menu button.

2. Scroll < > to ‘SETTINGS’ and press the Select button.

Updating Siesta to the latest version of software Contact Pure technical support (http://support.pure.com) for more information on how to update Siesta to the latest software version.

Audio settings You can use Siesta’s audio menu to adjust the bass and treble.

2. Scroll < > to ‘AUDIO’ and press the Select button.

3. Scroll < > to ‘BASS’ or ‘TREBLE’ and press the Select button.

4. Scroll < > to adjust the bass or treble levels. You can choose a level

between ‘-3’ and ‘+3’.

5. Press the Select button to confirm the bass or treble level.

Display settings Adjusting the display brightness You can adjust the brightness of the display when Siesta is switched on or in standby. To change the brightness of Siesta’s display:

1. Press the Menu button.

2. Scroll < > to ‘DISPLAY’ and press the Select button.

3. Scroll < > to ‘BACKLIGHT’ and press the Select button.

4. Scroll < > to ‘ACTIVE’ and press the Select button to change the settings

that apply when Siesta is switched on, or scroll to < > ‘STANDBY’ and press the Select button to change settings that apply in standby.

5. Scroll < > to ‘LEVEL’ and press the Select button.

6. Scroll < > to choose a brightness level between ‘1’ and ‘5’.

7. Press the Select button to confirm the brightness setting.

Adjusting how long the display backlight stays on for You can adjust how long Siesta’s display backlight stays on for:

1. Press the Menu button.

2. Scroll < > to ‘DISPLAY’ and press the Select button.

3. Scroll < > to ‘BACKLIGHT’ and press the Select button.

4. Scroll < > to ‘ACTIVE’ and press the Select button to change the settings

that apply when Siesta is switched on, or scroll to < > ‘STANDBY’ and press the Select button to change settings that apply in standby.

5. Scroll < > to ‘DURATION’ and press the Select button.

6. Scroll < > and press the Select button to choose one of the following options:

ALWAYS ON: Choose this option if you want the backlight to always stay on. TIMED OFF: Choose this option if you want the backlight to turn off after 10 seconds.

Changing the information shown on Siesta’s display If you are listening to a digital or FM radio station, you can change the information that is shown on Siesta’s display:

Press the Menu button. Scroll < > to ‘DISPLAY’ and press the Select button. Scroll < > to ‘INFORMATION’ and press the Select button. Scroll < > to ‘ACTIVE’ and press the Select button to change the settings that apply when Siesta is switched on, or scroll to < > ‘STANDBY’ and press the Select button to change settings that apply in standby. The following options are available in ‘ACTIVE’ mode: STATION NAME: Scroll < > to this option and press the Select button if you want to display the name of the radio station that is currently playing. SCROLLING TEXT: Scroll < > to this option and press the Select button if you want to display the information broadcast by the station you are currently listening to. The information displayed may include song titles, programme details, news, etc. SIGNAL STRENGTH: Scroll < > to this option and press the Select button if you want to display the signal strength of the radio station you are currently listening to. The number of asterisks indicate the reliable reception level. DATE: Scroll < > to this option and press the Select button if you want to display the current date. The following options are available in ‘STANDBY’ mode. TIME: Scroll < > to this option and press the Select button if you only want to display the time when Siesta is in standby. TIME AND DATE: Scroll < > to this option and press the Select button if you want to display the time and date when Siesta is in standby. Clock settings Setting the time and date

The time and date on Siesta are automatically set by the FM or digital radio signal. If the time/date on Siesta is not updating automatically, you can manually set it.

2. Scroll < > to ‘CLOCK’ and press the Select button.

3. Scroll < > to ‘SET TIME/DATE’ and press the Select button.

4. Scroll < > to set the hour and press the Select button. Repeat to set the minutes.

5. Scroll < > to set the day and press the Select button. Repeat to set the month

Press the Menu button. Scroll < > to ‘CLOCK’ and press the Select button. Scroll < > to ‘SET 12/24 HOUR’ and press the Select button. Scroll < > to choose between ‘12 HOUR’ and ‘24 HOUR’ and press the Select button to confirm. Changing the date format

Press the Menu button. Scroll < > to ‘CLOCK’ and press the Select button. Scroll < > to ‘SET DATE FORMAT’ and press the Select button. Scroll < > to choose between ‘DD-MM-YYYY’ and ‘MM-DD-YYYY’ and press the Select button to confirm. Clock synchronization options You can select the radio sources that you want to use for setting the time. By default, Siesta uses both the FM and digital radio signals to synchronize the time. To specify the clock synchronization options:

Press the Menu button. Scroll < > to ‘CLOCK’ and press the Select button. Scroll < > to ‘CLOCK SYNC’ and press the Select button. Scroll < > to choose the required clock synchronization option and press the Select button to confirm. Changing the alarm snooze time You can change the amount of time an alarm will snooze for when you press Siesta’s Snooze button during a sounding alarm. By default, Siesta’s snooze time is set to 10 minutes. To change Siesta’s snooze time:

1. Press the Menu button.

2. Scroll < > to ‘CLOCK’ and press the Select button.

3. Scroll < > to ‘SNOOZE’ and press the Select button.

4. Scroll < > to choose a snooze time between ‘5’ and ‘59’ minutes and press

the Select button to confirm.

Autotune You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones. Note: The ‘Autotune’ function is only visible when you have selected ‘DAB’ as the radio source.

1. Press the Menu button.

2. Scroll < > to ‘AUTOTUNE’ and press the Select button.

3. The number of stations found will be displayed during the autotune.

4. When the autotune has finished, Siesta will tune to the last station that you

were listening to. FM stereo You can use the FM stereo menu to make switch between stereo and mono reception. You may want to select ‘STEREO’ if you are listening to Siesta using headphones. Note: The ‘FM STEREO’ option is only visible when you have selected ‘FM’ as the radio source. To change Siesta’s FM stereo setting:

1. Press the Menu button.

2. Scroll < > to ‘FM STEREO’ and press the Select button.

3. Scroll < > to choose between ‘STEREO’ and ‘MONO’ and press the Select

Technical specifications Radio Digital and FM radio Frequencies DAB/DAB+, FM radio 87.5-108 MHz

Speaker Full-range 2.5" drive unit. 2W RMS amplifier. Input connectors 5.5V (2A) Micro USB power adapter socket (also for software updates) Output connectors USB-A (1A) socket for charging phone or tablet, 3.5mm headphone socket Controls Power on/Standby, Volume/Snooze/Select, Source, Alarms, Presets, Menu, Sleep Presets 10 digital radio and 10 FM presets Power 100-240V AC to 5.5V (2A) DC Micro USB external power adapter Dimensions 141.4 mm wide x 137 mm deep x 63 mm high Weight

Aerial Wire aerial attached Warranty Comprehensive three year warranty Approvals CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/EC and 2006/95/EC) ETSI EN 300 401 compliant

Warranty information Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at http://support.pure.com. Disclaimer Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes. Trademarks Siesta Rise, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. Copyright Copyright © 2015 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 1 October 2015. Disposal of Waste Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.
