USER MANUAL SIESTA IDOCK PURE

Safety instructions Keep the radio away from heat sources, such as naked flames or candles. Ensure that the unit has adequate ventilation (at least 10cm space all round). Do not use the radio near water. Avoid liquids dripping or splashing onto the radio. Do not place any objects containing liquids on the unit, such as vases. When plugged in, Siesta iDock remains connected to mains power, even in standby with the display backlight off. To disconnect completely, unplug from the mains socket. Ensure that the mains plug is readily accessible in case isolation from the mains is required. Do not remove screws from or open the radio casing. Damage to hearing can occur with consistent exposure to high volume when using headphones.

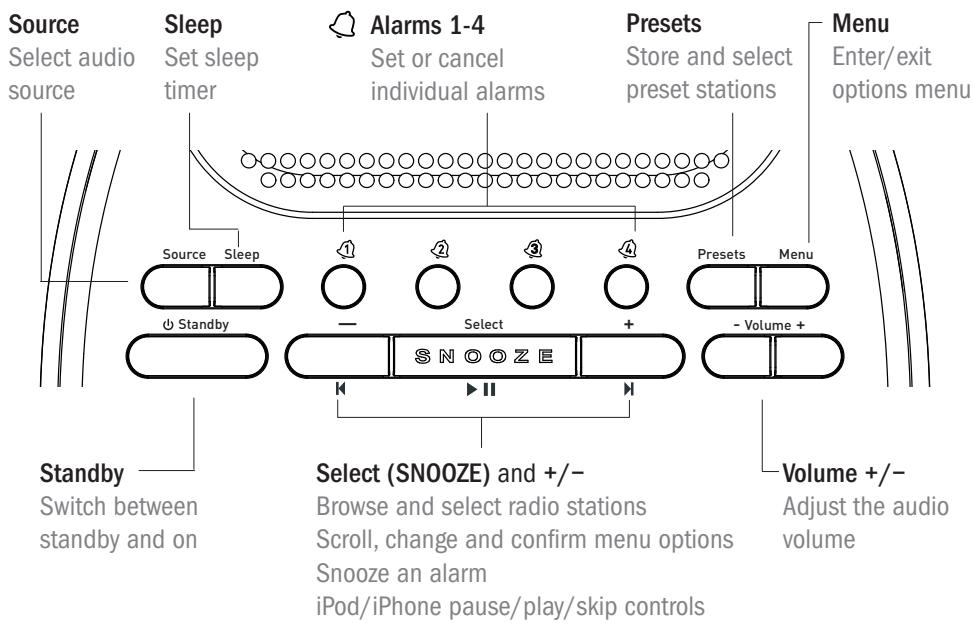

Overview of the controls and connectors

Top Source Select audio source

Set or cancel individual alarms

Switch between standby and on

Store and select preset stations

USB input socket (mini B type) for upgrades

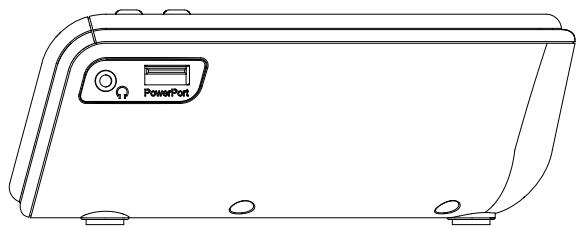

3.5mm headphone socket PowerPort for compatible USB accessories

Select (SNOOZE) and +/−

Browse and select radio stations Scroll, change and confirm menu options Snooze an alarm iPod/iPhone pause/play/skip controls

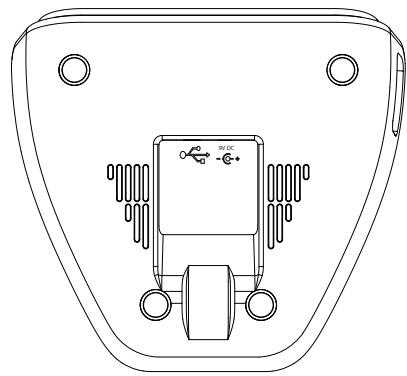

Power input socket for supplied 9V DC mains 9V DC adapter

Enter/exit options menu

Adjust the audio volume

Items displayed on-screen

Current time Volume level indicator iPod

Sleep timer/Snooze active

Alarm active indicators (1,2,3,4)

Signal strength indicator iPod/iPhone source indicator

Stereo/mono indicator DAB and FM source indicators

Menu/text/information display

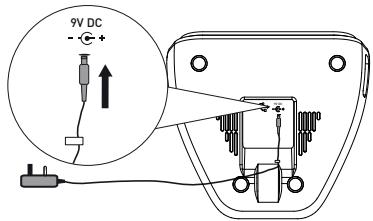

Uncoil the aerial wire and hang it vertically, then connect the mains adapter to the bottom of the unit as shown. 9V DC

9V DC EN Plug the mains adapter into the mains supply.

BXTbcPX3^RZ Wait until Siesta iDock completes an Autotune for available DAB radio stations

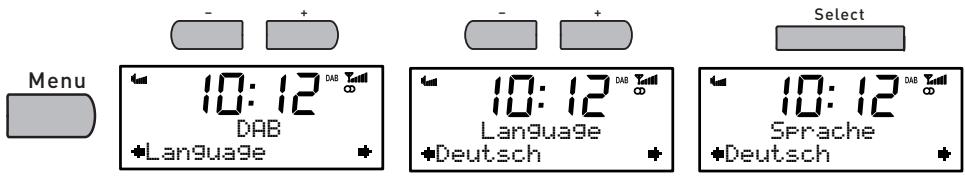

Select your language

Siesta iDock has four available languages: English, French, German and Italian. 1. 2.

Press Menu, then use the + and − buttons to scroll to ‘Language’. Press Select.

Choose your Language using the + and − buttons and press Select to confirm. The language will change immediately. −

;P]VdPVT Select your source

Press the Source button and repeat to change the audio source: DAB/FM/iPod

Listening to DAB Changing stations

1. Press the + and − buttons to browse through the list of available stations. 2. Press Select to tune. −

Changing the information shown on-screen

Siesta iDock can display different information relating to the DAB station you are listening to. To change the information shown: 1. Press Menu and select ‘Display’. 2. Use the + and − buttons to cycle through the following options available: Scrolling text Information broadcast by the station. Signal Strength A bar indicating the current DAB signal strength. Signal Quality The quality of the signal received. Date The current date.

If you lose a station signal, or wish to update your station list, you can perform an Autotune to retune all DAB stations. Press Menu, then select ‘Autotune’.

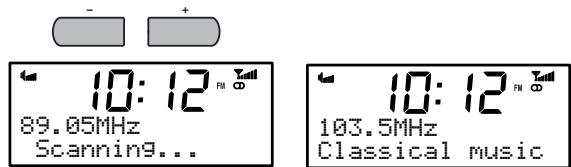

Listening to FM Changing stations

When listening to FM there are two tuning modes, Manual and Seek (default): Manual Pressing + or − tunes up or down in steps of 0.05 MHz Seek Pressing + or − scans to the next/previous station. By default, Siesta iDock is set to Seek. −

2[PbbXRP[\dbXR To change the tuning mode, press Menu when listening to FM and select ‘FM tuning mode’.

<P]dP[Cd]T Changing the information shown on-screen

Siesta iDock can display different information relating to the FM station you are listening to. To change the information shown:

1. Press Menu and select ‘Display’.

2. Use the + and − keys to cycle through the following options (stations with RDS only): Radio Text Scrolling text and information broadcast by the station. Date The current date.

Select Stereo (default) or Mono signal mode − Mono may improve audio clarity where stereo signals are weak. To switch between FM Stereo and Mono modes, Press Menu and select ‘FM stereo mode’.

Listening to your iPod or iPhone

Siesta iDock can play music files stored on your iPod or iPhone through its stereo speakers.

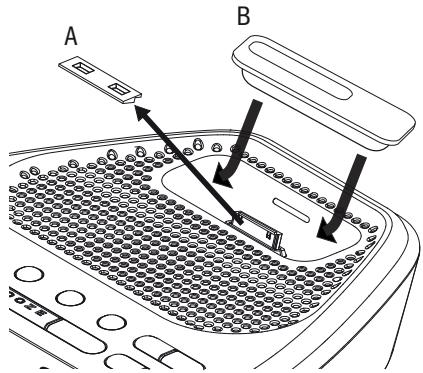

Fitting an iPod/iPhone dock adapter

Siesta iDock is compatible with all iPod and iPhone models that connect to the iPod Universal Dock. Select the adapter that is compatible with your model of iPod/iPhone (see table).

Dock Adapter number *

8/16 GB Remove the protective cover on the connector (A).

Fit the iPod adapter with the dock adapter number facing towards the rear (B).

*A compatible Dock Adapter is provided with most iPod models. If your model of iPod is not listed in the table of those included, and if you do not already have a compatible Dock Adapter, we recommend that you purchase the correct type from Apple.

Docking your iPod/iPhone

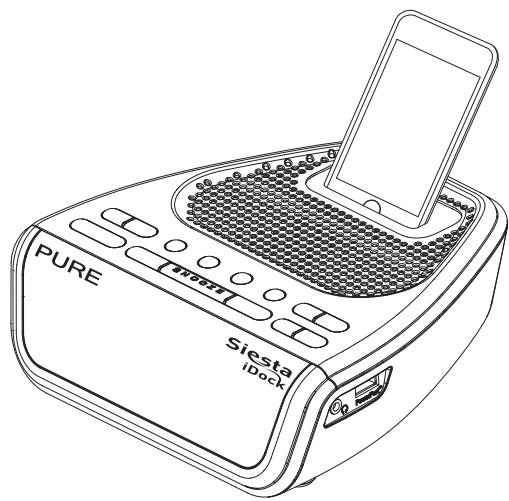

Insert your iPod/iPhone into the correct Dock Adapter on the top of the unit. If you have not fitted the Dock Adapter, see the table on page 6. Siesta iDock will begin to charge your iPod/iPhone if necessary. Charging will stop when the iPod/iPhone is fully charged (check the iPod/iPhone screen).

Press the Source button and repeat to change the audio source to ‘iPod’. Your iPod/iPhone will play from the last track listened to. If this is not possible it will play the first track available.

iPod/iPhone controls

Skip to next/previous track

(hold down to fast forward or rewind)

Play/Pause current track

You can also use the controls on your iPod or iPhone as normal.

Using Presets (DAB & FM only)

Store up to 15 DAB and 15 FM radio stations for quick access to your favourites.

Tune to the station you want to store. Press and hold the Presets button until you see ‘preset store’ on the screen.

Use the +/− buttons to select the preset number you wish to save the station to. Press the Select button to confirm. The display will change to a confirmation message, e.g., ‘Preset 1 stored’.

To listen to a station you have stored to a preset, press the Presets button once to access the ‘preset recall’ screen. Use the +/− and Select buttons to scroll to and select the relevant preset.

Your Siesta iDock will set its clock using a DAB or FM signal. If these are not available, it is possible to set the clock manually by selecting ‘Clock’ from the menu at any time. Choose 12 or 24 hour clock, set the date and select a date format: day-month-year or month-day-year.

Your Siesta iDock features a PowerPort, which is able to power standard USB devices such as fans and mobile phone chargers. PURE Choice approved PowerPort accessories will be available soon.

PLEASE NOTE: PowerPort does not support USB hubs of any kind.

Siesta iDock has four alarms. When activated, an alarm either switches the radio on (if in standby) and tunes to a DAB or FM radio station, activates and plays your iPod/iPhone (if docked) or sounds a beeping alarm tone.

Press and hold the Alarm button (1-4) that you wish to store the alarm to. This will start the alarm setup.

Using the +/— and Select buttons, set the following options for your alarm:

On/Off Switch the alarm on or off On time Set the time you want the alarm to start (hours:mins) Source Choose DAB, FM, iPod or tone as the sound source you want to use for the alarm Last Used/ For DAB and FM source, choose a station for the alarm to play. Preset ‘Last Used’ will tune to the last station received by the radio. ‘Preset’ lets you select one of your saved stations. Once The alarm will sound at the time you have selected and not repeat. Daily Every day Weekdays Monday to Friday, every week Weekends Saturday and Sunday only

EN Finally, adjust the volume level for the alarm (represented by a bar on-screen) using the +/− buttons and Select to confirm.

That’s it! You can see which alarms are currently switched on by looking at the numbered alarm icons on the screen. For example: Alarm 1 is APSX^! currently set 0\hbcTahc^dac

When an alarm is sounding press the Select/Snooze button or the −/+ buttons to silence the alarm for ten minutes (the default snooze time). The remaining time left until the alarm sounds again is shown at the bottom of the display.

Changing the alarm snooze time

You can change how long the alarm snoozes for. Press Menu, scroll to ‘Snooze time’ and press Select, then adjust the snooze time between 5 and 30 minutes using +/− and Select to confirm. B]^^iTcX\T \X]dcTb

When an alarm is sounding press either the Standby or corresponding Alarm button to stop the alarm sounding. Pressing Standby when a radio alarm is sounding will also switch the unit off.

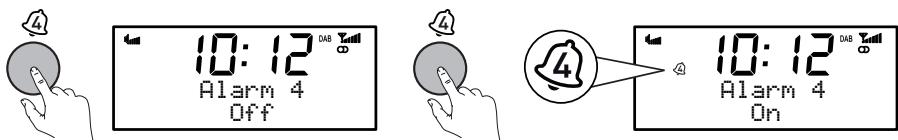

Toggle an alarm on or off

You can quickly toggle an alarm on or off by pressing the corresponding Alarm button when Siesta iDock is switched on or in standby.

>UU Using the sleep timer

The sleep timer switches your radio into standby after a number of minutes has elapsed. Press the Sleep button and repeat to choose the duration of the sleep timer (Off/15/30/45/60/90 minutes), then press Select to confirm. Sleep

Sleep timer is active

To cancel the sleep timer

Press and hold the Sleep button for 2 seconds. Sleep

Audio options To adjust the bass and treble output of your Siesta iDock, press Menu, then scroll and select ‘Audio’. Select either ‘Bass’ or ‘Treble’ and use the +/− buttons to adjust from -3 to +3. Press Select to confirm. 1Pbb !

To adjust screen backlight of your Siesta iDock, press Menu, then scroll and select ‘Backlight’. The backlight menu has two options: Timeout

Set the length of time that the backlight remains on after a button press, from 0-180 seconds.

Set the brightness level of the backlight, from 1-5 or Auto. In Auto mode the backlight will be adjusted by the light sensor on the front of your radio.

EN Software version/upgrade

To check the software version of your Siesta iDock, press Menu then scroll and select ‘SW version’. This will display the current version on screen. Press any button to exit.

Software upgrades may be issued to provide enhanced functions or improve performance. To upgrade, press Menu, then scroll and select ‘Software Upgrade’ and follow the instructions provided with the upgrade software. Register your product and include an e-mail address to receive notification of upgrades or visit our website at http://support.pure.com.

Note: USB upgrade requires a PC running Windows XP/Vista and a suitable USB cable (not included).

The message on screen says ‘No stations available’ DAB reception is not strong enough to receive any stations. Check that your aerial is fully uncoiled and use Autotune (page 5) to search for stations. Try adjusting your aerial and radio position. The screen is very dark Check the Backlight options (page 11). Check that the light sensor (to the left of the screen) is not obstructed if auto dimming is selected. The on-screen clock does not appear If you disconnect the unit from the mains whilst listening to your iPod/iPhone and then plug it in again, you may need to change the audio source to DAB or FM so that the time can be acquired from the signal. The bass/treble on iPod/iPhone tracks is too high Check the bass and treble controls on the iPod/iPhone, which will affect the sound from Siesta iDock when playing tracks. The volume control on the iPod/iPhone does not affect the volume level When your iPod/iPhone is docked, the volume level must be adjusted on Siesta iDock, not the iPod/iPhone. Do not turn up the iPod/iPhone volume: it should be left at the volume level you normally use for portable listening. Tone alarm safety net If you set an alarm to ‘iPod’ mode but then forget to insert your iPod/iPhone into the dock before the alarm time is reached, the tone alarm will sound instead. Resetting your Siesta iDock Resetting your radio removes all presets, stored stations and alarm settings and resets all options to defaults. To reset: 1. Press the Menu button and select ‘Factory reset’. 2. Choose ‘Yes’ and press Select to confirm the reset. −

Unavailable DAB stations are indicated by ‘?’ before the station name (e.g. ?Rock radio) To trim unavailable stations: 1. Press the Menu button and select ‘Trim stations’. 2. Choose ‘Yes’ and press Select to confirm. CaX\. =^+HTb-

Technical Specifications

Stereo digital radio with full Band III and FM reception. ETSI EN 300

401 compliant and capable of decoding all DAB transmission modes 1-4 up to and including 384 kbps (DAB+ up to 192kbps). Supports FM RDS and RadioText. DAB+ available in certain territories. Frequency ranges: DAB Band III 174-240 MHz, FM 87.5-108 MHz. Speakers: Twin 2'' mid-range drivers. Input connectors: 9V DC power adapter socket. iPod/iPhone connector with 5 supplied dock adapters. Output connectors: 3.5mm stereo output for headphones. PowerPort for compatible USB accessories. (5V, max 500mA). Presets: 15 DAB and 15 FM presets. LCD display: 16 x 2 character LCD display, large clock and feature icons, light sensor. Mains power supply: 100-240V AC to 9V (1.5A) DC external power adapter (supplied). Power consumption: In standby: 0.6W. In operation: 2.2W. Approvals: CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/EC and 2006/95/EC). Dimensions: 66 mm high x 180 mm wide x 166 mm deep. Aerial: Wire aerial attached. Disposal of Waste Electrical & Electronic Equipment

EN This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

“Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

On time Source Last Used/ Preset

Daily Weekdays Weekends

iPod/iPhone-knapper.

>UU Imagination Technologies Ltd. warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of two years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Please visit www.pure.com/register to register your product with us.

Should you have a problem with your unit please contact your supplier or contact PURE Support at the address shown on the rear of this manual.

Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Fur ther, Imagination Technologies Limited reser ves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notif y any person or organization of such revisions or changes.

Garantie-Informationen

PURE Imagination Technologies Ltd. Home Park Estate Kings Langley Herts, WD4 8LZ United Kingdom

PURE Australasia Pty Ltd

+61 1 800 267 114 support.pure.com/au www.pure.com/au sales.au@pure.com

sales and support trade sales and support fax

support.pure.com sales@pure.com sales fax

sales_gmbh@pure.com sales fax

www.telanor.ch info@telanor.ch

Siesta iDock is a member of the PURE EcoPlus™ product family. All EcoPlus products are designed and manufactured to minimize their environmental impact, with:

Reduced power consumption in operation and standby

Components selected to minimize environmental impact Use of materials from recycled and sustainable sources The smallest possible packaging

For more information please visit www.pure.com/ecoplus
