USER MANUAL BLACK & DECKER CTO650 BLACK & DECKER

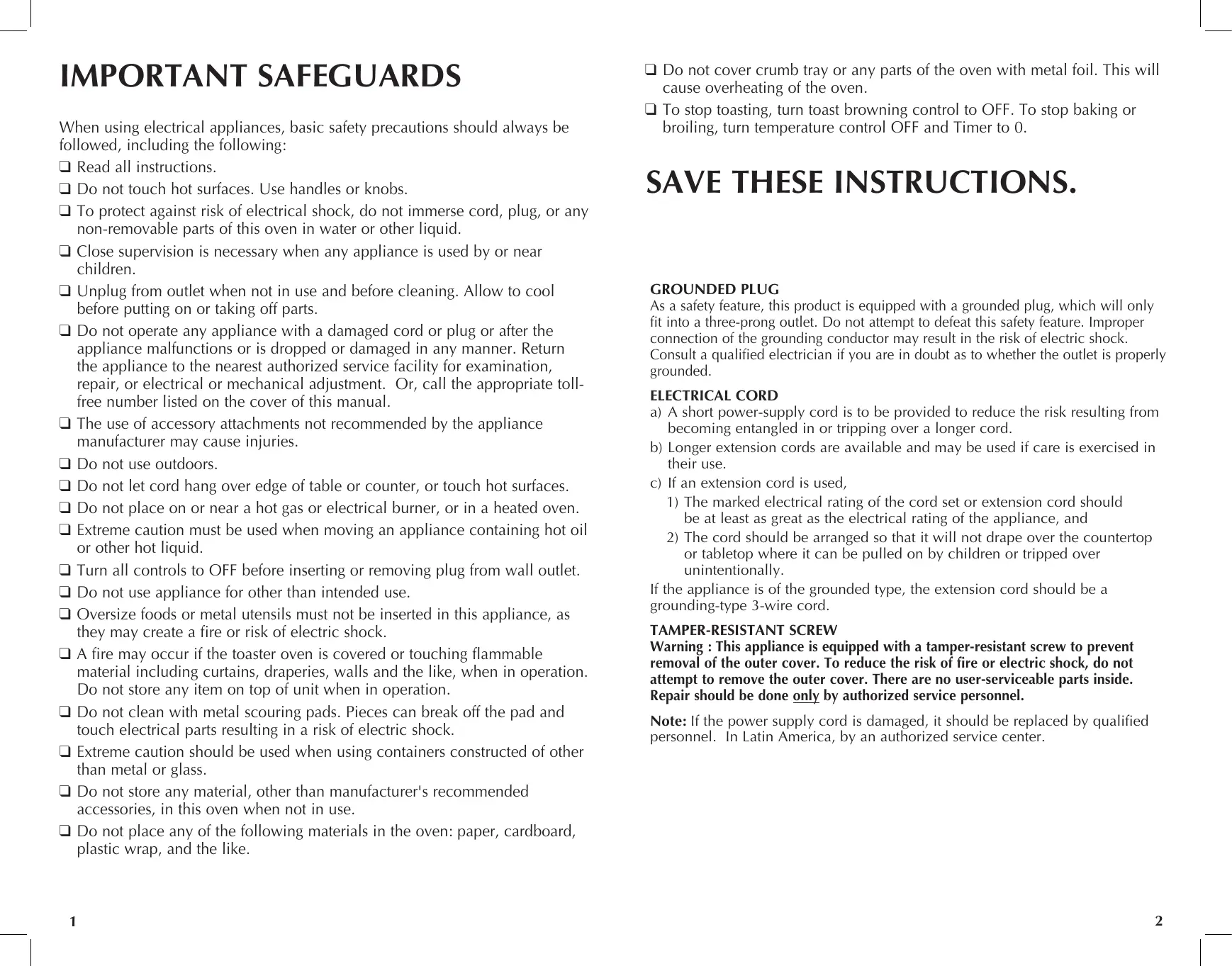

Please Read and Save this Use and Care Book Por favor lea este instructivo antes de usar el producto Veuillez lire et conserver ce guide d’entretien et d’utilisation Toast-R-Oven™ Broiler Asador Rôtissoire Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000! For US residents only Registre su producto por Internet en www.prodprotect.com/applica y tendrá la oportunidad de GANAR $100,000! Solamente para residentes de EE.UU Inscrivez votre produit en ligne à l'adresse www.prodprotect.com/applica et courez la chance de GAGNER 100 000 $! Aux résidents du É.-U seulement USA/Canada Mexico 1-800-231-9786 01-800-714-2503 www.applicaconsumerproductsinc.com Accessories/Parts (USA/Canada) 1-800-738-0245 Accesorios/Partes (EE.UU/Canadá) Accessoires/Pièces (É.-U./Canada) Model Modelo Modèle ❑ CTO650 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: ❑ Read all instructions. ❑ Do not touch hot surfaces. Use handles or knobs. ❑ To protect against risk of electrical shock, do not immerse cord, plug, or any non-removable parts of this oven in water or other liquid. ❑ Close supervision is necessary when any appliance is used by or near children. ❑ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. ❑ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate tollfree number listed on the cover of this manual. ❑ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. ❑ Do not use outdoors. ❑ Do not let cord hang over edge of table or counter, or touch hot surfaces. ❑ Do not place on or near a hot gas or electrical burner, or in a heated oven. ❑ Extreme caution must be used when moving an appliance containing hot oil or other hot liquid. ❑ Turn all controls to OFF before inserting or removing plug from wall outlet. ❑ Do not use appliance for other than intended use. ❑ Oversize foods or metal utensils must not be inserted in this appliance, as they may create a fire or risk of electric shock. ❑ A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of unit when in operation. ❑ Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts resulting in a risk of electric shock. ❑ Extreme caution should be used when using containers constructed of other than metal or glass. ❑ Do not store any material, other than manufacturer's recommended accessories, in this oven when not in use. ❑ Do not place any of the following materials in the oven: paper, cardboard, plastic wrap, and the like.

❑ Do not cover crumb tray or any parts of the oven with metal foil. This will cause overheating of the oven. ❑ To stop toasting, turn toast browning control to OFF. To stop baking or broiling, turn temperature control OFF and Timer to 0. SAVE THESE INSTRUCTIONS. GROUNDED PLUG As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded. ELECTRICAL CORD a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b) Longer extension cords are available and may be used if care is exercised in their use. c) If an extension cord is used,

1) The marked electrical rating of the cord set or extension cord should

be at least as great as the electrical rating of the appliance, and

2) The cord should be arranged so that it will not drape over the countertop

or tabletop where it can be pulled on by children or tripped over unintentionally. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. Note: If the power supply cord is damaged, it should be replaced by qualified personnel. In Latin America, by an authorized service center.

How to Use Product may vary slightly from what is illustrated. This product is for household use only. $ "65 *0 /

THIS OVEN GETS HOT WHEN

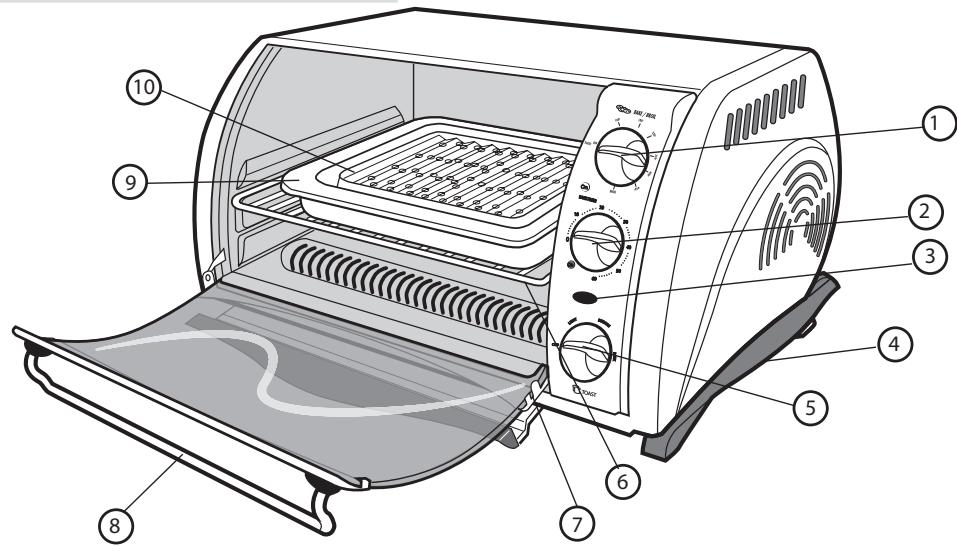

1. Toast and Bake/Broil Temperature control

† 9. Bake pan (Part # 46) †10. Broil rack (Part # 43)

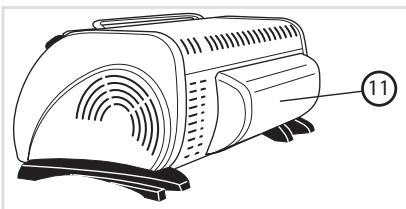

11. Extra-deep curved interior

† Consumer replaceable/removable parts

Important: When using the TIMER function, always turn the dial past 20 and then turn back or forward to desired setting. Getting Started

1. Wash all parts as instructed in the Care and Cleaning section.

2. Insert the Crumb Tray underneath the bottom heating elements.

3. Plug the unit into a standard outlet.

1. Insert the Slide Rack in the rack slot with the curved end toward

the back of the oven (A). It is not necessary to preheat the oven for toasting.

2. Set the Toast Browning Control as desired. For best results, select

the medium setting for your first cycle, then adjust lighter or darker to suit your taste.

3. Turn Temperature Control to Toast setting. The On Indicator Light comes on and stays on

during the toasting cycle. When toasting is done, you hear a bell sound. The On Indicator Light goes out.

4. To stop toasting at any time, open the oven door. The heating elements and the On Indicator

5. Turn the Toast Browning Control to Off.

6. Using an oven mitt or pot holder, open the door and slide out the Slide Rack to remove food.

Tip for Multiple Toasting Cycles: For best results, when making consecutive batches of toast, allow a short cool down period between toasting cycles. Caution: The oven is hot. Do not let your skin touch any surface. Baking

1. Place Bake Pan containing food to be cooked on the Slide Rack.

2. Turn the Temperature Control to the desired temperature setting.

a. If not using the Bake Timer, turn the control to On and monitor the food. b. If using the 60-Minute Bake Timer, turn the control to the desired number of minutes. Note: For best results, always preheat the oven for 5 minutes. Important: When using the TIMER function, always turn the dial past 20 and then turn back or forward to desired setting.

3. The upper and lower heating elements will cycle on and off to maintain the temperature.

To stop cooking, open the oven door. To continue cooking, close the door. Check food for doneness at minimum time.

4. When finished cooking, turn the Temperature Control to Off.

5. If using the 60-Minute Bake Timer, you will hear a bell sound once it reaches the set time. If

not, when cooking is done, turn the Timer to 0 (off). The On Indicator Light goes out.

6. Using an oven mitt or pot holder, open the door and slide out the Slide Rack to remove the

Bake Pan. Caution: The oven is hot. Do not let your skin touch any surface. Broiling Note: When broiling, preheat oven for 5 minutes.

1. Insert the Broil Rack in the Bake Pan and place both on the Slide

Rack (B). Important: Insert the slide rack so that the food is at least 1½” (3.81 cm) from the upper element.

2. Turn the Temperature Control to Broil and the 60-Minute Bake

Timer Control to On.

3. To stop cooking, open the door. Check food for doneness at minimum cooking time.

4. When finished broiling, using an oven mitt or pot holder, slide out Slide Rack to remove

Bake Pan. Caution: The oven is hot. Do not let your skin touch any surface.

5. Turn Temperature Control to Off and 60-Minute Bake Timer to 0 (off).

TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit is not heating or stops heating. Electrical outlet is not working or oven is unplugged. Check to make sure outlet is working. Both the temperature control and the timer must be set in order for the oven to function. Second toasting is too dark. Setting on toast is too dark. If doing repeated toasting in the oven, select a shade slightly lighter than the previous setting. Moisture forms on the inside of the glass door during toasting. The amount of moisture differs in different products, whether bread, bagels or frozen pastries. The moisture that forms on the oven door is quite common and will usually disappear during the toasting cycle. Since the oven is closed the moisture cannot evaporate as it would in a toaster. Food is overcooked or undercooked. Temperature and cook time may need to be adjusted. As your toaster oven is much smaller than a regular oven, it may heat up faster and cook faster. Try lowering the temperature 25 degrees from the suggested temperature in a recipe or on a label. There is burnt food odor or smoking when oven is being used. There are remnants of food in Refer to the directions crumb tray or on the walls of in the CARE AND the oven. CLEANING section of this Use & Care booklet. Make sure all parts of the oven, baking pan and rack are clean. Heating elements do not seem to be on. The heating elements cycle on and off during baking. Care and Cleaning This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Turn off unit, unplug from wall outlet and let it cool before cleaning.

2. Clean the glass door with a nylon pad and sudsy water. Do not use a spray glass cleaner.

3. To remove Slide Rack, open the door, pull the rack forward and out. Wash in warm, sudsy

water or in the dishwasher. To remove stubborn spots, use a polyester or nylon pad. To replace the Slide Rack, open the door completely, slide into the rack slot and close the door.

4. Wash the Bake Pan and Broil Rack in warm, sudsy water or in the dishwasher. To minimize

scratching, use a polyester or nylon pad.

5. To remove the Crumb Tray, grasp the handle at the front of the

oven and pull it out (C). Dispose of crumbs and wash the tray in warm, sudsy water. Remove stubborn spots with a nylon mesh pad. Be sure to dry thoroughly before inserting the tray back into the oven. Nonstick Coating

1. Unplug the oven and let it cool, then wipe with a soapy sponge or

nylon pad after each use.

2. Do not use a chemical oven cleaner. Do not use any abrasive cleansers or scouring pads as

they may harm the coating. Dry with paper towel or soft cloth. Exterior Let the oven cool completely before cleaning any outer surface. Wipe with a damp cloth or sponge and dry with paper towel or soft cloth. Cooking Containers Metal, ovenproof glass without lids or ceramic bakeware can be used in your oven. Follow manufacturer’s instructions. Be sure the top edge of the container is at least 1½” (3.81 cm) away from the upper heating elements.

Check the oven to make certain the function desired is being used. On broil, only the top element is on.

THIS OVEN GETS HOT. WHEN

THIS OVEN GETS HOT. WHEN

NEED HELP? For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual. One-Year Limited Warranty (Applies only in the United States and Canada) What does it cover?

• Any defect in material or workmanship provided; however, Applica’s liability will not exceed the purchase price of product. For how long?
• One year after date of purchase. What will we do to help you?
• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?
• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?
• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?
• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province. ¿NECESITA AYUDA? Para servicio, reparaciones o preguntas relacionadas al producto, por favor llame al número del centro de servicio en el país donde usted compró su producto. NO devuelva el producto al fabricante. Llame o lleve el producto a un centro de servicio autorizado. DOS AÑOS DE GARANTÍA LIMITADA (No aplica en México, Estados Unidos o Canadá) ¿Qué cubre la garantía?
