T2569C - Toaster BLACK & DECKER - Free user manual and instructions

Product type	Toaster
Brand	Black & Decker
Model	T2569C
Number of slots	2
Toasting level setting	6 positions (1 to 6)
Special functions	Toast, bagel, frozen, cancel
Indicator light	LED
Crumb tray	Removable, washable in soapy water (not dishwasher safe)
Cord wrap	Yes, built-in under the appliance
Power supply	120 V, 60 Hz
Auto shut-off	Yes, at end of cycle
Warranty	2 years
Customer service and spare parts	1-800-738-0245 (United States and Canada)
Exterior care	Wipe with a damp cloth, do not use abrasive products
Safety	Polarized plug, do not immerse, hot surfaces
Use	Household use only

Frequently Asked Questions - T2569C BLACK & DECKER

How to clean the T2569C toaster?

Always unplug the appliance and let it cool down. Remove the crumb tray, discard crumbs, and wash it in warm soapy water (not dishwasher safe). Wipe the exterior with a damp cloth and dry. Never immerse the appliance.

Can I toast bagels with this toaster?

Yes, place the bagel cut side inward, lower the lever, and press the Bagel button. The button lights up until the end of the cycle.

What to do if food gets stuck in the toaster?

Unplug the cord, then move the control lever up and down several times to dislodge the food. Never use metal utensils.

How to use the defrost (frozen) function?

Place the frozen food in the slots, lower the lever, and press the Frozen button. The cycle includes a defrost time before toasting.

Can I use an extension cord with this toaster?

Yes, but make sure the extension cord's rating is at least equal to the appliance's (120 V) and do not let the cord hang over the counter to avoid tripping hazards.

What is the power of the T2569C toaster?

The power is not specified in the manual, but most toasters in this range have a power of about 800 to 1500 W. Please check the label on the appliance.

Where can I find spare parts?

You can order spare parts by calling the parts department at 1-800-738-0245 (United States and Canada).

How to adjust the browning level?

Turn the toasting selector from 1 (light) to 6 (dark). For first use, set to the middle (3) and adjust to taste.

Does the toaster shut off automatically?

Yes, the toaster automatically stops at the end of the toasting cycle. You can also press the Cancel button to interrupt the cycle at any time.

Can I immerse the toaster in water to clean it?

No, never immerse the toaster, cord, or plug in water or any other liquid. This presents a risk of electric shock.

USER MANUAL T2569C BLACK & DECKER

Register your product at www.prodprotect.com/applica and view the details for our latest sweepstakes!

USA/Canada 1-800-231-9786

Mexico 01-800-714-2503

www.prodprotect.com/applica

Accessories/Parts (USA/Canada) 1-800-738-0245

Models Modèles

T2569C
T2569BC
T4569C
T4569BC

Please Read and Save this Use and Care Book

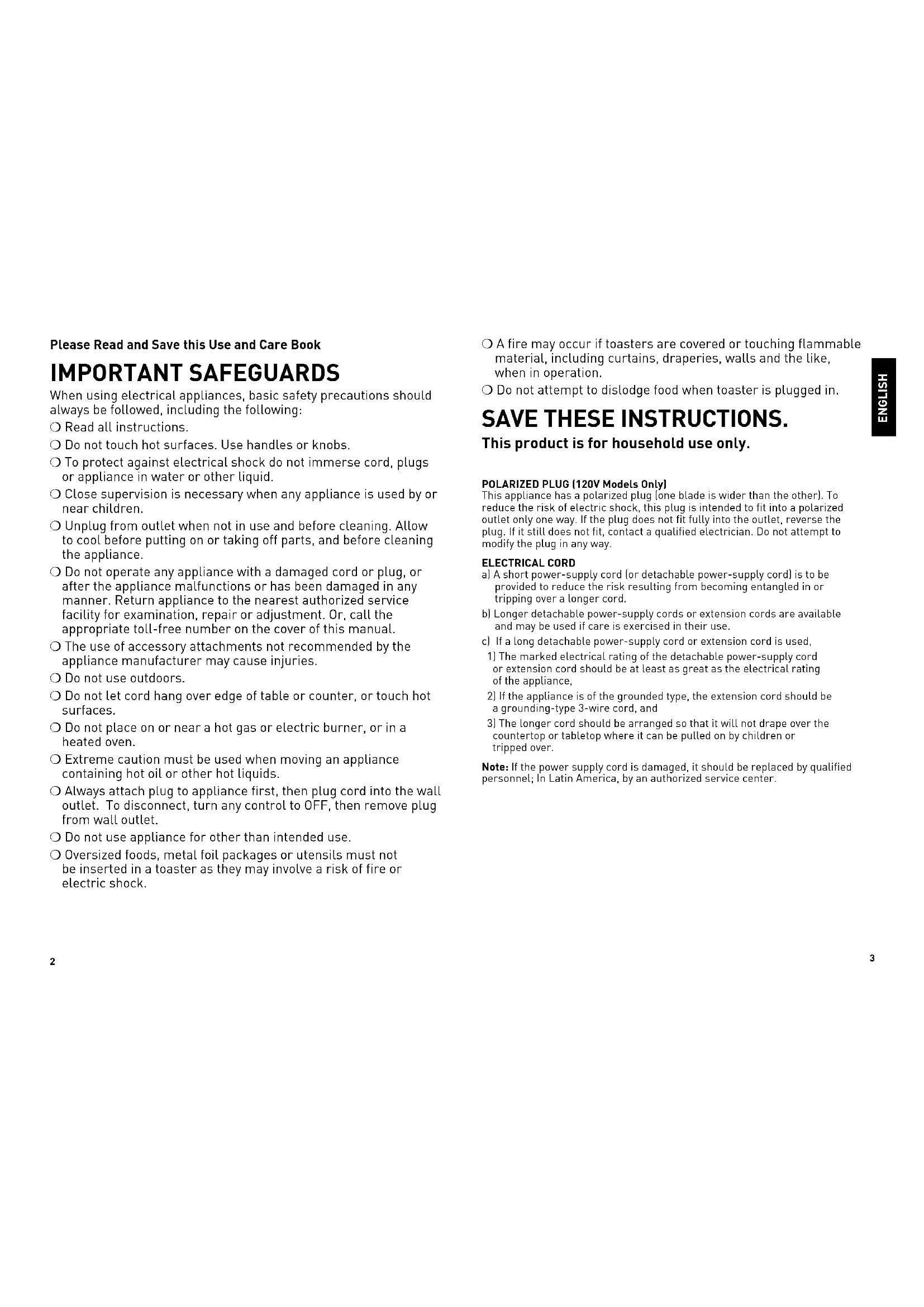

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to OFF, then remove plug from wall outlet.
Do not use appliance for other than intended use.
Oversized foods, metal foil packages or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.

A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls and the like, when in operation.
Do not attempt to dislodge food when toaster is plugged in.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2] If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; In Latin America, by an authorized service center.

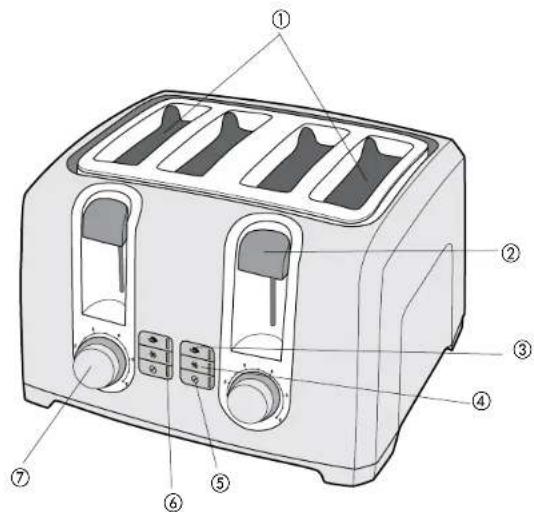

Product may vary slightly from what is illustrated.

1. Extra-wide slots with automatic adjusting guides

2. Toast lever

3. BAGEL button

4. FROZEN button

5.CANCEL button

1. LED indicator light

2. Toast shade selector dial

3. Removable slide-out crumb trays (not shown) Models T2569C, T2569BC [Part# T2560-01 White] (Part# T2560B-01 Black) Model T4569C, T4569BC, [Part# T4560B-01 White] (Part# T4560B-01 Black)

4. Cord wrap (under unit)

Note: † indicates consumer replaceable/removable parts

How to Use

This product is for household use only. GETTING STARTED

• Unpack the unit and remove any packing materials or labels.
  Please go to www.prodprotect.com/applica to register your warranty.
• Wipe the toaster with a damp cloth and dry thoroughly.
• Insert slide-out crumb trays in place in the back of the unit, at the bottom.
• Plug the power cord into a standard wall outlet.

TOAST FUNCTION

Models T4569C and T4569BC only: Your toaster features two sets of independent slots each with individual toast shade selectors, bagel

frozen and cancel buttons. Be sure to adjust each toast shade selector individually so that you can toast two different kinds of foods (for example, waffles on one side, bagels on the other) at once using different settings.

1. Adjust the toast shade selector to the desired setting (1 to 6) (A). For first use, set the dial to setting 4. Adjust as desired to suit your taste.

Tip: Toast thin slices on lower settings.

1. Place bread slices or other foods in the slots and press down the toast lever until it locks in place (B). The CANCEL button automatically illuminates whenever you press down the toast control lever and remains lit until toasting cycle is finished, or until you press the button.
   The bread guides will automatically adjust to hold thick or thin slices in place.
2. When toasting is done, the toast control lever goes up and the unit shuts off.

Important: You must press down the toast control lever before selecting a function. If not, the function will not be activated.

BAGEL ACTION

Use the BAGEL function to toast bagels crispy on the cut side and gently warm on the outside.

1. Insert cut bagel into the slots with cut side toward the inside of the toaster.
2. Adjust the toast shade selector to the desired setting (1 to 6).

1. Press down the toast lever until it locks in place then press the BAGEL button (C). The button illuminates until toasting is done or until you press the CANCEL button. Important: If you select the wrong button, you must press the CANCEL button and then select the button you want.

2. The bread guides will automatically adjust to hold thick or thin slices in place.

3. When toasting is done, the toast control lever goes up and the unit shuts off.

FROZEN FUNCTION

1. Place food in the slots and press down the toast control lever until it locks into the down position. The CANCEL button illuminates until toasting is done or you press the button.
2. Press the FROZEN button (D). The button illuminates until toasting is done or you press the CANCEL button. When toasting is done, the toast control lever goes up and the unit shuts off.

Important: If you select the wrong button, you must press the CANCEL button and then select the button you want after you press down the toast lever.

HELPFUL TIPS

If food becomes jammed, unplug the cord and move the toast lever up and down a few times to raise jammed food.
- Do not touch the metal area around the slots as it may be hot.
- Never use metal utensils to free food.
- To interrupt toasting at any time, press the CANCEL button.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

Always unplug the cord from the electrical outlet and allow the toaster to cool before cleaning. Do not immerse the toaster in water.

Crumb Trays

1. Grasp the handle[s] at the back of the toaster and slide out the crumb tray[s] (E).
   Note: Models T2569C and T2569BC have only one crumb tray.
2. Dispose of crumbs and wash the tray(s) in warm, sudsy water. The tray(s) are not dishwasher safe. You can remove stubborn spots using a nylon mesh pad.
3. Dry tray(s) thoroughly before sliding back into the toaster.

Cleaning Outside Surfaces

The cool-touch exterior on the sides will not burn your hand if accidentally touched. However, the metal top does get hot. Allow the toaster to cool completely before cleaning.

• Wipe the exterior with a damp cloth or sponge and dry with a paper towel.
• Do not use strong cleaners or abrasives that may scratch surfaces and never spray cleaners directly onto the toaster.

STORAGE

Use the cord wrap on the bottom of the toaster to minimize clutter on you counter and for easy storage (F).

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

Two years after date of purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages [Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.]

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER is a trademark of The Black & Decker

Corporation, Towson, Maryland, USA

Made in People's Republic of China

Printed in People's Republic of China

IMPORTANT MISES EN GARDE

Applicabny Prohect Inc.

Copyright © 2009 Applica Consumer Products, Inc.

2009/4-1-5E/F

Printed on recycled paper.
