Product type	Kitchen hood
Brand	AEG
Model	NDC7791SW
Width	90 cm
Depth	50 cm
Height	60 cm (minimum 45 cm)
Net weight	18 kg
Power supply	220-240 V, 50/60 Hz
Maximum power	300 W
Noise level	62 dB (A) at maximum speed
Main functions	Extraction, odor filtration, LED lighting, 4 speeds + intensive
Evacuation type	External evacuation or recirculation (with charcoal filter)
Grease filter	Dishwasher-safe metal filters
Charcoal filter	Activated charcoal filter (optional for recirculation)
Lighting	2 LED bulbs (4 W each)
Controls	Touch electronic controls with digital display
Maintenance and cleaning	Clean the grease filters every month or after 30 hours of use; replace the charcoal filter every 4 to 6 months
Safety	Automatic safety shutdown in case of overheating
Spare parts and repairability	Filters, bulbs and electronic board available via AEG after-sales service; repairability index not communicated
General information	User manual free download at notice-facile.com

Frequently Asked Questions - NDC7791SW AEG

How to properly install the AEG NDC7791SW hood?

Installation must respect a safety distance of at least 65 cm above an electric hob and 75 cm for gas cooking. Ensure the evacuation complies with local standards. For recirculation, install the supplied charcoal filter.

How often should I clean the grease filters?

The metal grease filters should be cleaned every month or after 30 hours of use. You can wash them in the dishwasher or by hand with a mild detergent.

How to replace the LED bulb of the hood?

Turn off and unplug the appliance. The LED bulbs are clipped; use a flat screwdriver to gently unlock them. Replace with a bulb of the same type (4 W, G4).

What type of charcoal filter to use and when to change it?

Use an activated charcoal filter compatible with the AEG hood. Replace it every 4 to 6 months depending on use. The filter is not washable.

My hood makes an unusual noise, what should I do?

Check that the filters are properly attached and clean. Noise may also come from a blocked exhaust duct or unstable installation. If the noise persists, contact after-sales service.

Can I use the hood in recirculation mode without an external duct?

Yes, the hood is designed to operate in recirculation with a charcoal filter. Ensure the filter is installed and the air is recirculated through the top side outlets.

How to adjust the hood speed?

Use the touch buttons: press the speed button to go from 1 to 4 or activate intensive mode for temporary maximum extraction (5 minutes).

The remote control does not work, how to reset it?

If your model is equipped with a remote control, remove the batteries and reinsert them after 10 seconds. Check the range (max 3 m). If the problem persists, replace the batteries.

Where to find spare part numbers for the AEG NDC7791SW hood?

Consult the user manual, it contains an exploded diagram with part references. You can also contact AEG customer service or search on their official website.

What to do if the LED lighting flickers or does not turn on?

Check that the bulbs are properly seated. Try removing and reinserting them. If flickering continues, the bulb may be defective; replace it with a new one.

USER MANUAL NDC7791SW AEG

NDC7791SB

NDC7791SM

NDC7791SW

1. Press the handle of the mounting clip on the filter panel under the hood (1).

Welcome to AEG! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information:

www.aeg.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......65
2. SAFETY INSTRUCTIONS.... 68
3. INSTALLATION....69
4. PRODUCT DESCRIPTION....69
5. DAILY USE....70
6. CARE AND CLEANING....72
7. TROUBLESHOOTING.... 73
8. ENVIRONMENTAL CONCERNS....73

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance; if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners, or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.

- Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns, or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance, remove all the packaging, the labelling, and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol ( ) is not printed on the rating plate, the appliance must be earthed. Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot. Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only. - Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

- Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

Function Description

1

Filter reset Resets the active filter notification.

2

First speed / Off The motor switches to first speed level. Second press turns off the appliance.

3

Lamp Turns the lights on and off. Changes the light intensity.

4

Fan speed indicators Indicate fan speed levels.

5

Speed boost indicator: Blinks when the motor switches to speed boost level.

6

Third speed indicator: Lights up when the motor switches to third speed level.

7

Second speed indicator: Lights up when the motor switches to second speed level.

Function Description
8	Breeze / First speed indicator Blinks when the motor switches to Breeze level or lights up when the motor switches to first speed level.
9	Fan speed button Changes the fan speed level.
10	Filter indicator Reminds to change or clean the charcoal filter and clean the grease filter.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

Breeze	Refreshes the air in kitchen after cooking at a very low noise level. The function turns off automatically after 60 minutes. Use after cooking only.
First speed While heating up food, cooking with covered pots.
Second speed	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Third speed	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
Speed boost	While boiling and frying big quantities of food without a lid, big humidity. After 8 minutes the appliance returns to previous setting.

It is recommended to leave the hood operating for approximately 15 minutes before and after cooking.

Activating the appliance

To operate the hood:

Press the button to switch on the hood. The appliance starts to operate at first speed level. Press the button to set the fan speed level in the following order: Breeze - First speed - Second speed - Third speed - Speed boost - Off.

Deactivating the appliance

To turn off the appliance, press the button again or press and hold the button for 3 seconds.

Perfect Illumination - Lighting

Activating and deactivating the lighting To illuminate the cooking surface press the

button. Press the button again to change the light intensity in the following order: Maximum, Medium, Low, Off.

To switch off the lights, press and hold the button for 3 seconds.

Setting the light colour temperature To set the light colour temperature, use the remote control supplied with the appliance.

Refer to the separate user manual supplied with the remote control.

5.2 Hob2Hood®

It is a function that connects the hob to a hood. Both the hob and the hood are equipped with an infrared signal communicator. The fan speed is determined based on the mode setting and the temperature of the hottest cookware on the hob. Alternatively, you can manually control the fan using the hob. This function can be activated from the hob's control panel.

For more information how to use the function, refer to the hob user manual.

5.3 Filter notification

The filter alarm serves as a reminder to clean the grease filter and either replace or clean the charcoal filter, depending on its type. The filter alarm indicator blinks regularly for 30 seconds if the grease filter must be cleaned. The filter alarm indicator blinks twice per every second for 30 seconds if the charcoal filter must be replaced or cleaned.

This function activates independently after 40 hours of operation for grease filter and 160 hours of operation for charcoal filter.

Refer to Cleaning the grease filter in the Care and cleaning chapter.

Refer to "Cleaning the charcoal filter" or "Replacing the charcoal filter" in the "Care and cleaning" chapter.

To reset the function counter:

Press the 📄 button for 3 seconds.

The filter alarm indicator blinks red three times and then stops blinking to confirm the reset.

To activate or deactivate the charcoal filter counter:

1. Make sure the fan and the light are turned off.
2. Press and hold the ⏻ and ⏻ buttons for 3 seconds.

The function is activated if the filter alarm indicator blinks red once. The function is deactivated if the filter alarm indicator blinks red twice.

5.4 Deactivating and activating panel sounds

To deactivate or activate the sounds of the panel:

1. Make sure the fan and the lighting are turned off.
2. Press and hold the buttons for 3 seconds.

The fan speed indicators blink once if sounds are enabled and twice if sounds are disabled.

The hood deactivation sound cannot be disabled.

5.5 Remote control

The appliance is supplied with a remote control.

Refer to the separate user manual supplied with the remote control.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents or brushes.

Clean the surface of the appliance with a soft cloth, warm water, and a mild detergent.

After cooking, some parts of the appliance can become hot. To avoid stains, the appliance must be cooled down and dried with a clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean.

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully to remove fat. Fat accumulation or other residue may cause fire.

Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolor, but this has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Refer to the leaflet included in the accessory.

Before carrying out any maintenance, make sure there is no cookware on the hob and that the hood and the hob are disconnected from the power supply.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

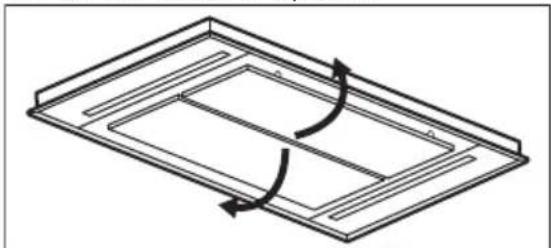

1. Pull the cover to open it.

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter - optional

Depending on type, filter can be or cannot be regenerated. Refer to the leaflet provided with the filter.

To replace the filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.
2. Remove the clips holding the filter bed, then the filter bed.

1. To install a new filter, perform the same steps in reverse order.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. Lack of electrical power supply.		Check the fuse or the main switch. If the fuse or the switch continue to break the circuit, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Contact an Authorised Service Centre.
The brightness level or light colour temperature is not as described in the instructions.	Incorrect Perfect illumination setting.	Using the supplied remote control, check if you are able to change all three colour temperatures.
	The lamp is defective. Contact an Authorised Service Centre.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Increase the speed of the motor.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human

health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol 📄 with the household waste. Return the product to

your local recycling facility or contact your municipal office.

1. SAFETY INFORMATION

5. DAILY USE

5.1 Using the hood

1. Press the handle of the mounting clip on the filter panel under the hood (1).

1. Gently tilt the front part of the filter downwards (2), then pull it out. Repeat the first two steps for all filters.
2. Clean the filters with a sponge and non-abrasive detergents, or in the dishwasher.

i

1. To install a new filter, perform the same steps in reverse order.

6.4 Replacing the bulb

This appliance is supplied with an LED bulb. This part can only be replaced by a technician. In case of any malfunction, refer to "Service" in the "Safety Instructions" chapter.

7. TROUBLESHOOTING

WARNING!

1. amplitude modulation of the magnetic field

3. INSTALLATION

5.4 3s6g0n1b3g0n1g0sJ0n3s0n g0s J0n3s0n

36m00gds 3g1sdmn 3d6g0 gsdmlfimgds
dmym00m0h0s 3g0s0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0m0s.	dmym00m0s 3g0s0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0m0s.	3g0s0m0s, 3g0s0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m
dmym00m0h0s 3g0s0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g0m0s 3g2m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n0m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5m0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n0s 3g0n5n
65m0m s m 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s	65m0m s m 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 3g0s0m0s 4g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3p8m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0m0m0s 3g0c8m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5m0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n0m0s 3g0n5n
193s0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m0m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1n s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m
65m0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g0s0m s m 3g1m0m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m2m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1k m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m
dmym00m0s s m 3g0s0m s m 3g0s0m s m 3g1m0m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m s m 3g1m1m

8. 3679201023000 3679201023000

gsqssdŋdʒɡn lsgbdo lndðmmmono hsgɔn dʒgŋmɔz s dʒusðsdol zmδʒgɔbʒgðdəo gsqoslədʒdʒdʒdmsco. bgmo dʒŋfʒʒɔn gsʌgdmls os spsdɔsblu xsbđmɔmmdəlu osbzsl u mçjðhm os gmcjðmmbŋmo dmʒymdɔmmdðdol bsnhgðdol gsqosdʒdʒdɔn. sm gsqosyśmɔn hodmmmono dmboðʒŋmo

7. TROUBLESHOOTING

WARNING!

1. Press the handle of the mounting clip on the filter panel under the hood (1).

4. PRODUCT DESCRIPTION

1. Press the handle of the mounting clip on the filter panel under the hood (1).

ELECTROLUX APPLIANCES AB

BUSINESS SECTOR EMA-EMEA (SEE)

ST GÖRANSGATAN 143

SE-105 45 STOCKHOLM

SWEDEN

TEL: [phone]

FAX: [phone]

www.electrolux.com
