Briggs & Stratton is a registered trademark of Briggs & Stratton Corporation E 2008 Briggs & Stratton Corporation, Milwaukee, WI, USA. All rights reserved. Vanguardt Gaseous Form No. 277733WST A English Dansk Deutsch ÅëëçíéêÜ Español Suomi Français Italiano Nederlands Norsk Português Svenska

BRIGGSandSTRATTON.COM

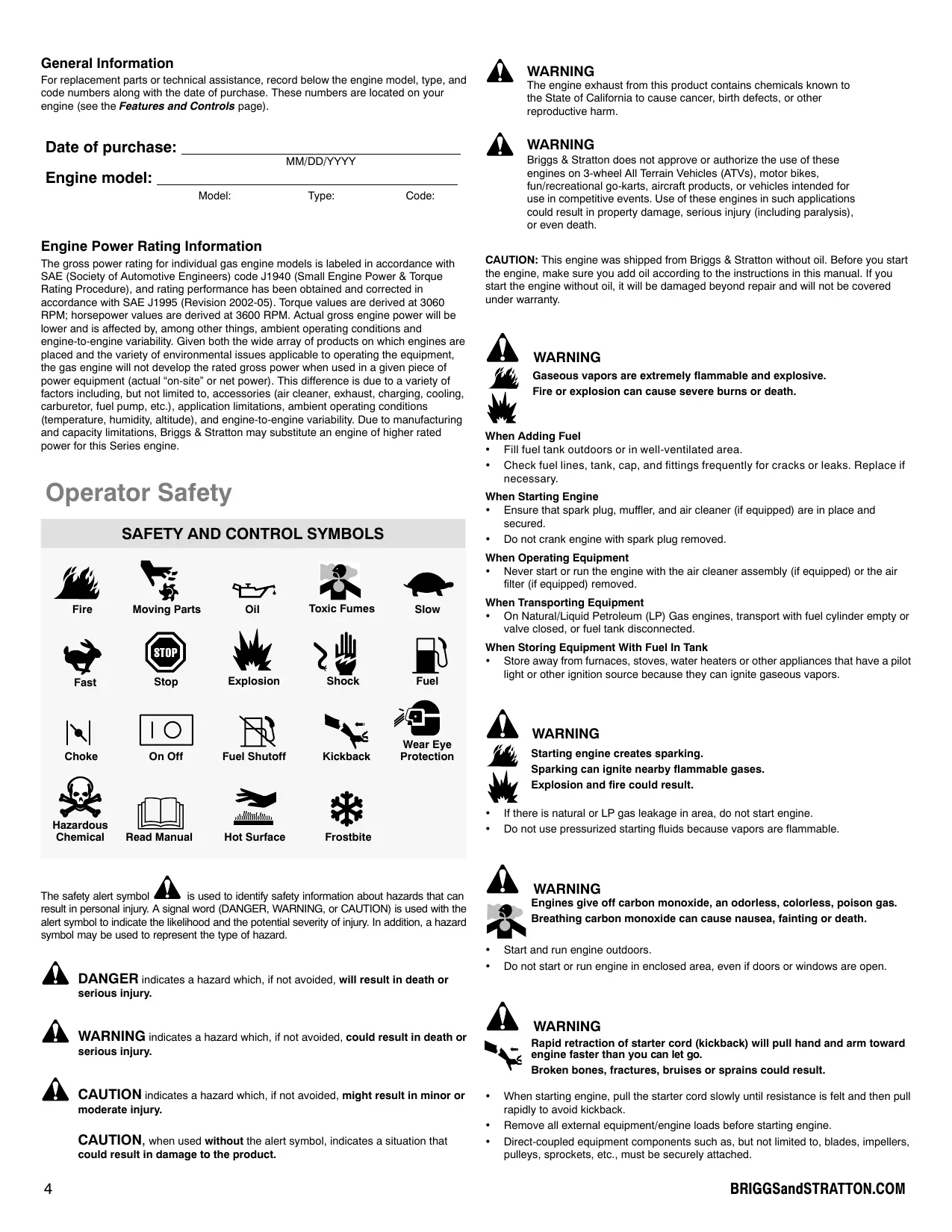

General Information WARNING For replacement parts or technical assistance, record below the engine model, type, and code numbers along with the date of purchase. These numbers are located on your engine (see the Features and Controls page). The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Date of purchase: Briggs & Stratton does not approve or authorize the use of these engines on 3-wheel All Terrain Vehicles (ATVs), motor bikes, fun/recreational go-karts, aircraft products, or vehicles intended for use in competitive events. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death.

MM/DD/YYYY

Engine model: Model: Type: Code: Engine Power Rating Information The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. Operator Safety CAUTION: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty. WARNING Gaseous vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Adding Fuel

• Fill fuel tank outdoors or in well-ventilated area.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary. When Starting Engine
• Ensure that spark plug, muffler, and air cleaner (if equipped) are in place and secured.
• Do not crank engine with spark plug removed.

SAFETY AND CONTROL SYMBOLS

When Operating Equipment

• Never start or run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed. Fire Moving Parts Stop Fast Choke Hazardous Chemical On Off Read Manual Oil Explosion Fuel Shutoff Hot Surface Toxic Fumes Shock Kickback Slow Fuel When Transporting Equipment
• On Natural/Liquid Petroleum (LP) Gas engines, transport with fuel cylinder empty or valve closed, or fuel tank disconnected. When Storing Equipment With Fuel In Tank
• Store away from furnaces, stoves, water heaters or other appliances that have a pilot light or other ignition source because they can ignite gaseous vapors. WARNING Wear Eye Protection Frostbite Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result.

WARNING The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard. DANGER indicates a hazard which, if not avoided, will result in death or If there is natural or LP gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable. Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

Start and run engine outdoors. Do not start or run engine in enclosed area, even if doors or windows are open. serious injury. WARNING WARNING indicates a hazard which, if not avoided, could result in death or Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or

CAUTION, when used without the alert symbol, indicates a situation that

moderate injury. could result in damage to the product.

When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Remove all external equipment/engine loads before starting engine. Direct-coupled equipment components such as, but not limited to, blades, impellers, pulleys, sprockets, etc., must be securely attached. BRIGGSandSTRATTON.COM

WARNING WARNING Rotating parts can contact or entangle hands, feet, hair, clothing, or accessories. Traumatic amputation or severe laceration can result. Gaseous fuels are extremely flammable and readily form explosive air-vapor mixtures at ambient temperatures. Operate equipment with guards in place. Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. Do not wear loose-fitting clothing, dangling drawstrings or items that could become caught. WARNING

Do not start the engine.

Do not actuate any electrical switches.

Do not use a phone in the vicinity.

Contact the gas supplier or fire department. Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire.

Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. Install and maintain in working order a spark arrester before using equipment on forest-covered, grass-covered, brush-covered unimproved land. The state of California requires this (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal land. WARNING Wear eye protection when doing repair work. Frostbite can result from skin/eye contact with leaking LP liquid. WARNING Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard

Installation, adjustment and repair work should be done by a qualified technician.

Regularly check flexible supply line. Make sure they are in good condition. Replace damaged or leaking components. Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Disconnect battery at negative terminal (only engines with electric start.)
• Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation. When testing for spark:
• Use approved spark plug tester.
• Do not check for spark with spark plug removed.

WARNING Missing or inoperative “fuel lock-off” valve can cause a fire or explosion.

Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative.

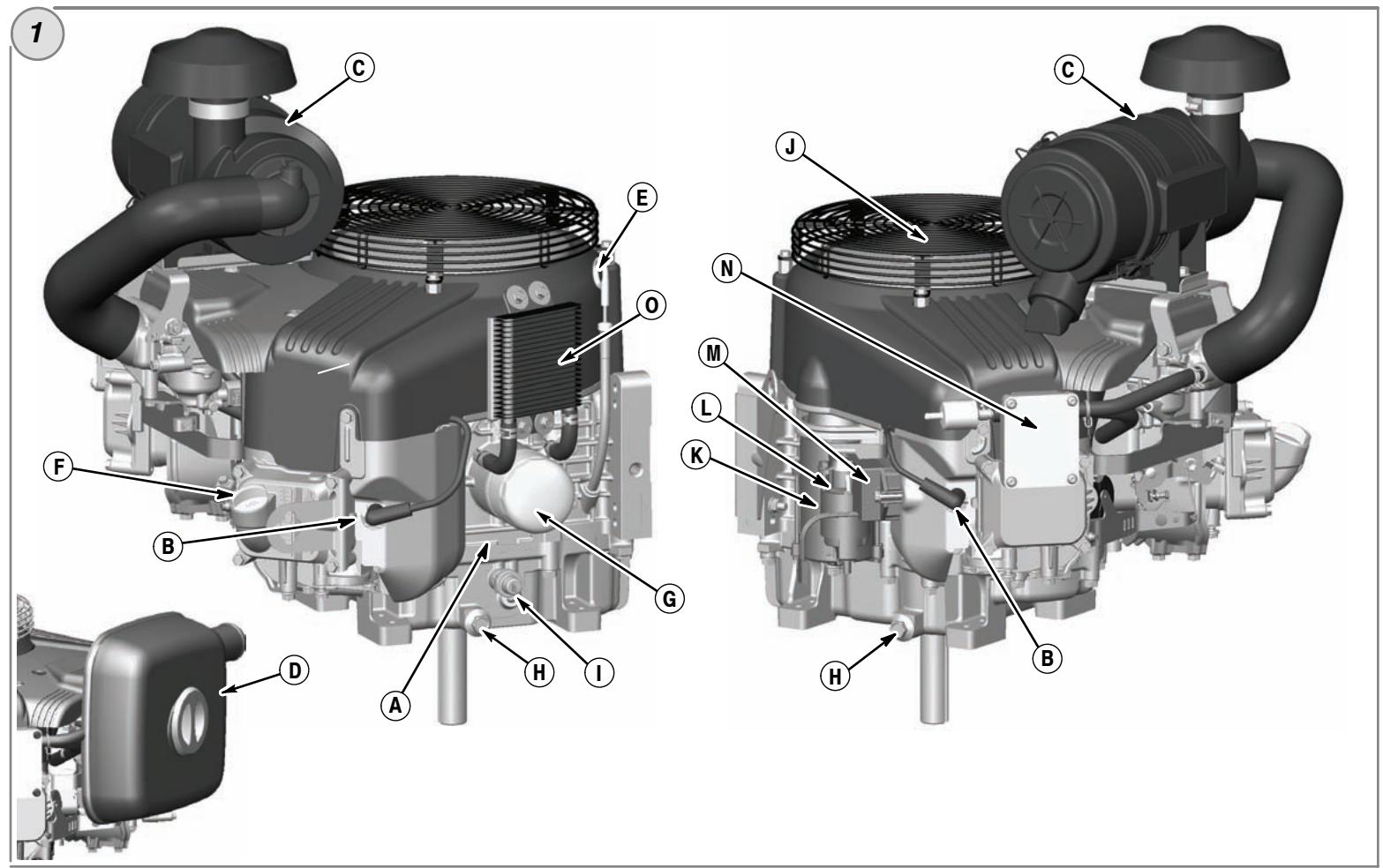

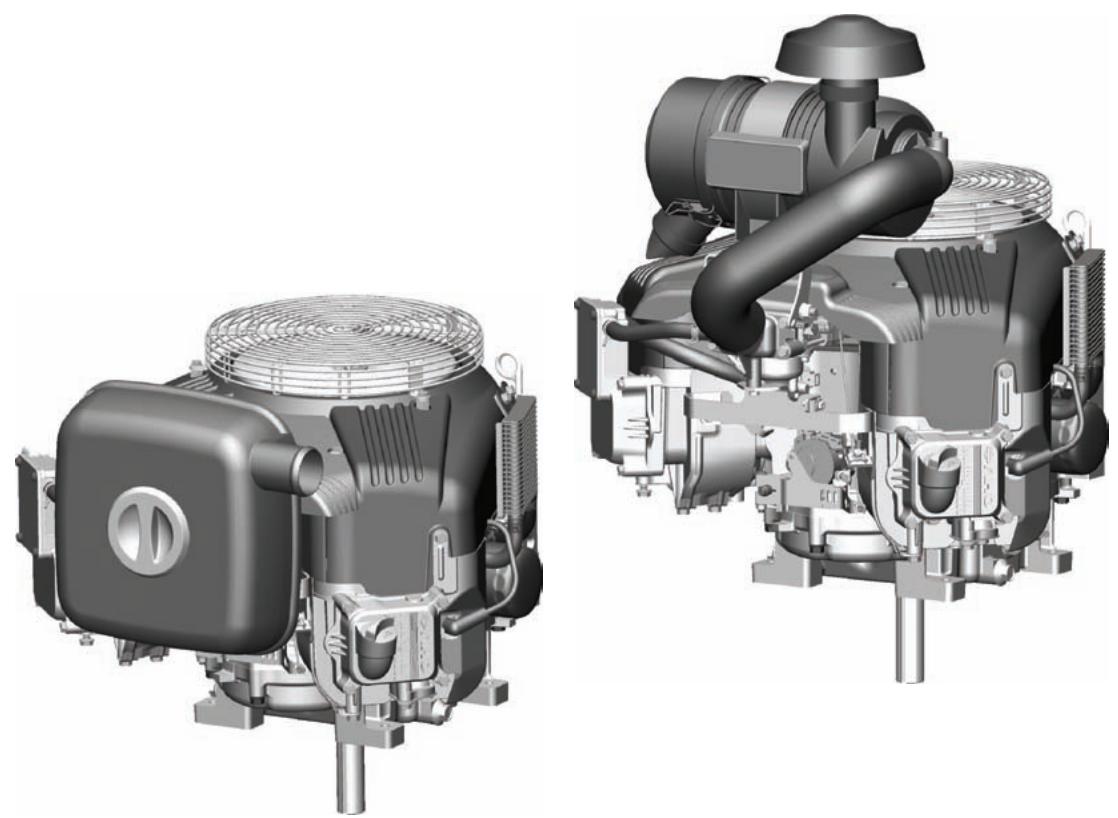

Features and Controls Fuel Recommendations Compare the illustration 1 with your engine to familiarize yourself with the location of various features and controls. A. Engine Identification Model Type Code B. Spark Plug C. Air Cleaner, Cyclonic D. Air Cleaner, Low Profile E. Dipstick F. Oil Fill G. Oil Filter H. Oil Drain Plug

I. Oil Pressure Sensor

J. Finger Guard / Rotating Screen K. Electric Starter L. Starter Solenoid M. Regulator/Rectifier N. LPG/NG Mixer O. Oil Cooler WARNING Missing or inoperative “fuel lock-off” valve can cause a fire or explosion.

Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative. Fuel must meet these requirements:

• Use clean, dry fuel, free of moisture or any particulate material. Using fuels outside the following recommended values may cause performance problems.
• In engines set up to run on LPG, commercial grade HD5 LPG is recommended. Recommended fuel composition is fuel with a minimum fuel energy of 2500 BTU’s/ft3 with maximum propylene content of 5% and butane and heavier gas content of 2.5% and minimum propane content of 90%. NG or LPG engines are certified to operate on natural or liquid propane gas. The emissions control system for this engine is EM (Engine Modifications).

WARNING: The equipment on which this engine is mounted is equipped with

an automatic safety gas “fuel lock-off” valve. Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative. How To Add Fuel Operation Oil capacity (see the Specifications section) WARNING Oil Recommendations Gaseous vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives. Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected.

WARNING Gaseous vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. 5W-30 Synthetic 5W-30 How To Start The Engine - Figure 3 10W-30 SAE 30

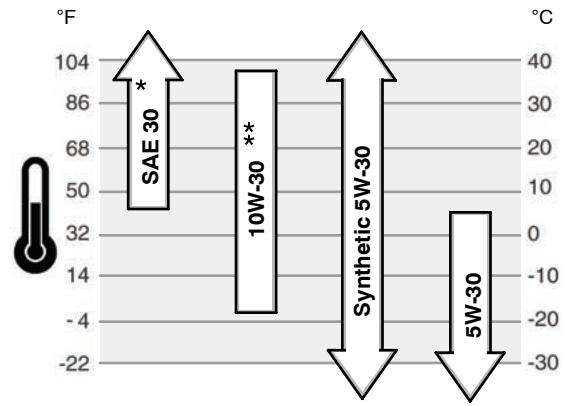

Below 40°F (4°C) the use of SAE 30 will result in hard starting. ** Above 80°F (27°C) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently. How To Check/Add Oil - Figure 2 Before adding or checking the oil

• Clean the oil fill area of any debris.

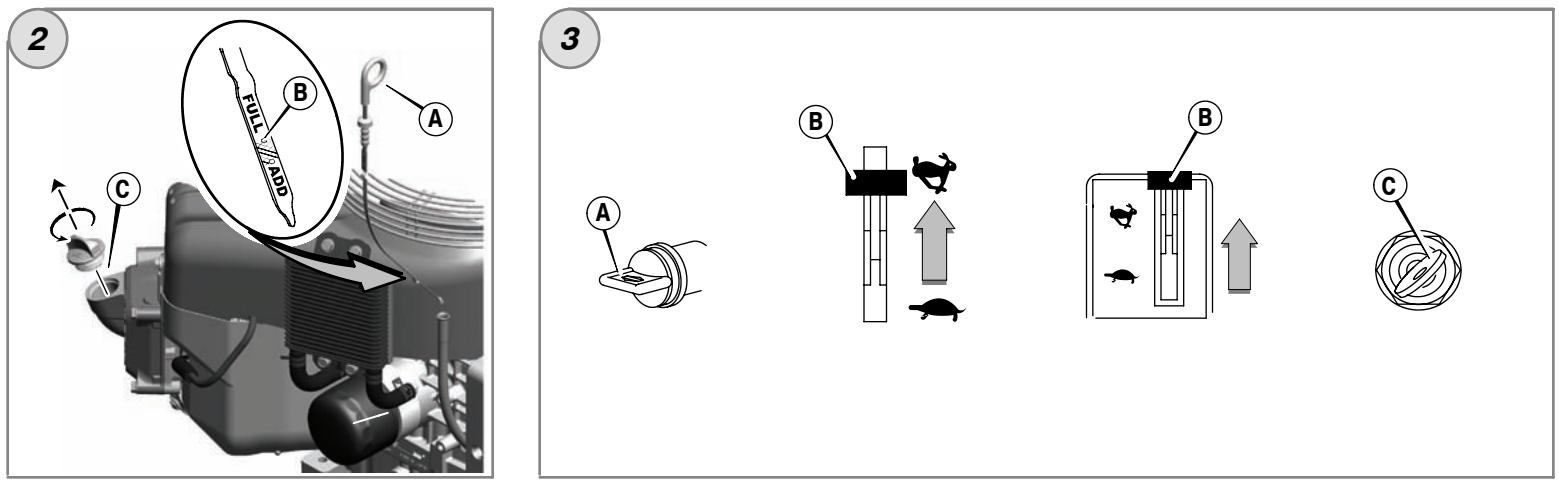

1. Remove the dipstick (A) and wipe with a clean cloth (Figure 2).

2. Insert and tighten the dipstick.

3. Remove the dipstick and check the oil level. It should be at the FULL mark (B) on the

4. If low, add oil slowly into the engine oil fill (C). Do not overfill. After adding oil, wait

one minute and then recheck the oil level.

5. Replace and tighten the dipstick.

Oil Pressure If the oil pressure is too low, a pressure switch (if equipped) will either stop the engine or activate a warning device on the equipment. If this occurs, stop the engine and check the oil level with the dipstick. If the oil level is below the ADD mark, add oil until it reaches the FULL mark. Start the engine and check for proper pressure before continuing to operate. If the oil level is between the ADD and FULL marks, do not start the engine. Contact an Authorized Briggs & Stratton Dealer to have the oil pressure problem corrected.

• Fill fuel tank outdoors or in well-ventilated area.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary. For information on refueling natural or LP gas engines, read the operating instructions supplied by the equipment manufacturer. When Starting Engine
• Ensure that spark plug, muffler, fuel cap and air cleaner are in place and secured.
• Do not crank engine with spark plug removed.
• If engine floods, set choke (if equipped) to open/run position, move throttle (if equipped) to fast position and crank until engine starts. WARNING Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.
• Start and run engine outdoors.
• Do not start or run engine in enclosed area, even if doors or windows are open. CAUTION: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

1. Check the oil level. See the How To Check/Add Oil section.

2. Make sure equipment drive controls, if equipped, are disengaged. See the equipment

manual for location and operation of these controls.

3. Turn the fuel shut-off valve (A), if equipped, to the on position (Figure 3). See the

equipment manual for location and operation of the fuel shut-off valve.

4. Move the throttle control (B) to the fast

position. Operate the engine in the fast position. See the equipment manual for location and operation of the throttle control.

5. Turn the electric start switch (C) to the on/start position (Figure 3). See the

equipment manual for the location and operation of the switch. Note: If the engine does not start after three attempts, go to BRIGGSandSTRATTON.COM or call 1-800-233-3723 (in USA). CAUTION: To extend the life of the starter, use short starting cycles (five seconds maximum). Wait one minute between starting cycles. BRIGGSandSTRATTON.COM How To Stop The Engine - Figure 3 How To Replace The Spark Plug - Figure 4

1. Move the throttle control to the slow position, turn the key switch (C) to the off

position (Figure 3). Remove the key and keep in a safe place out of the reach of children.

2. After the engine stops, turn the fuel shut-off valve (A), if equipped, to the closed

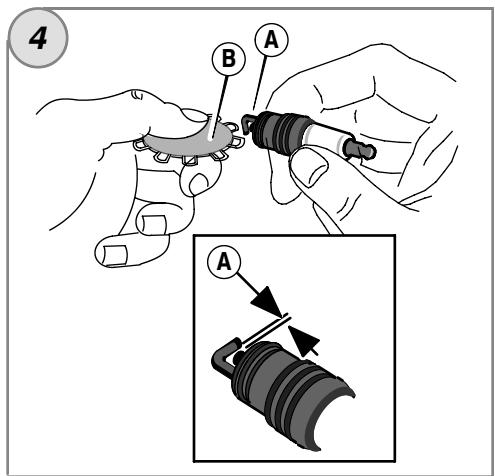

position. Check the gap (A, Figure 4) with a wire gauge (B). If necessary, reset the gap. Install and tighten the spark plug to the recommended torque. For gap setting or torque, see the Specifications section. Maintenance Use only original equipment replacement parts. Other parts may not perform as well, may damage the unit, and may result in injury. In addition, use of other parts may void your warranty. We recommend that you see any Briggs & Stratton Authorized Dealer for all maintenance and service of the engine and engine parts. CAUTION: All the components used to build this engine must remain in place for proper operation. Note: In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this engine was originally equipped with a resistor spark plug, use the same type for replacement. Inspect Muffler And Spark Arrester - Figure 5 WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. Emissions Control Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. However, to obtain “no charge” emissions control service, the work must be performed by a factory authorized dealer. See the Emissions Warranty.

Allow muffler, engine cylinder and fins to cool before touching.

Remove accumulated debris from muffler area and cylinder area.

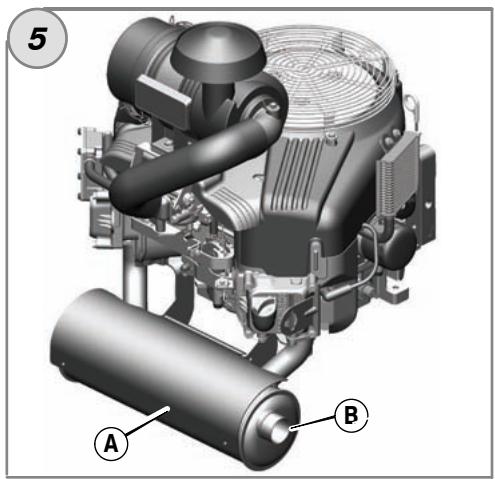

Install and maintain in working order a spark arrester before using equipment on forest-covered, grass-covered, brush-covered unimproved land. The state of California requires this (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal land. WARNING Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard Inspect the muffler (A, Figure 5) for cracks, corrosion, or other damage. Remove the spark arrester (B), if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts.

WARNING: Replacement parts must be the same and installed in the same

position as the original parts or fire could result. Before performing adjustments or repairs:

• Disconnect the spark plug wire and keep it away from the spark plug.
• Use only correct tools.
• Do not tamper with governor spring, links or other parts to increase engine speed.
• Replacement parts must be the same and installed in the same position as the original parts.
• Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation. When testing for spark:
• Use approved spark plug tester.
• Do not check for spark with spark plug removed. How To Change The Oil - Figure 6 CAUTION: Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal/recycling facilities. Remove Oil

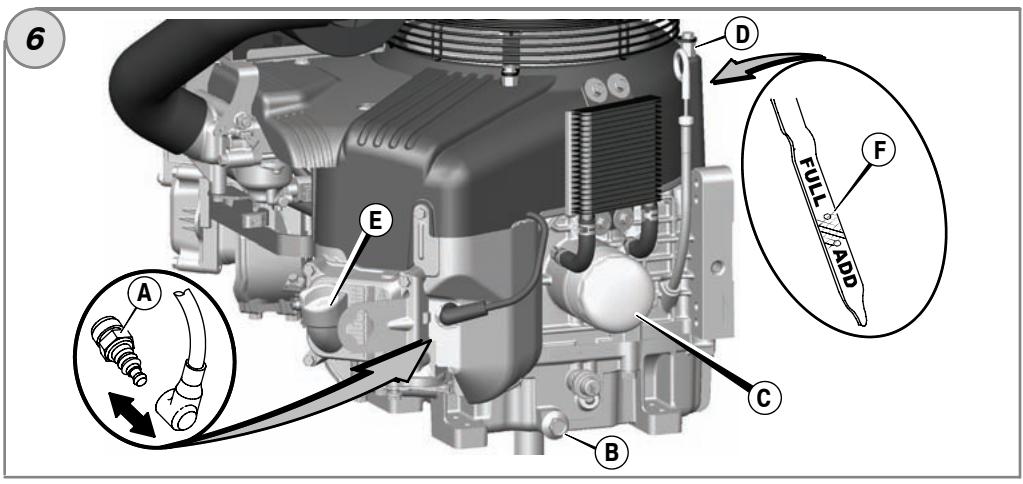

1. With engine off but still warm, disconnect the spark plug wire (A) and keep it away

from the spark plug (Figure 6).

2. Remove the oil drain plug (B). Drain the oil into an approved container.

Maintenance Chart First 5 Hours

Change The Oil Filter Change oil Every 8 Hours or Daily

Check engine oil level Clean area around muffler and controls Every 100 Hours or Annually

Clean air filter * Change engine oil and filter Clean pre-cleaner (if equipped) * Replace spark plug Check muffler and spark arrester Check valve clearance ** Every 400 Hours or Annually

Change air filter Clean air cooling system * Clean oil cooler fins * Every 600 Hours or Annually

3. After the oil has drained, install and tighten the oil drain plug.

Change safety filter (if equipped)

• In dusty conditions or when airborne debris is present, clean more often. ** Not required unless engine performance problems are noted. CAUTION: The manufacturer of the equipment on which this engine is installed specifies the top speed at which the engine will be operated. Do not exceed this speed.

All models are equipped with an oil filter. For replacement intervals, see the Maintenance chart.

1. Drain the oil from the engine. See Remove Oil section.

2. Remove the oil filter (C, Figure 6) and dispose of properly.

3. Before installing the new oil filter, lightly lubricate the oil filter gasket with fresh, clean

4. Install the oil filter by hand until the gasket contacts the oil filter adapter, then tighten

the oil filter 1/2 to 3/4 turns.

5. Add oil. See Add Oil section.

6. Start and run the engine. As the engine warms up, check for oil leaks.

7. Stop the engine and check the oil level. It should be at the FULL mark on the

Clean the oil fill area of any debris.

See the Specifications section for oil capacity.

1. Remove the dipstick (D, Figure 6) and wipe with a clean cloth.

2. Pour the oil slowly into the engine oil fill (E). Do not overfill. After adding oil, wait

one minute and then check the oil level.

3. Install and tighten the dipstick.

4. Remove the dipstick and check the oil level. It should be at the FULL mark (F) on the

5. Install and tighten the dipstick.

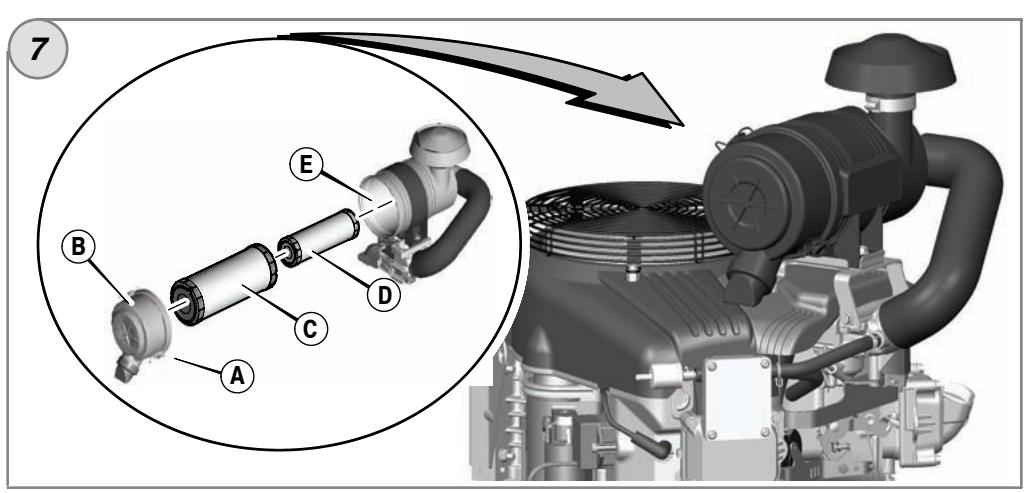

How To Service The Air Filter - Figure 7

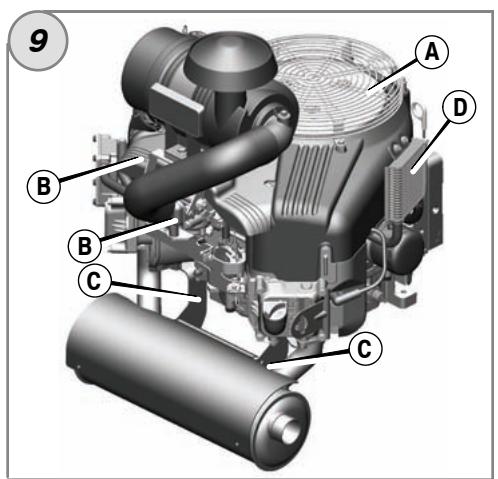

How To Clean The Air Cooling System - Figure 9 WARNING WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. Gaseous vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Never start or run the engine with the air cleaner assembly or the air filter removed.

CAUTION: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter. The air filter system uses either a cyclonic air filter or a low-profile air filter. See the Maintenance Chart for service requirements. Cyclonic Air Filter System

1. Open the latches (A) and remove the cover (B). See Figure 7.

2. Remove the air filter (C).

3. To loosen debris, gently tap the air filter on a hard surface. If the air filter is

excessively dirty, replace with a new air filter.

4. The cyclonic air filter system also has a safety filter (D) (if equipped). See the

Maintenance Chart for service requirements. To remove, carefully pull the safety filter away from air cleaner body (E) and discard. Make sure that dirt or debris do not enter the engine.

• Allow muffler, engine cylinder and fins to cool before touching.

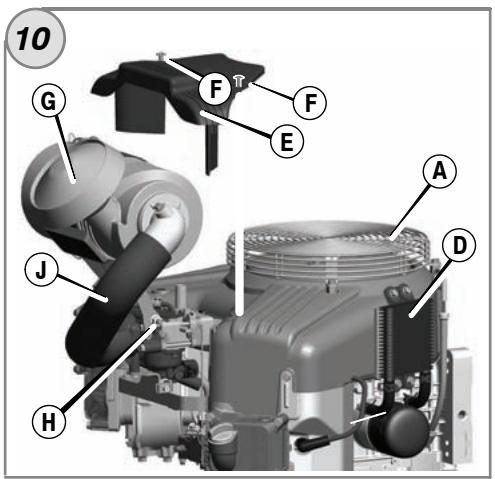

• Remove accumulated debris from muffler area and cylinder area. CAUTION: Do not use water to clean the engine. Water could contaminate the fuel system. Use a brush or dry cloth to clean the engine. This is an air cooled engine. Dirt or debris can restrict air flow and cause the engine to overheat, resulting in poor performance and reduced engine life. Use a brush or dry cloth to remove debris from the finger guard/rotating screen (A, Figure 9). Keep linkage, springs and controls (B) clean. Keep the area around and behind the muffler (C) free of any combustible debris. Make sure that the oil cooler fins (D) are free of dirt and debris. Clean the area under the panel (E, Figure 10). Loosen the two screws (F) until you hear a click. Remove the panel and clean the area of dirt and debris. Make sure the underside of the panel is also clean. Install the panel and tighten the screws until you hear a click. Note: To remove the panel on engines equipped with the Cyclonic Air Filter System (G, Figure 10), loosen the fastener (H) and pivot the Cyclonic Air Filter away from the engine. It is not necessary to remove the flexible air cleaner hose (J). After cleaning, make sure to reposition the air filter and tighten the fastener.

5. Install the new safety filter in the air cleaner body.

6. Install the air filter over the safety filter.

7. Install the cover and close the latches.

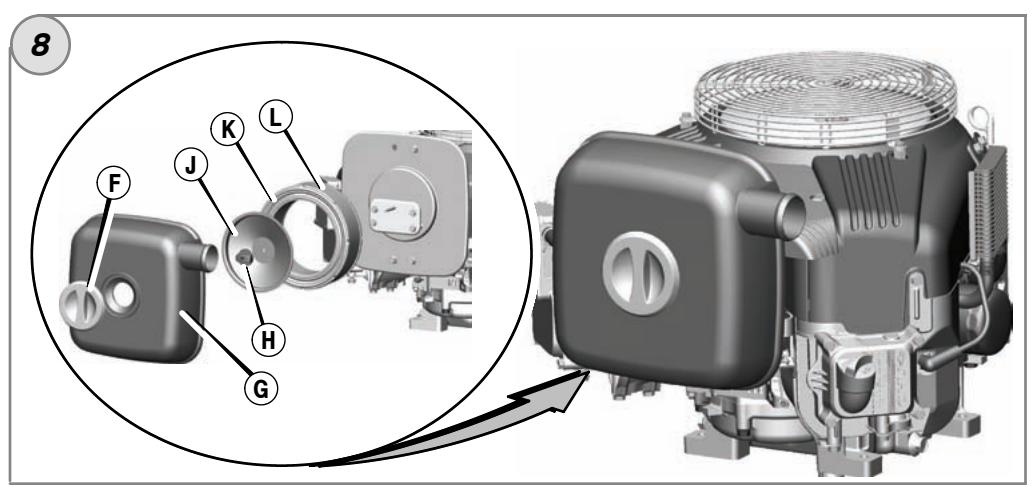

Low-Profile Air Filter System WARNING

1. Remove the knob (F) and the cover (G). See Figure 8.

Gaseous vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

2. Remove the nut (H) and the retainer (J).

3. Remove the air filter (K).

4. Remove the pre-cleaner (L), if equipped, from the air filter.

5. To loosen debris, gently tap the air filter on a hard surface. If the air filter is

excessively dirty, replace with a new air filter. When Storing Equipment With Fuel In Tank

• Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or other ignition sources because they can ignite gaseous vapors.

6. Wash the pre-cleaner in liquid detergent and water. Then allow it to thoroughly air

dry. Do not oil the pre-cleaner. Engine Oil While the engine is still warm, change the engine oil.

7. Assemble the dry pre-cleaner to the air filter.

8. Install the air filter and secure with retainer and nut.

9. Install the cover and secure with knob.

Need Assistance? Go to BRIGGSandSTRATTON.COM or call 1-800-233-3723. Specifications Engine Specifications Engine Specifications Model

54.68 ci (896 cc)

60.60 ci (993 cc)

3.366 in (85.5 mm)

3.366 in (85.5 mm)

3.071 in (78.0 mm)

3.406 in (77.21 mm)

Oil Capacity 78 -- 80 oz (2.3 -- 2.4 L) Oil Capacity 78 -- 80 oz (2.3 -- 2.4 L) Tune-up Specifications * Tune-up Specifications * Model

0.030 in (0.76 mm)

0.030 in (0.76 mm)

Spark Plug Torque 180 lb-in (20 Nm) Spark Plug Torque 180 lb-in (20 Nm) Armature Air Gap Armature Air Gap Intake Valve Clearance Intake Valve Clearance Exhaust Valve Clearance Exhaust Valve Clearance

• Engine power will decrease 3.5% for each 1,000 feet (300 meters) above sea level and 1% for each 10° F (5.6° C) above 77° F (25° C). The engine will operate satisfactorily at an angle up to 15°. Refer to the equipment operator’s manual for safe allowable operating limits on slopes. Common Service Parts n Service Part Part Number Service Part Part Number Air Filter, Cyclonic

Safety Filter, Cyclonic

Air Filter, Low-Profile

Pre-Cleaner, Low-Profile

n We recommend that you see any Briggs & Stratton Authorized Dealer for all maintenance and service of the engine and engine parts. Use only genuine Briggs & Stratton parts.

BRIGGSandSTRATTON.COM LIMITED WARRANTY Briggs & Stratton Corporation will repair or replace, free of charge, any part(s) of the engine that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1-800-233-3723, or as listed in the ‘Yellow Pagest’. There is no other expressed warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law and all implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and country to country. Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 years 1 year Snow Series MAXt 2 years 1 year 2 years 90 days with Dura-Boret Cast Iron Sleeve All Other Briggs & Stratton Engines

These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not determined at time of publication. For a listing of current warranty terms for your engine, go to BRIGGSandSTRATTON.COM or contact your Authorized Briggs & Stratton Service Dealer.

Engines used on Home Standby Generator applications are warranted under consumer use only. This warranty does not apply to engines on equipment used for prime power in place of a utility. Engines used in competitive racing or on commercial or rental tracks are not warranted. The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once an engine has experienced commercial use, it shall thereafter be considered as a commercial use engine for purposes of this warranty. No warranty registration is necessary to obtain warranty on Briggs & Stratton Products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period. About Your Warranty Briggs & Stratton welcomes warranty repair and apologizes to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. If a customer differs with the decision of the Service Dealer, an investigation will be made to determine whether the warranty applies. Ask the Service Dealer to submit all supporting facts to his Distributor or the Factory for review. If the Distributor or the Factory decides that the claim is justified, the customer will be fully reimbursed for those items that are defective. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of engine failure that the warranty does not cover. Normal wear: Engines, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part or an engine. Warranty would not apply if engine damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the engine has been removed or the engine has been altered or modified. Improper maintenance: The life of an engine depends upon the conditions under which it operates, and the care it receives. Some applications, such as tillers, pumps and rotary mowers, are very often used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, spark plug cleaning grit, or other abrasive material that has entered the engine because of improper maintenance, is not covered by warranty. This warranty covers engine related defective material and/or workmanship only, and not replacement or refund of the equipment to which the engine may be mounted. Nor does the warranty extend to repairs required because of:

Problems caused by parts that are not original Briggs & Stratton parts.

Equipment controls or installations that prevent starting, cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.)

Leaking carburetors, clogged fuel pipes, sticking valves, or other damage, caused by using contaminated or stale fuel.

Parts which are scored or broken because an engine was operated with insufficient or contaminated lubricating oil, or an incorrect grade of lubricating oil (check and refill when necessary, and change at recommended intervals). OIL GARD may not shut down running engine. Engine damage may occur if oil level is not properly maintained.

Repair or adjustment of associated parts or assemblies such as clutches, transmissions, remote controls, etc., which are not manufactured by Briggs & Stratton.

Damage or wear to parts caused by dirt, which entered the engine because of improper air cleaner maintenance, re-assembly, or use of a non-original air cleaner element or cartridge. At recommended intervals, clean and/or replace the filter as stated in the Operator’s Manual.

Parts damaged by over-speeding, or overheating caused by grass, debris, or dirt, which plugs or clogs the cooling fins, or flywheel area, or damage caused by operating the engine in a confined area without sufficient ventilation. Clean engine debris at recommended intervals as stated in the Operator’s Manual.

Engine or equipment parts broken by excessive vibration caused by a loose engine mounting, loose cutter blades, unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft, over-speeding or other abuse in operation.

A bent or broken crankshaft, caused by striking a solid object with the cutter blade of a rotary lawn mower, or excessive v-belt tightness. 10 Routine tune-up or adjustment of the engine.

Engine or engine component failure, i.e., combustion chamber, valves, valve seats, valve guides, or burned starter motor windings, caused by the use of alternate fuels such as, liquified petroleum, natural gas, altered gasolines, etc. Warranty service is available only through authorized service dealers by Briggs & Stratton Corporation. Locate your nearest Authorized Service Dealer in our dealer locator map on BRIGGSandSTRATTON.COM or by calling 1-800-233-3723, or as listed in the ‘Yellow Pagest’.

Emissions Control System Warranty Statement Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB) and the United States Environmental Protection Agency (U.S. EPA) Emissions Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations) California, United States and Canada Emissions Control Defects Warranty Statement period of two years, subject to provisions set forth below. If any covered part on your engine is defective, the part will be repaired or replaced by B&S. The California Air Resources Board (CARB), U.S. EPA and B&S are pleased to explain the Emissions Control System Warranty on your small off-road engine (SORE). In California, new small off-road engines model year 2006 and later must be designed, built and equipped to meet the State’s stringent anti-smog standards. Elsewhere in the United States, new non-road, spark-ignition engines certified for model year 1997 and later must meet similar standards set forth by the U.S. EPA. B&S must warrant the emissions control system on your engine for the periods of time listed below, provided there has been no abuse, neglect or improper maintenance of your small off-road engine. Owner’s Warranty Responsibilities Your emissions control system includes parts such as the carburetor, air cleaner, ignition system, fuel line, muffler and catalytic converter. Also included may be connectors and other emissions related assemblies. Where a warrantable condition exists, B&S will repair your small off-road engine at no cost to you including diagnosis, parts and labor. Briggs & Stratton Emissions Control Defects Warranty Coverage Small off-road engines are warranted relative to emissions control parts defects for a As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operating and Maintenance Instructions. B&S recommends that you retain all your receipts covering maintenance on your small off-road engine, but B&S cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the small off-road engine owner, you should however be aware that B&S may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. You are responsible for presenting your small off-road engine to an Authorized B&S Service Dealer as soon as a problem exists. The undisputed warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at (414) 259-5262. The emissions warranty is a defects warranty. Defects are judged on normal engine performance. The warranty is not related to an in-use emissions test. Briggs & Stratton Emissions Control Defects Warranty Provisions The following are specific provisions relative to your Emissions Control Defects Warranty Coverage. It is in addition to the B&S engine warranty for non-regulated engines found in the Operating and Maintenance Instructions.

Warranted Parts Coverage under this warranty extends only to the parts listed below (the emissions control systems parts) to the extent these parts were present on the engine purchased. a. Fuel Metering System

• Cold start enrichment system (soft choke)
• Carburetor and internal parts
• Fuel line, fuel line fittings, clamps
• Fuel tank, cap and tether
• Carbon canister b. Air Induction System
• Purge and vent line c. Ignition System
• Magneto ignition system d. Catalyst System
• Air injection system or pulse valve failure of the Warranted Parts for a period of two years from the date the engine is delivered to a retail purchaser.

Repair or replacement of any Warranted Part will be performed at no charge to the owner, including diagnostic labor which leads to the determination that a Warranted Part is defective, if the diagnostic work is performed at an Authorized B&S Service Dealer. For emissions warranty service contact your nearest Authorized B&S Service Dealer as listed in the “Yellow Pages” under “Engines, Gasoline,” “Gasoline Engines,” “Lawn Mowers,” or similar category.

Claims and Coverage Exclusions Warranty claims shall be filed in accordance with the provisions of the B&S Engine Warranty Policy. Warranty coverage shall be excluded for failures of Warranted Parts which are not original B&S parts or because of abuse, neglect or improper maintenance as set forth in the B&S Engine Warranty Policy. B&S is not liable to cover failures of Warranted Parts caused by the use of add-on, non-original, or modified parts.

Maintenance Any Warranted Part which is not scheduled for replacement as required maintenance or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be warranted as to defects for the warranty period. Any Warranted Part which is scheduled for replacement as required maintenance shall be warranted as to defects only for the period of time up to the first scheduled replacement for that part. Any replacement part that is equivalent in performance and durability may be used in the performance of any maintenance or repairs. The owner is responsible for the performance of all required maintenance, as defined in the B&S Operating and Maintenance Instructions.

Miscellaneous Items Used in Above Systems

• Vacuum, temperature, position, time sensitive valves and switches
• Connectors and assemblies Length of Coverage B&S warrants to the initial owner and each subsequent purchaser that the Warranted Parts shall be free from defects in materials and workmanship which caused the No Charge

Consequential Coverage Coverage hereunder shall extend to the failure of any engine components caused by the failure of any Warranted Part still under warranty. Look For Relevant Emissions Durability Period and Air Index Information On Your Engine Emissions Label Engines that are certified to meet the California Air Resources Board (CARB) Emissions Standard must display information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information available to the consumer on our emissions labels. The engine emissions label will indicate certification information. The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The following categories are used: Moderate: Engine is certified to be emissions compliant for 125 hours of actual engine running time. Intermediate: Engine is certified to be emissions compliant for 250 hours of actual engine running time.

Extended: Engine is certified to be emissions compliant for 500 hours of actual engine running time. For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability Period of an engine with an intermediate rating would equate to 10 to 12 years. Briggs & Stratton engines are certified to meet the United States Environmental Protection Agency (USEPA) Phase 2 emissions standards. For Phase 2 certified engines, the Emissions Compliance Period referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emissions requirements. For engines less than 225 cc displacement. Category C = 125 hours , Category B = 250 hours , Category A = 500 hours For engines of 225 cc or more displacement. Category C = 250 hours , Category B = 500 hours , Category A = 1000 hours BRIGGSandSTRATTON.COM Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 år 1 år Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 Jahre 1 Jahr Snow Series MAXt 2 Jahre 1 Jahr 2 Jahre 90 Tage Áíïéêôü Êëåéóôü (On Off) ËÜäé ¸êñçîç Snow Series MAXt 2 Ýôç 1 Ýôïò

TURVALLISUUS- JA SÄÄTÖSYMBOLIT

NORMAALIT TAKUUEHDOT *

Merkki/Tuotetyyppi Yksityiskäyttö Kaupallinen käyttö Vanguardt 2 vuotta 2 vuotta Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 vuotta 1 vuosi

CONDITIONS DE GARANTIE STANDARD *

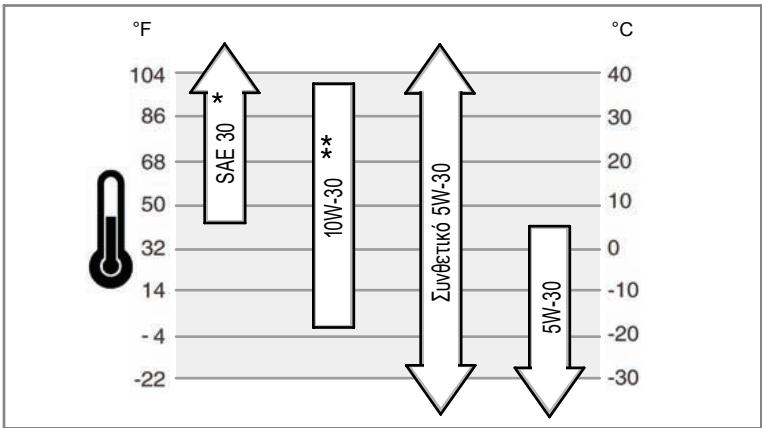

Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 anni 1 anno De Motor Starten - Fig. 3 WAARSCHUWING 5W-30 Synthetisch 5W-30 10W-30

Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 jaar 1 jaar Snow Series MAXt 2 jaar 1 jaar 2 jaar 90 dagen Sikkerhet for operator

Vanlige reservedeler n Reservedel Del nummer Reservedel Del nummer Luftfilter, syklonisk

Sikkerhetsfilter, syklonisk

Long Life Platina Tennplugg

Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 år 1 år Snow Series MAXt 2 år 1 år 2 år 90 dager Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 anos 1 ano Snow Series MAXt 2 anos 1 ano 2 anos 90 dias Intake Valve Clearance 0,10 - 0,15 mm Intake Valve Clearance 0,10 - 0,15 mm Spel, avgasventil 0,10 - 0,15 mm Spel, avgasventil 0,10 - 0,15 mm STANDARD GARANTIVILLKOR *

Märke/Produkttyp Privat användning Kommersiell användning Vanguardt 2 år 2 år Extended Life Seriest, I/C®, Intekt I/C®, Intekt Pro 2 år 1 år Snow Series MAXt 2 år 1 år 2 år 90 dagar
