Introduction

Thank you for purchasing the KORG PANDORA mini personal multi-effect processor. In order to enjoy your PANDORA mini, please read this owner's manual carefully and retain it for future reference.

Main features

The PANDORA mini is a versatile multi-effect unit that packs an incredible range of guitar amps, bass amps and effects into a compact unit which utilizes Korg's proprietary "RAMES" modeling technology to create detailed and powerful modeling sounds.

158 types of effect variations with a maximum of seven effects that can be used simultaneously.

200 user and 200 preset programs

(Pleases refer to page 214 for program names.)

Auto Tuner function

You can also tune without being heard (i.e., while muted).

Rhythm function (Please refer to page 217 for rhythm pattern names.)

You can use 100 rhythm patterns or a metronome sound.

AUX Pitch function

You can transpose the pitch of audio that is input from the AUX jack.

TAP/TUNER button

You can set the delay time or the tempo of the Rhythm function to match the tempo of the song.

Program Memory buttons

Four Program Memory buttons enable you to switch between programs quickly.

What is REms?

REMS (Resonant structure and Electronic circuit Modeling System) is KORG's proprietary sound modeling technology which precisely reproduces the complex character and nature of both acoustic and electric instruments as well as electronic circuits in real world environments. REMS emulates a wide variety of sound generation characteristics including instrument bodies, speakers & cabinets, acoustic fields, microphones, vacuum tubes, transistors, etc..

Inserting the Battery

Remove the battery cover located on the bottom of the PANDORA mini by sliding it in the direction of the arrow. Insert one AA alkaline battery as shown in the illustration. Be sure to insert the battery observing the correct polarity.

Battery Low display

When the battery begins to run low, the Low Battery icon will light-up. When this icon lights-up, you should replace the battery as soon as possible. Programs and other data (except for the data being edited) will not be lost even if the battery is removed and changed.

Battery that have run down must be removed from the PANDORA mini. If you leave a dead battery in the unit, malfunctions (battery leakage, etc.) may occur. You should also remove the battery when you do not expect to use the PANDORA mini for an extended period of time.

2 Set the battery type (see p.31) to match the battery you use.

Note You can also use USB bus power.

Controls and connectors

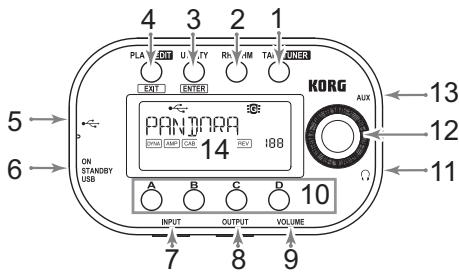

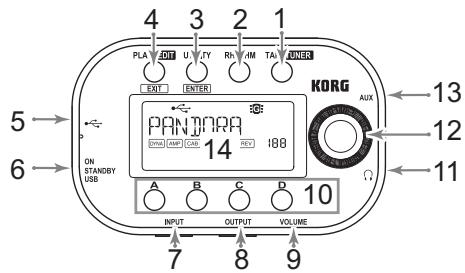

1. TAP/TUNER Button:

Use this button to set the delay time for delay models (see p.26) or to set the tempo in Rhythm mode (see p.20). In Play mode, pressing this button will place the PANDORA mini into Bypass or Mute mode and activate the tuner (see p.18).

1. RHYTHM button: Use this button to enter Rhythm mode (see p.20).
2. UTILITY button: Use this button to enter Utility mode (see p.30).
3. PLAY/EDIT button:

Press this button to enter Play mode (see p.16). Press and hold down this button for approximately one second to enter Edit mode (see p.21).

1. USB connector:

You can connect your computer to this connector using a USB cable so that you will be able to edit PANDORA mini programs in the Editor software that's installed on your computer. When you connect the unit to a computer using a USB cable, USB bus power is supplied from the computer.

Some computers may be unable to supply USB bus power. In such cases, use a battery or a self-powered hub (that can receive power from an external power supply).

1. Power switch:

Set this switch to STANDBY to power off, or to ON or USB to power on.

Note If you use the PANDORA mini with a battery, set this switch to ON. If you use the PANDORA mini with USB bus power, set this switch to USB.

1. INPUT jack: Connect your guitar (or bass) to this jack.
2. OUTPUT jack: Connect your guitar amp, bass amp, or mixer, etc. to this jack.
3. VOLUME dial:

Use this dial to adjust the volume level coming from the OUTPUT jack and headphones jack.

1. Program Memory buttons (A, B, C, D buttons):

You can assign four of your favorite programs to the A-D buttons (see p.16). In Edit mode, use these buttons to select effect types or edit parameters.

1. Headphones jack: Connect headphones here.
2. Value dial:

In Play mode, use this dial to select a program. In other modes, use this dial to edit parameters or configure various settings.

1. AUX jack: Connect a CD or Mp3 player to this jack.
2. LCD screen: Please refer to page 13 and subsequent pages.

LCD screen

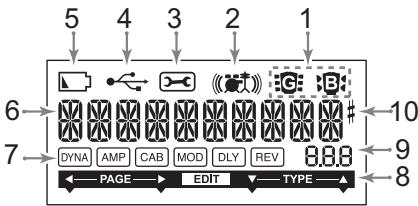

1. Guitar/Bass icons: These icons indicate the selected program type.
2. Rhythm icon: This icon appears in Rhythm mode.
3. Utility icon: This icon appears in Utility mode.
4. USB icon:

This icon appears when the PANDORA mini is connected to a computer using a USB cable.

5. Low Battery icon:

This icon will light-up when the batteries run low.

6. Program name/Effect type display:

This area shows the program name or effect type. When the PANDORA mini is bypassed or muted, this will function as the tuner.

7. Effect chain:

This area indicates the on/off status of the DYNA, AMP, CAB, MOD, DLY, and REV effects.

1. Edit indicator: This indicator appears in Edit mode.

9. Number/Value display:

This display indicates the program number or parameter value.

Making connections

When connecting an external device (ie-guitar amp, bass amp, CD player, etc.) be sure to turn the unit off.

• If a CD player or other audio source is connected to the AUX jack, you can play along with your guitar or bass. However the volume must be adjusted from the connected device.
• Use a standard monaural cable to connect the PANDORA mini's OUTPUT jack to a guitar or bass amp. Only the L (Left) channel output will be heard.
• PANDORA mini's output level and sound quality will vary depending on which headphones are used. We recommend using good quality low impedance headphones, 32 Ohms or less with a sensitivity rating near 100dB / mW or above. Many headphones sold for use with portable CD or Mp3 players will work just fine.
• Use the USB cable if you want to connect the PANDORA mini to your computer. For details on how to connect the PANDORA mini to your computer, refer to "Connecting to your computer."
• If needed, you can attach the included rubber feet to the bottom of the PAN-DORA mini.

Play mode

Play mode is the mode that you will usually use with the PANDORA mini.

Selecting a program

Use the Value dial to select a program (see page 214 for program names).

The program name/effect type display will indicate the program name. The number/value display will indicate the program number.

You can choose from 200 rewriteable user programs (000-199) and 200 preset programs (200-399).

Program Memory buttons (A, B, C, D buttons)

You can assign four programs to the A-D buttons. These can be your favorite programs, or programs that you plan to use in a performance. In this way, you can switch between programs quickly. Programs can be selected even when you are in Rhythm mode or Utility mode (excluding certain setting pages).

Follow the steps below to assign programs to the Program Memory buttons. In this example, a selected program is assigned to the A button.

1 Rotate the Value dial to select a program you want to assign to the A button.
2 Press and hold down the A button for approximately one second.

"PGM>A" will appear on the LCD, indicating that the program is assigned to the A button.

Adjusting the volume

Use the VOLUME dial to adjust the volume level coming from the OUTPUT and headphones jacks.

To adjust the volume for each program, use the Program Level parameter in Edit mode (see p.27).

Bypass/Mute

When you press and hold down the TAP/TUNER button for approximately one second, the PANDORA mini will bypass the effects and output the original dry sound (with no effects). The effect chain indicators on the LCD will blink, "BYPASS" will appear, and then the unit will enter Tuner mode.

Alternatively, to mute the sound during tuning, press and hold down the TAP/TUNER button for approximately two seconds. The effect chain indicators will blink rapidly on the LCD, "MUTE" will appear, and then the unit will enter Tuner mode.

To return to Play mode from Bypass or Mute mode, press the TAP/TUNER button again, or press the PLAY/EDIT button.

Tuner

The tuner is operable when you bypass or mute.

1 Play a single string on your guitar or bass.

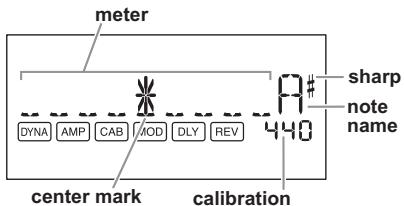

The LCD will show the note name and the calibration. If the pitch is more than a semitone higher than the note name, a sharp symbol will appear at the upper right of the note name.

2 The display area will act as a meter to show the pitch.

Tune each string of your guitar or bass so that the indicator above the center mark is lit-up.

Calibration (Standard pitch A = 440

You can use the Value dial to adjust the calibration in the range of A = 438Hz - 445Hz . The calibration setting you make will remain until the power is turned off. Once the power is turned off, calibration will be reset to A = 440Hz .

Rhythm mode

You can choose from 100 rhythm patterns (see page 217 for the rhythm pattern names).

To enter Rhythm mode, press the RHYTHM button in Play mode (but not in Mute or Bypass mode). The selected rhythm pattern will start playing. The Rhythm icon will blink in sync with the tempo of the rhythm pattern.

To stop playing the rhythm pattern, press the PLAY/EDIT button to exit to Play mode.

Pressing the RHYTHM button repeatedly will cycle through the pages for pattern selection, tempo (40-240), pattern volume (0.0-10.0), and reverb level (0.0-10.0).

The value dial can be used to adjust settings on each page.

You can also set the tempo by pressing the TAP/TUNER button in Rhythm mode a few times at the desired interval.

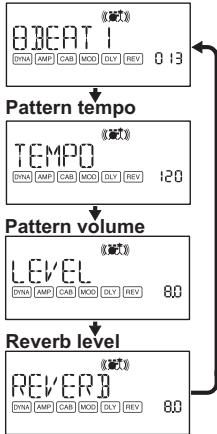

Pattern selection

This uses the same reverb as the program effect. This parameter has no effect if you have selected a program that does not use reverb modeling, or if the reverb effect level is "0."

No changes to the settings in this mode will be retained if you turn the power off without switching back to Play mode.

Edit mode

In this mode you can turn each effect on or off, and edit the effect type, parameter values, and program name for each program.

In Play mode, press and hold down the PLAY/EDIT button for approximately one second. The Edit indicator (see p.14) will appear and the unit will enter Edit mode. You can also rename or write programs (which you can save as user programs) in Edit mode.

Turning effects on or off

Moving pages back and forth

Selecting the type

Selecting the effect page you want to edit

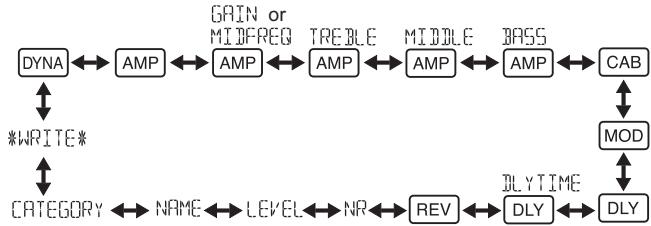

Press the A or B button to select the page that you want to edit. If you select the effect page, the corresponding effect chain indicator will blink (see p.14).

Editing an effect

For each effect, you can select the effect type and set its parameter values.

Pressing the UTILITY(ENTER) button repeatedly will turn the effect on or off. If you select the effect type using the C or D button for an effect that is turned off, that effect will automatically be turned on.

If a program was not written after it was edited, the decimal point of the program number will light.

The edited settings will return to the settings of the original program if you switch programs or turn off the power without Writing.

Before writing After writing

For details on the effect types and parameters, refer to Effect Parameters (p.34).

To exit Edit mode, press the PLAY/EDIT(EXIT) button to return to Play mode.

Edit pages

DyNA Selecting and setting the parameters for dynamics and pickup modeling effects

Use the C and D buttons to select an effect. Use the Value dial to set the parameters.

AMP Selecting amp modeling effects

Use the C and D buttons to select an effect. The Value dial will be disabled.

The number/value display will indicate "Gt" if you have selected a guitar model. The display will indicate "bA" if you have selected a bass model.

AMPSetting the gain [GAIN] (distortion amount) and mid-range frequency [MIDFREQ] for the selected amp model

The C and D buttons will be disabled. Use the Value dial to set the value.

AMPAdjusting the cut and boost for the high range of the selected amp model

The C and D buttons will be disabled.

Use the Value dial to set the value.

AMPAdjusting the cut and boost for the mid range of the selected amp model

The C and D buttons will be disabled.

Use the Value dial to set the value.

AMPAdjusting the cut and boost for the low range of the selected amp model

The C and D buttons will be disabled.

Use the Value dial to set the value.

CAB Selecting and setting parameters for cabinet modeling effects

Use the C and D buttons to select an effect.

Use the Value dial to set the parameters.

The value display will indicate "Gt" for approximately one second if you've selected a guitar amp cabinet, or "bA" if you've selected a bass amp cabinet.

Mod Selecting and setting parameters for modulation and filter-type modeling effects

Use the C and D buttons to select an effect. Use the Value dial to set the parameters.

DLY Selecting delay modeling effects

Use the C and D buttons to select an effect. Use the Value dial to set the parameters.

DLY Setting the delay time for the selected delay

The C and D buttons will be disabled. Use the Value dial to set the value.

Note You can also set the delay time by pressing the TAP/TUNER button repeatedly at the desired interval.

Note If any of SLAP1-5 have been selected, a quarter of the interval between each press of the TAP/TUNER button will be used as the delay time.

Selecting reverb modeling effects

Use the C and D buttons to select an effect.

Use the Value dial to set the parameters.

Setting the noise reduction value

The C and D buttons will be disabled.

Use the Value dial to set the value. (0.0-10.0)

Increasing this value will produce more noise reduction. Normally you will adjust this so that you do not hear obtrusive noise when the strings are lightly muted.

Setting the program level

The C and D buttons will be disabled.

Use the Value dial to set the value. (0.0-10.0)

Renaming the programs

Use the C or D button to select a letter you want to change.

Rotate the Value dial to select a character.

You can rename a program using up to 10 characters.

The following characters can be used:

Setting the program type icon

The C and D buttons are disabled.

Use the Value dial to select the guitar or bass icon.

WRITE

Here you can write (store) a program that you created. Use the Value dial to select the writing destination (User programs only: 000-199). To cancel writing a program, press the A (or B) Button to select a different screen.

To write the program, press the UTILITY(ENTER) button. When the program has been written, the LCD will indicate "COMPLETED" for approximately one second.

Before writing an edited program to a different program number, be sure that you do not mind overwriting the data that is currently stored in that program number. The program data that is overwritten will be lost.
It is not possible to write to a preset program (200-399).

Utility mode

In this mode, you can set the AUX pitch, LCD backlight, and other parameters. In Play mode, press the UTILITY button. The Utility icon will appear and the unit will enter Utility mode.

Selecting and configuring the utility setting pages

Pressing the UTILITY button repeatedly will change utility setting pages.

Rotate the Value dial to set the parameters on each page.

To cancel settings, press the PLAY/EDIT button to exit to Play mode.

The settings changed in this mode are retained even when the power is turned off.

AUX pitch

While this page is displayed, you can adjust the pitch of the sound that's input from the AUX jack in the range of +/- one octave in steps of 10 cents (up to +/-3 semitones) and in steps of one semitone or 100 cents (beyond +/-3 semitones).

Sound input from the AUX jack will be output in monaural.

LCD backlight

Use the Value dial to turn the backlight on/off.

If you are using batteries, the battery life will be shorter if the backlight is on.

Specifying the battery type

To display the remaining battery power correctly, you must specify the type of battery that you use. Select "AL" for an alkaline battery, and "nH" for an NiMH battery.

Loading the factory-set data

Here's how to load the preloaded data. This will load the factory-set effect programs, Rhythm mode, and Utility mode settings.

Be aware that if you reload the factory programs, the user programs and any settings user made will be overwritten.

1 While holding down the RHYTHM button and the A Button, turn on the power.
2 Release your fingers from the buttons when the LCD indicates "PX MINI." The LCD will ask "RELOAD?"
3 Press the UTILITY(ENTER) button.

The display will indicate "RELOAD", "VERIFY", "COMPLETED" for a short time, and the factory-set programs will be re-loaded into the user program area. Then the power-on screen will appear.

If you decide not to reload, press the PLAY/EDIT(EXIT) button while the "RELOAD?" indication is still shown. The factory programs will not be reloaded; the normal power-on screen will appear, and the PANDORA mini will be in Play mode.

Never turn off the power during the reload operation.

Connecting the PANDORA mini to a computer

You can edit programs using the Editor software installed on a computer connected to the PANDORA mini via a USB cable.

Using the Editor software

You can edit the PANDORA mini's programs and manage the library by using the special Editor software that's installed on your computer along with the Korg USB-MIDI driver.

You can download the Korg USB-MIDI driver and Editor software from the following Korg website: http://www.korg.com/ For information on installing and using the Editor software, refer to the instruction manual for the Editor software.

Effect Parameter

DYNA: Dynamics & Pickup modeling

Types marked by an asterisk (*) indicate effects for bass guitars.

C, D buttons (TYPE ▲, ▼)	Value Dial
COMP	Adjusts sensitivity. (1.0–10.0)
DYNAEXC	Adjusts sensitivity. (0.0–10.0)
VOX WAH	Adjusts location of a pedal. (1.0–10.0)
WAHUP1, WAHUP2, WAHDWN1, WAHDWN2	Adjusts sensitivity. (0.0–10.0)
SLOWATK	Specify the attack speed. (1.0–10.0)
OCTAVE	Adjusts effect level. (0.0–10.0)
RING	Specify the frequency. (1.0–10.0)
RINGUP, RINGDWN	Adjusts sensitivity. (0.0–10.0)
AC SIM, HUM>SGL, SGL>HUM, HF TONE, PHASOUT	Adjusts tone. (0.0–10.0)
COMP2*	Adjusts sensitivity. (1.0–10.0)
LIMITER	Specify the compression ratio. (0.0–10.0)
B OD*, B DIST*, B FUZZ*	Amount of distortion. (1.0–10.0)
PREAMP1*, PREAMP2*, BALANCE*	Adjusts tone. (0.0–10.0)
LOWCUT*	Specify the frequency. (0.0–10.0)
FRETLES*	Adjusts tone. (0.0–10.0)

AMP: Amp Modeling

In order to take full advantage of the characteristics of Amp Modeling, we recommend that you use it in conjunction with Cabinet Modeling when listening through headphones or when recording from the line output. Types marked by an asterisk (*) indicate effects for bass guitars.

If you have selected SYNTH as the effect type, use the Value dial on each parameter page to set the filter depth and decay, and to select and adjust the waveform (see p.36).

C, D buttons (TYPE ▲, ▼)	VALUE (Value Dial) on each parameter page
BTQ CLN, BTQ OD, TWD1X12, TWD4X10, BLK2X12, AC15, AC30, AC30TB, UKBLUES, UK '70S, UK '80S, UK MDN, US HI-G, US MDN, FUZZ	Disabled when the TYPE is displayed. <GAN>: amount of distortion. (0.0-10.0) <TREBLE>: high range. (0.0-10.0) <MIDDLE>: mid range. (0.0-10.0) <BASS>: low range. (0.0-10.0)
VALVE*, VALVE2*, CLASSIC*, SCOOPED*, LA STUD*, GOLDPNL*, JAZZ*	Disabled when the TYPE is displayed.<MIDFREQ>: mid-range frequency. (1-5)<TREBLE>: high range. (0.0-10.0)<MIDDLE>: mid range. (0.0-10.0)<BASS>: low range. (0.0-10.0)
STUDIO*, AC100*, UKMAJOR*	Disabled when the TYPE is displayed.<GAIN>: amount of distortion. (0.0-10.0)<TREBLE>: high range. (0.0-10.0)<MIDDLE>: mid range. (0.0-10.0)<BASS>: low range. (0.0-10.0)
SYNTH	Refer to separate Synth parameters.

Synth parameters

THRESHOLD	Adjusts the sensitivity of the synth in response to the volume of the guitar or bass. (1.0–10.0)
OSC TYPE	0: Sawtooth wave, two octaves down. 1: Sawtooth wave, one octave down. 2: Sine wave, one octave down. 3: Sawtooth wave. 4: Sine wave. 5: Sawtooth wave, one octave up. 6: Sine wave, one octave up. 7: Sine wave, two octaves up. Oscillators 8–15 are oscillators 0–7 but with portamento turned on.
VCF	Voltage Controlled Filter sensitivity adjustment. 0.0–4.7 is sensitivity adjustment in the positive (+) direction, and 5.0–10.0 is sensitivity adjustment in the negative (-) direction. Set this to 5.0 for a sine wave oscillator.
SYN LVL	Adjusts the volume of the synth. (0.0–10.0)

The Synth is effective only when single notes are played. The desired effect will not be obtained if chords are played.
If your instrument is not tuned correctly, the results may not be as you expect. In this case, re-tune your instrument.
If the sound is unpleasantly distorted, lower the "SYN LVL" until the sound is no longer distorted.

CAB: Cabinet modeling

Types marked by an asterisk (*) indicate effects for bass guitars.

C, D buttons (TYPE ▲, ▼)	Value Dial
1X8TWD, 2X10BLK, 4X10TWD, 1X12TWD, 1X12VOX, 2X12BLK, 2X12VOX, 4X12VOX, 4X12CLS, 4X12MDN, 4X12VIN, LA 4X10*, MDN4X10*, MTL4X10*, CLS8X10*, UK 4X12*, STU1X15*, JAZ1X15*, AC 2X15*, US 2X15*, UK 4X15*, LA 1X18*, COMBI*	Presence: Adjusts the tone of the high-frequency range. (0.0–10.0)

MOD: Modulation & Filter Effect Modeling

C, D buttons (TYPE ▲, ▼)	Value Dial
CHORUS1, CHORUS2, FLANGER1, FLANGER2, FLANGER3, FLANGER4, PHASER1, PHASER2, PHASER3	Adjusts modulation speed. (0.10–10.0 [Hz])
U-VIBE1, U-VIBE2, TREM1, TREM2, TREM3	Adjusts modulation speed. (1.0–10.0 [Hz])
AT PAN1, AT PAN2	Adjusts modulation speed. (0.10–10.0 [Hz])
ROTARY1	Adjusts modulation speed. (1.0–10.0 [Hz])
ROTARY2, ROTARY3	Specifies the level where the rotary speeds switch. (1.0–10.0)
PITCH1, PITCH2, PITCH3	Amount of pitch shift (-24, -17, -12... -01, -d, d, 01...12, 19, 24) (d = detune)
MAJ3UP, MAJ3DWN, MIN3UP, MIN3DWN, PER4TH, PER5TH, MAJ6TH	Intelligent pitch shifter: Specify the key. (C, C#, -A#, B)
FEEDBK1, FEEDBK2, FEEDBK3, FEEDBK4	0.0–4.7: adjusts the effect level. 5.0–10.0: adjusts the vibrato depth.
FILTER	Adjusts frequency. (1.0–10.0)
FILTUP1, FILTUP2, FILTDN1, FILTDN2, TALK1, TALK2, TALK3, TALK4	Adjusts sensitivity. (0.0–10.0)
RANDOM1, RANDOM2, RANDOM3, RANDOM4	Adjusts modulation speed. (0.10–10.0 [Hz])

About the Intelligent Pitch Shifter

The Intelligent Pitch Shifter (MAJ3UP-MAJ6TH) creates musically useful harmonies by varying the amount of pitch shift according to the note you play and the key in which you are playing. For example if you select a pitch shift value of a 3rd up in a major key (MAJ3UP), the amount of pitch shift will vary automatically between three semitones (a minor third) and four semitones (a major third).

• When MAJ3UP is used with a key setting of C

The pitch created by the intelligent pitch shifter is shown in parenthesis ( ).

The PANDORA mini provides seven types of intelligent pitch shifting, with intervals of a 3rd, 4th, 5th, and 6th. (For the 3rd, you can select either the upper or lower part, and a major or minor key.)

If your instrument is not tuned correctly, the results may not be as you expect. In this case, re-tune your instrument.

The intelligent pitch shifter will function when you play individual notes. It cannot produce the effect for chords.

DLY: Delay Modeling

Each delay type, (1,2,3,4,5) has different amounts of feedback.

C, D buttons (TYPE ▲, ▼)	Value Dial
SLAP1, SLAP2, SLAP3, SLAP4, SLAP5, DELAY1, DELAY2, DELAY3, DELAY4, DELAY5, PPDLY1, PPDLY2, PPDLY3, PPDLY4, PPDLY5, ECHO1, ECHO2, ECHO3, ECHO4, ECHO5, MULTI1, MULTI2, MULTI3, MULTI4, MULTI5	Adjusts effect level. (0.0–10.0)

To set the delay time, go to the next page (DLYTIME) and use the Value Dial. The specified delay time can be a maximum of 500ms for SLAP1-5 or a maximum of 2 sec for DELAY1-MULTI5.

You can also set the delay time by pressing the TAP/TUNER button repeatedly at the desired interval. If any of SLAP1-5 have been selected, a quarter of the interval between each press of the TAP/TUNER button will be used as the delay time.

REV:Reverb Modeling

C, D buttons (TYPE ▲, ▼)	Value Dial
DRYAIR, WETAIR, ROOM1, ROOM2, PLATE1, PLATE2, HALL1, HALL2, SPRING1, SPRING2	Adjusts effect level. (0.0–10.0)

Troubleshooting

If the PANDORA mini does not function as you expect, please check the following points first.

Power does not turn on.

• Is a battery installed? Alternatively, is the USB cable connected correctly and securely?

No sound

• Are your guitar or bass, amp and/or headphones connected to the correct jacks?
• Is your amp turned on and set correctly?
• Are any cables broken?

If you can hear sound from headphones connected to the unit, there may be a problem somewhere after the output stage.

• Check to make sure that the program level is not set to "0" or a low value.

• The VOLUME dial may have been turned down.

• Is the PANDORA mini muted?

Be aware that if all effects are off, the chain display will disappear, and it will not be possible to distinguish Bypass or Mute from the LCD display.

• Is the volume of your guitar turned down?

The volume from the device connected to the AUX jack is too loud or too soft, or cannot be heard.

• Adjust the output level of the connected device.

Try using the headphone jack of the device, instead of its line output.

Effects are not applied.

• Check to make sure that the Bypass or Tuner indicator is not displayed.
• Are the effects used in the program turned on?

Tuner doesn't work.

• Is the PANDORA mini bypassed or muted?

Specifications

Effects: 158 types (Maximum number of effects available simultaneously: 7)

Number of programs User: 200, Preset: 200

Inputs: Guitar/Bass INPUT (1/4" jack), AUX (mini stereo jack)

Outputs: Line OUTPUT(1/4" jack), PHONES (mini stereo jack)

Tuner section detection range: 27.5Hz - 2,093Hz (A0-C7)

calibration: A = 438Hz - 445Hz

Rhythm number of pattern: 100 Tempo: = 40 - 240

Power supply: One AA alkaline dry cell or NiMH rechargeable battery, USB bus power supply

Battery life: Alkaline battery/NiMH rechargeable battery (1900mAh) Allows approx. 5 (Al) or 6 (NiMH) hours of continuous use (backlight OFF) Allows approx. 3 (Al) or 4 (NiMH) hours of continuous use (backlight ON)

Dimensions (W× D× H) .. 88× 56× 30mm / 3.15× 2.2× 1.18 inches (not including protrusions)

Weight: 80g/2.82 oz. (not including battery)

Included items: Alkaline Batteries (for checking recorder operation), Owner's manual, Rubber feet

• Specifications and appearance are subject to change without notice for improvement.

REGISTER ONLINE!

www.korg.com/register

Register your Korg product online at www.korg.com/register

For US.purchasers only.

Precautions

Emplacement

Fonction 'AUX Pitch'

Entrée: Guitar/Bass INPUT (1/4" jack), AUX (mini stereo jack)

Sortie: Line OUTPUT(1/4" jack), PHONES(mini stereo jack)

Notartheastern and central European countries (solo UE)

REV:Reverb Modeling 167

SolutiOn de problemas 168

Especillas 170

Program name List 214

Rhythm Pattern List 217

Introduccion

Alternatively, you can use the following method.

Alternatively, you can use the command to install a USB bus.

Controles y conectores

200-299, 315-374: Guitar Program, 300-314, 375-399: Bass Program

No.	Name	No.	Name	No.	Name	No.	Name
200	MASTER	216	ECBLUES	232	PURPLERAIN	248	AINT TALK
201	PURPLEHAZE	217	SECRET	233	PURPLESOLO	249	WHAT I GOT
202	PHOTOGRAPH	218	SHOOK ME	234	LEARNIN	250	DAY TRIP
203	MISIRLOU	219	GUERILLA	235	RADIO FREE	251	8 MILES
204	WILD THING	220	STARTME	236	SULTANS	252	IN THE END
205	WONDERWALL	221	CATHEDRAL	237	SWEET HOME	253	BREATHE
206	HEARTBREAK	222	WISH YOU	238	SBOOGIE	254	PINBALL
207	ZIGGY STAR	223	PRIDE JOY	239	WALK	255	BAYOU
208	FIRE	224	STILL OF	240	LIFESBN	256	PARANOID
209	CRASH	225	SOULISTER	241	GRAVITY	257	HYSTERIA
210	TROOPER	226	JESSICA	242	USE SOME	258	EVERLONG
211	WITHOUT	227	JESSICA2	243	BLACKDOG	259	AMWOMAN
212	RUNNIN'	228	CHASING	244	MTN SONG	260	EXCEPTION
213	7NATION	229	WHERE I	245	A FEELIN	261	BARRACUDA
214	AENIMA	230	MYXOMA	246	I WANNA	262	KOOL THING
215	MESSAGE	231	NTHEBOX	247	DIDDLEY	263	STAIRWAY
264	SYMPHONY	281	PEACE FROG	298	CHERUB	315	TRAPPED
265	HALLELUJAH	282	SPIRIT	299	SCUTTLE	316	J-CLEAN
266	WALK THIS	283	ANIMAL	300	MONEY	317	VELVET
267	WANTED	284	CREEP	301	REAL ME	318	PHASCLN
268	REDEMPTION	285	CANT GET	302	LEMON	319	WILD
269	SUNSHINE	286	PRSNLTY	303	N I B	320	ACOUSTC
270	WONDERFUL	287	CRAZYTRAIN	304	SIMPLE	321	ROCK
271	JUNGLE	288	LOTTA LOVE	305	1NATION	322	BUBBLES
272	JOHNNYB	289	OUTSHINED	306	HI GROUND	323	AWHOSTX
273	AS YOU ARE	290	MYSTERIOUS	307	WHITE ROOM	324	NUGLORY
274	SMALL THNG	291	BRIDGE	308	46 AND 2	325	VOXTREM
275	21 GUNS IN	292	SANDMAN	309	JERRY	326	PUDDLE
276	21 GUNS	293	RUSTY CAGE	310	TAXMAN	327	FABTONE
277	UPRISING	294	FEEL FINE	311	YYZ	328	50TWEED
278	BREAKIN LW	295	LAYLA	312	YTSE JAM	329	CL FLNG
279	OYE COMO	296	GROVE	313	MR BIG	330	BOWATTK
280	ALIVE	297	LA GRANGE	314	BEAST	331	LUCKY
332	NEMO	349	FILTER	366	CHARLOT	383	JAZZ
333	PM CLEAN	350	E MINOR	367	SUBSYNT	384	BLUES
334	POP	351	CHORUS	368	ADD6MOR	385	FRETLES
335	JAZZY	352	OCTAVE	369	PARALIZ	386	RNB
336	UK 80	353	C MAJOR	370	SWEETOD	387	VALVERY
337	HUMBLE	354	SLIPNOT	371	PAPA	388	PICKER
338	G SYNTH	355	AC CLN	372	YAH VOC	389	SLAPIT
339	PIEZO	356	COMP CL	373	SHADOWS	390	CANYON
340	US MDN	357	SOLOPAN	374	RINGER	391	DRIVEN
341	ROTARY	358	FLANGE	375	BONEHED	392	CHORUS
342	FEEDBK	359	WHOTOWN	376	TAPROOM	393	PHASOLO
343	HRM SYN	360	HI SYN	377	OCTBASS	394	THUMPER
344	PASS	361	AUDIO	378	OVERDRV	395	TALKER
345	BLUES	362	ARPGVIB	379	WAVE	396	FINGER
346	VOXWAH	363	STACKD	380	THUMB	397	DISTORT
347	US HI-G	364	OCTFILT	381	COUNTRY	398	FILTERD
348	SLOWPAN	365	SURF	382	MOTOWN	399	B SYNTH

Rhythm Pattern List

No.	Name	No.	Name	No.	Name	No.	Name
000	METRONM	020	8BEAT8	040	6/8 1	060	FUNK2	080
001	METRO VAR	021	8BEAT9	041	6/8 2	061	FUNK3	081
002	METRO T	022	8BEAT10	042	5/4	062	LINEAR	082
003	METROSHFL	023	8SHFL1	043	6/4	063	MOTOWN1	083
004	METRO+16TH	024	8SHFL2	044	7/4 1	064	MOTOWN2	084
005	METRO2	025	8SHFL3	045	7/4 2	065	SURF	085
006	METRO3	026	16BEAT1	046	POP1	066	REGGAE1	086
007	METRO3 VAR	027	16BEAT2	047	POP2	067	REGGAE2	087
008	METRO4	028	16BEAT3	048	ROCK1	068	DANCE1	088
009	METRO 3-2	029	16BEAT4	049	ROCK2	069	DANCE2	089
010	METRO5	030	16BEAT5	050	70ROCK	070	DANCE3	090
011	METRO6	031	16BEAT6	051	METAL1	071	DISCO1	091
012	METRO7	032	16BEAT7	052	METAL2	072	DISCO2	092
013	BBEAT1	033	16BEAT8	053	R'NB	073	EURO	093
014	BBEAT2	034	16BEAT9	054	BLUES	074	NEW RNB	094
015	BBEAT3	035	16SHFL1	055	COUNTRY	075	BOSSA	095
016	BBEAT4	036	16SHFL2	056	BALLAD	076	SAMBA1	096
017	BBEAT5	037	16SHFL3	057	JAZZ	077	SAMBA2	097
018	BBEAT6	038	3/4	058	FASTJAZZ	078	TANGO	098
019	BBEAT7	039	3/4SHFL	059	FUNK1	079	AFRO	099

PANDORA mini

KORG

KORG INC.

4015-2 Yanokuchi, Inagi-city, Tokyo 206-0812 Japan
