USER MANUAL YM26BC MTD

INT THANK YOU Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You will find it to be a great labor-saving device. This operator's manual provides you with easy-to- understand operating instructions. Read the whole manual and follow all the instructions to keep your new outdoor power tool in top operating condition.

PRODUCT REFERENCES, ILLUSTRATIONS

AND SPECIFICATIONS All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice. Copyright© 2003 MTD SOUTHWEST INC, All Rights Reserved. SERVICE INFORMATION Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer. For service call 1-800-345-8746 in the United States, or 1-800-668-1238 in Canada to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.Yardman.com. DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE. Before beginning, locate the unit's model plate. It lists the model and serial numbers of your unit. Refer to the sample plate below and copy the information for future reference. Model Number Parent Part Number \mooet : SIN : ITEM : Serial Number

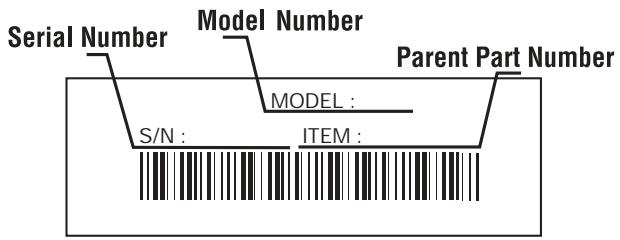

Copy the model and parent part number here: Copy the serial number here: Make sure you carefully read and understand this manual before starting or operating this equipment. THIS PRODUCT IS COVERED BY ONE OR MORE US. PATENTS. OTHER PATENTS PENDING. TION

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. AI U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part #180890 Spark Arrestor Kit.

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. SYMBOL MEANING SYMBOL MEANING DANG ER: Failure to obey a. “ safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. À SAFETY ALERT: warning or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs. NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment. Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders. FOR QUESTIONS, CALL 1-800-345-8746 in the United States, or 1-800-668-1238 in Canada WARN ING . Failure to obey a “safety warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. C AUTIO N « Failure to obey a »“ safety warning may result in property damage or personal injury to gourseit or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

READ ALL INSTRUCTIONS

BEFORE OPERATING WARN ING … When using the unit, “_you must follow the satety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use. + Read the instructions carefully. Be familiar with the controls and proper use of the unit. Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication. Children and teens under the age of 15 must not use the unit, except for teens guided by an adult. All guards and safety attachments must be installed properly before operating the unit. Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts. Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc. pe aware of the risk of injury to the head, hands and eet. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately. Use only 0.080 inch, 2.03 mm (for the trimmers), or

0.095 inch, 2.41 mm (forthe YM26BC bruschcutter),

diameter original equipment manufacturer replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles. Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit. + YM26C0, YM26Cs, TM26SS only: This unit was not designed to be used as a brushcutter. Do not attach or operate this unit with any type of brushcutting blade or brushcutting attachment. vapors can explode if ignited. Take the Gasoline is highl À WARNING: Sénmabte and is following precautions:

SAFETY WARNINGS FOR GAS UNITS

+ Store fuel only in containers specifically designed and approved for the storage of such materials. + Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

Always stop the engine and allow it to cool before filling the fuel tank. Never remove the fuel tank cap or add fuel when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank. Add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Remove the fuel cap slowly, and only after the engine stops. Do not smoke while fueling. Wipe up any spilled fuel from the unit immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate. Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke. Keep sparks and open flames away from the area while adding fuel or operating the unit. WHILE OPERATING Never start or run the unit inside a closed room or building. Breathing exhaust fumes can be fatal. Operate this unit only in a well-ventilated outdoor area. Wear safety glasses or goggles that meet ANSI Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty. Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level. The cutting attachment shield must always be in place while operating the unit as a trimmer. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield. This unit has a clutch. The cutting attachment remains stationary when the engine is idling. If it does not, have the unit adjusted by an authorized service technician. Adjust the J -handle to your size in order to provide the best grip. Be sure the cutting attachment is not in contact with anything before starting the unit. Use the unit only in daylight or good artificial light. Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting/Stopping Instructions. Use the right tool. Only use this tool for its intended purpose. Do not overreach. Always keep proper footing and balance. + Always hold the unit with both hands when operating. Keep a firm grip on both handles or grips. Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting attachment when it rotates. Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off. Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting. Always stop the engine when cutting is delayed or when walking from one cutting location to another. If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts. Stop the unit, switch the engine to off, and disconnect the spark plug for maintenance or repair. Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void your warranty. Keep unit clean of vegetation and other materials. They may become lodged between the cutting attachment and shield. To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

YM26BC ONLY: WHILE OPERATING WITH

CUTTING BLADE + Read and understand all safety warnings before operating this unit. + Always use the shoulder harness when using the brush blade accessory. Keep the J -handle between the operator and cutting attachment or blade at all times. + NEVER cut when the cutting blade is 30 inches (76 cm) or more above the ground level. Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut. For operation with the brush blade, do not cut anything thicker than 1/2 inch or a violent kickback could occur.

Do not attempt to touch or stop the blade when it is rotating. A coasting blade can cause injury while it continues to spin after the engine is stopped or the throttle trigger is released. Maintain proper control until the blade has completely stopped rotating. Do not run the unit at high speed when not cutting. If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Have any damage repaired before attempting further operations. Do not operate unit with a bent, cracked or dull blade. Discard blades that are bent, warped, cracked or broken. Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade. Do not use the cutting blade for edging or as an edger; severe personal injury to yourself or others may incur. Use the cutting blade only for the purpose described in this manual. Stop the engine IMMEDIATELY if you feel excessive vibration. Vibration is a sign of trouble. Inspect thoroughly for loose nuts, bolts or damage before continuing. Repair or replace affected parts as necessary. After Use + Clean cutting blades with a household cleaner to remove any gum buildup. Oil the blade with machine oil to prevent rust. + Lock up and store the cutting blade in an appropriate area to protect the blade from unauthorized use or damage.

OTHER SAFETY WARNINGS

+ Never store a fueled unit inside a building where fumes may reach an open flame or spark. + Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting. + Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children. + Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use, see Cleaning and Storage instructions. + Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions. SAVE THESE INSTRUCTIONS

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING SYMBOL MEANING

+ SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.

WARNING - READ OPERATOR'S

MANUAL Read the Operator's Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

WARNING: Thrown objects and

loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders,

especially children and pets, at least 50 feet (15 m.) from the operating area. UNLEADED FUEL Always use clean, fresh unleaded fuel. OIL Refer to operators manual for the proper type of oil.

operate without the cutting attachment shield in place. Keep away from the rotating cutting attachment. HIT +]

Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time. + CHOKE CONTROL 1 + FULL choke position. 2 + PARTIAL choke position. 3 + RUN position. + SHARP BLADE WARN ING : Sharp blade on cutting attachment shield. To prevent serious injury, do not touch line cutting blade.

+ YM26BC ONLY: BRUSHCUTTERS

Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury.

*YM26BC ONLY: TRIMMER/

BRUSHCUTTER SAFETY WARN ING = Thrown objects and rotating cutter can cause severe injury. Keep bystanders, especially children and pets, at least 50 feet (15 m) away from the cutting area. The cutting attachment shield must be used when using the trimmer cutting attachment.

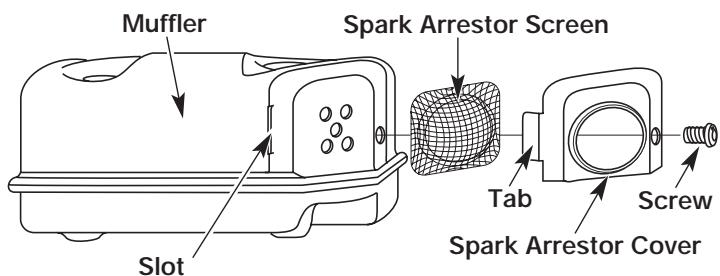

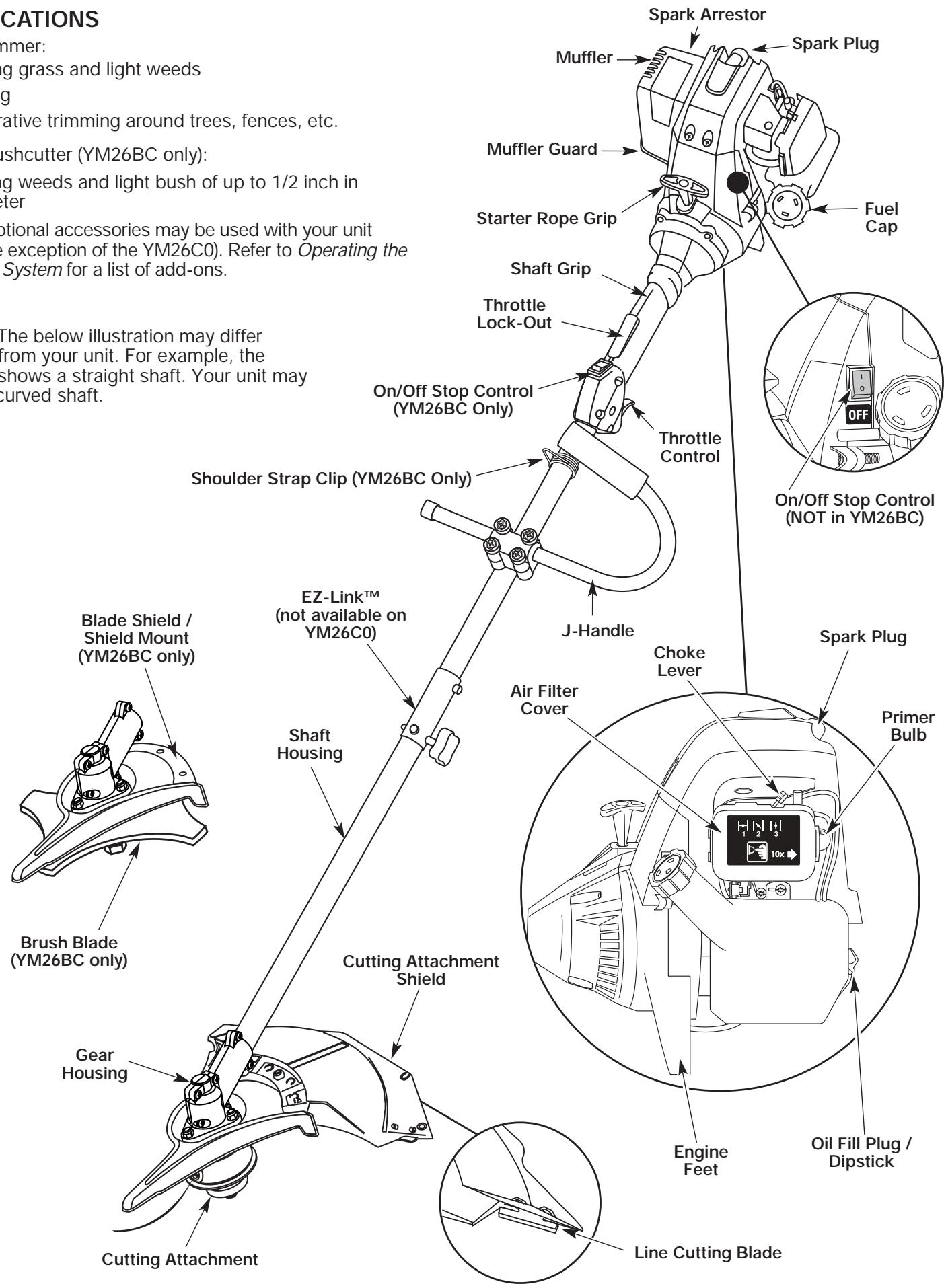

APPLICATIONS Spark Arrestor AS à trimmer: | Muffer >. Ÿ _æ— Spark Plug + Cutting grass and light weeds + Edging + Decorative trimming around trees, fences, etc. As a brushcutter (YM26BC only): Muffler Guard —>\ + Cutting weeds and light bush of up to 1/2 inch in diameter . Fuel Other optional accessories may be used with your unit Starter Rope Grip Cap {with the exception of the YM26C0). Refer to Operating the EZ-Link System for a list of add-ons. Shaft Grip Throttle Lock-Out NOTE: The below illustration may differ ° “ slightly from your unit. For example, the picture shows a straight shaft. Your unit may have a curved shaft. On/Off Stop Control (YM26BC Only) On/0ff Stop Control {NOT in YM26BC) EZ-Link”" Blade Shield / {not available on Shield Mount YM26C0) J-Handle Spark Plug (YM26BC only) Air Filter Shaft Housing Brush Blade (YM26BC only) Gear Housing ——, Oil Fill Plug / Dipstick Cutting Attachment Line Cutting Blade

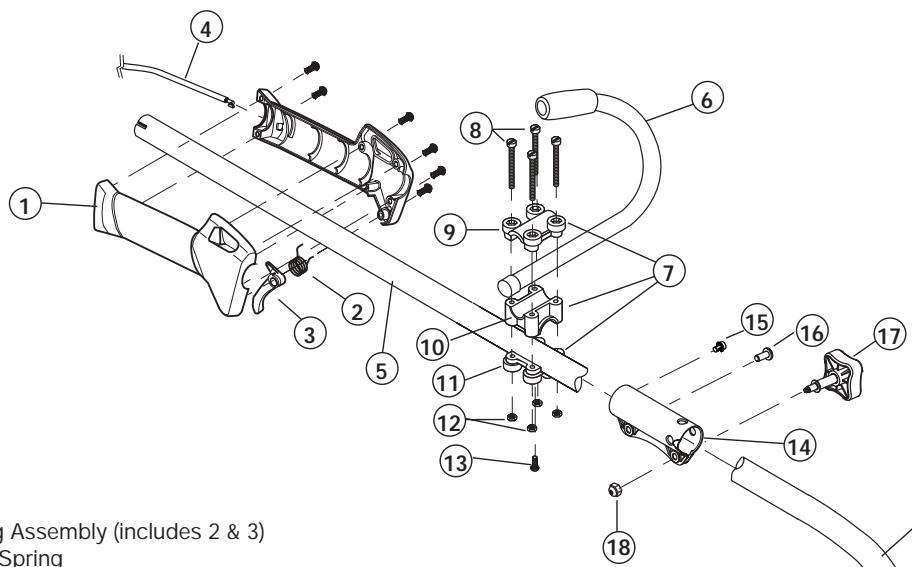

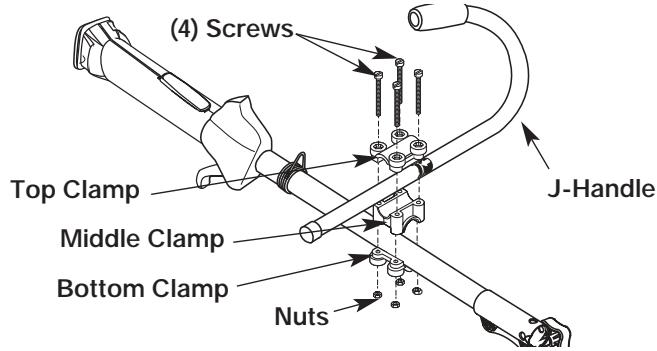

ASSEMBLY INSTRUCTIONS On some units, the J -handle may be pre-installed. In this case you must loosen screws and adjust the handle to fit the operator. Go to step 5 ifthe J -handle is pre-installed. INSTALL AND ADJ UST THE J -HANDLE

1. Place the ] -handle between the top and middle

” Always use the À WARNING: shoulder harness when using the cutting blade to avoid serious personal injury.

2. While holding the three pieces together, install the four

(à) screws through the top clamp and into middle clamp. NOTE: The holes in the top and middle clamp will line up only when assembled correctly.

3. Place the clamps and the J -handle over the shaft

housing and onto the bottom clamp.

4. Hold each hex nut in the bottom clamp recess with a

finger. Start screws with a large Phillips screwdriver. Do not tighten until you make the handle adjustment.

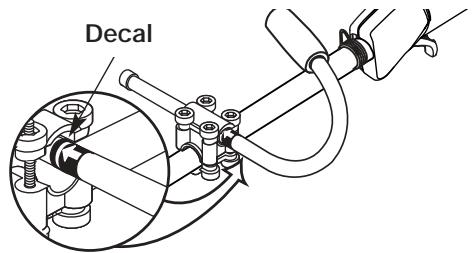

5. Slide the J -handle in or out until the arrow/white line on

the decal touches the clamp assembly (Fig. 2). You must first loosen the screws if the handle is pre-installed. Fig. 2

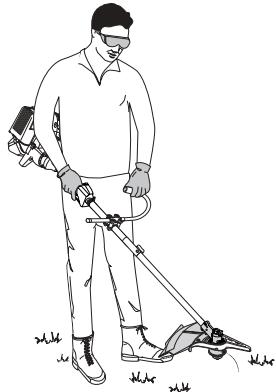

6. While holding the unit in the operating position (Fig. 3),

position the j -handle to the location that provides you the best grip. Fig. 3

7. Tighten the clamp screws evenly, until the J -handle

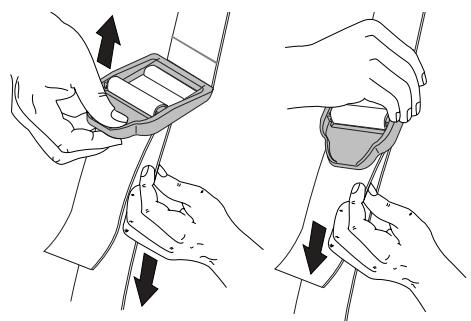

1. Push the strap through the center of the buckle.

2. Pullthe strap over the cross bar and down through

the slot in the buckle (Fig. 4).

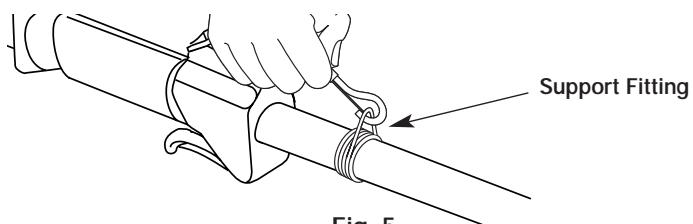

3. Putthe harness on over head and onto shoulder.

Snap it on to the support fitting (Fig. 5).

4. Adjust length to fit the operator's size. Pull tab to

lengthen, pull strap to shorten (Fig 6). Support Fitting

YM26BC ONLY: REMOVE AND INSTALL

WARN ING « The cutting “_attachment shield should NOT be installed when operating the unit with a blade. Remove the cutting attachment shield before removing or installing the blade. Remove the cutting attachment shield when using the unit as a brushcutter Remove the cutting attachment shield from the shield mount by removing the three (3) screws with a flat blade screwdriver (Fig. 7). Store parts for future use.

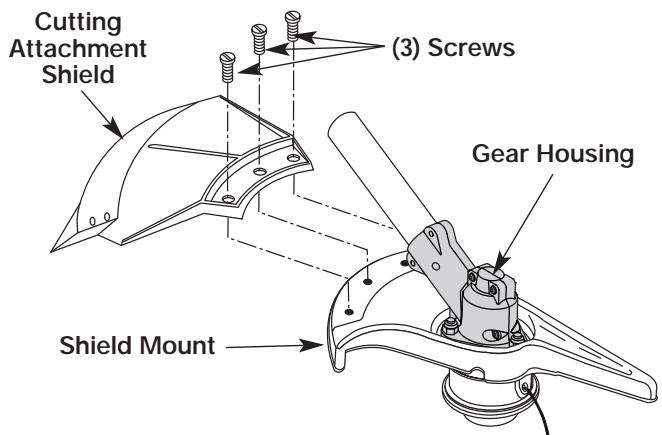

ASSEMBLY INSTRUCTIONS Cutting Attachment Shield LE G)Screws Gear Housing Fig. 7 Install the cutting attachment shield when using the unit as a grass trimmer WARNIN ” To avoid serious “_ personal injury, the cutting attachment shield MUST be in place at all times while operating the unit as à grass trimmer. Install the cutting attachment shield on the shield mount by inserting the three (3) screws into the shield mount. Tighten securely with a flat blade screwdriver (Fig. 7).

YM26BC ONLY: REMOVE THE CUTTING

NOTE: To make cutting blade removal and installation easier, place the unit on the ground or on a work bench. Remove the Cutting Attachment Shield

À WARNIN “ gets hot with use. It can result in injury to the operator. The housing remains hot for a short time even after the unit is turned off. Do not touch the gear housing until it has cooled. See Remove and Install the Cutting Attachment Shield. Remove the Cutting Attachment

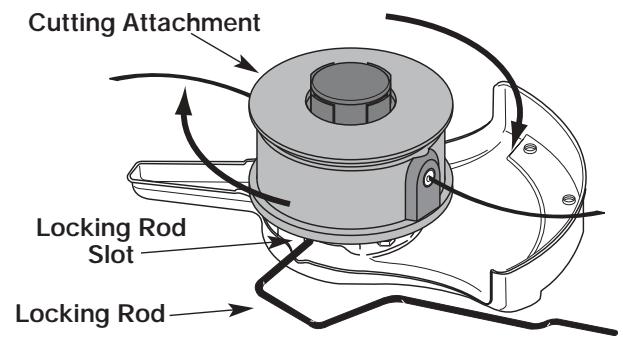

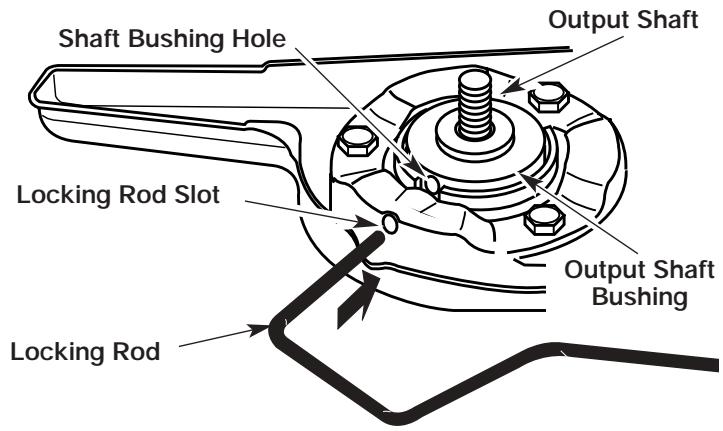

1. Align the shaft bushing hole with the locking rod slot and

insert the locking rod into the shaft bushing hole (Fig. 8). Output Shaft Shaft Bushing Hole MHPUE Shaï Locking Rod Slot > 4 up Shaft Bushing Locking Rod Fig. 8

2. Hold the locking rod in place by grasping it next to

the boom of the unit (Fig. 9).

3. While holding the locking rod, remove the cutting

attachment by turning it clockwise off of the output shaft {Fig. 10). Store the cutting attachment for future use. NOTE: The blade retainer under the cutting attachment will be used when installing the cutting blade. Cutting Attachment Locking Rod Slot Locking Rod —> Fig. 10 Install the Cutting Blade WARNING « To avoid serious “ personal injury, always wear gloves while handling or installing the blade.

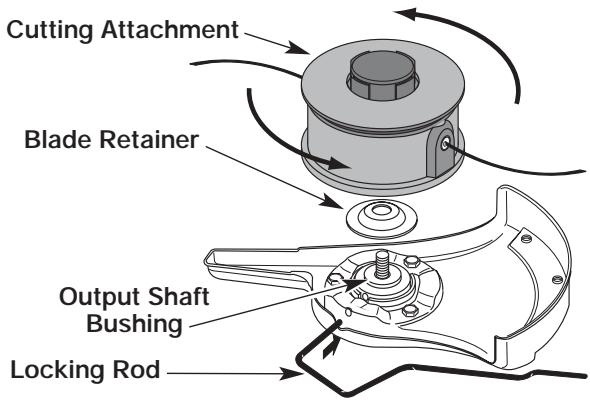

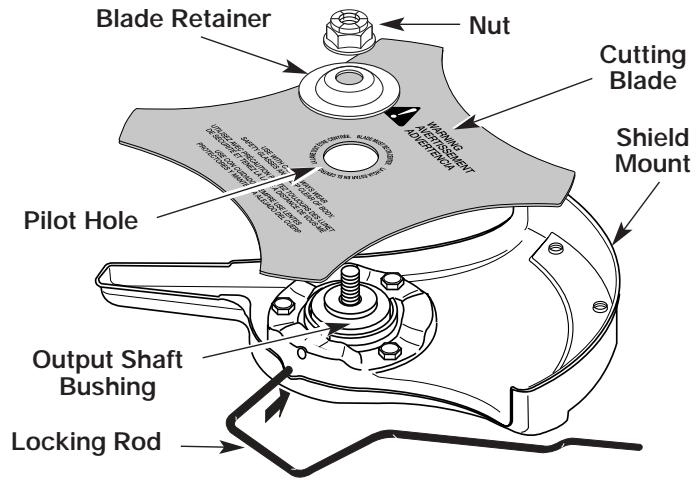

4. Place the cutting blade on the output shaft bushing

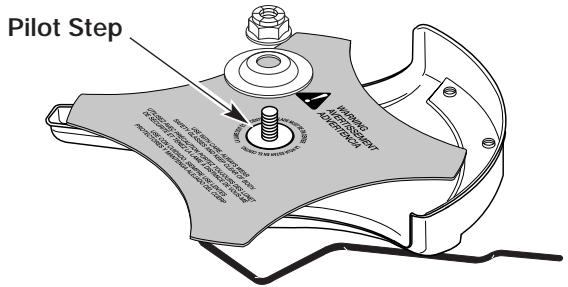

5. Make sure that the cutting blade is centered on the

pilot step and sitting flat against the output shaft bushing (Fig. 12).

WARN ING … lfthe cutting blade “is off-center, the unit will vibrate and the blade may fly off, causing possible serious personal injury. Pilot Step Counterclockwise Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 8). Put the blade retainer and nut on the output shaft. Make sure that the blade is installed correctly. Tighten nut counterclockwise against the blade while holding the locking rod: If using a torque wrench and an 5/8 inch socket tighten to: 325 - 335 inelb, 27 - 28 ft.elb, 37 - 38 Nem. Without a torque wrench, use a 5/8 inch closed-end or socket wrench, tuning the nut until the blade retainer is snug against the shaft bushing. Make sure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise (Fig. 13). 1/4-1/2 turn

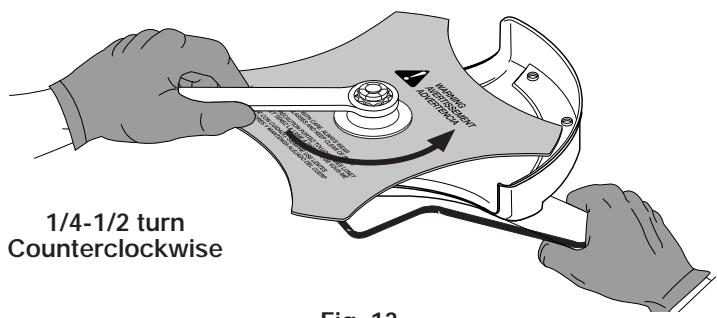

Fig. 13 Remove the locking rod from the locking rod slot. WAR N IN G: To avoid serious “_ personal injury or damage to the unit, do not start or operate this unit with the locking rod in the locking rod slot.

Sharening the blade can cause the blade tip to break off while in use. This can result in severe personal injury. Replace the blade.

WAR N I N G: ” To avoid serious always wear gloves while handing or" installing the blade. Remove the Cutting Blade

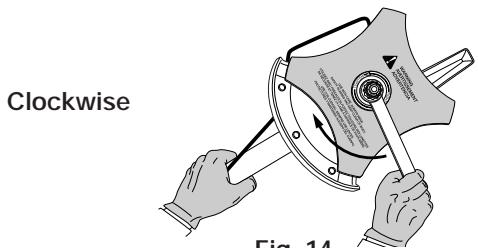

Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 8). Hold the locking rod in place by grasping it next to the boom of the unit (Fig. 14). While holding the locking rod, loosen the nut on the blade by turning it clockwise with a 5/8 inch closed- end or socket wrench (Fig. 14). Clockwise Remove the nut, blade retainer and blade. Store the nut and blade together for future use in a secure place. Store out of children's reach. Install the Cutting Attachment

Align the shaft bushing hole with the locking rod slot and insert the locking rod into the shaft bushing hole (Fig. 8). Place the blade retainer on the output shaft with the flat surface against the output shaft bushing (Fig. 15). Screw the cutting attachment counterclockwise onto the output shaft. Tighten securely. NOTE: The blade retainer must be installed on the output Cutting Attachment. shaft in the position shown for the cutting attachment to work correctly.

Install the cutting attachment shield. Refer to Remove and Install the Cutting Attachment Shield.

WAR N I N G: To avoid serious

• personal injury, the cutting attachment shield MUST be in place at all times while operating the unit as a trimmer.

" CRANKCASE MAY CAUSE SERIOUS PERSONAL IN] URY. Check and maintain the proper oil level in the crank case; it is important and cannot be overemphasized. Check the oil before each use and change it as needed. See Changing the Oil.

RECOMMENDED OIL TYPE

Using the proper type and weight of oil in m4 the crankcase is extremely important. Check the oil before each use and change the oil regularly. Failure to use the correct oil, or using dirty oil, can cause premature engine wear and failure. Use a high-quality SAE 30 weight oil of API (American Petroleum Institute) service class SF, SG, SH.

ADDING OIL TO CRANKCASE: INITIAL USE

NOTE: This unit is shipped without oil. In order to avoid damage to the unit, put oil in the crankcase before you attempt to start the unit. Your unit is supplied with one 3.4 fluid oz. (100 ml.) bottle of SAE 30 SF, SG, SH oil (Fig. 16). NOTE: Save the bottle of oil. It can be used to measure the correct amount during future oil changes. See Changing the Oil.

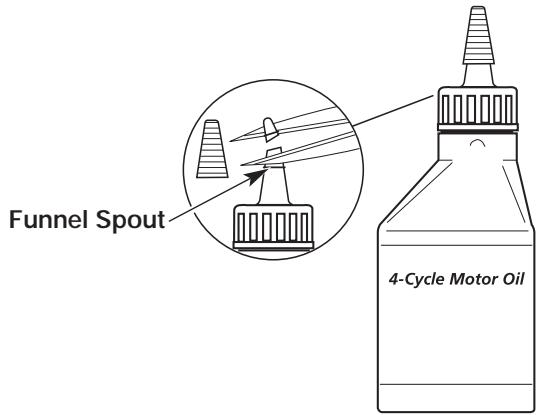

1. Unscrew the top of the bottle of oil and remove the

paper seal covering the opening. Replace the top. Next, cut the tip off the funnel spout (Fig. 16). (TN 4-Cycle Motor Oil

2. Place the unit on a flat level surface.

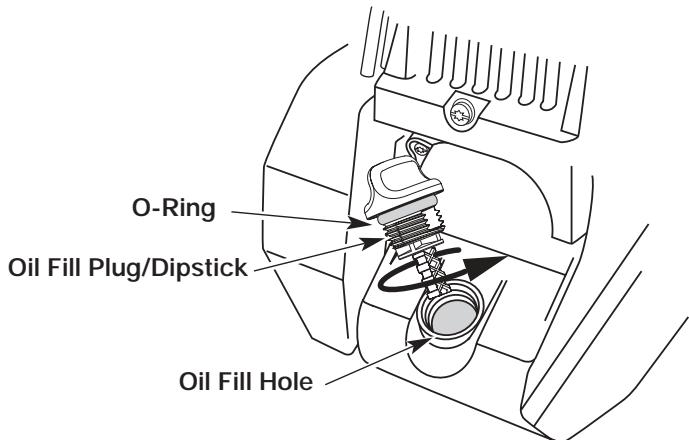

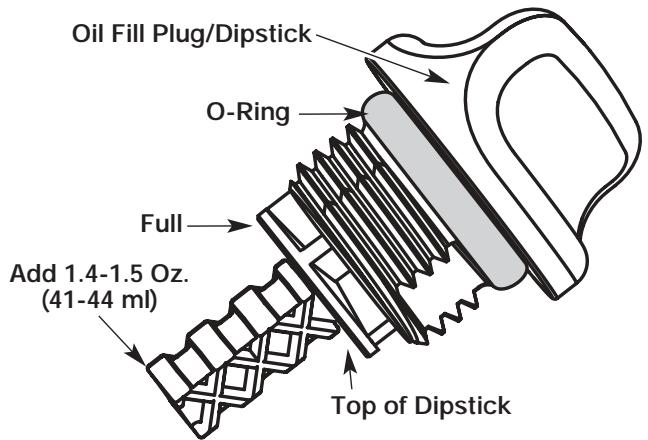

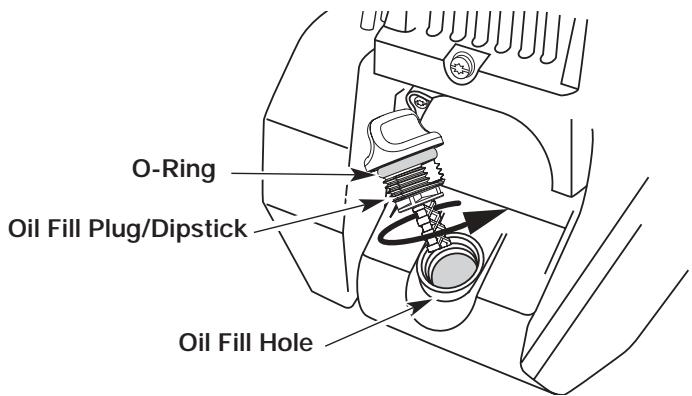

3. Remove the oil plug / dipstick from the crankcase

(Fig. 17). Oil Fill Hole Fig. 17

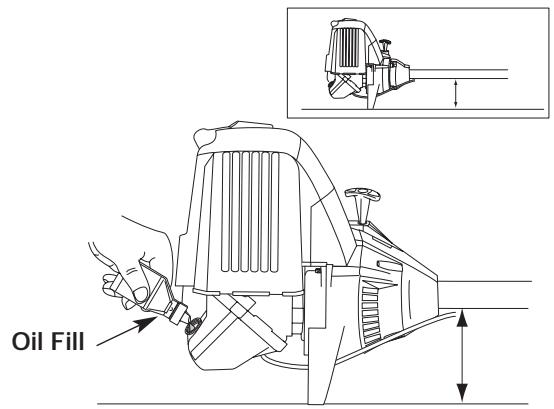

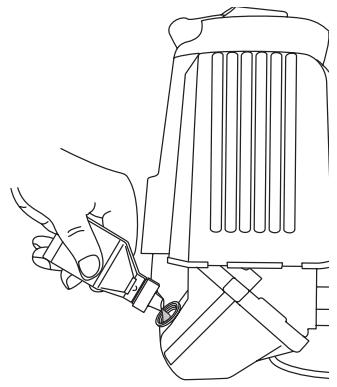

4. Pour the entire bottle of oil into the oil fill hole

(Fig. 18). Fig. 16 Fig. 18 NOTE: Never add oil to the fuel or fuel tank.

5. Wipe up any oil that may have spilled and reinstall

the oil fill plug / dipstick. Check oil before each use and change as needed. Refer to Changing the Oil.

Old fuel is the primary reason for improper unit performance. Be sure to use fresh, clean, unleaded gasoline. NOTE: This is a four cycle engine. In order to avoid damage to the unit, do not mix oil with gasoline. Definition of Blended Fuels Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate or form acids when stored. Use fresh fuel (less than 60 days old), when using alcohol-blended fuel. Using Blended Fuels If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions: *__ Always use fresh unleaded gasoline + Use the fuel additive STA-BIL® or an equivalent + Drain tank and run the engine dry before storing unit Using Fuel Additives The use of fuel additives, such as STA-BIL® Gas Stabilizer or an equivalent, will inhibit corrosion and minimize the formation of gum deposits. Using a fuel additive can keep fuel from forming harmful deposits in the carburetor for up to six (6) months. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's gas tank.

WARNIN ” Gasoline is " _extremely flammable. Ignited Vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at à distance from the area.

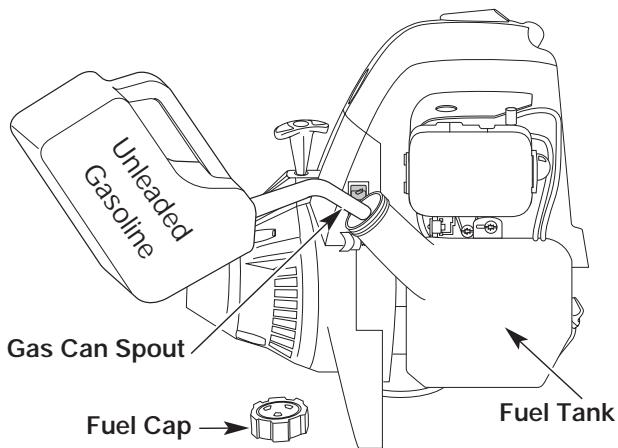

1. Remove the fuel cap (Fig. 19).

R fuel À WARNING: éowy 0 avoid mjury from fuel spray. Never operate the unit without the fuel cap securely in place. Fuel Tank Fig. 19

2. Place the gas containers spout into the fill hole on

the fuel tank (Fig. 19) and fill the tank. « Add fuel in a clean, WARNIN outdoor area. Wipe up any spilled fuel " well ventilated immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate. NOTE: Do not overfill the tank.

3. Wipe up any gasoline that may have spilled.

4. Reinstall the fuel cap.

5. Move the unit at least 30 ft. (9.1 m) from the fueling

source and site before starting the engine. NOTE: Dispose of the old gasoline in accordance to Federal, State and Local regulations.

WARN ING = Operate this unit only “in a well- ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WAR N IN G “ Avoid accidental " starting. Make sure you are in the starting position when pulling the starter rope (Fig. 22). To avoid serious injury, the operator and unit must be in a stable position while starting. To avoid serious personal injury, ensure any Add-On being used is installed correctly and secure before starting the unit. STARTING INSTRUCTIONS

1. Check the oil level in the crankcase. Refer to

Checking the Oil Level.

2. Fillthe fuel tank with fresh, clean unleaded gasoline.

Refer to Fueling the Unit.

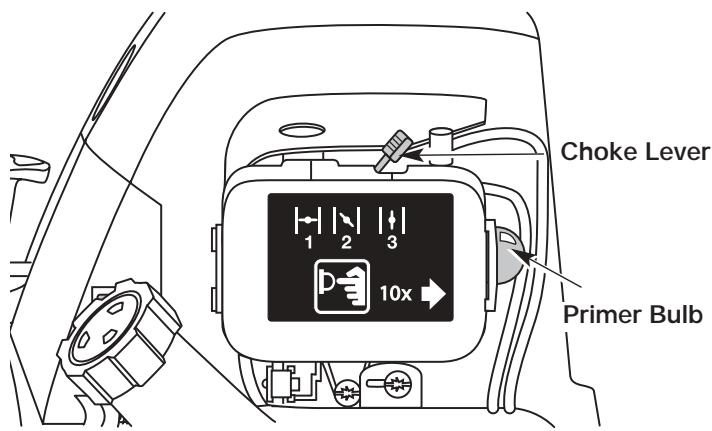

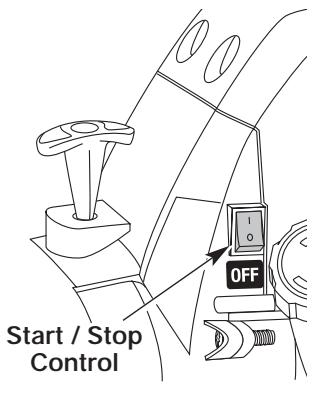

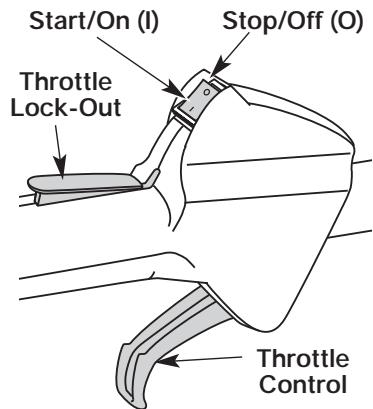

3. Make sure the On/Off Stop Control in the ON (1)

slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 21). If you can't see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

the throttle control. Pull the starter rope briskly 5 times.

7. Place the choke lever in Position 2.

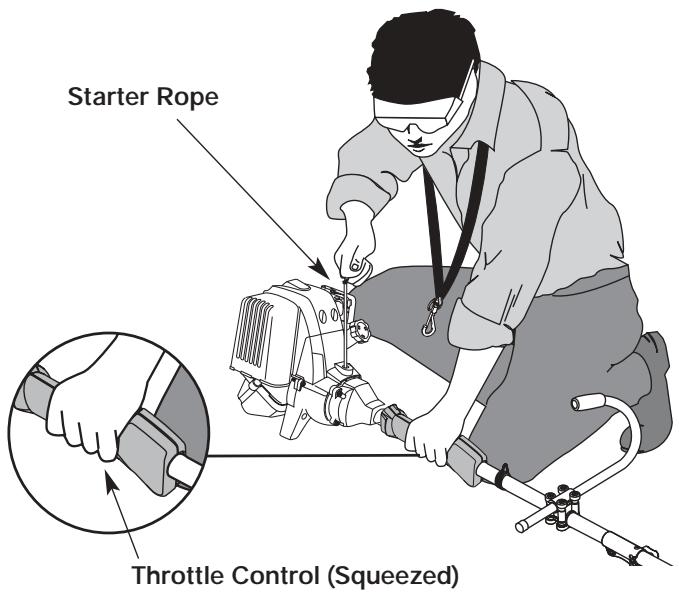

8. While squeezing the throttle control, pull the starter

rope briskly 1 to 3 times to start the engine.

9. Keep the throttle squeezed and allow the engine to

warm up for 15 to 30 seconds.

10. Place the choke lever in Position 3. The unit is ready

for use. IF. The engine does not start, go back to step 4. IF. The engine fails to start after a few attempts, place the choke lever in Position 3 and squeeze the throttle control. Pull the starter rope briskly 3 to 8 times. The engine should start. If not, repeat. IE WARM... if the engine is already warm, make sure the On/Off Stop control is in the ON position and start the unit with the choke lever in Position 2. After the unit starts, move the choke lever to Position 3. Start/On (1) Stop/Off (0) Throttle Lock-Out Fig. 20 Choke Lever HA II 141

1. Release your hand from the throttle control. Allow the

engine to cool down by idling.

2. Putthe On/Off Stop Control in the OFF (0) position.

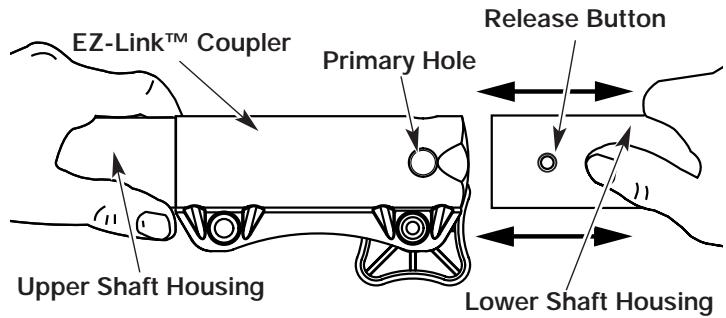

3. While firmly holding the upper shaft housing, pull

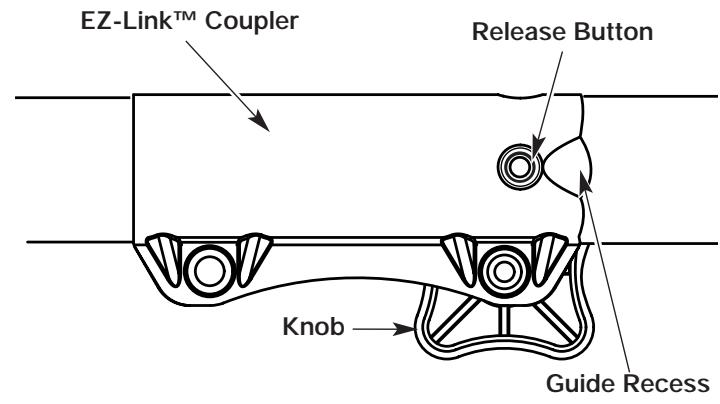

the cutting attachment or add-on straight out of the EZ-Link"” coupler (Fig. 24). ( WARNIN ” To avoid serious “ personal injury and damage to the unit, shut the unit off before removing or installing add-ons. Installing the Cutting Attachment or Add-On NOTE: Place the unit on the ground or on a work bench to make add-on installation or removal easier.

2. While firmly holding the add-on, push it straight into

Lower Shaft Housing Upper Shaft Housing Fig. 24

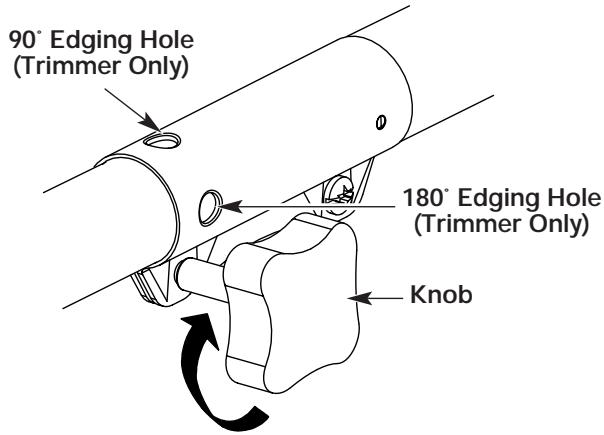

3. Turn the knob clockwise to tighten (Fig. 25).

A C AUTIO N « Lock the release “ button in the primary hole (Fig. 24) and securely tighten the knob before operating this unit. 90° Edging Hole (Trimmer Only) 180° Edging Hole (Trimmer Only)

Knob Fig. 25 CAUTIO « The add-ons with the “ coupler system is to be used in the primary hole only. Using the wrong hole could lead to personal injury or damage to the unit. For edging (when using the line head cutting attachment with EZ-Link” models), lock the release button of the cutting attachment into the 90° edging hole or the 180° edging hole (Fig. 25).

WARN ING = Always wear eye, “ hearing, foot and body protection to reduce the risk of injury when operating this unit. Before operating the unit, stand in the operating position (Fig. 26). Check for the following: + The operator is wearing eye protection and proper clothing + With a slightly-bent right arm, the operator's right hand is holding the shaft grip + The operator's left arm is straight, the left hand holding the ] -handle

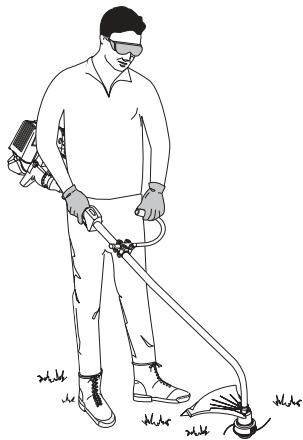

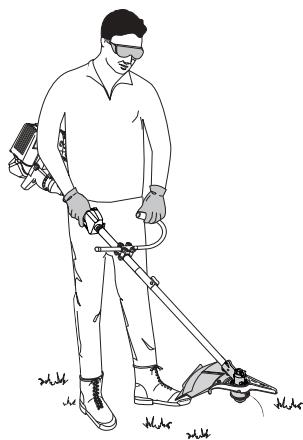

• The unit is at waist level - The cutting attachment is parallel to the ground and easily contacts the grass without the need to bend over Once you are in the operating position, hook the shoulder strap to the unit YM26BC only). Fig. 26

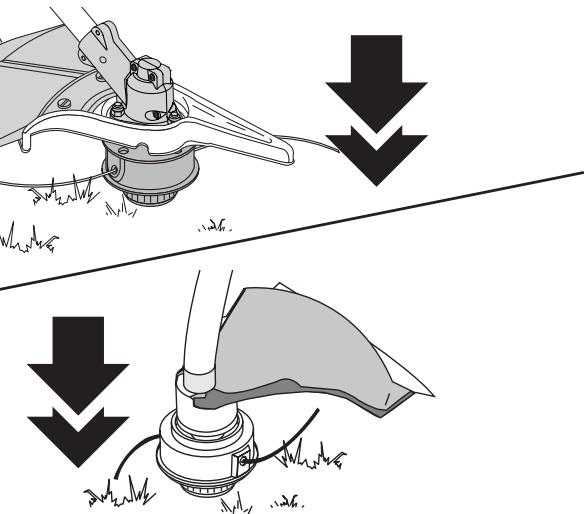

AD] USTING TRIMMING LINE LENGTH

The Bump Head" cutting attachment allows you to release trimming line without stopping the engine. To release more line, lightly tap the cutting attachment on the ground (Fig. 27) while operating the trimmer at high speed. NOTE: Always keep the trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter. Each time the head is bumped, about 1 inch (25.4 mm) of trimming line is released. A blade in the cutting attachment shield will cut the line to the proper length if excess line is released. For best results, tap the Bump Head" on bare ground or hard soil. If line release is attempted in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter. NOTE: Do not rest the Bump Head" on the ground while the unit is running. assembly. Excessive line length will make the clutch overheat. This may lead to serious personal injury or damage to the unit. À CAUTION!: ne cut dede” Fig. 27 Some line breakage will occur from: + Entanglement with foreign matter + Normal line fatigue + Attempting to cut thick, stalky weeds + Forcing the line into objects such as walls or fence posts

TIPS FOR BEST TRIMMING RESULTS

+ For best trimming results, operate unit at full throttle. Keep the cutting attachment parallel to the ground. Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine. Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag. For the YM26BC brushcutter, cut from left to right whenever possible. Cutting to the right improves the unit's cutting efficiency. Clippings are thrown away from the operator. For the other units, cut from right to left. Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forward- backward or side-to-side motion. Cutting shorter lengths produces the best results. + Trim only when grass and weeds are dry. + The life of your cutting line is dependent upon: + Proper adherence of explained trimming techniques + What vegetation is cut + Where vegetation is cut For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

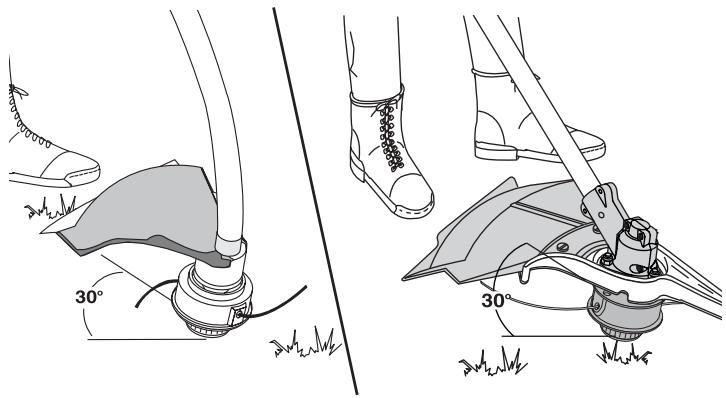

OPERATING INSTRUCTIONS DECORATIVE TRIMMING Decorative trimming is accomplished by removing all vegetation around trees, posts, fences and more. Rotate the whole unit so that the cutting attachment is at a 30° angle to the ground (Fig. 28). Fig. 28 YM26BC ONLY: USING THE CUTTING BLADE WAR N IN G « Always wear eye, = hearing, foot, body protection and the shoulder strap to reduce the risk of injury when operating this unit. WARN ING … Do notuse the “ cutting blade for edging or as an edger. Severe personal injury to yourself or others can result. Before operating the unit with the cutting blade, stand in the operating position (Fig. 29). Refer to Holding the Trimmer. Cutting Blade Operating Tips To establish a rhythmic cutting procedure:

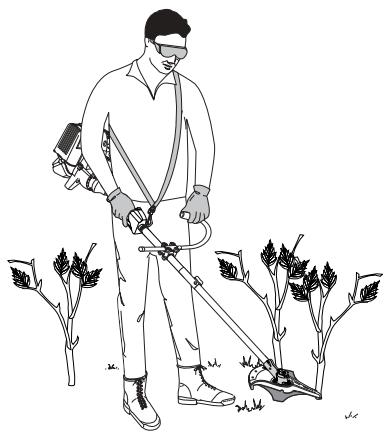

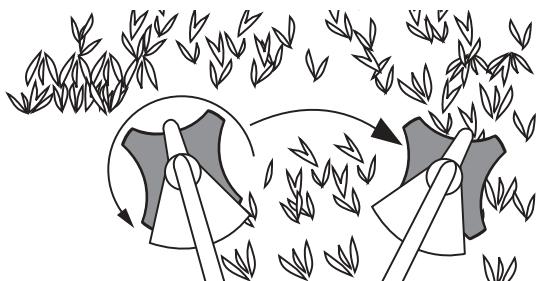

• Plant feet firmly, comfortably apart. + Bring the engine to full throttle before entering the material to be cut. At full throttle the blade has maximum cutting power and is less likely to bind, stall or cause blade thrust (which can result in serious personal injury to the operator or others). WAR N IN G « Blade thrust may “ occur when the Spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut. + Cut while swinging the upper part of your body from left to right (YM26BC only ). + Always release the throttle trigger and allow the engine to return to idle speed when not cutting. + When you are finished, always unsnap the unit from the harness before taking off the harness. engine is turned off. The coasting blade can seriously cut you if accidentally touched. NAT + Swing the unit in the opposite direction as the blade spins, which increases the cutting action. - After the return swing, move forward to the next area to be cut plant your feet again. + The cutting blade is designed with a second cutting edge. You can use it by removing the blade, turning it upside down, and reinstalling it. WAR N I N G … Do not sharpenthe “ cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury to yourself or others. Replace the blade. To reduce the chance of material wrapping around the blade, follow these steps: + Cut at full throttle + Swing the unit into material to be cut from your left to your right (Fig. 30) + Avoid the material just cut as you make the return swing WAR N I N G « Do not clear away = any cut material with the engine running or blade turning. To avoid serious personal injury, turn off the engine. Allow the blade to Stop before removing materials wrapped around the blade shaft.

MAINTENANCE SCHEDULE Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be à part of any seasonal tune-up. NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer. NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer. WAR N I N G ” To prevent serious “_injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

FREQUENCY MAINTENANCE REQUIRED REFER TO

: : Fill fuel tank with fresh fuel Page 12 Before starting engine Check oil Page 22 Every 10 hours Clean and re-oil air filter Page 23 First change at 10 hours Change oil Page 23 Every 25 hours thereafter Change oil Page 23 Every 25 hours Clean spark arrestor Page 27 10 hours on new engine Check rocker arm to valve clearance and adjust Page 25 Every 25 hours Check rocker arm to valve clearance and adjust Page 25 Every 25 hours Check spark plug condition and gap Page 27 LINE INSTALLATION Your trimmer is equipped with one of two cutting attachments. The YM26C0 &YM26BC use a bump head, while the YM26CS &YM26SS are equipped with a SpeedSpool cutting head. Refer only to the section that applies to the type of cutting attachment your unit is equipped with. BUMP HEAD (YM26C0 & YM26BC) This section covers both SplitLine"” and standard single line installation. Always use original equipment manufacturer replacement line. Use 0.095 in. (2.41 mm) line for the YM26BC, and

0.080 in. (2.03 mm) line for the YM26C0. Line other than

the specified may make the engine overheat or fail. WARN ING » Never use metal- “ reinforced line, wire, chain or rope. These can break off and become dangerous projectiles. There are two methods to replace the trimming line: + Wind the inner reel with new line + Install a prewound inner reel Winding the Existing Inner Reel

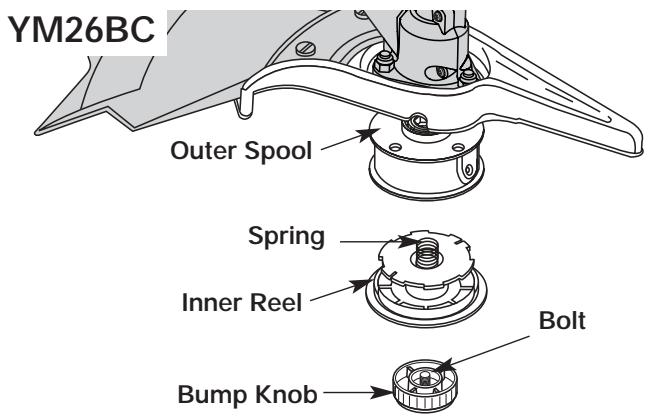

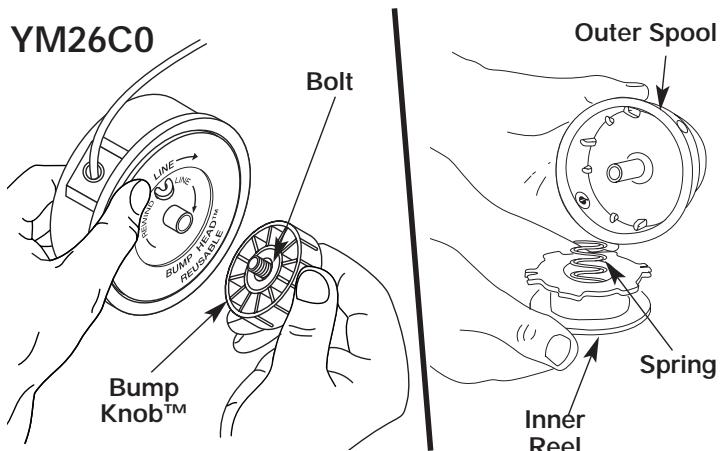

1. Hold the outer spool with one hand and unscrew the

Bump Knob. For the YM26BC, unscrew it clockwise (Fig. 27). For the YM26C0, unscrew the Bump Knob counterclockwise (Fig. 31). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged. YM26BC /

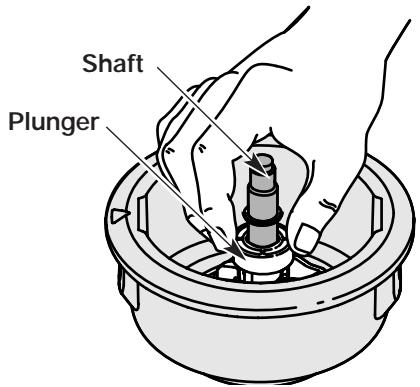

3. Remove spring from the inner reel (Fig. 31 or 32).

4. Use a clean cloth to clean the the inner reel, spring,

shaft and inner surface of the outer spool (Fig. 33).

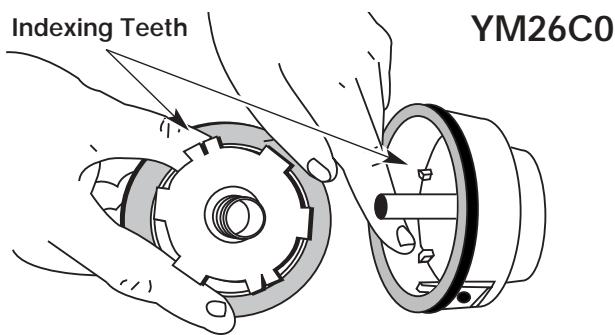

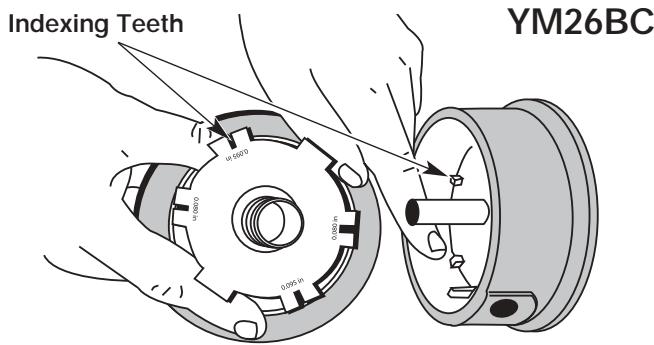

5. Check the indexing teeth on the inner reel and outer

spool for wear (Fig. 34 or 35). If necessary, remove burrs or replace the reel and spool. NOTE: Always use the correct line length when installing trimming line on the unit. The line may not release properly if the line is too long. YM26BC Fig. 38 Fig. 35 NOTE: SplitLine" can only be used with the inner reel with the slotted holes. Single line can be used on either type of inner reel. Use Figure 36 to identify the inner reel you have. For Use with Single For Use with SplitLine" Line ONLY or Single Tvo0sey, Slotted 77 vo0sey, LENS Holes 4 a / CR CEA | <° Me 4 \ | s Me | | Ho) | | | | E . | | N _ | a oo / / \ LA 0 / \ Heaos Ni Heaos* ue DA race Fig. 36 Single Line Installation Go To Step 8 for SplitLine"” Installation

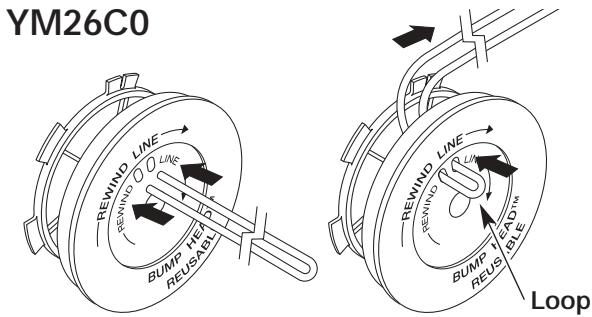

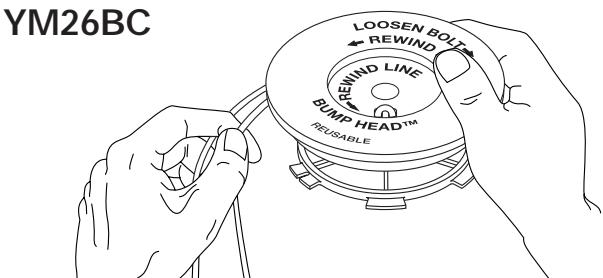

6. Take approximately 16 feet (5 m) of new trimming

line, loop it into two equal lengths. Insert each end of the line through one of the two holes in the inner reel (Fig. 37 or 38). Pull the line through the inner reel so that the loop is as small as possible.

7. Wind the lines in tight even layers, onto the reel

{Fig. 39 or 40). Wind the line in the direction indicated on the inner reel. Place your index finger between the two lines to stop the lines from overlapping. Do not overlap the ends of the line. Proceed to step 11. YM26BC

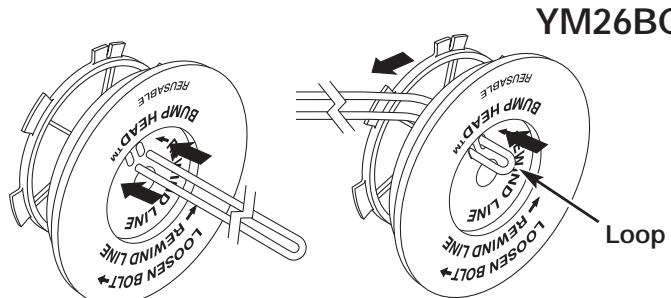

8. Take approximately 8 feet (2.5 m) of new trimming line.

Insert one end of the line through one of the two holes in the inner reel (Fig. 41 or 42). Pull the line through the inner reel until only about 4 inches is left out.

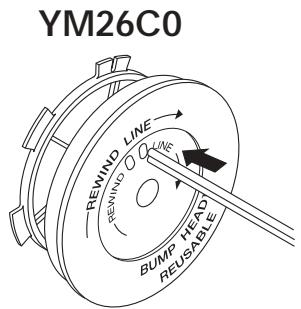

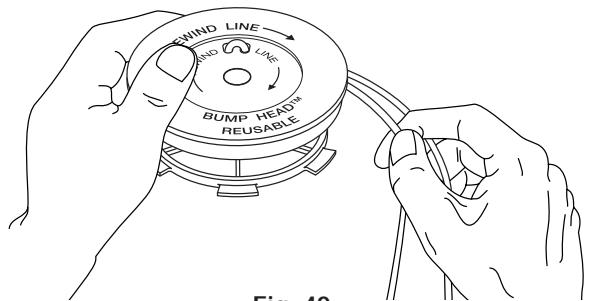

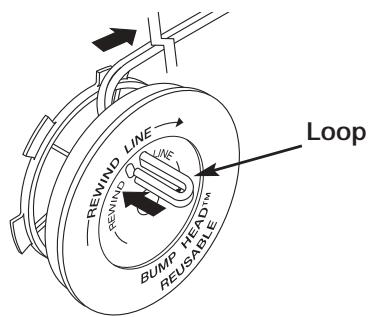

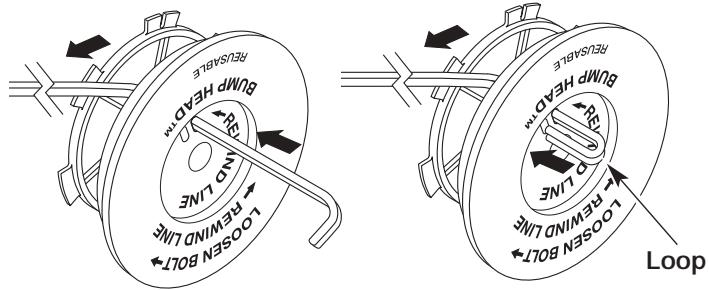

9. Insert the end of the line into the open hole in the

inner reel and pull the line tight to make the loop as small as possible (Fig. 41 or 42).

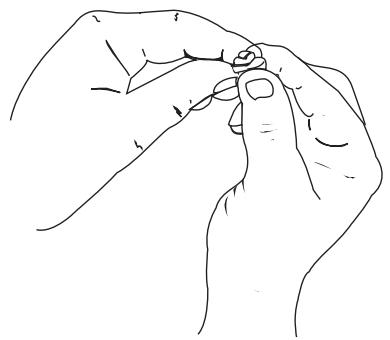

10. Before winding, split the line back about 6 inches.

11. Wind the line in tight even layers in the direction

indicated on the inner reel. NOTE: Failure to wind the line in the direction indicated will cause the cutting attachment to operate incorrectly.

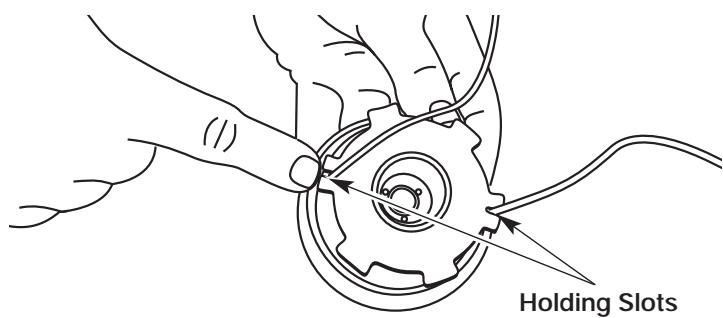

12. Insert the ends of the line into the two holding slots

13. Insert the ends of the line through the eyelets in the

outer spool and place inner reel with spring inside the outer spool (Fig. 44 or 45). Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the reel. NOTE: The spring must be assembled on the inner reel before reassembling the cutting attachment.

14. Hold the inner reel in place and install the bump knob

by turning counterclockwise YM26BC) or clockwise (YM26C0). Tighten securely. YM26BC > } Spring Fig. 45 Installing a Prewound Wheel

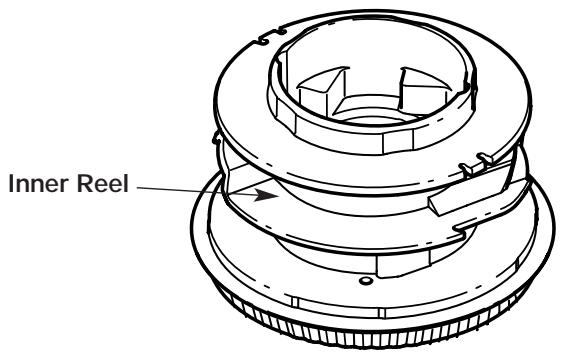

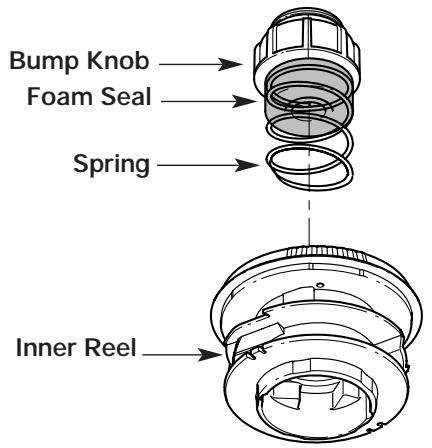

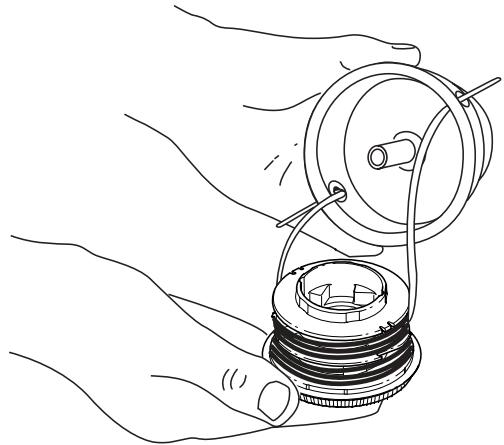

1. Hold the outer spool with one hand and unscrew the

bump knob clockwise (YM26BC) or counterclockwise (YM26C0). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged (Fig. 31 or 32).

2. Remove the old inner reel from the outer spool

3. Remove the spring from the old inner reel

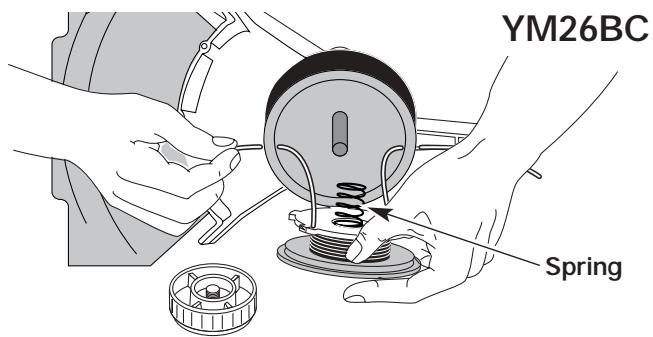

4. Place the spring in the new inner reel.

NOTE:The spring must be assembled on the inner reel before reassembling the cutting attachment.

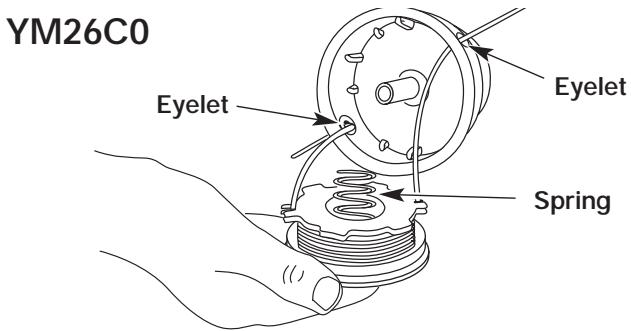

5. Insert the ends of the line through the eyelets in the

outer spool (Fig. 44 or 45).

6. Place the new inner reel inside the outer spool. Push the

inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the spool.

7. Hold the inner reel in place and install the bump knob

by turning counterclockwise YM26BC) or clockwise (YM26C0). Tighten securely.

SPEEDSPOOL® (YM26SS & YM26CS) n N tal- À WARNING . reinforced line, Wire, chain or rope. These can break off and become dangerous projectiles. Always use original equipment manufacturer ” 0.080 inch (2.03 mm) replacement line. Lines other than those specified may make the engine overheat or fail. There are two methods to replace the SpeedSpool® trimming line: + Wind the inner reel with new line + Install a pre-wound inner reel Winding the Inner Reel With New Line NOTE: It Is unnecessary to remove the bump knob to install a new trimming line.

1. Cuttwo pieces of 0.080 inch (2.03 mm) trimming

line, 10 feet (3 m) long.

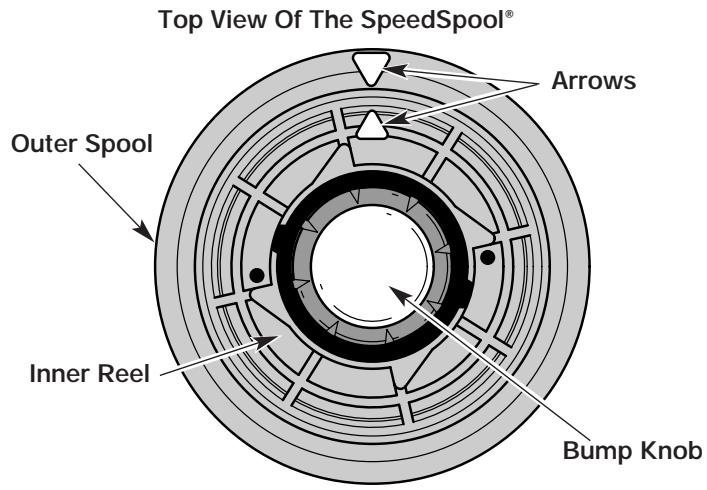

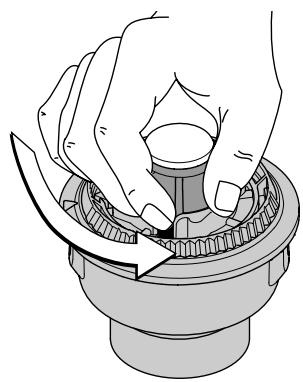

2. Hold the outer spool and turn the inner reel

counterclockwise to line up the arrows on the outer spool and inner reel (Fig. 46). WARN ING ” Always use the “ correct line length when installing trimming line on the unit. The line may not release properly if the line is too long. Top View Of The SpeedSpool® Outer Spool Inner Reel

3. Pull old line out of the line loading and line locking

holes (Fig. 47 and 48).

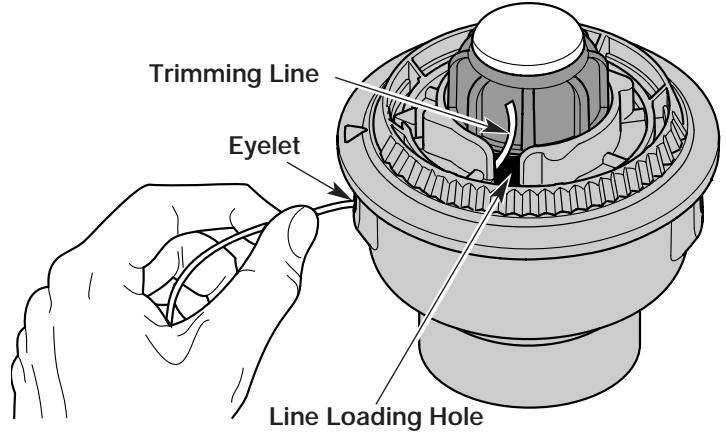

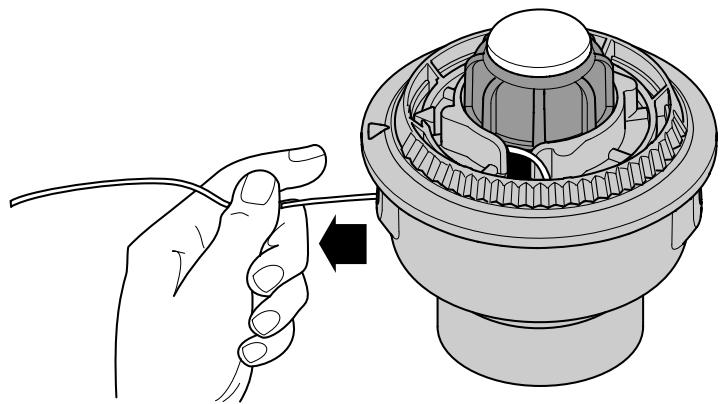

4. Insert a piece of trimming line straight into one of the

two eyelets in the outer spool. Push it up through the line loading hole in the inner reel (Fig. 47). Do not bend the line when inserting it into the eyelet. Line Loading Hole Fig. 47

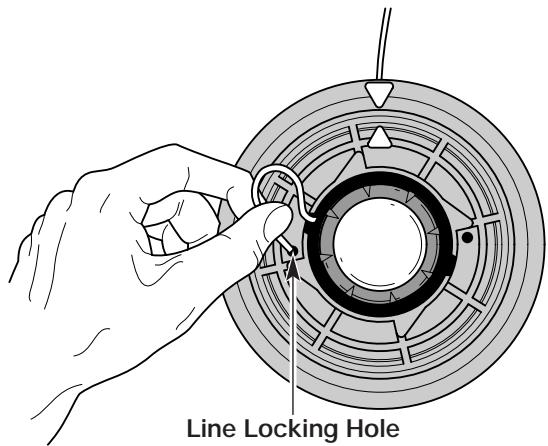

5. Insert the line into the locking hole (Fig. 48). Do not

push the line more than a 1/2 inch (12.7 mm)into the line locking hole. The line will form à small loop (Fig. 48) when it is inserted correctly. Line Locking Hole Fig. 48

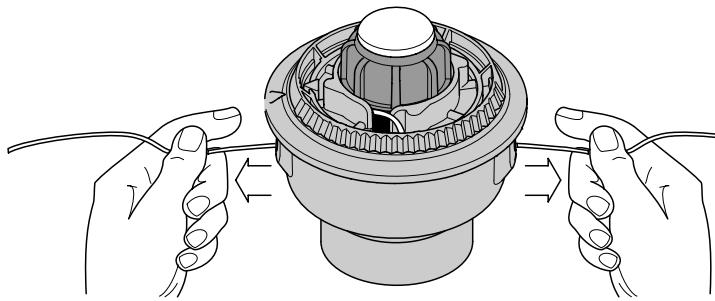

6. Pullthe line from the outer spool until the line is tight

against the inner reel (Fig. 49). Fig.49

7. Repeat procedures 4-6 with the second piece of line. 2. Pullthe old inner reel with existing line from the outer

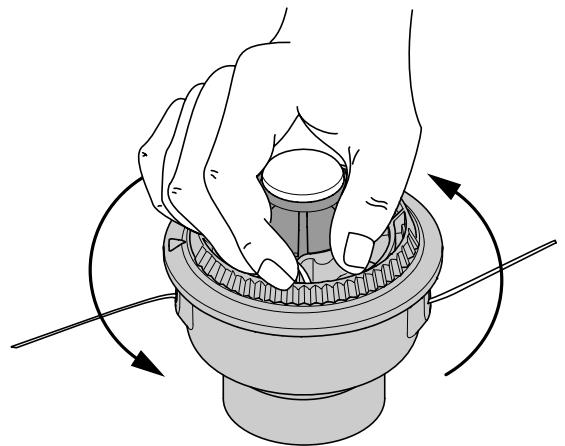

8. Hold the outer spool. Wind the inner reel spool.

counterclockwise until approximately four (4) inches 3. Insert the ends of the prewound inner reel line into (102 mm) of line remain (Fig. 50). the outer spool eyelets (Fig. 53). Push the new inner NOTE: Do not wind the inner reel before installing the reel, arrow side up, into the outer spool. second piece of line. Fig. 53

4. Hold the inner reel in place and install the bump

knob, spring and foam seal. Press down and turn the

9. If winding the line becomes difficult or if the line bump knob clockwise. Grasp the ends and pull

jams, pull the ends of the line from the spool firmly to release the line from the holding slots in the (Fig. 51). Continue winding the inner reel inner reel (Fig. 52). counterclockwise. . Releasing the Inner Reel If the SpeedSpool® does not release line correctly, pull the ends of the line firmly from the spool (Fig. 51). If this does not the release line, follow the Cleaning the SpeedSpool® instructions.

CLEANING THE SPEEDSPOOL°

Cleaning the SpeedSpool® may be necessary if: +__ A jammed or excessive line must be removed + The SpeedSpool® becomes difficult to wind or does Fig. 51 not operate correctly when bumping the head on the ground INSTALLING A PRE-WOUND REEL 1. Hold the outer spool, and unscrew the bump knob

1. Turn the bump knob counterclockwise and remove counterclockwise (Fig. 54).

the bump knob, spring and foam seal (Fig. 52). 2. Pull out the bump knob, spring and foam seal (Fig. 52). Spring ——> Inner Reel _\ Fig. 54

3. Pullthe inner reel with existing line from the outer

4. Remove any existing line from the inner reel before

cleaning. Remove any debris or grass from the knob, spring, inner reel and foam seal. Wash the inner reel with warm soapy water (Fig. 55). Inner Reel Fig. 55

5. Clean the shaft and the inner surface of the outer

Fig. 56 NOTE: The inner reel must be totally dry before reinstalling it into the outer spool. Do not lubricate the inner reel or outer spool assembly.

6. Place the inner reel into the outer spool.

7. Place the bump knob, spring and foam seal into the

inner reel (Fig. 52).

8. Press the bump knob down and tighten clockwise.

9. Install new line as described in Line Installation for

CHECKING THE OIL LEVEL

C AUTIO N 2 To prevent extensive » engine wear and damage to the unit, always maintain the proper oil level in the crankcase. Never operate the unit with the oil level below the bottom of the dipstick. The importance of checking and maintaining the proper oil level in the crankcase cannot be overemphasized. Check oil before each use:

1. Stop the engine and allow oil to drain into the crankcase.

2. Place the unit on a flat, level surface to get a proper

3. Keep dirt, grass clippings and other debris out of the

engine. Clean the area around the oil fill plug/dipstick before removing it.

4. Remove the oil fill plug/dipstick and wipe off oil.

Reinsert it all the way back in.

5. Remove the oil fill plug/dipstick and check the oil level.

Oil should be up to the top of the dipstick (Fig. 57). Oil Fill Plug/Dipstick Add 1.4-1.5 Oz. (41-44 ml) Top of Dipstick Fig. 57

6. Ifthe level is low, add a small amount of oil to the oil

fill hole and recheck (Fig. 58). Repeat this procedure until the oil level reaches the top of the dipstick. NOTE: Do not overfill the unit. UUU)

O-Ring LD oil Fill au oil Fill Hole << Fig. 58 NOTE: Make sure the O-ring is in place on the oil fill plug/dipstick when checking and changing the oil (Fig. 58).

For a new engine, change the oil after the first 10 hours of operation. Change the oil while the engine is still warm. The oil will flow freely and carry away more impurities.

1. Unplug spark plug boot to prevent accidental starting.

AIR FILTER MAINTENANCE

Cleaning the Air Filter Clean and re-oil the air filter every 10 hours of operation. Itis an important item to maintain. Failure to maintain the air filter will VOID the warranty. À CAUTION: wear gboves to revent injury when handling the unit. P y

2. Remove the oil fill plug/dipstick.

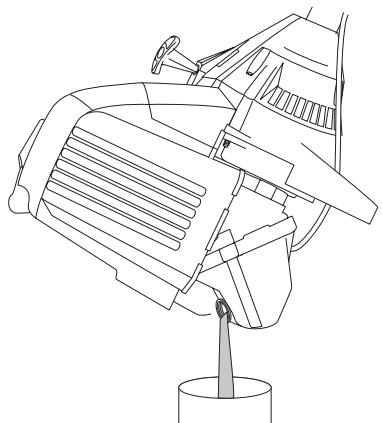

3. Pour the oil out of the oil fill hole and into a container

by tipping the unit to a vertical position (Fig. 59). Allow ample time for complete drainage. Fig. 59

WARNING: To avoid serious

”_ personal injury, always turn the unit off and allow it to cool before you clean or service it.

4. Wipe up any oil residue on the unit and clean up any

oil that may have spilled. Dispose of the oil according to Federal, State and local regulations.

5. Refill the crankcase with 3.4 fluid ounce (100 ml) of

SAE 30 SF, SG, SH oil. NOTE: Use the bottle and spout saved from initial use to measure the correct amount of oil. The top of the label on the bottle measures approximately 3.4 ounces (100 ml) (Fig. 60). Check the level with the dipstick. If the level is low, add a small amount of oil and recheck. Do not overfill (Fig. 60). [nl —<— Fill Level 4-Gydle Motor oil

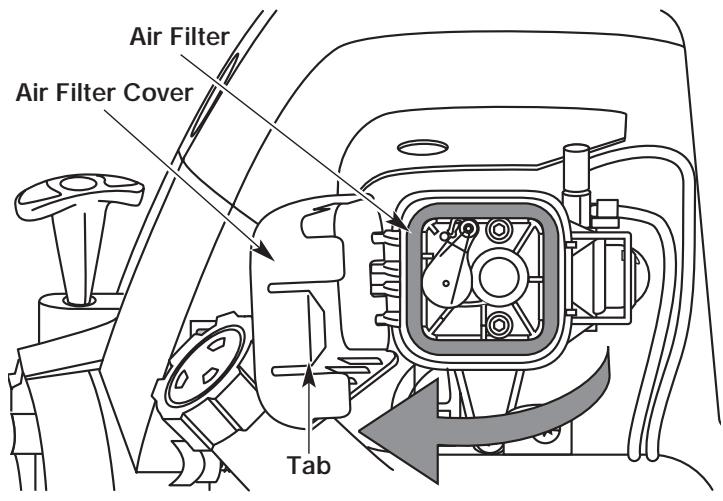

1. Open the air filter cover. Push the tab on the right

side of the cover inward. Then pull the air filter cover out and to the left (Fig. 61). NOTE: It may be necessary to remove the fuel cap to completely remove the air filter cover.

6. Replace the oil fill plug/dipstick.

the filter thoroughly and allow it to dry. NOTE: If the unit is operated without the air filter, you will VOID the warranty. Back Plate Back Plate Slot Slots

4. Apply enough clean SAE 30 motor oil to lightly coat :

the filter (Fig. 63). Fig. 65

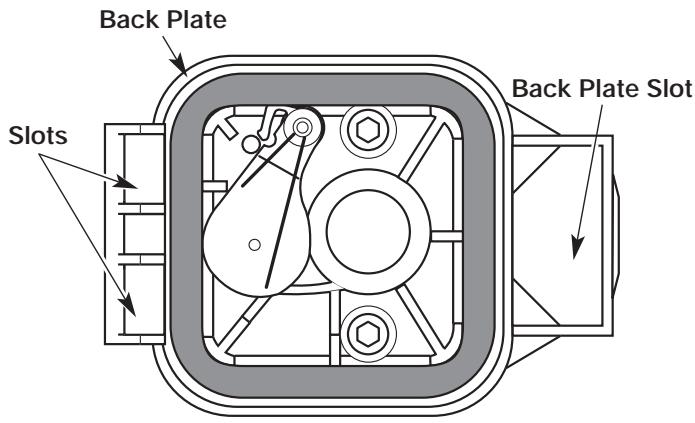

7. _Reinstall the air filter cover. Position the hooks on

the left side of the air filter cover into the slots atthe left side of the back plate (Fig. 65). 4 NOTE: It may be necessary to remove the fuel cap to reinstall the air filter cover.

8. Swing the cover to the right until the tab on the air

filter Cover snaps into place in the slot on the back plate (Fig. 65).

9. Replace the fuel cap if it was removed.

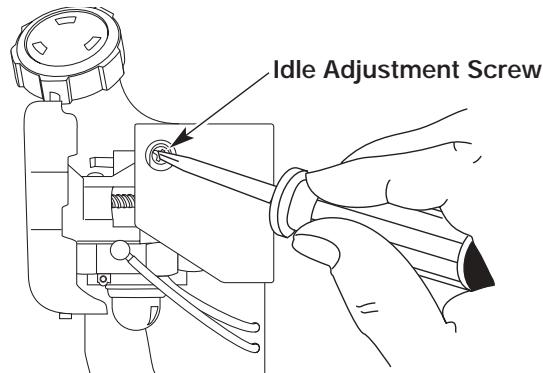

CARBURETOR ADJ USTMENT

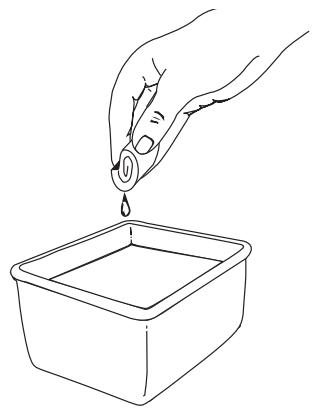

5. Squeeze the filter to spread and remove excess oil The idle speed of the engine is adjustable. An idle

(Fig. 64). adjustment screw is reached though a hole in the top of the engine cover (Fig. 66). NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments. Check Fuel Old fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh fuel prior to making any adjustments. Refer to Oil and Fuel Information. Fig. 64

Clean Air Filter The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow. This is often mistaken for an out of adjustment carburetor. Check the condition of the air filter before adjusting the idle speed screw. Refer to Air Filter Maintenance. The cutti À WAR N IN G : attachment may spin during idle speed adjustments. Wear rotective clothing and observe all safety instructions to prevent serious personal injury. Adjust Idle Speed Screw If, after checking the fuel and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Startthe engine and let it run at a high idle for a minute

to warm up. Refer to Starting/Stopping Instructions.

2. Release the throttle trigger and let the engine idle. Ifthe

engine stops, insert a small philips or flat blade screwdriver into the hole in the air filter/muffler cover (Fig. 66). Turn the idle speed screw in, clockwise, 1/8 of à turn at à time (as needed) until the engine idles smoothly. NOTE: The cutting attachment should not rotate when the engine idles.

3. _Ifthe cutting attachment rotates when the engine idles,

turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed. Checking the fuel, cleaning the air filter, and adjusting the idle speed should solve most engine problems. If not and all of the following are true: + the engine will not idle + the engine hesitates or stalls on acceleration

• there is a loss of engine power Have the carburetor adjusted by an authorized service dealer. À MARNING: make sure the cutting attachment has stopped rotating before you turn it off and set it down. Idle Adjustment Screw Fig. 66

ROCKER ARM CLEARANCE

This requires disassembly of the engine. If you feel unsure or unqualified to perform this, take the unit to an authorized service center. NOTE: Inspect the valve to rocker arm clearance with a feeler gauge after the first 10 hours of operation and then every 25 hours of operation thereafter. + The engine must be cold when checking or adjusting the valve clearance. This task should be performed inside, in a clean, dust free area.

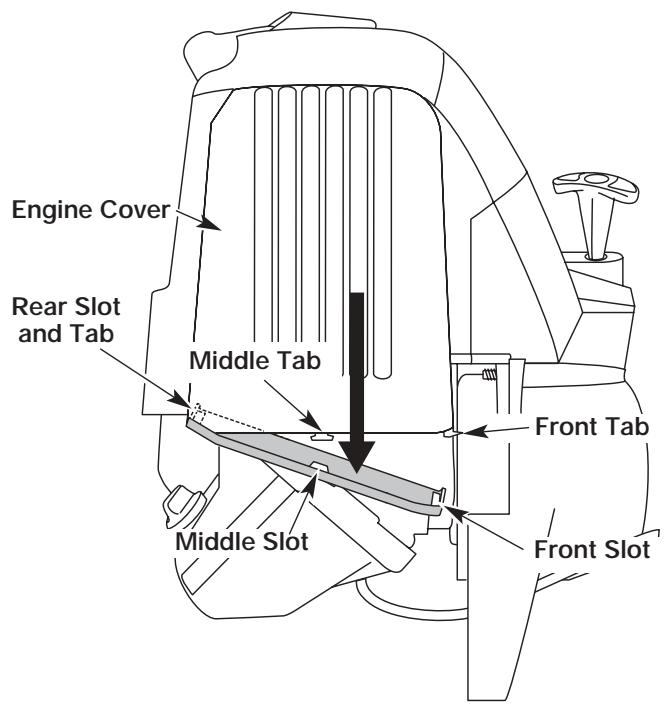

1. Remove the muffler cover by pressing down onit,

separating it from the engine cover. Using a flat blade screwdriver, disengage the middle and front tabs and slots first. The cover will hinge off from the rear tab (Fig. 67). Engine Cover Rear Slot and Tab Ne iddle Tab

Front Tab Middle‘Slôt TT. lont Slot Fig. 67

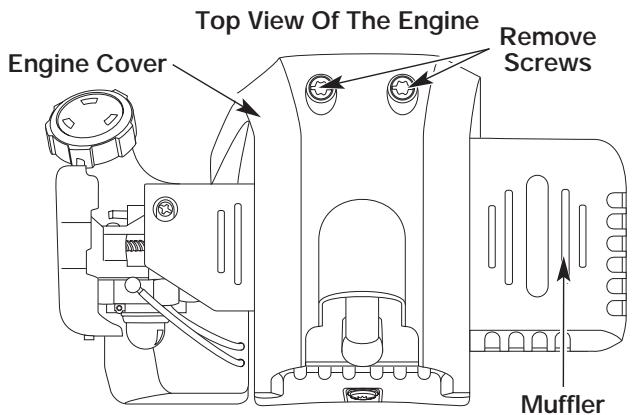

2. Remove the two (2) screws on top of the engine cover

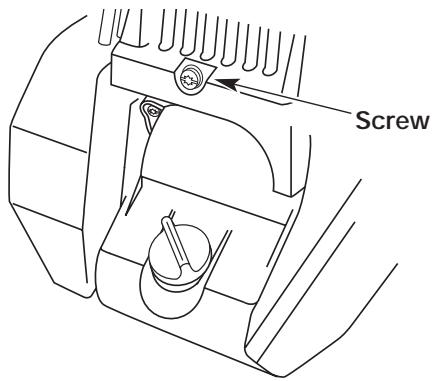

3. Remove the screw behind the engine cover (Fig. 69).

Fig. 69 Disconnect the spark plug wire.

5. Clean dirt from around the spark plug. Remove the

spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise. Remove the engine cover (Fig. 68).

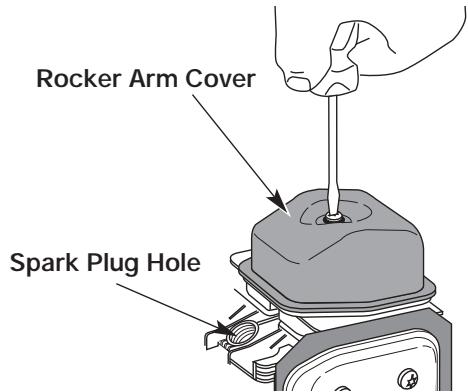

7. Clean dirt from around the rocker arm cover.

Remove the screw holding the rocker arm cover with a large flat blade screwdriver or Torx T-25 bit (Fig. 70). Remove the rocker arm cover and gasket. Las Rocker Arm Cover Spark Plug Hole

8. Pullthe starter rope slowly to bring the piston to the top

ofits travel, (known as top dead center). Check that: + The piston is at the top of its travel while looking in the spark plug hole (Fig. 70) *_ Both rocker arms move freely, and both valves are closed If these statements are not true, repeat this step.

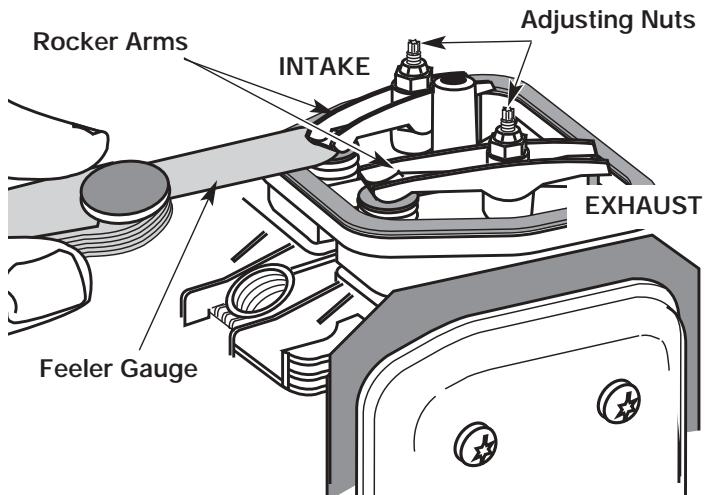

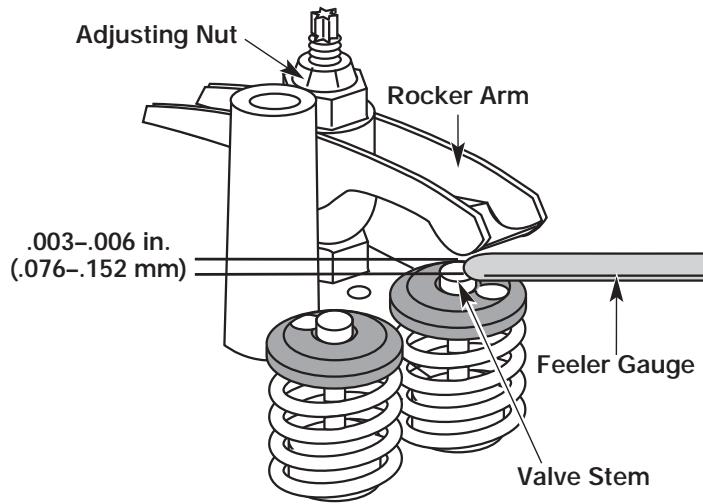

9. Slide the feeler gauge between the rocker arm and

the valve return spring. Measure the clearance between the valve stem and rocker arm (Fig. 71). Measure both the intake and exhaust valves. The recommended clearance for both intake and exhaust is .003 - .006 in. (.076 - 0.152 mm). Use a standard automotive .005 in. (0.127 mm) feeler gauge. The feeler gauge should slide between the rocker arm and valve stem with a slight amount of resistance, without binding. See Figure 71 and 72. Fig. 72

10. Ifthe clearance is not within specification:

a. Turn the adjusting nut using a 5/16 inch (8 mm) wrench or nut driver (Fig. 72). + To increase clearance, turn the adjusting nut counterclockwise. + To decrease clearance, turn the adjusting nut clockwise. b. Recheck both clearances, and adjust as necessary.

11. Reinstall the rocker arm cover using à new gasket.

Torque the screw to 20-30 in-1b (2.2-3.4 Nm).

12. Reinstall the engine cover. Check alignment of the

cover before tightening the screws. Tighten screws.

13. Reinstall the muffler cover. Slip the rear tab on the

muffler cover into the engine cover rear slot. Then slide the remaining slots into the tabs until they snap into place (Fig. 67).

MAINTENANCE AND REPAIR INSTRUCTIONS

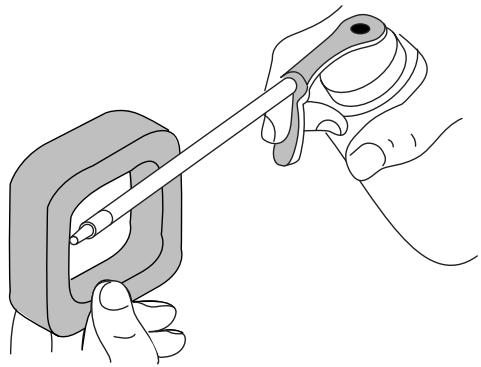

REPLACING THE SPARK PLUG SPARK ARRESTOR MAINTENANCE Use à replacement part ne TEE spark plug: The 1. Remove the muffler cover. See Rocker Arm Clearance. correct air gap is 0.025 in. (0.655 mm). Remove the plug 2. With a flat blade screwdriver or Torx T-20 bit, after every 25 hours of operation and check its remove the screw attaching the spark arrestor cover condition. to the muffler (Fig. 74).

1. Stop the engine and allow it to cool. Grasp the plug

wire firmly and pull the cap from the spark plug.

2. Clean dirt from around the spark plug. Remove the

spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

4. Remove the spark arrestor screen from the spark

WARNING: Do not sand blast, arrestor cover.

“ scrape or clean 5. Clean the spark arrestor screen with a wire brush or electrodes. Grit in the engine could damage replace it. the cylinder. 6 Reinstall the spark arrestor screen, spark arrestor cover and screw.

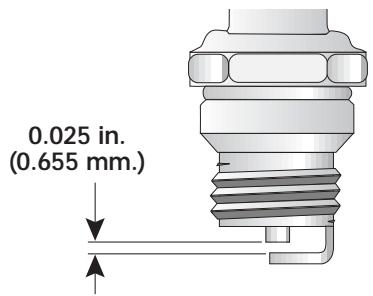

4. Install a correctly-gapped spark plug in the cylinder

head. Turn the 5/8 in. socket clockwise until snug. If using a torque wrench torque to: 110-120 in.elb. (12.3-13.5 Nem) Do not over tighten.

CLEANING WARN IN « To avoid serious “_ personal injury, always turn your unit off and allow it to cool before you clean or service it. Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth. STORAGE + Never store the unit with fuel in the tank where fumes may reach an open flame or spark.

• Allow the engine to cool before storing. + Lock up the unit to prevent unauthorized use or damage. + Store the unit in a dry, well-ventilated area. + Store the unit out of the reach of children.

1. Drain all gasoline from the gas tank into a container.

Do not use gas that has been stored for more than 60 days. Dispose of the old gasoline in accordance to Federal, State, and Local regulations.

2. Start the engine and allow it to run until it stalls. This

ensures that all gasoline has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and

put 1 oz. (30 ml) of high quality motor oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug. NOTE: Remove the spark plug and drain all of the oil from the cylinder before attempting to start the trimmer after storage.

4. Change the oil, referring to Changing the Oil.

Dispose of the old oil in accordance to Federal, State and Local regulations.

5. Thoroughly clean the unit and inspect for any loose

or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage. TRANSPORTING *__ Allow the engine to cool before transporting. + Secure the unit while transporting. + Drain the gas tank before transporting. *__Tighten gas cap before transporting.

ACCESSORIES/REPLACEMENT PARTS

4-Cycle Oil ....................,......... 181786 Spark Plug 180852 Spark Arrestor Screen ... 180890 Shoulder Strap .......................... 682075 For a full list of replacement parts, refer to the parts list located at the inside back cover of this manual.

CAUSE On/Off control in the STOP position Empty fuel tank Primer bulb wasn't pressed enough Old fuel Fouled spark plug Plugged spark arrestor ACTION Turn On/Off control to ON Fill fuel tank with new fuel Press primer bulb fully and slowly 10 times Drain gas tank and add fresh fuel Replace or clean the spark plug Clean or replace spark arrestor

ENGINE WILL NOT IDLE

CAUSE Air filter is plugged Old fuel Improper carburetor adjustment

ENGINE WILL NOT ACCELERATE

ACTION Replace or clean the air filter Drain gas tank and add fresh fuel Adijust carburetor CAUSE Old fuel Improper carburetor adjustment Cutting attachment bound with grass Dirty air filter Plugged spark arrestor ACTION Drain gas tank and add fresh fuel Take to an authorized service dealer for adjustment Stop the engine and clean the cutting attachment Clean or replace the air filter Clean or replace spark arrestor

ENGINE LACKS POWER OR STALLS WHEN

CAUSE Old fuel Improper carburetor adjustment Fouled spark plug Plugged spark arrestor

CUTTING ATTACHMENT WILL NOT ADVAN

CUTTING ACTION Drain gas tank and add fresh fuel Take to an authorized service dealer for adjustment Replace or clean the spark plug Clean or replace spark arrestor CE LINE CAUSE Cutting attachment bound with grass Cutting attachment out of line Inner reel bound up Cutting head dirty Line welded Line twisted when refilled Not enough line is exposed ACTION Stop the engine and clean cutting attachment Refill with new line Replace the inner reel Clean inner reel and outer spool Disassemble, remove the welded section and rewind Disassemble and rewind the line Push the bump knob and pull out line until 4 inches (102 mm) of line is outside of the cutting attachment

CUTTING LINE ADVANCES UNCONTROLL

CAUSE Oil, cleaner or lubricant in cutting head ABLY ACTION Clean and thoroughly dry the cutting head If further assistance is required, contact your authorized service dealer.

ECIFICATIONS ENGINE* Engine Type. Displacement. Operating RPM. Idle Speed RPM Ignition Type. Ignition Switch Valve clearance. Spark Plug Gap. Lubrication Crankcase Oil Capacity. … Air-Cooled, 4-Cycle

7,200+ rpm 3,000 - 4,500 rpm .…. Electronic Rocker Switch . 0.003-0.006 in. (0.076-0.152 mm) . 0.025 inch (0.655 mm) .… SAE 30 Oil

Fuel Unleaded Carbureto iaphragm, All-Position Starter. Auto Rewind Muffler … Baffled with Guard Throttle. . Manual Spring Return Fuel Tank Capacity . 12 0z (355 ml)

DRIVE SHAFT AN TTING ATTACHMENT*

Aluminum Tube (M26CS,YM26SS, YM26BC:EZ-Link”) Throttle Control … … Finger-Tip Trigger Approximate Unit Weight (No fuel, with handle, cutting attachment and shield) . 12-135 lbs (5.4-6 kg) Cutting Mechanism Dual String Cutting Head (YM26BC: 4-Tooth Cutting Blade) Line Spool....…… . Bump Line Releaser Line Spool Diameter 3 inches (76.2 mm) YM26BC Line Spool Diameter. 4 inches (101.6 mm) Trimming Line Diameter . 0.080 inches (2.03 mm) YM26BC Trimming Line Diameter . 0.095 inches (2.41 mm) YM26C0 &YM26CS Cutting Path Diameter . 15 inches (38.1 cm) YM26SS Cutting Path Diameter. . 16 inches (40.6 cm) YM26BC Cutting Path Diameter. . 18 inches (45.7 cm) Drive Shaft Housing. *ll specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

EPA Emission Control Warranty Statement Your Warranty Rights and Obligations The Environmental Protection Agency and MTD LLC (MTD) are pleased to explain the emission control system warranty on your 2002 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards. MTD must warrant the emission control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine. Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies. Where a warrantable condition exists, MTD will repair your small off-road engine at no cost to you including diagnosis, parts and labor. The 2002 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced my MTD. Owners Warranty Responsibilities - As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operators manual. MTD recommends that you retain all receipts covering maintenance on your small off-road engine, but MTD cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you however should be aware that MTD may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. + You are responsible for presenting your small off-road engine to a MTD Authorized Service Center as soon as à problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-345-8746. Manufacturer's Warranty Coverage - The warranty period begins on the date the engine or equipment is delivered to the retail purchaser. + The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and workmanship which cause the failure of a warranted part for a period of two years. + Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized MTD Service Center. For the nearest location please contact MTD at: 1-800-345-8746.

• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part. + The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at an Authorized MTD Service Center. + The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

• Failures caused by abuse, neglect or improper maintenance are not covered under warranty. - The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of warranted parts caused by the use of add-on or modified parts.

• In order to file a claim, go to your nearest Authorized MTD Service Center. Warranty services or repairs will be provided at all Authorized MTD Service Centers.

• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer + The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.

MANUFACTURER'S LIMITED WARRANTY FOR: YARD-MAN / by M The limited warranty set forth below is given by MTD LLC (‘MTD”) with respect to new merchandise purchased and used in the United States, its possessions and territories. MTD warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operators Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (00) days from the date of original retail purchase for any MTD product that is used for rental or commercial purposes, or any other income-producing purpose. HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, please check for a listing in the Yellow Pages or contact the Customer Service Department of MTD LLC by calling 1-800-345-8746 or writing to P.O. Box 361131, Cleveland OH 44136-0019 or if in Canada call 1-800-668-1238. No product returned directly to the factory will be accepted unless prior written permission has been extended by the Customer Service Department of MTD LLC. This limited warranty does not provide coverage in the following cases: A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters. B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts. C. MTD does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through MTD's authorized channels of export distribution. MTD reserves the right to change or improve the design of any MTD Product without assuming any obligation to modify any product previously manufactured. No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express Warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind MTD. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.) The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. MTD shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.) In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product. This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift. How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To locate your nearest service dealer dial 1-800-345-8746 in the United States or 1-800-668-1238 in Canada. MTD LLC P.0. Box 361131 Cleveland, OH 44136-0019

SPÉCIFICATIONS RELATIVES AU PRODUIT

INSTRUCTIONS D'ARRÊT

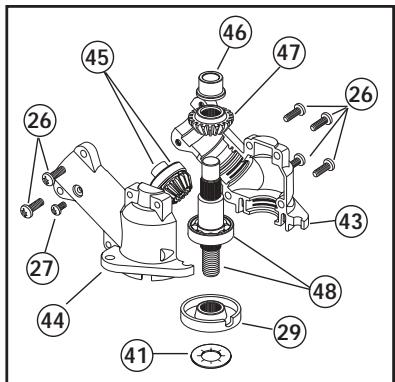

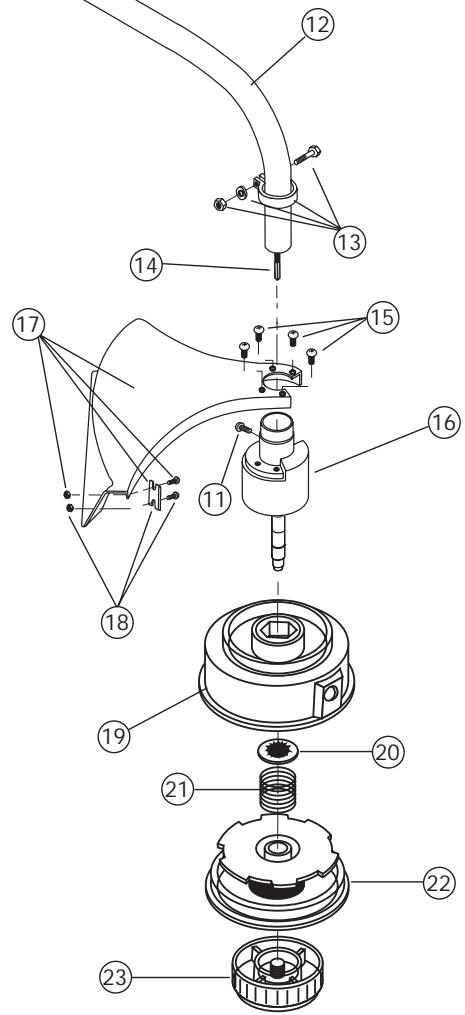

• Items Not Shown = E35

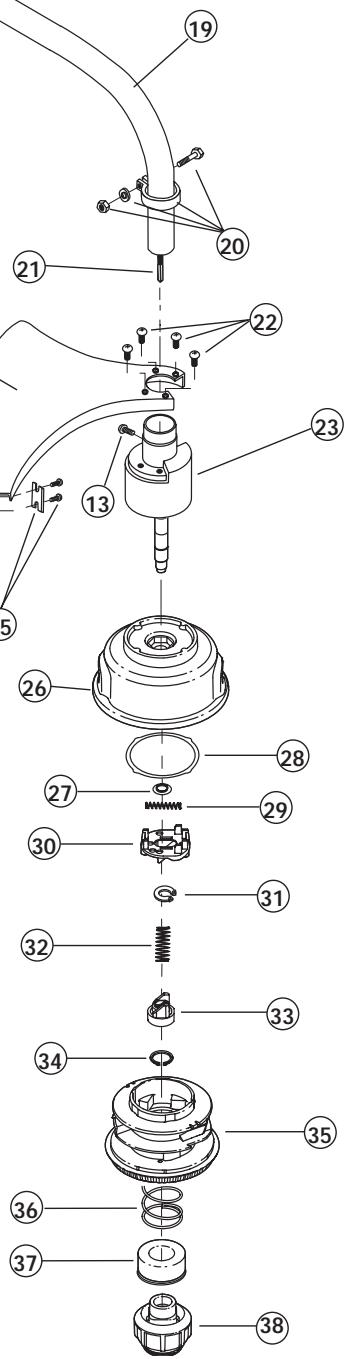

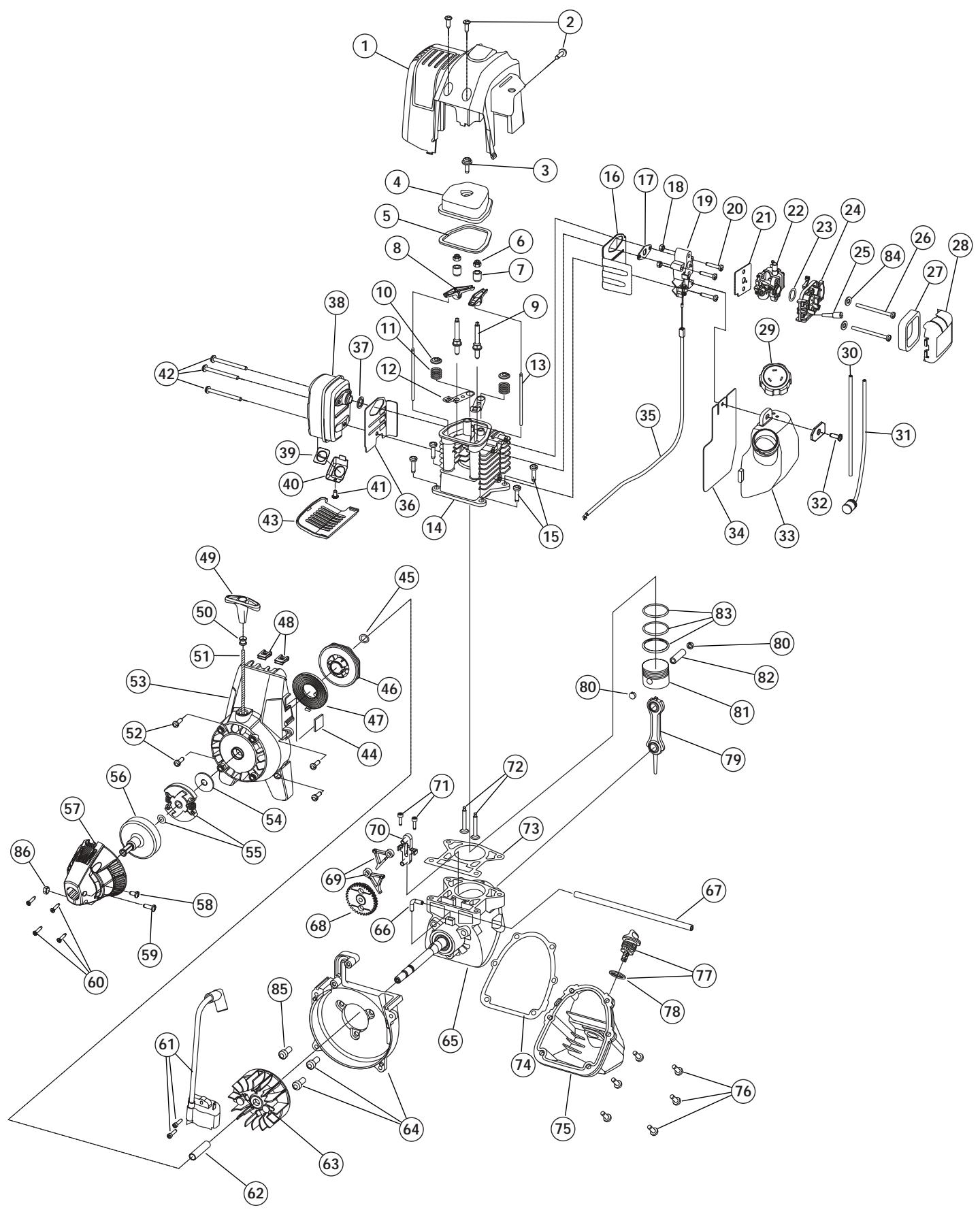

• 753-04014 Description Pulley Retainer Recoil Pulley Recoil Spring Nut Clip Pull Handle Rope Guide Rope Starter Housing Screw Starter Housing Assembly (includes 45-52) Clutch Washer Clutch with Spacer Clutch Drum Clutch Cover Anti-Rotation Screw Screw Clutch Cover Screw Ignition Module with Screws Spacer Flywheel Shroud Assembly w\Screws Crankcase Assembly (includes 66 & 67) 90° Elbow Breather Hose Cam Gear Cam Follower Cam Bracket Cam Bracket Screw Valves, Intake and Exhaust Cylinder Gasket Oil Pan Gasket Oil Pan (includes 74 & 76) Oil Pan Screw Dipstick Assembly (includes 78) O-Ring Connecting Rod Wrist Pin Button Piston Wrist Pin Piston Ring Set Washer Screw Nut Spark Plug Short Block Assembly (includes 3-15, 65-84) Starter Pawl Repair Kit Carburetor Repair Kit

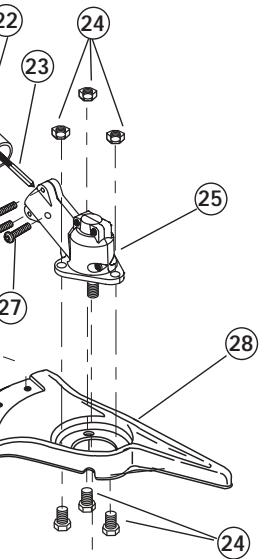

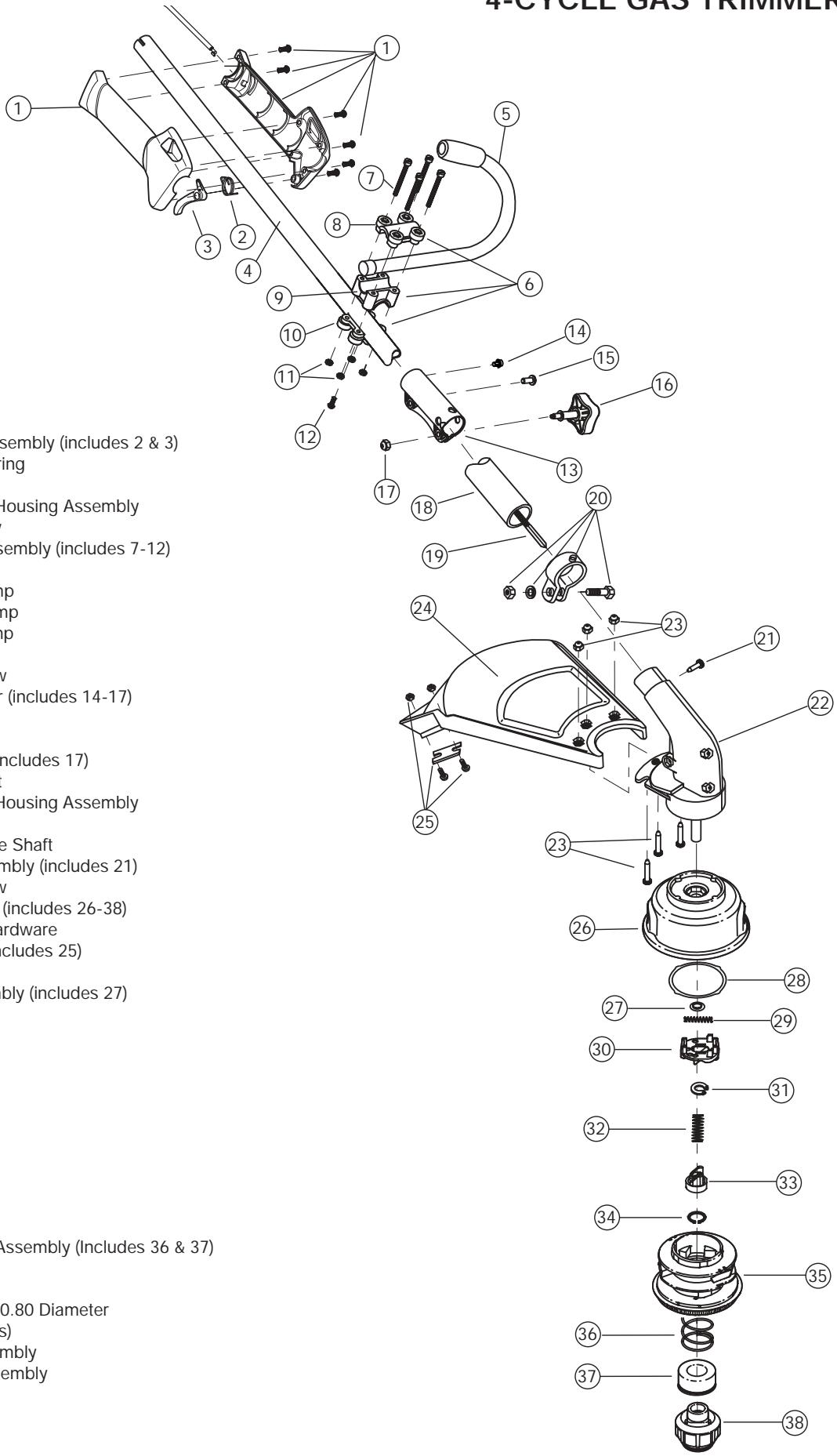

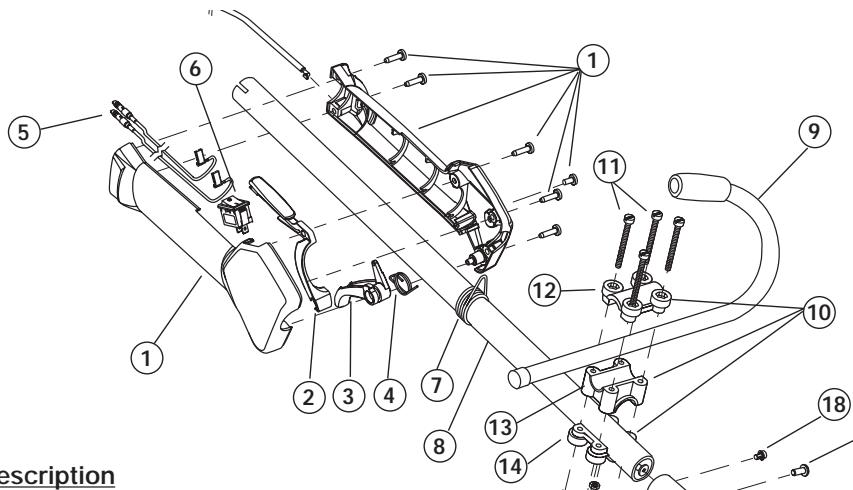

Description Throttle Housing Assembly (includes 2-4) Throttle Trigger Lock-Out Throttle Trigger Throttle Trigger Spring Lead Wire Assembly Switch Assembly (includes 5) Hamess Clip Upper Drive Shaft Housing Assembly J-Handle Assembly Hande Bracket Assembly (includes 11-16) Screw Upper Handle Clamp Middle Handle Clamp Lower Handle Clamp Nut Anti-Rotation Screw Split Boom Coupler (includes 18-21) Screw Bolt Adjustment Knob Knob Retaining Nut Lower Drive Shaft Housing Assembly Lower Flexible Drive Shaft Shield Mount Screw Assembly 2 piece Gearbox Assembly (includes 26, 27, 29, 33, 41 & 43-48) Gearbox Mounting Hardware ! Anti-Rotation Screw Blade Shield/Shield Mount 1 Blade Driver Shield Mounting Screw &—& Shield Assembly (includes 33) Blade Assembly @— Se Retaining Washer Spool Shaft Outer Spool Assembly (includes 37) Retainer Spring Inner Reel Bump Head Knob Assembly 4-Tooth Blade Palnut Nut Blade Retaining Kit (includes 34 & 43) Locking Rod Tool 2 Piece Gearbox Assembly Parts - Item 25 Shoulder Hamess 43 791-182191 Left Housing 44 791-182192 Right Housing 45 791-182194 Pinion Gear Assembly 46 791-182199 Output Shaft Bushing 47 791-182198 Output Shaft Gear 48 791-182197 Output Shaft Assembly (includes 46 & 47) E39
