USER MANUAL 41ADT25C066 MTD

Tecnicaly Dramatically Reduces Starting Effort!

Experience AST - Just pull.
Starts with a slow and steady pull.

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

INTRODUCTION

THANK YOU

Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You will find it to be a great labor-saving device. This operator's manual provides you with easy-to-understand operating instructions. Read the whole manual and follow all the instructions to keep your new outdoor power tool in top operating condition.

PRODUCT REFERENCES, ILLUSTRATIONS AND SPECIFICATIONS

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

Copyright © 2003 MTD SOUTHWEST INC, All Rights Reserved.

SERVICE INFORMATION

Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer.

For service call 1-800-520-5520 to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.troybilt.com.

DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

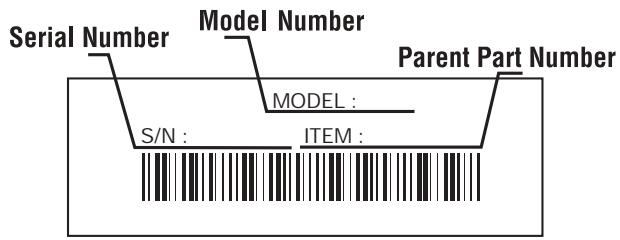

Before beginning, locate the unit's model plate. It lists the model and serial numbers of your unit. Refer to the sample plate below and copy the information for future reference.

Copy the model and parent part number here:

Copy the serial number here:

Make sure you carefully read and understand this manual before starting or operating this equipment.

THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS. OTHER PATENTS PENDING.

TABLE OF CONTENTS

Service Information 2

Rules for Safe Operation 3

Know Your Unit 6

Assembly Instructions 7

Oil and Fuel Information 8

Starting/Stopping Instructions 9

Operating Instructions 10

Maintenance and Repair Instructions 12

Cleaning and Storage 18

Accessories and Replacement Parts 18

Troubleshooting Chart 19

Specifications 20

Warranty Information 22

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrester, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrester. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part #182747 Spark Arrestor Kit.

CALIFORNIA PROPOSITION 65 WARNING

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

SAFETY ALERT: Indicates danger, warning or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

Read the Operator's Manual(s) and follow all warnings and safety instructions.
Failure to do so can result in serious injury to the operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-520-5520

SYMBOL MEANING

DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION: Failure to obey a safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

- IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS

BEFORE OPERATING

WARNING: When using the unit, you must follow the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.
• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.
• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.
• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Be aware of the risk of injury to the head, hands and feet.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.

• Use only 0.095 inch (2.41 mm) diameter Genuine Factory Parts™ replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.
• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.
• This unit was not designed to be used as a brushcutter. Do not attach or operate this unit with any type of brushcutting blade or brushcutting attachment.

SAFETY WARNINGS FOR GAS UNITS

WARNING: Gasoline is highly flammable, and its vapors can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed and approved for the storage of such materials.
• Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank, or add fuel, when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• Mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Slowly remove the fuel cap only after stopping engine. Do not smoke while fueling or mixing fuel. Wipe up any spilled fuel from the unit immediately. Always wipe unit dry before using.
• Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke or allow sparks and open flames near the area while adding fuel or operating the unit.

WHILE OPERATING

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well ventilated outdoor area.
• Wear safety glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards. Also wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty. Long sleeve shirts are recommended.
• Wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.
• The cutting attachment shield must always be in place while operating the unit. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.
• This unit has a clutch. The cutting attachment remains stationary when the engine is idling. If it does not, have the unit adjusted by an authorized service technician.
• Adjust the D-handle to your size to provide the best grip.
• Be sure the cutting attachment is not in contact with anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. See Starting/Stopping Instructions.
• Use the right tool. Only use this tool for the purpose intended.
• Do not overreach. Always keep proper footing and balance.

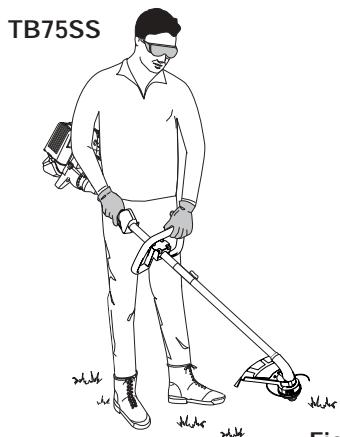

• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.

• Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting attachment when it is rotating.

• Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after you turn off the unit.
• Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when you are not cutting.
• Always stop the engine when cutting is delayed or when walking from one cutting location to another.
• If you strike or become entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.
• Stop and switch the engine to off for maintenance, repair, or for changing the cutting attachment or other attachments.

Use only Genuine Factory Parts™ replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void your warranty.

• Keep unit clean of vegetation and other materials. They may become lodged between the cutting attachment and shield.
• To reduce fire hazard, replace faulty muffler and spark arrestor, keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

OTHER SAFETY WARNINGS

• Never store the unit, with fuel in the tank, inside a building where fumes may reach an open flame or spark.
• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.
• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use. See the Cleaning and Storage instructions.
• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL

MEANING

- SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.

WARNING - READ OPERATOR'S MANUAL

Read the Operator's Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

- WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

- KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m.) from the operating area.

- UNLEADED FUEL

Always use clean, fresh unleaded fuel.

OIL

Refer to operator's manual for the proper type of oil.

SYMBOL

MEANING

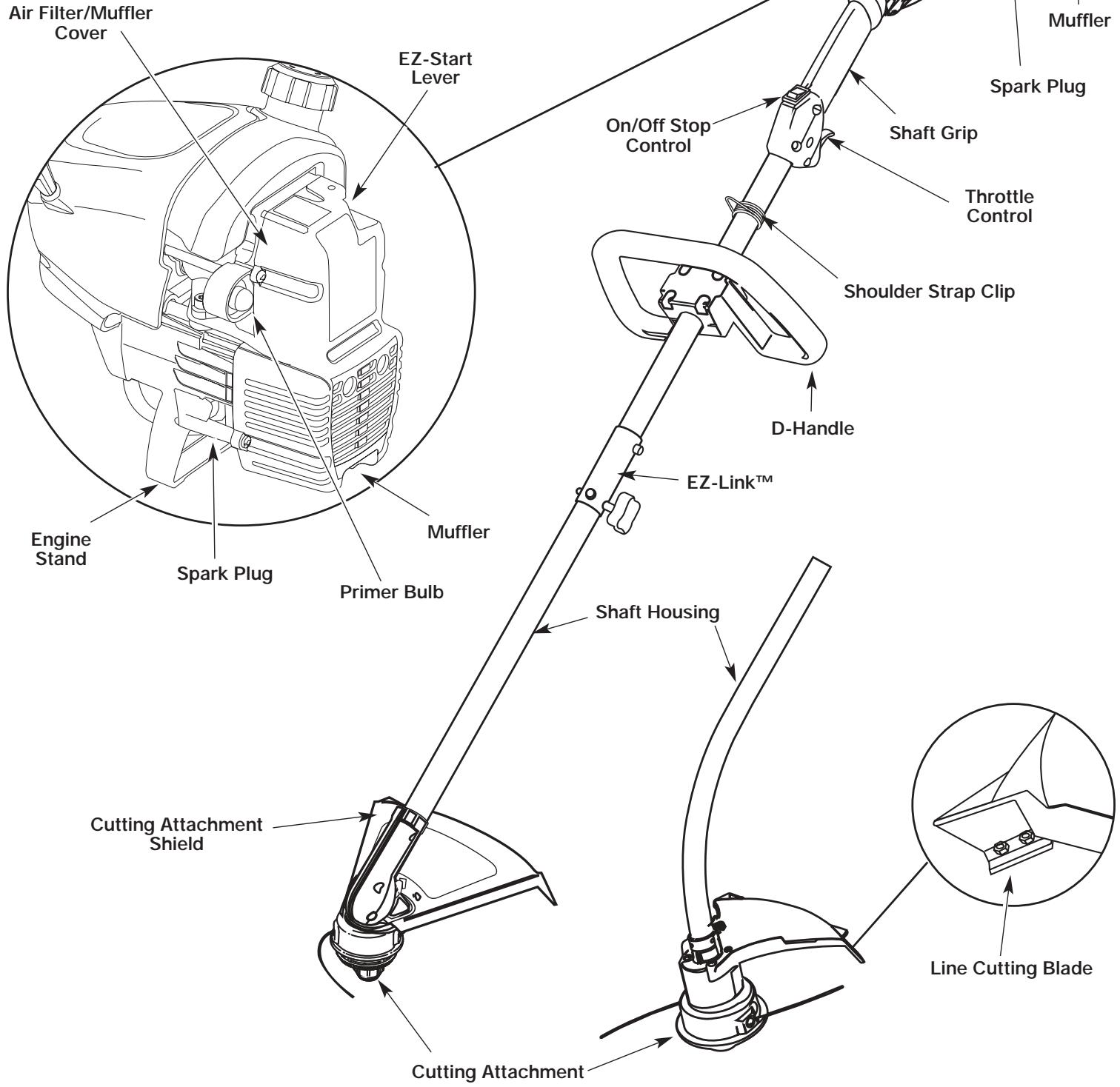

- THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Do not operate without the cutting attachment shield in place. Keep away from the rotating cutting attachment.

ON/OFF STOP CONTROL ON / START / RUN

ON/OFF STOP CONTROL OFF or STOP

• HOT SURFACE WARNING
• Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time.

SHARP BLADE
WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do not touch line cutting blade.

Cutting grass and light weeds.
- Edging

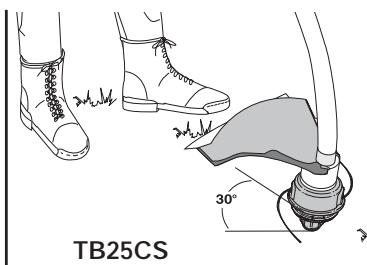

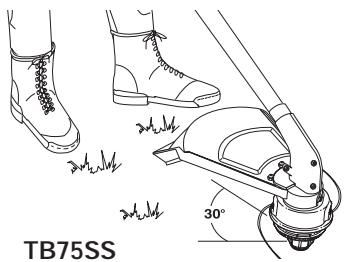

- Decorative trimming around trees, fences, etc.

Other optional accessories may be used with the TB75SS and TB25CS. Refer to Operating the EZ-Link System for a list of add-ons.

ASSEMBLY INSTRUCTIONS

INSTALLING AND ADJUSTING THE D-HANDLE Install

1. Remove the screws and bottom clamp piece that were installed on the D-handle for shipping.
2. Place D-handle the over the shaft housing and onto the bottom clamp (Fig. 1). Place it a minimum of 6 inches (15.24cm) from the end of the shaft grip.
3. Start screws with a large Flat-head or T-25 Torx screwdriver. Do not tighten until you make the handle adjustment.

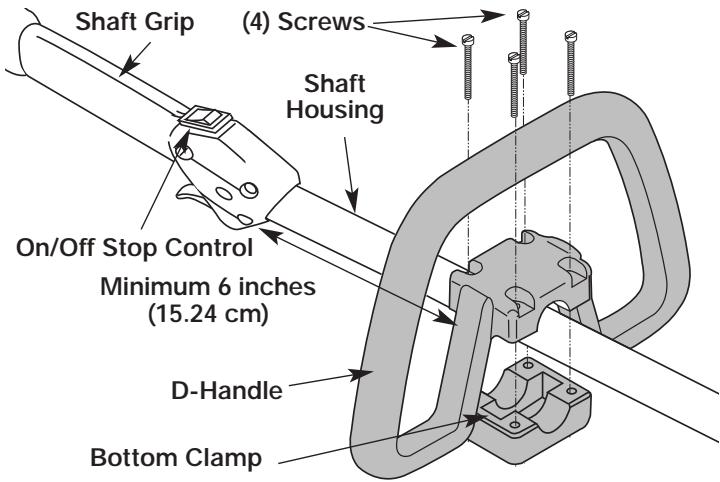

Adjust

1. If the D-handle was pre-installed, loosen the screws on the handle just enough to move it.

Fig. 1

1. While holding the unit in the operating position, maneuver the D-handle to the location that provides you the best grip.
2. Tighten the clamp screws evenly, until the D-handle is secure.

INSTALLING THE CUTTING ATTACHMENT SHIELD

Use the following instructions if the cutting attachment shield on your unit is not installed or if you ever need to re-install it.

WARNING: Never operate the trimmer without the cutting attachment shield in place to prevent serious personal injury.

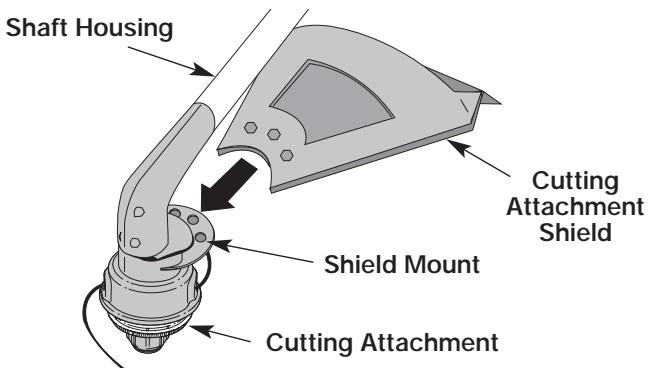

Install on a Straight Shaft (TB75SS)

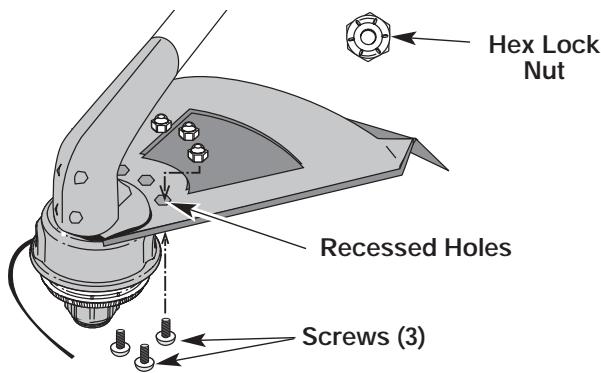

1. Slide the cutting attachment shield into the shield mount on the cutting attachment. Align the screw holes in the shield with the holes in the cutting attachment (Fig. 2).
2. Place a hex lock nut into one of the three recessed holes on the top of the cutting attachment shield (Fig 3).
3. Install a screw into the hole from the bottom of the cutting attachment shield and screw it into the nut installed in step 2 (Fig 3). Do not tighten.
4. Repeat steps 2 and 3 until all three screws have been started, then tighten securely.

Fig. 2

Fig. 3

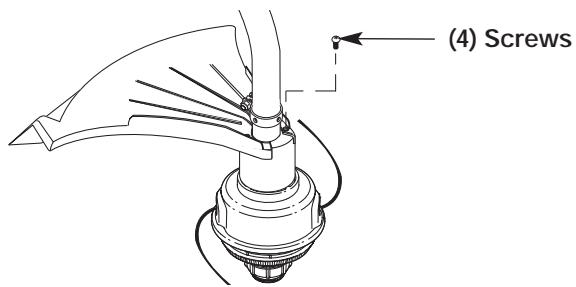

Install on a Curved Shaft (TB25CS)

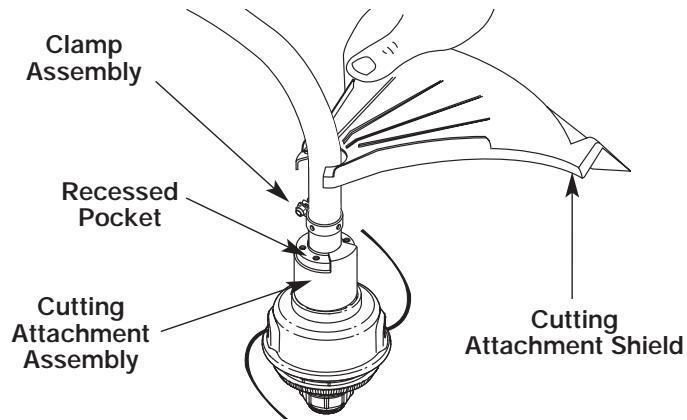

1. Place the cutting attachment shield onto the shaft housing above the clamp assembly (Fig. 4).
2. Push the cutting attachment shield down to the top of the cutting attachment assembly and then rotate the cutting attachment shield until the screw holes align and the guard fits into the recessed pocket (Fig. 4).
3. Install the screws with a Phillips screwdriver (Fig. 5).

Fig. 4

Fig. 5

OIL AND FUEL INFORMATION

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 60 days old).

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in your operator's manual
• Always agitate the fuel mix before fueling the unit
• Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use our 2-cycle oil with this unit. If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL® Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

CAUTION: For proper engine operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table below for specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed with one 3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

MIXING RATIO - 40:1

+ UNLEADED GAS	2 CYCLE OIL
1 GALLON US (3.8 LITERS)	3.2 FL. OZ. (95 ml)
1 LITER	25 ml

WARNING: Gasoline is extremely flammable. Ignited Vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING: Add fuel in a clean, well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate.

NOTE: Dispose of the old fuel/oil mix in accordance to Federal, State and Local regulations.

STARTING/STOPPING INSTRUCTIONS

WARNING: Operate this unit only in a well-ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING: Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope (Fig. 8). To avoid serious injury, the operator and unit must be in a stable position while starting.

Make sure that any Add-On item is installed correctly and secure before starting the unit.

Fig. 6

STARTING INSTRUCTIONS

1. Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.
   NOTE: There is no need to turn the unit on. The On/Off Stop Control is in the ON (1) position at all times.
2. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 7). If you can't see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

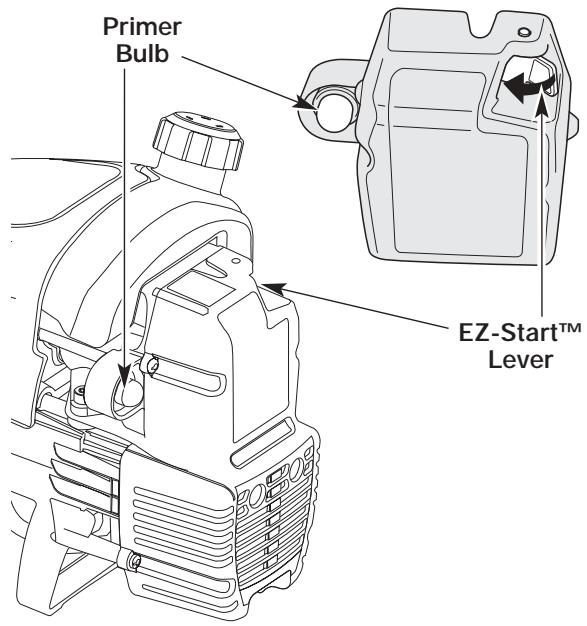

3. Push the EZ-Start™ Lever towards the primer bulb until it clicks and locks into place (Fig. 7).

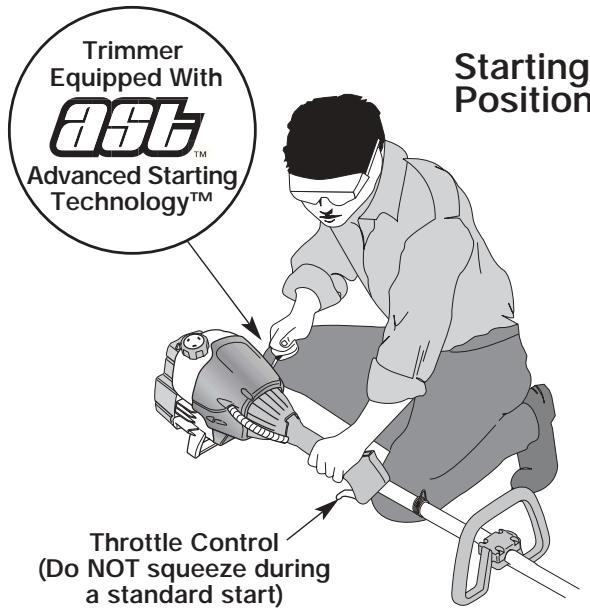

4. Crouch in the starting position and do not squeeze the throttle control (Fig. 8). Pull the starter rope out with a controlled and steady motion until the engine attempts to start. Repeat until the engine starts.
   NOTE: The unit uses Advanced Starting Technology™, which significantly reduces the effort required to start the engine. You must pull the starter rope out far enough to hear the engine attempt to start. There is no need to pull the rope briskly-- there is no harsh resistance when pulling. Be aware that this starting method is vastly different from (and much easier than) what you may be used to.
5. When the engine starts, squeeze the throttle control for 15 to 30 seconds. This will warm up the unit. The EZ-Start™ Lever will click off automatically when you squeeze the throttle control.
   IF... The engine does not start, go back to step 2.
   IF... The engine stops while you are squeezing the throttle, go back to step 3.
   IF... The engine stops before you squeeze the throttle control, hold the throttle control and pull the starter rope until the trimmer starts.
   NOTE: If you are having trouble starting the unit or are operating in extreme temperatures (below 40^ F, above 90^ F), refer to the Troubleshooting section.

STOPPING INSTRUCTIONS

1. Release your hand from the throttle control. Allow the engine to cool down by idling.
2. Put the On/Off Stop Control in the OFF (O) position (Fig. 6).

Fig. 7

Fig. 8

OPERATING INSTRUCTIONS

WARNING: Read and understand the operator's manual for each add-on prior to operation.

Removing the Cutting Attachment or Add-Ons

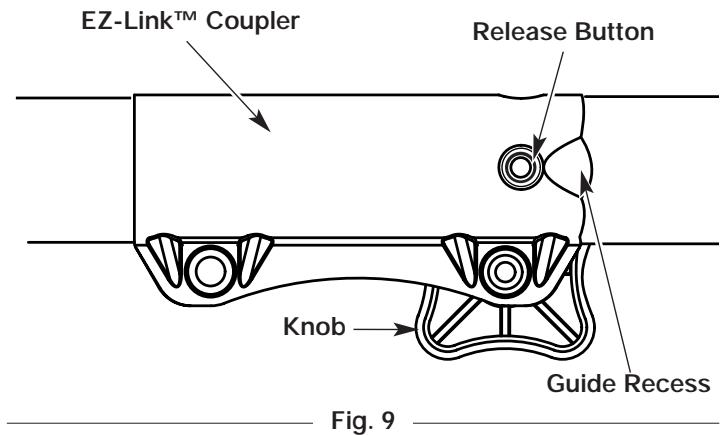

1. Turn the knob counterclockwise to loosen (Fig. 9).
2. Press and hold the release button (Fig. 9).
3. While firmly holding the upper shaft housing, pull the cutting attachment or add-on straight out of the EZ-Link™ coupler (Fig. 10).

WARNING: To avoid serious personal injury and damage to the unit, shut unit off before removing or installing add-ons.

Installing the Cutting Attachment or Add-Ons

NOTE: To make installing or removing the add-on easier, place the unit on the ground or on a work bench.

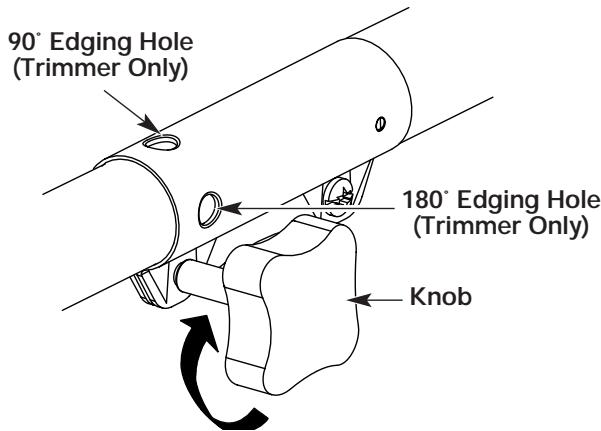

1. Turn knob counterclockwise to loosen (Fig. 9).

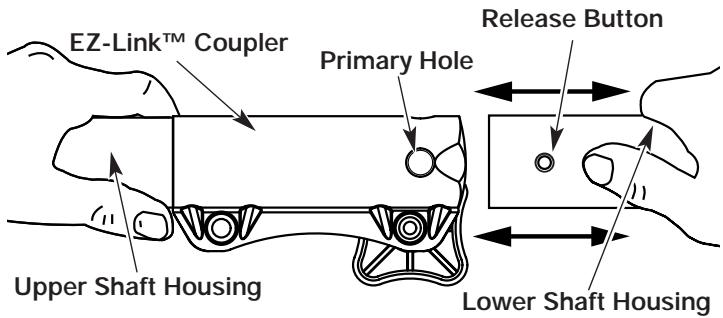

1. While firmly holding the add-on, push it straight into the EZ-Link™ coupler (Fig. 10).

NOTE: Aligning the release button with the guide recess will help installation (Fig. 9).

Fig. 10

1. Turn the knob clockwise to tighten (Fig. 11).

CAUTION: Lock the release button in the primary hole and securely tighten the knob before operating this unit.

Fig. 11

CAUTION: The cutting attachment and add-ons with the EZ-Link™ system are to be used in the primary hole unless stated otherwise in the specific add-ons operator's manual. Using the wrong hole could lead to personal injury, or damage to the unit.

For edging (when using the line head cutting attachment with EZ-Link™ models), lock the release button of the cutting attachment into the 90^ edging hole or the 180^ edging hole (Fig. 11).

OPERATING INSTRUCTIONS

HOLDING THE TRIMMER

WARNING: Always wear eye, hearing, foot and body protection to reduce the risk of injury when operating this unit.

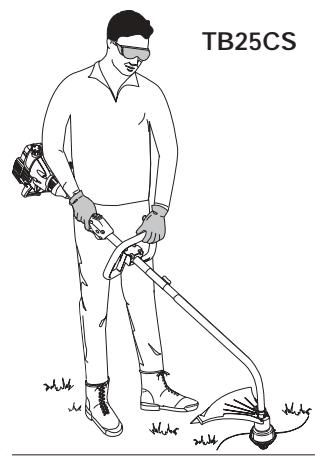

Before operating the unit, stand in the operating position (Fig. 12). Check for the following:

• The operator is wearing eye protection and proper clothing
• With a slightly-bent right arm, the operator's hand is holding the shaft grip
• The operator's left arm is straight, the left hand holding the D-handle
  The unit is at waist level
• The cutting attachment is parallel to the ground and easily contacts the grass without the need to bend over

Fig. 12

ADJUSTING TRIMMING LINE LENGTH

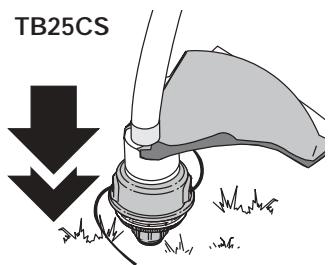

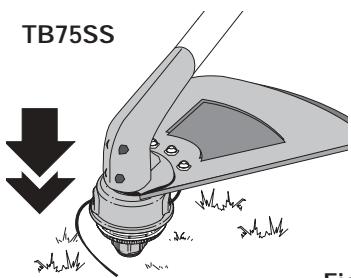

The Bump Head™ cutting attachment allows you to release trimming line without stopping the engine. To release more line, lightly tap the cutting attachment on the ground (Fig. 13) while operating the trimmer at high speed.

NOTE: Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

13

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line releases. A blade in the cutting attachment shield will cut the line to the proper length if any excess line is released.

For best results, tap the bump knob on bare ground or hard soil. If you attempt a line release in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

NOTE: Do not rest the Bump Head™ on the ground while the unit is running.

Some line breakage will occur from:

• Entanglement with foreign matter
  Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence posts

CAUTION: Do not remove or alter the line cutting blade assembly. Excessive line length will make the clutch overheat. This may lead to serious personal injury or damage to the unit.

TIPS FOR BEST TRIMMING RESULTS

• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag.
• Cut from right to left whenever possible. Cutting to the left improves the unit's cutting efficiency. Clippings are thrown away from the operator.
• Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forward-backward or side-to-side motion. Cutting shorter lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon:

Following the trimming techniques
What vegetation is being cut
Where vegetation is cut

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all vegetation around trees, posts, fences and more.

Rotate the whole unit so that the cutting attachment is at a 30^ angle to the ground (Fig. 14).

Fig. 14

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

WARNING: To prevent serious injury, never do maintenance or repairs with unit running. Always do maintenance and repairs on a cool unit. Disconnect spark plug wire to ensure the unit will not start.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer.

In order to assure peak performance of your engine, inspection of the engine exhaust port may be necessary after 50 hours of operation. If you notice lost RPM, poor performance or general lack of acceleration, this service may be required. If you feel your engine is in need of this inspection, refer service to any non-road engine repair establishment, individual or authorized service dealer for repair. DO NOT attempt to perform this process yourself as engine damage may result from contaminants involved in the cleaning process for the port.

FREQUENCY	MAINTENANCE REQUIRED	REFER TO
Before starting engine	Fill fuel tank with fresh fuel	Page 8
Every 10 hours	Clean and re-oil air filter	Page 15
Every 25 hours	Check and clean spark arrestor Check spark plug condition and gap	Page 16 Page 18
Every 50 hours	Inspect exhaust port and spark arrestor screen for clogging or obstruction to assure maximum performance levels	Page 16

LINE INSTALLATION FOR THE SPEEDSPOOL®

WARNING: Never use metal-reinforced line, wire, chain, or rope, etc. These can break off and become dangerous projectiles.

Always use Genuine Factory Parts™ 0.095 inch (2.41 mm) replacement line. Lines other than those specified may make the engine overheat or fail.

There are two methods to replace the SpeedSpool® trimming line:

• Wind the inner reel with new line
  Install a pre-wound inner reel

Winding the Inner Reel With New Line

NOTE: It Is unnecessary to remove the bump knob to install a new trimming line.

1. Cut two pieces of 0.095 inch (2.41 mm) trimming line, 10 feet (3 m) long.

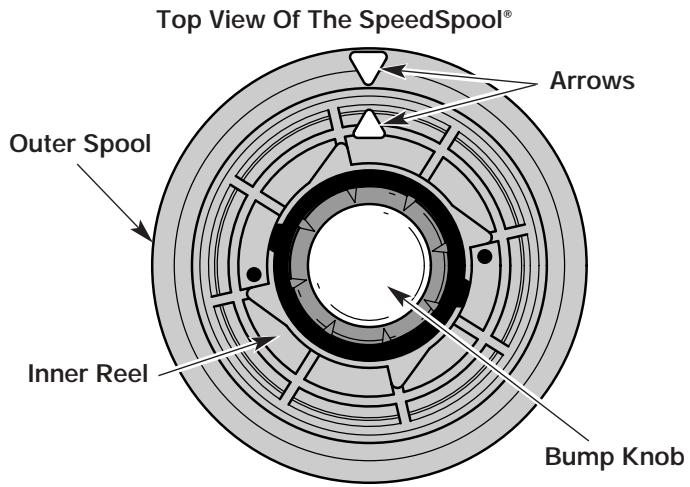

2. Hold the outer spool and turn the inner reel counterclockwise to line up the arrows on the outer spool and inner reel (Fig. 15).

WARNING: Always use the correct line length when installing trimming line on the unit. The line may not release properly if the line is too long.

Fig. 15

MAINTENANCE AND REPAIR INSTRUCTIONS

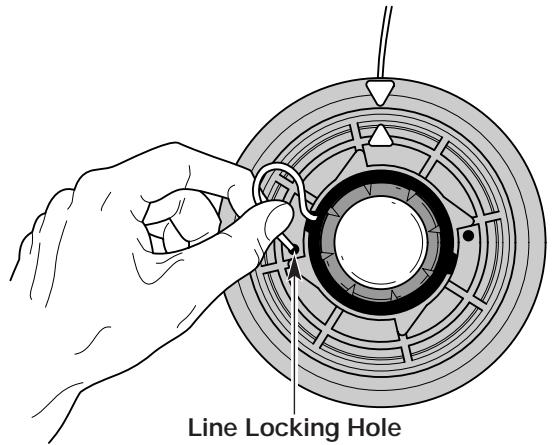

1. Pull old line out of the line loading and line locking holes (Fig. 16 and 17).

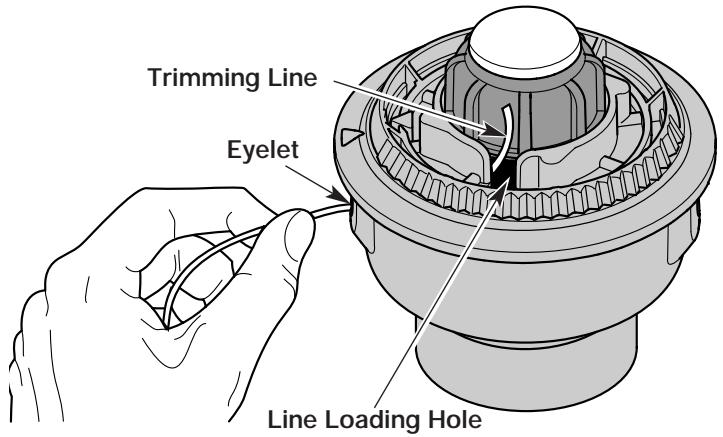

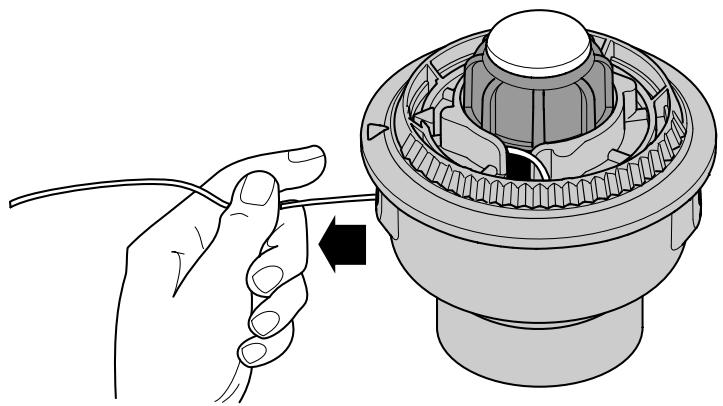

2. Insert a piece of trimming line straight into one of the two eyelets in the outer spool. Push it up through the line loading hole in the inner reel (Fig. 16). Do not bend the line when inserting it into the eyelet.

Fig. 16

1. Insert the line into the locking hole (Fig. 17). Do not push the line more than a 1/2 inch (12.7 mm) into the line locking hole. The line will form a small loop (Fig. 17) when it is inserted correctly.

Fig. 17

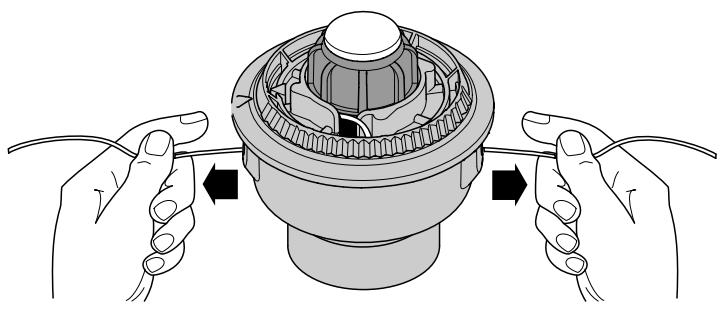

1. Pull the line from the outer spool until the line is tight against the inner reel (Fig. 18).

Fig. 18

1. Repeat procedures 4-6 with the second piece of line.

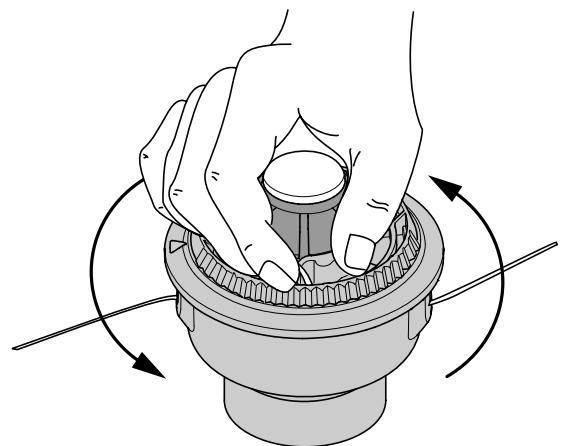

2. Hold the outer spool. Wind the inner reel counterclockwise until approximately four (4) inches (102 mm) of line remain (Fig. 19).

NOTE: Do not wind the inner reel before installing the second piece of line.

Fig. 19

1. If winding the line becomes difficult or if the line jams, pull the ends of the line from the spool (Fig. 20). Continue winding the inner reel counterclockwise.

Fig. 20

INSTALLING A PRE-WOUND REEL

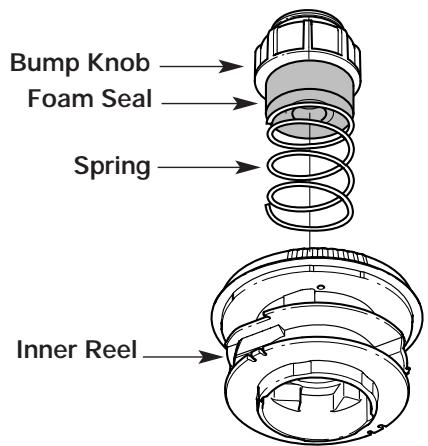

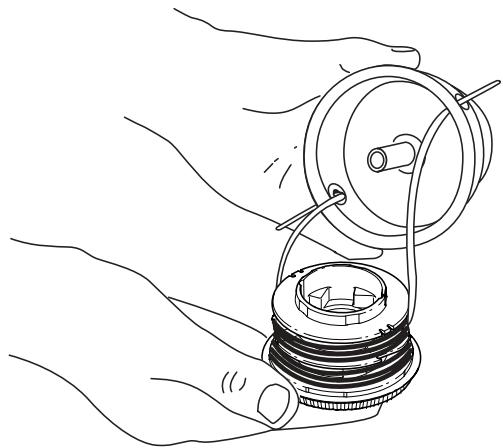

1. Turn the bump knob counterclockwise and remove the bump knob, spring and foam seal (Fig. 21).

Fig. 21

MAINTENANCE AND REPAIR INSTRUCTIONS

1. Pull the old inner reel with existing line from the outer spool.
2. Insert the ends of the prewound inner reel line into the outer spool eyelets (Fig. 22). Push the new inner reel, arrow side up, into the outer spool.

Fig. 22

1. Hold the inner reel in place and install the bump knob, spring and foam seal. Press down and turn the bump knob clockwise. Grasp the ends and pull firmly to release the line from the holding slots in the inner reel (Fig. 20).

Releasing the Inner Reel

If the SpeedSpool® does not release line correctly, pull the ends of the line firmly from the spool (Fig. 20). If this does not the release line, follow the Cleaning the SpeedSpool® instructions.

CLEANING THE SPEEDSPOOL

Cleaning the SpeedSpool® may be necessary if:

• A jammed or excessive line must be removed
• The SpeedSpool® becomes difficult to wind or does not operate correctly when bumping the head on the ground

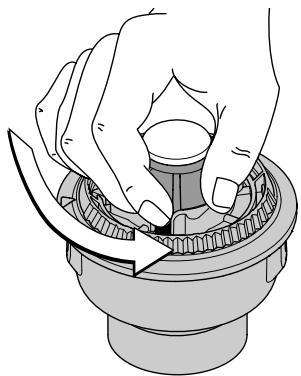

• Hold the outer spool, and unscrew the bump knob counterclockwise (Fig. 23).
• Pull out the bump knob, spring and foam seal (Fig. 21).

Fig. 23

1. Pull the inner reel with existing line from the outer spool.

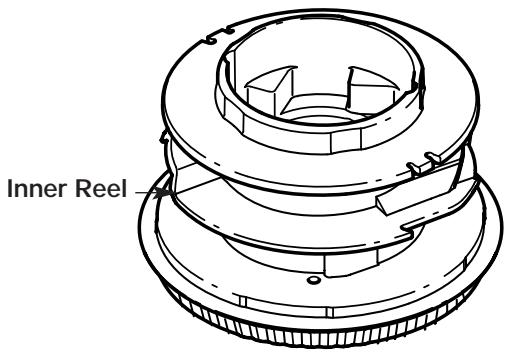

2. Remove any existing line from the inner reel before cleaning. Remove any debris or grass from the knob, spring, inner reel and foam seal. Wash the inner reel with warm soapy water (Fig. 24).

Fig. 24

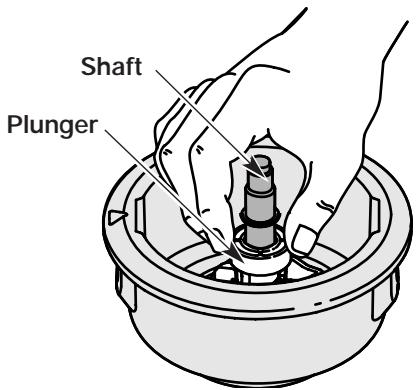

1. Clean the shaft and the inner surface of the outer spool. To clean the shaft underneath the plunger, press down on the plunger (Fig. 25). Remove any dirt or debris from the shaft.

Fig. 25

NOTE: The inner reel must be totally dry before reinstalling it into the outer spool. Do not lubricate the inner reel or outer spool assembly.

1. Place the inner reel into the outer spool.
2. Place the bump knob, spring and foam seal onto the inner reel (Fig. 21).
3. Press the bump knob down and tighten clockwise.
4. Install new line as described in Line Installation for the SpeedSpool®.

SPEEDSPOOL® REPLACEMENT PARTS

Replacement Line 180120
Replacement Line Cartridge 753-04218
Inner Reel Spring 181465
Foam Seal 181467
Inner Reel 181464
Bump Knob Assembly 181468

These SpeedSpool® replacement parts can be purchased from your local authorized dealer.

MAINTENANCE AND REPAIR INSTRUCTIONS

AIR FILTER MAINTENANCE

Removing the Air Filter/Muffler Cover

WARNING: To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean or service it.

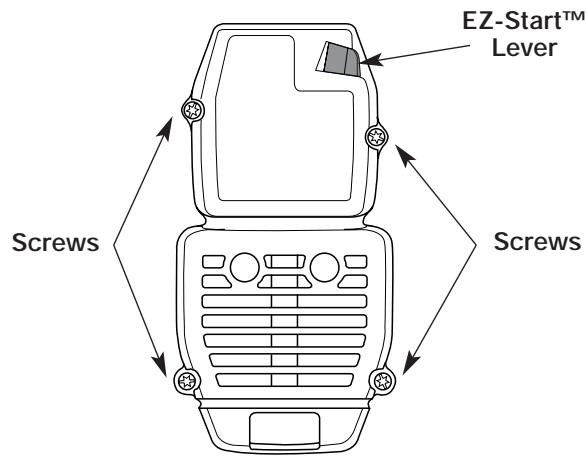

1. Remove the four (4) screws securing the air filter/muffler cover (Fig. 26). Use a flat blade or T20 Torx bit screwdriver.
2. Pull the cover from the engine. Do not force.

Fig. 26

Cleaning the Air Filter

Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Failure to maintain the air filter will Void the warranty.

1. Remove air filter/muffler cover. Refer to Removing the Air Filter/Muffler Cover.

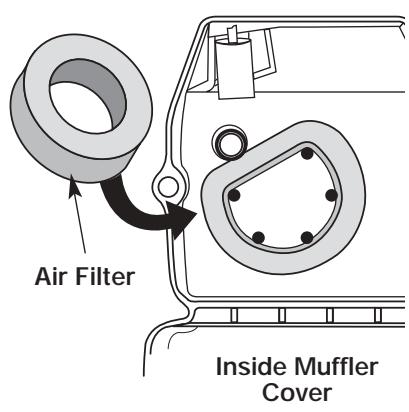

2. Turn cover over and look inside to locate the air filter. Remove the air filter from inside the air filter/muffler cover (Fig. 27).

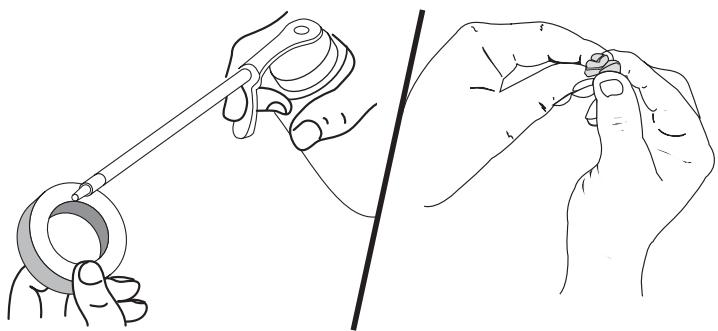

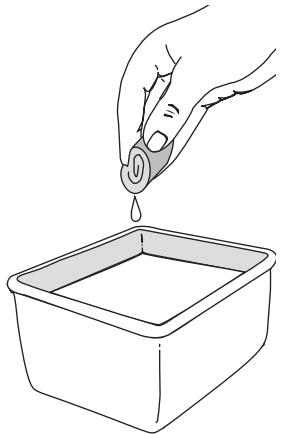

3. Wash the filter in detergent and water (Fig. 28). Rinse the filter thoroughly. Squeeze out excess water. Allow it to dry completely.
4. Apply enough clean SAE 30 oil to lightly coat the filter (Fig. 29).
5. Squeeze the filter to spread and remove excess oil (Fig. 30).

Fig. 27

Fig. 28

Fig. 29
Fig. 30

1. Replace the air filter inside the air filter/muffler cover (Fig. 27).

NOTE: Operating the unit without the air filter and air filter/muffler cover assembly will Void the warranty.

Reinstalling the Air Filter/Muffler Cover

1. Place the air filter/muffler cover over the back of the carburetor and muffler. Align the screw holes.
2. Insert the four (4) screws into the holes in the air filter/muffler cover (Fig. 26) and tighten. Do not over tighten.

MAINTENANCE AND REPAIR INSTRUCTIONS

SPARK ARRESTOR MAINTENANCE

1. Remove the air filter/muffler cover. See Removing the Air Filter/Muffler Cover.

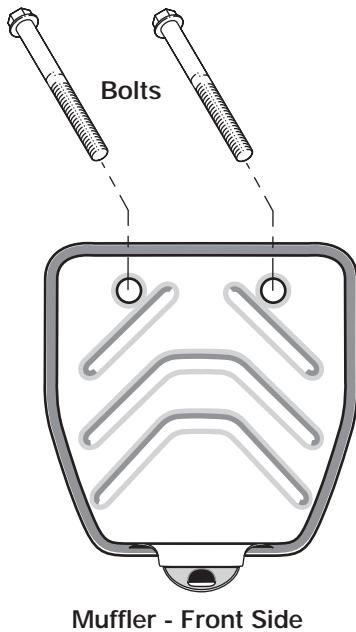

2. Locate the muffler front and the two (2) bolts securing it to the engine (Fig. 31). Remove the two (2) bolts using a flatblade screwdriver or 5/16-inch socket or nut driver. Pull the muffler off of the engine.

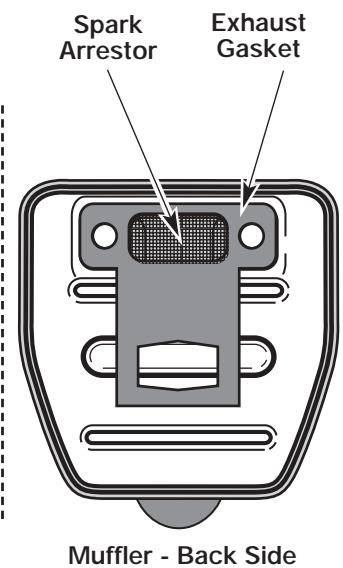

3. Turn the muffler over to the back side and locate the exhaust gasket. Remove the muffler gasket from the muffler (Fig. 31).

NOTE: If exhaust gasket is torn or damaged, replace with a new gasket before reassembling muffler.

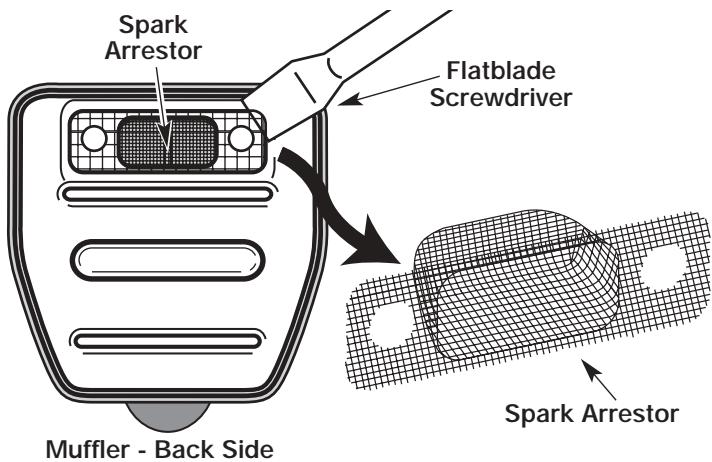

1. Using a small flatblade screwdriver, carefully pry up the spark arrestor from the recessed hole (Fig. 32). Remove the spark arrestor from muffler.
2. Clean the spark arrester with a wire brush. Replace it if it is damaged or if it is impossible to clean thoroughly (Fig. 32).
3. Reinstall the spark arrester by pressing it into the recessed hole on the muffler's back side. Make sure it fits tightly against the muffler and is not raised up.
4. Place the exhaust gasket against the muffler's back side. Align the exhaust gasket bolt holes with the bolt holes in the muffler. While holding the exhaust gasket in place, insert bolts into muffler's front side (Fig. 31).
5. Place the muffler (with the exhaust gasket in place and the bolts inserted) against the engine, aligning the bolt holes. Tighten the bolts to secure the muffler to the engine.

If using a torque wrench torque to: 80-90 in. • lb. (9-10.2 N • m).

WARNING: If muffler is not tightened securely, it could fall off causing damage to the unit and possible serious personal injury.

1. Reinstall air filter/muffler cover.

Fig. 31
Fig. 32

MAINTENANCE AND REPAIR INSTRUCTIONS

CARBURETOR ADJUSTMENT

The idle speed of the engine is adjustable through the air filter/muffler cover (Fig. 33).

NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments.

Check Fuel Mixture

Old and/or improperly mixed fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh, properly-mixed fuel prior to making any adjustments. Refer to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the operation of the unit. A dirty air filter will restrict air flow and change the air/fuel mixture. This is often mistaken for an out of adjustment carburetor. Check the condition of the air filter before adjusting the idle speed screw. Refer to Air Filter Maintenance.

Adjust Idle Speed Screw

If, after checking the fuel mixture and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run at a high idle for a minute to warm up. Refer to Starting/Stopping Instructions.

WARNING: The cutting attachment may be spinning during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

1. Release the throttle trigger and let the engine idle. If the engine stops, insert a small phillips or flat blade screwdriver into the hole in the air filter/muffler cover (Fig. 33). Turn the idle speed screw in, clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly.

Fig. 33

NOTE: The cutting attachment should not rotate when the engine idles.

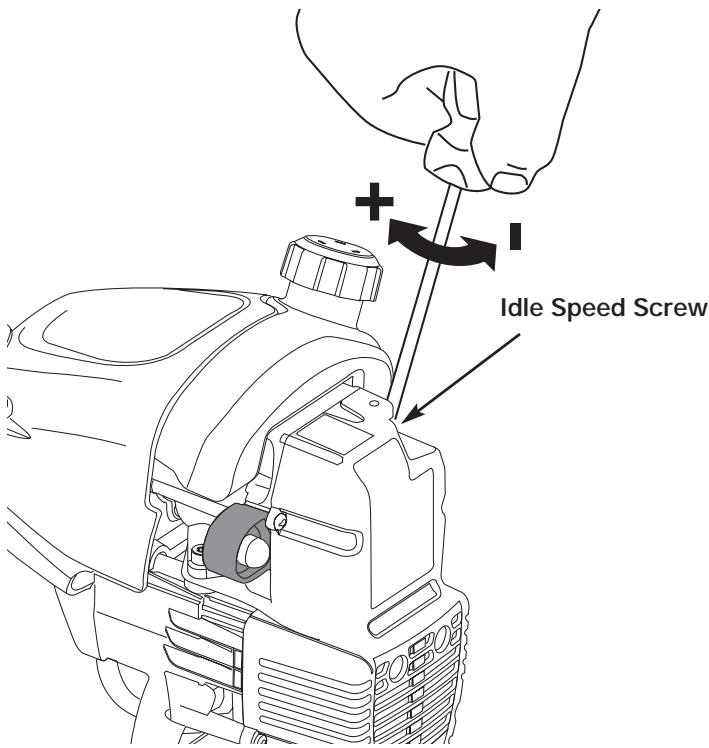

1. If the cutting attachment rotates when the engine idles, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and adjusting the idle speed should solve most engine problems.

If not and all of the following are true:

• The engine will not idle
• The engine hesitates or stalls on acceleration
• There is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

WARNING: When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down. This will help to prevent serious personal injury.

MAINTENANCE AND REPAIR INSTRUCTIONS

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug (or equivalent). The correct air gap is 0.020 inch (0.5 mm). Remove the plug after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug wire firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8 in. socket counterclockwise.

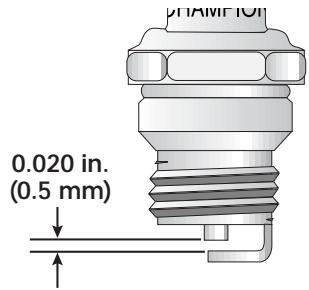

3. Replace a cracked, fouled or dirty spark plug. Set the air gap at 0.020 in. (0.5 mm) using a feeler gauge (Fig. 34).

CAUTION: Do not sand blast, scrape, or clean electrodes. Grit in the engine could damage the cylinder.

1. Install a correctly-gapped spark plug in the cylinder head. Tighten by turning the 5/8-inch socket clockwise until snug.

If using a torque wrench torque to:

110-120 in. · lb. (12.3-13.5 N·m)

Do not over tighten.

Fig. 34

CLEANING

WARNING: To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean or do any maintenance on it.

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

STORAGE

• Never store the unit with fuel in the tank where fumes may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.

LONG TERM STORAGE

If the unit will be stored for an extended time, use the following storage procedure:

1. Drain all fuel from the fuel tank into a container with the same 2-cycle fuel mixture. Do not use fuel that has been stored for more than 60 days. Dispose of the old fuel/oil mix in accordance to Federal, State and Local regulations.
2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 1 oz. (30 ml) of any high quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the cylinder before attempting to start the trimmer after storage.
4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.

TRANSPORTING

• Allow the engine to cool before transporting.
• Drain fuel from unit.
• Tighten fuel cap before transporting.
• Secure the unit while transporting.

ACCESSORIES/REPLACEMENT PARTS

2-Cycle Oil 147543

Spark Plug 610311

Replacement Line 180120

Replacement Line Cartridge 753-04218

Fuel Cap 180000

Shoulder Strap 682075

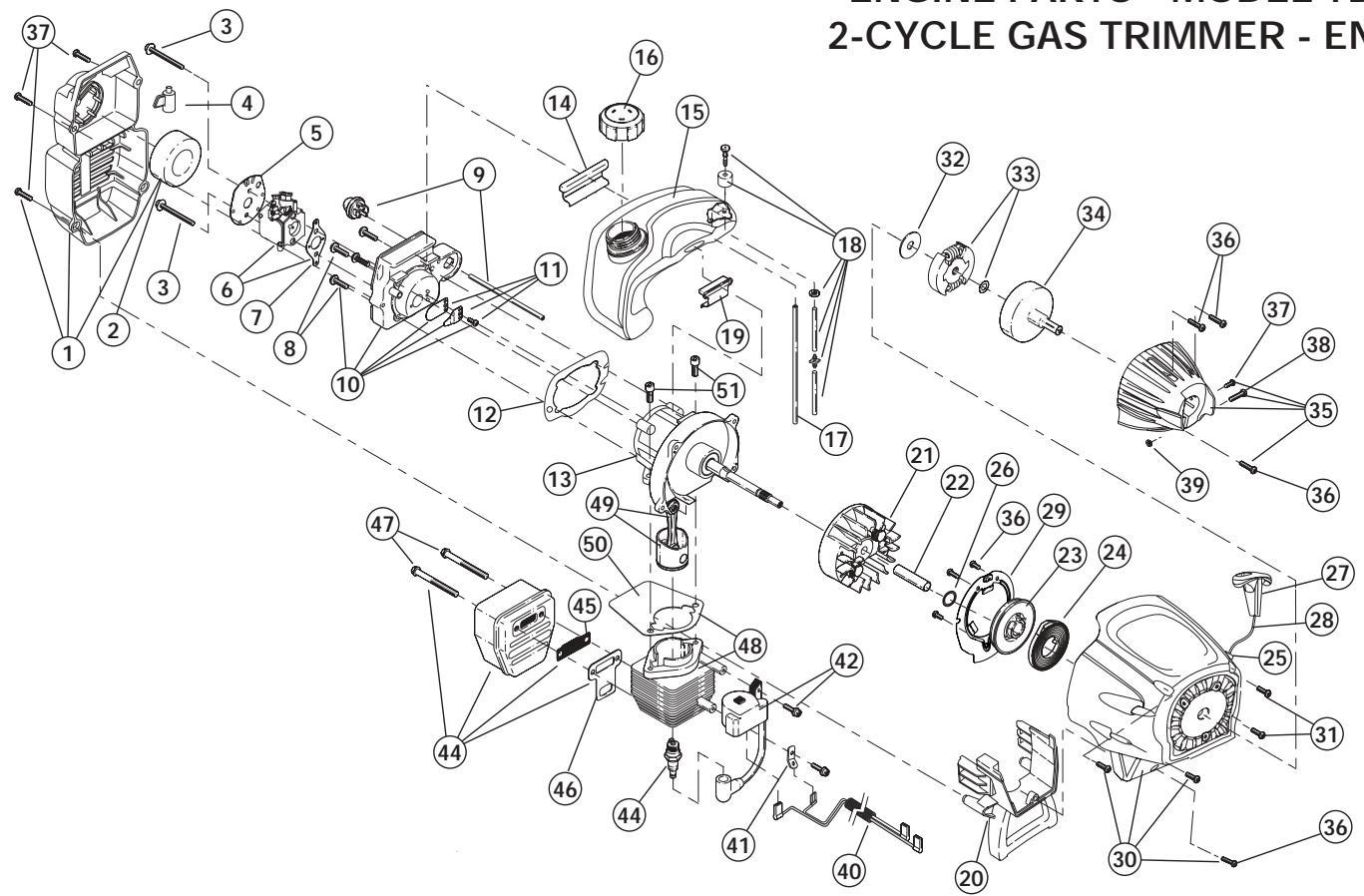

For specific replacement parts, refer to the parts list located on the inside back cover of this manual.

TROUBLESHOOTING

ENGINE WILL NOT START

CAUSE

Empty fuel tank

Primer bulb wasn't pressed enough.

Engine is flooded

Old or improperly mixed fuel

Fouled spark plug

Plugged spark arrestor

EZ-Start lever wasn't flipped/set

The outside temperature is below 40^ F

The outside temperature is above 90^ F

ENGINE WILL NOT IDLE

CAUSE

Air filter is plugged

Old or improperly mixed fuel

Improper carburetor adjustment

ENGINE WILL NOT ACCELERATE

CAUSE

Old or improperly mixed fuel

Improper carburetor adjustment

Cutting attachment bound with grass

Dirty air filter

Plugged spark arrestor

ACTION

Fill fuel tank with properly mixed fuel

Press primer bulb fully and slowly 10 times

Squeeze the trigger and pull the starter rope

Drain gas tank and add fresh fuel mixture

Replace or clean the spark plug

Clean or replace spark arrestor

Move lever to the starting position

Pull the starter rope up to 10-15 times

Squeeze the throttle control and pull the starter rope

ACTION

Replace or clean the air filter

Drain gas tank and add fresh fuel mixture

Adjust according to the Carburetor Adjustments section

ACTION

Drain gas tank and add fresh fuel mixture

Take to an authorized service dealer for an adjustment

Stop the engine and clean the cutting attachment

Clean or replace the air filter

Clean or replace spark arrestor

ENGINE LACKS POWER OR STALLS WHEN CUTTING

CAUSE

Old or improperly mixed fuel

Improper carburetor adjustment

Fouled spark plug

Plugged spark arrestor

ACTION

Drain gas tank and add fresh fuel mixture

Take to an authorized service dealer for an adjustment

Replace or clean the spark plug

Clean or replace spark arrestor

CUTTING ATTACHMENT WILL NOT ADVANCE LINE

CAUSE

Cutting attachment bound with grass

Cutting attachment out of line

Inner reel bound up

Cutting head dirty

Line welded

Line twisted when refilled

Not enough line is exposed

ACTION

Stop the engine and clean cutting attachment

Refill with new line

Replace the inner reel

Clean inner reel and outer spool

Disassemble, remove the welded section and rewind

Disassemble and rewind the line

Push the bump knob and pull out line until 4 inches

(102 mm) of line is outside of the cutting attachment

CUTTING LINE ADVANCES UNCONTROLLABLY

CAUSE

Oil, cleaner or lubricant in cutting head

ACTION

Clean and thoroughly dry the cutting head

If further assistance is required, contact your authorized service dealer.

SPECIFICATIONS

ENGINE*

Engine Type.. Air-Cooled, 2-Cycle

Stroke 1.25 in. (31.75 mm)

Displacement 1.9 cu in. (31 cc)

Clutch Type Centrifugal

Idle Speed RPM 2,800 - 4,000 rpm

Operating RPM 7,200+ rpm

Ignition Type. Electronic

Ignition Switch Rocker Switch

Spark Plug Gap 0.020 in. (0.5 mm)

Lubrication . Fuel/Oil Mixture

Fuel/Oil Ratio. 40:1

Carburetor Diaphragm, All-Position

Auto Rewind

Muffler Baffled with Guard

Throttle Manual Spring Return

Fuel Tank Capacity. 13 oz. (384 ml)

DRIVE SHAFT & CUTTING ATTACHMENT*

Drive Shaft Housing Steel Tube, EZ-LinkTM

Throttle Control . Finger-Tip Trigger

Approximate Unit Weight (No fuel, with cutting attachment, shield and D-handle) 13 lbs. (6 kg)

Cutting Mechanism SpeedSpool Dual String Cutting Head

Line Spool. Bump Line Releaser

Line Spool Diameter 3 inches (76.2 mm)

Trimming Line Diameter 0.095 inches (2.41 mm)

Cutting Path Diameter 17 inches (43.18 cm)

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

The Environmental Protection Agency and Troy-Bilt LLC (Troy-Bilt) are pleased to explain the emission control system warranty on your 2002 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards. Troy-Bilt must warrant the emission control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, Troy-Bilt will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

The 2002 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Troy-Bilt.

Owners Warranty Responsibilities

• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator's manual. Troy-Bilt recommends that you retain all receipts covering maintenance on your small off-road engine, but Troy-Bilt cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you however should be aware that Troy-Bilt may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a Troy-Bilt Authorized Service Center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-520-5520.

Manufacturer's Warranty Coverage

• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and workmanship which cause the failure of a warranted part for a period of two years.
  Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Troy-Bilt Service Center. For the nearest location please contact Troy-Bilt at: 1-800-520-5520.
• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular inspection to the effect of "Repair or Replace as Necessary" is warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at an Authorized Troy-Bilt Service Center.
• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of warranted parts caused by the use of add-on or modified parts.
• In order to file a claim, go to your nearest Authorized Troy-Bilt Service Center. Warranty services or repairs will be provided at all Authorized Troy-Bilt Service Centers.
• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer
• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.

MANUFACTURER'S LIMITED WARRANTY FOR:

TROY-BILT®

The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its possessions and territories.

Troy-Bilt LLC warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by Troy-Bilt LLC for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any Troy-Bilt product that is used for rental or commercial purposes, or any other income-producing purpose.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, visit our website at www.troybilt.com, check for a listing in the Yellow Pages, call 1-800-520-5520 or write to P.O. Box 361131, Cleveland, OH 44136-0019.

This limited warranty does not provide coverage in the following cases:

A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts
C. Troy-Bilt LLC does not extend any warranty for products sold or exported outside of the United States of America, its possessions and territories, except those sold through Troy-Bilt's authorized channels of export distribution.

Troy-Bilt LLC reserves the right to change or improve the design of any Troy-Bilt Product without assuming any obligation to modify any product previously manufactured.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind Troy-Bilt LLC During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. TroyBilt LLC shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift.

How State Law Relates to this Warranty: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To locate your nearest service dealer dial 1-800-520-5520.

Troy-Bilt LLC

P.O. Box 361131

Cleveland, OH 44136-0019

TROY-BILT®

TECHNOLOGY - Reduces Starting Efforts

Dramatically reduced to the edge.

Experience AS - Sample

Starts with a slow and steady ,

Désherbeuse à gaz

à 2-temps

Modèle TB75SS ou

Modèle TB25CS

INTRODUCTION

TOUS NOS REMERCIEMENTS

REFERENCES, ILLUSTRATIONS ET SPECIFICATIONS RELATIVES AU PRODUIT

Install on a Curved Shaft (TB25CS)

Item Part No. Description

1 753-1192
Air Cleaner/Muffler Cover Assembly
(includes 2 & 37)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 753-1193 Choke Extension
5 753-1194 Choke Plate
6 753-04338 Carburetor Assembly (includes 7 & 18)
7 791-610675 Carburetor Gasket
8 791-181860 Carb Mount Screw
9 791-683974B Primer and Hose Assembly
10 753-1196 Carb Mount Assembly (includes 8, 11 & 12)
791-684451 Reed Assembly
753-1208 Carburetor Mount Gasket
13 753-04401 Crank Case Service Assembly
(includes 8)
791-612134 Rear Mounting Pad
15 753-04307 Fuel Tank Assembly (includes 16-18)
16 753-04084 Fuel Cap Assembly
17 791-181168 Fuel Return Line
18 753-04233 Fuel Line Assembly
19 791-145308 Front Mounting Pad
791-182064 Shroud Extension and Stand
21 791-182736 Flywheel Assembly
22 791-181525 Spacer
23 753-1199 Recoil Pulley
24 753-04286 Recoil Spring
25 753-1200 Rope Guide
26 791-181247 Pulley Retainer
27 791-181079 Pull Handle
28 791-613103 Rope
29 753-04417 Pressure Plate Assembly (includes 36)

Item Part No. Description

30 753-04402

31 791-181862

32 791-182368 Clutch Washer

33 791-182369 Clutch Rotor Assembly

34 791-153592 Clutch Drum Assembly

35 753-04403 Clutch Cover Assembly

(includes 36-39)

36 791-181345 Cover Screw

37 791-182519 Anti-Rotation Screw

38 753-04003 Clamping Screw

39 791-180217 Clamping Nut

40 791-182798 Wire Leads and Sleeve

41 791-611063 Ground Tab

42 753-04336 Module Assembly

43 791-610311B Spark Plug

44 791-182066 Muffler Assembly (includes 45-47)

45 791-182747 Spark Arrestor Screen

46 753-04159 Exhaust Gasket

47 791-147575 Muffler Mounting Bolt Assembly

48 753-04323 Cylinder Assembly (includes 50 & 51)

49 753-1207 Piston and Rod Assembly

50 753-1197 Cylinder Gasket

51 791-182723 Cylinder Bolt

• 791-180090 O.E.M. Carburetor Repair Kit
• 791-180091 Gasket Diaphragm Repair Kit
• 753-1209 Piston Ring Set
• 753-04404 Short Block Assembly
  (includes 8,13,43,46,&48-51)
• 791-181599 Clutch Springs (Qty. 2)
• Items Not Shown

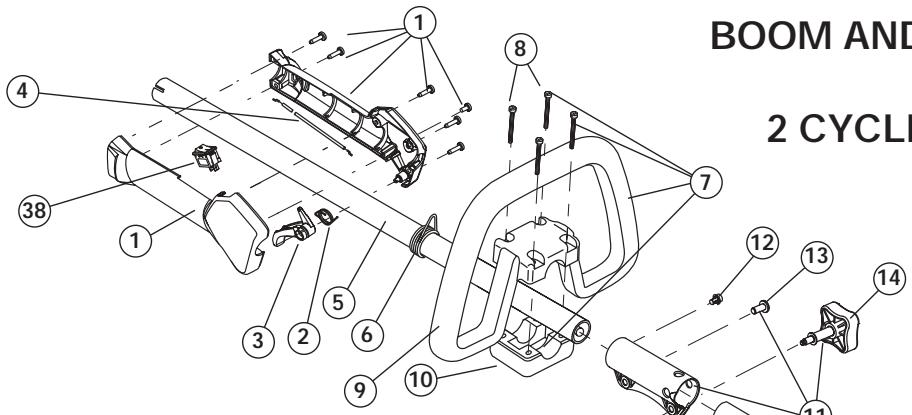

BOOM AND TRIMMER PARTS -

MODEL TB75SS

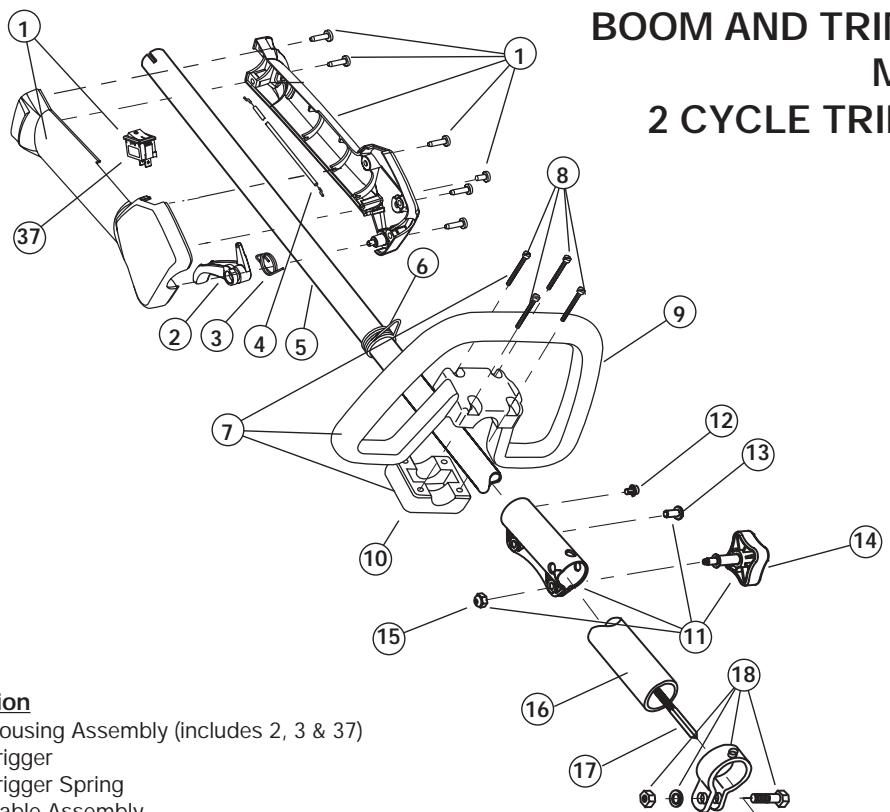

2 CYCLE TRIMMER - BOOM

Item Part No. Description

1 753-04234 Throttle Housing Assembly (includes 2, 3 & 37)
2 753-04119 Throttle Trigger
3 791-182690 Throttle Trigger Spring
4 753-04405 Throttle Cable Assembly
5 753-04236 Upper Drive Shaft Housing Assembly
6 791-610327 Harness Clip
7 791-180869 Deluxe D-Handle Assembly (includes 8-10)
8 791-181070 Screw
9 791-182167 Deluxe D-Handle
10 791-182168 Bottom Clamp
753-1190 Split-Boom Coupler (includes 12-15)
12 791-182057 Screw
13 791-181617 Bolt
14 791-181981 Adjustment Knob
791-181886 Knob Retaining Nut
16 753-1212 Lower Drive Shaft Housing Assembly
791-181166 Lower Flexible Drive Shaft
791-153597 Lower Clamp Assembly (includes 19)
19 791-145569 Anti-Rotation Screw

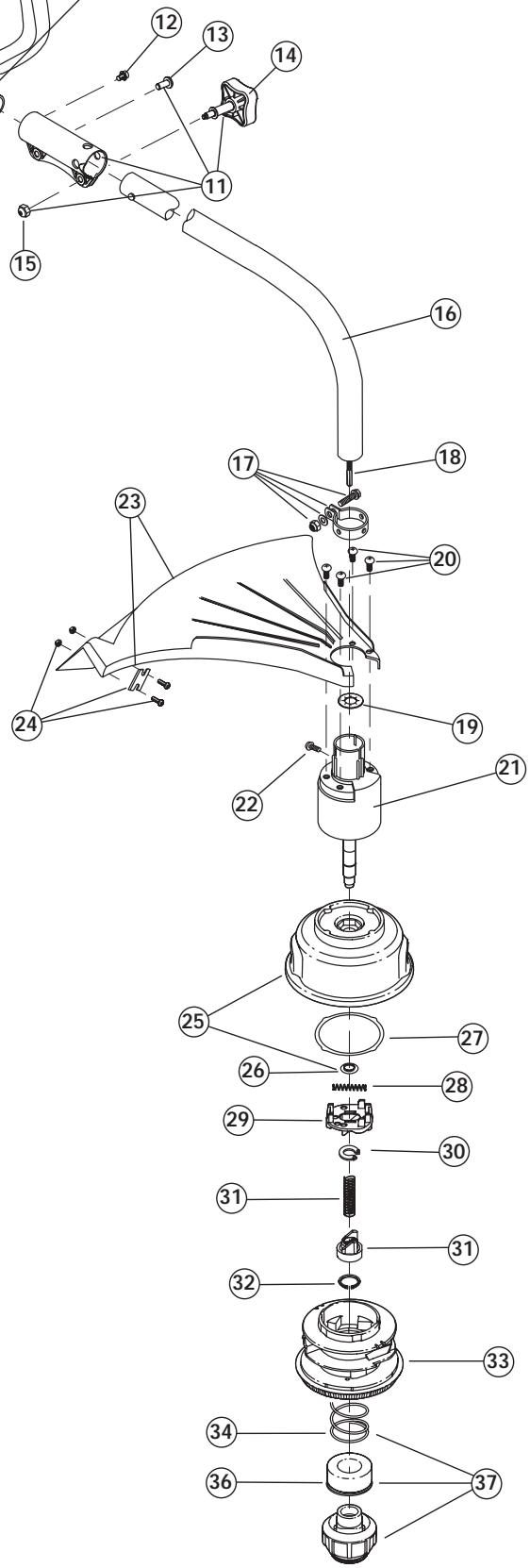

20 753-04309 Gear Box Assembly (includes 18, 24-36)
791-180547 Shield Mounting Hardware
22 753-1213 Shield and Blade Assembly
23 791-181823 Blade Assembly
24 791-181457 Outer Spool and Eyelet Assembly w/ Retainer
25 791-181458 Retainer
26 791-181561 Thrust Washer
27 753-04257 Slider
28 791-181459 Small Spring
29 791-181532 E-Clip
30 791-181531 Spring
31 791-181462 Plunger
32 791-181463 C-Clip
33 791-181464 Inner Reel
34 791-181465 Large Spring
35 791-181467 Foam Seal
36 791-181468 Bump Head Knob Assembly (includes 34 & 35)
37 791-182405 Switch

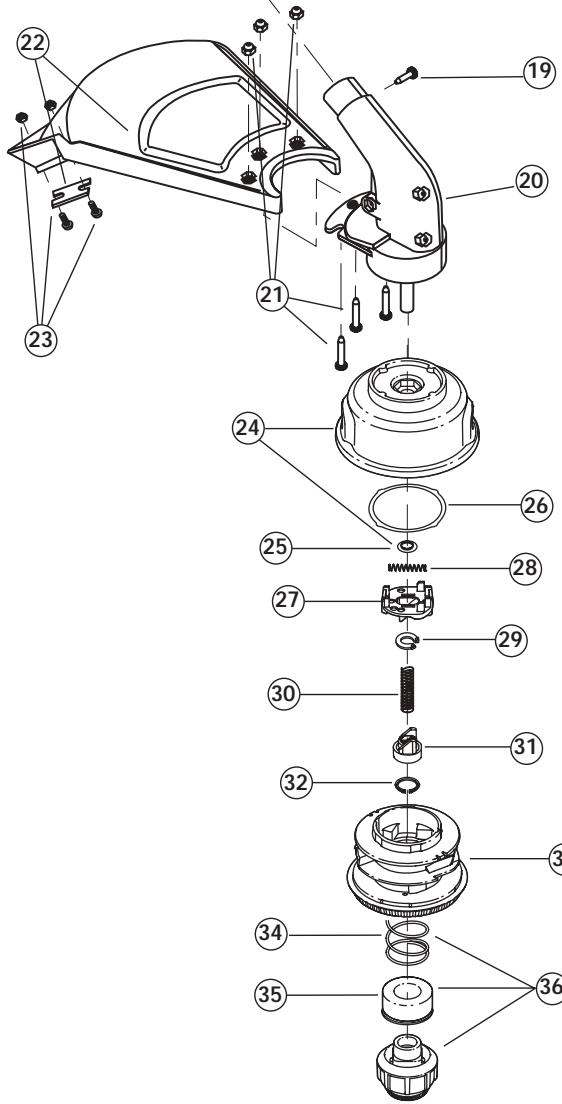

Optional Accessories

• 753-04218 Reel and Line Assembly
• 791-682075B Shoulder Strap Assembly

* Items Not Shown

ENGINE PARTS - MODEL TB25CS

2-CYCLE GAS TRIMMER - ENGINE

Item Part No. Description

1 753-1192

Air Cleaner/Muffler Cover Assembly (includes 2 & 37)

2 791-180350B Air Cleaner Filter

Carburetor Mounting Screw

4 753-1193

Choke Extension

5 753-1194

Choke Plate

6 753-04338

Carburetor Assembly (includes 7 & 18)

7 791-610675

Carburetor Gasket

8 791-181860

Carb Mount Screw

9 791-683974B

Primer and Hose Assembly

10 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

791-684451

Reed Assembly

12 753-1208

Carburetor Mount Gasket

13 753-04401

Crank Case Service Assembly (includes 8)

791-612134 Rear Mounting

15 753-04307 Fuel Tank Assembly (includes 16-18)

16 753-04084

Fuel Cap Assembly

791-181168 Fuel Return Line

Fuel Return Line

18 753-04233

Fuel Line Assembly

19 791-145308

Front Mounting Pad

20 791-182064

Shroud Extension and Stand

21 791-182736

Flywheel Assembly

22 791-181525

Spacer

23 753-1199

Recoil Pulley Assembly

24 753-04286

Recoil Spring

25 753-1200

Rope Guide

26 791-181247

Pulley Retainer

27 791-181079

Pull Handle

28 791-613103

Pressure Plate Assembly (includes 36)

Item Part No. Description

30 753-04402

Starter Housing Assembly (includes 23-29, 31 & 36)

31 791-181862 Housing Screw

32 791-182368 Clutch Washer

33 791-182369 Clutch Rotor Assembly

791-153592 Clutch Drum Assembly

35 753-04403 Clutch Cover Assembly (includes 36-39)

36 791-181345 Cover Screw

37 791-182519 Anti-Rotation Screw

38 753-04003 Clamping Screw

791-180217 Clamping Nut

40 791-182798 Wire Leads and Sleeve

41 791-611063 Ground Tab

42 753-04336 Module Assembly

43 791-610311B Spark Plug

791-182066 Muffler Assembly (includes 45-47)

45 791-182747 Spark Arrestor Screen

46 753-04159 Exhaust Gasket

47 791-147575 Muffler Mounting Bolt Assembly

48 753-04323 Cylinder Assembly (includes 50 & 51)

Piston and Rod Assembly

50 753-1197 Cylinder Gasket

51 791-182723 Cylinder Bolt

• 791-180090 O.E.M. Carburetor Repair Kit (Zama)

• 791-180091 Gasket Diaphragm Repair Kit (Zama)

• 753-1209 Piston Ring Set

• 753-04404 Short Block Assembly

(includes 8,13,43,46,48-51)

• 791-181599 Clutch Springs (Qty. 2)

* Items Not Shown

BOOM AND TRIMMER PARTS -

MODEL TB25CS

2 CYCLE TRIMMER - BOOM

Item Part No. Description

1 753-04234 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 791-182690 Throttle Trigger Spring
3 753-04119 Throttle Trigger
4 753-04405 Throttle Cable Assembly
5 753-04236 Upper Drive Shaft Housing Assembly
6 791-610327 Harness Clip
7 791-180869 Deluxe D-Handle Assembly (includes 8-10)
8 791-181070 Screw
9 791-182167 Deluxe D-Handle
10 791-182168 Bottom Clamp
753-04406 Split-Boom Coupler (includes 12-15)
791-182057 Screw
13 791-181617 Bolt
791-181981 Adjustment Knob
791-181886 Knob Retaining Nut
16 791-180340 Lower Drive Shaft Housing Assembly
791-153597 Lower Clamp Assembly
18 791-181852 Lower Flexible Drive Shaft
791-181560 Palnut
791-180531 Shield Mounting Screw
791-181857 Bushing Housing Assembly
22 791-145569 Anti-Rotation Screw
23 791-181659 Shield and Blade Assembly (includes 24)
24 791-181823 Blade Assembly
25 791-181457 Outer Spool and Eyelet Assembly (includes 26)
26 791-181458 Retainer
27 791-181561 Thrust Washer
28 791-181459 Small Spring
29 753-04257 Slider
30 791-181532 E-Clip
31 791-181531 Spring
32 791-181462 Plunger
33 791-181463 C-Clip
34 791-181464 Inner Reel
35 791-181465 Large Spring
36 791-181467 Foam Seal
37 791-181468 Bump Head Knob Assembly w/Spring & Foam Seal
38 791-182405 Switch Assembly

Optional Accessories

753-04218 Reel and Line Assembly

• 791-180120 Replacement Line
• 791-682075 Shoulder Strap Assembly

* Items Not Shown

GARANTÍA LIMITADA DEL FABRICANTE PARA:

TROY-BILT®
