Product Type	Drywall Screwdriver
Brand	MAKITA
Model	6823
Power Supply	Electric (120 V, 50/60 Hz)
Double Insulation	Yes (Class II)
No Load Speed	Not specified in manual (estimate: 0-4000 RPM)
Depth Adjustment	By locking sleeve, 1.5 mm per turn
Clutch	Automatic clutch
Rotation Direction	Reversing (clockwise/counterclockwise)
Bit Holder	Magnetic
Hook	Built-in, retractable
Weight	Not specified (estimate: 1.3 kg)
Dimensions (L x W x H)	Not specified (estimate: 280 x 70 x 180 mm)
Cord Length	Not specified (estimate: 2.5 m)
Continuous Operation	Yes (lock button)
Housing Material	Reinforced Plastic
Included Accessories	Bits, magnetic bit holder, positioner
Maintenance	Regular cleaning, carbon brush inspection by an authorized center
Warranty	1 year limited (manufacturing defects)
Country of Origin	Not specified (likely Japan/China)

Frequently Asked Questions - 6823 MAKITA

How to adjust the screwing depth on the Makita 6823?

Turn the locking sleeve in direction A (decrease) or B (increase). One full turn changes the depth by 1.5 mm. The distance between the end of the positioner and the screw head should be about 1 mm.

How to reverse the rotation direction?

Use the reversing lever. Position A for clockwise rotation, position B for counterclockwise. Only change direction after the motor has completely stopped.

Why doesn't the bit turn even when the switch is pressed?

The clutch only engages if the bit is pressed into the screw head with forward pressure. Insert the bit into the screw and push the tool forward to activate the drive.

How to use the hanging hook?

Pull the hook in direction A to extend it, then push it in direction B to lock it. To store it, reverse the operation.

How to replace the bit of the screwdriver?

Unplug the tool. Remove the positioner from the locking sleeve by pulling. Use pliers to remove the bit from the magnetic bit holder. Insert the new bit fully and reassemble the positioner.

What type of extension cord to use?

Use a cord in good condition, marked 'W-A' or 'W' for outdoor use. The gauge must be suitable for the length and current (see table in manual). A cord that is too thin causes power loss.

How to clean and maintain the Makita 6823 screwdriver?

Always unplug the tool before any maintenance. Clean the exterior with a dry cloth. Repairs, carbon brush replacement, and inspections must be done by a Makita authorized service center.

What accessories are compatible with the Makita 6823?

Only use accessories recommended by Makita: insertion bits, magnetic bit holder, positioner. Using unapproved accessories can cause injury.

What to do if the tool does not start?

Check that the plug is properly inserted and that the cord is not damaged. Make sure the switch is not locked. If the problem persists, contact a Makita authorized service center.

How to activate continuous operation?

Press the trigger, then press the lock button. To stop, press the trigger fully again and then release it.

USER MANUAL 6823 MAKITA

MANUEL D'INSTRUCTION

For your personal safety, READ and UNDERSTAND before using.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

AVERTISSEMENT:

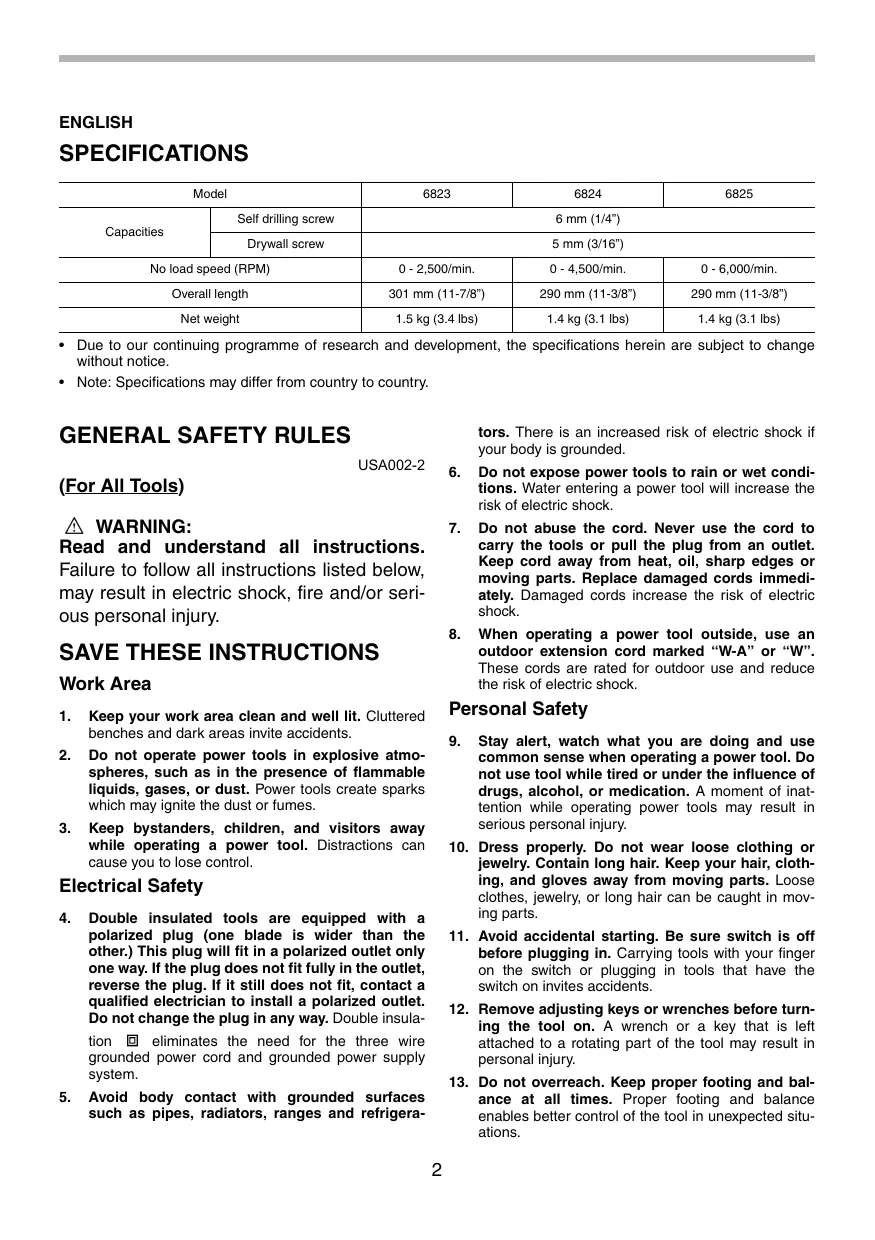

Model		6823	6824	6825
Capacities	Self drilling screw	6 mm (1/4")
	Drywall screw	5 mm (3/16")
No load speed (RPM)		0 - 2,500/min.	0 - 4,500/min.	0 - 6,000/min.
Overall length		301 mm (11-7/8")	290 mm (11-3/8")	290 mm (11-3/8")
Net weight		1.5 kg (3.4 lbs)	1.4 kg (3.1 lbs)	1.4 kg (3.1 lbs)

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
  Note: Specifications may differ from country to country.

GENERAL SAFETY RULES

USA002-2

(For All Tools)

WARNING:

Read and understand all instructions.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

1. Double insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power supply system.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerera

tors. There is an increased risk of electric shock if your body is grounded.

1. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
2. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
3. When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.
4. Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

1. Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

6. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

7. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.

8. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

Table 1. Minimum gage for cord

Ampere Rating		Volts	Total length of cord in feet
		120 V	25 ft.	50 ft.	100 ft.	150 ft.
More Than	Not More Than	AWG
0	6		18	16	16	14
6	10		18	16	14	12
10	12		16	16	14	12
12	16		14	12	Not Recommended

SPECIFIC SAFETY RULES

USB004-2

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to screwdriver safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece immediately after operation: they may be extremely hot and could burn your skin.

SAVE THESE INSTRUCTIONS

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

SYMBOLS

USD201-2

The followings show the symbols used for tool.

V.......volts

A .amperes

Hz......hertz

...alternating current

No .no load speed

回 .Class II Construction

.../min.......revolutions or reciprocation per minute

FUNCTIONAL DESCRIPTION

CAUTION:

Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Depth adjustment

1. Locking sleeve

The depth can be adjusted by turning the locking sleeve. Turn it in "A" direction for less depth and in "B" direction for more depth. One full turn of the locking sleeve equals 1.5mm (1/16") change in depth.

Adjust the locking sleeve so that the distance between the tip of the locator and the screw head is approximately 1mm (3 / 64^ ) as shown in the figures. Drive a trial screw into your material or a piece of duplicate material. If the depth is still not suitable for the screw, continue adjusting until you obtain the proper depth setting.

1. Locator

1. Locator

Switch action

1. Switch trigger

2. Lock button

CAUTION:

• Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and then push in the lock button.

To stop the tool from the locked position, pull the switch trigger fully, then release it.

NOTE:

Even with the switch on and motor running, the bit will not rotate until you fit the point of the bit in the screw head and apply forward pressure to engage the clutch.

Reversing switch action

1. Reversing switch lever

This tool has a reversing switch to change the direction of rotation. Move the reversing switch lever to the position (A side) for clockwise rotation or the position (B side) for counterclockwise rotation.

CAUTION:

Always check the direction of rotation before operation.
- Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

Hook

The hook is convenient for temporarily hanging the tool. When using the hook, pull it out in A direction and then push it in B direction to secure in place.

When not using the hook, return it back to its initial position by following the above procedures in reverse.

1. Hook

ASSEMBLY

CAUTION:

Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Installing or removing the bit

To remove the bit, first pull the locator out of the locking sleeve. Then grasp the bit with a pair of pliers and pull the bit out of the magnetic bit holder. Sometimes, it helps to wiggle the bit with the pliers as you pull.

1. Locator
2. Locking sleeve

To install the bit, push it firmly into the magnetic bit holder. Then install the locator by pushing it firmly back onto the locking sleeve.

1. Locator
2. Bit
3. Magnetic bit holder

OPERATION

Fit the screw on the point of the bit and place the point of the screw on the surface of the workpiece to be fastened. Apply pressure to the tool and start it. Withdraw the tool as soon as the clutch cuts in. Then release the switch trigger.

CAUTION:

• When fitting the screw onto the point of the bit, be careful not to push in on the screw. If the screw is pushed in, the clutch will engage and the screw will

rotate suddenly. This could damage a workpiece or cause an injury.

• Make sure that the bit is inserted straight in the screw head, or the screw and/or bit may be damaged.

MAINTENANCE

CAUTION:

Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Insert bits
  Magnetic bit holder
• Locator

EN0006-1

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

• repairs have been made or attempted by others:
• repairs are required because of normal wear and tear:
  the tool has been abused, misused or improperly maintained:
  alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT.

THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTY, INCLUDING IMPLIED WARRANTY OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM OF THIS WARRANTY.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

FRANÇAIS
SPÉCIFICATIONS

Modèle		6823	6824	6825
Capacités	Vis ta蚁use	6 mm (1/4")
	Vis de plaque de plâtre	5 mm (3/16")
Vitesse à vide (T/MIN)		0 - 2,500/min.	0 - 4,500/min.	0 - 6,000/min.
Longueur totale		301 mm (11-7/8")	290 mm (11-3/8")	290 mm (11-3/8")
Poids net		1.5 kg (3.4 lbs)	1.4 kg (3.1 lbs)	1.4 kg (3.1 lbs)

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
