USER MANUAL P3P6MT2 BLAUPUNKT
EV Portable Charger User Manual

Enjoy it.
Please read this instruction carefully before using the product.
| CONTENTS ENGLISH | INDHOLDSFORTEGNELSE DANSK/NORSK | INHALTSVERZEICHNIS DEUTSCH |
| 01-10 | 11-20 | 21-30 |
| INHOUD NEDERLANDS | CONTENIDOS ESPAÑOL | SISÄLTÖ SUOMALAINEN |
| 31-40 | 41-50 | 51-60 |
| CONTENU FRANÇAISE | INDICE ITALIANO | SPIS TREŚCI POLSKI |
| 61-70 | 71-80 | 81-90 |
| ÍNDICE PORTOGHESE | INNEHÅLL SVENSK | |
| 91-100 | 101-110 |
EV Portable Charger
Please carefully read the following instructions before charging your Electrical Vehicle, be aware of the hazards involved with electrical circuitry and standard practices for preventing accidents.
Contents
Introduction to the Portable EV Charger (Mode 2) 02 Explanation of the operating display and technical parameters 03 Explanation of the "1/2" and "1/2!" symbol 05
Use 06 Use of the charger - start charging 06 Use of the charger - stop charging 07
Display Light Status 08
Function 09 Switch current 09 Timer function 10

CAUTION
- Use the power source with external upstream Circuit Breaker.
- Make sure the charger is used in a safe, secure place and well out of the reach of young children or pets.
- Please use the charger in a dry, well ventilated and secure place. Keep well out of reach of young children or pets. Avoid water pouring directly onto the power plug. · Do not open the enclosure while charging or with the power on. · Do not maliciously damage the product. · Never use with an adapter. Shall only be plugged directly into a fixed/wall socket.
Introduction to the Portable EV Charger (Mode 2)

Specifications
| Model | Power Supply Type | Cable Total Length | Voltage | Current | Connector Type |
| P1PM2T2 | Single-phase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Single-phase | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Single-phase | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Three-phase | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Single-phase | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Single-phase | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Three-phase | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Single-phase | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Single-phase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Single-phase | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Single-phase | 8m | 200-250V | 6A | T2 |

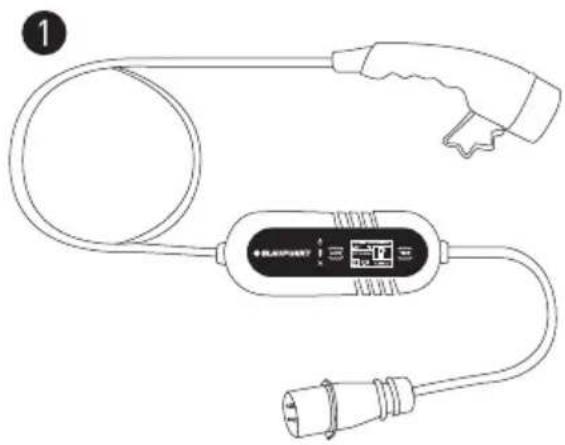

1 Model: P3PM2T2 / P3P6MT2

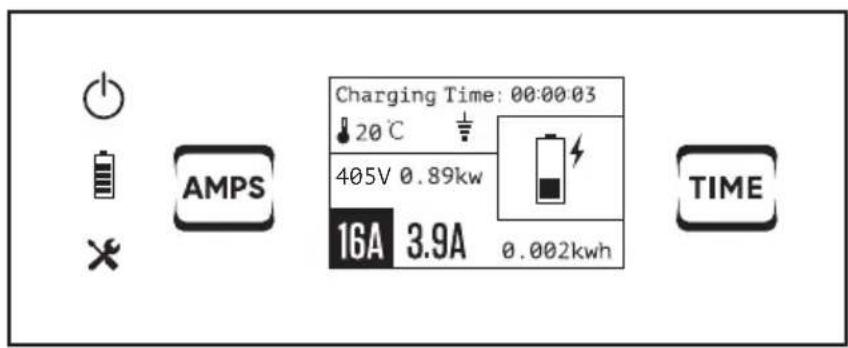

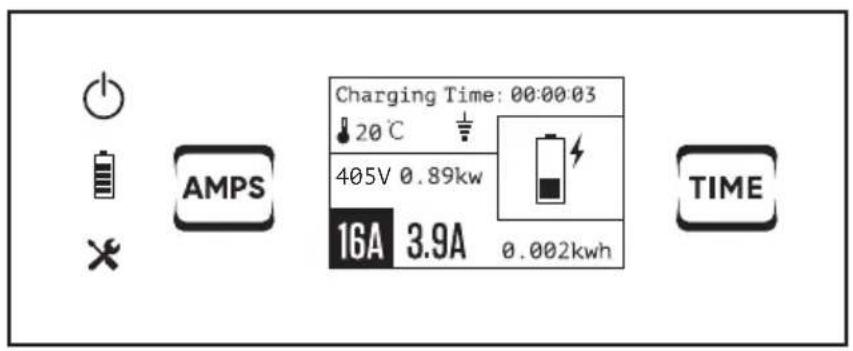

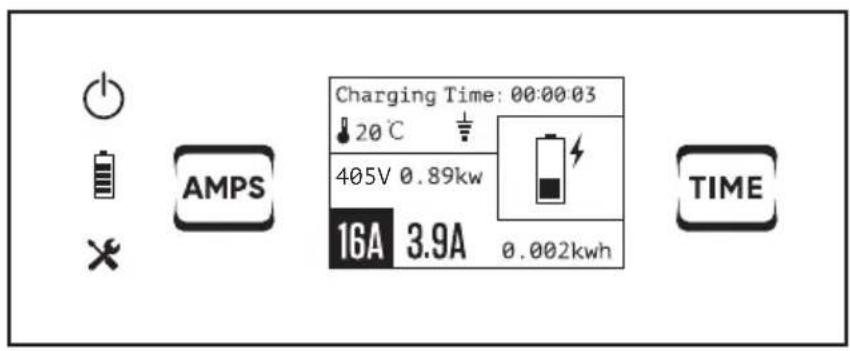

Explanation of the operating display
| Power light | 405V | Voltage | |
| Charge lamp | 0.89kw | Power | |
| Trouble lamp | 16A | Rated current | |
![]() | Current switch button | 3.9A | Constant current |
| 00:00:03 | Charging time | 0.002kwh | Electricity consumption |
![]() | Temperature | TIME | Time function button |
| PE Detection(Earthing Detection) | 1/2! | The upstream PE has not been detected and the charging cannot be started. |
Control box:

Technical Parameters
| Dimensions (L×W×H) | 260×100×72.5 mm |
| Weight | 3Phase: 3.35 kg / 2.9 kg |
| Protection Degree (Control box) | IP65 |
| Operating Temperature | -30°C to +50°C |

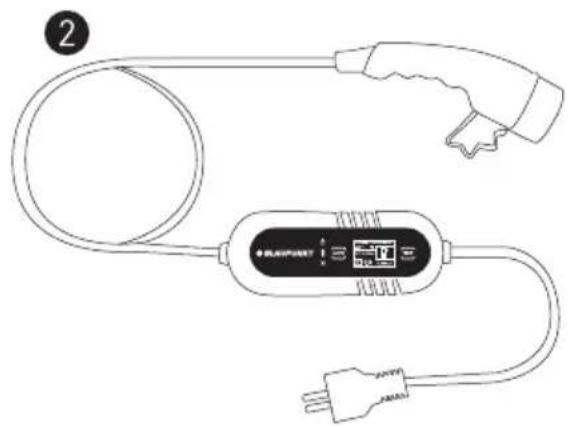

1 Model: P1PM2T2 / P1PM2T1 / P1PM2T2C / P1PM2T2BS / P1PM2T1BS P1P6MT2 / P1PM2T2L / P1PM2T2CH / P1PM2T2DK

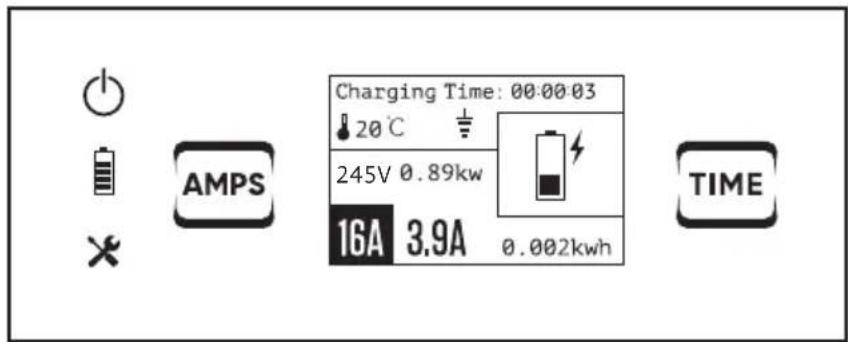

Explanation of the operating display
| Power light | 245V | Voltage | |
| Charge lamp | 0.89kw | Power | |
| Trouble lamp | 16A | Rated current | |
| Current switch button | 3.9A | Constant current | |
| 00:00:03 | Charging time | 0.002kwh | Electricity consumption |
| 20°C | Temperature | TIME | Time function button |
| PE Detection(Earthing Detection) | ± ! | The upstream PE has not been detected and the charging cannot be started. |
Control box:

Technical Parameters
| Dimensions (L×W×H) | 260×100×72.5 mm |
| Weight | 1Phase: 2.41 kg / 2.15 kg |
| Protection Degree (Control box) | IP65 |
| Operating Temperature | -30°C to +50°C |
Users must check the PE detection mark "1/2" on the display before each use. (PE meaning protective conductor)
- If the mark "1/2" is displayed on the screen, it indicates that the charger shall verify the presence of the upstream PE, and the charging process will only begin when the upstream PE is present.
ATTENTION: if the mark "1/2!" appears, it means that the upstream PE has not been detected and the charging cannot be started.
- If the mark "1/2" is NOT displayed on the screen, it indicates that the charger has no function to verify the presence of the upstream PE, and can be charged whether or not the PE can be detected.
ATTENTION: It is strongly recommended that users charge under condition 1. Condition 2 has certain security risks due to the absence of PE. So condition 2 should only be used under the premise that users can ensure safety and in special circumstances where PE does not exist in the power system.
Deactivate PE Detection: Press "Amps+Time" for 4s together.
Reactivate PE Detection: Press "Amps+Time" for 4s together.
Start Charging
| Step | Illustration Operation | |
| 1. | ![]() | Insert the plug into the correct power supply socket. |
![]() | ||
| 2. | ![]() | Remove the protective cap and fully insert the charging connector into the EV charging port. |
| 3. | ![]() | Start charging |


DANGER
Do not use product if it appears to be damaged or the cable is broken. Do not disassemble or assemble the connector and change the internal parts. Do not clean the products using chemicals or cleaning the EV car while charging.
Stop Charging
| Step Illustration Operation | ||
| 1. | ![]() | Disconnect the plug from the power supply socket. |
![]() | ||
| 2. | ![]() | Disconnect the charging connector from the EV car. |
| 3. | ![]() | Close the protective shell of EV charging port, then cover the protective cap of the charging connector. |
| 4. | ![]() | Put the portable charger into the bag. |
Display Light Status
| Indicator Light Indicator Light | Status | Status | |||
| Off | ![]() | Blink | [2773] | On | |
| Off | ![]() | Blink | ### | On | |
| Off | ![]() | Blink | ### | On | |
Operation:
| 1 | Power Off | ![]() | ![]() | ![]() |
| 2 | Check | ![]() | ![]() | ![]() |
| 3 | Standby | [6HTS] | ![]() | ![]() |
| 4 | Connected | [05T4] | ![]() | ![]() |
| 5 | Charging | [05AW] | ![]() | ![]() |
| 6 | Charge Complete | ![]() | ![]() | ![]() |
Trouble shooting:
| 1 | CP Error | [5A60] | ![]() | ![]() |
| 2 | Relay Error | [08DC] | [A40K] | ![]() |
| 3 | Over/Under Voltage | ![]() | ![]() | ![]() |
| 4 | Over current protection | ![]() | [5BZ5] | ![]() |
| 5 | Electric leakage protection | ![]() | ![]() | ![]() |
| 6 | No ground connection | ![]() | ![]() | ![]() |
| 7 | Temperature warning | [30D4] | ![]() | ![]() |
| 8 | Persistent high temperature | [003K] | [7CS4] | ![]() |
Switch Current:

CAUTION
In order to switch charging current, please make sure the power plug is firmly inserted into the socket and plug for the EV vehicle is disconnected.
| Step Illustration Status | ||
| 1. Insert the plug into the correct power supply socket. | ![]() | Ready |
![]() | ||
| 2. Press the "Amps" switch button for 2 seconds. | ![]() | Enter setting the switch current mode |
| 3. Continue to press the button briefly. The current will be changed. (switch between 8-10-13-16A). | ![]() | Setting the current of User's request |
| 4. Press the button for 2s again. | ![]() | Setting successfully |
Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.
Timer function:

CAUTION
In order to switch charging current, please make sure the power plug is firmly inserted into the socket and the plug for EV vehicle is disconnected.
| Step Illustration Status | ||
| 1. Insert the plug into the correct power supply socket. | ![]() | Ready |
![]() | ||
| 2. Press the "Time" switch button for 2 seconds. | ![]() | Enter setting the delay time mode |
| 3. Continue to press the button briefly.The time will be changed.(Switch between1/2/4/6/8/10H). | ![]() | Setting the delay time of User's request |
| 4. Press the button for 2s again. | ![]() | Setting successfully |
Please complete setting within 4 seconds at each step, otherwise the feature setting will fail.
Notice:
In case you want to cancel the timer setting - you can use one of the two options below:
- Directly disconnect the plug from the outlet socket.
- Press the Time button for 5s.
Portable EV Charger

Specifications
| Model | Strømforsyning stype | Samlet kabellængde | Spænding | Nominel strøm | Stikforbindelse stype |
| P1PM2T2 | Enfaset | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Enfaset | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Enfaset | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Trefaset | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Enfaset | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Enfaset | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Trefaset | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Enfaset | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Enfaset | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Enfaset | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Enfaset | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2
Technical parameters
| Dimensioner (L × B × H) | 260 × 100 × 72.5 mm |
| Vægt | 1-fase: 2.41 kg / 2.15 kg |
| Beskyttelsesgrad (Control box) | IP65 |
| Driftstemperatur | -30°C til +50°C |

Technical data
| Modell | Stromver sorgungsart | Gesamtkab ellänge | Spannung | Nennstrom | Anschlusstyp |
| P1PM2T2 | Einphasen | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Einphasen | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Einphasen | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Dreiphasen | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Einphasen | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Einphasen | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Dreiphasen | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Einphasen | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Einphasen | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Einphasen | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Einphasen | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Specifications
| Model | Type voedingsspanning | Totale lengte van de kabel | Spanning | Nominale stroom | Type van aansluiting |
| P1PM2T2 | Een-fase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Een-fase | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Een-fase | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Driefase | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Een-fase | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Een-fase | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Driefase | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Een-fase | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Een-fase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Een-fase | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Een-fase | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Specifications
| Modelo | Tipo de fuente de alimentación | Longitud total del cable | Voltaje | Corriente nominal | Tipo de conector |
| P1PM2T2 | Monofásica | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Monofásica | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Monofásica | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Trifásica | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Monofásica | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Monofásica | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Trifásica | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Monofásica | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Monofásica | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Monofásica | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Monofásica | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Technical specifications
Technical parameters

Specifications
| Modèle | Type d'alimentation électrique | Longueur totale du câble | Tension | Courant nominal | Type de connecteur |
| P1PM2T2 | Monophasé | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Monophasé | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Monophasé | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Triphasé | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Monophasé | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Monophasé | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Triphasé | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Monophasé | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Monophasé | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Monophasé | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Monophasé | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Characteristics
| Modello | Tipo di aliment. elettrica | Lunghezza totale del cavo | Tensione | Corrente nominale | Tipo di connettore |
| P1PM2T2 | Monofase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Monofase | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Monofase | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Trifase | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Monofase | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Monofase | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Trifase | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Monofase | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Monofase | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Monofase | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Monofase | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Technical parameters
| Dimensioni (L × P × H) | 260 × 100 × 72.5 mm |
| Peso | Trifase: 3.35 kg / 2.9 kg |
| Grado di protezione( Control box ) | IP65 |
| Temperatura d'esercizio | -30°C~ +50°C |
1 Model: P1PM2T2 / P1PM2T1 / P1PM2T2C / P1PM2T2BS / P1PM2T1BS P1P6MT2 / P1PM2T2L / P1PM2T2CH / P1PM2T2DK


Technical data

Specifications
| Modelo | Tipo na fonte de alimentação | Comprimento total do cabo | Tensão | Corrente nominal | Tipo de conector |
| P1PM2T2 | Monofásico | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Monofásico | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Monofásico | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Trifásico | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Monofásico | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Monofásico | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Trifásico | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Monofásico | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Monofásico | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Monofásico | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Monofásico | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2

Specifications
| Modell | Typ av strömförsörjning | Kabelns totala längd | Spänning Märkström | Typ av kontaktdon | |
| P1PM2T2 | Enfas | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T1 | Enfas | 8m | 200-250V | 8/10/13/16A | T1 |
| P1PM2T2C | Enfas | 8m | 200-250V | 8/10/13/16A | T2 |
| P3PM2T2 | Trefas | 8m | 380-450V | 8/10/13/16A | T2 |
| P1PM2T2BS | Enfas | 8m | 200-250V | 8/10/13A | T2 |
| P1PM2T1BS | Enfas | 8m | 200-250V | 8/10/13A | T1 |
| P3P6MT2 | Trefas | 6m | 380-450V | 8/10/13/16A | T2 |
| P1P6MT2 | Enfas | 6m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2L | Enfas | 8m | 200-250V | 8/10/13/16A | T2 |
| P1PM2T2CH | Enfas | 8m | 200-250V | 8/10A | T2 |
| P1PM2T2DK | Enfas | 8m | 200-250V | 6A | T2 |
1 Model: P3PM2T2 / P3P6MT2
Technical parameters
| Mätt (L×B×H) | 260 × 100 × 72.5 mm |
| Vikt | 3-fas: 3.35 kg / 2.9 kg |
| Skyddsgrad( Control box ) | IP65 |
| Drifttemperatur | -30°C till +50°C |
1 Model: P1PM2T2 / P1PM2T1 / P1PM2T2C / P1PM2T2BS / P1PM2T1BS P1P6MT2 / P1PM2T2L / P1PM2T2CH / P1PM2T2DK
