ORALB PROFESSIONALCARE D17.525 - Electric toothbrush BRAUN - Free user manual and instructions

USER MANUAL ORALB PROFESSIONALCARE D17.525 BRAUN

Illustration of a hand holding a cylindrical object inside a container with a labeled part 'g' (no text or symbols on the object itself)

h

Illustration of a hand holding a cylindrical device next to a door lock, with a blue arrow indicating the process (no text or symbols present)

Illustration of an electric toothbrush charging station next to a wall-mounted power outlet, with no text or symbols present.

The Oral-B Professional Care has been developed together with leading dental professionals to effectively remove plaque from all areas of your teeth. It adds a gentle pulsating action to its oscillation to create a deep-cleaning 3D brushing action. It has been designed for daily use for the whole family.

Please read the use instructions carefully before first use.

Important

• Periodically check the cord for damage. A damaged or non-functioning unit shall no longer be used. Take the charging unit (e) to an Oral-B Braun Service Centre.
• This product is not intended for use by children under age three.
• If the product is dropped, the brushhead should be replaced before the next use even if no damage is visible.

Description

a INDICATOR ^® brushhead
b Switch
c Handle
d Charge indicator
e Charging unit
f Roll-stop
g Brushhead compartment

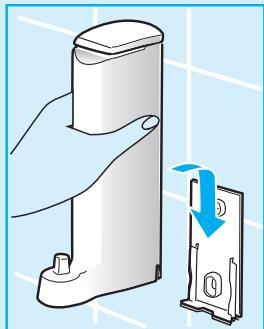

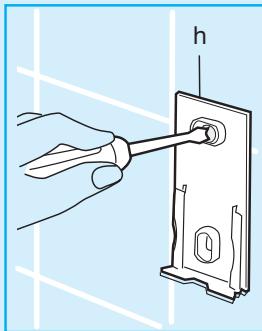

h Wall holder

Specifications

Power supply: see bottom of charging base

Handle voltage: 1.2 V

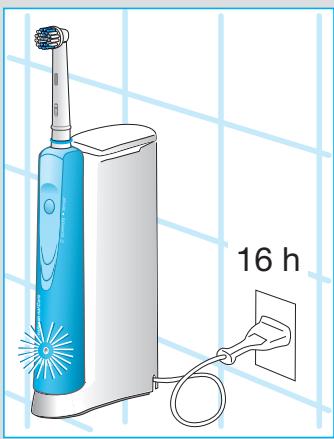

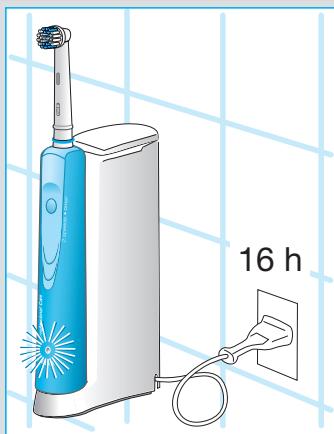

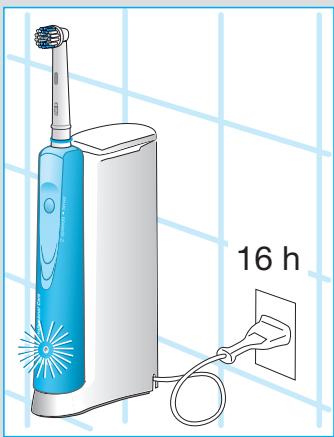

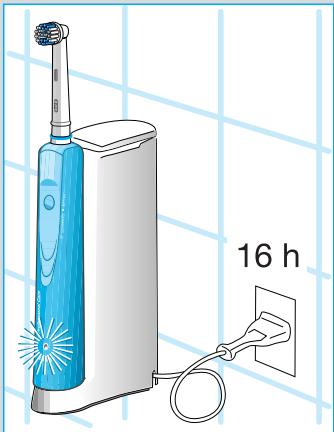

Connecting and charging

The toothbrush is electrically safe and can be used in the bathroom without hesitation.

• Plug the appliance into an electrical outlet. Place the toothbrush handle (c) on the charging unit (e).
• The charge indicator (d) flashes while the handle is being charged.
• When the handle is fully charged, the charge indicator lights permanently. A full charge takes at least 16 hours and provides an operation time of approximately 45 minutes.
• For everyday use, the toothbrush handle can be stored on the charging base to maintain it at full power. Overcharging is impossible.

Battery maintenance

To maintain the maximum capacity of the rechargeable battery, unplug the charging unit and discharge the handle by regular use at least every 6 months.

Using the toothbrush

This product can be used with any leading brand of toothpaste.

To avoid splashing, guide the brushhead to your teeth before switching the appliance on.

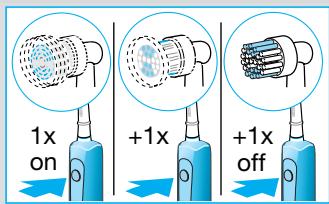

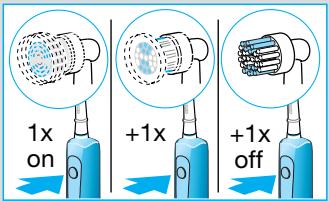

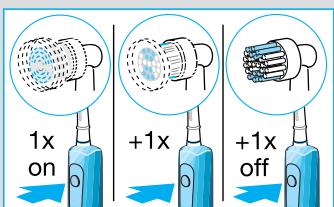

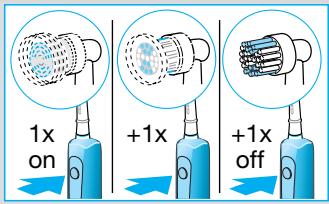

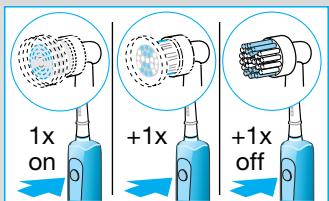

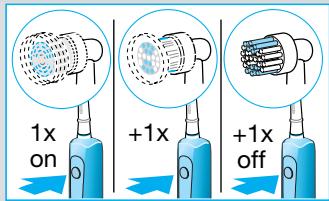

Operating the switch

The toothbrush features two speed options, the lower speed being optimal for sensitive areas in the mouth:

• press the switch to operate with normal speed,
• press a second time to operate with reduced speed,
• press a third time to switch the unit off.

Removing plaque

Guide the brushhead slowly from tooth to tooth. Hold the brushhead in place for a few seconds before moving on to the next tooth.

Brush the gums as well as the teeth, first the outsides, then the insides, finally the chewing surfaces. Do not press too hard or scrub, simply let the brush do all the work.

Professional timer

With a signal you can hear and feel, the timer invites you to brush quadrant by quadrant. After every 30 seconds, it signals by a very short stutter that it is time to move to the next quadrant. After two minutes

– which is the recommended brushing time – the timer signals by a longer stutter.

Pressure Sensor

For safety and optimum brushing results, the toothbrush has a pressure control system: If too much pressure is applied, the oscillating movement of the brushhead will continue, but the pulsation will stop. In addition to feeling it, you can also hear the difference.

During the first few days of using the toothbrush, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or hygienist.

Illustration of an electric toothbrush with a blue body and a metallic handle (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the gum (no text or symbols)

Illustration of a mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Diagram showing two types of cable connectors with blue insulation layers (no text or symbols)

Illustration showing two-step procedure: one using a tap wrench to clean water, the other hand holding a digital thermometer (no text or symbols present)

Illustration showing two hands cleaning a device and spraying water (no text or symbols)

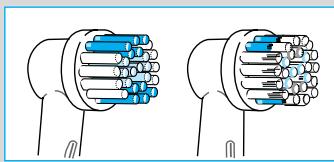

INDICATOR® bristles

The INDICATOR ^® bristles help you monitor and improve your brushing performance. With proper brushing, twice a day for two minutes, the blue colour on the INDICATOR ^® bristles will disappear half-way down within 3-4 months, signaling it is time to change the brushhead.

Replacement brushheads

Available at your dealer or Braun Service Centres.

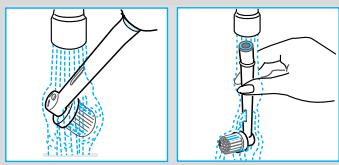

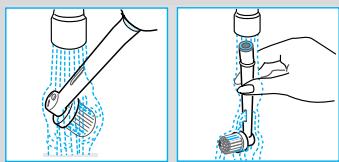

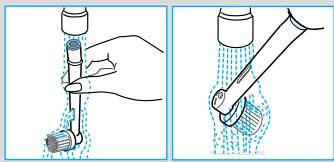

Cleaning

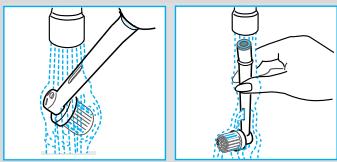

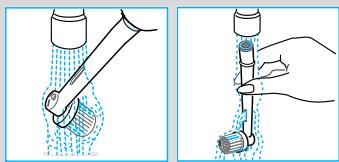

• Rinse the brushhead thoroughly under running water for several seconds with the handle switched on.
• Switch off the appliance and remove the brushhead from the handle. Clean both parts separately under running water, then wipe them dry before you reassemble the brush and put the handle on the charging unit.

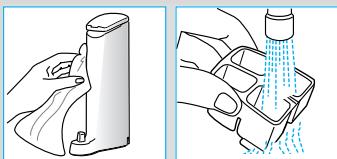

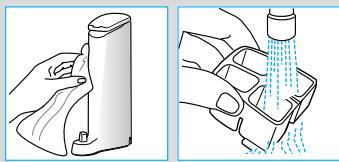

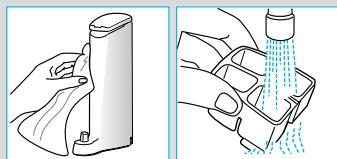

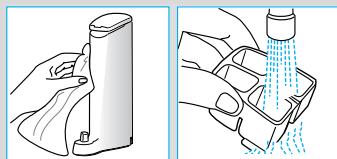

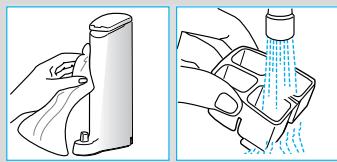

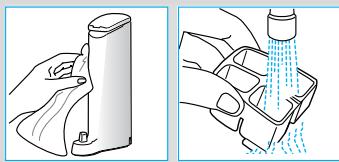

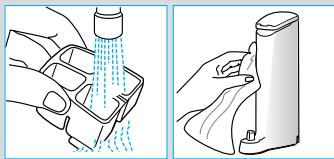

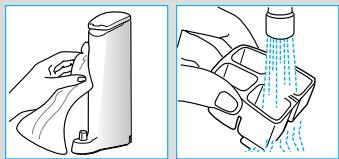

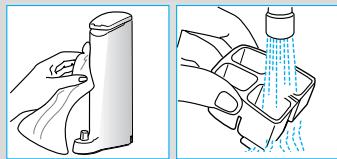

• From time to time, also clean the charging unit and the brushhead compartment with a damp cloth.
• For cleaning purposes, the brushhead compartment is removable.

Subject to change without notice.

This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC.

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place an Oral-B Braun Service Centre or at appropriate collection points provided in your country.

Illustration of an electric toothbrush charging at 16 hours, with a wall socket connected to it (no text or symbols on the device itself)

Illustration of an electric toothbrush with a blue body and a blue tip, no text or symbols present.

1x on +1x +1x off

outsides

Illustration of a tooth with a toothbrush inserted into the gum (no text or symbols present)

Diagram showing a mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Two views of a cable connector showing internal structure and wiring (no text or symbols)

Illustration of a hand using a tap wrench to lift water, showing the process (no text or symbols present)

Illustration of two hands cleaning a spray bottle and a spray can (no text or symbols)

Illustration of an electric toothbrush charging at 16 hours, with a wall socket connected to it (no text or symbols on the device itself)

Illustration of an electric toothbrush with a blue body and a metallic handle (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the jaw (no text or symbols)

Illustration of a mechanical component with blue and white parts, showing motion arrows (no text or symbols)

insides

tops

Diagram showing two types of cable connectors with blue insulation layers (no text or symbols)

Illustration showing two steps of a hand holding a water tap with liquid, no text or symbols present

Illustration showing two hands cleaning a spray bottle and a hand holding a spray bottle with liquid (no text or symbols)

Filamentos INDICATOR®

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue body and a blue tip, no text or symbols present.

1x on +1x off +1x

outsides

Illustration of human teeth with a toothbrush inserted into the lower jaw (no text or symbols)

Diagram of a mechanical component with blue and gray parts, showing motion arrows (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Two views of a cable connector showing internal structure and outer sheath (no text or symbols)

Illustration showing two steps of a hand holding a tool, with no visible text or symbols.

Illustration showing two hand positions: one holding a device, the other handling a water droplet (no text or symbols)

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue body and a metallic handle (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted (no text or symbols)

Diagram showing a mechanical component with blue and white parts, no text or symbols present

Dental tooth with a brush applying blue material to the upper teeth (no text or symbols visible)

tops

Diagram showing two types of cable connectors with blue insulation layers (no text or symbols)

Illustration showing two-step cleaning procedure: one with a brush and water droplets, the other with a hand holding a tool (no text or symbols)

Illustration showing two different methods of cleaning a spray bottle, one with a hand holding the spray bottle and the other with a spray bottle pouring liquid (no text or symbols present)

Setole INDICATOR®

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue body and a blue tip, no text or symbols present.

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the jaw (no text or symbols)

Diagram showing a mechanical assembly with rotating components and directional arrows (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Two views of a cable connector showing internal structure and wiring (no text or symbols)

Illustration showing two-step cleaning procedure: one using a tool to clean water, the other holding a syringe with liquid (no text or symbols)

Illustration showing two hands cleaning a spray bottle and a hand holding a spray bottle with liquid (no text or symbols)

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue base and metallic tip (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the gum (no text or symbols)

Illustration of a mechanical component with rotating arrows indicating motion (no text or symbols)

insides

tops

Two diagrams showing cable cross-sections with blue and white wires, no text or symbols present

Illustration showing two steps of a hand holding a tool, one with liquid and the other with a droplet (no text or symbols present)

Illustration showing two hands performing a manual water spray application on a device (left) and a close-up of the spray bottle being held in liquid (right), both without any text or symbols.

Vlákna INDICATOR®

Illustration of an electric toothbrush charging at 16 hours, with a wall-mounted power outlet nearby (no text or symbols on the device itself)

Illustration of an electric toothbrush with a blue body and a blue tip, no text or symbols present.

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the jaw (no text or symbols)

Diagram showing a mechanical component with rotating arrows and a base, no text or symbols present

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Two views of a cable connector showing internal structure and top view (no text or symbols)

Illustration showing two-step cleaning procedure: one using a tool to clean water, the other holding a pipette with liquid (no text or symbols)

Illustration of two hands cleaning a spray bottle and a water dispenser (no text or symbols)

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue body and a blue tip, showing no text or symbols.

1x on +1x +1x off

outsides

Illustration of a toothbrush applying product to the upper jaw (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Diagram of two types of electrical connectors with coiled wires, shown from front and side views (no text or symbols)

Illustration of a hand using a tool to clean water from a pipe (no text or symbols present)

Illustration showing two hands cleaning a device and spraying water (no text or symbols)

INDICATOR® kefefej

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of a blue electric toothbrush with a magnified view of its tip (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted into the jaw (no text or symbols)

Diagram showing a mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a tooth being brushed with a brush, labeled 'insides' (no other text or symbols)

tops

Two diagrams showing cable cross-sections with blue insulation layers (no text or symbols)

Illustration showing two methods of cleaning a faucet, one using a hand to clean water and the other using a brush (no text or symbols present)

Illustration showing two steps of a hand cleaning a water spray bottle (no text or symbols present)

Illustration of an electric toothbrush connected to a power outlet, with a 16-hour time label (no text or symbols on the device itself)

Illustration of a blue electric toothbrush with a magnified view of its tip (no text or symbols)

1x on +1x +1x off

outsides

Illustration of human teeth with a toothbrush inserted (no text or symbols)

Illustration of a robotic arm interacting with a white object, showing motion arrows (no text or symbols)

Illustration of a tooth with a brush applying blue material to the upper dental arch (no text or symbols)

tops

Two diagrams showing cable cross-sections with blue and white wires, no text or symbols present

Illustration of a hand using a tool to lift a water tap, showing liquid level changes (no text or symbols)

Illustration showing two hand positions: one holding a spray can, the other holding a spray bottle with liquid droplets (no text or symbols)

Illustration of an electric toothbrush next to a wall-mounted power outlet, with no text or symbols present.

Illustration of an electric toothbrush with a blue body and a blue tip, showing no text or symbols.

1x on +1x off +1x

outsides

Illustration of human teeth with a toothbrush inserted into the jaw (no text or symbols)

Diagram showing a mechanical assembly with rotating components and directional arrows (no text or symbols)

insides

tops

Two views of a cable connector showing internal structure and top view (no text or symbols)

Illustration showing two-step cleaning procedure: first with tool, second with hand holding test tube (no text or symbols)

Illustration of two hands cleaning a spray bottle and a spray can (no text or symbols)

Illustration of a hand using a water tap to lift a showerhead (no text or symbols)

Illustration of a hand using a tool to clean water from a spray bottle (no text or symbols)

Illustration of a hand cleaning a surface with liquid, showing spray and cleaning (no text or symbols)

Illustration of a hand holding a white cylindrical object with a small protrusion, no text or symbols present

Illustration of a tooth with a toothbrush inserted into the gum (no text or symbols present)

Illustration of a mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a tooth being brushed with a brush, showing dental alignment (no text or symbols)

tops

Diagram showing two types of cable connectors with blue insulation layers (no text or symbols)

Illustration of an electric toothbrush charging at 16 hours, with a power outlet connected to its side (no text or symbols on the device itself)

Illustration of an electric toothbrush with a blue base and a blue tip, no text or symbols present.

1x on +1x +1x off

التوصيل والشحن

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use, especially regarding the brushheads, as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Oral-B Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Garantie

Country of origin: Germany

صنعت في ألمانيا

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: “620” – The product was manufactured in week 20 of 2006.

عام الصنع

Oral-B Professional Care D17525

Guarantee Card

Carte de garantie

Tarjeta de garantía

Cartão de garantia

Carta di garanzia

Karta gwarancyjna

Záruční list

Záručný list

Jótállási jegy

Κάρτα εγγυήσεως

Гарантийный талон

بطاقة تأمين دولة

Oral-B Professional Care D17525

Registration Card

Carte de contrôle

Tarjeta de registro

Cartão de registo

Name and full address of purchaser

Stamp and signature of dealer

Stamp and signature of dealer
