Product type	Rechargeable electric toothbrush
Brand	BRAUN / Oral-B
Model	ProfessionalCare 9500 (Triumph)
Power supply	SmartPlug charger, 100-240 V, rechargeable NiMH battery
Full charge time	12 hours
Battery life	Approximately 2 weeks (brushing twice a day)
Brushing modes	Clean, Soft, Massage, Polish (depending on model)
Timer	Professional timer (30 s per quadrant) or 2-minute timer
Pressure control	Yes – pulsations stop if excessive pressure
Display	SmartDisplay: charge indicator, mode, brushing time, brush head replacement reminder
Compatible brush heads	FlossAction, ProBright, Ortho (with smart chip)
Brush head replacement	Every 3 months; "Replace Brush Head" indicator on display
Technology	Smart Technology: brush head-handle communication
Waterproofing	Waterproof handle, use in the bathroom
Charger	Compact SmartPlug, travel-friendly (universal voltage)
Cleaning	Rinse brush head with water; base and cover dishwasher-safe; recharge ring and plug clean with a damp cloth
Safety	Integrated mains plug; do not use if damaged; not recommended for children under 3
Warranty	2 years from purchase date

Frequently Asked Questions - ORALB PROFESSIONALCARE 9500 BRAUN

How do I change the language on my Oral-B Triumph toothbrush?

Press the Brushing mode button until 'English' appears. Use the on/off button to scroll through 13 languages. Confirm by pressing Brushing mode again. You will then be directed to the timer selection.

How long does the battery charge last?

A full charge takes 12 hours. It provides approximately 2 weeks of regular brushing (twice a day). The display shows 'Charging' then 'Charged'.

How do I know when to replace the brush head?

The SmartDisplay shows 'Replace Brush Head' after 3 months of use. Replace it for optimal brushing results. If unusual wear appears earlier, change it immediately.

What brushing modes are available?

The modes are: Clean (exceptional hygiene), Soft (sensitive areas), Massage (gum stimulation), and Polish (whitening, only on luxury model). The default mode is Clean.

What should I do if my toothbrush does not charge?

Check that the SmartPlug is properly plugged in and the handle is correctly placed on the charger. If the battery symbol does not appear within 10-15 minutes, continue charging. If the problem persists, contact an Oral-B Braun customer service.

Can I use my toothbrush in the shower?

Yes, the handle is waterproof and can be used in the bathroom. However, the SmartPlug charger must never be immersed in water.

How do I clean the charger?

Disassemble the charging unit. The base, support plate, and protective cover are dishwasher-safe. The charging ring and SmartPlug can be cleaned with a damp cloth; never immerse them in water.

Does the warranty cover the brush heads?

No, the 2-year warranty does not cover normal wear, including brush heads. It covers manufacturing or material defects. To claim the warranty, return the complete device with proof of purchase to an authorized Braun service center.

How does the pressure control work?

If you apply too much pressure, the oscillating movement continues but the pulsation stops. You feel a change and hear a different sound. This helps prevent brushing the gums too hard.

Is the toothbrush suitable for braces?

The FlossAction and ProBright brush heads are not recommended with braces. Instead, use the Oral-B Ortho brush head, specially designed for teeth with braces.

USER MANUAL ORALB PROFESSIONALCARE 9500 BRAUN

You have chosen Oral-B's most technologically advanced rechargeable toothbrush. Oral-B® Triumph™ will provide you with an outstanding oral care result you have been striving to achieve.

Oral-B Triumph has an innovative new brushing technology that is clinically proven to deliver cleaner and whiter teeth. * Its advanced Oral-B® FlossAction™ brushhead features MicroPulse™ bristles that gently penetrate deep between teeth for an extraordinary interdental clean. It provides such an exceptional clean, you won't believe how great you feel about your teeth.

Oral-B Triumph is a significant advancement in brushing technology featuring the following:

• Smart Technology, an interactive feature that gives you feedback to maximize your brushing performance.
• Innovative Brushheads with new brushing technology provide thorough cleaning for your teeth and outstanding gum care.
• Different Brushing Modes let you customize your brushing routine to address your specific needs.
• An innovative SmartPlug™ charger makes Oral-B Triumph convenient for traveling.

Oral-B Triumph is brought to you by Oral-B, the worldwide leader in toothbrushes and the brand more dentists use themselves.

If you have any questions about using the new Oral-B Triumph toothbrush, please visit our web site at www.oralb.com or contact our helpline (please see page 2).

Thank you for choosing

Oral-B Triumph.

Sincerely,

Bruce Cleverly

President, Oral-B

Smart Technology ... Brilliant Results.

• vs. brushing with FlexiSoft® brushhead, the #1 selling power toothbrush brushhead in the world

Oral-B Triumph has been carefully designed to offer you and your family a new and unique brushing experience that is both safe and effective. However, when using electrical products, basic safety precautions should always be followed. Please read carefully before use.

Important

• The Oral-B Triumph is provided with a SmartPlug with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is the risk of electric shock. Periodically check the SmartPlug for damage. A damaged or non-functioning appliance shall no longer be used. Take it to an Oral-B Braun Service Centre.
• This product is not intended for use by children under age three.
• If the product is dropped, the brushhead should be replaced before the next use even if no damage is visible.

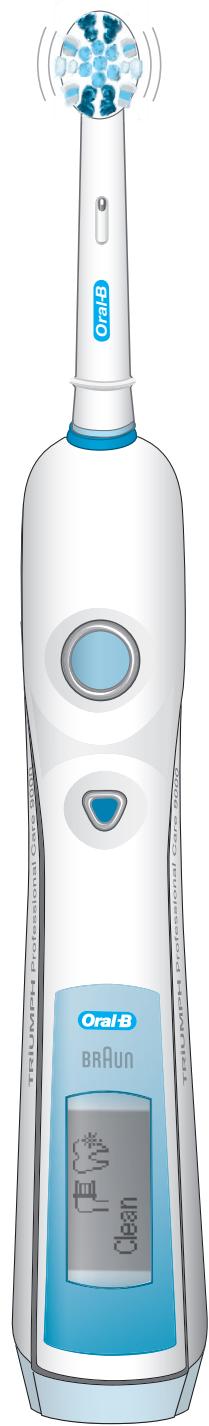

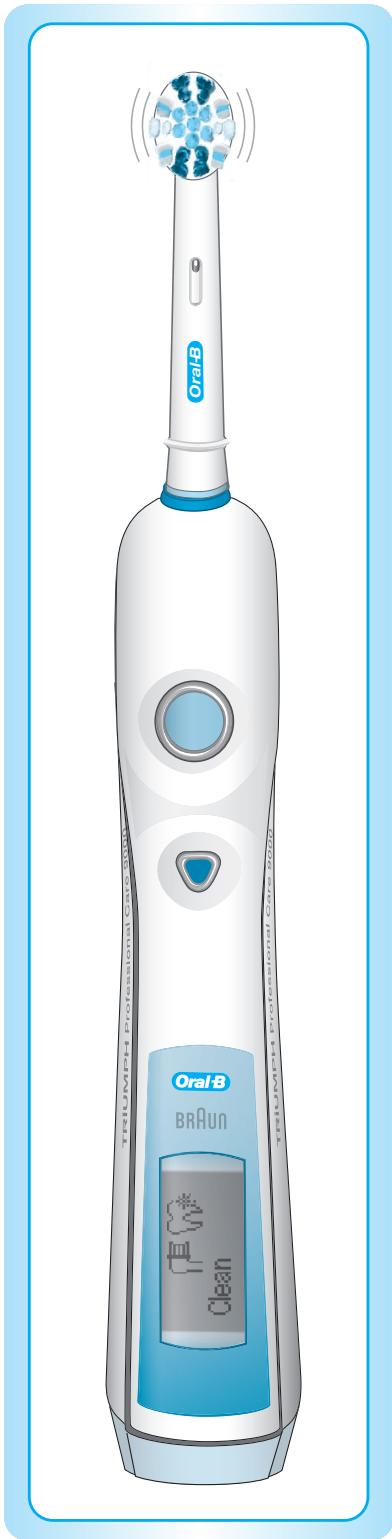

Description of Oral-B Triumph

a Oral-B FlossAction brushhead
b On/off button
c Brushing mode button
d Handle
e SmartDisplay
f SmartPlug charger (includes charging ring and SmartPlug)
g Base plate
h Base station
i Protective cover
j ProBright™ brushhead (deluxe model only)

A convenient travel case (deluxe model only) holds t

Oral-B Triumph handle and two Oral-B brushheads (except for Oral-B CrossAction Power and Oral-B Sonic Complete brushheads).

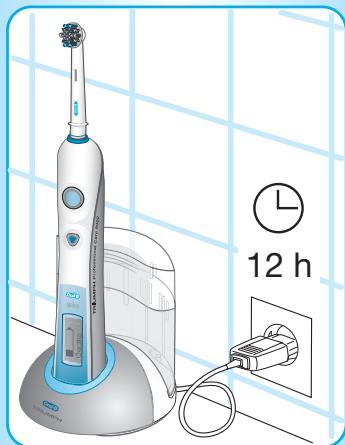

Connecting and charging

Oral-B Triumph has a waterproof handle, is electrically safe and is designed for use in the bathroom.

To assemble the base station (h) as a charging unit, detach the base plate (g) first (①, page 3). Place the charging ring into the base station and attach the base plate as shown (② and ③, page 3). Then insert the protective cover (i) on the back of your base station (see diagram ④, page 3).

• Plug the SmartPlug into an electrical outlet and place the toothbrush handle (d) on the charging unit. Alternatively, Oral-B Triumph can be charged by placing the handle directly into the charging ring while the SmartPlug is plugged in.

• A battery symbol should appear in the SmartDisplay. The battery symbol will fill up while the handle is being charged and «Charging» will be displayed. When the handle is fully charged, the SmartDisplay shows «Full charge». A full charge takes at least 12 hours and enables approximately two weeks of regular brushing.

Please note: If the battery symbol is not displayed immediately, continue charging. It will appear in 10 - 15 minutes.

• When the rechargeable battery is low, the bars of the battery symbol will disappear and «Low» will be displayed. Your toothbrush will slow down and then stop. It is time to recharge Oral-B Triumph. When the battery is fully discharged, «Empty» is displayed. It will then need a 15-minute charge before you can use it for a 2-minute brushing.
• For everyday use, the toothbrush handle can be stored on the charging unit to maintain it at full power. There is no risk of overcharging the battery.
• To maintain the maximum capacity of the rechargeable battery, unplug the charging unit and fully discharge the handle by regular use at least every 6 months.

Oral-B Triumph is convenient for traveling because you only need the compact SmartPlug charger and an appropriate travel adapter for recharging in foreign countries. The SmartPlug automatically adapts to any voltage worldwide.

For electric specifications, see printing on the SmartPlug.

Personalizing Oral-B Triumph

Before getting started, you can program your toothbrush so that it meets your specific needs. Oral-B Triumph has innovative Smart Technology that lets you choose the language and the timer that works best for you.

Select your language

Oral-B Triumph comes with the English language activated. If you wish to switch to another language, proceed as follows: Press and hold the brushing mode button (c) until «English» is displayed. By briefly pressing the on/off button (b) you can scroll through 13 different languages. To confirm your desired language, briefly press the brushing mode button again. This will also lead you directly to the timer choice menu.

Select your timer

The «2-Minute Timer» indicates by a long stuttering sound when the dentist recommended 2-minute brushing time has been reached. The «Professional Timer» helps you brush all four quadrants of your mouth equally. It signals with a short stuttering sound at 30-second intervals that it is time to move to the next quadrant of your mouth, followed by a long stuttering sound when you reach the recommended two minute mark.

Oral-B Triumph comes with the «Professional Timer» activated. If you wish to switch to the «2-Minute Timer» after you have confirmed the language, simply press the on/off button to change the setting. Then press the brushing mode button to confirm your choice.

Using Oral-B Triumph

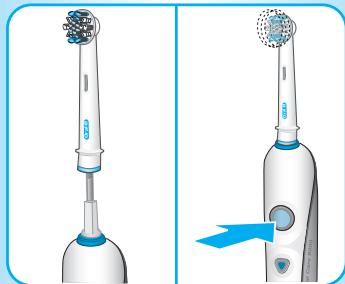

Attach an Oral-B brushhead to the handle. You can use any kind of toothpaste. To avoid splashing, guide the brushhead to your teeth before switching the appliance on.

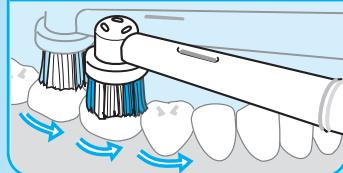

Brushing technique

• Guide the brushhead slowly from tooth to tooth.
• Hold the brushhead in place for a few seconds before moving on to the next tooth.
• Brush the gums as well as the teeth, first the outsides, then the insides, finally the chewing surfaces.
• Do not press too hard or scrub, simply let the brush do all the work.

To help you get optimum brushing results, Oral-B Triumph has a pressure control feature to ensure that the right degree of pressure is applied. This helps protect your gums from excessive brushing and makes your toothbrush easy to operate. If too much pressure is applied, the oscillating movement of the brushhead will continue but the pulsation will stop. In addition to feeling the change, you can also hear a different sound.

Brushing modes

Oral-B Triumph offers different brushing modes for varying oral care needs:

"Clean" - Exceptional mouth cleaning.
«Soft» Gentle, yet thorough cleaning for sensitive areas.
"Massage" - Gentle stimulation of gums.
"Polish" (deluxe model only) - Exceptional polishing and natural whitening for occasional or everyday use.

How to switch between brushing modes:

• Oral-B Triumph automatically starts in the «Clean» mode when pressing the on/off button.
• To shift from the «Clean» to the «Soft» mode, press the brushing mode button once.
• If you wish to switch to the «Massage» mode, press the brushing mode button again and let the brushhead pulse against your gum line.
• The «Polish» mode (deluxe model only) is best used with a ProBright brushhead. Once the ProBright is attached, press the on/off button and your toothbrush automatically starts in the «Polish» mode (please see «Brushheads»).
• To return from any other mode to the «Clean» mode, press and hold the brushing mode button.
• To turn your brush off, press the on/off button.

During brushing, the SmartDisplay shows the brushing mode you have selected, followed by your actual brushing time. When you finish brushing, the total brushing time will be displayed for 30 seconds before the display switches back to the battery charge level. To directly get to the battery charge level display, you can clear the brushing time display by pushing the brushing mode button.

In the first few days of using Oral-B Triumph, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or hygienist. If you have sensitive teeth and gums, Oral-B recommends using the «Soft» mode.

Brushheads

The Oral-B FlossAction and ProBright brushheads contain a «smart chip» to communicate with the electronics inside the Oral-B Triumph handle. The «smart chip» works for you, automatically switching to the appropriate brushing mode for the attached brushhead. Nevertheless, you can select other brushing modes to customize your routine.

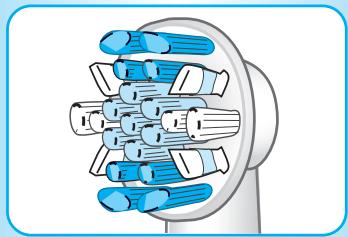

Oral-B FlossAction brushhead

The Oral-B FlossAction brushhead is recommended for everyday deep cleaning. It features MicroPulse bristles that get deep in hard-to-reach areas between your teeth, gently removing hidden plaque. The brushhead's outer bristles surround each tooth, providing exceptional overall plaque removal.

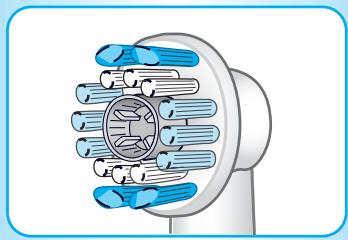

ProBright brushhead (deluxe model only)

The ProBright brushhead is for occasional or everyday polishing. It features a dentist-inspired polishing cup to remove stains from coffee, tea and tobacco for effective brightening.

We do not recommend using the ProBright or Oral-B FlossAction brushhead with braces. The Oral-B Ortho brushhead is specifically designed to clean around braces and wires and can be used with Oral-B Triumph.

Oral-B Triumph has Smart Technology that helps you remember when to replace your brushhead to get optimum results. Dentists recommend that you change your brushhead every three months. As soon as your Oral-B FlossAction or ProBright brushhead has surpassed the recommended usage, the SmartDisplay shows «Replace Brushhead». Replace with a new brushhead to get optimum brushing results. If you notice unusual wear before receiving the «Replace Brushhead» message, replace your brushhead immediately.

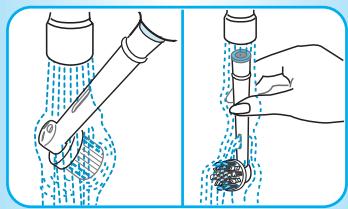

Cleaning recommendations

• After brushing, rinse your brushhead thoroughly under running water.
• Remove the brushhead from the handle and clean both parts separately under running water. Then wipe them dry before you put the handle on the charging unit.

Replace Brushhead

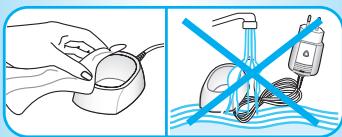

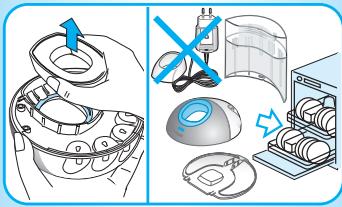

• Before cleaning your charging unit, make sure you disassemble it first. The charging ring and the SmartPlug should never be placed in the dishwasher. However, all other parts (base station, base plate and protective cover) are dishwasher-safe.
• From time to time, you can also clean the charging ring and the SmartPlug with a damp cloth. The SmartPlug charger should never be placed in water.

Subject to change without notice.

This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC.

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at an Oral-B Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Oral-B Braun Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

The 30-Day Challenge

Take the challenge! Experience the Oral-B Triumph difference!

Oral-B Triumph is Oral-B's most technologically advanced rechargeable toothbrush for exceptional cleaning, natural whitening, gum care and freshening of your mouth.

No wonder that Oral-B is the brand more dentists use themselves worldwide. In fact, we are so convinced you'll love the new Oral-B Triumph toothbrush that we give you this risk-free offer.

Try Oral-B Triumph for 30 days. If you are not 100% satisfied, receive a full refund. No questions asked. Guaranteed.

For a full refund, please return your handle, refills, and charging unit with your original cash register receipt to the address below.

Great Britain / Ireland:

Braun Cashback (BC 024)

PO Box 504

Leicester

LE94 0AE

For further details, please contact our helpline (see page 2) to be referred to the authorized Oral-B Braun Service Center closest to you.
