USER MANUAL MS-7623 V5.0 MSI

FCC-B RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can N1996

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/ television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International MS-7623

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

PART NUMBER

G52-76231XK

COPYRIGHT NOTICE

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

TRADEMARKS

All trademarks are the properties of their respective owners.

■ MSI® is registered trademark of Micro-Star Int'l Co., Ltd.
■ NVIDIA ^® is registered trademark of NVIDIA Corporation.
■ ATI ^® is registered trademark of ATI Technologies, Inc.
■ AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
■ Windows® is registered trademarks of Microsoft Corporation.
■ AMI® is registered trademark of American Megatrends, Inc.
■ Award® is a registered trademark of Phoenix Technologies Ltd.
■ Sound Blaster® is registered trademark of Creative Technology Ltd.
■ Realtek® is registered trademark of Realtek Semiconductor Corporation.
■ JMicron® is registered trademark of JMicron Technology Corporation.
■ Netware® is a registered trademark of Novell, Inc.

REVISION HISTORY

Revision	Revision History	Date
V5.0	First release	October 2010

SAFETY INSTRUCTIONS

■ Always read the safety instructions carefully.
- Keep this User Manual for future reference.
- Keep this equipment away from humidity.
■ Lay this equipment on a reliable flat surface before setting it up.
■ The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings.
■ Make sure the voltage of the power source is at 110/220V before connecting.
■ Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
■ Always Unplug the Power Cord before inserting any add-on card or module.
■ All cautions and warnings on the equipment should be noted.
■ Never pour any liquid into the opening that can cause damage or cause electrical shock.
■ If any of the following situations arises, get the equipment checked by service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment has been dropped and damaged.
• The equipment has obvious sign of breakage.

The equipment does not work well or you can not get it work according to User Manual.

■ DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60°C (140°F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION

Danger of explosion if battery is incorrectly replaced.

警告使用者

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment”

cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Thank you for choosing the 880GMA-E55 series (MS-7623 v5.x) Micro-ATX mainboard. The 880GMA-E55 series is design based on AMD® 880G & SB850 chipset for optimal system efficiency. Designed to fit the advanced AMD® AM3 processor, the 880GMA-E55 series deliver a high performance and professional desktop platform solution.

Layout

Top: Optical S/PDIF-Out Bottom: mouse/keyboard Top: VGA port Bottom: DVI-D port Top: USB2.0 ports Bottom: HDMI port Top: IEEE 1394 port Bottom: USB2.0 ports Top: LAN Jack Bottom: USB3.0 ports T-Line-In M-Line-O at B-Mic TRS-Qu-1 M-CS-U at B-SS-O at JSPR2 JSPR1_1 JCP805 PCI_E1 PCI_E2 PCI_E3 PCI1 JAUD1 JCD1 JSP1 OC-SW1 JTPM1 JUSB1 JUSB2 JUSB3 JUSB4 JBAT1 JSPR2 AMD SBS805 CPU/FAN DIMM1 DIMM2 DIMM3 DIMM4 SYSFAN2 SYSFAN1 JSPR1 IDE 1 SATA 6 SATA 6 JSPR2 JBAT1 JSPR2 SATA 4 SATA 2

SPECIFICATIONS

Processor Support

• AMD ^ PhenomII/ Phenom/ Althon II/ Althon/ Sempron processors in AM3 package.
  (For the latest information about CPU, please visit
  http://www.msi.com/index.php?func=cpuform2)

HyperTransport

■ Supports Hyper Transport(HT) 3.0 Technology

Chipset

■ North Bridge: AMD® 880G chipset

■ South Bridge: AMD® SB850 chipset

Memory Support

■ DDR3 800/ 1066/ 1333/ 1600*(OC) SDRAM (16GB Max)
■ Supports Dual-Channel mode (For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport)

LAN

■ Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111E

IEEE 1394

■ 2 IEEE 1394 ports by VIA® VT6315N (pinheader x1, rear panel x1)

Audio

■ Chip integrated by Realtek® ALC892
■ Flexible 8-channel audio with jack sensing
■ Compliant with Azalia 1.0 Spec

IDE

■ 1 IDE port by JMicron® 368
■ Supports Ultra DMA 33/66/100/133, PIO & Bus Master operation mode

SATA

■ 6 SATA 6Gb/s ports by AMD® SB850

RAID

■ SATA1\~6 support RAID 0/ 1/ 5/ 10 by AMD® SB850

Floppy

■ 1 floppy port
■ Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Connectors

■ Back panel
- 1 Optical S/PDIF-Out
- 1 PS/2 mouse/ keyboard port
- 1 VGA port
- 1 DVI-D port
- 1 HDMI port
- 1 IEEE 1394 port
- 4 USB 2.0 Ports
- 2 USB 3.0 ports

• 1 LAN jack
• 6 flexible audio jacks

■ On-Board Connectors

• 1 Parallel connector
• 4 USB 2.0 connectors
• 1 IEEE 1394 connector
• 1 Serial port connector
• 1 SPDIF-Out connector
• 1 Front Panel Audio connector
• 1 Chassis Intrusion connector
• 1 CD-In connector
• 1 TPM connector
• 1 OC switch

Slots

■ 1 PCIE 2.0 x16 slot
■ 2 PCIE 2.0 x1 slots
■ 1 PCI slot, support 3.3V/ 5V PCI bus Interface

Form Factor

■ Micro-ATX (24.4cm X 24.4 cm)

Mounting

■ 8 mounting holes

(If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address below http://www.msi.com/index.php)

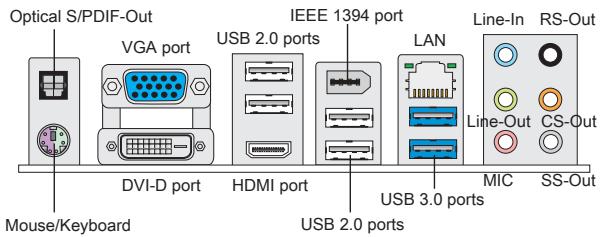

The rear panel provides the following connectors:

Optical S/PDIF-Out VGA port USB 2.0 ports IEEE 1394 port LAN Line-In RS-Out DVI-D port HDMI port USB 2.0 ports USB 3.0 ports MIC SS-Out Mouse/Keyboard

HARDWARE SETUP

CPU & Cooler Installation for AM3

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

The surface of AM3 CPU.

Remember to apply some thermal paste on it for better heat dispersion.

Gold arrow

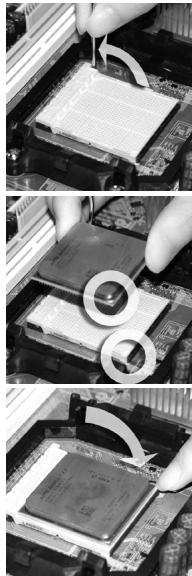

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard.

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
2. Look for the gold arrow of the CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation.
3. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.
4. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
5. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.

6. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever and lift up it.

7. Fasten down the lever.

8. Attach the CPU Fan cable to the CPU fan connector on the mainboard.

IMPORTANT

* Mainboard photos shown in this section are for demonstration of the cooler installation for Socket AM3 CPUs only. The appearance of your mainboard may vary depending on the model you purchase.
* While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.

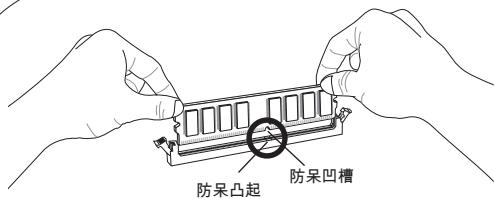

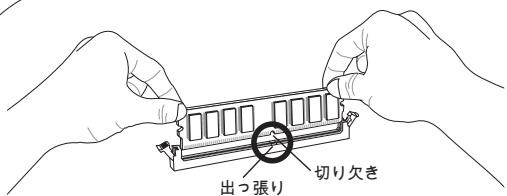

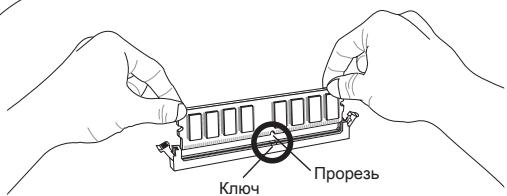

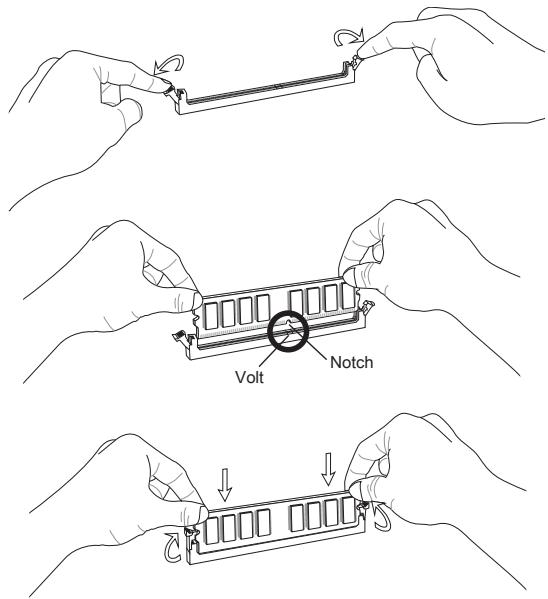

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right orientation.

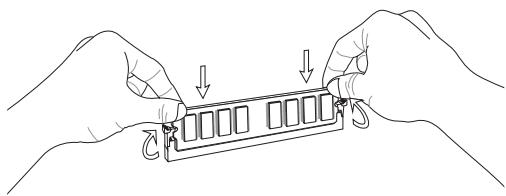

2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.
3. Manually check if the memory module has been locked in place by the DIMM slot clips at the sides.

Diagram illustrating three-step electrical circuit modification: holding a variable resistor, moving a voltage component with a notch, and finally adjusting a terminal block.

IMPORTANT

* In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.
* To ensure a successful system boot-up, always insert the memory modules into the DIMM1 first.

ATX 24-Pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

12+3.3V 9+10+12V 6+7.5V Ground 1+2+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 12+3.3V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12V Ground 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv 16+10+12Sv

ATX 4-Pin Power Connector: JPWR2

This 4-Pin power connector is used to provide power to the CPU.

1. Ground 2. Ground 3 +12V 4 +12V

IMPORTANT

Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

Technical line drawing of a mechanical component with grooves and a central notch (no text or symbols)

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

Technical line drawing of a mechanical component with grooves and a central indentation (no text or symbols)

IMPORTANT

If you install two IDE devices on the same cable, you must configure the drives to cable select mode or separately to master / slave mode by setting jumpers. Refer to IDE device documentation supplied by the vendors for jumper setting instructions.

Serial ATA Connector: SATA1 \~ 6

This connector is a Serial ATA interface port. Each connector can connect to one Serial ATA device.

Two technical line drawings of rectangular electronic components with internal channels (no text or symbols)

IMPORTANT

Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

Fan Power Connectors: CPUFAN, SYSFAN1, SYSFAN2

The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

CPUFAN 1. Ground 3. Sensor 4. Control SYSFAN1 1. Ground 3. Sensor SYSFAN2 1. Ground 3. No Use

S/PDIF-Out Connector: JSP1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission.

1: Ground 2: SPDIF 3: VCC

CD-In Connector: JCD1

This connector is provided for external audio input.

1. L 2. Ground 3. Ground 4. R

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Power Switch [6+] Power LED [4-] JFP1 Reserved Reset Switch HDD LED

Speaker Buzzer 8 + 6 - 4 + 2 - 7: No Pin 5: Power LED 3: Suspend LED 1: Ground JFP2

Serial Port Connector: JCOM1

This connector is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial device.

10: No Pin 8 CTS 6 DSR 4 DTR 2 SIN 9 R1 7 RTS 5 Ground 3: SOUT 1: DCD

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

1. Head Phone Detection 2. No Pin 3. MIC Detection 4. PRESENCE 5. No Pin 6. MIC Detection 7. SENSE SEND 8. MIC 9. Head Phone L 10. MIC L 11. MIC L

Front USB Connector: JUSB1, JUSB2, JUSB3, JUSB4

This connector, compliant with Intel ^® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

10. NC 8. Ground 6. USB1+ 4. USB1- 2. VCC 9. No Pin 7. Ground 5. USB0+ 3. USB0- 1. VCC

TPM Module connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module. Please refer to the TPM security platform manual for more details and usages.

14. Ground 12. No Film 8. 5V Power 4. 3.5V Power 2. 3V Standby power 13. LPC Frame 11. LPC address & data pin3 9. F/U address & data pin1 7. LPC address & data pin2 5. LPC Riser 11. LPC CLK

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

Parallel Port Header: JLPT1

This connector is used to connect an optional parallel port bracket. The parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

12.4 NO Pin 25. Ground 16.8 Ground 17.4 Ground 9.8 LFP/ST-NG# 8. RPN/TG-NG# 25.SIOT 13.8 BUSY 13.4 AOC#T 15. PRNDS 9. PRNDS+4 13. PRNDS 13. PRNDS 17. RS/BG

IEEE1394 Connector: J1394\_1

This connector allows you to connect the IEEE1394 device via an optional IEEE1394 bracket.

10. Ground 8 + 12V 6 TPB- 4. Ground 2. TPA- 9. No Pin 7 + 12V 5. TPB+ 3. Ground 1. TPA+

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the button to clear data. Press the button to clear the data.

Keep Data

Clear Data

IMPORTANT

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

Overclock FSB Switch: OC\_SW1

You can overclock the FSB to increase the processor frequency by changing the switch. Follow the instructions below to set the FSB.

Default

Increase 10% speed of CPU clock

Increase 15% speed of CPU clock

Increase 20% speed of CPU clock

IMPORTANT

* Make sure that you power off the system before setting the switch.
* When overclocking cause system instability or crash during boot, please set the switch to default setting.

APS LED Status Indicator: LED1

The APS (Active Phase Switching) LED indicates the current CPU power phase mode. Follow the instructions below to read.

ON	The LED will light when CPU is in 3 phase power mode.
OFF	The LED will go off when CPU is in 1 phase power mode.

PCIE Slot

The PCIE slot supports the PCIE interface expansion card.

Technical line drawing of a mechanical component with two views: top view shows a rectangular block with internal grooves, bottom view shows a separate terminal block with multiple slots (no text or symbols)

The PCIE 2.0 x16 slot
The PCIE 2.0 x1 slot

PCI Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

IMPORTANT

Make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

PCI Interrupt Request Routing

When adding or removing expansion cards, make the IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows:

Slot\Order	1	2	3	4
PCI 1	INT E#	INT F#	INT G#	INT H#

BIOS SETUP

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing , , and keys.

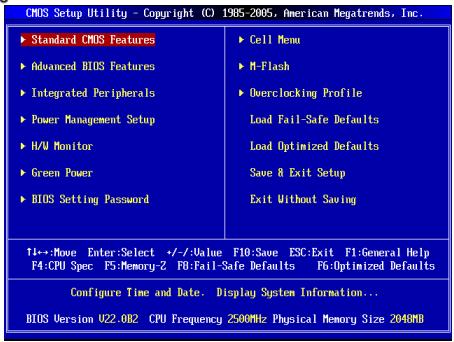

Main Page

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. ► Standard CMOS Features ► Advanced BIOS Features ► Integrated Peripherals ► Power Management Setup ► H/V Monitor ► Green Power ► BIOS Setting Password ► Cell Menu ► M-Flash ► Overclocking Profile Load Fail-Safe Defaults Load Optimized Defaults Save & Exit Setup Exit Without Saving T4->Move Enter:Select +/-Value F10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z F8:Fail-Safe Defaults F6:Optimized Defaults Configure Time and Date. Display System Information... BIOS Version U22.0B2 CPU Frequency 2560MHz Physical Memory Size 2048MB

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows the status of your CPU, fan, warning for overall system status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set BIOS setting Password.

Cell Menu

Use this menu to specify your settings for frequency/voltage control.

M-Flash

Use this menu to read/ flash the BIOS from storage drive (FAT/ FAT32 format only).

Overclocking Profile

Use this menu to save/ load your settings to/ from CMOS for BIOS.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values that are factory settings for system operations.

Load Optimized Defaults

Use this menu to load factory default settings into the BIOS for stable system performance operations.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

Cell Menu

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency

These items show the current clocks of CPU, Memory and CPU-NB speed. Read-only.

CPU Specifications

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Press to enter the sub-menu. This sub-menu shows the technologies that the installed CPU supported.

CPU Feature

Press to enter the sub-menu:

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

To enable this item to red the CPU power consumption while idle. Not all porcessors support Enhanced Halt tate (C1E).

SVM Support

This item allows you to enable/disable the AMD SVM (Secure Virtual Machine) Technology.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

To enable this item to read the CPU power consumption while idle. Not all porces-sors support Enhanced Halt tate (C1E).

IMPORTANT

To ensure that Cool'n'Quiet function is activated and will be working properly, it is required to double confirm that:

* Run BIOS Setup, and select Cell Menu. Under Cell Menu, find AMD Cool'n'Quiet, and set this item to "Enabled".
* Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tag, and select Minimal Power Management under Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).

OC Stepping

This item will be enabled after you set the overclocking frequency in the “Adjust CPU FSB Frequency (MHz)”. And the following items will appear. This items will help the system to overclock step by step after system booting up.

Start OC Stepping From (MHz)

This item is used to set the initial base clock. The system will boot with the initial base clock, and start to overclock from initial base clock to set base clock that you set in “Adjust CPU FSB Frequency (MHz)” step by step.

OC Step

This item is used to set how many steps for base colck overclocking.

OC Step Count Timer

This item is used to set the buffer time for every step.

Adjust CPU Ratio

This item is used to adjust CPU clock multiplier (ratio). It is available only when the processor supports this function.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency. Read-only.

Adjust CPU-NB Ratio

This item is used to adjust CPU-NB ratio.

Adjusted CPU-NB Frequency (MHz)

It shows the adjusted CPU-NB frequency. Read-only.

Unlock CPU Core

This item allows you to unlock the additional cores, you could set it [Enabled] and then set Advanced Clock Calibration [Auto] in order to be able to activate the processor cores.

Advanced Clock Calibration

This item is for overclock. Setting to [Auto] allows you to set the CPU Ratio higher. It is available only when the processor supports this function.

CPU Core Control

This item is used to control number of CPU cores. When set to [Auto], the CPU will operate under the default number of cores. When set to [Manual], you will be able to enable/disable the specific CPU core.

Core 1/2/3/4

These items are used to enable/disable the core 1/2/3/4.

OC Genie Lite

Setting this item to [Enabled] allows the system to detect the maximum FSB clock and to overclock automatically. If overclocking fails to run, you can try the lower FSB clock for overclocking successfully.

Onboard VGA Core OverClock

This item allows you to enable/ disable the onboard VGA overclocking ability.

Adjust Onboard VGA Frequency

This item allows you to adjust the frequency of the onboard VGA core..

Memory-Z

Press to enter the sub-menu.

DIMM1\~4 Memory SPD Information

Press to enter the sub-menu. This sub-menu displays the information of installed memory.

Advance DRAM Configuration

Press to enter the sub-menu.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following "Advance DRAM Configuration" sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Manual] allows users to configure the DRAM timings and the following related "Advance DRAM Configuration" sub-menu manually.

FSB/DRAM Ratio

This item allows you to select the ratio of FSB/ DRAM.

Adjusted DRAM Frequency (MHz)

It shows the adjusted Memory frequency. Read-only.

HT Link Control

Press to enter the sub-menu.

HT Incoming/ Outgoing Link Width

These items allow you to set the Hyper-Transport Link width. Setting to [Auto], the system will detect the HT link width automatically.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the system will detect the HT link speed automatically.

Adjusted HT Link Frequency (MHz)

It shows the adjusted HT Link frequency. Read-only.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DRAM/PCI slots to minimize the electromagnetic interference (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the mainboard's clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have any EMI problem, leave the setting at Disabled for optimal system stability and performance. But if you are plagued by EMI, set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

IMPORTANT

* If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
* The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
* Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

Load Optimized Defaults

You can load the default values provided by the mainboard manufacturer for the stable performance.

CMOS Setup Utility - Copyright (C) 1985-2085, American Megatrends, Inc. ► Standard CMOS Features ► Advanced BIOS Features ► Integrated Peripherals ► Power Management Setup ► H/V Monitor ► Green Power ► BIOS Setting Password ► Cell Menu ► M-Flash ► Overclocking Profile Load Fail-Safe Defaults Load Optimal Defaults? OK | Cancel T++:Move Enter:Select +/-Value F10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-2 F8:Fail-Safe Defaults F6:Optimized Defaults Load Optimal Default values for all the setup questions. BIOS Version U22.0B2 CPU Frequency 2500MHz Physical Memory Size 2040MB

한국어

시작하기

Plain gray square with a black circular icon in the bottom-left corner (no text or symbols)

금색 화사표

12+3.3V 9+5.6V 6+4.8V Ground 12+3.3V 2.4 Ground 12+3.3V 2.4 Ground 12+3.3V 2.4 Ground 12+3.3V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.6V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.0V Ground 16+5.3V Ground 16+5.3V Ground 16+5.3V Ground 16+5.3V Ground 16+5.3V Ground 16+5.3V

Isometric line drawing of a mechanical component with grooves and a central notch (no text or symbols)

IDE 커넥터: IDE1

Technical line drawing of a mechanical component with threaded fasteners and a central bracket (no text or symbols)

중요 사항

Two technical line drawings of rectangular electronic components with internal channels (no text or symbols)

중요 사항

1: Ground 2: SPDIF 3: VCC

CD 입력 커넥터: JCD1

1. L 2. Ground 3. Ground 4. R

Power Switch 10 No Pin Power LED 2+ - 9 Reserved -7 + Reset Switch -5 - HDD LED JFP1

Speaker Buzzer 8 + 6 - 4 + 12 - 7: No Pin 5: Power LED 3: Suspend LED 1: Ground JFP2

직렬 포트 커넥터: JCOM1

전먼 USB 커넥터: JUSB1, JUSB2, JUSB3, JUSB4

10: Ground 8 + 12V 6 TPB- 4: Ground 2 TPA- 9: No Pin 7 + 12V 5 TPB+ 3: Ground 1: TPA+

CMOS 점퍼 지우기: JBAT1

Technical line drawing of a mechanical component with two views: top view shows a rectangular block with internal grooves, bottom view shows a separate terminal block with multiple slots (no text or symbols)

The PCIE 2.0 x16 슬롯
The PCIE 2.0 x1 슬롯

PCI 슬롯

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

중요 사항

순서슬롯	1	2	3	4
PCI 1	INT E#	INT F#	INT G#	INT H#

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency (현재 CPU / DRAM / QPI 주파수)

Adjusted CPU Frequency (MHz) (조정된 CPU 주파수) (MHz)

Adjusted CPU-NB Frequency (MHz) (조정된 CPU-NB 주파수) (MHz)

Adjusted DRAM Frequency (MHz) (조정된 DRAM 주파수) (MHz)

Simple gray square with a black circular highlight at the bottom-left corner (no text or symbols)

La flèche d'or

12+3.3V 9+10+12V 6+9+12V Ground OK 12+3.3V Ground 12+3.3V Ground OK 12+3.3V Ground 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK 12+3.3V Ground OK

Isometric line drawing of a mechanical component with grooves and a central notch (no text or symbols)

Isometric line drawing of a rectangular structural component with internal grooves and supports (no text or symbols)

IMPORTANT

Two technical line drawings of rectangular electronic components with internal channels (no text or symbols)

IMPORTANT

1.L 2. Ground 3. Ground 4. R

Power Switch - 8 Power LED - 4 -9 Reserved -6 + - -5 + - Reset Switch -3 - HDD LED -2 + JFP1

Speaker Buzzer 8 + 6 + 15 4 + 7: No Pin 5. Power LED 3. Suspend LED 1. Ground JFP2

Technical line drawing of a rectangular electronic component with a separate base case (no text or symbols)

Emplacement PCIE 2.0 x16

Emplacement PCIE 2.0 x1

Emplacement PCI

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

IMPORTANT

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/ Outgoing Link Width

Adjusted HT Link Frequency (MHz)

Close-up of a microprocessor on a CPU socket with a tool inserted, no visible text or symbols

Close-up of hands installing a CPU socket with two circular components (no visible text or symbols)

Close-up of a CPU socket being inserted into a motherboard, with a hand adjusting the slot (no visible text or symbols)

1. Ground 2. Ground 3. ×12V 4. ×12V

WICHTIG

Isometric line drawing of a mechanical component with internal grooves and a central notch (no text or symbols)

IDE Anschluss: IDE1

Technical line drawing of a mechanical component with grooves and a central indentation (no text or symbols)

WICHTIG

Two technical line drawings of rectangular electronic components with internal channels (no text or symbols)

WICHTIG

1. L 2. Ground 3. Ground 4. R

Frontpanel Anschlüsse: JFP1, JFP2

Power Switch 10 No Pin Power LED 9 Reserved Power LED 2 + 7 + Reset Switch JFP1

Speaker Butzer 8 6 4 + - 7: No Pin 5 Power LED 3 Suspend LED 1 Ground JFP2

1.0 Head Phone Detection 4. No pin 4. MLC Detection 2. Ground 9 Head Phone L 5. SENSE SEND 3. MLC R 1 MLC L

USB Frontanschluss: JUSB1, JUSB2, JUSB3, JUSB4

10: NC 8: Ground 6: USB1+ 4: USB1- 2: VCC 9: No Pin 7: Ground 5: USB0+ 3: USB0- 1: VCC

10: Ground 8 + 12V 6: TPB- 4: Ground 2: TPA- 9: No Pin 7 + 12V 5: TPB+ 3: Ground 1: TPA+

Technical line drawing of a rectangular electronic component with a separate terminal block (no text or symbols)

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

WICHTIG

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/ Outgoing Link Width

Adjusted HT Link Frequency (MHz)

Simple gray square with a green circular icon at the bottom-left corner (no text or symbols)

Золотая стрелка

Line drawing of two hands holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Ключ Прорезь

Line drawing of two hands holding a component with downward arrows indicating motion (no text or symbols)

ВНИМАНИЕ

1. Ground 2. Ground 3. ×12V 4. ×12V

ВНИМАНИЕ

Technical line drawing of a mechanical component with grooves and a central notch (no text or symbols)

Разъем IDE: IDE1

Technical line drawing of a mechanical component with threaded fasteners and a central bracket (no text or symbols)

ВНИМАНИЕ

Two technical line drawings of a rectangular electronic component housing (no text or symbols)

ВНИМАНИЕ

Power Switch 10 No Pin Power LED 9 Reserved Power LED 2 + 7 + Reset Switch JFP1 1. + HDD LED

Speaker Butzer 8 6 4 2 7: No Pin 5: Power LED 3: Suspend LED 1: Ground JFP2

10: NC 8 Ground 6: USB1+ 4: USB1- 2: VCC 9: No Pin 7 Ground 5: USB0+ 3: USB0- 1: VCC

10: Ground 8 + 12V 6: TPB- 4: Ground 2: TPA- 9: No Pin 7 + 12V 5: TPB+ 3: Ground 1: TPA+

Technical line drawing of a mechanical component with two views: top shows a rectangular block with threaded ends, bottom shows a small rectangular base with multiple slots (no text or symbols)

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

ВНИМАНИЕ

Overclocking Profile

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/ Outgoing Link Width

Adjusted HT Link Frequency (MHz)

Close-up of a hand inserting a small electronic component into a CPU socket (no visible text or symbols)

Close-up of hands installing a CPU socket with two circular components (no visible text or symbols)

Close-up of a computer processor on a motherboard with a hand inserting a component (no visible text or symbols)

安装内存模组

1: Ground 2: Ground 3: +12V 4: +12V

注意

Isometric line drawing of a mechanical component with grooves and a central notch (no text or symbols)

IDE 接口: IDE1

Technical line drawing of a mechanical component with grooves and supports (no text or symbols)

注意

Two isometric technical drawings of rectangular electronic components with internal channels (no text or symbols)

注意

Power Switch 10 No Pin Power LED 2+ - 9 Reserved Reset Switch JFP1 HDD LED

Speaker Buzzer 8 6 4 2 7: No Pin 5: Power LED 3: Suspend LED 1: Ground JFP2

串行端口接口: JCOM1

10: No Pin 8: CTS 6: DSR 4: DTR 2: SIN 9: RI 7: RTS 5: Ground 3: SOUT 1: DCD

前置音频接口: JAUD1

10: NC 8: Ground 6: USB1+ 4: USB1- 2: VCC 9: No Pin 7: Ground 5: USB0+ 3: USB0- 1: VCC

TPM 模块接口: JTPM1

Technical line drawing of a mechanical component with two views: top view shows a rectangular block with internal grooves, bottom view shows a separate terminal block with multiple slots (no text or symbols)

PCIE 2.0 x16 插槽
PCIE 2.0 x1 插槽

PCI 插槽

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

注意

Press DEL to enter SETUP

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T1:→:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency (当前 CPU / DRAM / CPU-NB 频率)

Start OC Stepping From (MHz)

Adjust CPU Ratio (调整 CPU 倍频)

Advanced Clock Calibration (高级时钟校准)

Adjusted HT Link Frequency (MHz) (调整后的HT连接频率)

Close-up of a microprocessor on a CPU socket with a tool inserted, no visible text or symbols

Close-up of hands holding a computer RAM module with two circular insets highlighting internal components (no visible text or symbols)

Close-up of a CPU being inserted into a motherboard, with a hand adjusting the chip (no visible text or symbols)

注意事項

Line drawing of two hands holding a mechanical component with a hook (no text or symbols)

Line drawing of two hands holding a component with arrows indicating downward motion (no text or symbols)

注意事項

12+3.3V 9+12V 6+10V 5+9V 4+8V 3+7V 2+6V 1+5V Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground 24 Ground 23+3.5V 20+3.5V 18+3.5V 16+3.5V 14+3.5V 12+3.5V

Isometric line drawing of a mechanical component with grooves and a central notch (no text or symbols)

IDE 接頭：IDE1

Technical line drawing of a mechanical component with threaded fasteners and a central bracket (no text or symbols)

注意事項

Two isometric line drawings of rectangular electronic components with internal channels (no text or symbols)

注意事項

1: Ground 2: SPDIF 3: VCC

CD-In 接頭：JCD1

本接頭接外接音效。

1.L 2.Ground 3.Ground 4.R

面板接頭：JFP1, JFP2

Power Switch [6+] Power LED [4-] JFP1 Reserved Reset Switch HDD LED

Speaker Buzzer 8 + 6 - 4 + 2 - 7. No Pin 5. Power LED 3. Suspend LED 1. Ground JFP2

序列接頭：JCOM1

10: No Pin 8: C:5 6: DSR 4: DTR 2: SIN 9: RI 7: RTS 3: SOUT 1: DCD

面板音效接頭：JAUD1

10: NC 8: Ground 6: USB1+ 4: USB1- 2: VCC 9: No Pin 7: Ground 5: USB0+ 3: USB0- 1: VCC

TPM 接頭：JTPM1

10: Ground 8 + t2V 6 TPB- 4 Ground 2 TPA- 9: No Pin 7 + t2V 5 TPB+ 3 Ground 1 TPA+

清除 CMOS 跳線：JBAT1

Technical line drawing of a mechanical component with two views: top view shows a rectangular block with grooves, bottom view shows a small rectangular housing (no text or symbols)

PCIE 2.0 x16 插槽
PCIE 2.0 x1 插槽

PCI 插槽

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

注意事項

Press DEL to enter SETUP

(按 DEL 鍵進入設定)

Integrated Peripherals (整合型週邊)

使用本選單設定整合型週邊裝置。

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

CPU Specifications (CPU 規格)

CPU Feature (CPU 功能)

按下 鍵進入子選單。

AMD Cool'n'Quiet

Adjust CPU FSB Frequency (MHz) (調整 CPU 外頻)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz) (調整後 CPU 頻率)

本項顯示調整後 CPU 的頻率。唯讀。

Adjust CPU-NB Ratio (調整 CPU-NB 倍頻比率)

本項即可調整 CPU-NB 倍頻比率。

Adjusted CPU-NB Frequency (MHz) (調整後 CPU-NB 頻率)

Advanced Clock Calibration (進階時脈校正)

Simple gray square with a black circular highlight at the bottom-left corner (no text or symbols)

金色の三角印

Line drawing of two hands holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of two hands holding a component with downward arrows indicating compression or disassembly (no text or symbols)

注意

12+3.3V 9+4.3V 6+9.3V 2+3.3V 12+3.3V 10+4.3V 8+9.3V 2+3.3V Ground OK Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground 24 Ground 22+3.3V 20+3.3V 18+3.3V 16+3.3V 14+3.3V 12+3.3V 10+4.3V 9+4.3V 8+4.3V

Isometric line drawing of a mechanical component with grooves and a central notch (no text or symbols)

IDEコネクター: IDE1

Isometric line drawing of a structural component with vertical supports and a U-shaped notch (no text or symbols)

注意

Two technical line drawings of rectangular electronic components with internal channels (no text or symbols)

注意

1. L 2. Ground 3. Ground 4. R

Power Switch 8 Power LED 2 JFP1 10 No Pin 9 Reserved Reset Switch 7 5 3 1, + HDD LED

Speaker Butzer 8 + 6 - 4 + 12 - 7: No Pin 5. Power LED 3. Suspend LED 1. Ground JFP2

シリアルポートコネクター: JCOM1

1.0 Head Phone Detection 4. No pin 4. MLC Detection 2. Ground 9. Head Phone L 5. SENSE-SEND 3. MLC R 1 MLC

10: NC 8 Ground 6 USB1+ 4: USB1- 2 VCC 9: No Pin 7 Ground 5: USB0+ 3: USB0- 1: VCC

Technical line drawing of a mechanical component with two views: top view shows a rectangular block with threaded ends, bottom view shows a small rectangular base with multiple slots (no text or symbols)

Isometric line drawing of a rectangular structural component with evenly spaced notches (no text or symbols)

注意

Press DEL to enter SETUP

(キーを押して設定画面を呼び出す)

Integrated Peripherals (内蔵機能の設定)

CMCS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Cell Menu Current CPU Frequency 2.50GHz (200x12.5) Current DRAM Frequency 133MHz Current CPU-NB Frequency 200MHz ► CPU Specifications [Press Enter] ► CPU Feature [Press Enter] AMD Cool'n'Quiet [Auto] CIE Support [Disabled] Adjust CPU FSB Frequency (MHz) [200] OC Stepping [Disabled] Adjust CPU Ratio [Auto] Adjusted CPU Frequency (MHz) 2500 Adjust CPU-NB Ratio [Auto] Adjusted CPU-NB Frequency (MHz) 2000 Unlock CPU Core [Disabled] Advanced Clock Calibration [Disabled] CPU Core Control [Auto] OC Genie Lite [Disabled] Onboard UGA Core Overclock [Enable] Adjust Onboard UGA Frequency [500] ► Memory-2 [Press Enter] ► Advance DRAM Configuration [Press Enter] FSB/DRAM Ratio [Auto] Adjusted DRAM Frequency (MHz) 1333 ► HT Link Control [Press Enter] HT Link Speed [Auto] Adjusted HT Link Frequency (MHz) 2000 Auto Disable DRAM/PCI Frequency [Enabled] CPU Voltage (U) [Auto] CPU-NB Voltage (U) [Auto] DRAM Voltage (U) [Auto] Spread Spectrum [Enabled] Help Item CPU Information T++:Move Enter:Select +/-:Value P10:Save ESC:Exit F1:General Help F4:CPU Spec F5:Memory-Z FB:Fail-Safe Defaults F6:Optimized Defaults

Current CPU / DRAM / CPU-NB Frequency (現在のCPU/DRAM/CPU-NB周波数)

CPU Feature (CPUの機能)

C1E Support (C1Eサポート)

C1E Support (C1Eサポート)
