USER MANUAL G52-75971X6 MSI

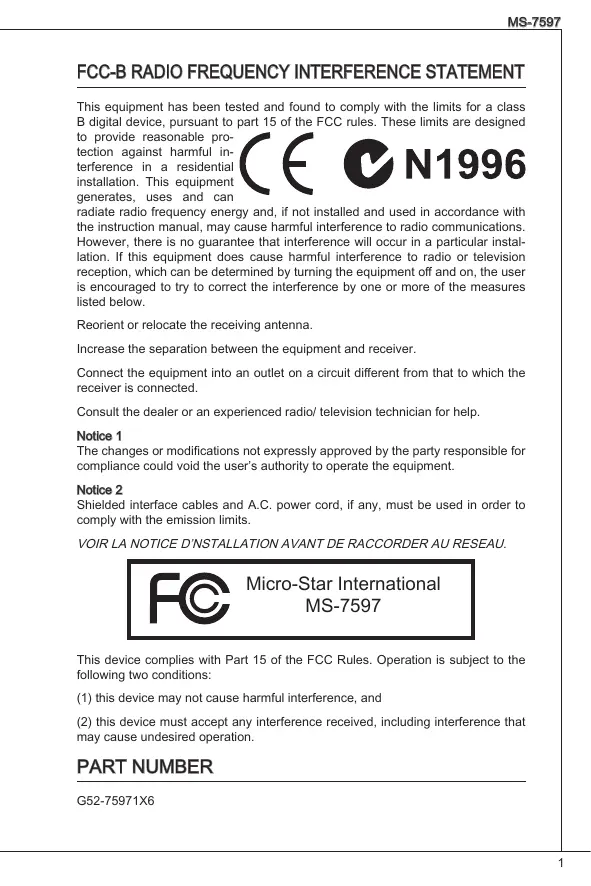

FCC-B RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/ television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

SEE THE INSTALLATION NOTICE BEFORE CONNECTING TO THE NETWORK.

Micro-Star International MS-7597

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PART NUMBER

G52-75971X6

COPYRIGHT NOTICE

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

TRADEMARKS

All trademarks are the properties of their respective owners.

MSI is a registered trademark of Micro-Star Int'l Co., Ltd. NVIDIA® is a registered trademark of NVIDIA Corporation. ATI® is a registered trademark of ATI Technologies, Inc. AMD is a registered trademark of AMD Corporation. Intel is a registered trademark of Intel Corporation. Windows® is a registered trademark of Microsoft Corporation. AMI is a registered trademark of Advanced Micro Devices, Inc. Award® is a registered trademark of Phoenix Technologies Ltd. Sound Blaster® is a registered trademark of Creative Technology Ltd. Realtek® is a registered trademark of Realtek Semiconductor Corporation. JMicron® is a registered trademark of JMicron Technology Corporation. Netware is a registered trademark of Novell, Inc.

REVISION HISTORY

Revision	Revision History	Date
V1.2	Add a new model GF615M-P33	May 2009
V1.3	For GF615M-P33/ P31	December 2009
V1.5	Update JSP1 from V1.3	July 2010

SAFETY INSTRUCTIONS

Always read the safety instructions carefully. - Keep this User Manual for future reference. - Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. - The openings on the enclosure are for air convection hence protect the equipment from overheating. Do not cover the openings. - Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet. - Place the power cord such a way that people cannot step on it. Do not place anything over the power cord. Always unplug the power cord before inserting any add-on card or module. All cautions and warnings on the equipment should be noted. - Never pour any liquid into the opening that could damage or cause electrical shock. If any of the following situations arises, get the equipment checked by a service personnel:

The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well or you cannot get it to work according to the User Manual. The equipment has dropped and damaged. The equipment has obvious signs of breakage.

• Do not leave this equipment in an unconditioned environment, storage temperature above 60°C (140°F), it may damage the equipment.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Warning to users

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back

such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

GERMAN

Thank you for choosing the GF615M-P33/ P31 series (MS-7597 v1.x) Micro-ATX mainboard. The GF615M-P33/ P31 series is designed based on NVIDIA® Geforce 6150SE & nForce 430 chipset for optimal system efficiency. Designed to fit the advanced AMD Phenom™ AM3 processor, the GF615M-P33/ P31 series delivers a high performance and professional desktop platform solution.

Layout

SPECIFICATIONS

Processor Support

Supports AMD Phenom II / Athlon II / Sempron processors in the AM3 package.

(For the latest information about CPU, please visit

http://www.msi.com/index.php?func=cpuform2)

HyperTransport

HyperTransport 1.0

Chipset

NVIDIA® GeForce 6150SE & nForce 430 chipset

Memory Support

DDR3 800/1066/1333 SDRAM (total max. 8GB) 2 DDR3 DIMMs (240-pin/ 1.5V)

(For more information on compatible components, please visit http://www.msi.

com/index.php?func=testreport)

LAN

Supports 10/100/1000 LAN by Realtek® RTL8111DL (GF615M-P33) Or supports 10/100 LAN by Realtek® RTL8103EL (GF615M-P31)

Audio

Chip integrated by Realtek® ALC888S/ ALC889 Supports 7.1 channels audio out Compliant with Azalia 1.0 Spec

IDE

1 IDE port Supports Ultra DMA 66/100/133, PIO & Bus Master operation mode

SATA

4 SATA 3Gb/s ports by NVIDIA® nForce 430

RAID

SATA1~4 support RAID 0/1/5/10

Floppy

1 floppy port Supports 1 FDD with 360 KB, 720 KB, 1.2 MB, 1.44 MB and 2.88 MB

Connectors

Back panel

-1PS/2 mouse port - 1 PS/2 keyboard port - 1 COM port - 1 VGA port - 1 parallel port supporting SPP/EPP/ECP mode - 1 LAN jack - 4 USB 2.0 Ports - 6 flexible audio jacks

On-Board Connectors

• 2 USB 2.0 connectors
• 1 SPDIF-Out connector
• 1 Front Panel Audio connector
• 1 CD-In connector
• 1 TPM connector (optional)
• 1 Chassis Intrusion Connector
• 1 Overclock FSB Switch (optional)

Slots

1 PCI Express 1.0 x16 slot, 1 PCI Express 1.0 x1 slot, 2 PCI slots, support 3.3V/5V PCI bus interface

Form Factor

Micro-ATX (24.4cm X 20.0 cm)

Mounting

6 mounting holes

If you need to purchase accessories and request the part numbers, you can search the product web page and find details on our web address below: http://www.msi.com/index.php

REAR PANEL

The rear panel provides the following connectors:

HARDWARE SETUP

This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly. Use a grounded wrist strap before handling computer components. Static electricity may damage the components.

CPU & Cooler Installation for AM3

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard.

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
2. Look for the gold arrow of the CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation.
3. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.
4. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
5. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.
6. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever and lift it up.
7. Fasten down the lever.
8. Attach the CPU Fan cable to the CPU fan connector on the mainboard.

IMPORTANT

• Mainboard photos shown in this section are for demonstration of the cooler installation for Socket AM3 CPUs only. The appearance of your mainboard may vary depending on the model you purchase.
• While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.

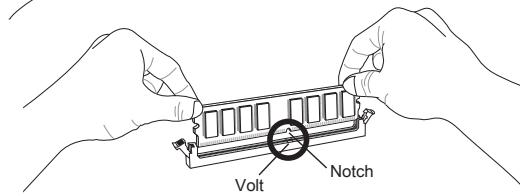

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.
3. The plastic clip at each side of the DIMM slot will automatically close.

IMPORTANT

• DDR3 memory modules are not interchangeable with DDR2 and the DDR3 standard is not backwards compatible. You should always install DDR3 memory modules in the DDR3 DIMM slots.
• In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.
• To enable successful system boot-up, always insert the memory modules into the DIMM1 first.

ATX 24-Pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

ATX 4-Pin Power Connector: JPWR2

This 12V power connector is used to provide power to the CPU.

IMPORTANT

• Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.
• Power supply of 350 watts (and above) is highly recommended for system stability.

Floppy Disk Drive Connector: FDD1

This connector supports 360 KB, 720 KB, 1.2 MB, 1.44 MB or 2.88 MB floppy disk drive.

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IMPORTANT

If you install two IDE devices on the same cable, you must configure the drives to cable select mode or separately to master / slave mode by setting jumpers. Refer to IDE device documentation supplied by the vendors for jumper setting instructions.

Serial ATA Connector: SATA1 ~ 4

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

IMPORTANT

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during transmission.

Fan Power Connectors: CPUFAN, SYSFAN1

The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

S/PDIF-Out Connector: JSP1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission.

CD-In Connector: JCD1

This connector is provided for external audio input.

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Front USB Connector: JUSB1/ JUSB2

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

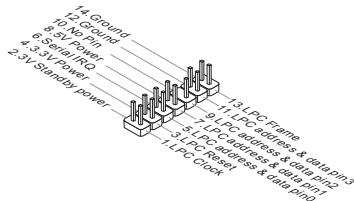

TPM Module connector: JTPM1 (optional)

This connector connects to a TPM (Trusted Platform Module) module. Please refer to the TPM security platform manual for more details and usages.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

APS LED Status Indicator: LED1

These APS (Active Phase Switching) LEDs indicate the current CPU power phase mode. Follow the instructions below to read.

ON	The LED will light when CPU is in 3 phase power mode.
OFF	The LED off when CPU is in 1 phase power mode.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.

IMPORTANT

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

Overclock FSB Switch: OC_SW1 (optional)

You can overclock the FSB to increase the processor frequency by changing the switch. Follow the instructions below to set the FSB.

Default

Increase FSB speed by 10%

Increase FSB speed by 15%

Increase FSB speed by 20%

IMPORTANT

• Make sure that you power off the system before setting the switch.
• If overclocking causes system instability or a crash during boot, please set the switch to the default setting.

PCI Express Slot

The PCI Express slot supports PCI Express interface expansion cards.

The PCI Express 1.0 x16 slot

The PCI Express 1.0 x1 slot

PCI Slot

The PCI slot supports LAN cards, SCSI cards, USB cards, and other add-on cards that comply with PCI specifications.

IMPORTANT

Make sure that you unplug the power supply first. Also, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches, or BIOS configuration.

PCI Interrupt Request Routing

When adding or removing expansion cards, make sure that the IRQ (interrupt request line, pronounced I-R-Q) is set correctly. IRQs are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows:

Order Slot	1	2	3	4
PCI 1	C#	D#	A#	B#
PCI 2	B#	C#	D#	A#

BIOS SETUP

Power on the computer and the system will start the POST (Power On Self Test) process. When the message below appears on the screen, press the key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it off and on or pressing the RESET button. You may also restart the system by simultaneously pressing the <Ctrl>, <Alt>, and <Delete> keys.

Main Page

Standard CMOS Features

Use this menu for basic system configurations, such as time, date, etc.

Advanced BIOS Features

Use this menu to set up the items of special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows the status of your CPU, fan, and warning for overall system status.

BIOS Setting Password

Use this menu to set the BIOS setting password.

Cell Menu

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values that are factory settings for system operations.

Load Optimized Defaults

Use this menu to load factory default settings into the BIOS for stable system performance operations.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

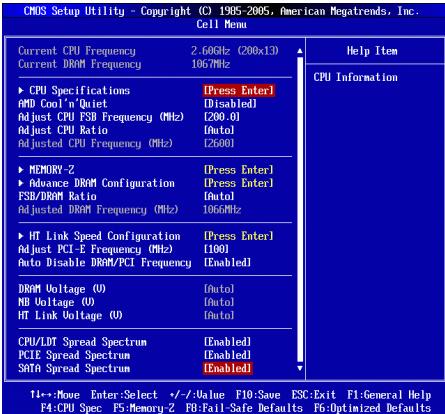

Cell Menu

Current CPU/DRAM Frequency

It shows the current frequency of CPU/Memory. Read-only.

CPU Specifications

Press to enter the sub-menu. This submenu shows the information of the installed CPU.

CPU Technology Support

Press to enter the sub-menu. This sub-menu shows the technologies that the installed CPU supports.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

IMPORTANT

To ensure that the Cool'n'Quiet function is activated and will work properly, it is required to double confirm that:

• Run BIOS Setup, and select Cell Menu. Under Cell Menu, find AMD Cool'n'Quiet, and set this item to "Enabled".
• Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tab, and select Minimal Power Management under Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to adjust the CPU FSB frequency.

Adjust CPU Ratio

This item is used to adjust CPU clock multiplier (ratio). It is available only when the processor supports this function.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency (FSB x Ratio). Read-only.

Memory-Z

Press to enter the sub-menu.

DIMM1~2 Memory SPD Information

Press to enter the sub-menu. This sub-menu displays the information of installed memory.

Advance DRAM Configuration

Press to enter the sub-menu.

DRAM Timing Mode

This field has the capacity to automatically detect the DRAM timing. If you set this field to [DCT 0], [DCT 1] or [Both], some fields will appear and selectable. DCT 0 controls channel A and DCT1 controls channel B.

1T/2T Memory Timing

When the DRAM Timing Mode is set to [Manual], the field is adjustable. This field controls the command rate. Selecting [1T] makes DRAM signal controller to run at 1 clock cycle rate. Selecting [2T] makes DRAM signal controller run at 2 clock cycles rate.

DCT Unganged Mode

This feature is used to Integrate two 64-bit DCTs into a 128-bit interface.

Bank Interleaving

Bank Interleaving is an important parameter for improving the overclocking capability of memory. It allows the system to access multiple banks simultaneously.

Power Down Enable

This is a memory power-saving technology. When the system does not access memory for a period of time, it will automatically reduce the memory power supply.

MemClk Tristate C3/ATLVID

This setting allows you to enable or disable the MemClk Tristating during C3 and ATLVID.

FSB/DRAM Ratio

This item allows you to adjust the ratio of FSB to memory.

Adjusted DRAM Frequency (MHz)

It shows the adjusted memory frequency. Read-only.

HT Link Speed Configuration

Press to enter the sub-menu.

HT Link Speed Auto

Setting to [Enabled], the system will detect the HT link speed automatically.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed.

Adjust PCI-E Frequency (MHz)

This item allows you to adjust the PCI-E frequency.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DIMM and PCI slots to minimize the electromagnetic interference (EMI).

DRAM Voltage (V)/ NB Voltage (V)/ HT Link Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

CPU/LDT Spread Spectrum

This setting is used to enable or disable the CPU/LDT (HT Bus multiplier) Spread Spectrum feature.

PCIE Spread Spectrum

This setting is used to enable or disable the PCIE Spread Spectrum feature.

SATA Spread Spectrum

This setting is used to enable or disable the SATA Spread Spectrum feature.

IMPORTANT

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

Load Optimized Defaults

You can load the default values provided by the mainboard manufacturer for the stable performance.

HyperTransport

HyperTransport 1.0

DDR3800/1066/1333 SDRAM (8GB when activated) 2 DDR3 DIMMs (240 1/5V) (Netherlands: Longda Haipu Service Network)

LAN

Realtek® RTL8111DL® 10/100/1000 LAN controller (GF615M-P33) Realtek® RTL8103EL® 10/100 LAN software (GF615M-P31)

Realtek® ALC888S/ ALC889® 100% universal communication 7.1 channel Azalia 1.0 and

IDE

IDE supports Ultra DMA 66/100/133, PIO and bus master operation

SATA

4 SATA 3Gb/s ports

RAID

RAID0/1/5/10 supported on SATA1~4

Supports 1 FDD with 360 KB, 720 KB, 1.2 MB, 1.44 MB and 2.88 MB

-

H/W Monitor (H/W Monitor)

BIOS Setting Password (BIOS Setting Password)

Cell Menu (Cell Menu)

Load Fail-Safe Defaults (Load Fail-Safe Defaults)

In other possible ways, such as:

Load Optimized Defaults (Load Optimized Defaults)

CPU Specifications (CPU Specifications)

Adjust CPU FSB Frequency (Adjust CPU FSB Frequency) (MHz)

Set the CPU FSB frequency as desired.

Adjust CPU Ratio (CPU bit to 0)

Adjusted CPU Frequency (locked CPU main frequency) (MHz)

Memory-Z (AnMoRi-Z)

DIMM1~2 Memory SPD Information (DIMM1~2 SPD preview)

Advance DRAM Configuration (GoQ DRAM Nx)

Bank Interleaving (bank interleaving)

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Current CPU/DRAM Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Adjusted CPU Frequency (MHz)

Adjusted DRAM Frequency (MHz)

Adjust PCI-E Frequency (MHz)

CPU/LDT Spread Spectrum

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Current CPU/ DRAM Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Adjusted CPU Frequency (MHz)

Adjusted DRAM Frequency (MHz)

Adjust PCI-E Frequency (MHz)

CPU/LDT Spread Spectrum

SYSTEM COMPONENTS

SPECIFICATIONS

Processor

AMD Phenom II / Athlon II / Sempron processors in AM3 socket. (For the latest CPU information, please visit http://www.msi.com/index.php?func=cpuform2)

HyperTransport

HyperTransport 1.0

Chipset

NVIDIA® GeForce 6150SE & nForce 430

Memory

DDR3 800/1066/1333 SDRAM (Max. 8GB) via 4 DDR3 DIMM (240-pin, 1.5V) (For more information on supported modules, please visit http://www.msi.com/index.php?func=testreport)

LAN

Supports 10/100/1000 LAN on Realtek® RTL8111DL chip (GF615M-P33) ■ Supports 10/100 LAN on Realtek® RTL8103 chip (GF615M-P31)

Audio

Integrated Realtek ALC888S/ALC889 Audio 7.1 with high-definition audio codec, compliant with Azalia 1.0 specification

IDE

1 IDE port supports Ultra DMA 66/100/133, PIO & Bus Master modes

SATA

4 SATA 3Gb/s ports support 4 SATA 3Gb/s devices

RAID

SATA1~4 support RAID 0/1/5/10 modes

Floppy

1 floppy port supports 1 FDD with 360Kb, 720Kb, 1.2Mb, 1.44Mb and 2.88Mb

Connectors

Rear panel

- 1 PS/2 mouse - 1 PS/2 keyboard - 1 COM port - 1 VGA port - 1 parallel port supports SPP/EPP/ECP modes - 1 LAN connector - 4 USB 2.0 ports - 3 audio jacks for audio purposes

Connectors on the board

• 2 USB 2.0 connectors
• 1 SPDIF-Out connector - 1 connector for front panel audio
• 1 CD-In connector
• 1 TPM connector (optional)
• 1. Opening the case
• 1. Switching the power supply unit (optional)

Slots

1 PCI Express x16 slot, 1 PCI Express x1 slot, 2 PCI slots, supporting PCI interrupts with 3.3V/5V power

Form Factor

Micro-ATX (24.4cm x 20.0 cm)

Mounting

6 mounting holes

If you need to purchase accessories or find out the part number of your product, this information can be found on the internet at the website address http://www.msi.com/index.php

REAR PANEL

The rear panel provides the following connectors:

HARDWARE INSTALLATION

This chapter is dedicated to the installation of the processor, memory modules, and expansion cards, as well as the setting of jumpers. The chapter also describes how to connect external devices, such as mice, keyboards, etc. During hardware installation, be careful and follow the installation instructions.

Installing the processor and heatsink for AM3

To prevent overheating during operation, it is mandatory to install the processor heatsink. At the same time, to improve heat dissipation, make sure to apply thermal paste on the processor before installing the heatsink.

Correct installation is critical. Incorrect installation may result in damage to the processor and system board.

1. Lift the vertical lever on the socket. 2. Note the gold arrow on the CPU. It should be positioned as shown in the figure. The CPU can only be inserted with the correct orientation. 3. When the CPU is correctly installed, its contacts will fully enter the socket and will not be visible. Remember that excessive force when installing the CPU may cause serious damage to the system board. 4. Carefully press the CPU into the socket and close the lever. The CPU may shift when the lever is lowered, so gently press the CPU with your fingers to ensure it is correctly and fully seated in the socket. 5. Place the heatsink on the retention module. First, latch one side. 6. Then press the other side to secure the heatsink onto the retention module. Start the locking clip and close it. 7. Secure the heatsink by turning the locking lever.

1. Connect the CPU fan cable to the corresponding connector on the system board.

CAUTION

* The system board shown in this section is for demonstration of the heatsink installation for Socket AM3 CPUs only. The actual board may differ from the one shown here. * When releasing the locking lever, be careful as the lever is spring-loaded and will snap back to the closed position when released.

Installing the memory module

1. Memory modules have only one notch in the center. The module will fit only when oriented correctly.
2. Insert the module vertically. Then press down on it so that the gold contacts are fully seated in the DIMM slot. The contacts are visible if the memory module is correctly placed in the DIMM slot. 3. The locking clips on both sides of the slot will close automatically.

CAUTION

• DDR3 modules are not interchangeable with DDR2 modules, and the DDR3 standard is not backward compatible. DDR3 memory modules should only be installed in DDR3 slots. To ensure stable operation, it is recommended to install modules of the same type and capacity. * To ensure the system boots, install the module in the DIMM1 slot first.

24-pin ATX power connector: JPWR1

This connector allows you to connect a 24-pin ATX power supply to the system board. Before connecting, ensure that all power supply connectors are unplugged and that the connector is correctly aligned. Insert it firmly into the connector on the system board.

ATX 4-pin power connector: JPWR2

This 12V power connector is used to provide power to the processor.

CAUTION

• Before connecting, make sure the connectors are plugged in correctly. It is recommended to use a 350W (or higher) power supply for stable system operation.

FDD connector: FDD1

This connector supports floppy disk drives with capacities of 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB.

IDE connector: IDE1

This connector supports up to two IDE hard drives, optical drives, and other IDE devices.

WARNING

When connecting two devices to one cable, set the devices to master/slave mode via the jumper settings. For details, refer to the device manufacturer's documentation.

Serial ATA connector: SATA1 ~ 4

The Serial ATA connector is a high-speed interface for Serial ATA devices. This connector supports only one Serial ATA device.

WARNING

Use the SATA cable correctly. Otherwise, data loss may occur during transmission.

Fan connectors: CPUFAN, SYSFAN1

The fan connectors support fans with a 12V power supply. When connecting, ensure that the red wire is connected to the +12V pin and the black wire to the ground (GND). If the system fan is controlled by the motherboard's hardware monitoring chip, use special fans with speed detection to enable fan control functions.

S/PDIF-Out connector: JSP1

This connector is used to connect the S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio output.

CD-in connector: JCD1

This connector is designed for an optional audio cable.

Front panel audio connectors: JFP1, JFP2

These connectors are used to connect the front panel audio to the motherboard. JFP1 complies with the Intel® Front Panel I/O Connectivity Design Guide.

Front panel audio connector: JAUD1

This connector supports front panel audio. It complies with the Intel Front Panel I/O Connectivity Design Guide.

Front panel USB connectors: JUSB1/JUSB2

These connectors, which comply with the Intel I/O Connectivity Design Guide, provide connection for high-speed peripheral devices such as USB HDDs, digital cameras, MP3 players, printers, modems, etc.

TPM connector: JTPM1 (optional)

This connector is designed for connecting a TPM (Trusted Platform Module) module. For more information on TPM security features, please refer to the TPM safety guide.

Chassis intrusion detection connector: JCI1

The chassis intrusion detection cable, installed in the chassis, connects to this connector. When the chassis is opened, its mechanism activates. The system records this event and issues a warning on the screen. The warning can be disabled in the BIOS settings.

Status indicator: LED1 (optional)

These APS (Active Phase Switching) LEDs indicate the operating mode of the processor power supply. Information on the status of the indicators is provided in the table.

FSB speed increases by 15%

WARNING

• Before turning on the computer, make sure that the voltage selector is set correctly for the local power supply.
• If the device's power-on causes instability or an emergency shutdown of the system during startup, set the switch to the correct position.

PCI Express Slot

The PCIE slot supports PCI Express expansion cards.

PCI Express 1.0 x16 slot

PCI Express 1.0 x1 slot

PCI Slot

The PCI slot allows you to install LAN, SCSI, USB, and other expansion cards that comply with the PCI specification.

WARNING

Make sure that the power cable is disconnected from the electrical outlet. Read the documentation for the expansion card and perform any necessary hardware or software settings, such as jumpers, switches, or BIOS configuration.

PCI Interrupt Request Routing

When installing or removing expansion cards, make sure that the IRQ - short for interrupt request (line) - is the hardware interrupt line through which devices can send interrupt signals to the microprocessor. The typical connection of PCI IRQ to the PCI slot pins is shown below:

Order Slot	1	2	3	4
PCI 1	C#	D#	A#	B#
PCI 2	B#	C#	D#	A#

BIOS SETUP

Press <DEL> to enter SETUP. When the following message appears on the screen, press the <DEL> key to enter setup mode.

Main Page (Main Menu)

Standard CMOS Features (Standard CMOS Features)

This menu allows you to set the basic parameters of the system configuration (date, time, etc.).

Advanced BIOS Features (Advanced BIOS Features)

This menu is used to configure special BIOS functions.

Integrated Peripherals (Integrated Peripherals)

This menu is used to configure the parameters of the integrated peripherals.

Power Management Setup (Power Management Setup)

This menu allows you to set the power management parameters of the system.

H/W Monitor (Hardware Monitor)

This item displays the status of the hardware components.

BIOS Setting Password (Password for BIOS settings)

This menu is used to set a password.

Cell Menu (Overclocking Menu)

This menu allows you to control the operating voltages and frequencies when the system is in operation.

Load Fail-Safe Defaults

This option is used to load the default values set by the manufacturer for stable system operation.

Load Optimized Defaults (Set optimal settings)

This menu is used to set the optimal settings for the motherboard's default performance.

Save & Exit Setup (Exit with saving settings)

Save changes to CMOS and exit the setup mode.

Exit Without Saving (Exit without saving)

Cancel all changes and exit the setup mode.

Cell Menu

Current CPU/ DRAM Frequency

This function displays the current CPU frequency and memory speed. For information only.

CPU Specifications

Press Enter to enter the submenu. The submenu shows information about the installed CPU.

CPU Technology Support

Press [Enter] to enter the submenu. The submenu shows the technology that is supported under the current conditions.

AMD Cool'n'Quiet

The Cool'n'Quiet technology allows you to dynamically change the CPU frequency and system power consumption.

WARNING

To ensure that the Cool'n'Quiet technology is enabled and works correctly, you must:

• Enter the BIOS Setup program, select the Cell Menu. Find the AMD Cool'n'Quiet option in the Cell Menu, and set it to "Enabled".
• In Windows, select [Start]->[Settings]->[Control Panel]->[Power Options]. Open the Power Options Properties, and select Minimal Power Management in Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to select the FSB frequency of the processor.

Adjust CPU Ratio

This item is used to adjust the multiplier of the processor. It is available only when the processor supports this function.

Adjusted CPU Frequency (MHz)

This item shows the current CPU frequency (FSB x Ratio). It is for reference only.

Memory-Z

Press [Enter] to enter the submenu.

DIMM1~2 Memory SPD Information

Press to enter the submenu. This item displays information about the installed memory modules.

Advance DRAM Configuration

Press to enter the submenu.

DRAM Timing Mode

This item allows you to automatically determine the timing parameters of the DRAM. When setting the value to [DCT 0], [DCT 1], or [Both], some items will become available. DCT 0 controls channel A and DCT 1 controls channel B.

1T/2T Memory Timing

When DRAM Timing Mode is set to [Manual], this item becomes available. This item determines the command rate of the SDRAM. Selecting [1T] sets the SDRAM signal controller to 1T mode (T = clock generator). Selecting [2T] sets the SDRAM signal controller to 2T mode.

DCT Unganged Mode

This item is used to enable two 64-bit DCTs as one 128-bit interface.

Bank Interleaving

Bank Interleaving is an important parameter that affects memory performance. Enabling it allows access to multiple memory banks simultaneously.

Power Down Enable

This item controls the power-saving technology. When there is no access to memory for a certain period of time, the system automatically reduces the power supply to the memory.

MemClk Tristate C3/ATLVID

This item allows you to set/exit the operating mode with three states during S3 and ATLVID.

FSB/DRAM Ratio

This item allows you to adjust the FSB and DRAM frequency.

Adjusted DRAM Frequency (MHz)

This item shows the adjusted frequency. For your information only.

HT Link Speed Configuration

Press <Enter> to enter the submenu.

HT Link Speed Auto

If set to [Enabled], the system will automatically determine the HT link speed.

HT Link Speed

This item allows you to set the transfer speed on the HyperTransport link.

Adjust PCI-E Frequency (MHz)

This item allows you to set the PCIE frequency.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will turn off unused memory and PCI slots, which will reduce the level of electromagnetic interference (EMI).

DRAM Voltage (V)/ NB Voltage (V)/ HT Link Voltage (V)

These settings allow you to set the voltage for the CPU, memory, and other components.

CPU/LDT Spread Spectrum

This item allows you to enable/disable the CPU/LDT (HT Bus multiplier) Spread Spectrum technology.

PCIE Spread Spectrum

This item allows you to enable/disable the PCIE Spread Spectrum technology.

SATA Spread Spectrum

This item allows you to enable/disable the SATA Spread Spectrum technology.

WARNING

If you do not have any problems with interference, leave the value [Disabled] (default) for better stability and performance. However, if you are experiencing electromagnetic interference, select Spread Spectrum for mitigation. * The larger the Spread Spectrum value, the lower the level of electromagnetic interference, but the system will become less stable. When choosing an appropriate Spread Spectrum value, refer to the electromagnetic interference levels set by legislation. Do not forget to enable the Spread Spectrum function if you are overclocking the system. This is necessary because even a slight jitter of the clock generator signals can cause the overclocked processor to fail.

Setting Default Values

On the main screen, you can load the default values set by the motherboard manufacturer.

Simplified Chinese

Introduction

Press DEL to enter SETUP

Press DEL to enter SETUP

CPU Specifications

CPU/LDT Spread Spectrum

Hardware Overclocking FSB Switch: OC_SW1 (optional)

Press DEL to enter SETUP

Press DEL to enter SETUP

Integrated Peripherals

Use this menu to configure integrated peripherals.

Adjust CPU FSB Frequency (MHz)

Adjusted CPU Frequency (MHz)

Press DEL to enter SETUP

Press DEL to enter SETUP

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.

Standard CMOS Features Advanced BIOS Features Integrated Peripherals Power Management Setup H/W Monitor

BIOS Setting Password

Cell Menu

Load Fail-Safe Defaults

Load Optimized Defaults

Save & Exit Setup

Exit Without Saving

Move Enter:Select +/-Value F10:Save ESC:Exit F1:General Help

F4:CPU Spec F5:Memory-2 F8:Fail-Safe Defaults F6:Optimized Defaults

Configure Time and Date. Display System Information...

002.61 (C) Copyright 1985-2006, American Megatrends, Inc.

CPU Technology Support(CPUtekNoJ-safo-1)

CPU/LDT Spread Spectrum

Enable/Disable CPU/LDT (HT Bus multiplier) Spread Spectrum feature.

PCIE Spread Spectrum
