LEGEND 900 - SSD ADATA - Free user manual and instructions

Product Type	Internal Solid State Drive (SSD)
Form Factor	M.2 2280
Interface	PCIe 4.0 x4, NVMe 1.4
Capacity	1TB / 2TB (depending on variant)
Sequential Read Speed	Up to 7,500 MB/s
Sequential Write Speed	Up to 6,800 MB/s
Random Read IOPS	Up to 780,000
Random Write IOPS	Up to 780,000
NAND Flash Type	3D TLC NAND
Controller	Phison PS5018-E18 or similar
DRAM Cache	Yes (DDR4)
Power Consumption (Active)	~6.5W (typical)
Power Consumption (Idle)	~0.05W
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1500G / 0.5ms
Vibration Resistance	20G (10-2000Hz)
Dimensions (L x W x H)	80 x 22 x 2.15 mm
Weight	Approx. 8g
Terabytes Written (TBW)	Up to 1,480TB (2TB model)
Mean Time Between Failures (MTBF)	2,000,000 hours
Warranty	5 years limited
Key Features	PCIe Gen4 support, advanced thermal throttling, SLC caching, LDPC ECC

Frequently Asked Questions - LEGEND 900 ADATA

How do I install the ADATA LEGEND 900 SSD?

Install the SSD into an M.2 slot on your motherboard. Ensure the slot supports PCIe 4.0 for full performance. Insert at a 30-degree angle and secure with the screw. Install the driver if necessary (most systems auto-detect).

Is the ADATA LEGEND 900 compatible with PCIe 3.0 motherboards?

Yes, it is backward compatible with PCIe 3.0, but speeds will be limited to PCIe 3.0 x4 maximum (around 3,500 MB/s).

What is the expected lifespan of this SSD?

The lifespan depends on usage. The 2TB model has a TBW of 1,480TB. For typical use, it can last many years. The MTBF is 2,000,000 hours.

How can I check the health of my ADATA LEGEND 900?

You can use ADATA's SSD ToolBox software to monitor drive health, temperature, and firmware updates. Third-party tools like CrystalDiskInfo also work.

Does the SSD need a heatsink?

The drive performs well under load without one, but for sustained heavy workloads (e.g., video editing), a heatsink is recommended to prevent thermal throttling.

Can I use this SSD for a PS5?

Yes, the LEGEND 900 is compatible with PS5 as it supports PCIe 4.0 and meets Sony's speed requirements (7,500 MB/s read). Ensure the drive is exactly 2280 form factor.

How do I enable TRIM on my system?

TRIM is automatically enabled on modern Windows (10/11) and macOS. To verify, run 'fsutil behavior query DisableDeleteNotify' in Command Prompt. A value of 0 means TRIM is active.

What should I do if the drive is not detected?

Check that the drive is properly seated in the M.2 slot. Ensure the BIOS is set to UEFI and not Legacy. Update motherboard BIOS and chipset drivers. If still not detected, try a different slot.

Can I clone my existing drive to the LEGEND 900?

Yes, you can use cloning software like Acronis True Image (free with some ADATA drives) or Macrium Reflect. Ensure the target drive is larger or equal to source data size.

How to clean and maintain the SSD?

No physical cleaning needed. Keep the drive in a dry, cool environment. Avoid electrostatic discharge when handling. Regularly update firmware via SSD ToolBox.

USER MANUAL LEGEND 900 ADATA

Colorful hummingbird logo with rainbow wings and stars against blue background (no text or symbols)

ADATA®

INDEX

INSTALLING AN M.2 SSD ON A DESKTOP PC

Chinese traditional 03	Portuguese	27
Chinese simple 07	Russian	31
English 11	Romanian	35
German 15	Spanish	39
Japanese 19	Turkish	43
Korean	23

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 47		Portuguese	71
Chinese simple 51		Russian	75
English	55	Romanian	79
German 59		Spanish	83
Japanese 63		Turkish	87
Korean	67

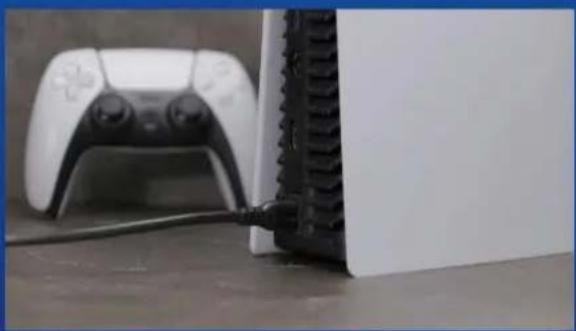

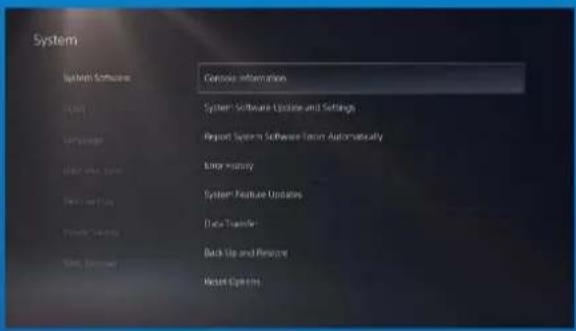

HOW TO INSTALL AN M.2 SSD ON PLAYSTATION 5

Chinese traditional 91		Portuguese	127
Chinese simple 97		Russian	133
English	103	Romanian	139
German	109	Spanish	145
Japanese	115	Turkish	151
Korean	121

如何在桌機安裝

M.2固態硬碟

Exterior view of a computer monitor displaying a colorful circular lens, next to a black RAM module labeled 'ADATA' (no other text or symbols visible)

更換前準備步驟

Interior view of a computer case with exposed internal components and a small metallic tool on the right (no visible text or symbols)

1. 準備工具

2.備份資料

Hand inserting a rack into a server rack unit (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. 將主機機殼卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and monitor (no visible text or symbols)

Close-up of a hand holding a computer motherboard with visible CPU socket and connectors (no text or symbols)

3. 對準M.2插槽、插上固態硬碟

Close-up of hands assembling electronic components with a computer monitor and keyboard (no visible text or symbols)

4.拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.重新裝上機殼

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

更换前准备步骤

Interior view of a computer tower case showing internal components like CPU, RAM, and memory drive (no visible text or labels)

1. 准备工具

2. 备份数据

3.请确认关机

Hand inserting a black rack into a server rack unit (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. 将机箱侧板卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and monitor (no visible text or symbols)

Close-up of a hand holding a computer motherboard with visible CPU socket and connectors (no text or symbols)

3. 对准M.2插槽、插上固态硬盘

Close-up of hands assembling electronic components with a computer monitor and keyboard (no visible text or symbols)

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.重新装上机箱侧板

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

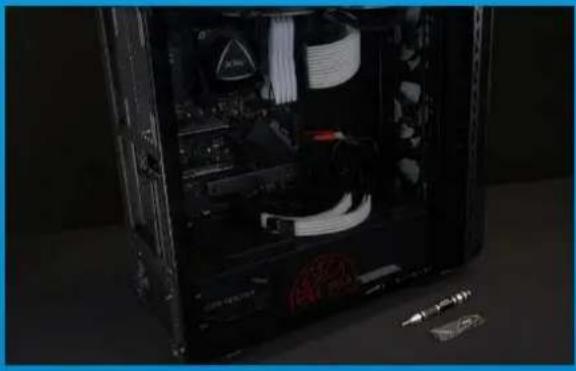

BEFORE INSTALLATION

Interior view of a computer tower case showing internal components and wiring (no visible text or labels)

1.GATHERTHETHINGSYOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

2.BACKUPYOURDATA

Make sureto backup the important data on your PC to an external device, such as an external HDD, before starting installation.

3. POWEROFF YOURPC

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a rack into a server rack with visible socket and ventilation slots (no text or symbols)

4.SWITCHOFFTHEPOWERSWITCH ANDUNPLUGPOWERCORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

Hand placing a hard disk into a black computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1.REMOVETHEPCCASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

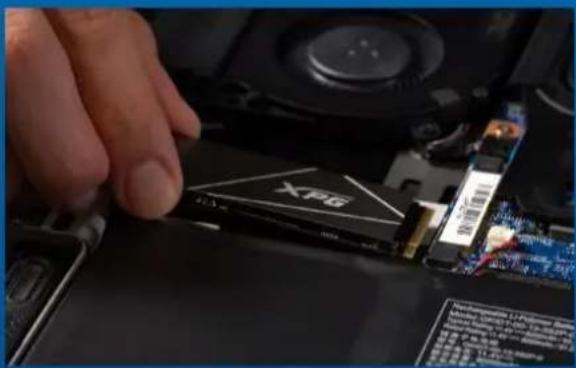

2. LOCATETHEM.2PCIESLOTAND CONFIRM THEREARESCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there a rescrews present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

Close-up of a hand holding a computer monitor with visible CPU socket and motherboard (no text or symbols)

3.ALIGNTHEM.2SLOTANDINSERT THESOLIDSTATEDRIVE

Use your small Phillips screwdriverto remove the screwson the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it afinal push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands assembling or adjusting a mechanical component with visible gears and tools (no text or symbols)

4.FASTENTHESCREWSTOSECURE THESSD

Use your small Phillips screwdriver to secure the SSD into place.

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

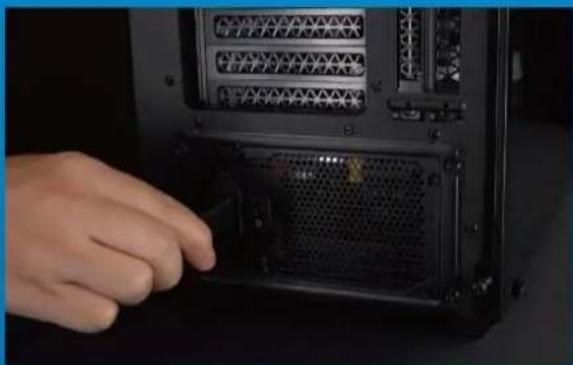

5.RESEMBLTHECASE

*Do not overtighten the screws as it may damage the screws ad back plate

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

6. PLUGINTHEPOWERCORDAND POWERONTHEPCTOCOMPLETE INSTALLATION

EINEM.2-SSDANEINEM DESKTOP-PCINSTALLIEREN

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

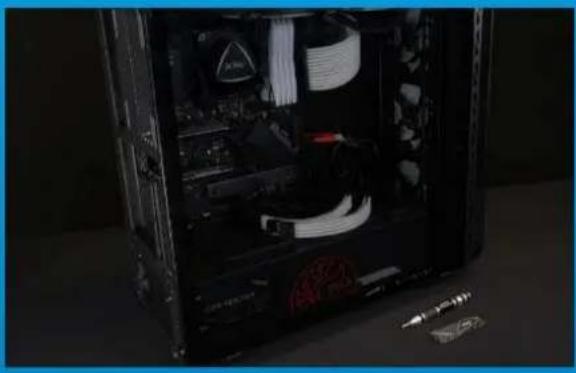

VOR DER INSTALLATION

Interior view of a computer tower case showing internal components like CPU, RAM, and drive bays (no visible text or labels)

1.ALLESNÖTIGE ZUSAMMENTRAGEN

2.IHREDATENSICHERN

3.IHRENPCABSCHALTEN

Hand inserting a black rack into a server rack unit (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components (no text or symbols)

1.PC-GEHÄUSE ENTFERNEN

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

2.M.2-PCIE-STECKPLATZAUSFINDIG MACHENUNDSICHERSTELLEN, DASSSCHRAUBENVORHANDENSIND

Close-up of a hand using a tool to adjust or install electronic components in a computer room (no visible text or symbols)

3.M.2-STECKPLATZAUSRICHTEN UNDDASSOLID-STATE-DRIVE EINSETZEN

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

4.SCHRAUBENZURFIXIERUNGDER SSDFESTZIEHEN

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.GEHÄUSEWIEDERZUSAMMENBAUEN

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

交換前の準備

Interior view of a computer tower case showing internal components like CPU, RAM, and memory drive (no visible text or labels)

1. 準備するもの

2. データのバックアップ

Hand inserting a rack into a server rack with visible socket and ventilation slots (no text or symbols)

Hand placing a hard disk into a black server tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. パソコン本体のケースを取り外す

Interior view of a computer motherboard with CPU socket, RAM slots, and monitor (no visible text or symbols)

Close-up of a hand holding a computer motherboard with visible CPU socket and connectors (no text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands assembling electronic components with a computer monitor and keyboard (no visible text or symbols)

4. SSDをねじで 固 定する

Close-up of a hand inserting a device into a black server tower case, with visible internal components and no text or symbols.

5. ケースを元の位置に取り付ける

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

설치하기 전에

Interior view of a computer tower case showing internal components like CPU, RAM, and memory drive (no visible text or labels)

1.필요한 도구 준비

PC, Phillips스크루드라이버, ADATA M.2 SSD

2.데이터 백업

Hand placing a black rack into a server rack with multiple drive bays (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components (no text or symbols)

1.PC케이스 제거

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or symbols)

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

4.나사를 조여서SSD고정

Close-up of a hand inserting a device into a black server tower case, with visible internal components and no text or symbols.

5.케이스 재조립

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

ANTES DA INSTALAÇÃO

Interior view of a computer tower case showing internal components like CPU, RAM, and memory drive (no visible text or labels)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2.FAÇA BACKUPDESEUSDADOS

3. DESLIGUESEUPC

Hand inserting a black rack into a server rack unit (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components (no text or symbols)

1.REMOVAOGABINETEDOPC

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or symbols)

2.LOCALIZEOSLOTM.2PCIEE CONFIRMESEHÁ PARAFUSOS

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

3.ALINHEOSLOTM.2EINSIRAA UNIDADEDEESTADOSÓLIDO

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

4.APERTEOSPARAFUSOSPARA PRENDEROSSD

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

6.CONECTEOCABODE ALIMENTAÇÃOELIGUEOPCPARA COMPLETARAINSTALAÇÃO

УСТАНОВКА

ТВЕРДОТЕЛЬНОГО

НАКОПИТЕЛЯ М.2НА

НОУТБУК

Hand placing a component into a black server rack with visible internal components and tools (no text or symbols)

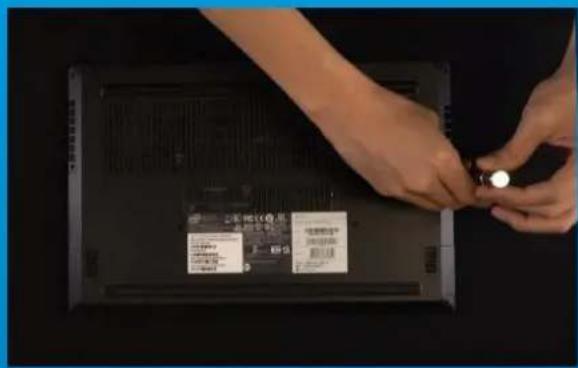

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

Close-up of a hand using a tool to adjust or install electronic components in a computer room (no visible text or symbols)

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer RAM module next to a colorful circular display screen (no text or symbols on the main subject)

ÎNAINTE DE INSTALARE

Interior view of a computer tower case showing internal components like CPU socket, keyboard, and monitor (no visible text or labels)

1.ADUNATILUCRURILEDECARE VETIAVEANEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

Hand inserting a rack into a server rack unit (no visible text or labels)

4. DECONECTATIALIMENTAREACU ENERGIEŞICABLULDE ALIMENTARE

Hand placing a hard disk into a black server rack with visible internal components (no text or symbols)

1.SCOATETICARCASAPC-ULUI

Interior view of a computer motherboard showing CPU socket, RAM slots, and monitor (no readable text or symbols)

Close-up of a hand using a tool to adjust or install electronic components in a computer room (no visible text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEASOLIDSTATE

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRU AFIXASSD

Hand placing a hard drive into a black server tower case with visible internal components and a small tool nearby (no text or symbols)

5.REASAMBLATICARCASA

Hand inserting a port into a server rack with multiple ports and ventilation slots (no visible text or labels)

6.CONECTATICABLULDE ALIMENTAREŞIPORNITIPC-UL PENTRUAFINALIZAINSTALAREA

INSTALARUNAUNIDADDE ESTADOSÓLIDO M.2EN

UNEQUIPODE

SOBREMESA

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1.REUNIRLOSELEMENTOSQUE NECESITARÁ

Hand inserting a rack into a server rack unit (no visible text or labels)

Hand placing a hard disk into a black server tower case with visible internal components and tools (no text or symbols)

1. QUITARLACARCASADELEQUIPO

Interior view of a computer motherboard with CPU socket, RAM slots, and monitor (no visible text or symbols)

Close-up of a hand holding a computer motherboard with visible CPU socket and connectors (no text or symbols)

3.ALINEARLARANURAM.2EINSERTAR LAUNIDADDEESTADOSÓLIDO

Close-up of hands assembling electronic components with a computer monitor and keyboard (no visible text or symbols)

Close-up of a hand inserting a device into a black server rack (no visible text or symbols)

5.VOLVERAMONTARLACARCASA

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular lens, next to a RAM module labeled 'ADATA' (no other text or symbols visible)

KURULUMDAN Ö NCE

Interior view of a computer tower case showing internal components and wiring (no visible text or labels)

1. İHTIYACINIZ OLACAK ŞEYLERI TOPLAYIN

PC, Phillips tornavidalar ve ADATA M.2 SSD

2. VERILERINIZI YEDEKLEYIN

3. PC'NIZI KAPATIN

Hand inserting a black rack into a server rack unit (no visible text or labels)

4. GÜ Ç ANAHTARINI KAPATIN VE GÜ Ç KABLOSUNU Ç IKARIN

Hand placing a hard drive into a black server rack with visible internal components and tools (no text or symbols)

1. PC KASASINI Ç IKARIN

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

Close-up of a hand using a tool to adjust or install electronic components on a computer motherboard (no visible text or symbols)

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

Close-up of a hand inserting a device into a black server tower case, with visible internal components and no text or symbols.

5. DAVAYA BENZEYEN

Close-up of a hand inserting a black rack into a server rack with multiple Ethernet connectors (no visible text or labels)

6. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在筆電安裝 M.2固態硬碟

Laptop with visible keyboard and ADATA chip, no text or symbols on the main components

更換前準備步驟

Exterior view of a modern office building (no signage)

1. 準備工具

2.備份資料

Close-up of human hands resting on a dark surface, no visible text or symbols

4.將電源線及電池拔除

1. 將主機背板卸下

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

Close-up of a hand pressing a component labeled 'XPG' on a computer motherboard (no readable text or symbols beyond branding)

3. 對準M.2插槽、插上固態硬碟

Close-up of hands using a screwdriver to adjust a device with XPG chip (no visible text or symbols)

4.拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新盖上背板

Close-up of hands resting on a dark surface, no visible text or symbols

Laptop with visible keyboard and ADATA chip, no text or symbols on the main components

更换前准备步骤

Exterior view of a modern office building (no signage)

1. 准备工具

2.备份数据

3.请确认关机

Close-up of human hands resting on a dark surface, no visible text or symbols

4. 将电源线及电池拔除

1. 将电脑背板卸下

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

Close-up of a hand pressing a component labeled 'XPG' on a computer motherboard (no readable text or symbols beyond branding)

3. 对准M.2插槽、插上固态硬盘

Close-up of hands using a screwdriver to adjust a device with XPG chip (no visible text or symbols)

4.拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新盖上背板

Close-up of hands resting on a dark surface, no visible text or symbols

Laptop with visible keyboard and ADATA chip, no text or symbols on the main components

BEFORE INSTALLATION

1. GATHERTHETHINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

2.BACKUPYOURDATA

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

3.POWEROFFYOURPC

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Close-up of human hands resting on a dark surface, no visible text or symbols

4.UNPLUGPOWERCORDAND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. Tosee how to remove the battery, refer to your user manual.

INSTALLATION

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1.REMOVEYOURPC'SBACKPLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

*If you are unsure how to do this, refer to your user manual

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

2. LOCATETHEM.2PCIESLOTAND CONFIRM THEREARESCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there arescrews present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

Close-up of a hand inserting a XPG into a computer motherboard with visible drive and circuit board (no readable text or symbols)

3.ALIGNTHEM.2SLOTANDINSERT THESOLIDSTATEDRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

4.FASTENTHESCREWSTOSECURE THESSD

Use your small Phillips screwdriver to secure the SSD into place.

*Do not overtighten the screws

5.SECURETHEBACKPLATEINTO PLACE

*Do not overtighten the screws as it may cause damage

Close-up of human hands resting on a dark surface, no visible text or symbols

6. PLUGINTHEPOWERCORDAND POWERONTHEPCTOCOMPLETE INSTALLATION

EINEM.2-SSDANEINEM LAPTOP-PCINSTALLIEREN

Laptop with visible keyboard and ADATA chip, no text or symbols on the main components

VOR DER INSTALLATION

1.ALLESNÖTIGE ZUSAMMENTRAGEN

2.IHREDATENSICHERN

Close-up of human hands resting on a dark surface, no visible text or symbols

4.NETZKABELUNDAKKUTRENNEN

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1.RÜCKPLATTE IHRESPCS ENTFERNEN

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

2.M.2-PCIE-STECKPLATZAUSFINDIG MACHENUNDSICHERSTELLEN,DASS SCHRAUBENVORHANDENSIND

Close-up of a hand inserting a XPG into a computer motherboard with visible drive and circuit board (no readable text or symbols)

3.M.2-STECKPLATZAUSRICHTEN UNDDASSOLID-STATE-DRIVE EINSETZEN

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

4.SCHRAUBENZURFIXIERUNG DERSSDFESTZIEHEN

5.RÜCKPLATTEWIEDEREINSETZEN

Close-up of human hands resting on a dark surface, no visible text or symbols

1. 準備するもの

2. データのバックアップ

Close-up of human hands resting on a dark surface, no visible text or symbols

4. 電源ーブルとバッテリーを取り外す

1. パソコンのバックパネルを取り外す

Top-down view of a laptop showing internal circuit board and ventilation ducts (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

4. SSDをねじで固定する

Close-up of human hands resting on a dark surface, no visible text or symbols

2.데이터 백업

Close-up of human hands resting on a dark surface, no visible text or symbols

4.전원 코드와 배터리분리

1.PC뒤판 제거

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard with visible drive and circuit board (no readable text or symbols)

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

4.나사를 조여서SSD고정

5. 뒤판 제자리에 고정

Close-up of hands resting on a dark surface, no visible text or symbols

Laptop with a black RAM module and a blue-lit keyboard, no visible text or symbols on the hardware surface.

ANTES DA INSTALAÇÃO

Exterior view of a modern office building (no signage)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2.FAÇA BACKUPDESEUSDADOS

Close-up of human hands resting on a dark surface, no visible text or symbols

Close-up of hands holding a small electronic device on a laptop back (no visible text or symbols)

1.REMOVAAPLACATRASEIRADO SEUPC

Top-down view of a laptop showing internal circuit board and drive components (no text or symbols visible)

2.LOCALIZEOSLOTM.2PCIEE CONFIRMESEHÁ PARAFUSOS

Localize o slot M.2 PCIe, certifique-se de que o SSD se encaixe e confirme se ha parafusos

presentes.

Close-up of a hand inserting a XPG into a computer motherboard with visible components and a logo (no readable text or symbols)

3.ALINHEOSLOTM.2EINSIRAA UNIDADEDEESTADOSÓLIDO

Close-up of hands using a screwdriver to repair a device on a circuit board (no visible text or symbols)

4.APERTEOSPARAFUSOSPARA PRENDEROSSD

5.PRENDAAPLACATRASEIRANO LUGAR

Close-up of hands resting on a dark surface, no visible text or symbols

Exterior view of a modern office building (no signage)

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Close-up of human hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard with visible components and a logo (no readable text or symbols)

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

Close-up of human hands resting on a dark surface, no visible text or symbols

Laptop with visible CPU socket and ADATA chip, no text or symbols on the main components

ÎNAINTE DE INSTALARE

1.ADUNATILUCRurileDECARE VETIAVEANEVOIE

Close-up of human hands resting on a dark surface, no visible text or symbols

4. DECONECTATICABLULDE ALIMENTAREŞIBATERIA

1.SCOATEȚIPLACADINSPATEA PC-ULUI

Top-down view of a laptop chassis showing internal circuitry and ventilation ducts (no text or symbols visible)

Close-up of a hand pressing down on a computer motherboard with a visible XPG chip and circuit board (no readable text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEASOLIDSTATE

Close-up of hands using a screwdriver to adjust a black electronic device with XPG logo (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRUAFIXASSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

Close-up of human hands resting on a dark surface, no visible text or symbols

6.CONECTATICABLULDE ALIMENTAREŞIPORNITIPC-UL PENTRUAFINALIZAINSTALAREA

INSTALARUNAUNIDAD DEESTADOSÓLIDO M.2 ENUNEQUIPOPORTÁTIL

Laptop with ADATA processor modules and a glowing keyboard, no visible text or symbols on the main components.

Close-up of human hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

1. RETIRARLAPLACAPOSTERIOR DESUPC

Top-down view of a laptop's internal circuit board showing components like CPU, RAM, and memory (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard with visible components and a CD drive (no text or symbols on the main subject)

3.ALINEARLARANURAM.2E INSERTARLAUNIDADDEESTADO SÓLIDO

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

5.ASEGURARLAPLACAPOSTERIOR ENSULUGAR

Close-up of human hands resting on a dark surface, no visible text or symbols

Laptop with visible keyboard and ADATA chip, no text or symbols on the main components

KURULUMDAN Ö NCE

1. İHTIYACINIZ OLACAK ŞEYLER TOPLAYIN

PC, Phillips tornavidalar ve ADATA M.2 SSD

Close-up of human hands resting on a dark surface, no visible text or symbols

4. GÜ Ç KABLOSUNU VE PILI Ç IKARIN

Close-up of hands installing a small electronic component on a laptop back (no visible text or symbols)

Top-down view of a laptop showing internal circuit board and drive bays (no text or symbols visible)

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

Close-up of a hand inserting a XPG into a computer motherboard with visible drive and circuit board (no readable text or symbols)

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

Close-up of hands using a screwdriver to adjust a device on a circuit board (no visible text or symbols)

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. ARKA PLAKAYI YERINE SABITLEYIN

Close-up of human hands resting on a dark surface, no visible text or symbols

4. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

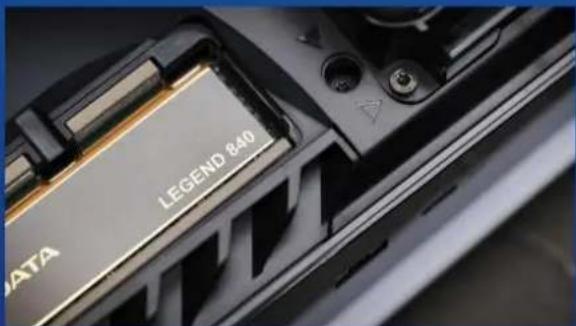

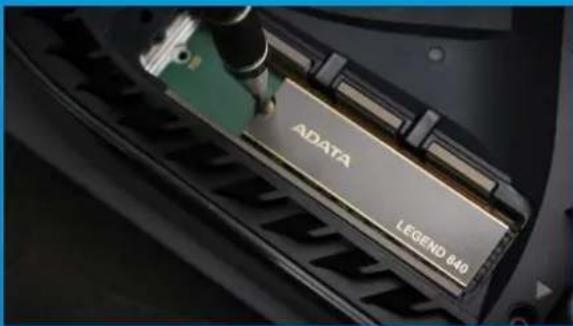

如何在PS5主機安裝

M.2固態硬碟

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

安裝前準備步驟

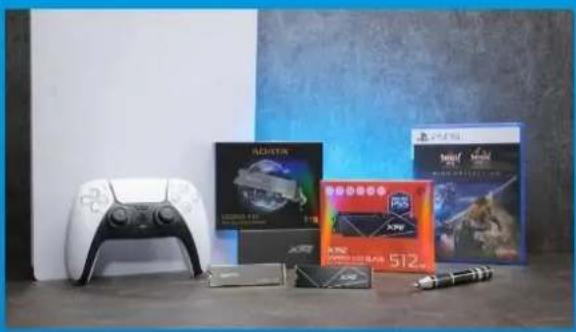

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

需要的工具有：

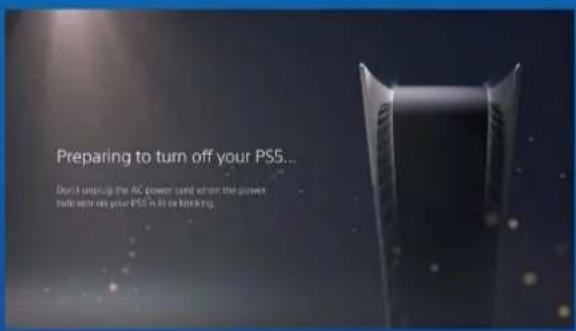

2.將PS5主機關機。

Close-up of a white gaming controller next to a black Sony PC, with a cable inserted (no visible text or symbols)

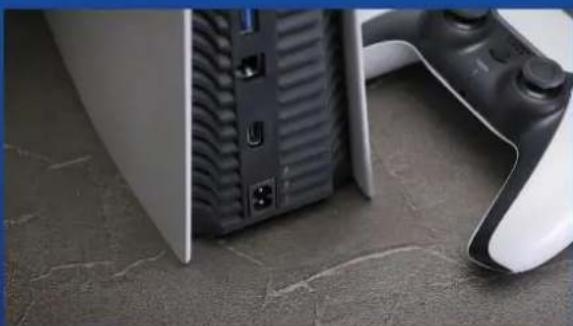

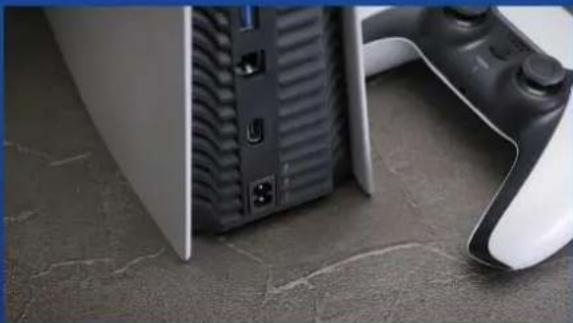

3.移除所有主機上的線材跟裝置。

安裝固態硬碟步驟

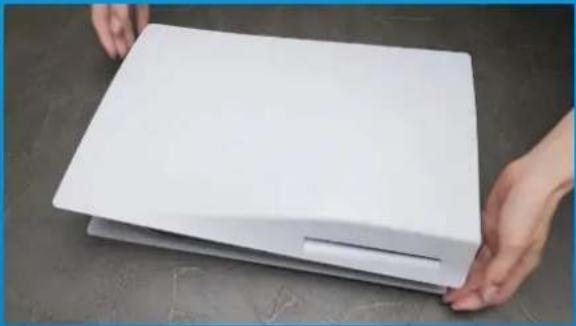

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

2.用左手緊握PS5主機的左上角。

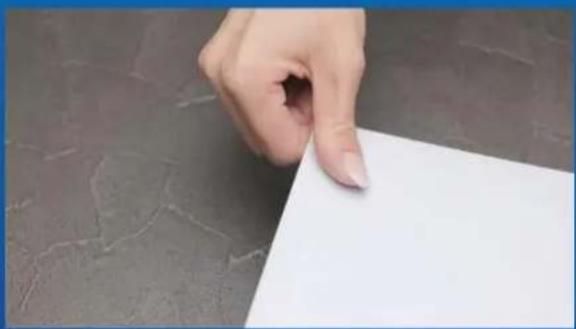

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

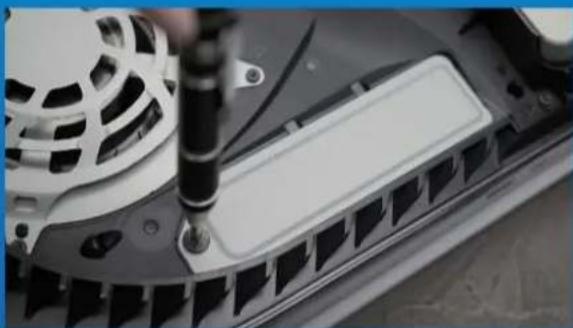

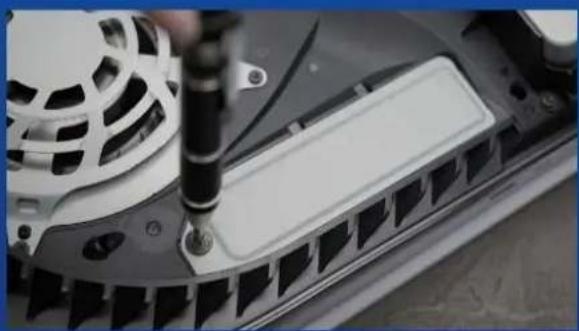

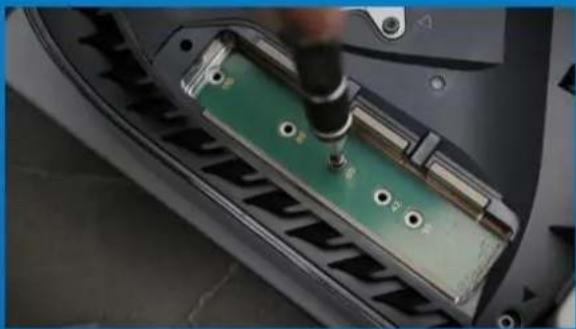

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

1. 接著會看到綠色底的固態硬碟擴充插槽。

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car's front panel showing internal components and battery cells (no text or symbols visible)

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. 再將螺絲旋緊，固定固態硬碟。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 重新蓋上擴充插上蓋。

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. 重新連接電線並啟動您的PS5主機。

13. 按照重新格式化說明操作。

14. 您已完成！

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

安装前准备步骤

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

需要的工具有：

-ADATA M.2固态硬盘

-十字型螺丝刀

-PS5主机

1. 将PS5主机关机。

Close-up of a white gaming controller next to a black Sony PC, with a cable inserted (no visible text or symbols)

1. 移除所有主机上的线材跟装置。

安装固态硬盘步骤

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. 用左手紧握PS5主机的左上角。

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. 用右手拉动，然后向左滑动背板以拆除机壳上盖。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

1. 松开螺丝以拆除固态硬盘扩充槽的盖子。

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

1. 接着会看到绿色底的固态硬盘扩充插槽。

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car's front panel showing internal components and battery cells (no text or symbols visible)

Close-up of a computer RAM module with a gold-colored ADATA chip and a green drive, no visible text or symbols on the chip surface.

1. 再将螺丝旋紧，固定固态硬盘。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 重新盖上扩充插上盖。

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. 重新连接电线并启动您的PS5主机。

13. 按照重新格式化说明操作。

Blue-tinted image of a PlayStation 5 console with Sony logo, next to a game controller (no visible text or symbols on device)

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

WHATYOU'LL NEED:

• ADATA M.2 SSD
• Phillips head screwdriver
• PS5

1. ENSURE YOU HAVE THE LATESTPS5 SOFTWARE UPDATES.

1. TURN OFF YOUR PS5.

Close-up of a white PlayStation controller next to a black Sony PC connected to a cable (no visible text or symbols)

1. DISCONNECT ALL CABLES AND DEVICES.

INSTALLATION

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

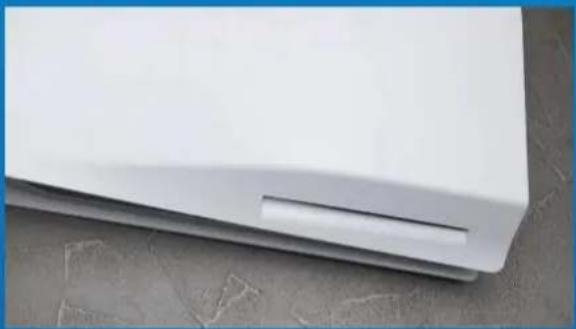

1. LAY THE PS5 FLAT WITH THE LOGO SIDE FACING DOWNWARDS.

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. FIRMLY GRAB THE UPPER LEFT HAND CORNER OF THE PS5 WITH YOUR LEFT HAND.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

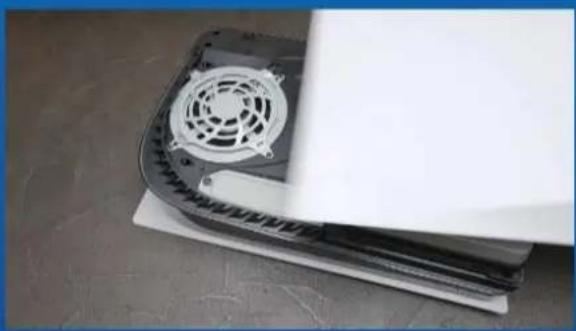

1. WITH YOUR RIGHT HAND, PULL AND THEN SLIDE THE BACKING PLATE TO THE LEFT TO REMOVE.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

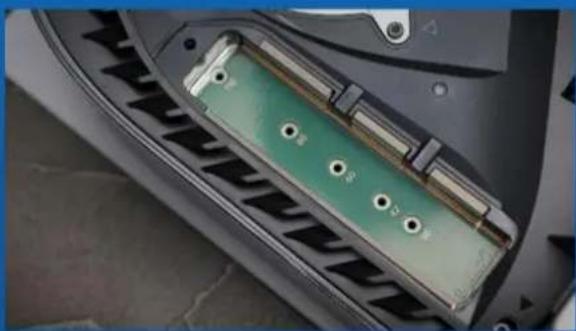

1. LOOSEN THE SCREW TO REMOVE THE EXPANSION SLOT COVER.

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

1. REMOVE THE SINGLE SCREW AND THE WASHER-LIKE STANDOFF UNDERNEATH.

Close-up of a car door panel with visible battery and circuit breakers (no text or symbols)

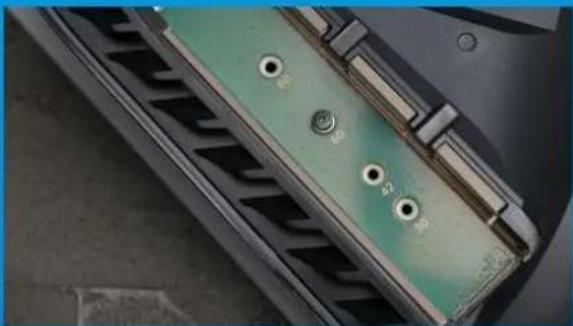

1. PLACE THE STANDOFF IN THE HOLE THAT CORRESPONDS TO THE M.2 FORM FACTOR.

1. CLICK THE GOLD CONNECTOR OF THE SSD INTO THE MATCHING INPUT NOTCH.

Close-up of a computer RAM module with a gold-colored memory card labeled 'ADATA' and 'LEGEND 840', showing internal components (no readable text beyond labels)

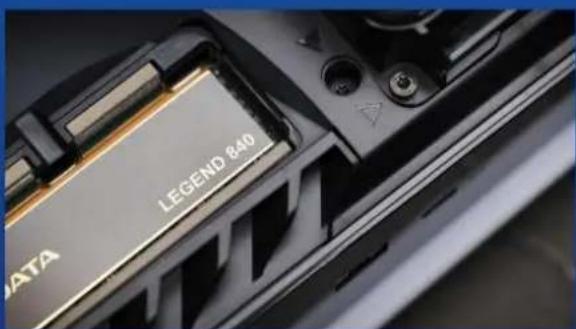

1. FASTEN THE SSD WITH THE SCREW.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

10.REINSTALL THE EXPANSION SLOT COVER.

Close-up of a black electronic device with a circular fan and ventilation grille, placed on a flat surface (no visible text or symbols)

1. REINSTALL THE BACKING PLATE BY SLIDING IT BACK AND PUSHING DOWNWARDS.

Close-up of a white gaming device with black buttons and a black game controller on a textured floor (no visible text or symbols)

1. RE-ATTACH CABLES AND TURN ON YOUR PS5.

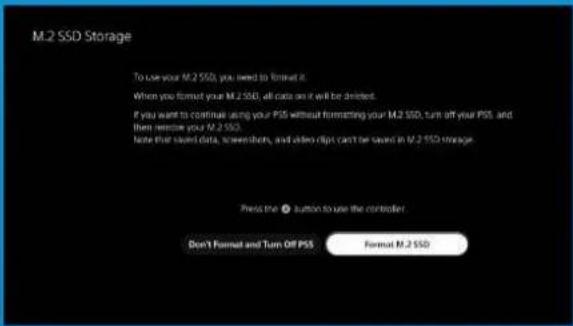

13. FOLLOW THE REFORMATTING INSTRUCTIONS.

14. YOU'RE DONE! YOU CAN NOW STORE GAMES AND APPS ONTO THE ADATA LEGEND 840.

INSTALLATION EINER M.2 SSD AUF PLAYSTATION®5

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

VOR DER INSTALLATION

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

WAS SIE BENÖ TIGEN:

1. STELLEN SIE SICHER, DASS SIE DIE NEUESTEN PS5-SOFTWARE-UPDATES INSTALLLIERT HABEN.

1. SCHALTEN SIE IHRE PS5 AUS.

Close-up of a white gaming controller next to a black Sony PC, with a cable inserted (no visible text or symbols)

1. TRENNEN SIE ALLE KABEL UND GERÄ TE AB.

INSTALLATION

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. LEGEN SIE DIE PS5 FLACH HIN, SO DASS DAS LOGO NACH UNTEN ZEIGT.

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. GREIFEN SIE MIT IHRER LINKEN HAND FEST IN DIE LINKE OBERE ECKE DER PS5.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. ZIEHEN SIE MIT DER RECHTEN HAND AN DER TRÄ GERPLATTE UND SCHIEBEN SIE DIESE NACH LINKS, UM SIE ZU ENTFERNEN.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car door panel with visible battery and circuit breakers (no text or symbols)

1. SETZEN SIE DEN ABSTANDHALTER IN DAS LOCH IM M.2-FORMFAKTOR.

1. SETZEN SIE DEN GOLDENEN STECKER DER SSD IN DIE ENTSPRECHENDE AUSSPARUNG AM EINGANG EIN

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. BEFESTIGEN SIE DIE SSD MITHILFE DER SCHRAUBE.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

設置前の準備

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

必要なもの：

1. PS5の電源を切ります。

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car's front panel showing internal components and battery cells (no text or symbols visible)

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. SSDをネジで固定します。

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. 拡張スロットカバーを元に戻します。

Close-up of a mechanical device with a circular vent and lid, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming controller next to a black textured surface, with no visible text or symbols.

1. 再フォーマットの指示に従ってください。

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

설치하기 전에

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

준비물:

1. PS5를 꿈니다.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

5.이제 녹색 확장 슬롯이 보입니다

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car door panel with visible battery and circuit breakouts (no text or symbols)

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. 나사를 조여서 SSD를 고정합니다

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

1. CERTIFIQUE-SE DE TER AS ATUALIZAÇÃO ES DE SOFTWARE DO PS5 MAIS RECENTES.

1. DESLIGUE SEU PS5.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

1. DESCONECTE TODOS OS CABOS E DISPOSITIVOS.

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. COLOQUE O PS5 NA HORIZONTAL COM O LADO DO LOGOTIPO VOLTADO PARA BAIXO.

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. SEGURE FIRMEMENTE O CANTO SUPERIOR ESQUERDO DO PS5 COM A MÃ O ESQUERDA.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. COM A MÃ O DIREITA, PUXE E DESLIZE A PLACA TRASEIRA PARA A ESQUERDA PARA RETIRA-LA.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

1. AFROUXE O PARAFUSO PARA RETIRAR A TAMPA DO SLOT DE EXPANSÃ O.

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

1. VOCÊ DEVERÁ VER AGORA O SLOT DE EXPANSÃ O VERDE.

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

1. REMOVA O Ú NICO PARAFUSO E O ESPAÇ ADOR EM FORMA DE ARRUELA EMBAIXO.

Close-up of a car door panel with visible battery and circuit breakouts (no text or symbols)

1. COLOQUE O ESPAÇ ADOR NO ORIFÍ CIO QUE CORRESPONDE AO FATOR DE FORMA M.2.

1. CLIQUE NO CONECTOR DOURADO DO SSD NO ENTALHE DE ENTRADA CORRESPONDENTE.

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. FIXE O SSD COM O PARAFUSO.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. RECOLOQUE A TAMPA DO SLOT DE EXPANSÃ O.

Close-up of a mechanical device with a circular vent and lid, placed on a flat surface (no visible text or symbols)

1. RECOLOQUE A PLACA TRASEIRA DESLIZANDO-A PARA TRÁ S E EMPURRANDO PARA BAIXO.

Close-up of a white gaming controller next to a black textured surface, with no visible text or symbols.

1. RECONECTE OS CABOS E LIGUE SEU PS5.

1. SIGA AS INSTRUÇ Ô ES DE REFORMATAÇ Â O.

1. PRONTO! AGORA VOCÊ PODE ARMAZENAR JOGOS E APLICATIVOS NO SSD.

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

1. ВЫКЛЮЧИТЕ PS5.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

1. ОТСОЕДИНИТЕ ВСЕ КАБЕЛИ И УСТРОЙСТВА.

УСТАНОВКА

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small slot, resting on a dark surface (no text or symbols visible)

1. ВОЗЬМИТЕСЬ ЗА ВЕРХНИЙ ЛЕВЫЙ УГОЛ PS5 ЛЕВОЙ РУКОЙ.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car door panel with visible battery and circuit breakouts (no text or symbols)

Close-up of a computer RAM module with a gold-colored memory card labeled 'ADATA' and 'LEGEND 840', showing internal components (no readable text beyond labels)

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. ПОДКЛЮЧИТЕ КАБЕЛИ И ВКЛЮЧИТЕ PS5.

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

Î NAINTE DE INSTALARE

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X

DE CE AVETI NEVOIE:

1. ASIGURAȚI-VĂ CĂ AVEȚI CELE MAI RECENTE ACTUALIZĂRI DE SOFTWARE PS5.

1. OPRITI PS5.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

1. DECONECTAȚI TOATE CABLURILE ȘI DISPOZITIVELE.

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. AŞEZATI PS5 LA ORIZONTALĂ, CU PARTEA CU SIGLA ORIENTATĂ ÎN JOS.

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. PRINDEȚI FERM COLȚUL DIN STÂ NGA SUS AL PS5 CU MÂ NA STÂNGĂ.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. CU MÂNA DREAPTĂ, TRAGEȚI ȘI APOI GLISAȚI PLACA DE SUPPORT SPRE STÂ NGA PENTRU A O SCOATE.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

1. SLĂBIȚI ȘURUBUL PENTRU A SCOATE CAPACUL FANTEI DE EXPANSIUNE.

Close-up of a computer RAM module with a gold-colored ADATA chip and a green drive, no visible text or symbols on the chip surface.

1. FIXAȚI SSD-UL CU AJUTORUL ȘURUBULUI.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. REINSTALATI CAPACUL FANTEI DE EXPANSIUNE.

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. RECONECTAȚI CABLURILE ȘI PÓRNITI PS5.

1. URMAȚI INSTRUCTIUNILE DE REFORMATARE.

1. AȚI TERMINAT! ACUM PUTETI STOCA JOCURI ȘI APLICATII PE SSD.

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

1. APAGA TU PS5.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

1. DESCONECTE TODOS LOS CABLES Y DISPOSITIVOS.

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

Close-up of a white plastic panel edge with a small slot, resting on a dark surface (no text or symbols visible)

1. AGARRE FIRMEMENTE LA ESQUINA SUPERIOR IZQUIERDA DEL PS5 CON LA MANO IZQUIERDA.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. TIRE DE LA PLACA DE APOYO CON LA MANO DERECHA Y DESLÍ CELA HACIA LA IZQUIERDA PARA EXTRAERLA.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

1. AFLOJE EL TORNILLO PARA RETIRAR LA TAPA DE LA RANURA DE EXPANSIÓ N.

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

1. AHORA VERÁ S LA RANURA DE EXPANSIÓ N DE COLOR VERDE.

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

Close-up of a car door panel with visible battery and circuit breakers (no text or symbols)

Close-up of a computer RAM module with a gold-colored memory card labeled 'ADATA' and 'LEGEND 840', showing internal components (no readable text beyond labels)

1. SUJETE EL SSD CON EL TORNILLO.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. REINSTALE LA TAPA DE LA RANURA DE EXPANSIÓ N.

Close-up of a black electronic device with a fan-shaped ventilation grille, placed on a flat surface (no visible text or symbols)

1. REINSTALE LA PLACA DE APOYO DESLIZÁ NDOLA HACIA ATRÁ S Y EMPUJÁ NDOLA HACIA ABAJO.

Close-up of a white gaming device with black buttons and a game controller on a textured floor (no visible text or symbols)

1. VUELVE A CONECTAR LOS CABLES Y ENCIENDE TU PS5.

1. SIGA LAS INSTRUCCIONES DE REFORMATEO.

Blue-tinted image of a PlayStation 3 console with Sony logo, next to a game controller (no visible text or symbols on device)

KURULUMDAN Ö NCE

Product display featuring a game controller, multiple video and audio formats including a 512x780X780X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X800X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X854X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X856X857 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 856 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 857 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 859 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 860 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 861 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 862 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 X 863 Y

GEREKENLER:

1. EN SON PS5 YAZILIM GÜ NCELLEMELERINE SAHIP OLDUĞUNUZDAN EMIN OLUN.

1. PS5'INIZI KAPATIN.

Close-up of a white gaming controller next to a white PC with visible keyboard and cable (no text or symbols)

1. TÜ M KABLOLARI VE CIHAZLARI Ç IKARIN.

KURULUM

Hands holding a white rectangular object on a dark surface (no text or symbols visible)

1. PS5'I LOGOLU TARAFI AŞAĞI BAKACAK ŞEKILDE DÜZ BIR ŞEKILDE YATIRIN.

Close-up of a white plastic panel edge with a small rectangular cutout, resting on a dark surface (no text or symbols visible)

1. SOL ELINIZLE PS5'IN SOL ÜST KÖŞESINI SIKICA TUTUN.

Hand holding a white sheet of paper against a dark textured background (no text or symbols visible)

1. SAĞ ELINIZLE DESTEK PLAKASINI Ç EKIP Ç IKARMAK İÇ IN SOLA KAYDIRIN.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no text or symbols visible)

1. GENİŞLETME YUVASI KAPAĞINI ÇIKARMAK IÇIN VIDAYI GEVŞETIN.

Close-up of a green electronic component with mounting holes and metallic brackets, partially enclosed by a black metal frame (no visible text or symbols)

1. ARTIK YEŞIL GENİŞLETME YUVASINI GÖ RMELISINIZ.

Close-up of a green printed circuit board being inserted into a car's steering wheel (no visible text or symbols)

1. TEK VIDAYI VE ALTINDAKI RONDELA BENZERI AYIRICIYI Ç IKARIN.

Close-up of a car door panel with visible battery and circuit breakers (no text or symbols)

1. AYIRICIYI M.2 FORM FAKTÖRÜNE KARŞILIK GELEN DELIĞE YERLEŞTIRIN.

1. SSD'NIN ALTIN KONEKTÖRÜNÜ EŞLEŞEN GIRİŞ ÇENTIĞINE TIKLAYIN.

Close-up of a computer RAM module with a labeled gold memory card (no readable text beyond branding)

1. SSD'YI VIDAYLA SABITLEYIN.

Close-up of a mechanical component with a screwdriver inserted, showing internal structure (no visible text or symbols)

1. GENİŞLETME YUVASI KAPAĞINI YENIDEN TAKIN.

Close-up of a mechanical device with a circular vent and lid, placed on a flat surface (no visible text or symbols)

1. DESTEK PLAKASINI GERIYE DOĞRU KAYDIRIP AŞAĞI DOĞRU ITEREK YENIDEN TAKIN.

Close-up of a white gaming controller next to a black textured surface, with no visible text or symbols.

1. KABLOLARI YENIDEN TAKIN VE PS5'INIZI AÇ IN.

1. YENIDEN BIÇ IMLENDIRME TALIMATLARINI IZLEYIN.

1. TAMAMLADINIZ! ARTIK OYUNLARI VE UYGULAMALARI SSD'DE DEPOLAYABILIRSINIZ.
