Jill - Vacuum Cleaner Simplicity - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Simplicity
Model	Jill
Dimensions (L x W x H)	25 cm x 15 cm x 110 cm
Weight	2.5 kg
Power supply	Lithium-ion battery 22 V, 2000 mAh
Runtime	Up to 30 minutes
Charging time	4 hours
Dustbin capacity	0.5 liter
Filtration	Washable HEPA filter
Suction power	20 kPa
Noise level	75 dB
Main functions	Stick, motorized brush, hands-free mode, hard floor and carpet cleaning
Maintenance	Empty dustbin after each use, wash filter every month
Safety	Automatic shut-off in case of overheating, motor lock
Spare parts	Battery, filter, brush, charger available
Repairability	Repairability index 7.5/10
Warranty	2 years
Package contents	Vacuum, battery, charger, crevice tool, electric brush

Frequently Asked Questions - Jill Simplicity

How to empty the dustbin of the Simplicity Jill vacuum?

Press the dustbin release button, remove it and empty the contents into a trash bin. Rinse the dustbin with warm water if necessary and let it dry before putting it back in place.

The battery does not hold a charge, what to do?

Make sure the battery is properly inserted. If the problem persists, the battery may have reached the end of its life. Contact customer service to order a replacement battery (reference: SIM-BAT-JILL).

How to clean the HEPA filter?

Remove the filter, tap it to remove dust, then wash it with cold water. Let it dry completely for 24 hours before putting it back. Do not use detergent.

The vacuum emits a burning smell, is it normal?

This may indicate a clogged filter or a blockage in the brush. Stop the appliance, clean the filter and check that no object is blocking the brush. If the smell persists, contact support.

Can the Jill vacuum be used on hardwood floors?

Yes, the motorized brush is suitable for hard floors. You can also use the crevice tool to avoid scratches. If marks appear, reduce the suction power.

How to charge the battery?

Plug the supplied charger into a mains outlet and connect it to the battery. The indicator light shows charging status: red when charging, green when complete. Full charge takes approximately 4 hours.

The vacuum does not start, what to check?

Check that the battery is charged and properly engaged. Make sure the dustbin is securely locked. If the problem persists, the motor unit may be at fault; contact after-sales service.

What is the actual runtime of the Jill vacuum?

The advertised runtime is 30 minutes in normal mode. In turbo mode or on thick carpets, it can drop to 15-20 minutes. A full charge cycle restores capacity.

How to store the Jill vacuum?

The vacuum can be stored flat or upright thanks to its stable base. Do not lean the tube against the wall. The battery can be removed for storage if the appliance is not used for a long time.

Where to find spare parts for my Simplicity Jill vacuum?

You can order spare parts (brush, filter, battery, charger) from the official Simplicity website or from authorized retailers. Use the model number Jill to identify the correct parts.

USER MANUAL Jill Simplicity

Important Safety Instructions....2

Two-Wire Polarized Cord 3

Parts Identification and Operation 4-5

Replacing Vacuum Bag and Filters....6

Troubleshooting....7

For Best Performance ....7

Warranty 8

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. FOR HOUSEHOLD USE ONLY.

IMPORTANT:

IMPORTANT. The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.

WARNING:

To reduce the risk of fire, electric shock, damage or injury:

- Empty the bag when the full bag indicator turns red. Over-filling the bag may cause dirt and debris to clog the vacuum and cause loss of suction.

- Always unplug the vacuum from the electrical outlet before replacing the bag or filters.

- Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

- WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- Do not use with damaged cord or plug. Or if appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Simplicity Retailer for service.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle plug or appliance with wet hands.

- Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

- Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

- Do not use without bag or filters in place.

- Turn off all controls before unplugging.

- Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

- Do not attempt to service the unit while appliance is plugged in.

- Do not use vacuum to pick up water or any wet materials.

- Use extra care when cleaning on stairs.

Power Cord, 2-Wire Polarized Cord

To reduce the risk of electric shock, the vacuum is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Line drawing of an electrical plug and its corresponding socket (no text or symbols)

PARTS IDENTIFICATION AND OPERATION

Hose Inlet

• Insert the hose into the inlet until it clicks into place.
• When separating the hose from the canister body, pull the hose inlet while pressing the buttons.

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Suction Control Slide

• Full suction power may be too strong for some cleaning situations.
- Slide the suction control to adjust the suction power coming through the hose. Slide the control forward to restore full suction power.

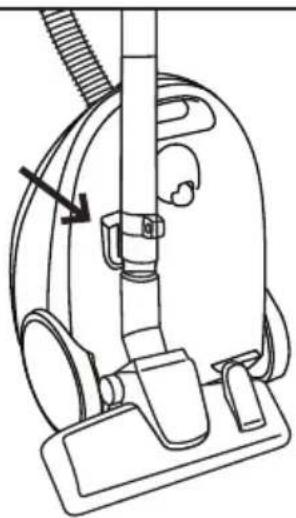

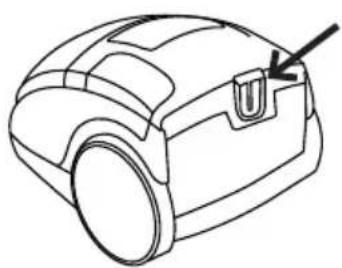

Storage

• The wand conveniently stores in two locations on the canister body.

Line drawing of a mechanical device with a button and arrow pointing to the side (no text or symbols)

Technical line drawing of a vacuum cleaner device with no visible text or symbols

Handle

Tool Caddy

Rug/Floor Tool

- With the brushes retracted, this tool is great for cleaning area rugs. Push the lever to expose the brushes for cleaning bare floors.

Line drawing of a mechanical component with a cylindrical shaft and base (no text or symbols)

Telescopic Wand

Simple line drawing of a mechanical component or tool (no text or symbols)

PARTS IDENTIFICATION AND OPERATION

Full Bag Indicator

• The full bag indicator changes to red when the bag is full or if there is a clog in the vacuum.
  • If the red indicator appears:

• Change the vacuum bag

• If the vacuum bag is not full check the hose for a clog.
• When cleaning with a tool (dusting brush, upholstery tool or crevice tool), the red indicator may appear. In this case, continue cleaning.

Cord Rewind

Simple line drawing of a medical or anatomical device with a curved handle and circular outline (no text or symbols)

On/Off Switch

Simple circular symbol with a vertical line inside, no text or numbers present.

Line drawing of a vacuum cleaner with labeled parts (no text or symbols present)

Bag Compartment Latch

- Lift here to access the vacuum bag and filters.

Cleaning Tools

Simple line drawing of a stylized object resembling a tool or device, with no text or symbols present.

Dusting Brush

Simple line drawing of a mechanical component or bracket (no text or symbols)

Upholstery Tool

Simple line drawing of a cylindrical object with a curved end, resembling a tool or device (no text or symbols)

Crevice Tool

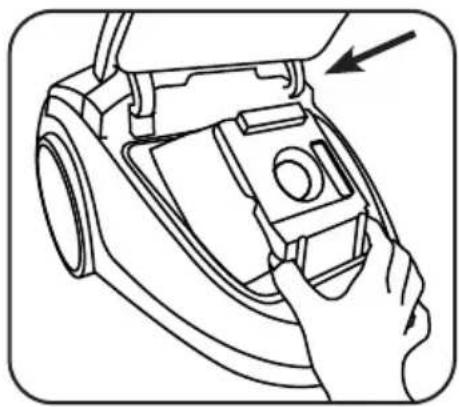

Replacing the Vacuum Bag

Always operate the vacuum with a bag installed. The bag compartment lid will not close without a bag properly installed in the bag holder. The bag should be changed when the full bag indicator turns red or suction power is weak.

1. Unplug the vacuum. Open the bag compartment lid.
2. Remove the bag holder from the bag compartment. (Fig. 1)
3. Grasp the bag collar to slide the bag out of the holder.
4. Discard the used bag and slide a new bag into the holder.
5. Replace the bag holder into the slot in the bag compartment.

Line drawing of a hand holding a device component with an arrow indicating direction (no text or symbols)

Fig. 1

NOTE: Do NOT throw away the bag holder. The bag cannot be reused.

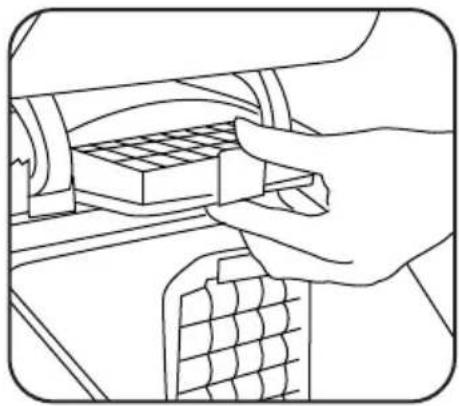

Replacing the HEPA Media Filter

1. Unplug the vacuum. Open the bag compartment lid.
2. Push the black tab on the filter and lift up to remove. (Fig. 2)
3. Discard the used filter.
4. Slide a new filter into place and push down until it clicks into place.

Line drawing of a hand inserting a grid into a device (no text or symbols)

Fig. 2

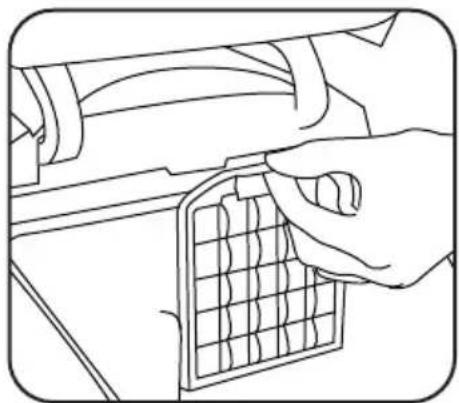

Replacing the Secondary Filter

1. Unplug the vacuum. Open the bag compartment lid.
2. Slide the filter holder up and out of the bag compartment. (Fig. 3)
3. Remove the used filter from the filter holder.
4. Discard the used filter.
5. Place a new filter inside the filter holder and slide it back into place.

Line drawing of a hand inserting a grid into a car air vent (no text or symbols)

Fig. 3

NOTE: Do NOT throw away the secondary filter holder. The filters cannot be washed and reused.

It is recommended to replace the filter set every six months.

Problem Check Point Possible Solution
Suction power is weak.	FiltersVacuum bagWand or hoseSuction control slide	Replace filters.If the vacuum bag is 2/3 full, replace it.If clogged or blocked, remove the object.Slide the control forward for full suction power.
The vacuum does not work.	HoseWhen the vacuum bag is full or any of the accessories are blocked, the over-heating protection for the motor is activated and automatically shuts down the vacuum.	Insert the hose completely into the hose unit until it clicks.Turn the vacuum off and unplug the vacuum. Check the vacuum bag and accessories and remove any blockages. The vacuum can be turned on again after approximately 20 minutes.
Power cord does not rewind	Power Cord Pull the power cord out a little and press the cord rewind button again.
Power cord won't pull out of the vacuum	Power Cord Do not pull it out by force.Rewind it a little by pressing the cord rewind button and try pulling it out again.
Any other service should be performed by an Authorized Simplicity Service Center. To locate your nearest Authorized Service Center, visit our website at www.SimplicityVac.com or call 888-974-6759.

FOR BEST PERFORMANCE

• Keep your canister clean and in good operating condition.
• Change vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.
• Always use genuine vacuum bags and replacement parts. Use of other products may result in poor cleaning performance, potential vacuum cleaner damage and may void vacuum warranty. Genuine products are designed for maximum cleaning performance.
• Use only Authorized Simplicity Service Centers for parts or service.
• Store your canister carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner's manual instructions.

What is Covered:

This warranty covers any defects in material and workmanship in your new vacuum and applies exclusively to the original purchaser.

How Long Coverage Lasts:

Visit Simplicityvac.com for warranty information.

What is Not Covered:

• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse or improper maintenance.
• Normal replacement items: filters and disposable bags.

What We Will Do:

This warranty provides, at no cost to you, all labor and parts to place this vacuum in correct operating condition during the warranted period.

How to Get Service:

Warranty service can only be obtained by presenting the vacuum to an Authorized Simplicity Service Center. A proof-of-purchase and product serial number will be required before service is rendered. To locate your nearest Simplicity Service Center, please call 888-974-6759 or visit the Simplicity website at www.simplicityvac.com.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

How State Law Applies:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Owner's Warranty Information (keep this for your records...)

Store name

Store Address ____ City ____ State Zip ____

Telephone Date of purchase

Serial number Model number

Register your warranty online at SimplicityVac.com

Simplicityvac.com/register-warranty

What's the best way to be a part of the in crowd?

It's simple: register your Simplicity vacuum today and activate your warranty.

How do you like your vacuum?

Once you've had some time to try out your new Simplicity vacuum, we want to know what you think — leave a product review. It only takes a few minutes and it helps us make our products better... and your home simply cleaner.
