USER MANUAL WK 4126 LIEBHERR

• Keep packaging materials away from children - polythene sheets and bags can cause suffocation!
• Please return the packaging to an official collection point.

Your old appliance: This contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse.

• Discarded appliances should be disabled: Remove the plug, cut through the connection cable and render the catch unusable so that children cannot become trapped inside.
• Ensure that the refrigerant circuit is not damaged when the appliance that is no longer needed is taken away for disposal.
• Details of the refrigerant can be found on the type plate.
• Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

Range of appliance use

The appliance is suited only for storing wine. In the case of commercial food cooling, the pertinent statutory regulations have to be observed.

The appliance is not suited for storing and cooling pharmaceuticals, blood plasma, laboratory preparations or similar substances and products subject to the Medical Devices Directive 2007/47/EC.

Any misuse of the appliance may result in damage to or spoilage of the stored goods.

Furthermore, the appliance is unsuited for use in areas exposed to an explosion hazard.

Climate rating

The appliance is set to operate within specific ambient temperature limits according to its climate rating. These temperature limits should not be exceeded. The correct climate rating for your appliance is indicated on the type plate.

Climate rating Ambient temperature

SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

The appliance complies with the relevant safety regulations and EC directives 2004/108/EC and 2006/95/EC.

WK 2926

WK 4126

WK 2927

WK 4127

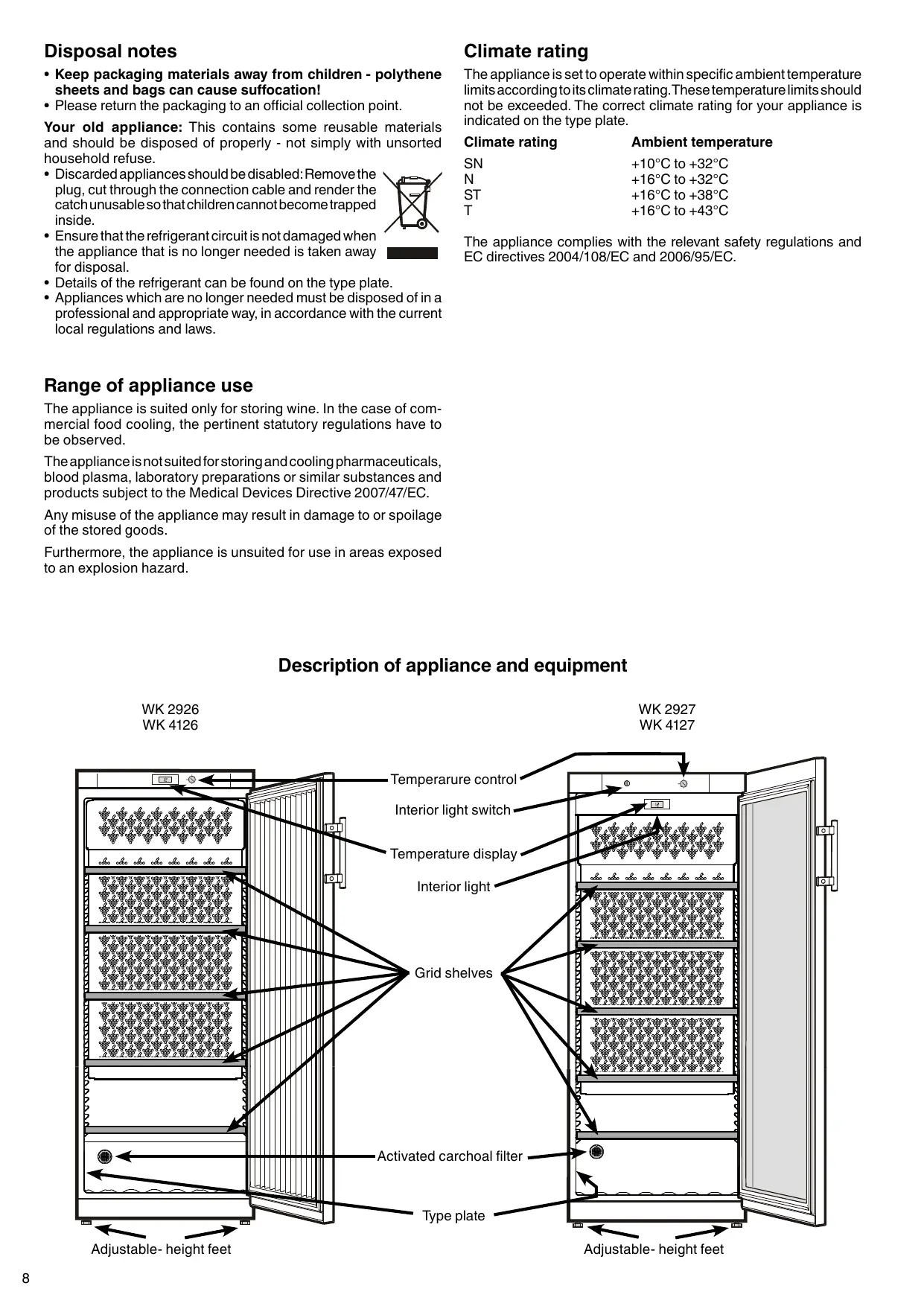

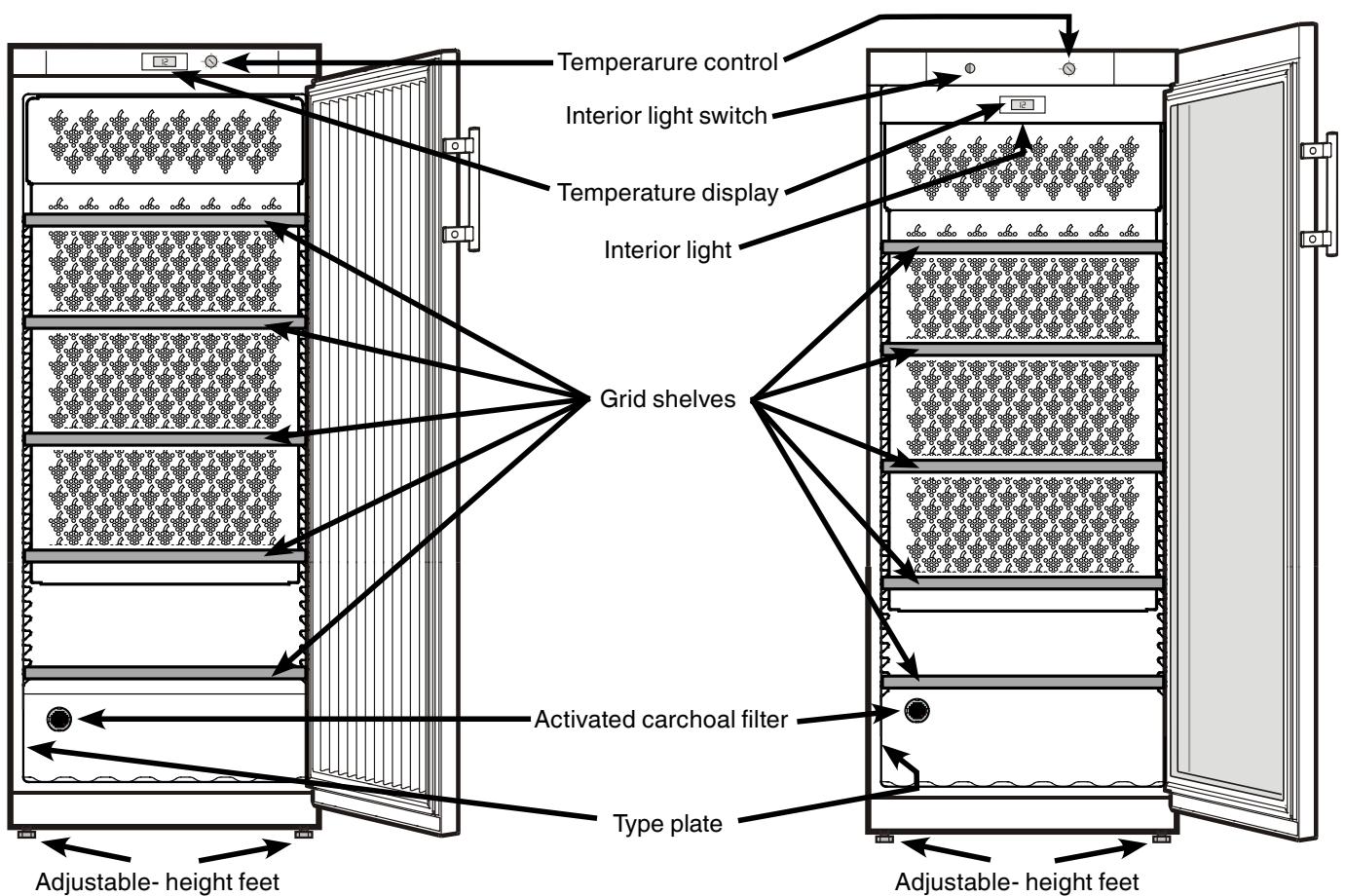

Description of appliance and equipment

Safety instructions and warnings

• To prevent injury or damage to the unit, the appliance should be unpacked and set up by two people.
• In the event that the appliance is damaged on delivery, contact the supplier immediately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set up and connected as described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs. Pull out the plug, switch off or remove the fuse.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer service department, as unauthorised work could prove highly dangerous for the user. The same applies to changing the mains power cable.
• Do not allow naked flames or ignition sources to enter the appliance. When transporting and cleaning the appliance ensure that the refrigerant circuit is not damaged. In the event of damage, make sure that there are no ignition sources nearby and keep the room well ventilated.
• Do not stand on the plinth, drawers or doors or use them to support anything else.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Avoid prolonged skin contact with cold surfaces or chilled/frozen food. This could cause pain, numbness and frostbite. In the case of prolonged skin contact, protective measures should be taken, e.g. gloves should be worn.
• Do not consume food which has been stored for too long, as it could cause food poisoning.
• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane etc. in the appliance. Electrical components might cause leaking gas to ignite. You may identify such sprays by the printed contents or a flame symbol.
• Do not use electrical appliances inside the appliance.
• If you have a lockable appliance, do not keep the key near the appliance or within reach of children.
• The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

Setting up

• Avoid positioning the appliance in direct sunlight or near cookers, radiators and similar sources of heat.
• The floor on which the appliance stands should be horizontal and level. Compensate for uneven floors with the adjustable feet.
• Always ensure that there is good ventilation and that the outward flowing air is able to escape.
• Standard EN 378 specifies that the room in which you install your appliance must have a volume of 1m^3 per 8g of R 600a refrigerant used in the appliance, so as to avoid the formation of inflammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.
• Do not connect the appliance to the supply with other equipment using an extension cable - risk of overheating.

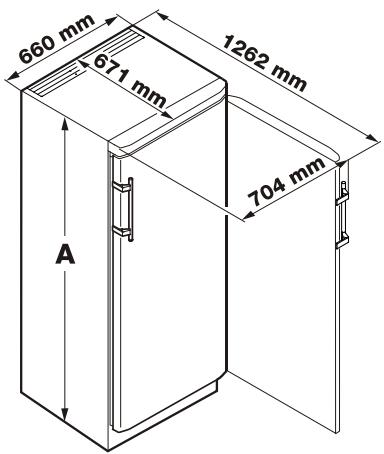

Dimensions

WK 2926 - A=1250 mm

WK2927-A=1264mm

WK 4126 - A=1644 mm

WK4127-A=1658mm

Connecting to the mains

Power supply (a.c.) and voltage at the operating point must comply with the details on the type plate. The socket must be fused with a 10 A fuse or higher, it must be away from the rear of the appliance and must be easily accessible.

Connect the appliance with a properly earthed fused plug and socket only.

Saving energy

• Always ensure good ventilation. Do not cover ventilation openings or grille.
• Always keep fan louvres clear.
• Do not place appliance in areas of direct sunlight or next to a stove, heater or similar object.
• The energy consumption depends on the installation conditions, e.g. the ambient temperature.
• Keep the time the appliance is open to a minimum.

Accumulated dust increases the energy consumption:

• Once a year, dust the refrigerating unit together with the metal grille of the heat exchanger at the back of the appliance.

Switching the appliance on and off

You are recommended to clean the appliance before switching it on for the first time (see Cleaning).

To switch the appliance on: Connect the appliance to the mains - the appliance is switched on.

To switch the appliance off: Pull out the mains plug or set the temperature control to 0.

Setting the temperature

Using a coin, turn the arrow on the temperature control to a setting between 0 und max.

The nearer the temperature control is to the max. setting, the colder the interior temperature.

Storing wine

If you are storing wine for long periods of time, it should be stored at a temperature of between 10^ and 14^ .

This is the temperature wine cellars are kept at, and it is just right to allow wine to mature properly.

The following drinking temperatures are recommended for the various types of wine.

Red wines: +14^ C to +18^ C

Rosé wines: +10°C to +12°C

White wines: +8^ C to +12^ C

Sparkling wines, Prosecco +7^ to +9^

Champagne +5^ to +7^

Labels

The appliance is supplied with a label holder with labels for each shelf. Use these to label the type of wine stored on each shelf.

Additional labels can be obtained from your dealer.

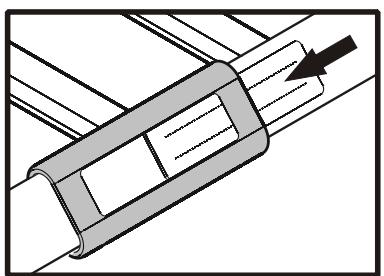

Fitting:

Click the label holder into place and slide the label in from the side.

Air exchange with activated charcoal filter

The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine.

We recommend that you replace the filter once a year. Filters can be obtained from your dealer.

Changing the filter:

Take the filter by the handle. Turn it 90^ to the left or right and remove.

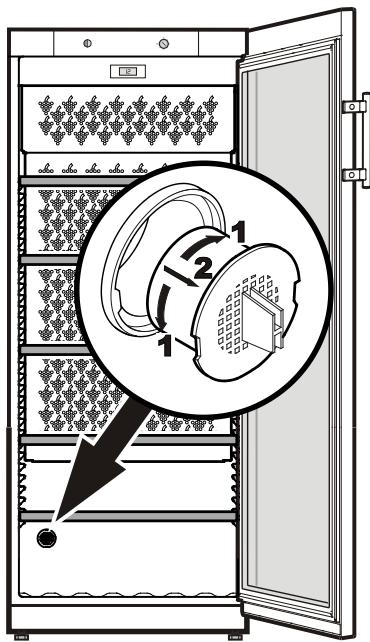

Inserting the filter:

Insert with the handle in a vertical position. Turn it 90^ to the left or right until it clicks into place.

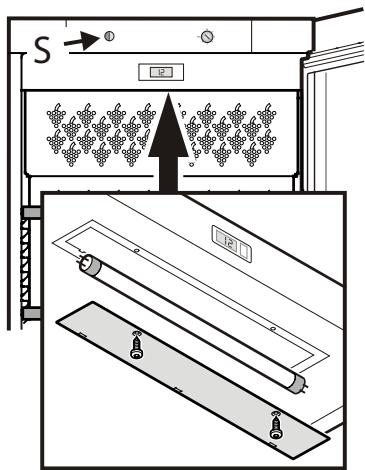

Interior light in appliances with glass door

The interior light is fitted on the inside at the top. It can be switched on and off by pressing the switch S.

To change the tube

Pull out the mains plug or remove/unscrew the fuse.

• Unscrew the cover panel.
• Change the fluorescent tube.
• Replace cover panel and screw into place.

If the interior light still does not work after you have changed the bulb, please consult your nearest customer service point.

Temperature display

The temperature display is powered by a battery which is available from your specialist dealer.

Changing the battery

• Open the battery compartment using a small screwdriver.
• Replace the battery.
• Close the battery compartment.

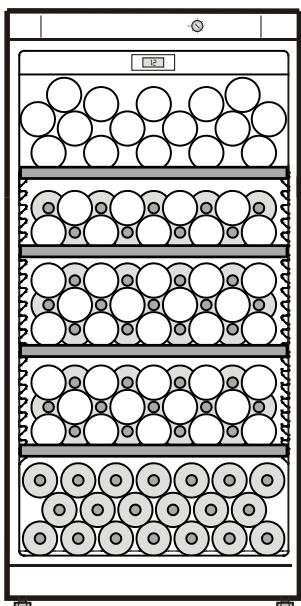

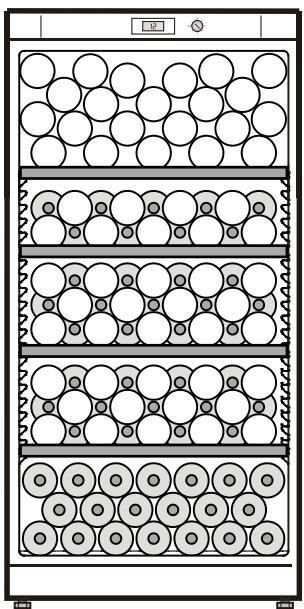

Storage diagrams for 750 ml Bordeaux bottles

The loading pattern illustrated is only an example. The appliance can be loaded with different quantities depending on how the shelves are arranged.

WK 2926

Total: 119 bottles

WK 2927

Total: 115 bottles

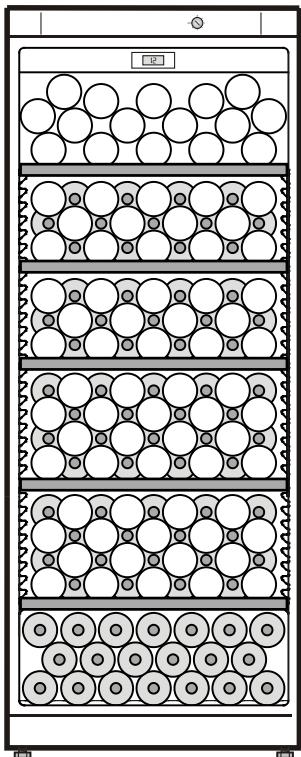

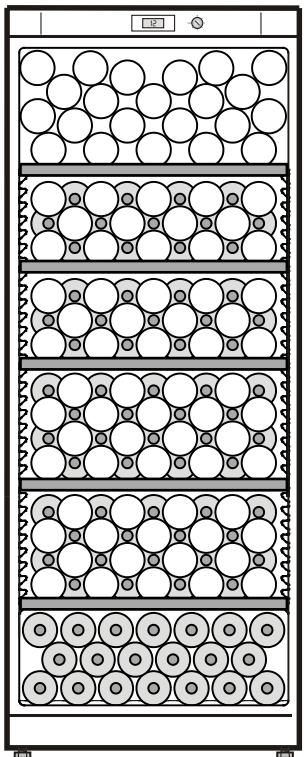

WK 4126

Total: 168 bottles

WK 4127

Total: 162 bottles

Defrosting

The appliance defrosts automatically.

Cleaning

Before cleaning always switch off the appliance. Pull out the mains plug or remove/unscrew the fuse.

• Clean the inside, equipment and outer walls with lukewarm water and a little detergent. Do not use abrasive or acid cleaners or chemical solvents.

Do not use steam cleaners because of the risk of injury and damage.

• Ensure that no cleaning water penetrates into the electrical components or ventilation grille.
• The dust should be removed from the refrigeration unit and heat exchanger - metal grid at the back of the appliance - once a year.
• Do not damage or remove the type plate on the inside of the appliance. It is very important for servicing purposes.

Malfunctions

You may be able to rectify the following faults by checking the possible causes yourself:

• Appliance does not function:
• Is the appliance switched on?
• Is the plug correctly fitted in the mains socket?
• Is the socket fuse intact?
• Loud running noise:
• Is the appliance set up firmly on the floor?
• Does the appliance cause nearby items of furniture or objects to vibrate? Ensure that the appliance is stable and that all parts at the back can vibrate freely. Please note that noises caused by the refrigerant circuit cannot be avoided.
• The temperature is not low enough:
• Is the temperature setting correct (see „Setting the temperature“)?
• Does the separately installed thermometer show the correct reading?
• Is the ventilation system working properly?
• Is the appliance set up too close to a heat source?

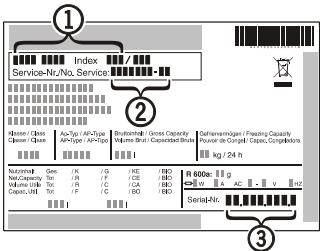

If none of the above causes apply and you cannot rectify the fault yourself, contact the nearest customer service department stating the type of appliance ① , service number ② and appliance number ③ as indicated on the type plate. The type plate is located in the refrigerator compartment on the left-hand side.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch it off and disconnect the plug or remove the fuse. Clean the appliance and leave the door open in order to prevent unpleasant smells.

The appliance complies with the relevant safety regulations and EC directives 2004/108/EC and 2006/95/EC.

Changing over door hinges on appliances with foam insulated doors

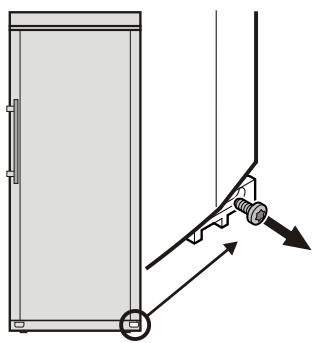

1. Remove screw from lower hinge bracket.

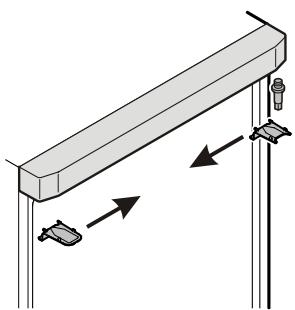

1. Transfer upper hinge components to the opposite side.

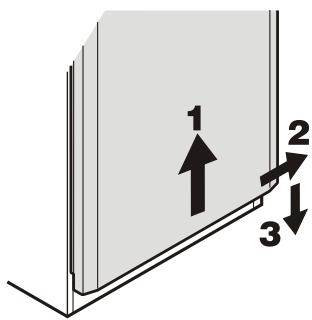

1. Lift door 1, tilt to the right 2 and remove 3.

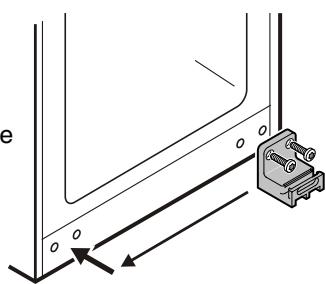

1. Transfer lower hinge bracket to the opposite side.

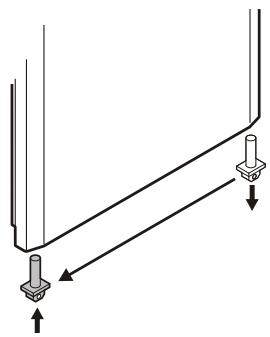

1. Transfer pin to the opposite side of the door.

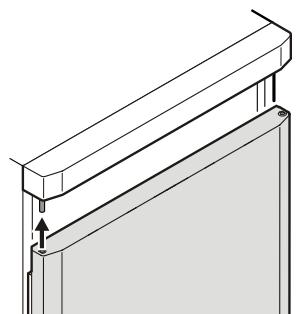

1. Locate door on upper pin.

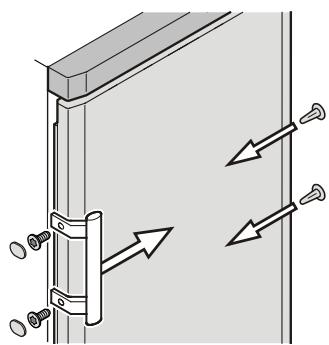

1. Transfer handle to the opposite side.

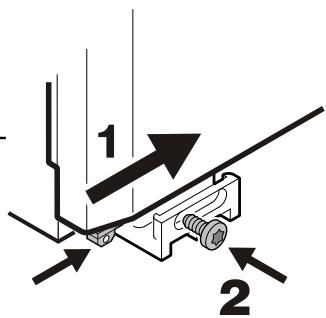

1. Tilt door inwards from the left 1. Secure hinge pin with screw 2.

Changing over door hinges on glass door appliances

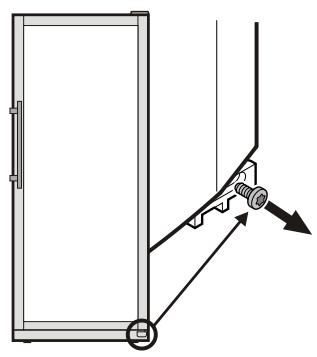

1. Remove screw from lower hinge bracket.

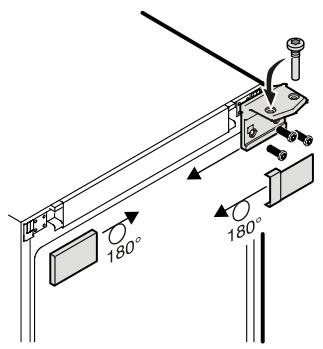

1. Transfer upper hinge components to the opposite side.

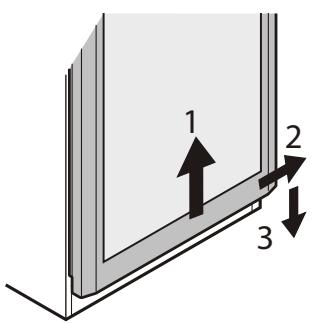

1. Lift door 1, tilt to the right 2 and remove 3.

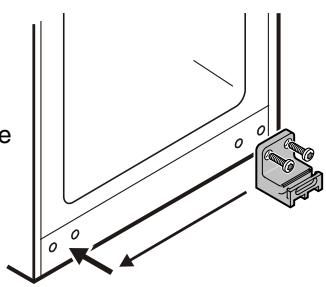

1. Transfer lower hinge bracket to the opposite side.

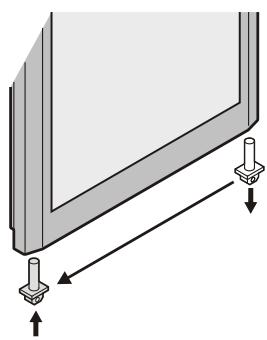

1. Transfer pin to the opposite side of the door.

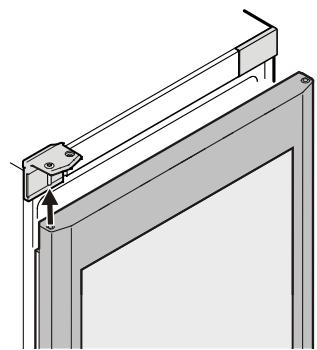

1. Locate door on upper pin.

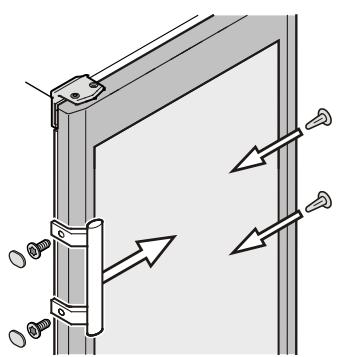

1. Transfer handle to the opposite side.

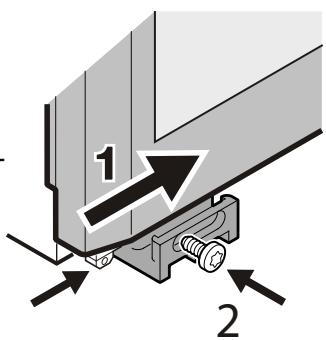

1. Tilt door inwards from the left 1. Secure hinge pin with screw 2.
