Product Type	Chimney hood
Brand	Haier
Model	HATS9DCS56B
Width	90 cm
Depth	50 cm
Weight	Approximately 15 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A+
Number of Speeds	3
Lighting	2 x LED, 3 W each
Grease Filter	Aluminum, dishwasher safe
Activated Carbon Filter	Optional, replaceable
Noise Level (max)	Approximately 65 dB
Extraction Rate (max)	Approximately 650 m³/h
Control Type	Push button
Installation Type	Ducted or recirculating
Cleaning Instructions	Wipe with damp cloth; wash grease filter monthly
Safety Features	Motor overheating protection
Warranty	2 years

Frequently Asked Questions - HATS9DCS56B HAIER

How do I install the Haier HATS9DCS56B hood?

Installation must be done by a qualified technician. Ensure the hood is at least 65 cm above gas hobs and 50 cm above electric hobs. Connect to the mains and choose ducted or recirculating mode. Refer to the user manual for detailed steps.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 1-2 months, depending on usage. It is dishwasher safe at low temperature. A clogged filter reduces performance.

Can I use the hood in recirculating mode?

Yes, you can use it in recirculating mode by installing a activated carbon filter (not included). This filter needs to be replaced every 3-6 months.

What should I do if the hood is noisy?

Ensure the hood is properly installed and the filters are clean. Check for loose parts or obstructions in the duct. If noise persists, contact customer service.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the speed button for 5 seconds until the indicator light turns off. This resets the alarm.

What is the maximum extraction rate?

The maximum extraction rate is approximately 650 m³/h on the highest speed setting. Actual performance depends on ducting and installation.

Can I replace the LED lights?

The LED lights are built-in and should be replaced by a qualified technician. Contact Haier support for service.

Does the hood require a dedicated circuit?

It is recommended to connect the hood to a dedicated circuit rated 10A to avoid overloading. Ensure the electrical installation complies with local regulations.

How do I clean the stainless steel surface?

Use a soft cloth with mild detergent or stainless steel cleaner. Avoid abrasive pads or harsh chemicals to prevent scratching.

What is the warranty period?

The Haier HATS9DCS56B comes with a standard 2-year warranty. Check your local terms for coverage details.

USER MANUAL HATS9DCS56B HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 02

SAFETY PRECAUTION 02

ELECTRICAL INSTALLATION 04

SPECIFICATION 05

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 13

DESCRIPTION OF COMPONENTS 14

OPERATION 14

MAINTENANCE 16

TROUBLESHOOTING 17

CONFORMITY WITH DIRECTIVES 17

ENVIRONMENTAL PROTECTION 18

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

CE

By placing the CE marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

☐ Never let the children operate the machine. ☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose. ☐ The cooker hood and its filter should be cleaned regularly in order to keep in good working condition. ☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. ☐ Forbid the direct baking from the gas cooker. ☐ Please keep the kitchen room a good convection. Before connecting this appliance check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; ☐ The air must not be discharged into fumes from appliances burning gas or other fuels; ☐ Regulations concerning the discharge of air have to be fulfilled. ☐ Children should be supervised to ensure that they do not play with the appliance. ☐ Do not flambé under the range hood. ☐ The range hood is not intended to be installed over a hob having more than four hob elements.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
• The details concerning the method and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in accordance with the instructions:
• Do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

~ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer. ~ Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed.

This appliance is supplied with a 3-core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec. Qty	Illustration Picture
Casing 1
Upper Chimney 1
Lower Chimney 1
Lower chimney bracket 1
Upper chimney bracket 1
Hanging Board 1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2
Air outlet 1
Carbon filter		2

If you have an outlet to the outside, your cooker hood can be connected as shown in the picture below by means of an extraction duct (enamel, aluminum, or flexible pipe, non-flammable, with an interior diameter of 150mm).

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Leave up the cooker hood and hang onto the wall bracket hook.

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Cooker hood

6.

i. Place the glass in appropriate position on the top the cooker hood

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

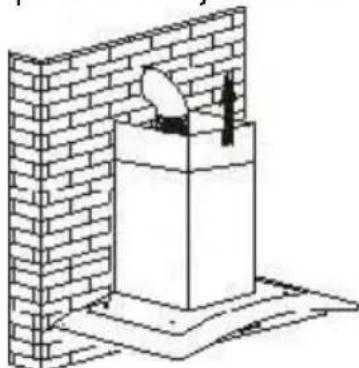

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

8.

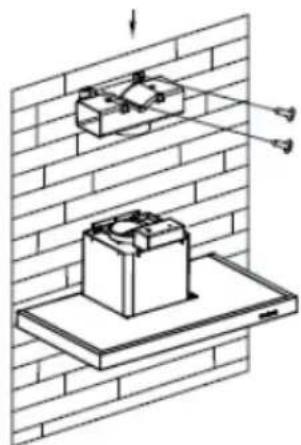

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.

ii. Assembly the chimney onto the unit and fix it with 2 screws.

Standard Installation Accessories List

Spec. Illustration Picture Qty
Air Deflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

INSTALLATION (AIR DEFLECTOR):

The air deflector is included and not optional.

1. Before installation, curve both ends of the bracket as shown below:

1. Fix the bracket to the T-shaped plastic outlet with the 2 provided ST3.5x12mm screws.

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the bracket onto the wall with the 2 provided ST4x30mm screws.

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

1. Install the chimney to the unit and fix it.

Please kindly note: The T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it could loosen and cause danger.

When the activated carbon filter is attached, the suction power will be lower.

OPERATION

Timer button

1. Setting the time of day

When the hood is in standby mode (motor not working), press the timer button to enter the time setting.

Press the 'Fan speed' key to set the hour of the day and press the 'Light' key to set the minute.

1. Setting the Timer

When the hood is in operation mode, press the timer button to set the countdown.

Press the timer button once and the countdown will increase by one minute. The maximum countdown is 60 minutes.

Speed decrease button

The button has a backlit indicator. Press the button to decrease the fan speed or turn off the fan. When you press the button from speed 3 and the backlit is on, the fan will decrease from speed 3 to 2 to 1. When you press the button from speed 1, the fan will go into standby mode and the backlit will turn off.

Speed plus button

The button has a backlit indicator. Press and hold the button in standby mode to turn on the fan at low speed; the backlit will turn on. Then press the button to increase the speed from 1 to 2 to 3.

LIGHT Button

For lighting ON & OFF.

LCD display

1. Motor symbol, will rotate when the motor is working;
2. Time display;
3. Timer symbol, will appear when timer is setting and counting;
4. Light symbol;
5. Motor speed;
6. Turbo speed symbol, will appear when the speed is highest set;
7. Alarm symbol, will appear 5 seconds when the counting down of timer is over.
8. Cleaning alarm, appears when total working time reaches 14 hours or at the first time using after plugging.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that is installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequently the cooker hood is used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manner as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
