USER MANUAL SFA 30 B1 SILVERCREST
User manual and service information
公司
HI
Information about trademarks....4
Introduction......4
Intended use 4
Supplied items....5
Control elements 6
Technical data 7
SilverCrest SFA 30 C1 hands-free kit....7
Car charger adapter SDC8311....7
Rating plate 8
Safety instructions....8
Copyright 12
Prior to use....12
First use 12
Inserting the lithium-ion battery 13
Charging the lithium-ion battery....14
Switching on/off the hands-free kit....14
Connect to compatible mobile phones....15
Making calls....16
Calling via voice dialling....16
Accept / reject calls....17
Volume setting 18
Muting microphone....18
Ending call 18
Redialling 18
Mounting on the sun visor 19
Storage when not in use....19
LED indicator....20
Cleaning / maintenance....21
Maintenance 21
Cleaning 21
Troubleshooting 22
Environmental and disposal information 23
Conformity information 24
Warranty and servicing advice....25
Information about trademarks
® and Bluetooth® are registered trademarks of Bluetooth SIG, Inc.
USB is a registered trademark.
Other names and products may be the trademarks or registered trademarks of their respective owners.
Introduction
Thank you for purchasing a SilverCrest product.
The SilverCrest Bluetooth ^® 3.0 SFA 30 C1 hands-free kit, hereinafter referred to as hands-free kit, enables you to conveniently use your mobile phone in hands-free mode. Power is supplied via a 12V/24V car power outlet or via the integrated battery.
Intended use
This hands-free kit is an electronic communications device. It allows you to make or answer driving, without having to hold your mobile phone. This hands-free kit is not designed for commercial use or operation in a company. Use the hands-free kit only for private purposes as any other use is not as intended. This hands-free kit meets all relevant standards and directives. In the event of any modification to the hands-free kit that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases.
Please observe the regulations and laws in the country of use.

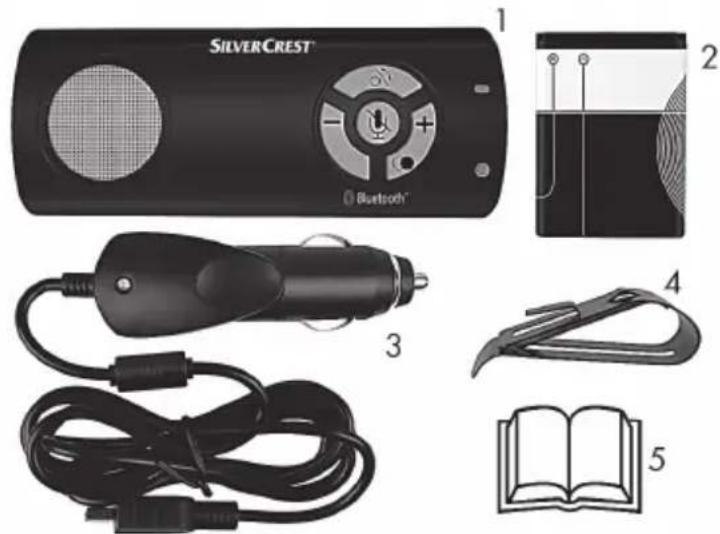

Supplied items
Remove the device and all the accessories from the packaging. Remove the packaging material and check whether all the parts are complete and undamaged. In the case that you find anything missing or damaged, please contact the manufacturer.
- SilverCrest Bluetooth ^® 3.0 SFA 30 C1 hands-free kit
- Lithium-ion battery BL-5B, 3.7V/700mAh
- Car charger adapter SDC8311
- Mounting clip
- These instructions (symbolic representation)
These instructions have a fold-out cover. The hands-free kit is illustrated with numbers on the inside cover. The numbers indicate the following:
1 Mute button (microphone muting)
2 Multifunction button (on/off, answer/end call, connect)
3 Microphone
4 LED indicator
5 + button (increase volume, redial)
6 - button (reduce volume)
7 USB charging socket
8 Loudspeaker
9 Battery compartment
10 Mounting bracket for retaining clip
Technical data
SilverCrest SFA 30 C1 hands-free kit
Operating voltage: 5V

Battery: li-ion battery BL-5B; Shen Zhen Xin Hong Xing Energy Technology CO., LTD;3.7V/700mAh/2.59Wh
Bluetooth ^® specification: V3.0 + EDR
Profile support: BT headset, hands-free profile
Frequency range: 2.402 to 2.480GHz
Charging time: max. 3 hours
Talk time: up to 6 hours
Standby time: up to 600 hours
Dimensions (W x H x D): approx. 118 x 47 x 17mm
Weight: approx. 76 g
Operating temperature: 0°C to +45°C
Storage temperature: -20^ to +60^
Car charger adapter SDC8311
Fuse: T2A L 250V
Input voltage: 12-24V

Output voltage:

Output current:
500mA
Rating plate

The rating plate can be found in the battery compartment (9) of the hands-free kit.
The technical data and design may be changed without notification.
Safety instructions
Before using the hands-free kit for the first time, read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these instructions in a safe place for future reference. If you sell the hands-free kit or pass it on, always include these instructions. They are an integral part of the hands-free kit.
Explanation of the symbols used in these instructions
WARNING! This symbol together with the word 'WARNING' indicates important information for the safe operation of the device and user safety.
This symbol indicates other important information on the topic.

DANGER! This hands-free kit can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the hands-free kit and understand the resulting risks. Children must not play with the hands-free kit. Cleaning and user maintenance must not be carried out by children without supervision.
Always keep plastic packaging away from children. It poses a suffocation risk!

DANGER! If smoke is produced, or there are any unusual sounds or smells, disconnect the hands-free kit from the power supply immediately and remove the battery. In such cases, the hands-free kit should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.

WARNING! The hands-free kit and its accessories must not become damaged in order to prevent hazards. The hands-free kit must not be used if it is damaged.

DANGER! Ensure that no fire sources (e.g. burning candles) are placed on or near the hands-free kit. It poses a fire hazard!

WARNING! The hands-free kit must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the hands-free kit near water. In particular, the hands-free kit should never be submerged in liquid and do not place any items filled with liquid, for example, vases or drinks, near the hands-free kit. Also ensure that the hands-free kit is never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the hands-free kit could be damaged.

DANGER! Road safety always comes first! The current traffic situation always takes precedence over the operation of the hands-free kit. Mount the hands-free kit ideally on the sun visor in your vehicle so that it does not obstruct you when driving. The hand-free kit must never be mounted in the inflation range of an air bag.

WARNING! Please bear in mind that wirelessly transmitted data can be intercepted by unauthorised third parties.

DANGER! In the event of improper use of the battery, there is a risk of explosion and leakage. Only replace the battery with an identical model or one recommended by the manufacturer. Never replace the battery in an environment where there is a risk of explosion. During the insertion or removal of the battery, there might be a spark that could cause an explosion. Areas where there is an explosion risk are usually labelled as such, although not always clearly. This includes tank areas such as below deck on boats, refuelling or fuel storage areas, areas in which the air contains chemicals or particles such as e.g. cereals, dust or metallic powder as well as in all areas in which you are normally instructed to switch off your engine.

DANGER! The battery must not be thrown into fire. It poses a risk of explosion.

DANGER! The terminals of the battery must not be short-circuited. The battery must not be opened, damaged or deformed. It poses a risk of explosion.

DANGER! There is a risk of suffocation if you swallow the battery.

DANGER! The hands-free kit may only be operated with a li-ion battery type BL-5B of the manufacturer Shen Zhen Xin Hong Xing Energy Technology CO., LTD. There is a risk of fire and explosion otherwise.
Car charger adapter

WARNING! Always handle the car charger adapter by the connector and do not pull on the connection cable itself.

WARNING! Do not place furniture or other heavy objects on the connection cable and ensure that it is not kinked.

DANGER! The connection cable must be laid in such a manner that it does not obstruct you when driving the vehicle. The connection cable must not be laid in the inflation range of the air bag since it could cause serious injuries otherwise if the air bag inflated.

DANGER! Do not use adapter plugs or extension cables and do not make any alterations to the connection cable. If the connection cable is damaged, it must be replaced by the manufacturer or its customer service representative or a similarly qualified person to prevent any safety hazards. Remove the car charger adapter from the car power socket.
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.
Prior to use
Remove the hands-free kit and the accessories from the packaging. Check the contents to ensure they are complete.
Check the hands-free kit and the accessories for signs of damage. The hands-free kit must not be used if it is damaged.
First use
Before you use the hands-free kit for the first time, please insert the enclosed lithium-ion battery and charge it fully.

WARNING! Please remove the car charger adapter when the engine is switched off to save the battery of your vehicle.

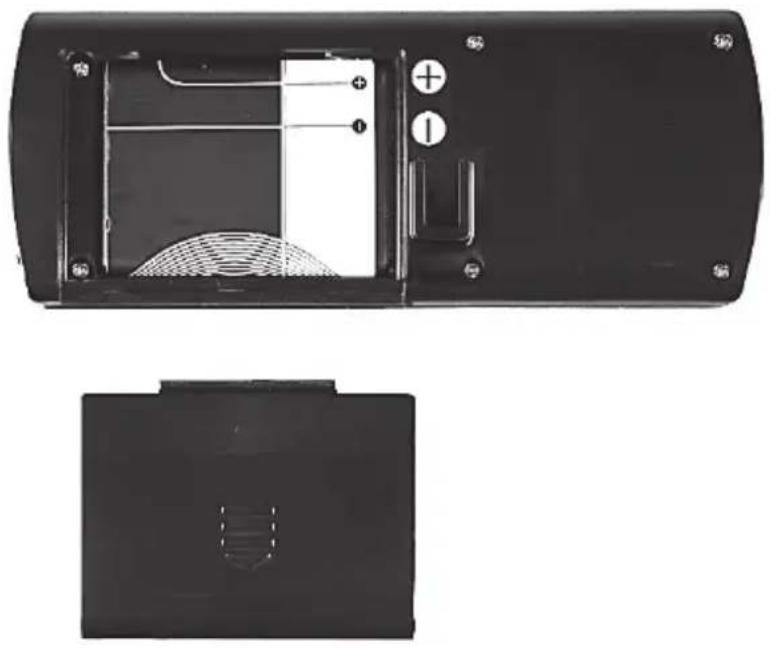

Inserting the lithium-ion battery
Open the battery compartment (9) by pressing the centre of the battery compartment cover and removing it in the direction of the imprinted arrow. Insert the lithium-ion battery in the battery compartment (9) as shown in the illustration. Due to its design, it is not possible to insert the battery incorrectly. After inserting the battery, close the battery compartment (9) with the battery compartment cover.

Charging the lithium-ion battery
Charge the lithium-ion battery fully before its first use. To do so, connect the USB connector of the enclosed car charger adapter to the USB charging socket (7) of the hands-free kit. Then insert the car charger adapter into an appropriate power outlet of your vehicle. The LED indicator (4) lights up orange while charging. A full charge cycle takes approximately 3 hours. If charging is complete, the LED indicator (4) goes out. Then disconnect the car charger adapter from the power outlet and the hands-free kit.

WARNING! Charge the battery only when the engine is running to save the battery of your vehicle.
Alternatively, you can also charge the battery via a PC or an external power supply. A connection cable and a proper USB connector are required for this purpose.
Switching on/off the hands-free kit
Press the multifunction button (2) for approx. 5 seconds until a beep sounds and the LED indicator (4) flashes blue. The hands-free kit is now ready to use.
To switch off the hands-free kit, press the multifunction button (2) again for approx. 4 seconds. A beep sounds, the LED indicator (4) flashes orange briefly several times and then goes out completely.
Connect to compatible mobile phones
Pairing
With the hands-free kit switched off, keep the multifunction button (2) pressed for approx. 9 seconds until a beep sounds and the LED indicator (4) alternates between flashing orange and blue. The hands-free kit is now in search mode. Activate the Bluetooth® function of your mobile phone and let it search for Bluetooth® devices nearby. For further details, please read the instructions of your mobile phone. Select the device "SFA 30 C1" from the list of devices which are found.

If you are asked for a PIN during the pairing process, enter "0000".
The name of the hands-free kit "SFA 30 C1" now appears in the list of devices connected to your mobile phone. The hands-free kit is now in standby mode and the LED indicator (4) flashes blue once briefly at regular intervals. Once the device is disconnected, it flashes blue twice.
You can connect or pair additional devices to the hands-free kit in the same manner. The pairing begins for each device with the hands-free kit switched off as described above.
The hands-free kit then has several "known" devices. This status is a prerequisite for an active connection between the hands-free kit and other devices. A maximum of 3 devices can be saved as "known devices".
The number of devices that can be actively connected to the hands-free kit is limited to two. As soon as one or two of the known devices are in the vicinity of the hands-free kit, the connection to these devices is established automatically.
You may need to confirm the connection on your mobile phone. If a third known device now comes in the vicinity of
the hands-free kit, the connection to it is blocked until one of the two active connections is interrupted or one of the two devices leaves the transmission range. If one of the two active connected devices is no longer paired, pairing is possible for the third (waiting) device.

The pairing process can take up to 30 seconds depending on the mobile phone which is used.

If two devices are connected to the hands-free kit, different ring tones will be used for incoming calls.
Making calls
If you want to make a call, dial the phone number as usual on your mobile phone. The LED indicator (4) rapidly flashes blue when the telephone connection is established. Once the telephone connection is established, the LED indicator (4) flashes blue once followed by a long pause.
Calling via voice dialling
The hands-free kit provides the option of making calls via voice dialling if your mobile phone supports this function and it is enabled. To establish a connection via voice dialling, press the multifunction button (2) of the hands-free kit once briefly in standby mode and then clearly say the name of the desired participant. For more detailed information on the voice dialling function of your mobile phone, please refer to the instructions of the mobile phone.
Accept / reject calls
- The hands-free kit rings for an incoming call. The LED indicator (4) rapidly flashes blue when the telephone connection is established. Answer the call by briefly pressing the multifunction button (2). Once the telephone connection is established, the LED indicator (4) flashes blue once followed by a long pause. If the multifunction button (2) is pressed for approx. two seconds, the call can be transferred to the mobile phone. The call can then also be subsequently retrieved in the same manner.
• To reject the call, press the multifunction button (2) for approx. 2 seconds until a beep sounds.

If two mobile phones are connected to the hands-free kit at the same time and a call is already being taken via the hand-free kit, a call to the second mobile phone is handled as follows: the second call is transferred to the hands-free kit as soon as it is accepted on the mobile phone. The first call is put on hold until the second call has finished. Then the first call can be continued via the hands-free kit.
Volume setting
You can increase the volume according to your needs during a call with the + button (5). A beep sounds if the maximum volume is reached. You can also reduce the volume with the - button (6). A beep sounds if the minimum volume is reached.
Muting microphone
You can use the mute button (1) to temporarily switch off the microphone (3) during a call so that the other person can no longer hear you. In this case, press the mute button (1) for approx. 2 seconds until a confirmation tone sounds and the LED indicator (4) flashes orange once. The microphone is now muted. When muted, 2 beeps sound at regular intervals to remind you of the muting. If you want to end the muting, press the mute button (1) again for approx. 2 seconds. A beep sounds and you are back in normal talk mode in which the other person can hear you.
Ending call
To end a call, press the multifunction button (2) once briefly. You will hear a confirmation tone when you release the button.
Redialling
You can redial the last number that was called via the hands-free kit. In this case, press the + button (5) for approx. 2 seconds in standby mode until a confirmation tone sounds.

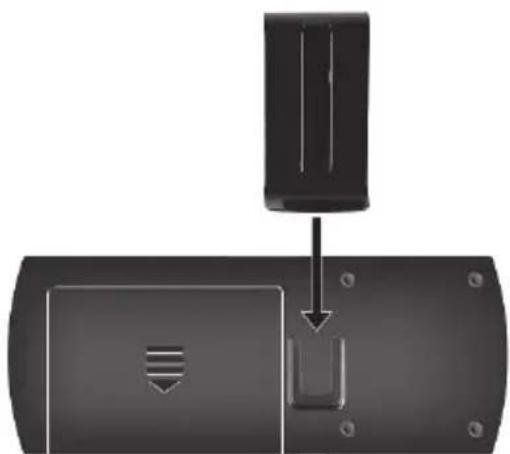

Mounting on the sun visor
You can mount the hands-free kit on the sun visor of your vehicle by means of the enclosed mounting clip. To do so, first attach the mounting clip to the clip fixing (10) on the back of your hands-free kit.

WARNING! The hands-free kit must be attached in such a manner that your vision is not impeded.
Storage when not in use

You should recharge the battery at regular intervals if you do not use the device for a prolonged period of time. This will maintain the performance of the battery. Store the device in a dry, clean and cool location.
LED indicator
Refer to the table below for the different statuses of the LED indicator (4):
| Status of LED indicator (4) Meaning | |
| flashes blue 5 times power-on procedure | |
| alternates between flashing orange and blue Pairing | |
| flashes blue twice every 3 seconds | standby ^® connection not established) |
| flashes blue once every 4 seconds standby mode (Bluetooth ^® connection established) and during an active call. | |
| rapidly flashes blue (a ringtone also sounds for an incoming call) | incoming or outgoing call |
| flashes orange once (2 beeps sound at regular intervals) | muting of the microphone is active |
| lights up orange continuously charging (after charging is complete, the LED goes out) | |
| flashes orange once in conjunction with a beep | the hands-free kit is not connected to the car power supply via the car charger adapter and the battery status is low |
| flashes orange 5 times power-off procedure | |
(Blue
Cleaning / maintenance
Maintenance

DANGER! It is necessary to repair the hands-free kit if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the hands-free kit or if it has been exposed to rain or moisture. Repairs are also required if the hands-free kit is not working properly or has been dropped. If you notice any smoke, unusual noises or strange odours, remove the car charger adapter immediately from the socket and remove the battery. In such cases, the hands-free kit should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the hands-free kit. Furthermore, the hands-free kit could be damaged upon opening and this would void your warranty.
Cleaning

WARNING! Disconnect the hands-free kit from the power supply before cleaning in order to prevent hazards. Use a dry cloth for cleaning and never use any solvent or cleaner that would corrode the plastic materials. Ensure that no liquid can penetrate the housing. Use a slightly damp cloth for more stubborn dirt.
Troubleshooting

All aforementioned functions depend on the functionality of the mobile phone which is used. It is possible that some functions may not be supported.
The hands-free kit is not working.
- Check whether the lithium-ion battery is charged. Charge it if necessary.
- Check whether the hands-free kit is switched on and the connection to the mobile phone is established.
The lithium-ion battery is not charged.
- Check whether the car charge adapter is inserted correctly in the power outlet.
- Check whether the USB connector of the car charger adapter is inserted correctly in the USB charging socket (7) of the hands-free kit.
- Turn on the ignition of your vehicle because some vehicles supply power to the power outlet only when the ignition is turned on.

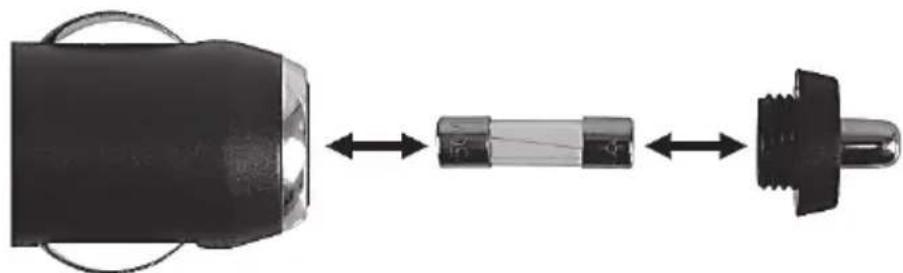

- Check whether the car charger adapter's fuse is faulty and replace it if necessary. To do so remove the adapter's contact closure by turning it anti-clockwise. Replace the faulty fuse with a new one of the same type (see technical data) and then secure the contact closure by turning it clockwise.
Remember to protect the environment. Used batteries should not be disposed of in household waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in battery
recycling bins. Care must be taken to ensure that batteries that are not fully discharged do not short circuit. Cover batteries that are not fully discharged with tape to prevent short circuits.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
Conformity information

This hands-free kit meets the basic requirements and other relevant regulations of the R&TTE Directive 1999/5/EC, the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC as well as the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of these instructions.
Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: 0207 - 36 50 744
E-Mail: service.GB@targa-online.com

Phone: 01 - 242 15 83
E-Mail: service.IE@targa-online.com

Phone: 800 - 62 175
E-Mail: service.MT@targa-online.com

Phone: 800 - 92 496
E-Mail: service.CY@targa-online.com
IAN: 113041

Manufacturer
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
Spis treści
Diagram showing a device with a vertical slot and a button, no text or symbols presentnatural_image
Diagram showing a device with a bulb, connector, and plug (no text or symbols)natural_image
Symbol of a trash bin crossed with two diagonal lines, no text or labels presentnatural_image
Three warning symbols: triangular warning triangle, black triangular warning sign, and lightbulb icon (no text or labels)natural_image
Interior view of a black remote control box with internal components and a separate close-up of the base (no text or symbols visible)natural_image
Diagram showing a device with a vertical component and a button, no text or symbols presentnatural_image
Diagram showing a device transitioning from a black connector to a black plastic component via a cable or cable assembly (no text or symbols present)natural_image
Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)natural_image
Three warning symbols: triangular warning triangle, black exclamation mark, and lightbulb with light symbol (no text or numbers)natural_image
Interior view of a black remote control box with internal components and a separate close-up of the base (no text or symbols visible)natural_image
Diagram showing a device with a vertical component and a small rectangular component inserted into it, connected by an arrow (no text or symbols present)natural_image
Diagram showing a device with a bulb, connected to a connector and a plug (no text or symbols present)natural_image
Symbol of a trash bin crossed with two crossed lines, no text or labels presentnatural_image
Interior view of a remote control device showing battery, circuit board, and casing (no text or symbols visible)natural_image
Diagram showing a device with a vertical component and a small rectangular component, no text or symbols presentnatural_image
Diagram showing a device with a bulb, connector, and plug (no text or symbols)natural_image
Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)KFZ-Ladeadapter SDC8311....128
Typenschild 129
KFZ-Ladeadapter SDC8311
Diagram showing a device with a bulb, connected to a cylindrical component and finally into a plug (no text or symbols present)natural_image
Symbol of a trash bin crossed with diagonal lines, no text or labels presentMathias Kaulee, Managing Director

Sost 30 ^1 of June, 2015
Year of CE marking:
Rohs:
Radie:
EN 60950-1:2006 + A1:2009 + A1:2010 + A12 20-1 + A2 20-3 EN 62479:2010
2016
EN 6058:2012
EN 300 328 V1.8.1
EN 60950-1:2006 + A1:2009 + A1:2010 + A12 20-1 + A2 20-3 EN 62479:2010
EN 301 489-1 V1 9.2 EN 301 489-17 V2 2.1 EN 60498:2010
Cost of a trade was proved by the application of the to trading standards:
Restitution of 13 use of certain tazarcios
RSTTE
LAW VO TAGGE
Electromagnetic Compatibility
The product consists with the requirements of the following European directions:
IAN 113041
Bluecoth Hards-Free Kit SilvgrClast: SEA 30 Co
59484 Scott, Germany
Targa GmbH Coaster/Reg 45
Addresses:
EU Declaration of Controllity
