USER MANUAL IRONSPEED HOOVER

Removable Water Tank

Cord Storage for Hose and Mains

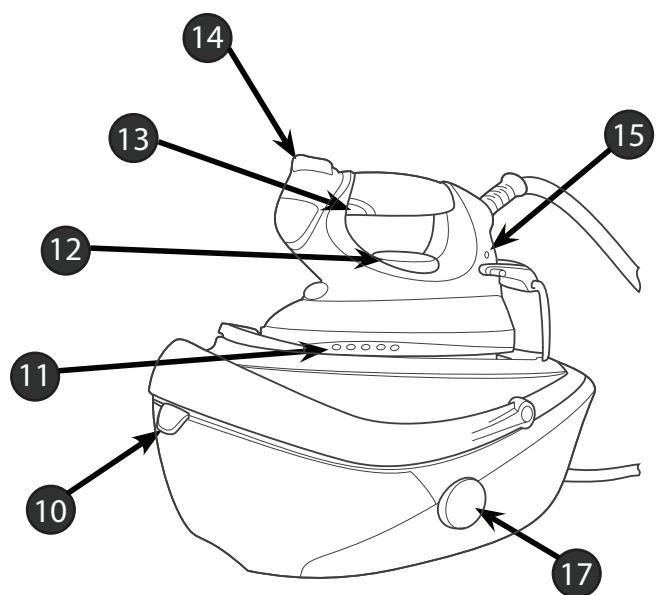

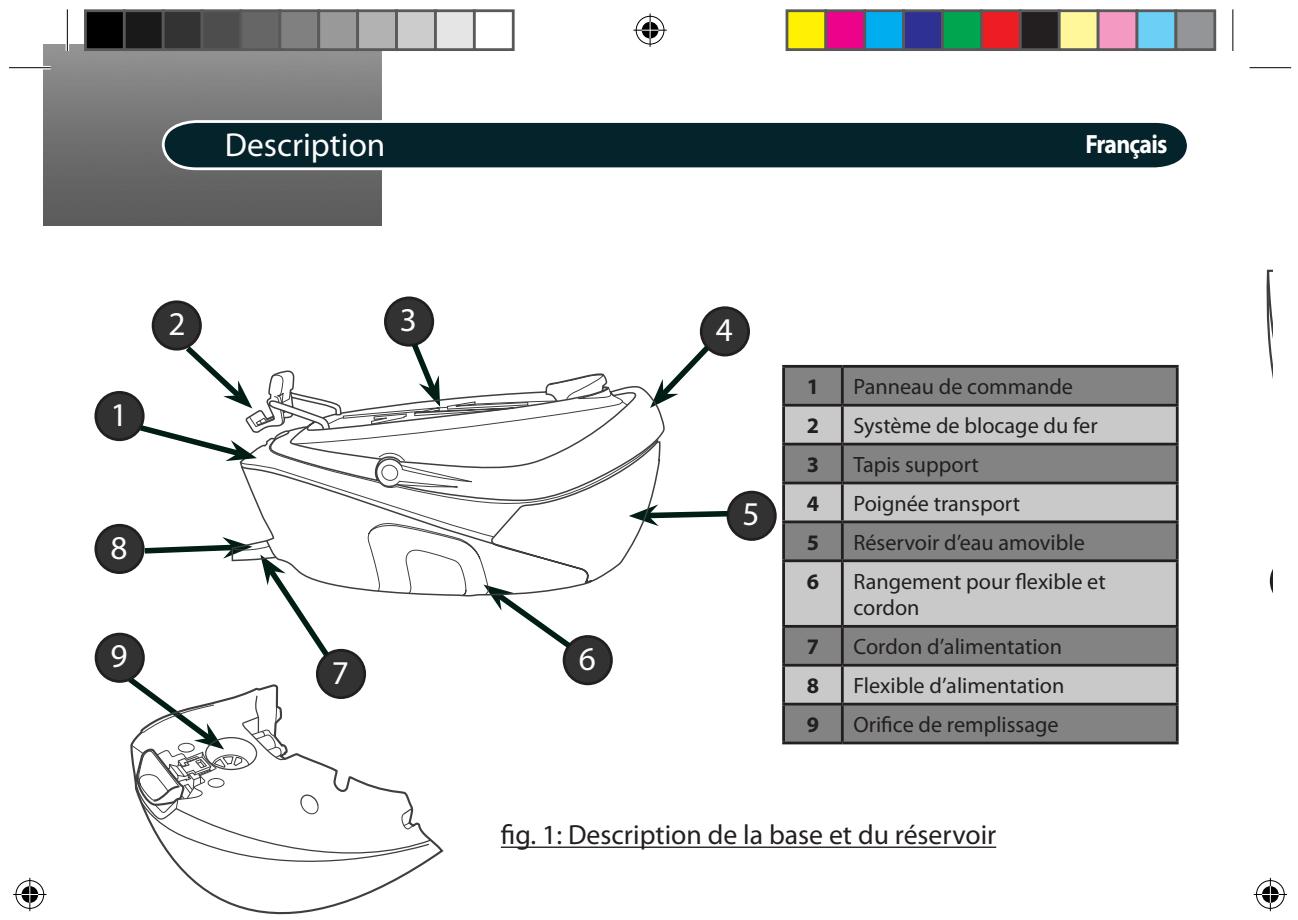

Fig. 1: Base and Tank Description

Removable Water Tank Knob

Multi Steam Technology Selector

Soleplate Temperature Indicator

Pads for Vertical Positioning

1A On/Off Iron with Power-On Light

“Water Tank Empty” Light

“Automatic Shut-Off” Light

1E Boiler Rinse Indicator and Reset

1F On/Off Boiler with Power-On Light

1G On/Off Iron with Power-On Light

1D Fig. 3: Domestic Iron Control Panel

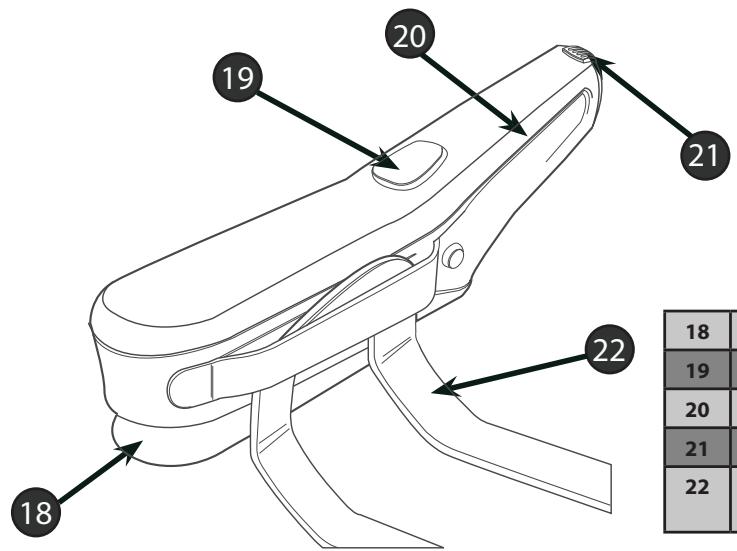

Professional Brush Support and Cord Storage

Removable Water Tank Knob

Steam Trigger and Steam Trigger Lock

Multi Steam Technology Selector

Introduction Dear customer, First of all, we would like to congratulate you for purchasing this Hoover ironing system and to thank you for the confidence you have in Hoover brand. This appliance has been manufactured with great care, respecting all of our quality criteria and has been tested several times. We hope its use will fulfil your expectations. We are strongly convinced that it will make your ironing much faster and better. Before using your new Hoover appliance, please read carefully this user’s manual. If you need further information or if you encounter any trouble which are not noticed in this manual, please contact the after-sales service or your standard dealer.

Important Safety Instructions Read this user manual carefully before you first use and save it for future reference. t5IJTQSPEVDUIBTCFFOEFTJHOFEGPSEPNFTUJDVTFPOMZ*ODBTFPGBOZDPNNFSDJBM use, inappropriate use or failure to comply with the instructions, the manufacturer is not responsible and the guarantee will not apply. t#FGPSFDPOOFDUJOHZPVSBQQMJBODF DIFDLJGUIFNBJOWPMUBHFJTUIFTBNFBTUIF voltage indicated on your appliance and that the power outlet is connected to the earth. t&OTVSFCFGPSFFBDIVTFUIBUUIFFMFDUSJDDPSEPSBOZPUIFSJNQPSUBOUQBSUJTOPU damaged. t5IJTBQQMJBODFJTOPUJOEFOUFEUPGPSVTFCZDIJMESFOPSQFSTPOTXJUISFEVDFE physical, sensory or mental capabilities, unless they are adequately supervised in its operation and use by an adult responsible for their safety. t$IJMESFOTIPVMECFTVQFSWJTFEUPFOTVSFUIBUUIFZEPOPUQMBZXJUIUIFBQQMJBODF t5IFJSPONVTUCFVTFEBOEQMBDFEPOBøBUBOETUBCMFTVSGBDF8IFOZPVSFQMBDF the iron on its stand, make sure that the surface on which you place it is stable. t/FWFSEJSFDUUIFTUFBNUPXBSETQFSTPOTPSBOJNBMT/FWFSEJSFDUUIFTUFBNKFU towards any other electrical or/and electronic appliances. t%POUVTFUIFBQQMJBODFJGJUIBTGBMMFOEPXO PSJGUIFBQQMJBODFTIPXTFWJEFODFPG breakdown, malfunction, leakages. Please make it check by an authorized Service Centre to avoid any danger. t"MXBZTNBLFTVSFUIFBQQMJBODFJTTXJUDIFEPò VOQMVHHFEBOEDPPMFEEPXO before doing any maintenance work. t/FWFSMFBWFUIFBQQMJBODFVOBUUFOEFEXIFOQMVHHFEJOBOECFGPSFJUIBTDPPMFE down. t%POPUVOQMVHUIFBQQMJBODFCZQVMMJOHPOUIFDPSEPSPOUIFBQQMJBODF t/FWFSJNNFSTFUIFJSPO UIFTUBOE UIFDBCMFPSUIFQMVHTJOXBUFS/FWFSIPME them under the water tap. t5IFTPMFQMBUFPGUIFJSPODBOCFDPNFFYUSFNFMZIPUBOENBZDBVTFCVSOTJG UPVDIFE/FWFSUPVDIUIFFMFDUSJDDPSETXJUIUIFTPMFQMBUF t*GUIFTVQQMZDPSEJTEBNBHFE JUNVTUCFSFQMBDFECZUIFNBOVGBDUVSFS TFSWJDF agent or similarly qualified persons in order to avoid a hazard.

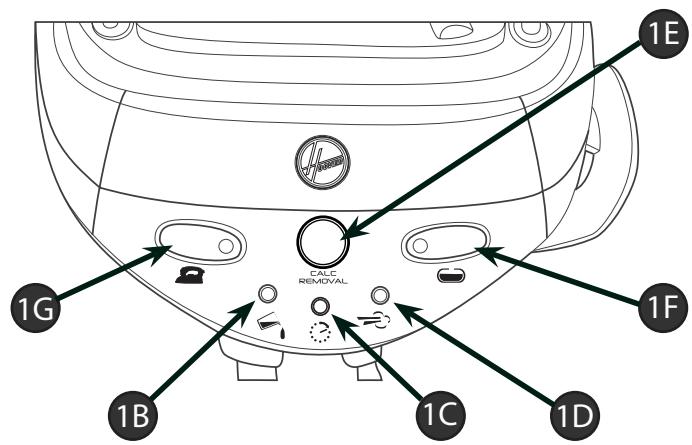

$IBQter 1.1 - $ontrol Panel appliance is switched on (Only models with domestic iron). Recommended for dry ironing session. (only with professional iron). that iron switch (1G) needs to be switched on for heating up the boiler (only with professional iron). steam is ready. You can press the steam trigger and steam will escape from the soleplate. Please note that during use, the light goes on from time to time but you

cial er the tank following the instructions of chapter 2.2

“Rinse indicator” lighU & JTPO You should rinse the boiler in order to avoid deposit of scale. Please refer to chapter 4.2 for further instructions. (only models: SRD 4106, SRD 4108, SRD 4110, SRP 4105)

switch (1A). You will need to wait a little bit steam is ready before restarting ironing. Please refer to the steam ready led paragraph for more detail. (only models: SRD 4108, SRD 4110)

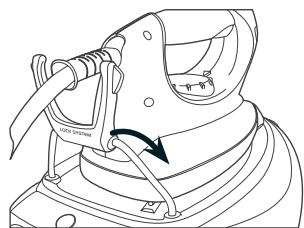

$IBQter 1.2 - Lock System In order to facilitate the carrying and the storage of your ironing system, your appliance is designed with a lock system (2). This system blocks the iron on the upper tray. It’s therefore very easy to move and store the appliance. Please follow the underneath indications in order to lock correctly your iron on the resting mat (3).

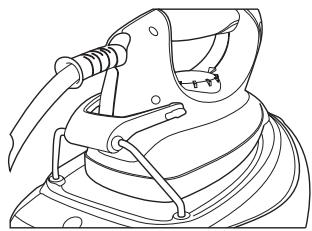

Fig. 7: Domestic Iron Lock System

Fig. 8: Pro Iron Lock System To unlock it, do the opposite of the instructions. Warning: Do not carry your appliance by the iron. Use the designed handle (4).

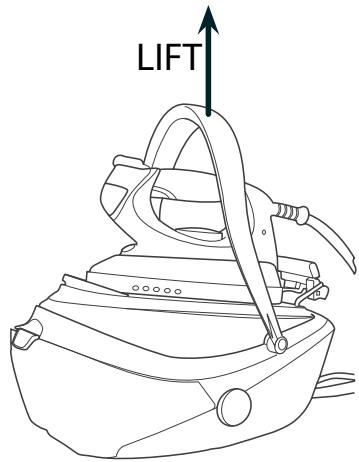

Chapter 1.3 - Carry Handle Your steam generator is equipped with an ergonomic carry handle (4) that will allow you to comfortably transport your appliance when required. Before using it, be sure that the iron is blocked on the iron resting mat (3). If not, follow the requested instructions in chapter 1.2. Don’t forget also to store the cable on the dedicated cord storage (6) for hose and mains. Please also ensure that the water tank is empty.

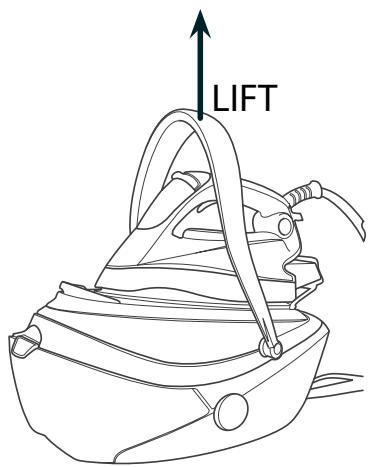

LIFT LIFT Fig. 9: Carry Handle Graphic

48001378-1 - Ironspeeed_SR_final.pdf 05/01/2010 09:23:42

For your support, in the appliance is implemented a switch that automatically goes 5 In order to inform you of the situation you will hear a buzzer sound and the auto

Chapter 2: Preperation for Use Due to the powerful output of steam, Hoover recommends the use of an active ironing board with blowing and vacuuming function which allows escape of any excess steam. Place the ironing system on a stable and level surface, for example on the hard part of an ironing board or on a heat-resistant surface.

Chapter 2.1 - What Kind of Water May be Used?

C The Hoover ironing system has been designed to be used with tap water only. There is no need to use distilled or pure distilled water. Nevertheless, in case your water is very hard, you can mix 50% of distilled water with 50% of tap water. Do not use any other kind of water or do not add any contents in the removable water tank as it can damage your appliance.

M Y CM MY CY Chapter 2.2 - Filling the Water Tank

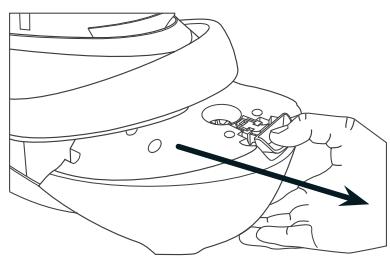

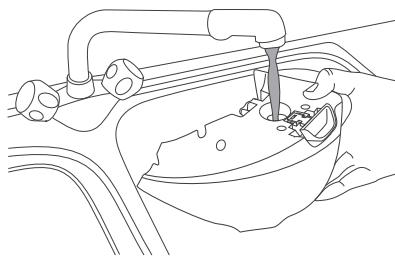

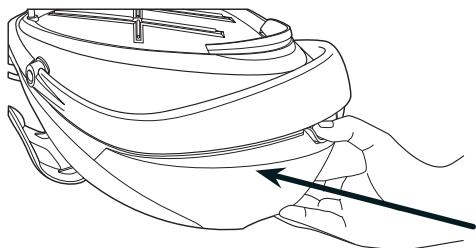

CMY Remove the water tank (5) from the stand by pressing the water tank knob (10). Fill it with tap water. Do not exceed the max mark. Replace the tank at its original place.

48001378-1 - Ironspeeed_SR_final.pdf 24/12/2009 11:23:06

Warning: Do not put any vinegar, hot water, perfume, or any other kind of chemical agents or any other contents in the water tank. It could damage the steam generator and shorten its life use.

Chapter 2.3 - Switching on the Appliance Domestic Iron Models: Connect the appliance with the mains cord to the earthed socket. Press on the on/ appliance is running on and that the boiler is heating up. you can start using steam. Professional Iron Models: Connect the appliance with the main cord to the earthed socket. Press the iron on/ turned up and inform you that the appliance is running on. The iron soleplate and the boiler are heating up. N.B. C

normal and will disappear quickly.

M Y CM Chapter 3: Using Your Steam Generator

MY CY Chapter 3.1 - Regulating the Soleplate Temperature

CMY K N O TT L O C WOO SILK Select the temperature of the soleplate by turning the dial (12) on the iron to the

adjusts without interrupting ironing.

will indicate you that the soleplate has reached the requested temperature.

N NYLO Help: To know the best suitable temperature for each textile, check the laundry care label of the article to be ironed. Please note that during use, the temperature light goes on from

adequacy with the most delicate one. If you select a lower temperature while ironing, wait until the iron has cooled down to the set temperature before you continue ironing. If the temperature is too low, some drops of water could escape from the soleplate. Please raise up the temperature abovFUIFEPUT tt to avoid this issue

8 - GB Ironspeeed_SR__1-15_union_pprod3.indd 8

9 11-12-2009 9:59:56

48001378-1 - Ironspeeed_SR_final.pdf 12/01/2010 12:13:21

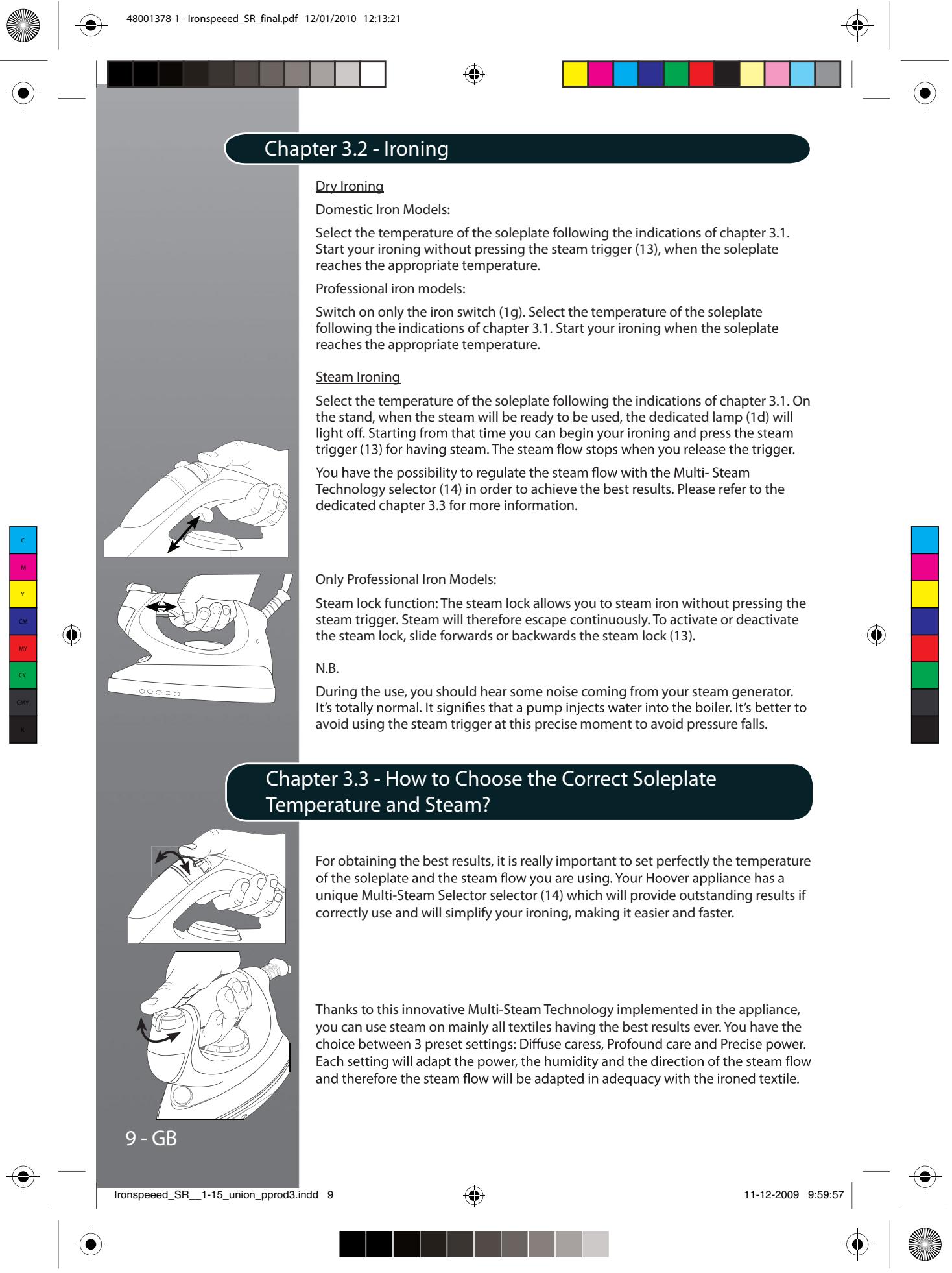

Chapter 3.2 - Ironing Dry Ironing Domestic Iron Models: Select the temperature of the soleplate following the indications of chapter 3.1. Start your ironing without pressing the steam trigger (13), when the soleplate reaches the appropriate temperature. Professional iron models: Switch on only the iron switch (1g). Select the temperature of the soleplate following the indications of chapter 3.1. Start your ironing when the soleplate reaches the appropriate temperature. Steam Ironing Select the temperature of the soleplate following the indications of chapter 3.1. On the stand, when the steam will be ready to be used, the dedicated lamp (1d) will

Technology selector (14) in order to achieve the best results. Please refer to the dedicated chapter 3.3 for more information.

C M Only Professional Iron Models:

Y Steam lock function: The steam lock allows you to steam iron without pressing the steam trigger. Steam will therefore escape continuously. To activate or deactivate the steam lock, slide forwards or backwards the steam lock (13).

CY During the use, you should hear some noise coming from your steam generator. CMY

avoid using the steam trigger at this precise moment to avoid pressure falls.

K Chapter 3.3 - How to Choose the Correct Soleplate Temperature and Steam? For obtaining the best results, it is really important to set perfectly the temperature unique Multi-Steam Selector selector (14) which will provide outstanding results if correctly use and will simplify your ironing, making it easier and faster.

Thanks to this innovative Multi-Steam Technology implemented in the appliance, you can use steam on mainly all textiles having the best results ever. You have the

9 - GB Ironspeeed_SR__1-15_union_pprod3.indd 9

Here are the suggestions to obtain the best results:

48001378-1 - Ironspeeed_SR_final.pdf 13/01/2010 08:40:41

Chapter 3.4 - Vertical Steam Ironing Set the soleplate temperature (12) to the max temperature and set the Multi-Steam Technology selector (14) to the Profound care program. Hang curtains and clothes (jackets, suits, coats). Hold the iron in vertical position at a short distance of the fabric to avoid burning it. Press the steam trigger (13) to steam iron moving it from top to bottom. Warning: Do not direct the steam jet towards people or animals.

When the water tank is empty, the “Empty water tank” light (1b) is on. No more steam escapes from the soleplate and steam ironing is no longer possible. without exceeding the max mark level. Replace the water tank at its original place. You can restart ironing immediately.

C M Please refer to chapter 2.2 for more detailed instructions.

Y CM MY CY Chapter 3.6 - Professional Steam Brush (Certain models only)

CMY The professional steam brush attached on your ironing system can be used to iron in a vertical position to easily remove creases on delicate textiles, remove odours such as smoke from textiles and refresh worn garments.

K Switch on the appliance and when the steam ready LED lights up, the steam brush is ready to use. Press the steam button on the brush to start cleaning. Warning: Do not direct the steam jet towards people or animals.

Chapter 4: Maintenance and Cleaning All the maintenance and cleaning operations have to be done when the unplugged appliance has cooled down for at least 2 hours, to prevent any risk of burns.

Chapter 4.1 - Cleaning the Appliance Do not use any detergent or descaling products for cleaning the soleplate. Regularly clean it with a humid and a non-abrasive cleaner.

11 - GB To clean the plastic parts of the stand, please use soft clothes.

Ironspeeed_SR__1-15_union_pprod3.indd 11

Chapter 4.2 - Rinsing the Boiler for Scale Maintenance In order to extend the life of your appliance, you should rinse the boiler to avoid scale deposit in the boiler. You should rinse it every 2 months or wait until the “rinse” light (1e) flashes. Models with “Rinse” Light Only remember to clean the boiler before use next time you plan to iron. Proceed as followed: Before going on, be sure that the appliance is cooled down and unplugged for at least 2 hours. the calc removal cap (17). Unscrew the boiler rinse safety cap anti-clockwise with a coin and remove it. Fill the boiler with 0,2 litres of tap water using a bottle and a in the sink. We recommend repeating this operation twice. Screw the boiler rinse safety cap with a coin and put back the calc removal cap (17). Next time you will plug and switch on your appliance, the rinse light (1e) will start your ironing session immediately.

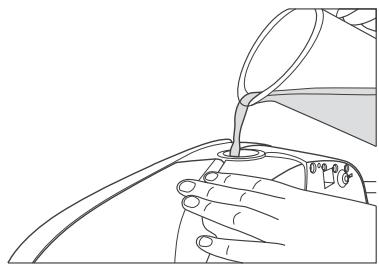

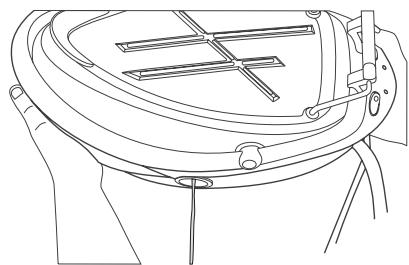

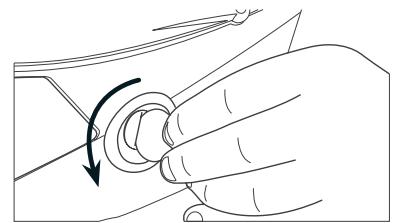

Models Without “Rinse” Light Before proceeding, be sure that the appliance is cooled down and unplugged for at least 2 hours. the calc removal cap (17). Unscrew the boiler rinse safety cap anti-clockwise with a coin and remove it. Fill the boiler with 0,2 litres of tap water using a bottle and a in the sink. We recommend repeating this operation twice. Screw the boiler rinse safety cap with a coin and put back the calc removal cap (17). In any case, do not use any descaling products to clean or rinse the boiler.

12 - GB Ironspeeed_SR__1-15_union_pprod3.indd 12

Fig. 11: Cleaning Operation

13 11-12-2009 9:59:58

Chapter 4.3 - Storage Put the iron on the heat-resistant iron-resting mat (3). Switch off the appliance and unplug it. Empty the water tank. Wait at least 30 minutes allowing the soleplate and the generator to cool down. Lock the iron thanks to the iron lock system (2). Please report to the dedicated chapter 1.2 for further instructions. Store both steam and electrical cables in the cord storage feature (6). For model SRD 41110, put the anti-wrinkles brush on its support and put the cable in its storage. Use the handle (4) in order to carry the appliance by following the requested instructions of chapter 1.3. Then you can take away your appliance in order to store it safely and easily.

13 - GB Ironspeeed_SR__1-15_union_pprod3.indd 13

Troubleshooting Problem The appliance does not become hot

The appliance does not produce steam

Steam escapes from the calc removal cap when ironing

There is a connection problem

Check the mains cord, the plug and the wall socket

The appliance is not switched on

Press on the on/off switch

The soleplate temperature is too low

Set a higher temperature of the soleplate

The appliance is not switched on

Press on the on/off switch

The boiler has not yet heated up

Wait a few moments until the steam ready LED is off

The water tank may be empty

Refill the water tank

You are not pressing the steam trigger

Press the steam trigger

The soleplate temperature is set to the maximum

It works but steam is not visible as very hot and dry

The calc removal valve is not tightened enough

Switch off the appliance and let it cool down. Remove the calc removal cap and tighten the valve correctly

The anti-scale valve is damaged

Contact your after sales service

The empty water tank LED is on

There is no more water in the tank

Refill the water tank with water

The soleplates becomes dirty or brown

There should be chemical or additives in the water used for ironing

/FWFSVTFBOZDIFNJDBMPS additives in the water. Contact your after sales service if the linen is still dirty

The linen is still dirty

Clean the soleplate with a non-metallic sponge

Water stripes appear on the textile

Your ironing board cover is saturated in water

Change the cover or use a mesh ironing board

Some scale deposit appears on the soleplate

Your boiler has not been rinsed for a while

Follow the indications in the appropriate chapter

14 - GB Ironspeeed_SR__1-15_union_pprod3.indd 14

15 11-12-2009 9:59:58

Important Information Hoover spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering spare parts, always check your model number. Hoover Service Should you require service at any time, please contact your local Hoover Service Office. Please see all the contact details below.

Safety Hoover believes that independent approval is the best way of demonstrating safety in design and manufacture. “Istituto del Marchio di Qualità” (IMQ) ), the independent italian national authority for the safety of domestic electrical appliances, ensures that European safety standards are met and maintained throughout the production life of an appliance. All appliances that pass the requirements are permitted to carry the IMQ mark of safety. Quality ISO 9001 Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001 The Environment This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Your Guarantee The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. 4VCKFDUUPDIBOHFXJUIPVUOPUJDF
