USER MANUAL DO486BL DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

INFORMACION DE RECICLaje

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxemburg, France and Germany.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

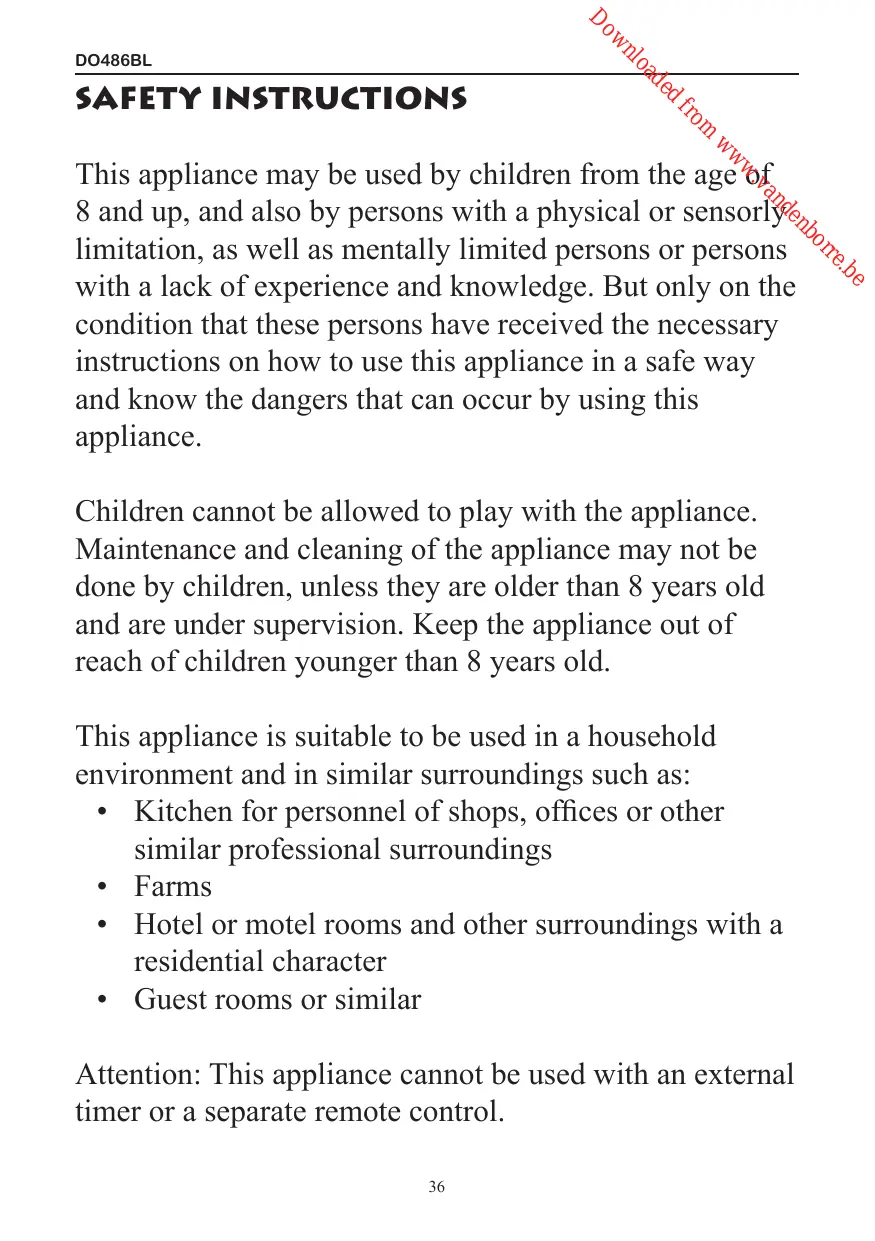

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Keep hands and objects out of the jar whilst the motor is running to reduce the chance at injury.
• Do not turn on the unit without filling the jar with food first.
• To ensure the jar does not overflow, do not exceed the maximum level indication displayed on the jar.
• Keep the device out of the way of heat sources such as a radiator.
• Always keep enough space around and below the unit, ensuring the motor receives enough ventilation.
• Always use the device with the lid thighly secured on the jar, to prevent burn wounds or a dirty kitchen.
• Turn off the device and remove the plug from the socket if you wish to replace or move components.
• Be careful when coming in the vicinity of the blades:

when removing the blades, emptying the jar or when cleaning the device.

• Should the motor overheat, the overheat protection will kick in and turn off the motor. Subsequently turn off the device and carefully remove the plug from the socket to let the motor cool off. After about 45 minutes, the device will have cooled enough to be used again.
• Pull the plug from the socket as soon as you've stopped using, disassembled or cleaned the device.

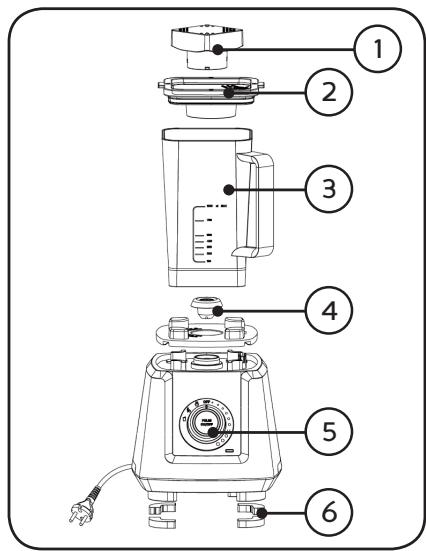

COMPONENTS

1. Measuring cup (90ml)
2. Lid
3. Jar
4. Motor unit
5. Control knob
6. Anti-skid feet

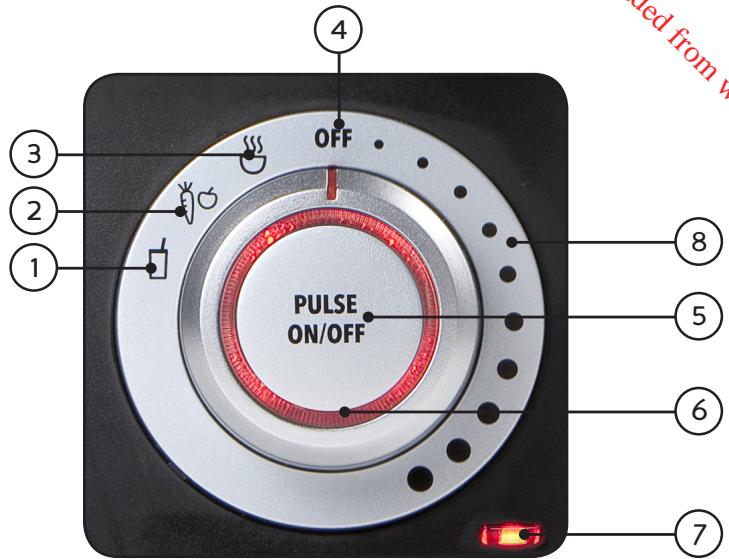

CONTROL KNOB

1. Automatic programme for smoothies
2. Automatic programme for vegetables
3. Automatic programme for soup
4. OFF: 'off'-position
5. PULSE - ON/OFF: Pulse function with on/off button
6. Indication light: device in stand by = red,device working = blue
7. Power indication light
8. Speed setting control

USE

1. Put the plug into the socket and place the jar onto the device.
2. Put the ingredients into the jar.

Attention: The amount of ingredients may not exceed the maximum level indication on the jar!

1. Make sure the jar is secure placed onto the jar.
2. Place the measuring cup into the lid by matching the two small tabs on the measuring cup with the two notches in the lid's fill opening. Lock the measuring cup in its place by turning it clockwise.

Attention: always make sure the measuring cup is locked in its place before blending warm fluids.

Attention: never use the blender without the lid on the jar.

1. Select the speed, programme or use the pulse function by using the instructions below.
2. Turn off the device after using it, turn the control knob in its OFF position and carefully pull the plug from the socket.

STAND BY AND POWER SAVE MODE

• Put the plug into the socket and place the jar onto the device. The power indication light will turn on and the indication light around the PULSE - ON/OFF button will light up red. The device is now in stand by mode.
• When the device hasn't been used for 3 minutes, only the power indication light will remain lit up. This is the power save mode. Push the ON/OFF button to take the device out of the power save mode.

ON/OFF BUTTON

This button is the on/off button for the various programmes
To start a certain programme, select the programme you want by turning the control knob to the programme you prefer. Press the on/off button afterwards.
- The indication light surrounding the PULSE - ON/OFF button will now light up blue.
- Press the ON/OFF button once to stop the programme at any time.

PULSE BUTTON

• This is the button to manually operate the pulse function. This button may be used to blend at full power for a short duration.
• To use the pulse function, the blender needs to be in stand by mode and the speed setting control needs to be in OFF. Each time you press the pulse button, the blender will blend at full power. The indication light surrounding the control button will light up blue. When the pulse button is let go, the blender will immediately return to stand by mode.

SPEED SETTING CONTROL

This blender has 10 continuous speed settings.

After the blender is in its stand by mode, turn the control knob clockwise.
- The blender will start working at the selected speed. The more you turn clockwise, the higher the speed will be.
- When using the device, the indication light surrounding the PULSE - ON/OFF button will light up blue.
- The device will automatically shut off after 10 minutes. When this occurs, you need to set the speed setting control back in its OFF position before you can start over.

PROGRAMMES

SOUP

This programme will allow you to mix cold ingredients and simultaneously heat them up to create a soup. The friction of the blades heats up the ingredients. The fluid gets heated up to about 40^ .

How the programme runs:

The blender switches to speed setting 7 for 7 seconds.
After 3 seconds the speed hits the maximum speed setting.
This speed is maintained until the end of the programme.
Length of the programme: 8min

Attention: When using this function, its possible that the jar slightly changes colour.

VEGETABLES & FRUIT

This programme allows you to finely blend vegetables and fruits.

How the programme runs:

Maximum speed for 30 seconds.
- Stops for 2 seconds.
- Speed setting 6 for 10 seconds.
- Stop for 2 seconds.
Maximum speed for 60 seconds.
- Stops for 2 seconds.
- Speed setting 6 for 10 seconds.
Length of the programme: 1 minute and 56 seconds.

SMOTHHE

This programme allows you to mix smoothies.

How the programme runs:

• Slow start right until maximum speed is reached.
  This speed setting is maintained for 8 seconds.
• Stops for 2 seconds.
• Repeats the first three steps.
  Length of the programme: 30 seconds.

To use these programmes, the blender first needs to be in stand by mode.
- Afterwards you select one of three programmes by using the control knob.
- Subsequently press the ON/OFF button to switch on the blender.
- When you would like to stop the chosen programme, press the ON/OFF button again.
After the programme has stopped, the blender will automatically return to stand by mode.

CLEANING & MAINTENANCE

• Carefully remove the plug from the socket.
• Never immerse the motor base, motor unit or the power supply cord in water or any other liquid.
• Clean the surface of the jar with a soft cloth or a sponge. The measuring cup and lid should be removed from the device for easier cleaning.
• The jar may be cleaned with water. You could also clean it by pouring two glasses of pure water in the jar, placing the lid on top and using the pulse function on the blender. Afterwards pour out the water and dry off the jar with a soft cloth.
  After cleaning you are best to place the jar on its head or sideways, to prevent standing water to create rust on the motor unit where it connects with the jar. This

could result in the device not working as well as before.

NOTE SURROUNDING USAGE

• Never use the device in the following situations:

• When the jar hasn't been correctly placed on the motor unit.

• When the control knob has selected a speed setting before the jar has been placed correctly onto the motor unit.

• When the jar has been taken off the motor unit and simply put back in place. You are required to first turn the control knob in its OFF position before placing the jar correctly on the motor unit. Only then will the blender be safe for use.

• When the motor is turning slowly and the food's consistency is too thick or there's not enough fluid present in the jar, the motor will get too hot when used for a long while. This could trigger the overheat protection. The red LED light will blink. Should this happen, you need to remove the plug from the socket carefully and let the device cool off for about 45 minutes. Afterwards you can use the device again.

• When blending hot beverages like soups or sauces, we advise you to start at a low speed setting and gradually increase the speed, or to use the pulse function.
• First start by adding liquids or soft foods before adding the hard foods or ice cubes.
• When you are done with blending, wait until the blades have entirely stopped turning before removing the jar from the motor unit. If you do not, the motor unit might end up damaged.
• If you smell something burnt, immediately stop the device. The rubber on the motor unit might be the cause, if it was not installed properly
• When using thick or sticky foods at high speeds, you are best to start at a low speed setting. When the food does not seem to move, pull the plug from the socket carefully and use a spatula to manually stir the food around until the air vacuum is no more. Afterwards close the lid and try to blend again.
• Please do not use the device for longer than 10 minutes uninterrupted.
