DO734BL - Blender DOMO - Free user manual and instructions

Product type	Blender
Brand	DOMO
Model	DO734BL
Bowl material	Glass
Bowl capacity	1.5 L (estimated)
Number of speeds	Variable with progressive adjustment
Preset functions	Smoothie, crushed ice, Pulse
Maximum power	600 W (estimated)
Power supply	220-240 V ~ 50/60 Hz
Automatic shut-off	Yes (at end of program)
Overheat protection	Yes
Maximum food temperature	60°C
Maximum continuous use time	1 minute
Recommended rest time	10 minutes
Dishwasher safe	Bowl, bottle and lids (max 60°C)
Motor unit maintenance	Damp cloth, do not immerse
Included accessories	Glass bowl, bottle, two blade sets, lids, measuring cup, blade holder
Warranty	2 years

Frequently Asked Questions - DO734BL DOMO

How to assemble the bowl for first use?

Place the thin sealing ring on the blade assembly. Insert the blade into the holder and tighten counterclockwise. Place the thick ring on the bowl, screw on the blade, then fill. Add the lid and tighten clockwise. Attach the measuring cup.

Can I blend hot liquids?

No, the maximum temperature of ingredients is 60°C. Boiling liquids can damage the appliance and cause burns.

How to clean the blender easily?

Pour soapy water into the bowl, set the speed selector to 'on' and press the Pulse button. The appliance cleans automatically. Empty and rinse.

What to do if the appliance does not start?

Check that the bowl or bottle is correctly assembled and locked. If the motor has overheated, let it cool for 30 minutes. Make sure the blades are not blocked and the speed selector is set to 'on'.

Can I use the blender continuously?

No, the blender must not run for more than 1 minute continuously. Let the appliance rest for at least 10 minutes between cycles.

How to use the crushed ice function?

Add ice cubes and a little water to the bowl. Make sure the speed selector is set to 'on', then press the 'Ice crushing' button. The program lasts 30 seconds.

How to add ingredients while running?

Remove the measuring cup from the lid, then insert ingredients through the filling opening. This operation is only possible with the bowl.

Can the bottle go in the dishwasher?

Yes, the bottle and lids can be washed in the dishwasher at a maximum of 60°C. The glass bowl too.

What to do if the bottle blade gets stuck in the motor?

Press firmly on the bottle and turn it counterclockwise while pressing downwards. The blade will come off.

What is the warranty of this blender?

The DOMO DO734BL blender has a 2-year warranty from the date of purchase, upon presentation of the receipt. Accessories and wear parts have a 6-month warranty.

USER MANUAL DO734BL DOMO

Green and black blender with a side view of its plastic cup (no visible text or symbols)

DO734BL

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked books (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Black laboratory filtration setup with a conical flask and a white top (no text or symbols visible)

Black decorative object with a ribbon-like handle and a rectangular top, mounted on a base (no text or symbols visible)

Close-up of a black plastic fan or impeller component with no visible text or symbols

Close-up of a transparent glass mug with lid and handle, no visible text or symbols

Close-up of a black plastic object with a pointed tip above a glass jar, labeled with number 3 (no text or symbols on the object itself)

Close-up of a glass mug with a black lid and handle, no visible text or symbols

Simple diagram of a mechanical component with a cylindrical top and base, no text or symbols present.

Glass blender with shrimp and egg, no visible text or symbols

MONTAGE FLES

Simple black-and-white photo of a small object with a circular top and a small figure on a base (no text or symbols)

Close-up of a black cylindrical object with a suspended top, possibly a dropper or container (no visible text or symbols)

Glass of orange liquid on a black base, labeled with number 3 (no text or symbols on the object itself)

GEBRUIK

PROBLEEM EN OPLOSSING

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Simple black-and-white diagram of a mechanical component with a circular top and a small protrusion on top (no text or symbols)

Close-up of a black cylindrical object with a transparent base, possibly a dropper or cap (no visible text or symbols)

Close-up of a glass beaker with orange liquid, no visible text or symbols

UTILISATION

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple 3D diagram of a mechanical component with a circular top and central protrusion (no text or symbols)

Close-up of a transparent cylindrical object with a black cap and internal structure, labeled '3' in the top-left corner (no other text or symbols visible)

Close-up of a glass bottle filled with orange liquid, placed on a black base (no text or symbols visible)

GEBRAUCH

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

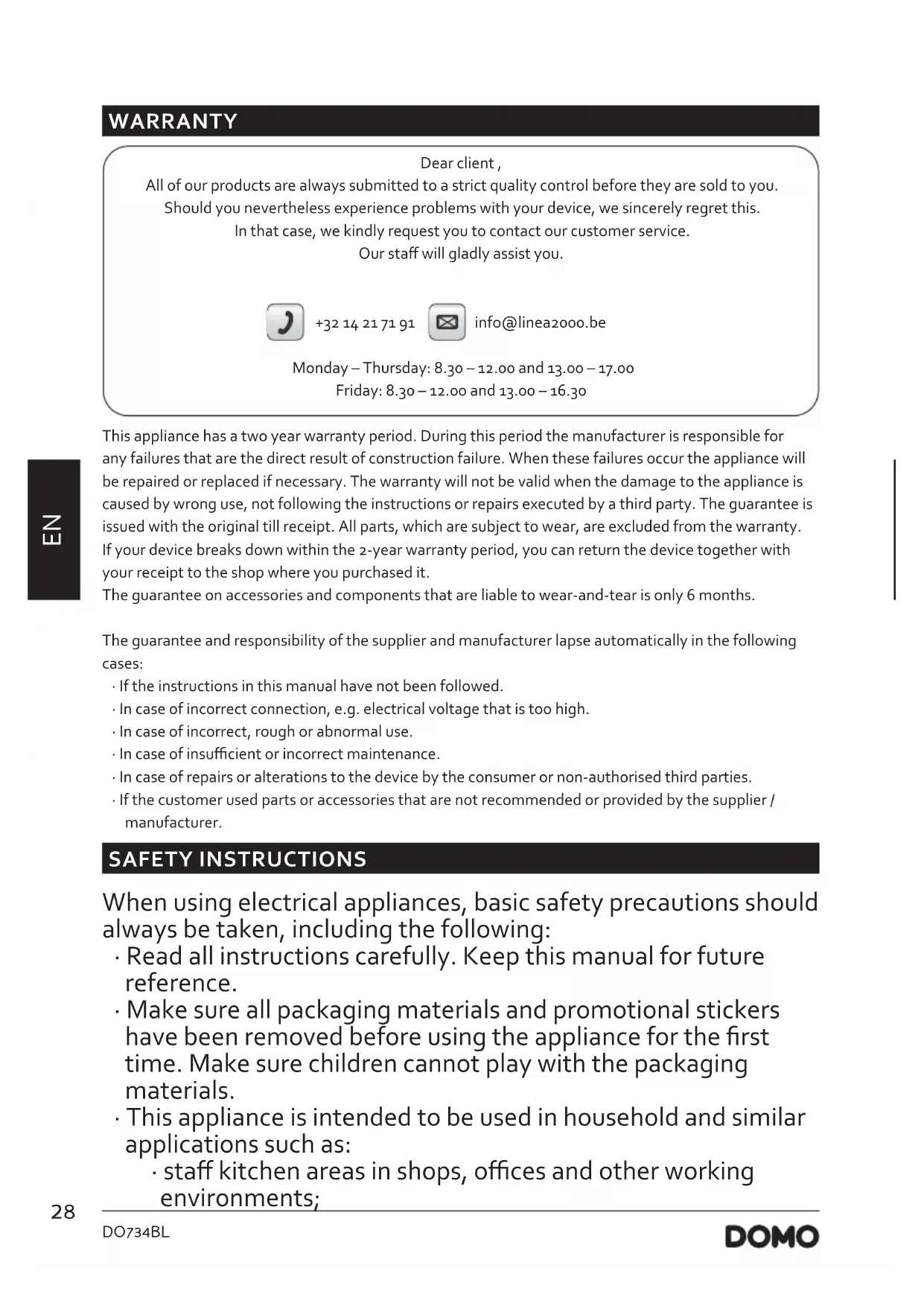

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
· bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  · Do not use or store this appliance outdoors.
  · Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

- Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

· Do not use the appliance without ingredients.

- Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

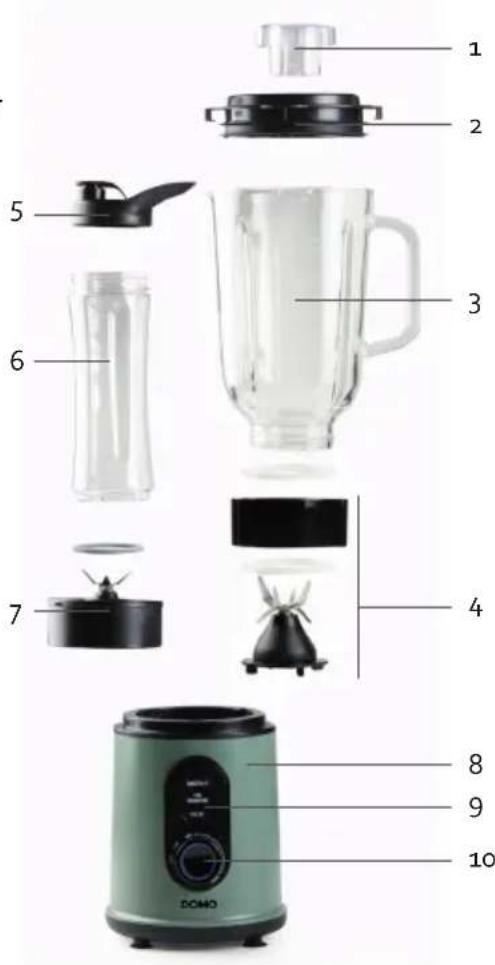

PARTS

1. Measuring cup
2. Lid
3. Jar + sealing ring (thick)
4. Large blade attachment for jug + sealing ring (thin) + holder
5. Lid with spout
6. Bottle
7. Small blade attachment for bottle + sealing ring (grey)
8. Motor unit
9. 3 function buttons: smoothie, ice crush, pulse
10. Speed knob

Labeled diagram of a Domo blender with 10 numbered parts showing internal structure and packaging details.

BEFORE THE FIRST USE

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Disassemble the different parts of the appliance and clean all removable parts. Reassemble all parts when they are dry.

USE

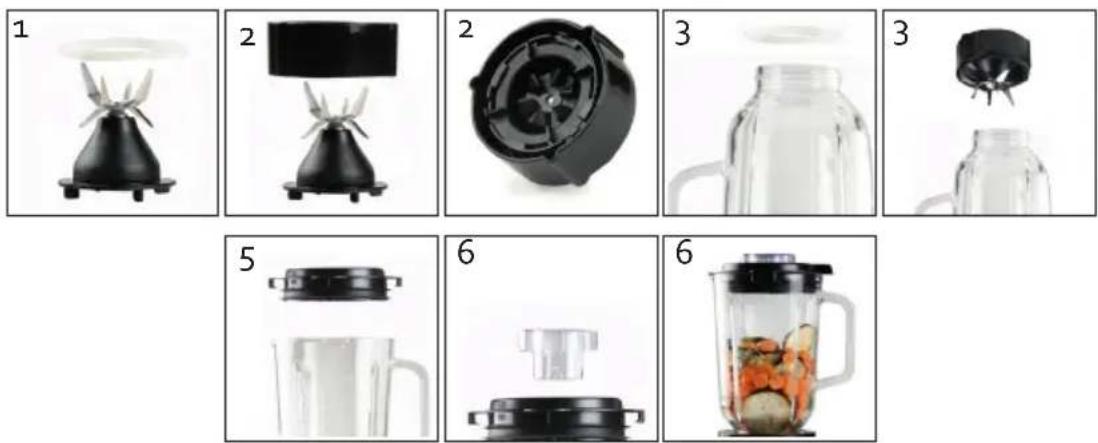

JUG ASSEMBLY

1. Position the seal (thin) on the blade assembly.
2. Insert the blade attachment into the holder and tighten counter-clockwise. You will see a mark with 'open' and 'close' on the bottom.
3. Hold the jar upside down. Place the (thick) sealing ring on the jug. Screw the blade attachment onto the jug and tighten.
4. Turn the jug right side up and fill with the desired ingredients. Make sure that you do not exceed the maximum amount.
5. Put the lid on the jug and tighten clockwise. Look carefully at the shape of the lid so that it fits well.
6. Position the measuring cup in the lid and jug and screw it tight in a clockwise direction.

BOTTLE ASSEMBLY

1. Place the (grey) sealing ring on the small blade attachment.
2. Fill with desired ingredients. Make sure that you do not exceed the maximum amount.
3. Screw the blade attachment onto the bottle and turn right side up.

Simple black-and-white diagram of a mechanical component with a circular top and a small protrusion on top (no text or symbols)

Close-up of a small transparent bottle with a black cap and a vertical rod inserted (no visible text or symbols)

Close-up of a glass beaker filled with orange liquid, placed on a black base (no text or symbols visible)

USE

1. Make sure that the speed regulation button is at "off".
2. Put the plug in the outlet. The light on the speed control flashes red.
3. Place the jug/bottle on the motor housing. If you use the bottle, turn it clockwise so that it engages with the motor housing. Turn the speed control to the desired speed. The light on the speed control turns white.

4. Or use the function buttons. Set the speed control to the on position and press one of the function buttons:

5. Smoothie: this function is perfect for making smoothies. The blender works for 1 minute with 90% speed.

6. Ice crushing: this function is designed to crush ice cubes. The blender will alternate between on and off for 30 seconds.

7. Pulse: pressing this button will pulse the appliance for quick and delicate mixing. Hold down the button to keep the function on for longer.

8. Turn off the blender by setting the speed knob to off.

9. Unplug the blender after use.

Caution:

• For each use, the consecutive operation time should not exceed 1 minute. Between two continuous cycles at least 10 minutes resting time should be maintained. The appliance needs to cool down to room temperature before starting the next blending cycle.
  · Never use boiling liquids (maximum 60 °C) or do not use the blender when the jar is empty.
• You cannot select any of the function buttons when using the speed control. First switch the control to the on position.
• If the pitcher is not mounted correctly, the appliance will not work. When placing the bottle on the appliance, be sure to tighten it firmly clockwise in the motor housing until it clicks firmly into place.
• Always fill with enough liquid to achieve a perfect mixture. We also recommend you add some water to the pitcher when mixing ice cubes with the 'ice crushing' feature.
• For the 'smoothie' and 'ice crushing' functions, the appliance stops working as soon as the pre-programmed programme ends. If you want to stop the appliance earlier, press the button of the selected function again
• If you want to add ingredients while you are blending, remove the measuring cup from the lid and put the extra ingredients into the jar through this fill opening. (only when using the jug).

CLEANING AND MAINTENANCE

Always clean the blender immediately after us for easy cleaning. Do not let food dry in the jar or the blade assembly, this will make them harder to clean.

1. Pour some warm soapy water into the pitcher. Turn the speed control to 'on' and press the pulse button. When the programme is finished, the appliance will automatically turn off. Turn the speed control to 'off'. Then empty the pitcher and rinse it with clean water.
2. Unplug the blender before continuing with cleaning.
3. Disassemble the removable parts.
4. Wash all parts—except the motor—with warm soapy water and rinse clean under the tap.

⚠️ Do not touch the sharp blades and take extra care. Leave the blade to dry upside down, ensuring it remains out of the reach of children.

1. The jug, bottle, and both lids may also be cleaned in the dishwasher on a programme up to 60^ C max.
2. Wipe the motor unit clean with a damp cloth and dry thoroughly.
3. Make sure all parts are dry before reassembling the blender.

Caution:

· Never immerse the motor unit in any liquid to avoid the risk of electrical shock.
Do not use any rough scouring pads or cleaners on the parts or on the finish of the appliance.
- Store the blender with the lid off. This will help you avoid unpleasant odours.

			MAX 60°C
	√	(3428)	(1760)
	(0010)	(1767)	(1040)
	√	(3570)	(1894)

PROBLEM AND SOLUTION

PROBLEM	SOLUTION
The appliance does not work.	Ensure the blender jug is installed correctly.When using the bottle, you use that the blade.

PROBLEM SOLUTION
The appliance is making a strange noise. · Always p	ace the appliance on a flat, stable surface.· Check that the blade attachment is properly installed.
When disassembling after use, the bottle's blade attachment remains stuck in the motor housing.	· Put enough pressure on the bottle and turn counter-clockwise while pressing down. Then the blade attachment should come off.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Simple black-and-white diagram of a mechanical component with a circular top and a small protrusion on top (no text or symbols)

Close-up of a small transparent plastic bottle with a black cap and a black cap on top (no visible text or symbols)

Glass beaker filled with orange liquid, no visible text or symbols

USO

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple diagram of a mechanical component with a circular top and a central rod-like structure (no text or symbols)

Close-up of a small transparent bottle with a black cap and a glass cap, no visible text or symbols.

Glass of orange liquid on a black base, labeled with number 3 (no text or symbols on the object itself)

UTILIZZO

	_	_	MAX 60°C
	(excel)	(excel)	(excel)
	(excel)	(excel)	(excel) = =
[Y062]	(excel)	(minel)	(minel)

PROBLEMIE SOLUZIONE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple black-and-white diagram of a mechanical component with a circular top and a small protrusion on top (no text or symbols)

Close-up of a black cylindrical object with a black cap, partially submerged in a transparent cylindrical container (no visible text or symbols)

Close-up of a glass beaker filled with orange liquid, placed on a black base (no text or symbols visible)

POUŽITÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

ZOSTAVENIE SMOOTHIE FL'AŠE

Simple 3D-rendered object resembling a mechanical component or sensor with a circular top (no text or symbols)

Close-up of a black cylindrical object with a transparent glass base, possibly a dropper or container (no visible text or symbols)

Close-up of a glass beaker containing orange liquid, placed on a black base (no text or symbols visible)

POUŽITIE

			MAX 60°C
		[2A38]	[W748]
	[HCHS]		[WHT2]

PROBLÉMY A RIEŠENIA

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
