A-500PRO - MIDI Controller ROLAND - Free user manual and instructions

Product Type	MIDI Controller (49-key keyboard)
Brand	ROLAND
Model	A-500PRO
Dimensions	838.9 x 250.8 x 91.4 mm
Weight	3.8 kg
Power Supply	9 V DC AC adapter or USB bus power (300 mA)
Keyboard	49 keys with velocity and channel aftertouch
Controllers	8 pads (A1-A8), 4 buttons (B1-B4), 9 buttons (L1-L9), 9 rotary knobs (R1-R9), 9 sliders (S1-S9), bender lever, HOLD and EXPRESSION pedals
Display	16-character x 2-line LCD with backlight
Connectors	USB, MIDI IN/OUT, pedal jacks (HOLD, EXPRESSION), DC IN
Main Functions	Play mode, Edit mode, Control Maps, ACT (Active Controller Technology), Dual/Split, Transpose, Octave Shift, MIDI controller assignment, A-PRO Editor
Maintenance and Cleaning	Clean with a soft, dry or slightly damp cloth. Do not use benzene, thinner, alcohol, or solvents.
Safety	Do not open or modify the device. Use only the specified AC adapter. Avoid moisture, excessive heat, and shocks. Disconnect during storms.
Spare Parts and Repairability	Do not repair yourself. Contact your dealer, Roland service center, or authorized distributor.
Included Accessories	A-Pro CD-ROM, Cakewalk Production Plus Pack DVD-ROM, USB cable, owner's manual, installation guide
Options	DP-2/DP-10 footswitch, EV-5/EV-7 expression pedal, AC adapter
General Information	Brand: ROLAND, Model: A-500PRO, Category: MIDI Controller. Manufactured by Roland Corporation.

Frequently Asked Questions - A-500PRO ROLAND

How to connect the A-500PRO to a computer?

Use the supplied USB cable to connect the A-500PRO to a USB port on your computer. Set the [POWER] switch to USB for bus power. Install the driver provided on the CD-ROM before or after connection depending on your OS (Windows or Mac). Refer to the Driver Installation section of the manual for details.

Can I use the A-500PRO without a computer?

Yes, you can connect the A-500PRO directly to a MIDI sound generator (synthesizer, module) via the MIDI IN/OUT connectors. In this case, use an AC adapter (sold separately) for power.

How to select a sound via MIDI?

In Play mode, use the pads or the [VALUE] button to change the Program Change number. For sounds in different banks, first send a Bank Select message (CC#00 and CC#32) via Bank mode, then the Program Change.

How to split the keyboard into two zones (Split)?

Press the [SPLIT] button to split the keyboard into two zones: right part (UPPER) and left part (LOWER). You can set the split point using the A-PRO Editor software or directly on the device in Edit mode (Keyboard Set).

What is the ACT function?

ACT (Active Controller Technology) allows you to control parameters of SONAR or compatible software directly from the A-500PRO. Press the [ACT] button to activate it, then use the controllers to control effects, synths, etc.

How to assign a MIDI message to a button or slider?

Enter Edit mode by pressing [ACT] and [←] simultaneously. Select the controller (button, slider, etc.), then choose the message type (Note, Control Change, Program Change, etc.) and set the values. Confirm with [ENTER].

How to reset the device?

In Edit mode, access system settings and select FACTORY RESET. Confirm to restore factory settings. Note: all custom assignments will be lost.

How to adjust keyboard sensitivity (Velocity)?

In Edit mode, go to KEYBOARD VELOCITY CURVE. You can choose from several velocity curves or set a fixed velocity via KEY VELOCITY. Use the [VALUE] button to adjust.

Which software is compatible with the A-500PRO?

The A-500PRO is compatible with any software that supports the MIDI protocol (DAW, virtual synths). The CD-ROM includes Cakewalk Production Plus Pack (SONAR) and drivers for Windows and Mac. The ACT function is optimized for SONAR.

Where to find drivers for the A-500PRO?

Drivers are provided on the included A-Pro CD-ROM. For Windows: folders Driver/Win7, Vista, or XP; for Mac: Driver/10.6 or 10.4_10.5. You can also download them from the official Roland website.

USER MANUAL A-500PRO ROLAND

Bank Select (BANK) 43

[Transmit], [Receive]

6 Aftertouch mode (AFT Mode)

[Transmit], [Receive]

Commande	Touche (Windows)	Touche (Mac OS X)
[File]–[New]	Ctrl + N	Command + N
[File]–[Open]	Ctrl + O	Command + O
[File]–[Save]	Ctrl + S	Command + S
[File]–[Save As]	Ctrl + Shift + S	Command + Shift + S
[File]–[Exit]	Alt + F4	Command + Q
[Edit]–[Copy]	Ctrl + C	Command + C
[Edit]–[Paste]	Ctrl + V	Command + V
[Edit]–[NO ASSIGN]	Del	Del
Next controller	Ctrl + F	Command + F
Previous controller	Ctrl + B	Command + B

Program Change (Min-Max)

Bank Select + Program Change

Program Change - Dec

Program Change - Inc

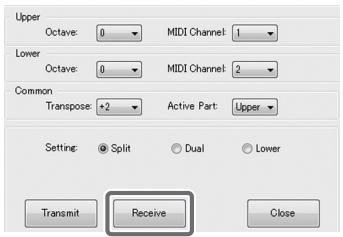

2 Cliques sur [Receive].

Affectation RPN/NRPN

Mode 1: OMNI ON, POLY

Mode 2:OMNI ON, MONO

O:Yes

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

X:No

Channel Message 24,33,34,35,36,37

Channel Pressure 25,33

Export Assign List 27

EXPRESSION 11

F

F6 37

FACTORY RESET 58,70

NO ASSIGN 24,27,33,56

Note 33

NRPN 36,53

Output Port 23, 25, 29

P

PAD AFTERTOUCH CURVE 57,63

PAD VELOCITY CURVE 57,63

Program Change 34, 35

Program Change - Dec 35

Program Change - Inc 36

Program Change (Min-Max) 35

R

raccourcis 28

Show Keyboard Panel 27

Show Messages 27

SMF 27,32

SONAR 21

SPLIT 45

Bouton [SPLIT] 9

STARTUP MEMORY 57

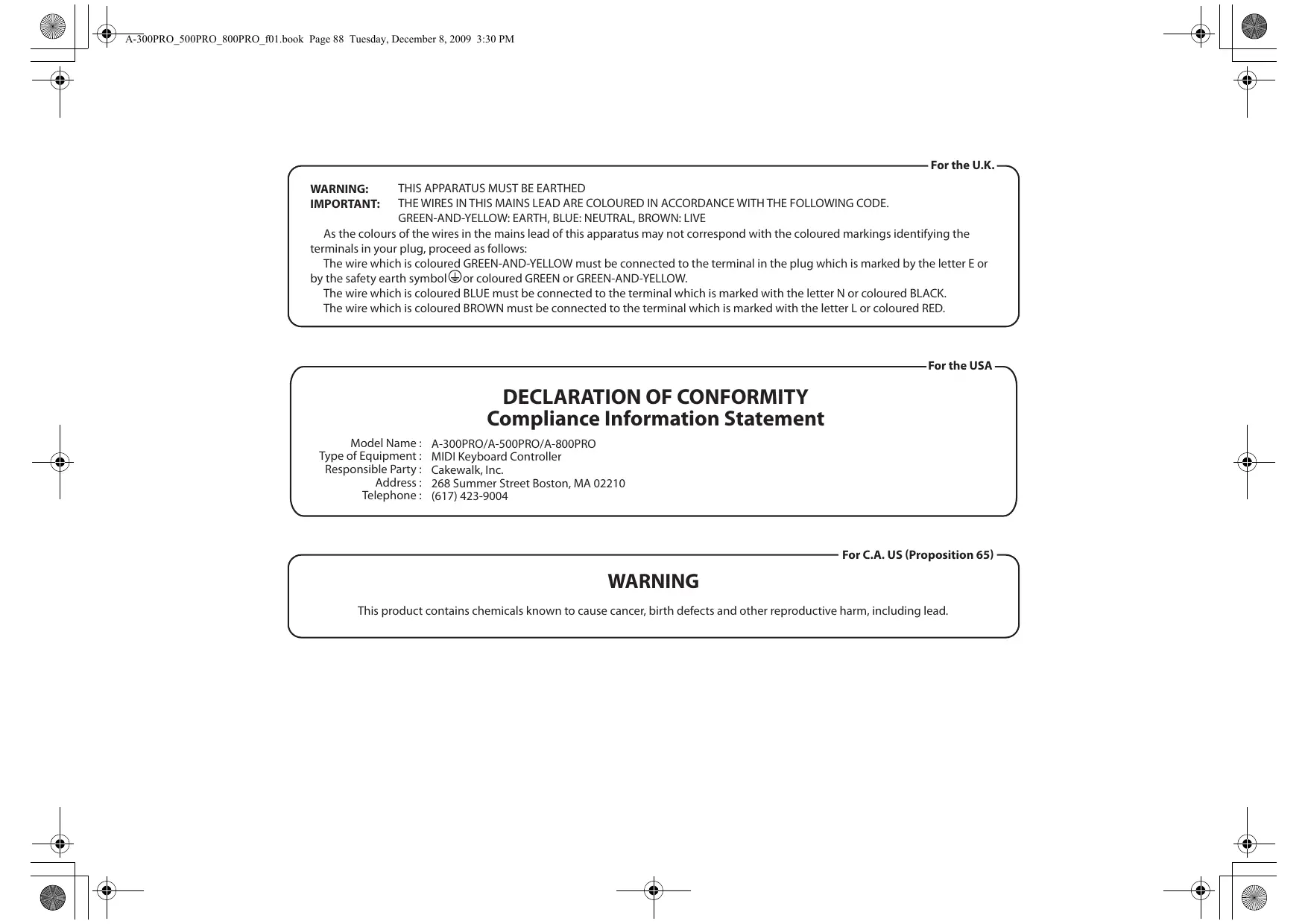

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
