Product Type	49-key MIDI Controller
Brand	Roland (Cakewalk A-PRO Series)
Dimensions (W x D x H)	838.9 x 250.8 x 91.4 mm
Weight	3.8 kg
Power Supply	DC 9 V (AC adapter sold separately) or USB bus power
Power Consumption	300 mA (AC adapter or USB bus)
Keyboard	49 keys with velocity and channel aftertouch
Controllers	8 pads (A1-A8), 4 buttons (B1-B4), 9 buttons (L1-L9), 9 rotary encoders (R1-R9), 9 sliders (S1-S9), pitch bend/modulation lever, Hold and Expression pedals
Display	Backlit LCD display 16 characters x 2 lines
Main Functions	Play and Edit modes, DUAL and SPLIT modes, transpose, octave shift, 19 preset control maps, ACT (Active Controller Technology) compatibility
Connectivity	USB (power and MIDI), MIDI In/Out, Hold jack (P1), Expression jack (P2)
Compatible Operating Systems	Windows 7/Vista/XP, Mac OS X 10.5 or later
Included Software	A-PRO Editor (control map creation), Cakewalk Production Plus Pack (DVD-ROM)
Maintenance and Cleaning	Use a soft, dry or slightly damp cloth. Do not use benzene, thinner, alcohol or solvents.
Safety	Do not open or modify the device. Use only the specified adapter. Avoid exposure to moisture, excessive heat, dust. Disconnect during storms or extended non-use.
Repairability and Spare Parts	Contact your dealer, the nearest Roland service center, or an authorized distributor for any repairs or replacement parts.
Supplied Accessories	USB cable, driver CD-ROM, Cakewalk Production Plus Pack DVD-ROM, owner's manual, installation guide
Available Options	AC adapter (DC 9 V), DP-2/DP-10 sustain pedal, EV-5/EV-7 expression pedal

Frequently Asked Questions - CAKEWALK A-500PRO ROLAND

How to install the driver for the A-500PRO on Windows 7?

Insert the supplied CD-ROM, open the Driver folder then Win7, double-click Setup. Follow the instructions. Connect the device only when prompted.

Can I use the A-500PRO without an AC adapter?

Yes, the device can be powered via USB bus when connected to a computer. Set the POWER switch to USB. If power is insufficient, use the separately sold AC adapter.

How to assign a MIDI message to a controller?

Enter Edit mode by pressing [ACT] and [→] simultaneously. Select the desired controller, then use the [VALUE] button to choose the message type and set the values.

What to do if the keyboard produces no sound?

The A-500PRO has no built-in sound generator. Check that it is properly connected to software or a MIDI module set to the same MIDI channel. Make sure the driver is installed and the MIDI device is selected in your software.

How to use the DUAL function to layer two sounds?

Press the [DUAL] button in Play mode. The keyboard then transmits on two separate MIDI channels (UPPER and LOWER). Select sounds via Program Change for each part.

How to reset the A-500PRO to factory settings?

In Edit mode, access FACTORY RESET in the system settings. Confirm by pressing [ENTER]. Note: all custom settings will be erased.

Which expression pedal can I use?

Use only Roland EV-5 or EV-7 expression pedals. Connecting other models may damage the device.

How to create and save a custom control map?

Use the A-PRO Editor software provided on the CD-ROM. Create your assignments, then transmit the control map to the device via the Transmit button. Save it as an SMF file on your computer.

Why is the PRM MUTE indicator lit?

PRM MUTE mode temporarily disables the sending of MIDI messages from controllers. Press the [PRM MUTE] button (if present) or disable this function in the system settings to resume control.

How to clean the A-500PRO?

Turn off the device and unplug it. Use a soft, dry or slightly damp cloth. For stubborn dirt, a mild non-abrasive detergent. Never use benzene, alcohol, or solvents.

USER MANUAL CAKEWALK A-500PRO ROLAND

Bank Select (BANK) 43

[Transmit], [Receive]

6 Aftertouch mode (AFT Mode)

[Transmit], [Receive]

Commande	Touche (Windows)	Touche (Mac OS X)
[File]–[New]	Ctrl + N	Command + N
[File]–[Open]	Ctrl + O	Command + O
[File]–[Save]	Ctrl + S	Command + S
[File]–[Save As]	Ctrl + Shift + S	Command + Shift + S
[File]–[Exit]	Alt + F4	Command + Q
[Edit]–[Copy]	Ctrl + C	Command + C
[Edit]–[Paste]	Ctrl + V	Command + V
[Edit]–[NO ASSIGN]	Del	Del
Next controller	Ctrl + F	Command + F
Previous controller	Ctrl + B	Command + B

Program Change (Min-Max)

Bank Select + Program Change

Program Change - Dec

Program Change - Inc

2 Cliques sur [Receive].

Affectation RPN/NRPN

Mode 1: OMNI ON, POLY

Mode 2:OMNI ON, MONO

O:Yes

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

X:No

Channel Message 24,33,34,35,36,37

Channel Pressure 25,33

Export Assign List 27

EXPRESSION 11

F

F6 37

FACTORY RESET 58,70

NO ASSIGN 24,27,33,56

Note 33

NRPN 36,53

Output Port 23, 25, 29

P

PAD AFTERTOUCH CURVE 57,63

PAD VELOCITY CURVE 57,63

Program Change 34, 35

Program Change - Dec 35

Program Change - Inc 36

Program Change (Min-Max) 35

R

raccourcis 28

Show Keyboard Panel 27

Show Messages 27

SMF 27,32

SONAR 21

SPLIT 45

Bouton [SPLIT] 9

STARTUP MEMORY 57

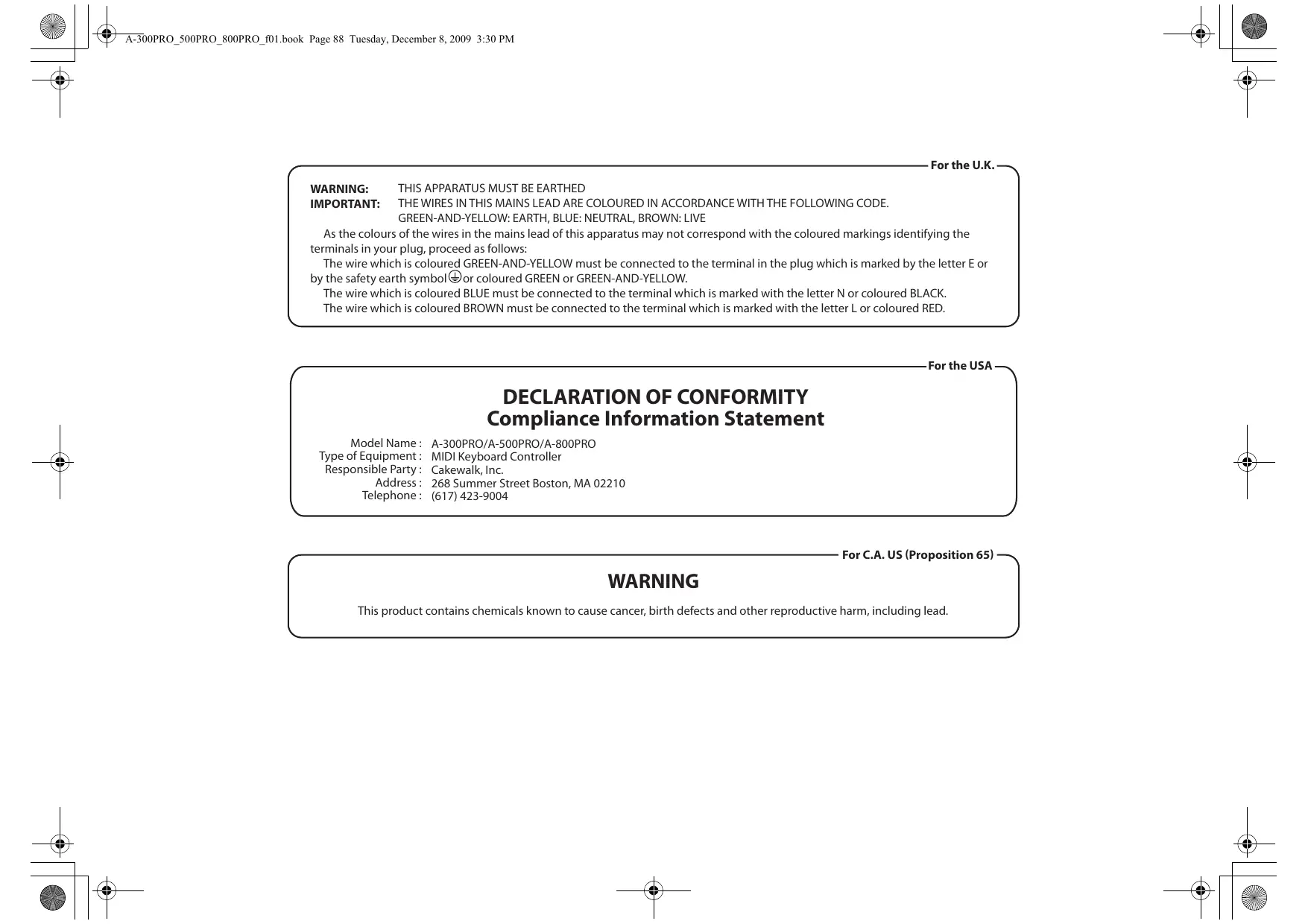

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
