CAKEWALK A-300PRO - MIDI Controller ROLAND - Free user manual and instructions

Product Type	MIDI Controller
Brand	Roland
Model	Cakewalk A-300PRO
Number of keys	32 (with velocity and channel aftertouch)
Display	LCD 16 characters x 2 lines with backlight
Controllers	8 pads (A1-A8), 13 buttons (B1-B4, L1-L9), 9 rotary encoders (R1-R9), 9 sliders (S1-S9), pitch/mod wheel, Hold and Expression pedals, keyboard aftertouch
Connectors	USB, MIDI In/Out, Hold pedal (6.35 mm jack), Expression pedal (6.35 mm jack), DC IN
Power supply	DC 9 V power adapter (sold separately) or USB bus power
Power consumption	300 mA (power adapter or USB bus)
Dimensions (W x D x H)	605.9 x 250.8 x 91.4 mm
Weight	2.9 kg
Included accessories	CD-ROM with drivers, DVD-ROM Cakewalk Production Plus Pack, USB cable, user manual, installation guide
Options / Spare parts	Power adapter, Hold pedal DP-2/DP-10, Expression pedal EV-5/EV-7
Software compatibility	Windows (7, Vista, XP) and Mac OS X; ACT compatible with SONAR
Main functions	Play mode, Split/Dual sound, program change, bank select, assignable controllers, 19 preset control maps, A-PRO Editor software
Maintenance and cleaning	Soft, dry or slightly damp cloth; do not use solvents
Safety	Do not open or modify; do not expose to humidity or extreme temperatures; use only the specified adapter
Repairability	Contact an authorized Roland service center; data in memory may be lost during repair

Frequently Asked Questions - CAKEWALK A-300PRO ROLAND

How to connect the CAKEWALK A-300PRO to my computer?

Use the provided USB cable to connect the device's USB connector to a USB port on your computer. Before connecting the cable, first install the driver from the included CD-ROM, following the instructions for your operating system (Windows or Mac). After installation, set the POWER switch to USB for USB bus power.

The keyboard produces no sound, what to do?

The A-300PRO is a MIDI controller, it has no built-in sound generator. You must connect it to music production software (e.g. SONAR, GarageBand) or a MIDI sound module via the MIDI OUT port. Verify that the MIDI channel on the device matches the receiver, and that the driver is correctly installed.

How to assign a MIDI message to a button or slider?

In EDIT mode (hold [ACT] + [◀]), use the [VALUE] button to navigate and select the controller to assign. In the assignment window, choose the type of MIDI message (Note, Control Change, Program Change, etc.) and set the values. Confirm with [ENTER]. You can also use the A-PRO Editor software (on PC/Mac) for more advanced graphic editing.

How to use the Split function?

Press the [SPLIT] button to divide the keyboard into two zones: UPPER (right hand) and LOWER (left hand). Use the [UPPER] and [LOWER] buttons to select the sound for each zone. The split point can be adjusted via the Keyboard Set menu in Edit mode or in A-PRO Editor.

Can I use this device without a power adapter?

Yes, when the A-300PRO is connected to a computer via USB, it can be powered directly from the USB port (USB bus power). If your computer does not provide sufficient power, use the DC 9 V power adapter (sold separately) by setting the POWER switch to DC.

How to restore factory settings?

In EDIT mode, use the [VALUE] button to select SYSTEM SETTING then FACTORY RESET. Press [ENTER] to confirm. Caution: This operation erases all user data (control maps, keyboard sets). Save your important settings via A-PRO Editor before proceeding.

Which software is compatible with the A-300PRO?

The device is compatible with any application supporting USB MIDI input (Windows, Mac). It is supplied with Cakewalk Production Plus Pack (including SONAR LE). It supports ACT (Active Controller Technology) for direct control of SONAR. For GarageBand, manual MIDI port configuration is required (see manual).

How to clean the keyboard and controllers?

Turn off the device and disconnect the power adapter. Use a soft, dry or slightly damp cloth. For stubborn dirt, a mild non-abrasive detergent can be used. Never use benzene, thinner, alcohol or solvent which could discolor or deform the device.

What to do if the computer does not recognize the device?

Check that the driver is correctly installed. Disconnect the device, restart the computer, then reinstall the driver following the procedure in the manual. On Windows, ensure that driver signature settings do not block installation. If the problem persists, try a different USB port or USB cable.

Can I use an expression pedal other than EV-5 or EV-7?

Roland recommends using only the EV-5 or EV-7 expression pedals. Connecting other types of pedals may damage the device or cause malfunctions. For the Hold pedal, use the DP-2 or DP-10 foot switches (sold separately).

USER MANUAL CAKEWALK A-300PRO ROLAND

Bank Select (BANK) 43

[Transmit], [Receive]

6 Aftertouch mode (AFT Mode)

[Transmit], [Receive]

Commande	Touche (Windows)	Touche (Mac OS X)
[File]–[New]	Ctrl + N	Command + N
[File]–[Open]	Ctrl + O	Command + O
[File]–[Save]	Ctrl + S	Command + S
[File]–[Save As]	Ctrl + Shift + S	Command + Shift + S
[File]–[Exit]	Alt + F4	Command + Q
[Edit]–[Copy]	Ctrl + C	Command + C
[Edit]–[Paste]	Ctrl + V	Command + V
[Edit]–[NO ASSIGN]	Del	Del
Next controller	Ctrl + F	Command + F
Previous controller	Ctrl + B	Command + B

Program Change (Min-Max)

Bank Select + Program Change

Program Change - Dec

Program Change - Inc

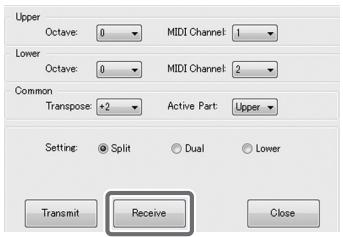

2 Cliques sur [Receive].

Affectation RPN/NRPN

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

O:Yes

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

X:No

Channel Message 24,33,34,35,36,37

Channel Pressure 25,33

Export Assign List 27

EXPRESSION 11

F

F6 37

FACTORY RESET 58,70

NO ASSIGN 24,27,33,56

Note 33

NRPN 36,53

Output Port 23, 25, 29

P

PAD AFTERTOUCH CURVE 57,63

PAD VELOCITY CURVE 57,63

Program Change 34, 35

Program Change - Dec 35

Program Change - Inc 36

Program Change (Min-Max) 35

R

raccourcis 28

Show Keyboard Panel 27

Show Messages 27

SMF 27,32

SONAR 21

SPLIT 45

Bouton [SPLIT] 9

STARTUP MEMORY 57

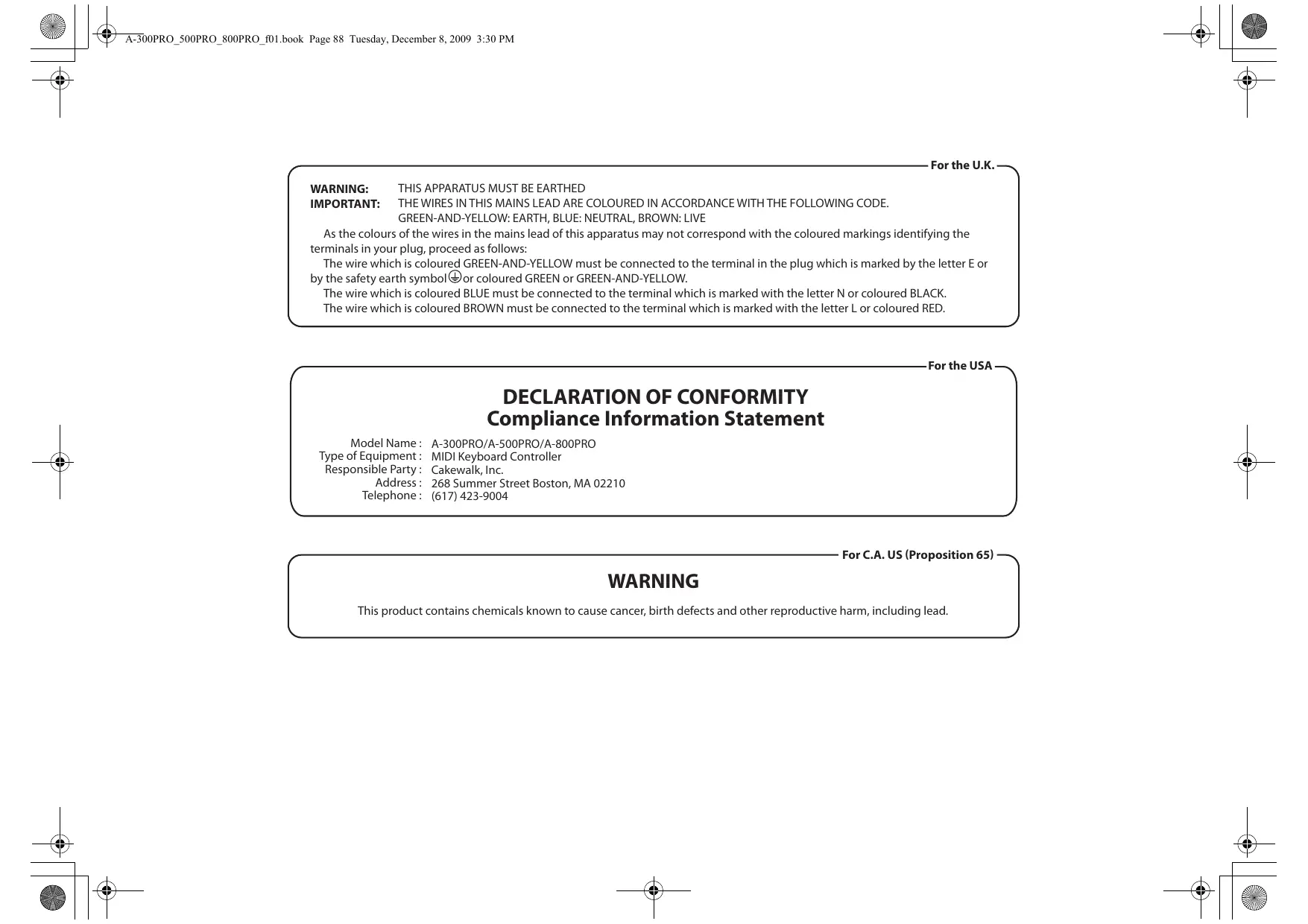

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
