Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (p. 3-p. 6). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, OWNER’S MANUAL should be read in its entirety. The manual should be saved and kept on hand as a convenient reference. PHANTOM sav | DR ONVI Direct monitor mixer SottcontelSW Con ON + Enabl OFF > Bypass La STEREO In 12 Lo-Z/ HiZ (TRS ONLY) INPUT3 © ao) LEZ inpuT 4 © OPTICALIN | IN5/6 AUDIO OUT 12 ouT34 — gg A7 AL OUT ———— {mor our Copyright © 2005 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

F66_e.book 2 K—% 2006#1A12A AA Æ11#3245 For the UK. IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE. BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected lo the Lerminal which is marked with the letter L or coloured RED. Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug. For EU Countios C € This product comples wine roquirements of European Dec 890SEEC For the USA

FEDERAL COMMUNICATIONS COMMISSION

‘This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed lo provide reasonable protection against harmful inlerference in à residential installation. This equipment generales, uses, and can radiale radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interierence will not oceur in à particular installation. If this equipment does cause harmiul interference to radio or television reception, which can be determined by tuming the equipment off and on, ihe user is encouraged to try lo correct the interference by one ‘or more of the following measures: —" Reorent or relocale 1he receiving antenna. = Increase he separation between the equipment and receiver. — Connect the equipment into an outlet on à circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. ‘This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: {1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Unauthorized changes or modification to this system can void the users authority Lo operate this equipment. This equipment requires shielded interface cables in order to meet FCC class B Limit For Canada NOTICE ‘This Class B digital apparatus meets al requirements of the Canadian Interference-Causing Equipment Regulations. AVIS Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. For the USA

DECLARATION OF CONFORMITY

SING THE UNIT SAFELY

[ INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS ] About À WARNING and {\ CAUTION Notices About the Symbols Used for instructions intended to alert The À symbol alert he er O pont suc the user to the risk of death or severe or wamings.The specific meaning of the symbol is WARNING injury should the unit be used| | /\|determined by the design contained within the improperiy. triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger. Used for instructions intended 10 alert he user to the risk Of injury or material The © symbol alerts the user 10 items that must never be carried out {are forbidden). The specific thing that dame jhould the unit be used | | @ Emust not be done is indicated by the design contained improperly within the circle. In the case of the symbol at left, it

• Material damage refers to damage or means that the unit must never be disassembled. other adverse effects caused with À CAUTION The @ symbol alerts the user to things that must be respect to the home and all its carried out. The specific thing that must be done is furnishings, as well to domestic @ |indicated by the design contained within the circle. In animals or pets. the case of the symbol at left, it means that the power- cord plug must be unplugged from the outlet.

_— ALWAYS OBSERVE THE FOLLOWING

+_ Before using this unit, make sure to read the +_ Do not attempt to repair the unit, or replace + Never use or store the unit in places that © using the unit, and consult an audiologist. are: instructions below, and the Owner's Manual. + Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device. + Do not excessively twist or bend the power or its AC adaptor can damage the cord, producing severe elements and short circuits. Damaged cords are fre and shock hazards! +_ This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at à parts within it (except when this manual provides specific instructions directing you lo do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” + Donotopen (or modify in any way) the unit Q) cord, nor place heavy objects on it. Doing so O page high volume level, or at a level that is uncom-

fortable. If you experience any hearing loss où ringing in the ears, you should immediately + Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-gener- +_ Do not allow any objects (e.g,, flammable material, coins, pins); or liquids of any kind Q ating equipment); or are (water, soft drinks, etc.) to penetrate the

+ Damp (e.g, baths, washrooms, on wet unit. floors); or are + Humid; or are + Exposed to rain; or are + Dusty-orare + Subject to high levels of vibration. +_ Immediately turn the power off, remove the AC adaplor from he outlet and request AN servicing by your retailer, the nearest + Make qure vou alwaya have the unit placed Roland Service Center, or an authorized Roland so itis level and sure to remain stable. distributor, as listed on the “Information” page Never place it on stands that could wobble, When or on inclined surfaces. + _ The AC adaptor, the power-supply plug has been damaged; or cord, or the with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other pied note ar AC Adaplors may use à different polarity, or be + The unit has been exposed to rain (or otherwise designed for a different voltage, so their use could has become wet); or result in damage, malfunction, or electric shock. + The unit does not appear to operate normally or exhibits a marked change in performance. Objects have fallen into, or liquid has been +_ Be sure to use only the AC adaptor supplied Oo + _Ifsmoke or unusual odor occurs

-66_e.book 4 K— 2006#1A12A ÀMA ÆF11#325 A\WARNING À\ CAUTION Immediately turn the power off, and request servicing by your retailer, the VAN nearest Roland Service Center, or an autho- rized Roland distributor, as listed on the ‘Infor- mation” page when: + Lfsmoke or unusual odor occurs + Objects have fallen into, or liquid has been spilled onto the unit; or The unit has been exposed to rain (or otherwise ‘has become wet); or The unit does not appear to operate normally or exhibits a marked change in performance

In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the sale operation of the unit. Protect the unit from strong impact. {Do not drop it!) Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected 10 the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord 10 heat up and eventually melt through. consult with your retailer, the nearest ÂÀ Roland Service Center, or an authorized Roland distributor, as listed on the ‘Information’ page Before using the unit in a foreign country, DO NOT play a CD-ROM disc on a conven- tional audio CD player. The resulting sound may be of a level that could cause permanent hearing loss. Damage to speakers or other system components may result. The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit. AC adaptor and clean it by using a dry cloth O0 to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the poser outle whenever {he units to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire. Atregularintervals, vou should unplug the Try Lo prevent cords and cables from becoming entangled. Also, all cords and cables should be placed s0 they are out of the reach of children Never climb on top of, nor place heavy objects on the unit Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit. Before moving the unit, disconnect the AC adaptor and all cords coming from external devices. Disconnect all cords coming from external devices before moving the unit Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet. Whenever you suspect the possibility of lightning in Your area, disconnect the AC adaptor from the outlet Should you remove the ground terminal screw, Keep them in a sale place out of children's reach, so there is no chance of them being swallowed accidentally. Always turn the phantom power off when connecting any device other than condenser AN microphones that require phantom power. You risk causing damage ou misakenly supply phantom power Lo dynamic microphones, audio playback devices, or other devices that don't require Such power. Be sure to check the specifications Of any microphone you intend Lo use by referring to thé manual that came with it. {This instruments phantom power: 48 V DC, 20 mA Max)

| F66_e.book 5 K— 2006#1A12A ÀMA ÆF11#325 | l IMPORTANT NOTES In addition to the items listed under “USING THE UNIT SAFELY” on page 3, please read and

Power Supply Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If itis not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet. The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern. Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices. Placement Using the unit near power amplifiers (or other equipment containing large power trans- formers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference. This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers. Noise may be produced if wireless communi- cations devices, such as cell phones, are operated in the vicinity of this unit. Such noise could oceur when receiving or initiating a call, or while conversing, Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off. + When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit, Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated. Maintenance + For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth. Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation. Additional Precautions + Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and when using its jacks and connectors Rough handling can lead to malfunctions. When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable’s internal elements. A small amount of heat will radiate from the unit during normal operation. To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).

Lai € « 2 2006#1A12A *MA ÆFM11#32# IMPORTANT NOTES + When you need to transport the unit, package itin the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials. Use a cable from Roland to make the connection. If using some other make of connection cable, please note the following, precautions. + Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable. Handling CD-ROMs Avoid touching or scratching the shiny underside (encoded surface) of the disc. Damaged or dirty CD-ROM dises may not be read properly. Keep your dises clean using a commercially available CD cleaner. Microsoft Corporation. of their respective owners. Copyright + Unauthorized recording, distribution, sale, lending, public performance, broadcasting, or the like, in whole or in part, of a work {musical composition, video, broadcast, public performance, or the like) whose copyright is held by a third party is prohibited by law. When exchanging audio signals through a digital connection with an external instrument, this unit can perform recording without being subject to the restrictions of the Serial Copy Management System (SCMS). This is because the unit is intended solely for musical production, and is designed not to be subject to restrictions as long as it is used to record works (such as your own composi- tions) that do not infringe on the copyrights of others. (SCMS is a feature that prohibits second-generation and later copying through à digital connection. It is built into MD recorders and other consumer digital-audio equipment as a copyright-protection feature.) Do not use this unit for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this unit. Microsoft and Windows are registered trademarks of Microsoft Corporation. The screen shots in this document are used in compliance with the guidelines of the Windows® is known officially as: “Microsoft” Windows® operating system.” Apple and Macintosh are registered trademarks of Apple Computer, Inc. Mac OS is a trademark of Apple Computer, Inc. AIl product names mentioned in this document are trademarks or registered trademarks

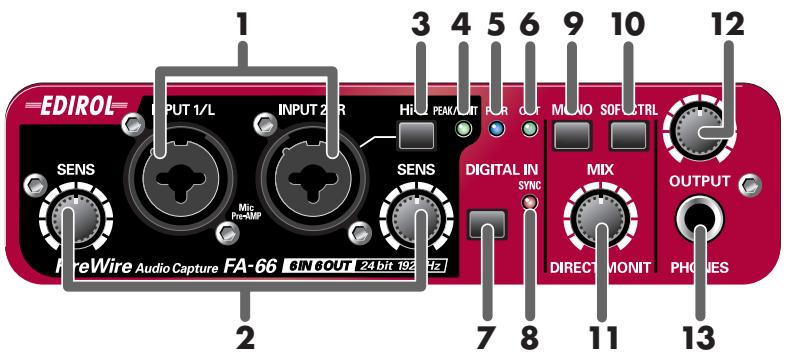

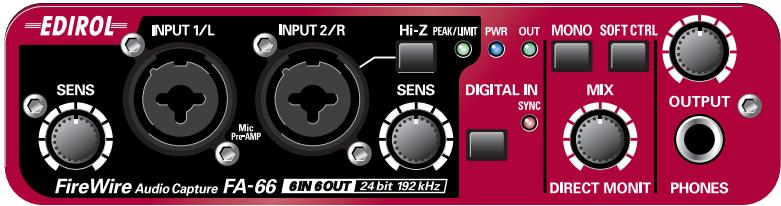

Front and rear panel Front panel : Rear panel Before you begin using the FA-66 with your Macintosh (Mac OS X users). Audio and MIDI settings Software settings …. Installing the driver (Windows). Giving priority to background services Driver settings Basic connections and settings... Basic connections ……. : Recording a mic or guita Recording a digital signal... CORDECEIRG VAIOUS ÉYPES OÉ EQUIPE ee NO Software settings. SONAR 4. : Digital Performer … 43 Logic 44 | Cubase SX/SL 2 : . 45 7 FA“ 66 Driver Settings dialog box (Windows). Dee | LA Troubleshooting … Ï Driver-related problems (Windows 48 No sound ne 51 Noise or pops are heard when recording/playing on your computer. 55 Noise or distortion occurs when the FA-66 is not connected to your computer.….59 The sound is t00 weak.

MU QMATUr Hi-Z rauur AR our 0 °°) pm SENS DIGITALIN H AC adaptor This is the dedicated AC adaptor for the FA-66. Use only the supplied AC adaptor. eWire (IEEE 1394) cables {one 6-pin <> 6-pin cable, one 6-pin <+ 4-pin cable) Use one of these cables to connect the FA-66 to the IEEE 1394 connector (FireWire connector, iLink connector, DV connector) of your computer. nôtre The 6-pin <> 4-pin cable cannot supply bus power Use only the FireWire (IEEE 1394) cables. If the supplied FireWire (IEEE 1394) cable becomes damaged or lost and you need a replacement, please contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page

Œ Owner’s manual This is the manual you are reading, Please keep it at hand for reference. = CD-ROM This contains Windows drivers for the FA-66 and demo songs *_ Be careful not to touch or scratch the recorded surface (unprinted surface) of the disc. Doing so may render the disc unreadable. If the disc gets dirty, use a commercially available CD cleaner to clean it Do not play back the CD-ROM in a conventional audio © À CAUTION CP Player. Doing so may produce high-volume sound that can damage your hearing and/or speakers.

Contents of the package

You will need to provide these items yourself An external amp, speakers, headphones, and mic are not included The external amp, speakers, or headphones you'll need to hear the sound output from the FA-66 and the cables you'll need to connect these items are not included. Nor is a mic included, which you will need to connect to the FA-66 in order to input audio. You will need to obtain these items yourself. An MD or DAT recorder and digital input/output cables are not included You can use an MD or DAT digital recorder to record, but the cables needed to connect these devices to the FA-66 are not included. You will need to obtain these items yourself.

These are analog audio input jacks with mic preamps. They accommodate either XLR or phone plugs, allowing you to connect a variety of equipment. Either balanced or unbalanced (© xuRoug À signals may be connected. : À La Phantom power (48 V) is provided for XLR type connections, BEN, LA allowing you to connect condenser mics that require phantom RL Ï Pig power. In this case, turn on the phantom power switch (19) located on the rear panel. This instrument is equipped with balanced (XLR/TRS) type input jacks. Wiring diagrams for these jacks are shown on the right. Make connections after first checking the wiring diagrams of other equipment you intend to connect. GND(SLEEVE) HOTMP) —< CoLniRING)

2. Input sensitivity knobs

These adjust the input level of the signals input to the front panel combo input jacks (1).

3. Input impedance select switch

This switch selects either high impedance (Hi-Z) or low impedance (Lo-Z) as the type of device connected to the INPUT 2 phone jack of the combo input jacks (1). If you have connected a guitar or bass to this jack, select the high impedance (Hi-Z) setting if you have connected a mic, select the low impedance (Lo-Z) setting.

• Combo input jack INPUT 1 is fixed at low impedance (Lo-Z).

SP Front and rear panel Peak/Limiter indicator This indicates whether the signal being input via the combo input jacks (1) is distorting, or whether the limiter is operating. Limiter switch _| Status Limiter on The indicator will function as a limiter indicator. When the input sig- a nal exceeds a certain level, the limiter will operate and the indicator : will light green. Limiter off The indicator will function as a peak indicator, Use the input sensi- TNTER tivity knobs for each input jack to adjust the input level so that the o peak indicator does not light red. The red LED will light if the sound distorts.

Lights when the power is on.

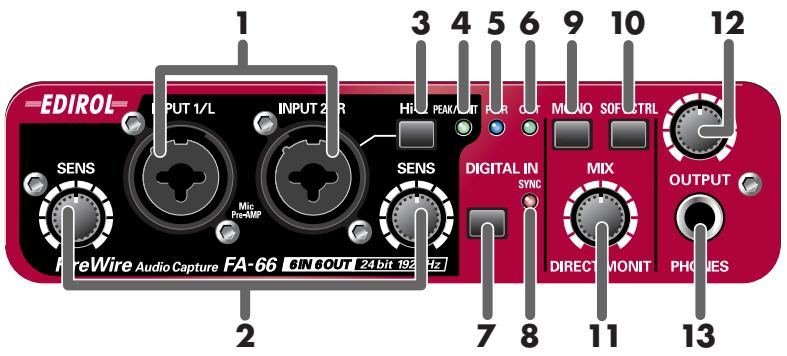

This will light green if signals are being sent from the computer's audio output ports 1 and 2 (OUT 1/2). (see block diagram + front cover) Digital input switch If you want to record a digital input, turn this on ({pressed inward). This lets the FA-66 synchronize to an external digital device connected to the digital input connector (25) © 8. Sync indicator When the digital input switch (7) is on, this indicator shows the status of synchronization with a digital device connected to the digital input connector (25). (external synchronization mode) Lit Synchronized correctiy. Not synchronized. Check that your digital device is correctly connected to the digital input connector. Blinking | Also make sure that the connected digital device is set to the same sam- pling frequency as that selected by the FA-66's sample rate select h (18). & 11 A A

9. STEREO/MONO select switch (direct monitor section)

This selects whether the input signal is to be monitored in stereo (STEREO) or in monaural (MONO). Turn this on (1 pressed inward) if you want to monitor in monaural. For example, if you've connected a guitar only to INPUT 2/R, you would use the monaural setting ({inward position). Even with the monaural (MONO) setting, the audio signal being sent via FireWire (IEEE 1394) to the computer will be stereo.

10. Direct monitor soft control switch (direct monitor mixer section)

Turn this on (f pressed inward) if you want to control the direct monitor mixer (see block diagram + front cover) from your ASIO 2.0 compatible software. If this is on, @) your software will be able to control the monitor volume, pan, and on/off status of each input jack. If this is off, all settings of the direct monitor mixer will be ignored (= bypassed), allowing you to monitor the input signals from all input jacks. This is convenient if you want to check the connections while temporarily ignoring the software settings. *° This function is available only on Windows.

11. Direct monitor volume (direct moi

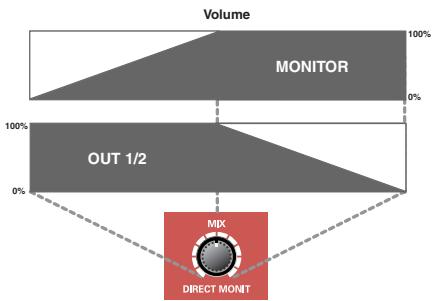

This adjusts the monitor volume Turning this knob toward the left (OUT1/2) will decrease the level of the sound being input through the input jacks. Turning the knob toward the . right (MONITOR) will decrease the r section) Volume MONITOR level of the sound being output from your computer. At the center position, the sound being output from your computer and the sound being input via the input jacks will both be at 100% of their level.

This adjusts the volume that is output from the headphone jack (13) and Main output jacks (22)

This jack outputs the mixed sound being input via the input jacks and the sound being output from the computer (WAVE OUT 1/2 (in the case of WDM, EDIROL FA-66 Out 1+ see p. 31)). The balance of these two is adjusted by the direct monitor volume (11). Even ifheadphones are connected, the sound being sent from the rear panels main output jacks (MAIN OUT) (22) will not be eut off.

Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels gritty to the touch when you touch this device, microphones connected to it, or the metal portions of other objects, such as guitars. This is due to an infinitesimal electrical charge, which is absolutely harmless. However, if you are concerned about this, connect the ground terminal (see figure) with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an | & authorized Roland distributor, as listed on the “Information” page & Unsuitable places for connection Ï +" Water pipes (may result in shock or electrocution) + Gas pipes (may result in fire or explosion) + Telephone-line ground or lightning rod (may be dangerous in {he event of lighining)

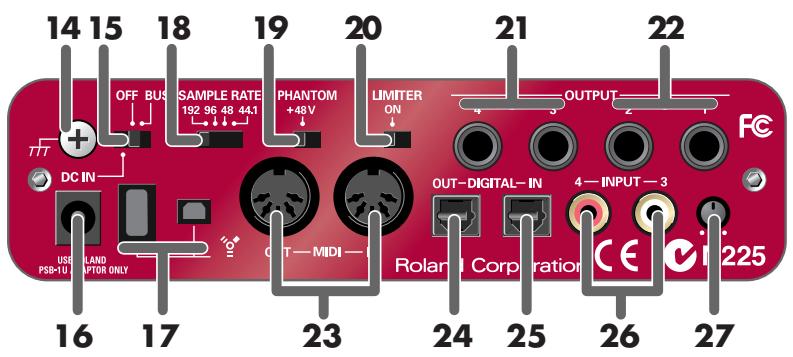

OFF BUS Used to switch the power on (DC IN) or off (OFF), and for switching to bus power (BUS). sus CE] The FA-66 can operate on bus power if it's connected to your _] computer via a 6-pin + 6-pin FireWire (IEEE 1394) cable. DCIN In this case, power is supplied from your computer via the FireWire (IEEE 1394) cable. If you want to use bus power, set the power switch to the BUS position. © + 6-pintype You can use bus power if your computer has a 6-pin IEEE 1394 connector (FireWire connector, iLink connector, DV connector). + With some computers, the FA-66 may not operate on bus power. If so, connect the included AC adaptor to an AC outlet and use it to supply power to the FA-66. In this case, the power will be on æohen you set the porver switch to the DC IN position. + 4-pintype If your computer has a 4-pin FireWire (IEEE 1394) connector, you cannot use bus Ej power. Connect the included AC adaptor to the AC adaptor jack, and set the power switch to DC IN &) 14

Connect the included AC adaptor to this jack. *_ Never use any AC adaptor other than the supplied unit; doing so may cause malfunction:

17. FireWire (IEEE 1394) connectors

Use a FireWire (IEEE 1394) cable to connect these to your computer. We recommend that you use à 6-pin cable to connect the FA-66 to your computer, and a 4-pin cable to connect the FA-66 to any peripheral device you may be using. + 6-pin connector If the IEEE 1394 connector (FireWire connector, iLink connector, DV connector) of your computer is a 6-pin type, use the included 6-pin <+ 6-pin cable. The FA-66 will be able to operate on bus power. Normally you should use this method of connection. If the IEEE 1394 connector (FireWire connector, iLink connector, DV connector) of your computer is a 4-pin type, use the included 6-pin <+ 4-pin cable. However, in this case, the FA-66 will not operate on bus power. + 4-pin connector Normally, the 4-pin connector is used when connecting the FA-66 to a peripheral device.

18. Sample rate select switch

This specifies the sampling frequency at which audio data will be recorded and played back. In order to get this setting to take effect, you must exit all of your @) software, then cycle the power to the FA-66 (switch it off, then back on again). *_Ifyou are using Macintosh and want to change the sampling frequency, you must first power down the FA-66. Then, access the Mac OS System Preferences - Sound, and verify that EDIROL FA-66 has disappeared from the input and Output panes. Then, power up the FA-66 again. For information on how to display the Mac OS System Preferences - Sound, refer to “Audio settings” (p. 19). You must set the sample rate select switch to match the sampling frequency selected in the software you are using. If you use external synchronization mode (ie. the DIGITAL IN switch turned on), the external device’s sampling frequency must also be the same. [ Limitations when using the FA-66 at 192 kHz ] + You will not be able to use the digital input connector or digital output connector.

This is an on/off switch for the phantom power supplied to the XLR connectors of the combo input jacks (1) on the front panel.

• You must leave the phantom power turned off (right position) unless condenser mics requiring phantom power are connected to the XLR jacks. Supplying phantom power 0 a dynamic mic or an audio playback device may cause malfunction. For details on the requirements of your mic, refer to its owner's manual. (The FA-66' phantom power supply: DC 48 V, 20 mA maximum)

This turns the FA-66's hardware limiter on/off. If a sudden, high-volume sound is input to the combo input jacks (1), the limiter applies mild compression to prevent clipping from occurring at the AD converter.

• Clipping noise will be heard if the input signal exceeds the capacity of the limiter.

21. Output jacks 3, 4 (Nominal output: +4 dBu)

These jacks output analog audio signals. Balanced output is supported.

22. Main output jacks (output jacks 1, 2) (Nominal output: +4 dBu)

These output the mixed sound that is being input via the input jacks and being output from the computer. You can use the output volume control (12) to adjust the volume.

23. MIDI IN/OUT connectors

You can connect these to the MIDI connectors of your MIDI equipment to send and receive MIDI messages.

24. Digital output connector (optical)

Use this when you want to digitally connect an audio device, such as an MD or DAT unit. The signals sent from OUTPUT 5 and 6 (if using WDM, EDIROL FA-66 OUT 3 > see p. 31) are output to the digital output connector.

al input connector (optical) Use this when you want to input a digital audio signal from a CD/MD/DAT or similar device. The signal input to the digital input connector is input as INPUT 5 and 6 (in the case of WDM, EDIROL FA-66 In 3 see p. 31). If you want to record this digital input signal, turn on the digital input switch (7) You must input a signal of the same sampling frequency as that selected by the sample rate select switch (18).

Input jacks 3 and 4 are designed with a higher gain so that you can connect them to audio devices that have a lower output level, such as CD players or MIDI sound modules. If you connect these inputs to a device that has a higher output level, such as a mixer, use this input level adjustment knob (27) to adjust the level. If no device is connected to the Input jacks 3 and 4, turn the input level adjustment knob (27) all the way toward the left.

27. Input level adjustment knob

This adjusts the level of the sound that is input at input jacks 3 and 4 (26).

If you are using the FA-66 with Windows, please read “Installing the driver (Windows)” (p. 24). If you”re using the FA-66 with Mac OS X, you don’t need to install a driver Simply connect the FA-66 to your Macintosh as described below. With the FA-66 disconnected, start up your Macintosh. Use a FireWire (IEEE 1394) cable to connect the FA-66 to your Macintosh. T. With the FA-66's power switch off, connect the power cord toit.

2. Plug the AC adaptor cable into an AC outlet.

3. Use a FireWire (IEEE 1394) cable to connect the FA-66

to your Macintosh. Turn on the FA-66's power switch The driver will be installed automatically. Next, you need to make audio device and MIDI device settings. vôt Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices. nôte This unit is equipped with a protection circuit. À brief interval (a few seconds) after power up is required before the unit will operate normally. nôe Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

4 A e 4 -66_e.book 19 K— 2006#1A12A AMAR ÆFA11H#32% 1 PS F7 SP Before you begin using the FA-66 with your Macintosh (Mac OS X users) | Audio and MIDI settings Audio settings MERD If you want sound to be played If you want to use the FA-66 with the iTunes software from the internal speakers of included with your Macintosh, specify the input/output your Macintosh, choose devices as follows. “internal speakers” in the | . Output tab. If you don't want The procedure for making device settings differs alerts to be played through the depending on the software you are using. For details, refer FA-66, choose “Internal to the owner's manual for your software. speakers” for the “Play alerts and sound effects through” 1 setting From the Apple menu, choose the System Preferences dialog box, and click Sound. 2° Crickthe Sound Effects tab, and choose EDIROL FA-66 for the “Play alerts and sound effects through” setting. 3 Cickthe Output tab, and choose EDIROL FA-66 for the “Choose a device for sound output” setting. 4 me Input tab is shown, choose EDIROL FA-66 for the À “Choose a device for sound output” setting. À SA T ( Cautions for use à Before you use your software with the FA-66, please note the following. +_ Before you start up your software, use a FireWire (IBEE 1394) cable to connect the FA-66 with your computer, and turn on the power. + Do not disconnect the FA-66's FireWire (IEEE 1394) cable or switch off the power to the FA-66 while your software is running. +_ Close your software before you switch off the FA-66's power. + Turn off the Sleep setting of your Macintosh. + The FA-66 will not work in the Classic environment of Mac OS X. Use it when the Classic environment is not running. + Turn off the energy conservation settings of your Macintosh. +_l£the Options pane of the Energy Saver preferences on your Macintosh t has a Processor Performance setting, choose the “Highest” setting. )

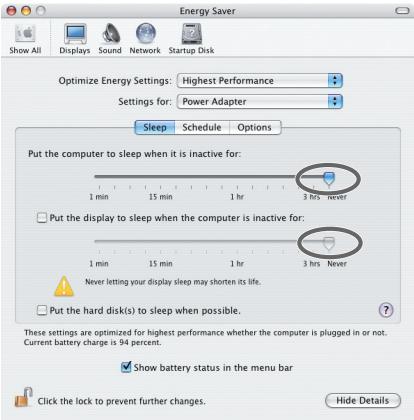

• Depending on the model of Macintosh you are using, starting up the Macintosh when the FA-66 is connected may cause operation to become unstable. In this case, start up the Macintosh and then connect the FA-66. Ifyou want to change the FA-66's sample rate, turn the FA-66 Off, change the sample rate, and then turn the FA-66 on again. If, in the Mac OS System Preferences - Sound - Output, the EDIROL FA-66 is not shown in the “Choose a device for sound output” seHting, his means that the FA-66 is completely powered down.

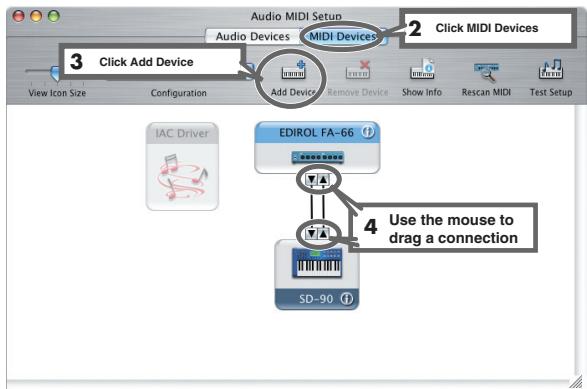

MIDI settings Open the Applications folder of your Macintosh hard disk. In the Utilities folder, double-click Audio MIDI Setup to open the Audio MIDI Setup. UE F2 cexmoiDavices Use the mouse to drag a connection Click the MIDI Devices tab. Click Add Device. New external device will appear. Connect the t and s symbols (which signify the outputs and inputs) of the EDIROL FA-66 icon to those of the New External Device icon by using the mouse to drag between them. Change icons and set other items according to the MIDI devices that are connected to the FA-66's MIDI connectors. If you double-click new external device, the new external device Properties dialog box will appear, allowing you to specifi a variety of things, such as the device name. Close the Audio MIDI Setup dialog box to complete the procedure.

4 7 FA-66_e.book 22 N— 2006#1A12A MA ÆFÂ11#329 Before you begin using the FA-66 with your Macintosh (Mac OS X users) Checking that you hear sound Now, let's play back the sample data to verify that the connections and settings are correct. We will use iTunes to play back the sample data provided on the included CD- ROM. Before you continue, connect headphones or monitor speakers to the FA-66 as described in “Basic connections” (p.35).

Set the FA-66's sample rate select switch to 48 kHz. You’Il need to cycle the power to the FA-66 after changing the sampling rate. Start up iTunes (included with Mac OS). iTunes is normally located in the Applications folder on the hard disk. 3 insert the included CD-ROM into the CD-ROM drive of your Macintosh. ———— rer BAIE om 27 men. 4° pomthe SampleSong folder of the CD-ROM, drag TTears(.mp3) into the iTunes window.

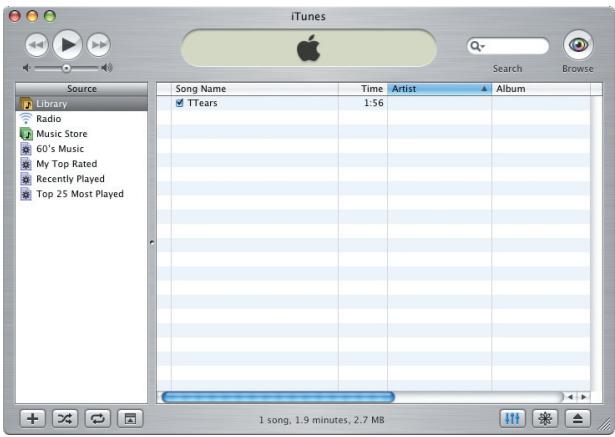

Select TTears(.mp3) in the song list, and click ® Alternatively, you can start playback by pressing the space bar on your computer keyboard. Ifthe sample data plays correctly, the FA-66 is correctly connected to your Macintosh. vôt Use of the song data supplied with this product for any purpose other than private, personal enjoyment without the permission of the copyright holder is prohibited by law. Additionally, this data must not be copie, nor used in a secondary copyrighted work without the permission of the copyright holder. MEMD Ifthe volume is too low, or if you don't hear sound at all, try turning the FA-66's direct monitor volume knob (p. 12) so it positioned to the left of the MIX (center) position.

( bout the demo songs The SampleSong folder on the included CD-ROM contains the following demo songs. Please copy the demo songs to the hard disk of your Macintosh before listening to them.

• The demo songs were produced at 48 kHz. You must set the FA-66's sample rate to 48 kHz. You’Il need to cycle the power to the FA-66 after changing the sampling rate. for Cubase folder This folder contains the demo songs as Cubase VST song files (all) and Cubase SX project files (.cpr). If you are using the Cubase SX demo version, the playback will not be correct since some functionality (such as effects) will not be available. for Logic folder This folder contains the demo songs as Logic project files (Iso). \ D, Software settings Before you start up your software, use a FireWire (IEEE 1394) cable to connect the FA-66 to your computer, and MEMD turn on the power of the FA-66. For the latest information, If your software allows you to specify MIDI and audio please visit input/output settings, choose EDIROL FA-66. For details, | "tP://wwwedirolcom/ refer to the owner’s manual for your software. Also refer to “Software settings” (p. 40). If you have turned on software monitoring in your application, turn the FA-66's hardware monitoring (direct monitor) offto preventdouble monitoring EREM and to keep an audio feedback loop from occurring.

6_e.book 24 K—> 2006#1A12A *AMA ÆFÂ11#329 | | Installing the driver (Windows) What is a driver? A driver is software that allows data to be transferred between the FA-66 and application software running on your computer when the FA-66 is connected to your computer via a FireWire (IEEE 1394) cable The driver sends data from your application software to the FA-66, and from the FA-66 to your application software. The driver is required in order for you to use the FA-66 while connected to your computer

With the FA-66 disconnected, start up Windows. *_ You must log on to Windows with a user name whose account has administrative privileges (e.g., Administrator). Open the System Properties dialog box

1. From the Windows start menu, choose Control

2. In “Pick a category,” click “Performance and

3. In “or Pick a Control Panel icon,” click the System

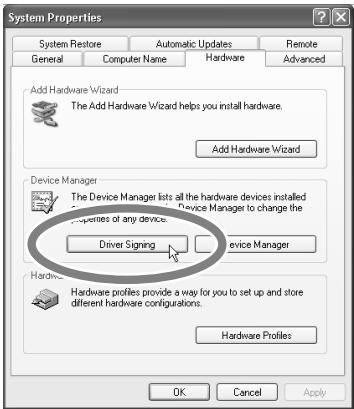

icon. 3 Cickthe Hardware tab, and then click Ste | Amen Le [Driver Signing]. eee " The Driver Signing Gran Options dialog box Ce appears. _ Pa anpen D ape es)

In the Driver Signing Options dialog box, make sure that “Ignore” is selected. If “ignore” is selected, simply click [OK]. If “ignore” is not selected, make a note of the current setting (Warn or Block), change the setting to “Ignore”, and click [OK]. MEMD Depending on your system, the System icon may be displayed directly in the Control Panel (Classic view). 1f50, double-click the icon MEMD If you change the “Driver Signing Options” setting, change it back to the original setting after you've installed the driver. MEMD If the screen indicates “Windows can perform the same action each time you insert a disk or connect a device with this kind of file, click [Cancel]

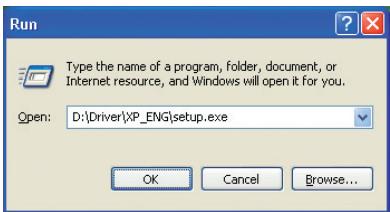

6_e.book 25 K—> 2006#1A12A *AMA ÆFÂ11#329 /] e 7 { SP Installing the driver (Windows) | 5° Cick [OK] to close the System Properties dialog box. MEMD Checking the name of your Close all currently running software (applications). drive. From the start menu, choose My Computer. In the Also close all windows that are open. If you are using window that appears, verifÿ software such as antivirus programs, be sure to close these the name of the CD-ROM programs as well. drive into which you inserted 7 the CD-ROM in step 7. The (D: E:) displayed by th Find the included CD-ROM. Ro ie ie Insert the CD-ROM into your computer’s CD-ROM drive drive name. 8 » From the Windows start menu, choose “Run... The “Run” dialog box will appear Input the name into the dialog box as shown, and click [OK] Go MEMD If you want to install the driver EN into a different hard disk, click EN ia [Browse] and specify the ia (Drive name): \DrivenXP_ENGi\setup.exe desired location. *_ The drive name is “D:" in the example shown here, but this may be different on your system. Specify the drive name for your CD-ROM drive. The EDIROL FA-66 Driver Setup dialog box appears Click [Install].

Len fan 6_e.book 26 A5 2006#1A12H AMA ÆFM11#324 7 Installing the driver (Windows) Sahnor notatn Ifthe setting in the Driver emmené | Signing Options dialog EE S box is not set to “ignore,” Cette midlonet étre est | à dialog box like the Lo following will appear. mes Click [Continue Anyway] to continue driver installation. 11 ; ; nôt A dialog box entitled “Setup is now ready to install the Lren Once the connections have drivers” appears. been completed, turn on Use a FireWire (IEEE 1394) cable to connect the FA-66 to power Lo your various devices u in the order specified. By Your computer. tuning on devices in the

1. With the power switch turned off, connect the AC wrong order, pu risk using

malfunction and/or damage to adaptor to the FA-66. speakers and other devices.

2. Plug the AC adaptor’s power cord into an AC outlet.

3. Use a FireWire (IEEE 1394) cable to connect the FA-66

to your computer. à This unit is equipped with a 12 Jun on the power switch of the FA-66. protection circuit À brief The “Found New Hardware” message appears near the interval (a few seconds) after taskbar. Please wait power up is required before ù ù ; the unit will operate normally. 18, dialog box entitled Welcome to the Found New Hardware Wizard appears. Make sure that the box indicates “EDIROL FA-66 Sub 1,” choose “Install the software automatically (Recommended),” and click [Next] 14, dialog box entitled “Completing the Found New MED Hardware Wizard” appears Ifthe Found New Hardware ar Ppears Wizard asks you whether you Click [Finish]. want to connect to Windows Once again, the “Found New Hardware” message appears nr Si “No” and then near {he taskbar. Please wait. Sick [Next

A dialog box entitled Welcome to the Found New Hardware Wizard appears. Make sure that the box indicates “EDIROL FA-66 Sub 2,” choose “Install the software automatically (Recommended),” and click [Next]

A dialog box entitled “Completing the Found New Hardware Wizard” appears. Click [Finish]. The “Found New Hardware” message appears near the taskbar. 17 In the EDIROL FA-66 Driver Setup dialog box that is already displayed, click [l Completed the Above Steps]. The “Found New Hardware” message appears near the taskbar.

The Welcome to the Found New Hardware Wizard dialog box appears. Make sure that the box indicates “EDIROL FA-66,” choose “Install the software automatically (Recommended),” and click [Next].

d ( A dialog box like the following will appear if “Driver Signing Options” is not set to “Ignore.” If a dialog box with the “!” symbol appears...

1. Click [Continue Anyway].

2. Continue with the installation.

If a dialog box with the “X” symbol appears...

2. When the “Found New Hardware Wizard” appears,

3. Return to step 1 (p. 24), and re-install the driver from

A dialog box entitled “Completing the Found New Hardware Wizard” appears. Click [Finish]. Once again, the “Found New Hardware” message appears near the taskbar. This completes driver installation.

If you changed the “Driver Signing Options” setting (p. 24, step 4), restore the setting to its previous state after restarting Windows.

Log on to Windows using the same user account as the one used when the driver was installed. From the Windows start menu, choose Control Panel. In “Pick a category,” click Performance and Maintenance. In “or Pick a Control Panel icon,” click the System icon. The System Properties dialog box appears Depending on your system, the System icon may be shocn directly in the Control Panel (Classic view). If so, double-click the System icon. Click the Hardware tab, and then click [Driver Signing]. The Driver Signing Options dialog box appears. In Driver Signing Options, restore the previous setting (*Warn” or “Block”) and click [OK] Click [OK]. The System Properties dialog box closes. Next, you need to set your computer so priority is given to background services, which will help to assure that audio and MIDI processing occur smoothly. (> “Giving priority to background services” (p. 29))

4 A e 4 -66_e.book 29 K— 2006#1A12A AMAR ÆFA11H#32% ||@ Installing the driver (Windows) | Giving priority to background services Crackling may oceur in the sound if you omit making this MEMD setting. To ensure that audio and MIDI are processed smoothly, make the setting as follows Depending on your system, the System icon may be displayed directly in the 1 . Control Panel (Classic view). Open the System Properties dialog box. 1fs0, double click the System

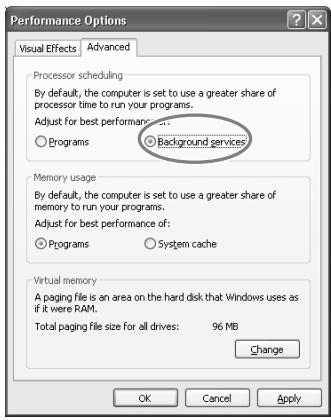

2. In “Pick a category,” click “Performance and

3. In “or Pick a Control Panel icon,” click the System

icon. Click the Advanced tab. Click [Settings] located at the right of the Performance area. The Performance Options dialog box appears. PS 4 LA Clickthe Advanced cms C LA a = î Sin processor Reeene Scheduling, choose atteste “Background = services,” and click Du cmt tt md [OK] a rt pm a Crop Osamen 5 In the System sua Behadaatirend Properties dialogbox, |. #*#% ana atome sara click [OK]. The Can) System Properties dialog box closes ae Can) Next, you need to make audio device and MIDI device settings. (> “Driver settings” (p. 30)

Len Installing the driver (Windows) Driver settings About the input and output devices In order to get the best performance from the software you are using, you must choose the correct device settings. The FA-66's audio driver supports WDM and ASIO 2.0. 6_e.book 30 K—> 2006#1A12A *AMA ÆFÂ11#329 Audio devices Audio output device (WDM)_] EDIROL FA-66 Out 1-3 Note I Audio input device (WDM) | EDIROL FA-66 In 1-3 Note 1 ASIO device EDIROL FA-66 Note 1: Refer to “How WDM ports correspond to FA-66 output jacks” (p.31). MIDI devices

EDIROL FA-66 MIDI OUT

MIDI OUT 1f you specify EDIROL FA-66 as the output port for your sequencer software, etc, messages will be sent from the FA-66/ MIDI OUT connector.

EDIROL FA-66 MIDI IN

MIDI IN If you specify EDIROL FA-66 as the input port for your sequencer software, etc, messages will be received from the FA-66' MIDI IN connector. *_ For details on how to make settings for your software, you should also refer to the owners manual for your soffware, as well as to “Software settings” (p. 40) *_ If you are unable to select the FA-66 in the device setings of your software, it is possible that the FA-66 driver was not installed correctly. Please re-install the driver.

PSI 6_e.book 31 K—% 2006#1A12A AA ÆM11#324 > Installing the driver (Windows) WDM Use this if you are using the FA-66 with the following applications or situations. +. Conventional applications such as Media Player (for the settings, refer to “Input/output device settings” (p. 32)) + WDM driver mode compatible applications such as SONAR +_ DirectSound compatible applications ASIO Use this if you are using the FA-66 with an ASIO-compatible application such as Cubase. In the ASIO settings of your application, choose “EDIROL FA-66." You will be able to use ten inputs and ten outputs.

• When using the FA-66 with ASIO, we recommend that you not set your application to use the Microsoft GS Wavetable SW Synth. (This will decrease the process load, and make it easier to change the driver buffer size.) How WDM ports correspond to FA-66 output jacks FA-66 output : FA-66 input WDM output port Jake WDM input port face L | OUTPUT jack 1 L | INPUT jack 1 EDIROL FA-66 OUT 1 R | OUTPUT jack 2 EDIROL FA-66 IN 1 R | INPUT jack 2 Le L | OUTPUT jack 3 6 L | INPUT jack 3 EDIROL FA-66 OUT 2 R | OUTPUT jack 4 EDIROL FA-66 IN 2 R | INPUT jack 4

EDIROL FA-66 OUT 3 EDIROL FA-66 IN 3

• This port is not dis- Digital output * This port is not dis- Digital input played when operat- connector played when operat- connector ing at 192 KHz. ing at 192 kHz. If you have turned on software monitoring in your application, turn the FA-66's hardware monitoring (direct monitor) off to prevent double monitoring and to keep an audio feedback loop from occurring. DRECTMONT ds ds

PSI 6_e.book 32 K—2 2006#1A12A AA FM11H#324 À bd Installing the driver (Windows) Input/output device settings MERD Depending on your system, If you will be using the Windows Media Player application the System icon may be with the FA-66, specify the input/output devices as displayed directly in the follows. Control Panel (Classic view). 1fs0, double-click the System The method in which you make device settings will RQ ORDRE EEE he Er depend on the software you are using. For details, refer to the owner's manual for your software. Open the Sound, Speech, and Audio Devices If you are using sequencer u software, you will need to Properties dialog box. make audio and MIDI device

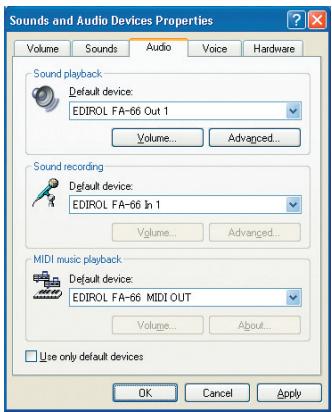

1. From the Windows start menu, choose Control settings from within your

software. For details, refer to Panel. the owners manual for the

2. In “Pick a category,” click Sound, Speech, and software you are using,

3. In “or Pick a Control Panel icon,” click the Sounds

and Audio Devices icon. Click the Audio tab. — If you are using the 192 KHz sample rate on Windows XP, & In the Sound Er the FA-66 may not appear in lsyback, Sound ® Fe the Sounds tab of the Sounds playback, Soun ou raaur Ü and Audio Devices Properties recording, and MIDI dialog box. If so, please update music playback es your system to Windows XP areas, cickthe Default | Æ fr. Service Pack 1. device field. From the _ list that appears for Da tetes each field, choose the can nôtre eu ses morouT device shown below. = Each input/output device can Cusoirétandn only be used by one software application at a time; multiclient usage is not Sound playback EDIROL FA-66 Out 1 supported. Sound recording EDIROL FA-66 In 1 MIDI music playback EDIROL FA-66 MIDI OUT Click [OK] to close the Sounds and Audio Devices Properties dialog box. This completes the audio and MIDI input/output settings. &) 32 ds ds N N

PSI o dr -66_e.book 33 X—5 2006#1A12A *MA ÆF11#329 7 {es} SP Installing the driver (Windows) | Checking that you hear sound Now, let's play back the sample data to verify that the connections and settings are correct. We will use standard nôte Windows functionality to play back the sample data Use of the song data supplied provided on the included CD-ROM. with this product for any purpose other than private, Before you continue, connect headphones or monitor ï ones 0 personal enjoyment without speakers to the FA-66 as described in “Basic he permission of the connections” (p. 35). copyright holder is prohibited by law. Additionally, this data must not be copied, nor used Insert the CD-ROM into the CD-ROM drive of your in a secondary copyrighted u . work without the permission computer of the copyright holder From the SampleSong folder of the CD-ROM, drag nôtre TTears(.mp3) onto your desktop. CPS) onto y P The contents of the menu that , | appears will depend on your Set the FA-66's sample rate select switch to 48 kHz. system You’ll need to cycle the power to the FA-66 after changing the sampling rate. Right-click the TTears(.mp3) file you copied, and choose MED Play from the menu that appears. à If the volume is too low, or if PS La Playback begins. you don't hear sound at all, try LA turning the FA-66's direct Ifthe sample data plays correctly, the FA-66 is correctly monitor volume knob (p. 12) connected to your computer, and the driver has also been so its positioned to the left of installed correctly. the MIX (center) position. f N bout the demo songs The SampleSong folder on the included CD-ROM contains the following demo songs. Please copy the demo songs to the hard disk of your computer before listening to them. *_ The demo songs were produced at 48 KHz. You must set the FA-66's sample rate to 48 kHz. You'Îl need to cycle the power to the FA-66 after changing the sampling rate. for Cubase folder This folder contains the demo songs as Cubase VST song files (all) and Cubase SX project files (.cpr) If you are using the Cubase SX demo version, the playback will not be correct since some functionality (such as effects) will not be available. for SONAR folder This folder contains the demo songs as SONAR project files (.cwb). K J &) 33

Installing the driver (Windows)

Software settings Before you start up your software, use a FireWire (IEEE 1394) cable to connect the FA-66 to your computer, and MEMD turn on the power of the FA-66. For the latest information, If your software allows you to specify MIDI and audio please visit input/output settings, choose EDIROL FA-66. For details, htp://wwwedirolcom/ refer to the owner’s manual for your software. Also refer to “Software settings” (p. 40). If you have turned on software monitoring in your application, turn the FA-66's hardware monitoring (direct monitor) offto preventdouble monitoring ER and to keep an audio feedback loop from occurring.

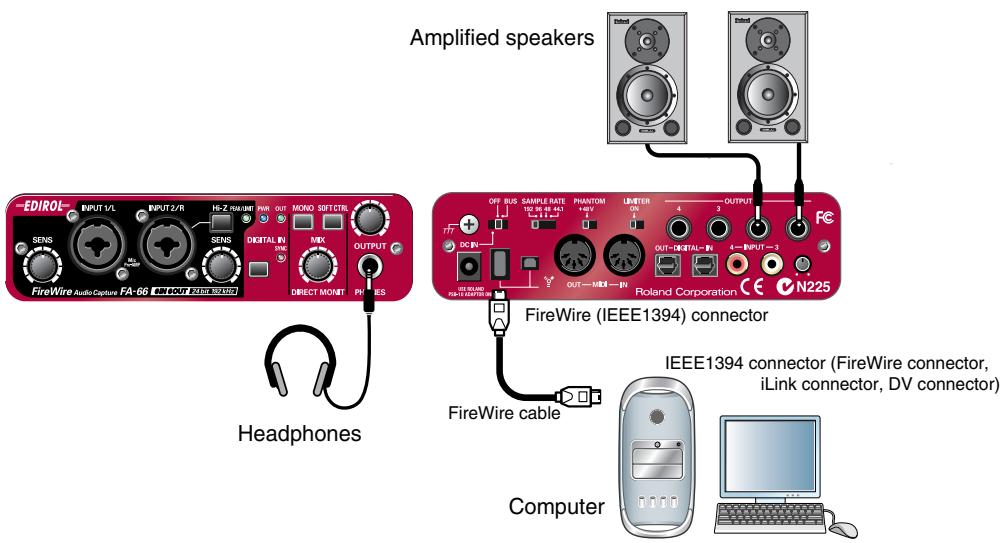

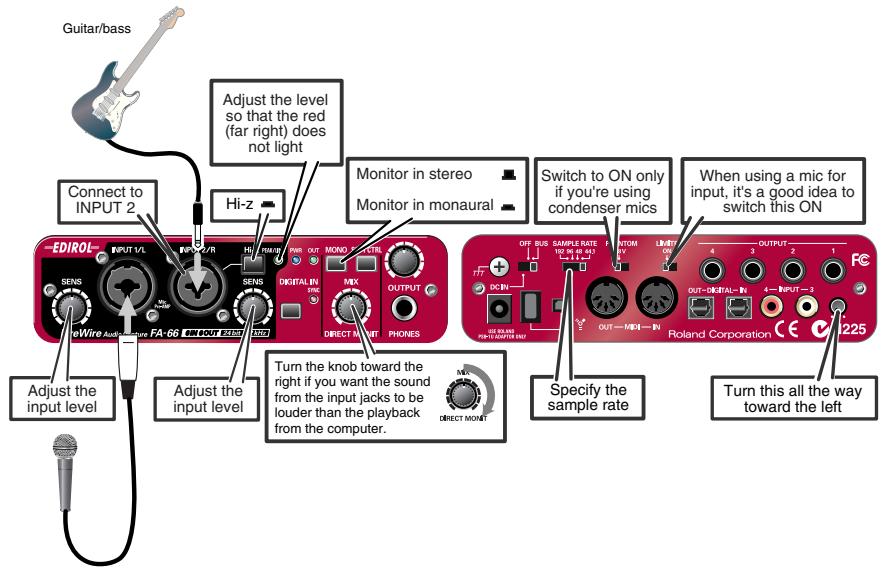

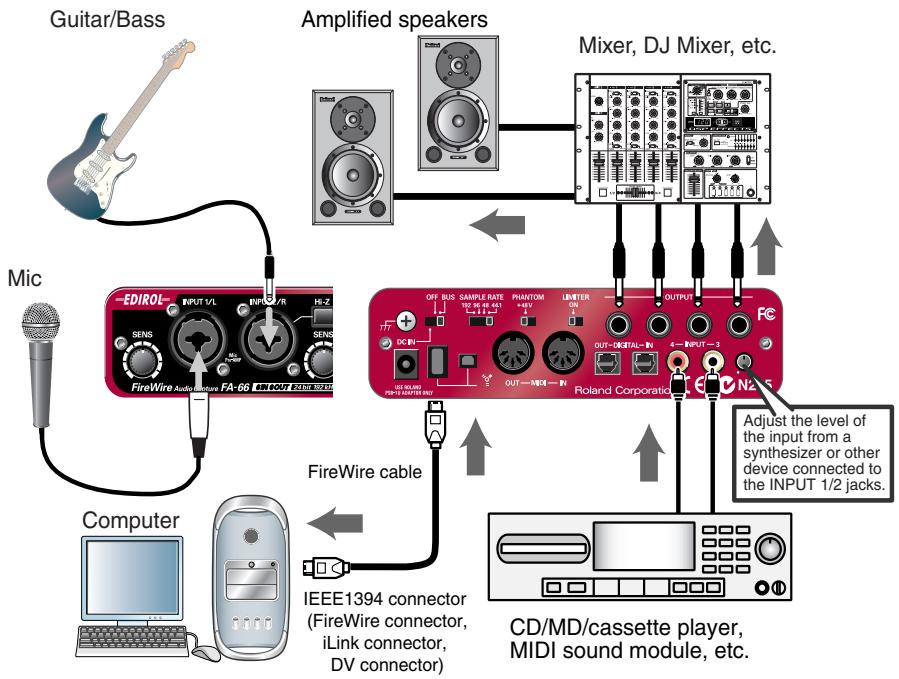

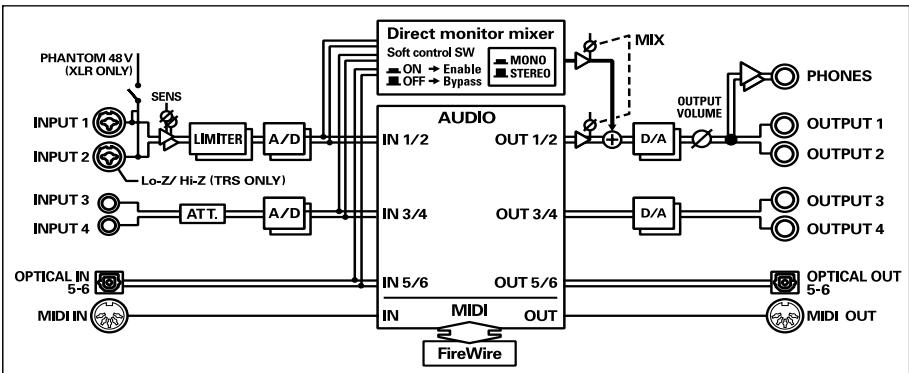

| Basic connections and settings l This section explains basic connections and data flow for the FA-66. Refer to the block diagram printed on the front cover of the manual as you read this section. Before making connections to other equipment, turn down the volume of all your equipment and turn off the power to avoid causing malfunctions or damaging your speakers. When connection cables with resistors are used, the volume level of equipment connected to the inputs (Input jacks) may be low. If this happens, use connection cables that do not contain resistors, such as those from the Roland PCS series. Basic connections Use a FireWire (IEEE 1394) cable to connect the FA-66 to your computer. MIDI data and audio data are transferred in both directions via the FireWire (IEEE 1394) cable. By connecting headphones or monitor speakers as shown in the diagram below, you can monitor the playback from your software or the sound from an instrument or audio device connected to the FA-66. @ Amplified speakers HO, 1EEE1394 connector (FireWire connector, iLink connector, DV connector) Headphones Computer | é

4 A e 4 -66_e.book 36 K—> 2006#1A12A AMAR ÆFA11H#32% 1 PS F7 SP Basic connections and settings | Recording a mic or guitar Here’s how to make connections and settings to let you sing or play your guitar while listening to audio data on your computer, and record just the vocal or guitar into your sequencer. Agjust he level 0 that red {tar righD does not ight = Montorin stereo æ ]fSuitchto ON on] [ Wnenueing a mi or IRBUT 2 Monitor in monaural m. |] coxdencermés | |" "suicn te on Rolana Cororsten € € Taie Ko mare 1 "| ro you vante sound L— Le Mputlevel pui leve_|] son re meute ae Se mie on he let rom the computer. ss æ A LA T Connections The sound of the mic connected to INPUT 1 will be recorded in your computer as the left (L) channel. If you connect a source to INPUT 2, it will be recorded on the right (R) channel. Connect your guitar to INPUT 2. Sample rate select switch Set this to the same sample rate as selected in your recording software. If you switch the FA-66s sample rate, you must turn the power of the FA-66 off, then on again to get the setting to take effect. Input impedance select switch If you've connected a mic to INPUT 2 Select Lo-Z. If you've connected a guitar to INPUT 2 Select Hi-Z. STEREO/MONO select switch (direct monitor section) Set this according to whether you want to monitor the input signal in stereo or in monaural. n 36

e | 7 FA-66_e.book 37 N—> 2006#1A12A MA ÆFA11#329 Basic connections and settings Direct monitor soft control switch Turn this on if you want to control input monitoring from ASIO 2.0 compatible software. Direct monitor volume This adjusts the balance between the monitor volume and the audio playback volume from your computer. Adjusting the direct monitor volume will not affect the recording level. Phantom power switch If you're using a condenser mic, turn the phantom power switch on. *_ Ifa device that does not use phantom power is connected, you must turn off the phantom power switch. Failing to do so may cause malfunction. Input sensitivity knob Use the input sensitivity knob to adjust the input level. For the best audio quality, raise the level until it is as high as you can get it without causing the input level indicator to light in red. Other notes Don't connect anything to jacks you are not using. Howling could be produced depending on the location of microphones relative to speakers. This can be remedied by: | À 1. Changing the orientation of the microphone(s). FN

2. Relocating microphone(s) at a greater distance from speakers. SP

3. Lowering volume levels. Ï

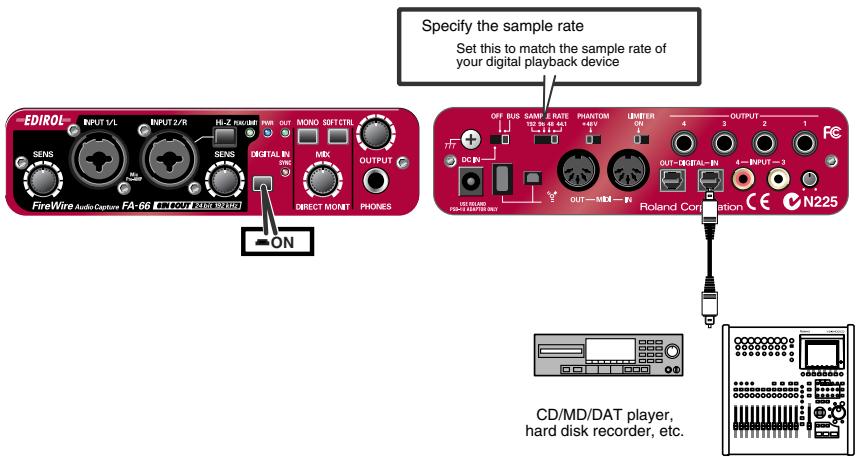

Basic connections and settings Recording a digital signal Specify he sample rate

Set this to match ie sample rate of your doll playback deuee CD/MD/DAT player. hard disk recorder, etc. Connections Connect your digital device to the digital input connector. Sample rate select switch | oO) Set this to match the sample rate of your digital playback device and the sample oO rate of your recording software. Ï If you switch the FA-66s sample rate, you must turn the power of the FA-66 off, then on again to get the setting to take effect. nôtre You cannot record digital signals if the 192 kHz setting is selected. Digital input switch Turn this on so that the FA-66 will synchronize to the digital signal being input to the digital input connector. When synchronized correctly, the sync indicator will light green. If this indicator is blinking green, synchronization has not been achieved. In this case, check that the sample rate of the connected digital device matches the sample rate selected by the FA-66s sample rate switch. Direct monitor volume This adjusts the monitor volume Adjusting the direct monitor volume will not affect the recording level.

4 A e 4 -66_e.book 39 K— 2006#1A12A AMAR ÆFA11H#32% 1 F7 F7 SP Basic connections and settings | Connecting vario pes of equipment Guitar/Bass Amplified speakers Mixer, DJ Mixer, etc. Faidat Me velo Ah input from a syminesizer or cher device connected to the INPUT 1/2 jacke À IEEE 1394 connector 1 & (FireWire connecter. CD/MD/cassette player, @ d MIDI sound module, etc. DV connector) Connections Connect output jacks 1-4 to your external mixer or other device. Direct monitor volume This adjusts the monitor volume Adjusting the direct monitor volume will not affect the recording level.

| | Software settings You will need to make audio and MIDI device settings for the software you're using. Here are some examples for typical software applications. In this example we are using SONAR 4 Producer Edition.

You must make the following settings if you have switched the FA- 66's sample rate or have changed the buffer size in the FA-66 Driver settings dialog box

1. Power up the FA-66, and then start up SONAR.

In the Playback and Recording area, verify that Driver Mode is set to WDM/KS. *_ If you change this setting, click [OK] and restart SONAR. Restart SONAR, and from the Options menu, choose Audio to open the Audio Options dialog box.

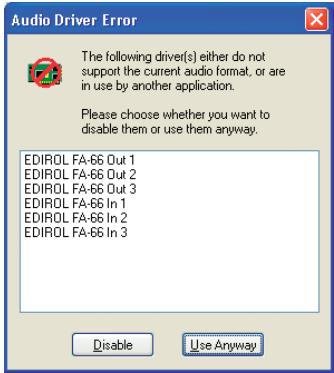

5. Restart SONAR, and from SONAR's Options menu, choose Audio to open the

When Wave Profiler is finished, click [Close].

8. Restart SONAR, and from SONAR's Options menu, choose Audio to open the

Audio Options dialog box.

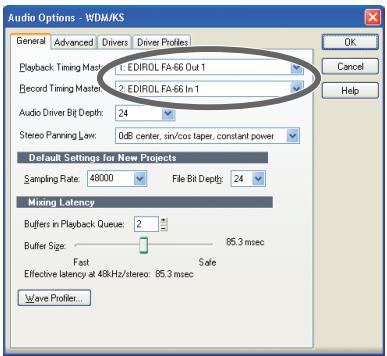

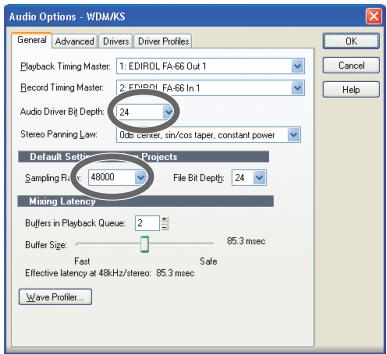

9. In the General tab, make sure that

Playback Timing Master is set to EDIROL {&) FA-66 OUT, and Record Timing Master is set to EDIROL FA-66 IN.

10. Click the Driver Profiles tab.

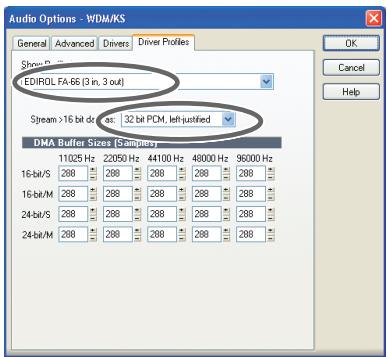

Select EDIROL FA-66 (3 in, 3 out) as the setting for “Show Profile for,” and then select “32 bit PCM, left-justified” as the setting for “Stream > 16 bit data as.”

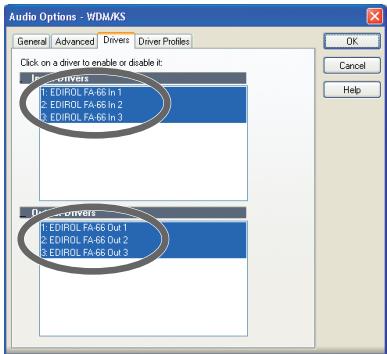

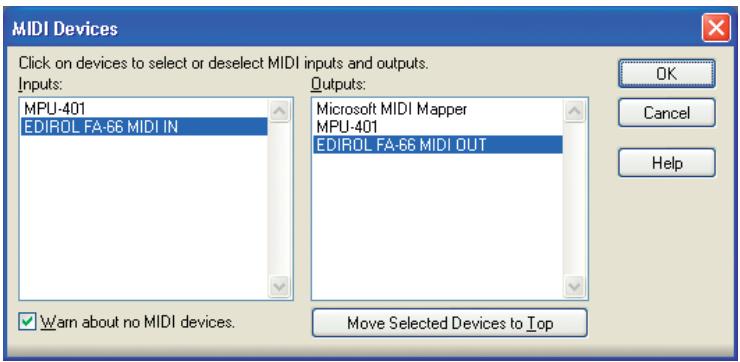

13. In the MIDI Devices dialog box, choose the FA-66 in the Inputs area and the

Outputs area. HIDI Devices Cick on devices lo select ot deslect MIDI inputs and output Inputs: Dupuis: Ex] MP Mictosof MIDI Mapper MID MED lassa) ana oMDI de

15. Open the Audio Options dialog box once again as described in step 2.

Verify that the audio device settings are correct.

1. Power up the FA-66, and then start up

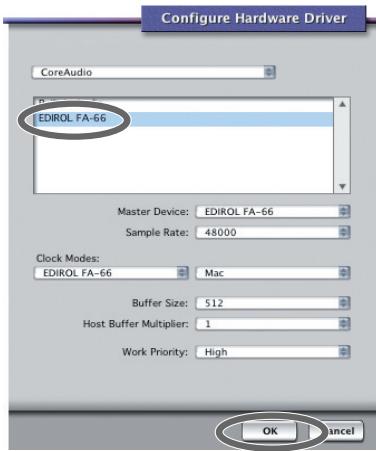

2. From Digital Performer's Setup menu,

choose Audio System, and verify that MOTU Audio System is checked.

it, and then click [OK]

1. Power up the FA-66, and then start up Logic.

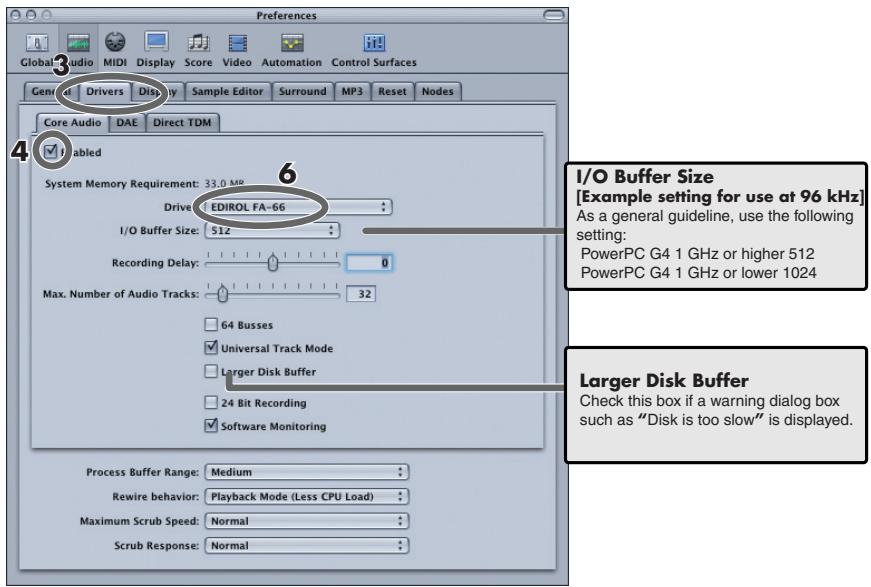

Click the Drivers tab. In the Core Audio section, select (add a check mark to) the checkbox located at the left of Core Audio.

as [Example setting for use at 96 kHz] RC) As a general guideine, use the following so sat sue DE CT n Tr PowerPC G4 1 GHz or higher 512 D PowerPC G4 1 GHz or lower 1024 net in RU EÇE Clos ausses vera Tac Mode Cgue on urer (Ca niRccendins Fsorare montorins. Larger Disk Buffer Check hi box if a warning dialog box such as “Disk is 100 slow” is displayed. Pre taf ange (dm 5) Anar ame sen see nt pere (mt 5

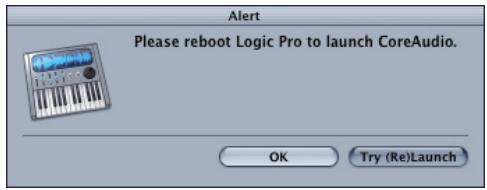

5. If a dialog box like the following appears, click [Try (Re)Launch].

8. Ifthe Aleart dialog box appears, click [Try (Re)Launch].

1. Power up the FA-66, and then start up Cubase.

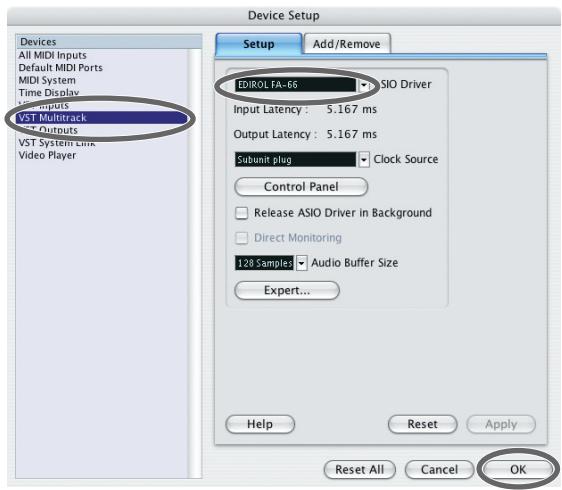

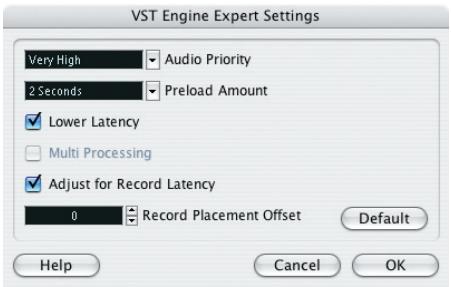

2. From the Devices menu, choose Device Setup to open the Device Setup

3. In the Devices list at the left side of the dialog box, choose VST Multitrack.

4. Select the Setup tab in the right side of the dialog box.

6. Click [OK] to close the Device Setup dialog box.

4 A e 4 -66_e.book 46 K— 2006#1A12A AMAR ÆFA11H#32% 1 F7 F7 SP Software settings | FA-66 Driver Settings dialog box (Windows) There is no FA-66 Driver Settings dialog box on Macintosh. Make 6 FE settings from within your software. You can adjust the audio latency by changing the FA-66 driver settings. Decreasing the buffer size will shorten the latency. Increasing the buffer size may eliminate problems such as clicks or pops in the sound.

• Latency is the time delay from aohen the sofitvare plays back audio data until sound is actual heard from an audio device such as the FA-66. Here’s how Lo adjust the buffer size.

1. Close any software that is using the FA-66.

2. From the Windows start menu, choose Control Panel.

3. Click “Switch to Classic View” to select the Classic view.

Depending on your system, the Classic view may already be selected. If so, proceed to the next step. {&) MI {&) @ 4. In the Control Panel, double-click the EDIROL FA-66 icon. æ @ The EDIROL FA-66 Driver settings dialog box will appear EDIROL Fâ-66

5. Set WDM and ASIO to Normal.

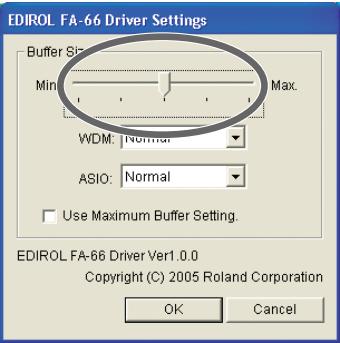

6. Move the Buffer Size slider to the far left (Min).

If clicks or pops occur with the current setting, move the slider one step toward the right from its current value.

7. Click [OK] to close the dialog box. Do

8. Turn the power of the FA-66 off, then on again. D Use ac BurerSerng

Atthis time, be sure to close all software before | so eemonuverne you turn the FA-66's power off. Cape) 2005 aa coraraton *_ If you power of the FA-66 off while using your soffware, it may not operate correctly. &) 46

F66_e.book 47 K— 2006#1A12A ÀMA ÆH11#32% > Software settings

9. Re-start the software that is using the FA-66.

If your software includes a function for testing audio devices, execute the test function after re-starting the software.

• Sebtings are not applied until you restart your software.

10. Play back audio data on your software.

If you hear clicks or pops, close the software, and repeat steps 4-10 until you no longer hear clicks or pops. This complets the basic settings. If you are using WDM or ASIO compatible software, and you still experience clicks or pops in the sound even after making the above setting, or if you want to make the latency even shorter, you can change the settings from the pulldown CT ETS menu. WDM When using the FA-66 with the following software + Conventional software such as Media Player + When using an application such as SONAR in WDM driver mode + When using DirectSound software Normal normal size Smaller smaller buffer than Normal (shorter latency) ASIO When using the FA-66 with ASIO-compatible software such as Cubase + Conventional software such as Media Player + When using an application such as SONAR in WDM driver mode + When using DirectSound software Normal normal size Smaller smaller buffer than Normal (shorter latency) Larger larger buffer than Normal (if clicks or pops occur) If you still experience clicks or pops even though you have specified the largest buffer size, check Use Maximum Buffer Setting. If this item is checked, the slider and the settings of the WDM and ASIO items will be ignored, and an even larger buffer size will be used. If you still experience clicks or pops even after doing this, the problem may lie elsewhere. Please refer to the Troubleshooting section.

• Depending on your sofhvare, there may also be a buffer size and latency adjustment in the audio settings of your sofltoare. For details, refer to the otner's manual for your software. A A

Î | Troubleshooting If you experience problems, read this chapter first/ It contains tips for solving most problems. Driver-related problems (Windows) Can't install the driver correctly

You attempted to install as described in “Installing the driver,” but did not succeed. Install the FA-66 driver once again as described in “installing the driver (Windows)” (p. 24). Also check the Device Manager to see whether “Other device,” “Unknown device,” “?,"“!," or “x” is shown for any device. If you see such a device, delete it. Does the Device Manager show “Other device,” “Unknown device,” or any device marked with “2,” #1,” or “x”? If driver installation did not end successfully, the installed driver may remain in an incomplete state. Install the FA-66 driver once again as described in “nstalling the driver (Windows)” (p. 24). @) Is the FA-66 connected correctly? Make sure that you have used a FireWire (IEEE 1394) cable to correctly connect the FA-66 to the FireWire (IEEE 1394) connector of your computer. Is the FA-66 powered up? Make sure that the FA-66’s power is on. Make sure that the POWER switch is on. Could the FA-66's power switch be set to BUS? Even if you normally use the FA-66 on bus power, you should connect the AC adaptor and set the power switch to the DC IN position while installing the driver (so that the power supply does not become unstable). Could other FireWire (IEEE 1394) devices be connected? When installing, all FireWire (IEEE 1394) devices other than the FA-66 should be disconnected from your computer. If you have connected the FA-66 to an external FireWire (IEEE 1394) hard disk, please connect the FA-66 directly to an IEEE 1394 connector (FireWire connector, iLink connector, DV connector) on the computer itself. Could other applications or resident software (such as an anti-virus program) be running? Installation may not occur correctly if other programs are running. Be sure to close all other programs before installing. & 48

Are you attempting to install from a networked CD-ROM drive? You cannot install from a networked CD-ROM drive. Could the CD-ROM or the lens of your CD-ROM drive be dirty? If the CD-ROM or the lens of your CD-ROM drive are dirty, the installer may not work correctly. Use a commercially available CD cleaner or lens cleaner to clean the CD-ROM and/or lens. Are the power conservation settings of your computer turned off? If power conservation settings are turned on for your computer, disable these settings. (For details on how to disable them, refer to the owner’s manual of your computer.) Is there enough free space on your hard disk? Delete unneeded files to increase the amount of free space. After deleting the file(s), empty the recycling bin. Is the FireWire (IEEE 1394) connector enabled on your computer? Refer to the owners manual for your computer, and verify that the FireWire (IEEE 1394) connector of your computer is enabled. The driver cannot be installed unless the FireWire (IEEE 1394) connector is enabled. Does your computer or FireWire (IEEE 1394) repeater hub have a sufficient power supply? If you are using bus power, the FA-66 cannot be connected if insufficient power is being supplied to it Check whether the following cases might apply.

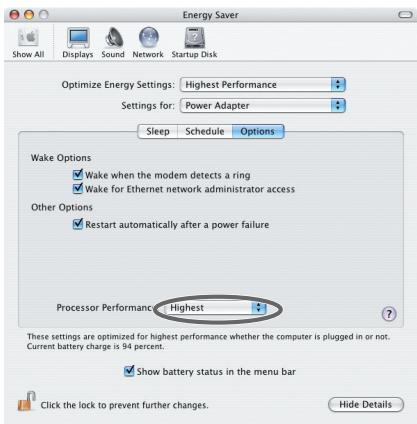

+_ If you are using a notebook computer running on its battery, operation may be unstable with some computers. If this is the case, connect your computer to its AC adaptor. + The power conservation mode of your computer may be limiting the power it supplies to the FireWire (IEEE 1394) connector. Re-examine the settings of your computer. + The FA-66 cannot be used with some bus-powered repeater hubs (hubs that do not have their own power supply). Use a self-powered hub (a repeater hub that has its own power supply). Does your computer meet the FireWire (IEEE 1394) specification? Operation may be unstable if you are using a computer that does not electrically meet the FireWire (IEEE 1394) specification. If so, you may be able to solve the problem by connecting a FireWire (IEEE 1394) repeater hub that has its own power supply.

Troubleshooting Can't install/uninstall the driver Did you log onto Windows as a user with administrative privileges? In order to install/uninstall/reinstall the FA-66 driver in Windows, you must log onto Windows as a user with administrative privileges, such as Administrator. Did you make the “Driver Signing Options” setting? You must set “Driver Signing Options” in order to install/reinstall the driver. (p.24) Windows displays an “Installing Hardware,” “Did not find digital signature” dialog box. Did you make the “Driver Signing Options” setting? You must set “Driver Signing Options” in order to install/reinstall the driver. (p.24) The “Welcome to the Found New Hardware Wizard” dialog box appears even though you installed the driver. Did you connect the FA-66 to a different FireWire (IEEE 1394) connector than the one you used when installing the driver? If your computer or FireWire (IEEE 1394) hub has two or more FireWire (IEEE 1394) connectors, and you connect the FA-66 to a FireWire (IEEE 1394) connector to which you have not previously connected it, this dialog box may appear even though you have already installed the driver. (This is not a malfunction.) Install the FA-66 driver once again as described in “nstalling the driver {Windows)” (p.24)

4 A 7 FA-66_e.book 51 A 2006Æ1A12A AMF ÆFH11#324 / Troubleshooting Can't record or play back audio or MIDI No sound Are the volume controls of the FA-66 set appropriately? Adjust the output volume knob and direct monitor volume of the FA-66‘s front panel. Is your audio playback system (e.g., stereo) connected correctly? Make sure that the FA-66's output jacks are correctly connected using audio cables to the input jacks of your audio playback system. For details on connections, refer to “Basic connections” (p. 35). Did you connect/disconnect the FireWire (IEEE 1394) cable or cycle the power to the FA-66 while your software was running? You must close all software that uses the FA-66 before powering off the FA-66. If you start up your computer with the FA-66 connected, operation may become unstable for some computers. In this case, connect the FA-66 after starting up your computer. Could your computer have entered Standby (Suspend) or Sleep mode? After your computer wakes up, close all software that had been using the FA-66, and then cycle the power to the FA-66. Have you specified the audio and MIDI data output destination in the operating system? Depending on the software you are using, you may need to specify the FA-66 as the audio data output destination for your computer. For details on this setting, refer to “Audio and MIDI settings” (p. 19) or “Driver settings” (p. 30). Is the driver installed correctly? If you’re using Windows, you'll need to install a driver in order to play back audio/ MIDI data via the FA-66. For details on installation and settings, refer to “Installing the driver (Windows)” (p. 24). Are you running numerous software programs? An error message may appear if numerous software programs are running simultaneously. If this occurs, close the software you are not using. In Windows, a program is still running if it remains in the taskbar even after you close its window; close any unneeded software shown in the taskbar.

Is the FA-66's sample rate set to a rate other than 192 kHz? If the FA-66's sample rate select switch is set to 192 kHz, the digital output connector and the digital input connector are not available. Are your input/output devices connected correctly? In order to play back audio/MIDI using the FA-66, you must make the appropriate input/output device settings. For details on making these settings, refer to “Audio and MIDI settings” (p. 19) or “Driver settings” (p. 30). If you are using the 192 KHz sample rate on Windows XP, the FA-66 may not appear in the Sounds tab of the Sounds and Audio Devices Properties dialog box. If so, please update your system to Windows XP Service Pack 1. Could the FA-66 have been connected when you started up the computer? Start up the computer with the FA-66 disconnected, and then connect the FA-66. Depending on the type of computer you are using, starting up the computer when the FA-66 is already connected may cause operation to be unstable. In this case, start up your computer and then connect the FA-66.

Troubleshooting A device connected to the input jacks can’t be heard through headphones Are the input sensitivity knobs and direct monitor volume knob set appropriately? Turn the knobs toward the right to adjust the volume. Is the output volume knob raised appropriately? Turn the knob toward the right to adjust the volume. Sounds from the computer are not heard from the FA-66 Have you specified the audio data output destination in your playback software? You need to make settings in your software to select the FA-66 as the destination for the output of audio data. For details on how to make this setting, refer to the owner’s manual for the software you are using. Could your computer have entered Standby (Suspend) mode or Sleep mode? In this case, after your computer wakes up, close all software that had been using the FA-66, and then cycle the power to the FA-66 If this does not solve the problem, close your software and then restart your computer. We also recommend that you set your computer so that it does not enter Sleep mode.

Recording produces a silent file Did you specify the correct audio data input source within the operating system? Depending on the software you are using, you may need to specify the FA-66 as the audio data input source for your computer. For details on this setting, refer to “Audio settings” (p. 19) or “Driver settings” (p. 30).

dr -66_e.book 54 K— 2006#1A12A AMAR ÆFA11H#32% Troubleshooting Can't record from a digital connection When capturing audio data from a CD or MD into your computer, is the digital input switch “on”? Turn on the digital input switch. Does the sample rate of your software match the sample rate of the digital audio device connected to the digital in connector? Set the sample rate to the same setting. If you switch the FA-66's sample rate, you must turn the power of the FA-66 off, then on again to get the setting to take effect Can't play/record 24-bit audio data Does your software support 24-bit audio data? You will need to use software that supports 24-bit audio data. Is your software set to record/play 24-bit audio data? Set your software to 24-bit.

PSN < KP Î Noise or pops are heard when recording/ playing on your computer Noise is heard during audio playback Pops/clicks occur during audio playback Noise is heard in the recorded sound In Windows, did you make the setting described in “Giving priority to background services”? In order to ensure that audio/MIDI processing occurs smoothly, make the setting described in “Giving priority to background services.” {> “Giving priority to background services” (p. 29)) In Macintosh, check the Energy Saver settings. In the Mac OS System Setup, set Energy Saver as follows. Click the Sleep tab. a = à Set“Putthe computertosleepwhenit ,*, is inactive for:” to Never. = Seins Pam Aer E] Set “Put the display to sleep when the CRETE | & computer is inactive for:” t Never. se & 7 an = “= |

Click the Options tab. Ë If there is a Processor Performance mae setting, set it to Highest. otimèe Energy Santo: (High Paremanes # — æ a —

In Windows, Power Management settings in the Control Panel may cause clicks or pops to occur in the audio playback. The power management properties that appear when you double-click Power Management will differ depending on your computer system. The explanation that follows is for a typical situation, but you should refer to the owner's manual for your computer to verify these settings. Some computers may not have the following items.

1. In the Windows Control Panel, double-click the System icon. The

System Properties dialog box will appear.

Click Device Manager to see the list of devices.

From the list, choose Advanced Power Management Support, and click Properties. The Advanced Power Management Support Properties dialog box will appear. Click the Settings tab, and in Troubleshooting, check the “Don't Poll Power Supply Status” check box. Then click [OK].

Could two or more computers be connected to the FA-66 or to your mixer or audio devices? Try connecting the FA-66 to only one computer. Check whether the noise disappears when the FA-66 is connected to only one computer. Connecting numerous audio devices to a computer may produce noise in some situations. If this occurs, connect only the FA-66 to your computer. Are you using a FireWire (IEEE 1394) device in addition to the FA-66? Try switching off FireWire (IEEE 1394) audio devices other than the FA-66. If you have connected the FA-66 to an external FireWire (IEEE 1394) hard disk, please connect the FA-66 directly to an IEEE 1394 connector (FireWire connector, iLink connector, DV connector) on the computer itself. In Windows, you may be able to solve the problem by adjusting the buffer size in the FA-66 Driver Settings dialog box. Adjust the buffer size as described in “FA-66 Driver Settings dialog box {Windows)” (p. 46). After changing the buffer size, you must restart any software that uses the FA-66. If your software has an audio device test function, execute the test function.

Properties dialog box will appear. Click the Hardware tab. Click Device Manager to see the list of devices.

4. In the list, double-click Network Adapters.

The 1394 Net Adaptor will appear.

5. Double-click 1394 Net Adapter.

The 1394 Net Adaptor Properties dialog box will appear.

6. In Device Usage, choose “Do not use this device (disable).”

8. Close the Device Manager.

In the System Properties dialog box, click [OK] to close the dialog box. Are numerous software programs running? Playback may be interrupted if numerous software programs are running at the same time, or when you start up another software program. Close any unneeded software, and try again. If this does not solve the problem, try restarting your computer. Clicks or pops may oceur in the sound if a LAN is operating.

Try disabling the LAN in the Device Manager. If this eliminates the clicks or pops, you may be able to solve the problem by updating your LAN driver or BIOS. Is the sample rate setting in your software the same as the FA-66's sample rate select switch setting? Set your software and the FA-66 to the same sample rate. If you switch the FA-66’s sample rate, you must turn the power of the FA-66 off, then on again to get the setting to take effect. Try adding memory. Adding memory will improve the processing capability of your computer. For details on how to add memory, refer to the owner’s manual of your computer. If you are using a Macintosh, try pressing the FA-66’s digital input switch. Even if you aren't making use of digital input/output, problems with noise and sound dropout can sometimes be alleviated by switching the FA-66' digital input switch on and off.

Did you start up your Macintosh before connecting the FA-66? If you're using Mac OS, operation may become unstable if you first connected the FÀ-66 to your Macintosh via a FireWire (IEEE 1394) cable and then started up your Macintosh You must start up your Macintosh first, and then connect the FA-66. Is the FA-66 connected to a FireWire (IEEE 1394) hub? Try connecting the FA-66 directly to the FireWire (IEEE 1394) connector of your computer itself. Noise may be entering via the line inputs or mic inputs. If à MIDI sound module with a FireWire (IEEE 1394) connector is connected via FireWire (IEEE 1394) to the same computer as the FA-66, and the output of the MIDI sound module is connected to the input jacks of the FA-66, noise from the computer may be heard via the MIDI sound module from the FA-66. In this case, you can either connect the MIDI sound module and FA-66 in parallel via a self-powered hub, or connect the MIDI sound module in series or via a MIDI interface. Playback/recording stops midway, and subsequent playback/recording is not possible While you were using the FA-66, could your computer have performed a task with a heavy processing load, such as accessing a CD-ROM drive or | &) network? « :) If a heavy processing load occurs while the FA-66 is being used, it may not work Ï correctly. In this case, stop playback/recording, and then start playback/recording once again. If you are still unable to play /record correctly, close all software that had been using the FA-66, and re-connect the FA-66. Digitally recorded sound has distortion, the wrong pitch, or contains noise Is the sample rate setting in your software the same as the sample rate of the digital device connected to the digital input connector? Set your software and the FA-66 to the same sample rate. If you switch the FA-66's sample rate, you must turn the power of the FA-66 off, then on again to get the setting to take effect.

Noise or distortion occurs when the FA-66 is not connected to your computer The sound is too weak Noise is heard in the sound Has a mie or guitar been left connected? If a mic or guitar is connected to the FA-66, disconnect the mic or guitar and turn the input sensitivity knob all the way toward the left (lowering the input level) Have you connected the grounding terminal? Connecting the chassis of your computer or the grounding terminal of your computer’s AC power cord to an electrical ground may solve the problem. Also, make sure that a device that produces a strong magnetic field, such as a television or microwave oven, is not located nearby. Could numerous audio devices be connected? Noise may occur if numerous audio devices are connected. Do not connect audio devices you are not using. PS Sound is distorted

Is the output level indicator lit red? If you are inputting sound via the combo input jacks, use the FA-66's input sensitivity knobs to lower the input level. Sound of a device connected to the input jacks is distorted Insufficient volume from a device connected to the audio input/output jacks Is the input level appropriate? If you are inputting audio via input jacks 3 and 4, use the FA-66's input level adjustment knob (rear panel) to adjust the input level. If you are inputting audio via the combo input jacks, use the input sensitivity knobs (front panel) to adjust the input level. If you are inputting audio via the INPUT2 combo input jack, check the setting of the input impedance select switch. Is the direct monitor volume set appropriately? Adjust the volume as described in Direct Monitor Volume (p. 12).

se!) AS | | $-Fx66 ebook 60 «> $ Troubleshooting A substantial amount of noise is present in the guitar sound Does the noise decrease when you turn down the volume of your guitar? If the noise decreases when you turn down the volume of your guitar, the guitar pickup may be affected by noise from your computer or display. Try locating the guitar as far away from the computer as possible. Insuffi lent volume from your guitar Are you using fhe correct jack? Connect your guitar to the INPUT 2 combo input jack Is the input impedance select switch set correctly? Set the input impedance select switch to Hi-Z. Insufficient volume from a mic Is the input level appropriate? Turn the input sensitivity knob toward the right to adjust the input volume.

4 A e | 7 FA-66_e.book 61 K—> 2006#1A12A MA ÆFA11#329 /] ||® Troubleshooting | Can't start the Cubase The first time you use the FA-66 with Cubase, turn on the power with the FA-66's sample rate select switch at the 44.1 kHz position. If this switch is not set to 44.1 kHz, it may be impossible to start Cubase.

j Main specifications © Number of Audio Record/Playback Channels <44.1/48/96 kKHz> Record: 6 channels Playback: _ 6 channels (Full duplex) <192 kHz> Record: 4 channels Playback: 4 channels (Full duplex) *_ Depending on the computer you are using, you may be unable to obtain sufficient performance. ignal Processing PC interface:24 bits AD/DA Conversion:24 bits (linear) © Sampling Frequency Digital output:44.1/48/96 KHz Digital input:44.1/48/96 KHz AD/DA Conversion:44.1/48/96/192 KHz © Frequency Response

© Nominal Input Level Input Jack 1-2 (XLR type)-50 to -10 dBu Input Jack 1-2 (1/4 inch TRS phone type)-35 to +4 dBu Input Jack 3-4: -10 dBu to +13 dBu (balanced) © Nominal Output Level Output Jack 1-4: +4 dBu (balanced) © Residual Noise Level (input terminated with 1 k ohms, MAIN VOLUME: 0 dB, INPUT SENS: +4 dBu, DIRECT MONITOR VOLUME: OUT1/2 position, IHF-A typ., Balanced) Output Jack 1-2: -95 dBu © S/N RATIO (Typical) OUTPUT: 105 dB (typ.) INPUT: 102 dB (typ.)

© Connectors <Front Panel> Input Jack 1-2 (XLR type / 1/4 inch TRS phone type) XLR type (balanced / phantom power +48 V) 1/4 inch TRS phone type (balanced) *_ Input jack 2 supports high impedance Headphones Jack (Stereo 1/4 inch phone type) <Rear Panel> Input Jack 3-4 (RCA pin type) Output Jack 1-4 (1/4 inch TRS phone type (balanced)) Digital In Connector (Optical type) Digital Out Connector (Optical type) MIDI Connectors (In, Out) FireWire Connectors (6 pins type, 4 pins type) © Power Supply | FN c c PS &) DC 9 V (AC adaptor) & *_ FireWire Bus Power Ï © Current Draw 650 mA © Dimensions 164 (W) x 148 (D) x 44 (H) mm 6-1/2(W) x5-7/8 (D) x 1-3/4 (H) inches © Weight 065kg/11b70z © Accessories Owner's Manual CD-ROM AC Adaptor FireWire cable (6 pins to 6 pins, 6 pins to 4 pins) (0 dBu = 0.775 V rms) *_ In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
