Product type	Decorative chimney hood
Brand	Bosch
Model	DKE965A
Dimensions (W x D x H)	900 x 500 x 615-1025 mm
Net weight	18 kg
Power supply	220-240 V, 50 Hz, 10 A
Motor power	250 W
Maximum airflow (extraction)	650 m³/h
Maximum noise level	65 dB(A)
Lighting	2 x LED, 3 W each
Grease filter	Aluminum, dishwasher-safe
Charcoal filter	Optional (specific reference)
Control type	Electronic push button
Number of speeds	3 + boost
Boost function	Yes, timed 10 min
Operating mode	Extraction or recirculation
Energy class	A+
Air outlet diameter	150 mm
Maintenance	Clean the grease filter every 4 weeks
Repairability index	7.8/10

Frequently Asked Questions - DKE965A BOSCH

How to install the Bosch DKE965A hood?

Installation must be carried out by a professional. Observe the minimum distances (65 cm above an electric hob, 75 cm for a gas hob). Securely fasten the wall plate and follow the diagrams in the manual.

How to clean the grease filters?

Remove the filters and wash them in the dishwasher at max 65°C or by hand with a degreaser. Dry them thoroughly before putting them back. Replace them if they are deformed.

Which charcoal filters to use and when to change them?

Use suitable charcoal filters (Bosch ref: ...). Change them every 4 to 6 months depending on usage, or more frequently if the hood is heavily used.

The hood is making noise, is this normal?

The noise level varies with speed: up to 65 dB at max speed. If the noise is abnormal, check that the filters are clean and that nothing is blocking the air outlet.

How to turn on/off the lighting and ventilation?

Use the buttons on the control panel: one button for lighting, one for ventilation, and a speed selector. Press and hold to activate boost mode.

Can I use the hood without external evacuation?

Yes, in recirculation mode with a charcoal filter. The air is purified and then returned to the kitchen. The charcoal filter is required and must be replaced regularly.

How to replace the LED bulbs?

The LED bulbs are integrated and not individually replaceable. In case of failure, contact Bosch after-sales service to replace the lighting module.

What is the warranty for the Bosch DKE965A hood?

Bosch offers a 2-year warranty for parts and labor. Register your product on the Bosch website to extend the warranty up to 5 years on certain parts.

Where to find spare parts?

Parts such as filters, bulbs or the motor are available on the Bosch website or from authorized dealers. Use the serial number (E-Nr) to order.

How to resolve a suction issue?

Check that the filters are not clogged, that the external air outlet is not blocked, and that the speeds are correctly selected. Cleaning or replacing the filters may be enough.

USER MANUAL DKE965A BOSCH

DKE 665A / 765A / 965A

Operating and installation instructions

Household Appliances

de page 3–13

en page 14 – 24

fr pages 25 - 35

nl page 36 – 46

it page 47 - 57

es page 58 – 68

pt page 69 – 79

Fig. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

Instructions for use:

Appliance description

Instructions for use:

Appliance description

Operating modes

Exhaust-air mode:

The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

The grease filter absorbs the solid particles in the kitchen vapours.

The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

⚠ The complete installation set and replacement filters can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.

☐ The grease filter absorbs the grease particles in the kitchen vapours.

☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

Do not use the appliance if damaged. The appliance may be connected to the mains by a qualified technician only. The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user. Dispose of packaging materials properly (see Installation instructions). This extractor hood is designed for domestic use only. Light bulbs must always be fitted when the extractor hood is in use. Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading. Never operate the extractor hood without a grease filter. Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended. Do not flambé food directly under the extractor hood.

Risk of grease filter catching fire due to flames.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance. Please retain the operating and installation instructions for a subsequent owner.

The hotplates must always be covered with a utensil. Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.

☐ Switch the ventilator OFF a few minutes after you have finished cooking.

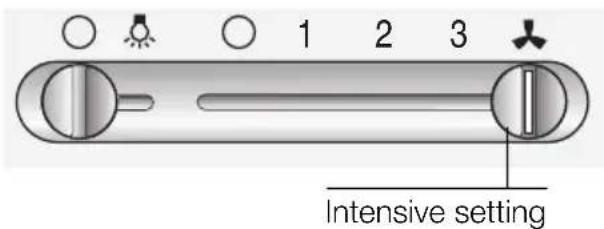

To switch ON:

☐ Push the sliding switch to the required ventilator setting.

To switch OFF:

☐ Push the sliding switch back to 'O'.

Intensive setting:

The intensive setting provides maximum ventilating power. It is only required for short periods of time.

☐ Push the sliding switch all the way across to the right.

The ridge on the switch knob lights up when the ventilator is operating on the intensive setting.

Lighting:

☐ The light can be switched on at any time, even though the fan is switched off.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned after 8 to 10 weeks.

☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.

☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes, etc.

☐ When cleaning the filters by hand, first soak them in hot soapy water. Then brush the filters clean, rinse them thoroughly, and let the water drain off.

Filters and maintenance

Removing and inserting the metal grease filters:

1. Press the catch on the grease filters inward and fold the filters down.

1. Clean the filters.
2. Insert the clean filters back into the hood.

Activated carbon filter:

For neutralizing odors in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

Inserting the filter:

1. Remove the metal filters (see "Removing and inserting the metal grease filters").
2. Insert the activated carbon filter.

1. Engage the catches at both sides.
2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

Removing the filter:

1. Remove the metal filters.
2. Press the catches at both sides of the filter inwards and lift the carbon filter down and out.

1. Insert the metal grease filters.

Replacing the activated carbon filter:

During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately once a year. A replacement filter can be obtained from any authorized dealer (see optional accessories). Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Replacing the light bulbs and cleaning:

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible. Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood. Do not scrape off any dirt that has dried on but loosen it up with a damp cloth. Do not use abrasive cleaning agents or sponges that could cause scratches. Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

Clean the sliding switch with a soft, damp cloth (mild detergent solution) only. Do not use stainless steel polish on the sliding switch.

Stainless steel surfaces:

Use a mild non-abrasive stainless steel cleaner. Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium and plastic surfaces:

Use a soft, non-linting window cloth or micro-fibre cloth. Do not use dry cloths. Use a mild window cleaning agent. Do not use aggressive, acidic or caustic cleaners. Do not use abrasive agents.

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
2. Push both catches on the light cover inwards slightly and lift the cover down and out.
3. Replace the light bulb (standard fluorescent strip, max. 11 W, G23 socket).

Important: Plug-in socket.

1. Attach the lamp cover again.

1. Plug the appliance into the mains or switch it on at the fuse box.

Important information

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Prior to installation

Exhaust-air mode

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

Prior to installation

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe. ☐ As few bends in the pipe as possible. ☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

Round pipes:

We recommend Internal diameter: 150 mm (at least 120 mm).

Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm²

∅ 150 mm approx. 177 cm²

If pipes have different diameters: Insert sealing strip.

For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Circulating-air mode

With activated carbon filter if exhaust-air mode is not possible.

⚠ The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Connecting a Ø 150 mm exhaust-air pipe:

Mount the pipe directly onto the air outlet on the hood.

Connecting a Ø 120 mm exhaust-air pipe:

Insert the reducing connector into the air connector, drill 2x Ø 3 mm holes and screw together.

Attach the exhaust-air pipe to the reducing connector.

Prior to installation

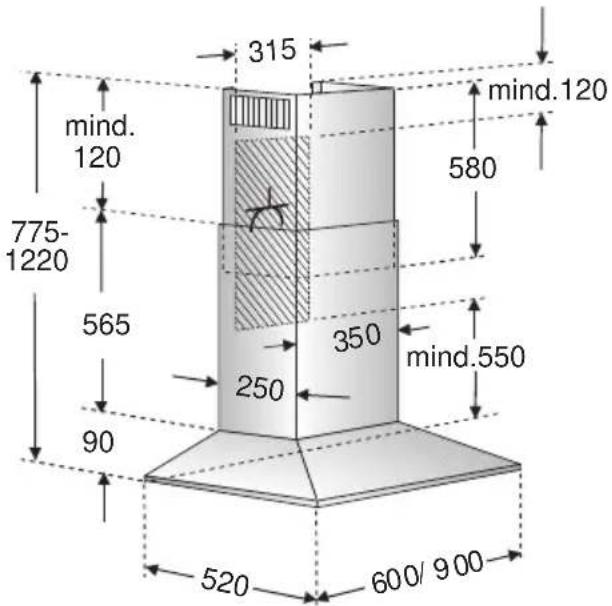

Preparing the wall

☐ The wall must be flat and perpendicular. ☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs. ☐ Appliances with a rear light:

A recess panel or tiles fitted to the wall directly under the extractor hood must not project by more than 15 mm, otherwise the light cover may be damaged.

Weight in kg:

	Exhaust air	Recirculating air
	20,260 cm	22,4
	21,5 23,770 cm
	23,2 25,490 cm

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

Electrical connection

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

1. Drill 4 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

Note: Take into account any special accessories that are going to be fitted.

1. Attach the fixing bracket for the chimney panelling using two hexagon head cap screws.
2. Screw in the two upper hexagon head cap screws leaving them extended by approx. 5 mm.
3. Attach the extractor hood to the screws.

Installation

1. Screw in the two lower hexagon head cap screws.

⚠️ Before the 4 screws are tightened down, align the extractor hood properly. 9. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

1. Connect up the air outlet pipe.
2. Connect the hood to the electricity supply.
3. Remove the protective film from the two flue ducts.

⚠️ Take care not to damage the stainless steel surfaces which are susceptible to scratches etc.

1. Push both sections of the flue panelling together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood.

⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. Slide out the upper section and attach it to the mounting brackets at the sides with two screws.

1. Insert the grease filter (refer to Operating Instructions).

Operating instructions:

Intensive extraction:

Recessed installation

Note: plug-in fitting.

1. Replace the grease filter.

1. Reconnect the extractor hood to the power supply by plugging in the plug, or switching on the fuse or circuit breaker.

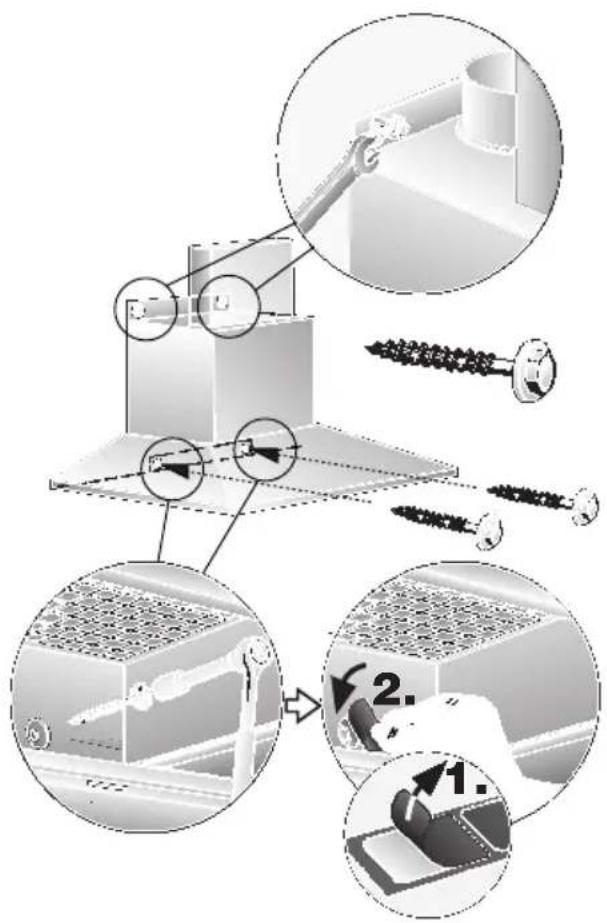

Installation

1. Screw in the two lower hexagon screws.

⚠️ Before tightening the 4 screws, the extractor hood must be aligned in place.

1. Apply a piece of protective film over each of the holes for the 2 lower fixing screws on the protective grille.

1. Connect the pipe connection.
2. Make the electrical connection.
3. Remove the protective film from both sides of the flue trim.

Before installation

1. Insert the grease filters.

Before installation Electrical connection
