USER MANUAL PBMP 30 A1 POWERFIX

EMBOUT POMPE POUR PERCEUSE PBMP 30 A1

FR BE

EMBOUT POMPE POUR PERCEUSE

Mode d'emploi

DE AT CH

BOHRMASCHINENPUMPE

Bedienungsanleitung

NL BE

BOORMACHINEPOMP

Gebruksaonwijzng

GB

DRILL PUMP

Operating instructions

FR BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR/BE	Mode d'emploi	Page 1
NL/BE	Gebruikesaanwijzing	Pagina 11
DE/AT/CH	Bedienungsanleitung	Seite 21
GB	Operating instructions	Page 31

A

B

SOMMAIRE

PAGE

Introduction 32
Safety instructions 32
Intended Usage 33
Technical Data 33
Items supplied 34
Overview of the appliance 34
Assembly material required 34
Assembly and connection 35
Disassembly of the drive shaft 37
Utilisation 38
Cleaning and care 38
Disposal 39
Declaration of conformity 39
Importer 39
Warranty and Service 40

Congratulations!

With your purchase you have decided in favour of a quality product. Familiarise yourself with the product before taking it into use. To do this, read the following operating instructions attentively. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

Safety instructions

To avoid the risk of accidents and damage to the appliance:

• Operate the pump ONLY when it is secured by the supplied mounting against jolting, twisting and canting.
• Check the pump for a faultfree condition before ever taking it into use. The pump may not be used if it shows signs of damage.

The drive shaft of the pump does not allow itself to be turned by hand. This does not indicate that the pump is defective.

• Use only hoses certified as being able to withstand a pressure of at least 3 bars (44 psi).
• Check the plug-in connectors on the hoses for firm seating.
• Take steps to ensure that the fluid being pumped cannot come into contact with the electric drill during pumping. Should it nonetheless occur, immediately remove the power plug.

• Avoid the intake of coarse dirt, otherwise the pump could be damaged. If needs be, use a filter on the suction hose.

• This appliance is not intended for use by children or other individuals whose physical, sensorial or intellectual abilities prevent safe usage of the appliance should they not receive support or supervision in the correct operation of the appliance. Children should be supervised to ensure that they do not play with the appliance.

Intended Usage

This pump is intended for ...

• standard commercial right/left rotating electric drills with a 43mm Eurospindle and a gear-wheel rim chuck/quick-release chuck or drill chuck with SDS fitting, up to rotation speed of 3400 rpm,
• the pumping of cold or up to 40^ warm fluids, such as non-potable or dirty water from fish tanks or ponds.

This pump is NOT intended for ...

• the pumping of flammable, explosive, poisonous or caustic liquids or foodstuffs.
• for industrial or commercial applications.

Technical Data

Capacity:	max. 2,4 m3/h
Hose connection:	3/4" (19 mm)
Pressure:	max. 3 bar
Delivery height:	max. 30 m
Suction height:	max. 3 m
Temperature of the fluid being pumped:	max. 40°C
Dry run time:	max. 12 seconds
Rotation speed:	max. 3400 rpm

Items supplied

-Pump
- Short drive shaft
- Long drive shaft
- Clamp fixing
- Mounting
- Open-ended spanner
- Storage box for the drive shafts and open-ended spanner
- This operating manual

Overview of the appliance

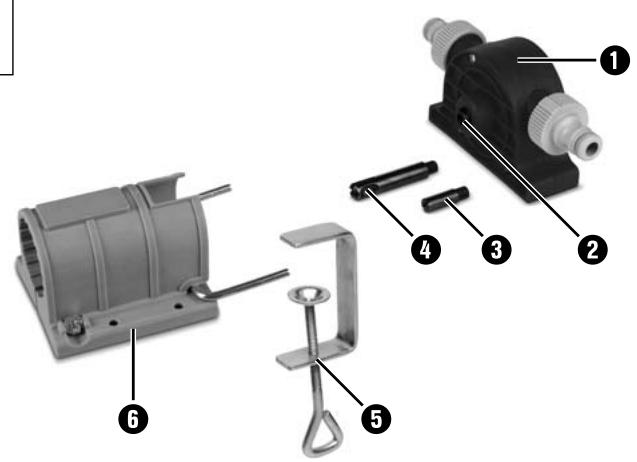

Figure A:

Pump
Drive shaft of the pump
Short drive shaft (suitable for gear-wheel/quick-release chuck)
4 Long drive shaft (suitable for a drill chuck with SDS fitting)
Clampfastening
6 Mounting

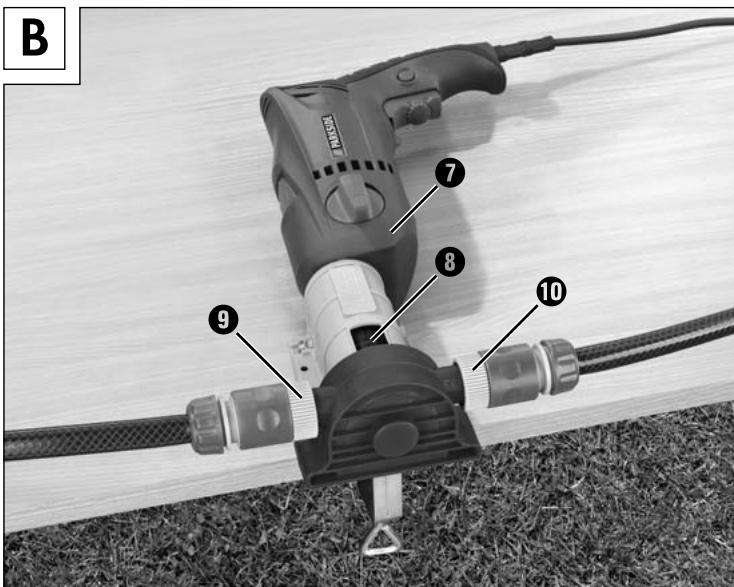

Figure B:

7 Electric drill (not supplied)
Recess for chuck key
9 Connection for suction hose
10 Connection for pressure hose

Assembly material required

• Philips-type screwdriver
• Flat-headed screwdriver
• Open-ended spanner (supplied)

Assembly and connection

Assemble the mounting 6 with the clamp fastening 5 onto a work surface, as shown in figure B.
① Alternatively, the mounting 6 can also be secured to a work surface with screws (assembly material not supplied).

When using a gear-wheel chuck and the short drive shaft 3...

Screw the short drive shaft 3 onto the drive shaft 2 of the pump 1.
Insert the electric drill ±b with the chuck into the mounting 6.
Now push the pump ① onto the mounting ⑥ so that the drive shaft ③ projects into the chuck and the pins of the mounting ⑥ are located in the reception holes on the pump ①.
Now tighten the chuck with the chuck key through the recess ⑧ so firmly that the pump ① can no longer release itself from the mounting ⑥ .
Tighten the cross-headed screw on the mounting ⑥ firmly, so that the drill cannot jolt around.
Attach the suction hose to the connection 9 and the pressure hose to the connection 10. Pay heed to the direction of flow detailed on the pump 1.

When using a quick-release chuck and the short drive shaft 3...

Secure the short drive shaft 3 into the chuck.
Insert the electric drill 7, with the pre-assembled drive shaft 3 in the chuck, into the mounting 6.
Securely tighten the cross-head screw on the mounting ⑥ so that the drill 7 is being firmly held.

Now push the pump 1 onto the mounting 6 so that the drive shaft 3 projects into the thread of the drive shaft 2, and the pins of the mounting 6 are located in the reception holes on the pump 1.
Let the drill 7 start to run in a clockwise rotation and at low revolutions and then guide the pump 1 straight onto the drive shaft 3. The drive shaft 3 is thereby secured to the pump 1.
Attach the suction hose to the connection 9 and the pressure hose to the connection 10. Pay heed to the direction of flow ≈< detailed on the pump 1.

When using a chuck with SDS fitting and the long drive shaft 4...

Attach the long drive shaft 4 into the chuck.
Insert the electric drill 7, with the pre-assembled drive shaft 4 in the chuck, into the mounting 6.
Tighten the cross-headed screw on the mounting ⑥ firmly, so that the drill ⑦ cannot jolt around.
Now push the pump ① onto the mounting ⑥ so that the drive shaft ④ projects into the thread of the drive shaft ② and the pins of the mounting ⑥ are located in the reception holes on the pump ①.
Allow the electric drill 7 to run with a clockwise rotation and low revolutions and guide the pump 1 straight on to the drive shaft 4. With this the drive shaft 4 will be fixated onto the pump 1.
Attach the suction hose to the connection 9 and the pressure hose to the connection 10. Pay heed to the direction of flow detailed on the pump 1.

Disassembly of the short drive shaft ③

Wheel rim chuck

Open the chuck with the chuck key through the recess 8 and then remove the pump 1 from the mounting 6.
Unscrew the short drive shaft 3 by using a cross-headed screwdriver and the open-ended spanner from the pump 1.

Quick-release chuck

Using the open-ended spanner through the recess 3, counter screw the drive shaft 2 of the pump 1.
Allow the electric drill 7 to run with an anti-clockwise rotation and low revolutions. The drive shaft 3 is thereby released from the pump 1.
Remove the pump 1 from the mounting 6.
Remove the drive shaft 5 from the chuck.

Disassembly of the long drive shaft 1

Chuck with SDS fitting

Using the open-ended spanner through the recess, counter screw the drive shaft of the pump 1.
Allow the electric drill ⑦ to run with an anti-clockwise rotation and low revolutions. With this the drive shaft ④ will be released from the pump ①.
Remove the pump 1 from the mounting 6.
Remove the drive shaft 4 from the chuck.

Attention!

The pump is self priming. If the pump ① does not start to suck up within 12 seconds, turn the drill ⑦ off immediately to avoid seizure. For this same reason, do not allow the pump ① to commence suction if the pressure hose on the discharge side is closed.

Place the open end of the suction hose into the liquid that is to be pumped. The suction hose may not be longer than 3m . Ensure that the suction hose does not pull in air.
If the pump 1 does not commence suction, fill the hose with some water and then lift it so that the liquid runs before the pump.
Allow the drill 7, now the pump 1, to start-up - but not without supervision, so that you can react quickly in the event of danger. Absolutely ensure that the electric drill 7 is rotating to the right, as with normal drilling. Should the rotation speed of the electric drill 7 be adjustable, you can use this to regulate the discharge flow.
Turn the drill off immediately after the container is empty.

Cleaning and care

Clean the pump ① with a dry or lightly moistened cloth only. To avoid damage to the plastic surfaces, do not use solvents or abrasive cleaning agents. The pump is maintenance free.

Do not dispose of the appliance in your normal domestic waste.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Declaration of conformity

We, Kompernaß Handelsgesellschaft GmbH, Burgstraße 21, D-44867 Bochum declare under our sole responsibility that this product complies with all requirements of the Machinery Directive: 2006/42/EC.

Type/Appliance Designation: Powerfix Profi Plus Drill Pump PBMP 30 A1 Serial number: IAN 75640

Year of manufacture: 05/2012

Bochum, dated 10.05.2012

Semi Uguzlu, Quality Manager

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured. The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
