USER MANUAL 035902 POWERFIX

CAMPING LIGHT Operation and Safety Notes

Technical specifications for mod. No. 035902

Checking for gas leaks

6. Maintenance and repair

Storage and transportation conditions

Congratulations on the purchase of your new product. You have chosen a high quality product with this purchase. These operating instructions form an integral part of this product. They contain important instructions on safety, use and disposal of the product. Please familiarise yourself with all operating and safety instructions before using the product. Only use the product as described and for the stated purpose. If the product is passed on to a third party, please provide all documents to the third party together with the product.

Important: Read these instructions carefully so as to familiarise yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. Failure to observe the instructions in the manual can lead to serious injury and may invalidate the guarantee. Safety instructions

2. Safety instructions

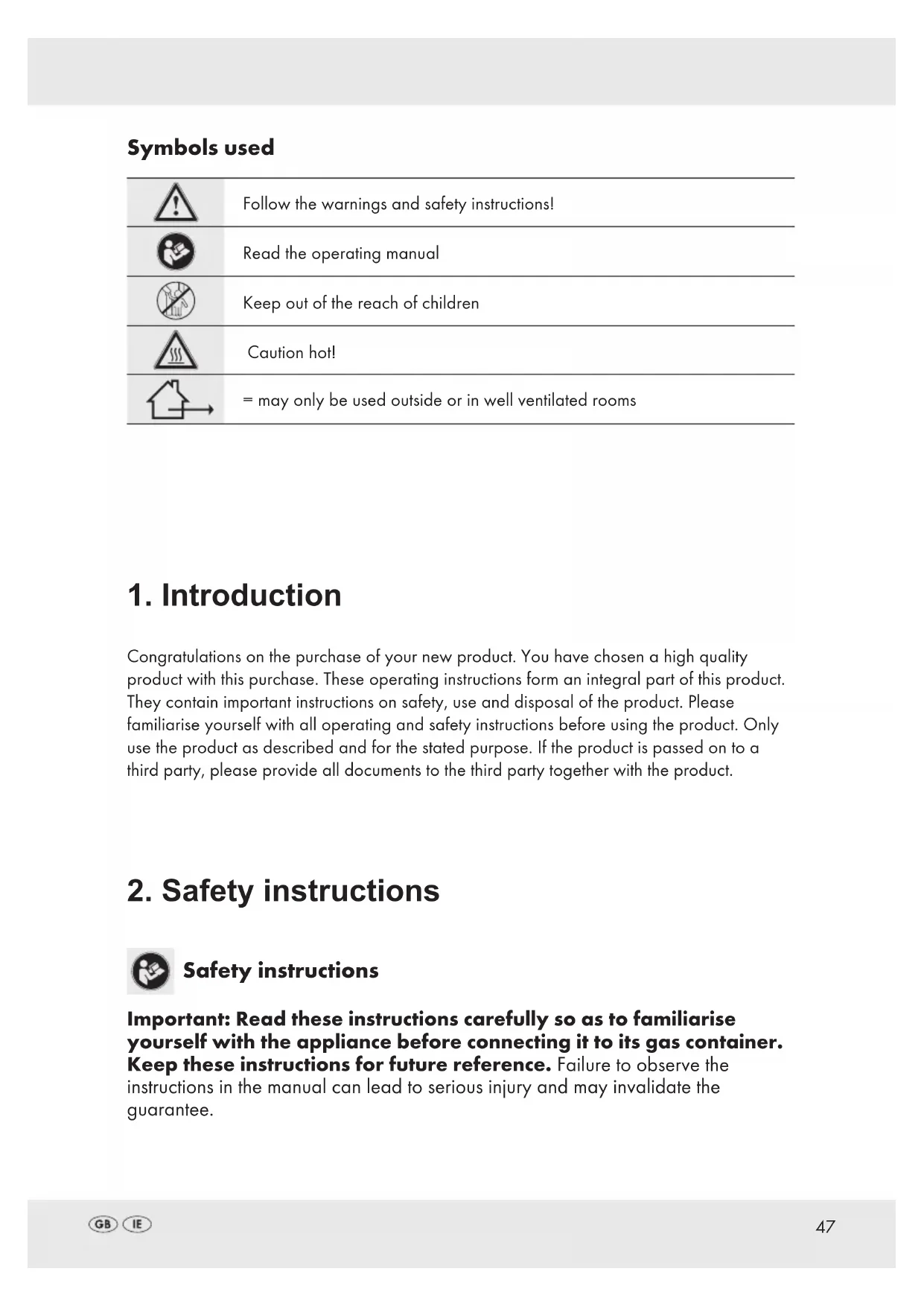

Symbols used Follow the warnings and safety instructions! Read the operating manual Keep out of the reach of children Caution hot! = may only be used outside or in well ventilated rooms48 - The appliance and the accessories shall not be modified. Repairs may only be carried out by an authorised workshop or by a qualified person. This appliance shall only be used in well-ventilated areas. In doing so, the national regulations are applicable

• for combustion air supply and

• for preventing the accumulation of dangerous quantities of non-combusted gas - Keep the appliance away from sources of ignition such as heat sources, open flames, debris or inflammable substances. Keep the device away from inflammable substances. Keep at least 0.5 meters of distance to the sides of and 1 metre above the appliance. - If gas escapes from the appliance (smell of gas), take it outdoors immediately to a well-ventilated location away from sources of ignition where the leak can be safely detected and repaired. Take the device outdoors before checking for leaks. Never check for leaks using a flame; always use a soapy solution! - Gas cartridges must not be removed until completely empty. - Disposable cartridges may only be used once; it is highly dangerous to attempt to refill them. - Keep the appliance out of the reach of children at all times. - Use the appliance only for the purpose for which it was designed and never for any other use. - Do not expose cartridges to temperatures exceeding 50°C (122°F). - Avoid inhaling the gas from the cartridge or any smoke produced when using the appliance. - When using the appliance use protective goggles in accordance with the relevant legislation and protective clothing free from any grease stains. Always work on a fire-proof, clean surface. - At all times the cartridges and the appliance must be stored upright in a safe, dry place well away from any sources of heat. - Always bear in mind that working with highly inflammable gas is inherently dangerous; do not allow familiarity with the appliance to lead to moments of carelessness.

BEFORE FITTING THE CARTRIDGE

- Never fit cartridges to the appliance without reading the operating instructions beforehand. - Check the appliance for signs of damage. Never use a damaged appliance. - Always keep the appliance in a vertical position.49 - Ensure that the gas regulator is closed. - Ensure that the rubber seal (part no. 8) is intact. - Gas containers may only be changed in a well ventilated location, preferably outside, away from any sources of ignition, such as naked flames, ignition flames, electrical devices and away from other people. - Never smoke when handling cartridges. - Fit cartridges in an upright position or on a stable surface. - To prevent leaks once the cartridge has been perforated it is forbidden to unscrew the cartridge holder until the gas has been completely used up.

- Never use an appliance which is damaged or which leaks. Never use the device if the seal is is damaged or worn. - After fitting a new cartridge to a cold appliance the shape of the flame may vary for a short period of time before returning to normal. - Never leave the appliance running unsupervised. - Always close the gas regulator after using the appliance. - Turn off the gas regulator immediately if it performs unusually during operation. - It is normal for the bottom of the cartridges to cool down after prolonged periods of operation. - CAUTION: Accessible parts may become very hot. Keep small children away from the device. Remember that when the appliance is being used its parts heat up and can cause burns. This applies even if the appliance is only used for short periods of time.

BEFORE REMOVING THE CARTRIDGE

- Allow the appliance to cool down completely before disassembly, storage or packing up. - Ensure that the gas regulator is closed. - Always keep the appliance in an upright position. - Disassemble and pack /store the appliance only when it has cooled down completely. - Do not remove the cartridge until it is completely empty. To remove50 Scope of use The appliance is designed for lighting. The appliance must be used in accordance with the instructions contained in this manual and may not be used for any other purpose. Use of the product for any other purpose and / or modification of the product counts as misuse and can be highly dangerous. it, open the gas regulator slightly, check that no gas escapes and shake the appliance to ensure that the cartridge contains no liquid. - Gas containers may only be changed in a well ventilated location, preferably outside, away from any sources of ignition, such as naked flames, ignition flames, electrical devices and away from other people. - Discard used cartridges at a recycling facility. WHAT TO DO IN CASE OF LEAKS - Do not use the appliance, turn it off immediately and take it outdoors. Do not leave the device unsupervised until all the gas has escaped. Contact a service agent or discard at an appropriate facility.51 Features

3. Technical specications

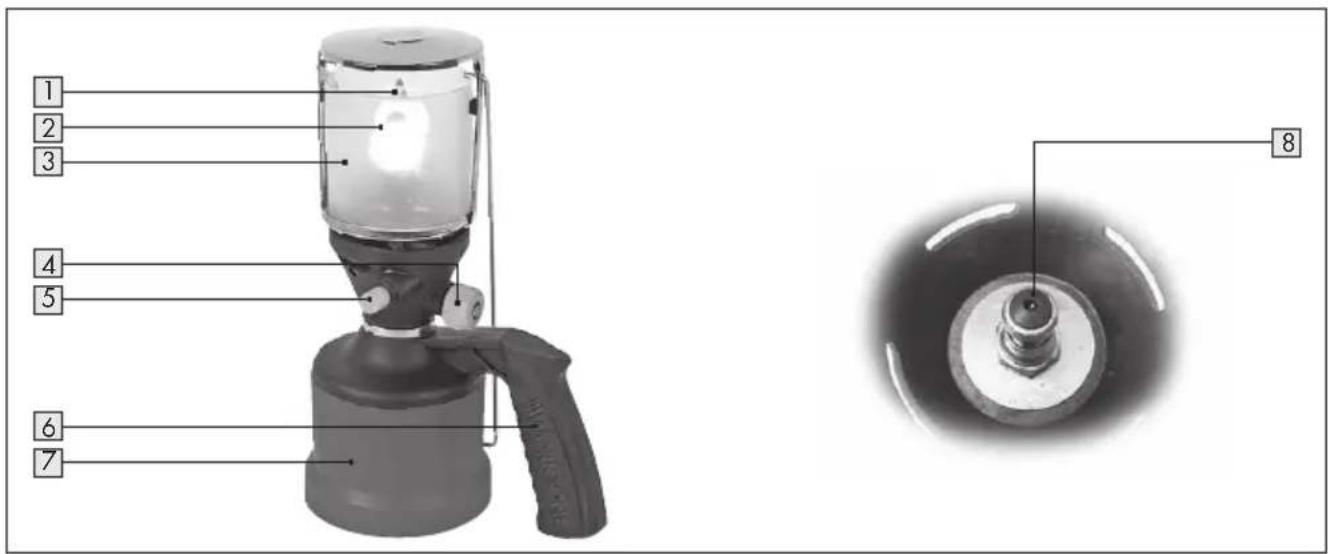

Burner Mantle Glass sleeve Gas regulator (+ large flame, - small flame) Piezo ignition button Handle Cartridge holder Valve with pin and rubber seal

Gas category / type: Direct pressure butane Rated power / consumption: 0.5 kW / 36 g/h Nozzle diameter: 0.15 mm Gas cartridge: This appliance shall only be used with the disposable cartridge ‘ROTHENBERGER INDUSTRIAL SUPERGAS C200’ or equivalents (C200 / type 200 acc. to EN 417). It may be hazardous to attempt to fit other types of gas containers. Usage: This appliance may only be used outdoors or in a well ventilated areas Technical specifications for mod. No. 035902 Cartridge selection

4. Before using the appliance

Use only cartridges recommended by the manufacturer. The use of any other cartridges can be dangerous. This appliance shall only be used with the disposable cartridge ‘ROTHENBERGER INDUSTRIAL SUPERGAS C200’ or equivalents (C200 / type 200 acc. to EN 417). It may be hazardous to attempt to fit other types of gas containers.

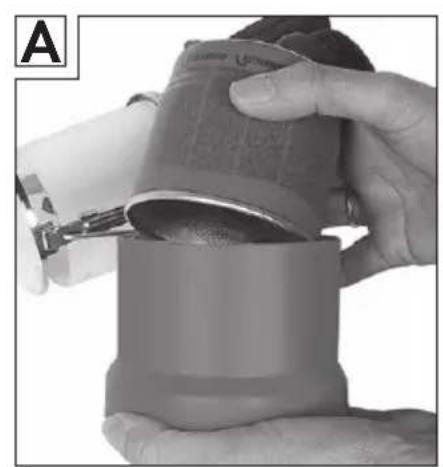

Caution! Read the safety instructions prior to fitting the gas cartridge, especially the section "Before fitting the cartridge". CAUTION! To prevent leaks once the cartridge has been perforated it is forbidden to unscrew the cartridge holder until the gas has been completely used up. Fitting the cartridge (Fig. A, B, C, D) - Fit the cartridge outdoors or in a well-ventilated room, well away from any sources of heat (Fig. A).

• Only use cartridges as described above.

• Position the cartridge holder vertically on a stable surface.

• Insert the cartridge in an upright position into the cartridge holder.

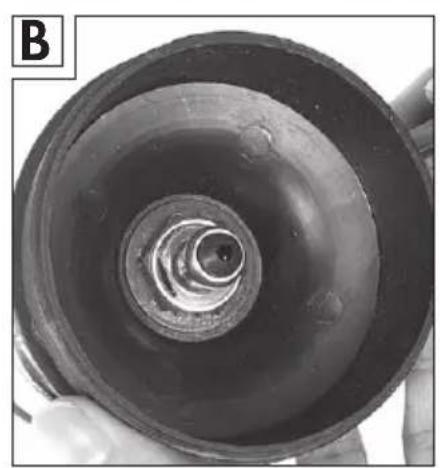

• Ensure that the rubber seal is intact in the appliance housing (Fig. B).

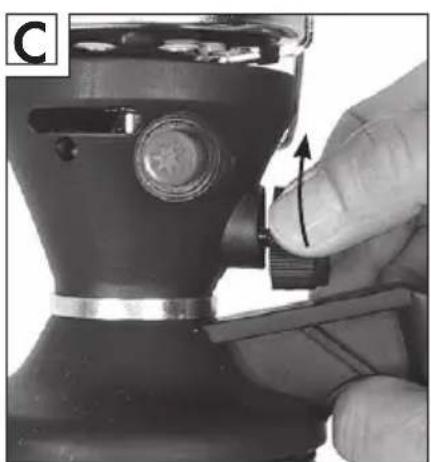

• Ensure that the gas regulator is closed (Fig. C).

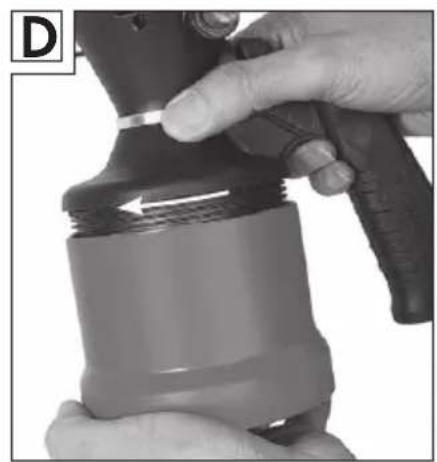

• Hold the cartridge holder and screw the appliance into the cartridge holder (Fig. D).

• Check for gas leakages. To do this, hold the appliance with a gas cartridge fitted under water for at least two minutes. Bubbles indicate a leakage.

• If gas escapes from the system (smell of gas), take the system outdoors immediately to a well-ventilated location away from sources of ignition where the leak can be safely detected and repaired. Never check for leaks using a flame; always use a soapy solution! Keep the appliance under close observance until the leaked gas has dissipated completely.

• Check whether the gas is being released properly by briefly opening the regulator.53 Caution! Read the safety instructions prior to fitting a gas cartridge, especially the section on "Using the appliance".

• This appliance may only be used in well-ventilated areas.and not near any heat sources

• Position the appliance on a horizontal, stable and non-slippery surface. Mounting the mantle (Fig. E, F, G, H) Singing the mantle

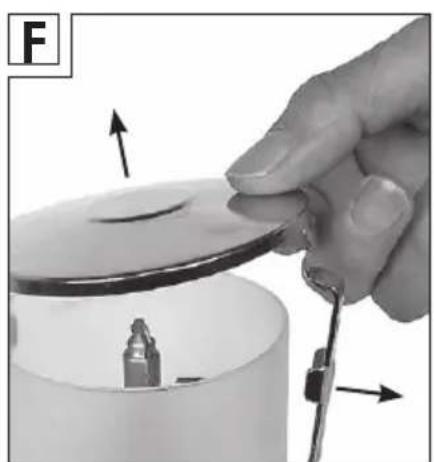

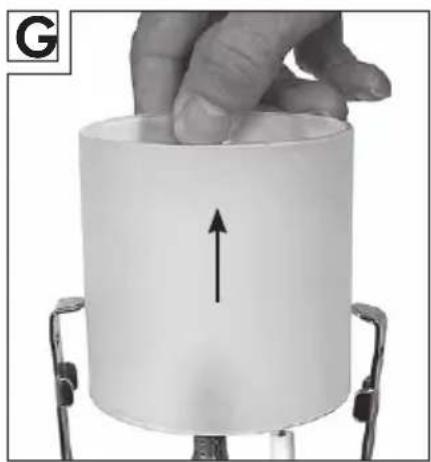

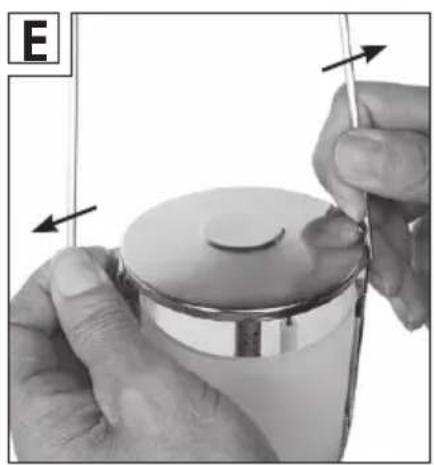

• Remove the handle by pulling it to the side (Fig. E), remove the cover and take out the glass. (Fig. F, G).

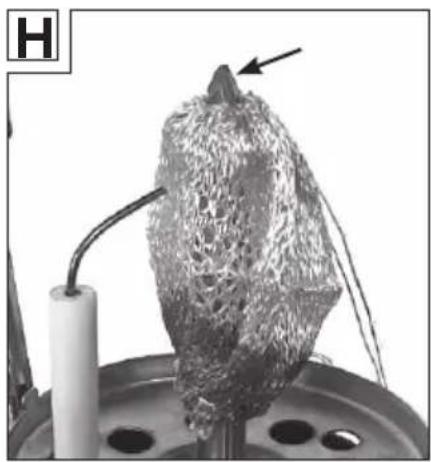

• When inserting the mantle, ensure that the top is fixed in the upper groove of the burner (Fig. H).

• Pull the mantle down until it covers all holes of the burner.

• Ensure the mantle is arranged so that the Piezo-ignition can't damage it.

• Before remounting the glass, singe the mantle as described below. The first time the light is ignited, it is necessary to singe the mantle first. Make sure to carry out this process in the open air (it generates smoke).

• Ignite the mantle with a match or a lighter.

• Briefly before the flame extinguishes, open the gas regulator by a quarter turn.

• Wait until the mantle has stopped smoking and has turned greyish white.

• Close the gas regulator. Avoid touching the mantle after this as it may become damaged.

• Mount the glass, the cover and the handle. The lamp is now ready for normal use.54 Replacing the cartridge Changing the mantle

• Ensure that the burner is not burning before replacing the cartridge.

• Ensure that the gas cartridge is completely empty opening the gas regulator. Ensure that gas is not escaping from the appliance and shake it to make sure that it is empty.

• Remove the appliance from the cartridge holder by turning it anti-clockwise and remove the used cartridge.

• Proceed as instructed above in the section 'Fitting the cartridge'. The mantle is very fragile and needs to be replaced if damaged. Otherwise the appliance will not function correctly and light emitted will be impaired. A damaged mantle could result in a hazardous situation occurring. Spare glow mantles can be purchased from the manufacturer, art. no. 035908E (set of 3 pc.).

• Remove the handle by pulling it to the side, remove the cover and take out the glass.

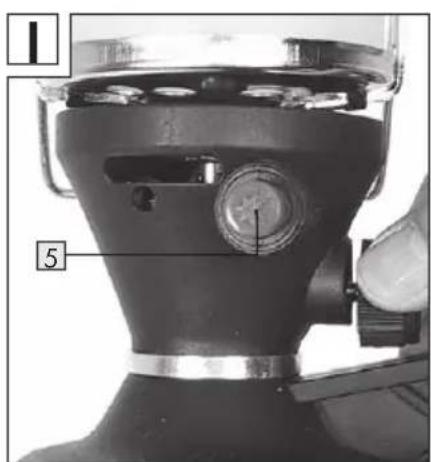

• Open the gas regulator by a quarter turn in the anti-clockwise direction and immediately ignite the burner pressing the piezoelectric ignition button (5) as far as it will go, if required several times.

• Adjust the required output of the appliance by turning the gas regulator in the (+) plus or (-) minus direction.

• If the appliance is cold, shaken or if the appliance is operated with a new gas cartridge, an irregular, unstable flame can be produced or ‘flaring’ may occur. This is normal and does not indicate a fault. The flame will stabilise within 2- 3 minutes after the appliance has warmed up.

• Turn off the appliance immediately if it performs unusually during operation. It is normal for the bottom of the cartridges to cool down after prolonged periods of operation.

• Always close the gas regulator by turning clockwise after using the appliance. Remember that when the appliance is being used its parts heat up and can cause burns, even if only used for short periods of time. Allow the device to cool down before storing it. Read the safety instructions carefully before fitting the cartridge, especially the section on ‘Before removing the cartridge’.55 Checking for gas leaks Check for gas leaks by holding the appliance with a gas cartridge fitted under water for at least two minutes. No bubbles may escape. General maintenance Cleaning Storage and transportation conditions

• Check whether the rubber seal is intact regularly.

• Ensure that all the connections are tight.

• When using the appliance, check that the flame does not change colour or become out of position. The burner or the nozzle may have to be cleaned.

• In the event of any operational failure take the appliance to a competent person for repair or contact the manufacturer. Clean the appliance regularly. Do not use any aggressive cleaning agents, solvents or petroleum spirit. Cleaning is particularly important if the appliance will not be used for a long period.

• If the appliance is not used for long periods, keep it at a safe, cool, dry and well-ventilated place out of the reach of children.

• Ensure that the gas regulator is firmly locked.

6. Maintenance and repair

• Remove the damaged mantle and blow out the nozzle to ensure all residues have been removed.

• Proceed as instructed in the sections "Mounting the mantle" and "Singing the mantle".56 Warranty provided by Walter Werkzeuge Salzburg GmbH Dear customer, This device comes with a 3 year warranty from the date of purchase. In case of defects in the product you may be entitled to legal claims against the seller of the product. These legal claims are not restricted by the following warranty. Conditions of warranty The warranty period begins with the date of purchase. Please preserve the original sales receipt. This document is required as proof of purchase. If a material or fabrication defect occur in this prodict within three years from the date of purchase, the product shall be repaired or replaced free of cost at our discretion. Within the three year period the warranty requires the defective product and the purchase document (sales receipt) to be provided with a brief written description of where the defect lies and when it occurred. If the defect is covered by our warranty, the repaired product or a new product shall be returned to you. A new warranty period does not begin with the repair or exchange of the product.

Worn out appliances must be recycled at a suitable recycling facility. Do not dispose of with the household waste. For further information contact your local authority. Dispose of the packaging material according to the type of material and accordingly to any local regulations. Recycling

• Protect the appliance and gas cartridge from sunlight and never expose it to temperatures above 50°C.

• The appliance must be protected from shocks during transportation.57 Warranty period and legal claims based on defects The warranty period is not extended by the warranty. This also applies to replaced and repaired parts. Any damages and defects that may exist at the time of purchase must be notified immediately after removal from packaging. Any repairs arising after the expiry of the warranty period are chargeable. Scope of the warranty The device has been manufactured according to strict quality guidelines and tested diligently before delivery. The warranty applies to material or fabrication defects. This warranty does not cover product parts that are subject to normal wear and tear and therefore can be considered as parts subject to wear and tear or for the damage to fragile parts, e.g switch, batteries or those made of glass. This warranty is void if the product is damaged, not used or maintained properly. All the instructions provided in the operating manual must be followed exactly for proper use of the product. The purpose of use and actions which are advised or warned against must necessarily be avoided. The product is intended solely for private use and not for professional use. The warranty is void in case of misuse or improper handling, use of force and changes that have not been carried out by our authorised service centre. Processing a warranty case To ensure quick processing of your issue, please follow the below instructions:

• Please be ready with the sales receipt and the product number (e.g. IAN 12345) as proof or purchase for all queries.

• You can refer the product number from the type label, , an engraving, on the cover sheet of your operating instructions (below left) or as sticker on the back or lower side.

• If functional or other defects occur, first call or email the following service department.

• You can then send a product recorded as defective postage free along the the sales receipt and information about where the defect lies and when it has occurred, to the service centre address provided to you. This and many other manuals, product videos and software can be downloaded at www. lidl-service.com58 Service Walter Tools (GB) Ltd. E-Mail: service-uk@walter-werkzeuge.com Tel.: 00800 925 837 88 IAN 273730 Rothenberger Ireland Ltd. E-Mail: service-irl@walter-werkzeuge.com Tel.: 00800 925 837 88 IAN 273730 Supplier: Please note that the following address is not a service centre address. Please contact the above-mentioned service centre first. Walter Werkzeuge Salzburg GmbH Gewerbeparkstraße 9 5081 Anif Austria5960IAN 273730 Walter Werkzeuge Salzburg GmbH Gewerbeparkstraße 9 5081 Anif, Österreich
