Product Type	Food Processor
Brand	Bosch
Model	MUMXL40G
Color	Metallic Grey
Power	1600 W
Bowl Capacity	5.5 L
Max working volume	3.9 L (dough)
Bowl Material	Stainless steel
Number of speeds	7 + pulse
Main functions	Kneading, mixing, whisking, chopping, blending
Included accessories	Dough hook, whisk, beater, blender mixer
Dimensions (L x W x H)	28 x 27 x 38 cm
Weight	8.5 kg
Cable length	1.2 m
Power supply	220-240 V, 50/60 Hz
Safety devices	Safety lock, overload protection
Bowl and accessories cleaning	Dishwasher safe
Body cleaning	Damp cloth
Spare parts available	Yes (bowl, whisk, hook, etc.)
Repairability	Estimated repairability score 8/10
Warranty	2 years
Origin	Made in Germany

Frequently Asked Questions - MUMXL40G BOSCH

How to use the Bosch MUMXL40G food processor?

Place the bowl on the base, lock it by turning clockwise. Insert the desired accessory (dough hook, whisk, etc.) by snapping it in. Plug in the appliance and select the desired speed using the rotary selector. Use the pulse function for precise control.

What accessories are provided with the Bosch MUMXL40G?

The food processor comes with a dough hook, a whisk, a beater, and a blender mixer. Some models may include a meat grinder or citrus press as options.

How to clean the bowl and accessories?

The stainless steel bowl and accessories (hook, whisk, beater) are dishwasher safe. Clean the appliance body with a damp cloth. Never immerse the motor base in water.

What is the maximum capacity for kneading dough?

The max working volume for dough is 3.9 liters. Do not exceed this amount to avoid overloading the motor.

Does the food processor have a safety lock?

Yes: the bowl must be properly locked for the appliance to operate. If the bowl is not engaged, the motor does not start. Additionally, an overload protection device cuts off the power in case of overheating.

Can I blend hot foods in the blender?

No, the blender is designed for foods at room temperature or cold. Do not pour boiling liquids, as pressure could damage the seal and cause leaks.

How to change accessories during use?

Always turn off and unplug the appliance before changing accessories. Turn the selector to position 0, unlock the bowl, remove the accessory by pulling it upward, then insert the new accessory.

What is the motor power?

The Bosch MUMXL40G is equipped with a 1600 watt motor for optimal performance even with heavy doughs.

Where can I find spare parts?

Spare parts (bowl, whisk, hook, etc.) are available from authorized Bosch dealers or on the official website. Use the model number MUMXL40G to order.

Is the food processor under warranty?

Yes, the warranty is 2 years. Keep your receipt. For any claims, contact Bosch customer service.

USER MANUAL MUMXL40G BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

1 packet of baking powder

150 ml milk

Congratulations on the purchase of your new BOSCH appliance.

In doing so, you have opted for a modern, high-quality domestic appliance.

You can find further information about our products on our web page.

Contents

For your safety 17

Overview 20

Operating positions 20

Operation 21

Cleaning and servicing 23

Troubleshooting 24

Application examples 24

Optional accessories 27

Instructions on disposal 29

Warranty conditions 29

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading, beating and cutting food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only.

When using the accessories, follow the enclosed operating instructions. Please keep the operating instructions in a safe place.

If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete.

Never immerse the base unit in liquid or hold under running water.

Do not use a steam cleaner.

Do not adjust swivel multi-function arm while the appliance is switched on. Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance!

Keep hands clear of rotating parts.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position/“Easy fill”-position.

Do not move multi-function arm until the tool is at a standstill.

Do not switch on the appliance until the blender has been screwed in all the way and the tool drive cover (7) has been attached.

Cover unused drives with drive covers.

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. Clean them with a brush.

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill! Operate the assembled blender only and with the lid attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.75 litres of hot or frothing liquid.

Important!

Use the appliance with original accessories only.

When using the accessories, follow the enclosed operating instructions. Attach and use only one tool or accessory.

Explanation of the symbols on the appliance or accessory

Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools.

Do not place fingers in the feed tube.

Safety systems

Start lock-out

See "Overview of the operating positions" table.

In pos. 1 the appliance cannot be switched on.

The appliance can be switched on in pos. 2–4 only:

- when the bowl has been inserted and rotated as far as possible or

– the tool drive cover (7) has been attached.

In position 5, the appliance can only be switched on when the tool drive cover (7) has been attached.

The blender must be screwed in all the way. In position 6, the appliance cannot be switched on unless the mincer and adapter have been attached correctly (see mincer operating instructions).

Restart lock-out

If the power is interrupted, the appliance remains switched on but the motor does not start running again when the power is restored.

To restart the appliance, turn the rotary switch (3) to 0/off, then switch on the required setting.

Overload protection

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated.

Possible causes:

– very large amounts of ingredients,

- appliance operated too long.

If a safety system is activated, see "Troubleshooting".

The operating instructions describe several models, see also overview of models (Fig. J).

Overview

Please fold out the illustrated pages. Fig. A

Base unit

Release button

1 Multi-function arm

"Easy Armlift" – supports the simple and effortless operation of the multi-function arm (see "Operating positions").

2 Rotary switch

When the appliance has been switched off (0/off position), it automatically runs to the optimum position for changing the tools (tool change position).

This position also facilitates filling the bowl with ingredients, as no ingredients can stick to the tools ("Easy fill" position).

0/off = Stop

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–7, Operating speed:

1 = low speed - slow,

7 = high speed - fast.

3 Drive cover

To remove the drive cover, press on the front area and remove cover.

4 Drive for

- continuous-feed shredder *,

- citrus press * and

- grain mill *.

When not in use, attach the drive cover.

5 Drive for tools (stirrer, whisk, kneading hook) and mincer *

6 Drive cover

7 Drive for blender

When not in use, attach the blender drive cover.

8 Blender drive cover

9 Cord store

Cord store or automatic cord winder (depending on model)

Bowl with accessories

10 Stainless steel stirring bowl

11 Lid

12 Funnel

Tools

13 "Absolute" stirrer

14 Solid metal whisk

15 Kneading hook "High performance" with dough deflector

Blender *

16 Blender holder with blade

17 Blender jug (glass)

18 Lid with feed tube

19 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions

Warning!

Before operating the appliance, attach the tool/accessory to the correct drive and in the correct position and place in the operating position according to this table.

The multi-function arm must be engaged in each operating position.

Note:

The multi-function arm features the "Easy Armlift" function, which supports the simple and effortless operation of the multi-function arm.

Setting the operating position (Fig. B)

• Press the release button and move the multi-function arm. Support the movement with your hand.
• Move the multi-function arm until it engages in the required position.

Overview of the operating positions

Position	Drive		Tool/Accessory	Operating speed
1			*	-
2	6			1-51-71-3

* Insert/remove whisk, stirrer, or kneading hook. Add large quantities of ingredients.

Position	Drive		Tool/Accessory	Operating speed
3	5			7
4	5			3-5
5	8			5-7
6	6			5-7

Operation

Risk of injury!

Do not insert the mains plug until all preparations for working with the appliance are complete.

Warning!

Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty.

Do not expose the appliance or accessories to heat sources. Parts are not microwave-safe.

- Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

Preparation

- Place the base unit on a smooth, clean surface.

- Prepare cable (Fig. C). a) Appliances with cord store: Pull out cable to the required length. b) Appliances with automatic cord winder: Pull out the cord in one go to the required length (max. 100 cm) and slowly release; the cord is locked. Reducing the cord length: Pull gently on the cord and allow it to roll up to the required length. Then gently pull the cord again and slowly release; the cable is locked.

Warning!

Do not twist the cord when inserting it. If the appliance features an automatic cord winder, do not insert the cord manually. If the cord jams, pull out the cord all the way and then allow it to wind up.

Bowl and tools

Risk of injury from rotating tools

While the appliance is operating, never place fingers in the mixing bowl.

Attach the cover (12) before operating the appliance!

Keep hands clear of rotating parts.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move multi-function arm until the tool is at a standstill.

For safety reasons the appliance cannot be operated in Pos. 2–4 until the bowl has been inserted and turned all the way or the tool drive cover (7) has been attached.

Warning!

Use bowl with this appliance only.

"Absolute" stirrer (13)

for stirring dough, e.g. sponge mixture or mousse, and for folding in beaten egg whites or cream.

Solid metal whisk (14)

for whisking egg whites, cream and light dough, e.g. sponge mixture.

Kneading hook "High performance" with dough deflector (15)

for kneading heavy dough and for folding in ingredients which are not to be cut (e.g. raisins, chocolate chips).

Important information concerning the use of the whisk Fig. D

The whisk should almost touch the bottom of the bowl to ensure that the ingredients are optimally mixed. If processing very small amounts, the whisk should just touch the bottom of the bowl. For large amounts the whisk can be positioned higher.

Adjust the height of the whisk as follows:

• Remove mains plug.
• Press release button and move multifunction arm to position 1.
• Insert the whisk into the drive until the whisk locks into position.
• Hold whisk in place and loosen nut clockwise using enclosed key (on the base of the appliance).

• Set the whisk to the optimum height by rotating the whisk:
• Turn clockwise: Raise
• Turn anti-clockwise: Lower
• Press release button and move multi-function arm to position 2. Check the height of the whisk and, if required, correct.
• When the height has been set correctly, press the release button and move the multi-function arm to position 1.
• Hold whisk in place and tighten nut anti-clockwise using enclosed key.

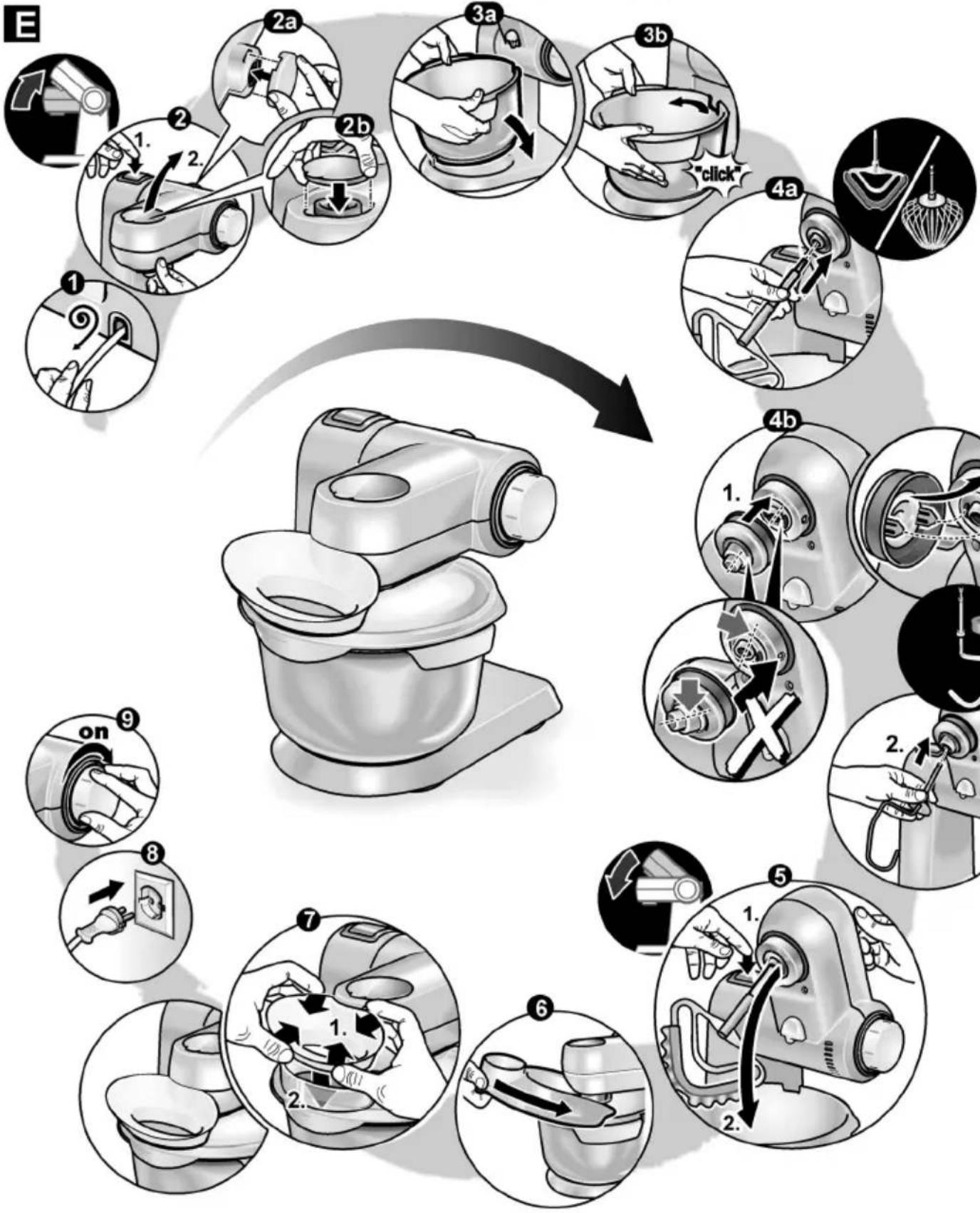

Working with the bowl and the tools Fig. E

• Press release button and move multi-function arm to position 1. ● Cover unused drives with drive covers.
• Insert the bowl:

- Tilt the bowl forwards and then set it down.

- Turn anti-clockwise until it locks into place.

- Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position.

Note:

If using the kneading hook, first insert dough deflector, then the kneading hook (Fig. E-4b).

Note shape and position of the parts.

• Put the ingredients to be processed into the bowl.
• Press release button and move multi-function arm to position 2.
• Attach the cover.
• Insert the mains plug.
• Set the rotary switch to the desired setting.

Our recommendation:

- Stirrer:

First mix at setting 1–2, then setting 3–7 as required

- Whisk:

setting 7, mix in at setting 1

- Kneading hook:

first stir in at setting 1, knead at setting 3

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Attach funnel (Fig. 1–7).
• Top up ingredients through the funnel.

or

• Remove lid.
• Press release button and move multifunction arm to position 1.
• Add ingredients.

After using the appliance

• Switch off the appliance with the rotary switch.
• Remove mains plug.
• Remove lid.
• Press release button and move multi-function arm to position 1. ● Take the tool out of the drive.
• Remove the bowl.
• Clean all parts, see “Cleaning and servicing”.

Blender

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill! Do not switch on the appliance until the blender has been screwed in all the way and the tool drive cover (7) has been attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.75 litres of hot or frothing liquid.

Warning!

Operate the blender in the indicated operating position only.

Operate the assembled blender only and with the lid attached. Lid must be locked correctly.

Do not operate blender when empty.

Preparation Fig. ©

Warning!

Never assemble the blender without the seal on the blender holder.

Putting the blender together:

• Insert blender holder with seal into the blender jug, ensuring that the line is under the arrow.
• Attach blender holder by rotating it as far as possible to the right.

Working with the blender Fig. F

• Press release button and move multi-function arm to position 5.
• Cover unused drives with drive covers.
• Remove the blender drive cover.
• Attach blender jug (mark on the handle on mark on the base unit) and turn all the way in an anti-clockwise direction.
• Add ingredients.
• Maximum amount of liquid ingredients = 1.75 litres;
• Maximum amount of frothing or hot liquids = 0.75 litres;
• Optimum processing amount of solid ingredients = 100 grams.

- Attach the cover and turn anti-clockwise all the way into the blender handle.

The cover must be locked in position.

- Set the rotary switch to the desired setting.

Adding more ingredients (Fig. F-8)

• Switch off the appliance with the rotary switch.
• Remove the lid and add ingredients

or

• remove the funnel and gradually add solid ingredients through the refill opening or
• pour liquid ingredients through the funnel.

Important information

When processing liquids/liquid ingredients, slowly increase the speed of the appliance in stages to prevent the food from shooting out.

After using the appliance

• Switch off the appliance with the rotary switch. Wait until the blade has come to a standstill.
• Remove mains plug.
• Rotate the blender in a clockwise direction and remove.
• Take the lid off the blender jug. Rotate the lid in an anti-clockwise direction and remove.
• Clean all parts, see “Cleaning and servicing”.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Important information

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Warning!

Do not use abrasive cleaning agents.

Surfaces may be damaged.

Cleaning the base unit

Risk of electric shock!

Never immerse the base unit in water or place under running water.

Do not use a steam cleaner.

• Remove mains plug.
• Wipe the base unit and drive cover with a damp cloth. If required, use a little detergent.
• Then dry the base unit.

Cleaning the bowl and tools

The bowl and tools are dishwasher-proof.

Do not wedge plastic parts in the dishwasher, as they could be permanently deformed during the washing process!

Cleaning the blender

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. Clean them with a brush.

Warning!

Do not wash blender holder in the dishwasher or leave it in water.

● Clean blender holder under running water. - Lid, funnel and blender jug can be washed in the dishwasher.

Note:

Lid can be disassembled for cleaning.

Fig. H

• Pull funnel upwards out of the lid.
• Press insert downwards out of the lid.

Tip: After processing liquids, it is often sufficient to clean the blender without removing it from the appliance. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (setting M). Pour out the water and rinse out the blender with clear water.

Troubleshooting

Risk of injury!

Before eliminating a fault, pull out the mains plug.

The multi-function arm must be engaged in each operating position. Initially try to eliminate the problem which has occurred with the help of the following information.

Fault

Appliance does not start.

Remedial action

• Check the power supply.
• Check the mains plug.
• Check multi-function arm. Correct position? Engaged?
• Screw on bowl all the way.
• Attach drive cover to unused drives.
• The safety lock is active. Switch appliance to 0/off and then back to the required setting.

Fault

Appliance switches off during use. The overload protection feature has been activated. Too much food was processed at one time.

Remedial action

• Switch off the appliance and pull out the mains plug.
• Leave the appliance to cool down for 15 minutes in order to deactivate the overload protection.
• Reduce processing quantity. Do not exceed permitted maximum quantities (see "Application examples").
• Switch on appliance again. If the motor still does not start, leave the appliance to cool down for a longer period (at least 1 hour).

Fault

While the drive was running, the release button was inadvertently pressed.

The multi-function arm moves up.

The drive switches off, but does not stop in the tool change position.

Remedial action

• Set the rotary switch to 0/off.
• Move multi-function arm to position 2.
• Switch on appliance (setting 1).
• Switch off appliance again. Tool stops in tool change position.

Fault

Blender does not start working or stops during use, the drive is “humming”.

Blade is blocked.

Remedial action

• Switch off the appliance and pull out the mains plug.
• Detach the blender and remove the obstruction.
• Re-attach the blender.
• Switch on the appliance.

Important information

If the fault cannot be eliminated, please contact customer service.

Application examples

Whipped cream

200 g–1500 g

• Whip cream with the whisk for 1 1/2 to 4 minutes at setting 7 (depending on the quantity and properties of the cream).
• Follow instructions in the section "Important information for using the whisk" for adjusting the appliance to the amounts to be processed!

Egg white

2 to 12 egg whites

• Beat egg white with the whisk for 2 to 6 minutes at setting 7.
• Follow instructions in the section "Important information for using the whisk" for adjusting the appliance to the amounts to be processed!

Sponge mixture

Basic recipe

3 eggs

3–4 tbs. hot water

150 g sugar

1 packet of vanilla sugar

150 g flour

50 g cornflour

Baking powder if required

- Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 7 until frothy.

- Rotate switch to setting 1 and spoon in the sifted flour and cornflour within approx. 1/2 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

3–4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from

1/2 lemon

200–250 g butter or margarine

(room temperature)

500 g flour

1 packet of baking powder

150 ml of milk

- Mix all ingredients with the stirrer for approx. 1/2 minute at setting 1, then for approx. 3–4 minutes at setting 5.

Maximum quantity: 2 1/2 x basic recipe

Short pastry

Basic recipe

125 g butter (room

temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Mix all ingredients with the stirrer for approx. 1/2 minute at setting 1, then for approx. 2–3 minutes at setting 5.

From 500 g flour:

- Knead the ingredients with the kneading hook for approx. 1/2 minute at setting 1, then for approx. 3–4 minutes at setting 3.

Maximum quantity: 4 x basic recipe

Yeast dough

Basic recipe

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 1/2 lemon

1 pinch of salt

- Mix all ingredients with the kneading hook for approx. 1/2 minute at setting 1, then for approx. 3–6 minutes at setting 3.

Maximum quantity: 3 x basic recipe

Pasta dough

Basic recipe

500 g flour

250 g eggs (approx. 5x)

2–3 tbs. (20–30 g) cold water as required

- Process all ingredients for approx. 3–5 minutes at setting 3 until a dough forms.

Maximum quantity: 1.5 x basic recipe

Important information

When processing this dough with the original accessory for this appliance, use the accessory MUZ8NV1/2/3 only. The accessory MUZ8NS1 is not suitable.

Wholemeal mixed wheat bread

Basic recipe

325 g freshly ground wholemeal flour

325 g white flour Type 405

100 g rye flour Type 630

75 g liquid fermented dough

1/2 tbs. caraway

1/2 tbs. bread seasoning

1/2 tbs salt

1½ packets of dry yeast

450–500 ml warm water

• Process all ingredients into a dough for approx. 1/2 minute at setting 1, then for approx. 3 minutes at setting 3.
• Leave the dough to prove until it is double the size and knead again for approx. 1 min. at setting 3.
• Place dough in a greased loaf tin and leave to prove again, then bake.

Tip: Instead of freshly ground wholemeal flour, freshly ground spelt flour can be used.

Maximum quantity: 2 x basic recipe

Mayonnaise

Note: Mayonnaise can be prepared in the blender with whole eggs (egg white and egg yolk) only.

Basic recipe:

1 egg

1 heaped tsp. mustard

1 tbs. vinegar or lemon juice

1 pinch of salt

1 pinch of sugar

200–250 ml oil

Ingredients must be at the same temperature.

- Mix ingredients (except oil) for several seconds at setting 3.

- Switch the appliance to the highest setting, pour the oil through the funnel and blend until the mayonnaise emulsifies.

Maximum quantity: Double the quantity of the basic recipe.

Hot chocolate

50–75 g cooled cooking chocolate

1/2 l hot milk

Whipped cream and grated chocolate as required

• Cut cooking chocolate into pieces (approx. 1 cm) and chop up completely in the blender on setting 7.
• Switch off appliance and add the milk through the funnel. Mix for approx. 30 seconds at setting 7.
• Pour the hot chocolate into glasses and serve with whipped cream and grated chocolate as required.

Banana ice shake

2–3 bananas

2–3 heaped tablespoons of vanilla or lemon ice cream

1 packet of vanilla sugar

1/2 liter milk

• Cut bananas into pieces and chop in the blender for 5–10 seconds.
• When the appliance has come to a standstill, add milk and other ingredients and blend for about 1 minute until the mixture is frothy.

Fruit sundae

250 g fruit (e.g., strawberries, banana, orange, apple)

50–100 g sugar

500 ml cold water

Ice as required

• Peel fruit and cut into pieces.
• Put all ingredients (except ice) in the blender and blend on setting 7 for about 1 minute.
• Serve with the ice cream.

Sportsman's cocktail

2–3 oranges

1 lemon

1/2 - 1 tbsp. sugar or honey

1/4 l apple juice

1/4 l mineral water and ice cubes if required

• Peel oranges and lemon, cut into pieces.
• Blend ingredients (except apple juice and mineral water) for approx. 30 seconds on setting 7.
• Add the apple juice and mineral water.
• Blend briefly until the drink is frothy.
• Pour the cocktail into glasses and serve as required with ice cubes.

Red fruit pudding

400 g fruit (pitted sour cherries, raspberries, black/red currants, strawberries, blackberries)

100 ml sour cherry juice

100 ml red wine

80 g sugar

1 packet of vanilla sugar

2 tbs. lemon juice

1 pinch of ground cloves

1 pinch of ground cinnamon

• 8 gelatine leaves. Soak the gelatine in cold water for approx. 10 minutes. Bring all the ingredients (except the gelatine) to the boil.
• Dry the gelatine and melt in the microwave, but do not cook.
• Blend hot fruit and gelatine on setting 5 for approx. 1 minute.
• Pour the red fruit pudding into small bowls rinsed out with cold water and refrigerate.

Tip: Red fruit pudding tastes good with whipped cream or vanilla sauce.

Sports drink

200 g honey (from refrigerator)

5 g cinnamon

200 g milk (from refrigerator)

• Put honey and cinnamon in the blender and blend at setting M. After 5 seconds add the milk and blend for 3 seconds.

Honey bread spread

50 g butter (from refrigerator)

200 g honey (from refrigerator)

- Cut butter into small pieces and put into the blender.

- Add honey and blend for 8 seconds at setting M.

Optional accessories

	MUZ8ER3Stainless steel stirring bowl	Up to 3 kg of yeast dough or 3.5 kg of sponge mixture can be processed in the bowl.
	MUZ8ZP1Citrus press	For squeezing oranges, lemons and grapefruits.
	MUZ8AD1Adapter	For attaching the mincer MUZ8FW1 and the pasta attachments MUZ8NV1/NV2 and NV3.
	MUZ8FW1Mincer	For cutting fresh meat for steak tartare or meat loaf.
	MUZ8LS4/5Perforated disc sets	For the mincer MUZ8FW1.Fine disc for pasties and spreads, coarse disc for sausages and bacon.
	MUZ8WS2Sausage attachment	For the mincer MUZ8FW1.For filling artificial or natural casings with sausage meat.
	MUZ8SV1Viennese whirl attachment	For the mincer MUZ8FW1.With metal template for 4 different pastry moulds.
	MUZ8RV1Grater attachment	For the mincer MUZ8FW1.For grating nuts, almonds, chocolate and dried bread rolls.
	MUZ8FV1Juicer attachment	For the mincer MUZ8FW1.For pressing soft fruit, except raspberries, tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.
	MUZ8MX2Blender (glass)	For mixing liquid or semi-solid food, for cutting/chopping raw fruit and vegetables, for puréeing food.
	MUZXL...MUZXLVL1Continuous-feed shredder	For slicing cucumbers, cabbage, kohlrabi, radish; for shredding carrots, apples and celery, red cabbage, cheese and nuts; for grating hard cheese, chocolate and nuts.Set MUZXL... contains Profi Supercut reversible disc - coarse/fine, Asiatic vegetables disc, reversible shredding disc - coarse/fine, grating disc - medium-fine.Set MUZXLVL1 contains reversible slicing disc - coarse/fine, reversible shredding disc - coarse/fine, grating disc - medium-fine, Asiatic vegetables disc, potato pancake disc.
	MUZ8PS1Chipper disc	For the continuous-feed shredder MUZXLVL1.For slicing raw potatoes for chips.
	MUZ8RS1Grating disc coarse	For the continuous-feed shredder MUZXLVL1.For grating raw potatoes, e.g. for potato pancakes or dumplings.
	MUZ8KP1Potato fritter disc	For the continuous-feed shredder MUZXLVL1.For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.
	MUZ8AG1Asiatic vegetables disc	Slices fruit and vegetables into fine strips for Asian vegetable dishes.
	MUZ8KS1Gratering disc, fine	For grating hard cheese (e.g. Parmesan).
	MUZ8MM1Multi-mixer	For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

MUZ8GM1

Grain mill

For grinding all types of grain (except maize), poppy seeds, linseeds, sesame, buckwheat, etc.

Even herbs, spices and coffee can be ground.

If an accessory is not included in the product package, it can be purchased via the trade or from customer service.

Instructions on disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Overload protection

5	8			5-7
6	6	[ASY5]		5-7

3–4 tablespoons hot water

150 g sugar

1 packet vanilla sugar

150 g flour

50 g starch,

baking powder if desired

450–500 ml warm water

AE United Arab Emirates,

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhāratārāt

BSH Customer Service Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

Shchuseva St. 98

2012 Chisinau

tel./fax: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Poland

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

[e-mail]

B

C

J
MUMXL10T	√		√	√	√	√
MUMXL10G	√		√	√	√	√
MUMXL20T	√		√	√	√	√
MUMXL20G	√		√	√	√	√
MUMXL20C	√		√	√	√	√
MUMXL40G		√	√	√	√	√

			Profi Supercut
MUMXL10T
MUMXL10G
MUMXL20T	√
MUMXL20G	√
MUMXL20C	√
MUMXL40G	√	√	√	√	√	√
