Multiquick MR 530 pesto - Blender BRAUN - Free user manual and instructions

Product Type	Immersion Hand Blender
Model	Multiquick MR 530 Pesto
Brand	Braun
Dimensions (L x W x H)	Approx. 6.5 x 7.5 x 40 cm (shaft length 20 cm)
Weight	Approx. 0.8 kg
Power Supply	700 W, 220-240 V, 50/60 Hz
Motor Type	Universal motor
Speed Settings	2 speeds + turbo boost
Main Functions	Blending, chopping, whipping, and food processing with optional accessories
Included Accessories	Blending shaft, 600 ml mixing beaker, (optional: chopper, whisk, food processor attachment)
Material	Plastic body with stainless steel blending shaft and blade
BPA Free	Yes, all parts that come into contact with food are BPA-free
Ergonomic Grip	Yes, soft-grip handle for comfortable operation
Cord Length	1.2 m
Dishwasher Safe Parts	Yes, blending shaft and beaker are dishwasher safe (top rack)
Cleaning	Detachable shaft for easy cleaning under running water
Safety Features	Overheat protection, safety switch prevents accidental operation
Spare Parts Availability	Blending shaft, blades, and beaker available at Braun service centers
Repairability	Moderate - motor unit not user-serviceable, but external parts replaceable
Warranty	2 years (depending on region)

Frequently Asked Questions - Multiquick MR 530 pesto BRAUN

What can I use the Braun Multiquick MR 530 Pesto blender for?

This immersion blender is ideal for making pesto, sauces, soups, smoothies, and baby food. With optional attachments, you can also chop nuts, whisk cream, or process vegetables.

Is the blending shaft dishwasher safe?

Yes, the blending shaft and the 600 ml beaker are dishwasher safe (top rack). The motor unit should only be wiped with a damp cloth.

How do I clean the blender after use?

Detach the blending shaft and rinse under running water or place in the dishwasher. For the motor unit, unplug and wipe with a damp cloth. Do not immerse in water.

Can I blend hot liquids?

Yes, but allow liquids to cool slightly (max 80°C) to avoid splashing. Use the beaker provided and hold the blender at an angle to prevent overflow.

What is the turbo boost function?

The turbo boost provides maximum power for tough ingredients like frozen fruit or ice cubes. Press the turbo button while blending for short bursts.

How do I prevent splashing?

Always submerge the blending shaft fully before starting, and use a deep container. Start at low speed and gradually increase to high.

What attachments are compatible with this model?

The MR 530 is compatible with the Multiquick 5 series accessories, including a chopper (700 ml), whisk, and food processor. Check your model's manual for specific compatibility.

Why does the blender stop during use?

This may be due to overheating. The motor has a safety cut-off. Unplug and let it cool for 10-15 minutes before resuming use.

Can I use the blender to crush ice?

Yes, but use the turbo function and add a little water to avoid damaging the blades. Do not use for large quantities of hard ice.

Where can I buy spare parts?

Spare parts like the blending shaft and blades are available from Braun official service centers or authorized online retailers. Visit www.braun.com for your local service.

USER MANUAL Multiquick MR 530 pesto BRAUN

Braun Infolines

German 6

English 9

French 12

Spanish 15

Portuguese 18

Italian 21

Dutch 24

Danish 27

Norwegian 30

Swedish 33

Finnish 36

Greek 39

00 800 27 28 64 63

00 800 BRAUNINFOLINE

08 44 - 88 40 10

0800 783 70 10

1 800 509 448

0 800 944 802

0 800 14 592

901 11 61 84

808 20 00 33

(02) 6 67 86 23

0 800-445 53 88

70 15 00 13

22 63 00 93

020 - 21 33 21

020 377 877

852-25249377

(Audio Supplies Company Ltd.)

	MR 500 Soup	MR 530 Pesto	MR 530 Bolognese	MR 530 Sauce MR 530 Baby MR 560 Fresh
	●	●	●	●
	●	●	●	●
			●	●
		●	●	●

		1cm	1cm
max.		300 g	200 g	200 g	30 g	20	200 g	300 g	350 g
		15-30	30	10	20	20	15	25	30
				1 - 4 1 - 15 1 - 15 8 - 15 8 - 15
			turboturbo	turbo				+5 sec turbo turbo	+5 sec turbo turbo

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Caution

Please read the use instructions carefully and completely before using the appliance.

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
• Always unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
• This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.
• Do not hold the motor part or the whisk gear box under running water, nor immerse them in water.
• Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.
• Before plugging into a socket, check whether your voltage corresponds to the voltage printed on the bottom of the appliance.
• The appliance is constructed to process normal household quantities.
• Neither the beaker, nor the chopper bowl is microwave-proof.

Description

Motor part, On/off switch for variable speed, Turbo switch, Buttons for releasing the working parts, Variable speed regulator, Blender shaft, Measuring beaker, Whisk gear box, Whisk, Chopper

Setting the speed

When activating switch Ⓑ, the processing speed corresponds to the setting of variable speed regulator Ⓔ. The higher the setting, the faster the chopping results. However, maximum processing speed can only be achieved by pressing the turbo switch Ⓓ. You may

also use the turbo switch for instant powerful pulses without having to manipulate the speed regulator.

Depending on the application, we recommend the following speed settings:

Handblender: 1...turbo

Chopper: 1...turbo

Whisk: 1...15

How to operate your handblender

The handblender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milkshakes.

1. Insert the motor part ⑨ into the blender shaft ⑩ until it locks.
2. Introduce the handblender into the vessel, then press the on/off switch ☐ or the turbo switch Ⓓ.
3. To release the blender shaft after use, press the buttons and pull it off.

You can operate the handblender in the measuring beaker and just as well in any other vessel. When blending directly in the saucepan while cooking, take the pan from the stove first to protect your handblender from overheating.

How to operate your whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

1. Insert the whisk into the whisk gear box, then insert the motor part into the gear box until it locks.
2. Place the whisk in a vessel and only then, press switch ☑ to operate it.
3. To release, press buttons and pull off the gear box. Then pull the whisk out of the gear box.

For best results:

• Do not use the beaker, but a wider bowl.
• Move the whisk clockwise, holding it slightly inclined.

Whipped cream

Only whip up to 400 ml chilled cream (min. 30 % fat content, 4 – 8 °C).

Start with a low speed setting (1) and while whipping, increase the speed to setting 15.

Egg snow

Only whip up to 4 egg whites.

Start with a medium speed setting (7) and while beating, increase the speed to setting 15.

How to operate your chopper attachment

(a) Chopper gear box (b) Blade (c) Chopper bowl (d) Anti-slip base/lid

The chopper is perfectly suited for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, hazelnuts, almonds etc.

For chopping hard goods (e.g. hard cheese), use the turbo switch Ⓒ

N.B.: Do not chop extremely hard food, such as ice cubes, nutmeg, coffee beans, and grains.

Before chopping ...

• pre-cut meat, cheese, onions, garlic, carrots (see table page 5)
• remove stalks from herbs, un-shell nuts
• remove bones, tendons and gristle from meat.

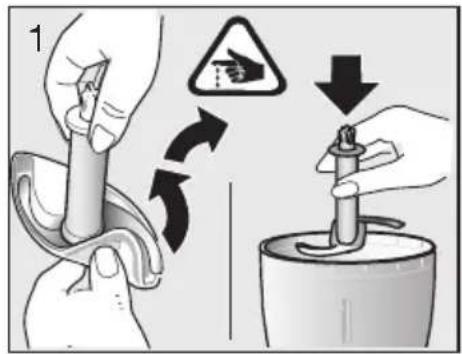

• Caution: Carefully remove the plastic cover from the blade (b). The blade is very sharp!

Always hold it by the upper plastic part. Place the blade on the centre pin of the chopper bowl (c). Press it down until it locks.

Always place the chopper bowl on the anti-slip base (d).

1. Place the food in the chopper bowl.
2. Put the gear box (a) on the chopper bowl.
3. Insert the motor part A into gear box (a) until it locks.
4. Press switch B or to operate the chopper. During processing, hold the motor part with one hand and the chopper bowl with the other.
5. After use, press buttons ☐ to remove the motor part.
6. Then remove the gear box.
7. Carefully take out the blade.
8. Then remove the processed food from the chopper bowl. The anti-slip base also serves as an air-tight lid for the chopper bowl.

Cleaning

Clean the motor part and the whisk gear box with a damp cloth only. The chopper gear box (a) may be rinsed under the tap. Do not immerse the gear box (a) in water.

All other parts can be cleaned in the dishwasher. However, after processing very salty food, you should rinse the blades right away. Also, be careful not to use an overdose of cleaner or decalcifier in your dishwasher.

When processing foods with colour (e.g. carrots), the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before placing them in the dishwasher.

Accessories

(available at Braun Service Centres; however not in every country)

BC: Chopper attachment, perfectly suited for chopping large quantities as well as for preparing shakes, making light doughs and crushing ice cubes.

HC: High-speed chopper, ideal for herbs, onions, garlic, chilis, nuts etc.

Recipe examples

Mayonnaise (use handblender)

200 – 250 ml oil

1 egg (yolk and white)

1 tbsp. lemon juice or vinegar, salt and pepper to taste

Put all ingredients into the beaker in the order listed above. Insert the hand blender to the base of the beaker. Pressing the turbo switch, keep the hand blender in this position until the oil emulsifies. Then, without switching off, slowly move it up and down until the mayonnaise is well combined.

Ice cream (use chopper)

100 g raspberries (deep-frozen)

10 g powdered sugar

80 g cream

Put all ingredients into the jar, press the turbo switch and blend for about 30 seconds. Serve at once.

Anchovy dip (use chopper)

30 g drained anchovy fillets

200 g cream cheese "Philadelphia"

2 tbsp. olive oil

Put all ingredients in the chopper bowl.

Adjust the variable speed setting to the minimum. Press the on/off switch until the paste becomes homogeneous.

Finish the dip by pressing the turbo switch. Variations of this recipe can be made by using salmon, Roquefort, or blue cheese instead of anchovy fillets.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life.

Disposal can take place at a Braun Service

Centre or at appropriate collection points provided in your country.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Pied mixeur 1...turbo

Bol hachoir 1...turbo

Fouet métal 1...15
