USER MANUAL TT 12E UP0 HOTPOINT

Before using the appliance carefully read Health and Safety and Use and Care guides. Keep these instructions close at hand for future reference.

This manual and the appliance itself provide important safety warnings, to be read and observed at all times

All safety warnings give specific details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions. Failure to observe these instructions may lead to risks. The Manufacturer declines any liability for injury to persons or animals or damage to property if this advice and relevant precautions are not respected.

This product should not be used by children under 8 years old, unless supervised by an adult.

• Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised. Alternatively these people can use if have been given instructions on safe appliance use and if they understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by childern without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.

INTENDED USE OF THE PRODUCT

This appliance is designed solely for domestic use. This product is not intended for commercial use. The manufacturer declines all responsibility for innapropiate use or incorrect setting of the controls.

• CAUTION : The appliance is not intended to be operated by means of an external timer or separate remote control system.

• Do not use the appliance outdoors.
• Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on. INSTALLATION

Repairs must be carried out by a qualified technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Children should not perform installation operations. Keep children away during installation of the appliance. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the appliance.

After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service.

• Keep children away during installation of the appliance.

• The appliance must be disconnected from the power supply before carrying out any installation operation.
• During installation, make sure the appliance does not damage the power cable.
• Only activate the appliance when the installation procedure has been completed. ELECTRICAL WARNINGS

Make sure the voltage specified on the rating plate corresponds to that of your home.

• Regulations require that the appliance is connected to an earthed supply outlet.

• For appliances with fitted plug, if the plug is not suitable for you socket outlet, contact a qualified technician.

Do not use extension leads, multiple sockets or adapters. Do not connect the appliance to a socket which can be operated by remote control.

• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the main power supply.
• Do not pull the power supply cable.
• If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced by a qualified technician in compliance with the manufacturer instructions and current safety regulations. Contact an authorized service center.

• Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot. ELECTRICAL CONNECTIONS Socket outlet / plug If the fitted plug is not suitable for your socket outlet, contact After-Sales Service for further instruction. Do not attempt to change the plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations. CORRECT USE

Never cover the toaster slot.

• Do not touch parts other than the operating controls, as the toaster will can become hot during toasting.

Do not introduce any object inside the toaster, as this may cause damage or risks. Pull down the operating lever only for toasting: never block it. Make sure the crumb tray is perfectly in place before using. Never place aluminium foil on the warming rack. Never warm and toast at the same time. Avoid toasting food with extremely runny ingredients such as butter.

• As bread may burn, do not use toaster near or below curtains and other flamable materials.

If the toaster starts to smoke, press the CANCEL button to stop toasting immediately.

• Do not attempt to remove the food when the toaster is in operation.
• Remove the bread carefully after toasting to avoid any injuries.
• Warning: When toasting small slices of bread less than 8.5 mm high, be careful of the potential risk of burning when taking out the slice.
• Be careful not to damage the internal mechanism or heating elements when removing the bread.

CLEANING AND MAINTENANCE

The appliance must be disconnected from the power supply before carrying out any cleaning or maintenance.

• Never use steam cleaning equipment.

Allow the unit to cool down completely before cleaning or storing it.

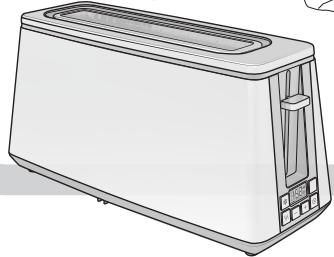

Operating lever Cancel button Fine tuning/Favourite button Defrost button Reheat button Toasting level buttons Display Cord wrap Removable crumb tray Warming rack If you toast the food continuously, the toasting colour of the different slices can be slightly different or darker, even if the same level is used.

The operating lever can rest on the bottom of the slot only if the plug was connected. INTRODUCTION

Thank you for purchasing our product. In doing so, you have opted for an effective highperformance appliance.

If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage. The operating instructions may refer to different models: any difference is clearly identified.

Carefully wipe the outside of the appliance to remove any dust that may have accumulated. Dry with a dry cloth. Remove any stickers. As there is manufacturing residue or oil remained in the toaster or heat element, it usually will emit an odor for the first use. It is normal and will not occur after several times use. Before the first use, with the window open operate without any bread inside. Then let the toaster cool down and begin toasting.

Put the food to be toasted into the bread slot. No more than one slice for each slot can be introduced at any one time. Make sure the crumb tray is perfectly in place before using. Plug the power cord into the outlet. Set the toasting level to the desired colour using the toasting level buttons. The lowest level is 1 and the highest level is 8. The bar at the bottom of the display will show the set level. Pull down the operating lever until it engages: toasting will begin at once. The display will show the countdown till the end of toasting. Once the bread has been toasted to the preset level, the operating lever will automatically spring up.

During the toasting process, if the browning is satisfactory, press the CANCEL button to stop toasting. If the bread was taken out of the freezer, set the toasting level according to your preference. Press the DEFROST button to toast it to your desired color, then pull down the operation lever until it is in place. The related symbol will appear on the display. If you want to reheat any cold toasted bread, press the REHEAT button. Toasting time is fixed in this mode: when time is over the operating lever will automatically spring up and stop the reheating process. The related symbol will appear on the display. Press the FINE TUNING/FAVOURITE button by a single click to set an intermediate level of browning between the current setting and the further one. By pressing the FINE TUNING/FAVOURITE button longer, the FAVOURITE setting is activated. Every time the toaster will be plugged in, the stand-by mode will automatically be set on the favourite setting. Toast any items only until they are golden brown and not brown or too dark. Remove any burnt edges. Do not over-toast food containing starch - especially grain and potato products - to reduce the production of acrylamides. If a slice gets stuck at the end of the toasting process, pull the power plug and carefully remove the bread after the toaster has cooled down. The use of browning levels from 4 to 6 is recommended for the preparation of sandwiches.

Depending on the quantity or quality of stuffing, it can happen that the inside of the sandwich is not warm enough or completely melted: in these istances, please leave the sandwich into the slot for about one minute after ending the toasting.

USING THE WARMING RACK

The food that cannot be placed inside the slots (e.g. rolls, baguettes, croissants) can be warmed on the warming rack

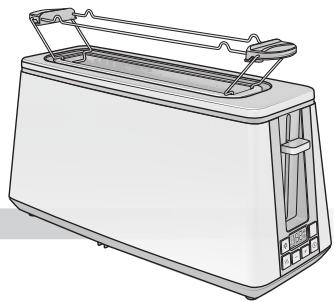

Place the support on the slot (see pic. 1 and 2) Use the button to set the desired toasting level. Pull down the operating lever until it engages. time! Never place aluminium foil on the warming rack. Never warm and toast at the same

CLEANING AND MAINTENANCE

Wipe the outside with a soft dry cloth after the toaster has cooled down. Never use metal polish. Pull out the crumb tray from the bottom of the toaster and empty it. If the toaster is used frequently, accumulated bread crumbs should be removed at least once a week. Make sure the crumb tray is completely closed before using the toaster again. When the toaster is not used or is stored, the power cord may be wound under the bottom of the toaster. If you use specific products for cleaning steel, be careful with the chrome parts, to avoid staining.

SAFEGUARDING THE ENVIRONMENT

The packaging material is 100% recyclable and is marked with the recycle symbol (*). The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

SCRAPPING OF HOUSEHOLD APPLIANCES

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped. This appliance is manufactured with recyclable (*) or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol (*) on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

DECLARATION OF CONFORMITY

This appliance has been designed, constructed and distributed in compliance with the safety requirements of European Directives: 2006/95/EC Low Voltage Directive 2004/108/EU Electromagnetic Compatibility Directive
