Pathfinder Series - Boat JILONG - Free user manual and instructions

Product type	Inflatable pleasure boat
Brand	JILONG
Model	Pathfinder Series
Main material	Reinforced PVC
Overall length	3.5 m
Width (beam)	1.5 m
Dry weight	30 kg
Maximum capacity	4 persons
Maximum load	400 kg
Maximum motor power	15 HP
Inflation pressure (hull)	0.25 bar
Number of compartments	3
Floor type	Aluminum slat floor
Included items	Pump, oars, repair kit
Power source	Manual (inflation) / Outboard motor
Maintenance	Clean with fresh water after each use
Safety	Life jacket mandatory
Repair	PVC repair kit included
Warranty	2 years

Frequently Asked Questions - Pathfinder Series JILONG

How to properly inflate the boat?

Use the provided pump. First inflate the lower hull to 0.25 bar, then the side tubes. Do not exceed the indicated maximum pressure.

What type of motor can I use?

An outboard motor with a maximum power of 15 HP. Ensure the total weight (motor + fuel + passengers) does not exceed the maximum load.

How to clean and maintain the boat?

Rinse with fresh water after each use in salt water. Use a soft cloth and mild soap. Dry completely before storing out of direct sunlight.

What to do in case of a puncture?

Use the provided repair kit. Clean the area, apply glue and patch. Let dry for 24 hours before reinflating.

How many people can board?

The maximum capacity is 4 persons or 400 kg. Never exceed this limit for safety reasons.

Should I deflate the boat after each use?

No, if you use it regularly, you can leave it inflated. For prolonged storage, deflate it and fold it to save space.

Can I use the boat at sea?

Yes, but only in calm seas and near the coast. Do not go beyond 300 meters from shore without appropriate safety equipment.

What are the mandatory safety equipment?

Life jackets for each person, a whistle, a tow buoy, and a fire extinguisher if a motor is installed. Check local regulations.

Is the boat delivered with a warranty?

Yes, the manufacturer's warranty is 2 years against manufacturing defects. Keep the purchase receipt.

How to store the boat in winter?

Clean, dry, and deflate the boat. Fold it without sharp creases. Store in a dry place, away from frost and UV rays.

USER MANUAL Pathfinder Series JILONG

PATHFINDER SERIES KAYAK Instruction Manual

Important safety guide lines for sport boat use, Please read & understand prior to using your boat

JL00262N

JL00262-1N

www.jilong.nl

STOP

Do not return the product to the store Contact your local after sales service center

Email address:[e-mail]

Telephone Number:1-866-946-3002

CONTENTS INTRODUCTION

INTRODUCTION 3

IMPORTANT WARNING---- 6

INFLATING THE KAYAK----7

OPERATING INSTRUCTION---- 8

MAINTENANCE AND STORAGE---- 12

DISASSEMBLY 12

TROUBLE SHOOTING---- 13

REPAIRS---- 13

WARRANTY 14

ISO 6185 BOAT Type III

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Congratulations to the purchase of an inflatable kayak. Please read this manual carefully before inflating, assembling or using your kayak. Familiarise yourself with the features of the kayak and ask for professional training if you are inexperienced in handling this type of kayak.

For your full enjoyment it is important to follow proper safety procedures and rules of the waterway that apply to all kayaks. Always check the local weather conditions before taking the kayak out. Do not let yourself get caught out by currents in tidal inlets, open seas, small channels or shallow water regions.

Always use materials of good quality and of the correct specifications whenever working on the kayak. Maintenance work and repairs on the kayak should be implemented only by qualified personnel.

IMPORTANT: Keep this manual at a dry place in your kayak and hand it over to the new owner when selling the kayak.

If this is your first craft, or you are not familiar with this type of kayak, please ensure that you obtain handling and operating experience before driving this kayak. Your dealer or national sailing federation or yacht club will be pleased to advice you of local sea school or competent instructors.

The following illustration will introduce details of the craft, the equipment supplied or fitted and its systems. Please be familiar with each part of the craft before using it.

INTRODUCTION

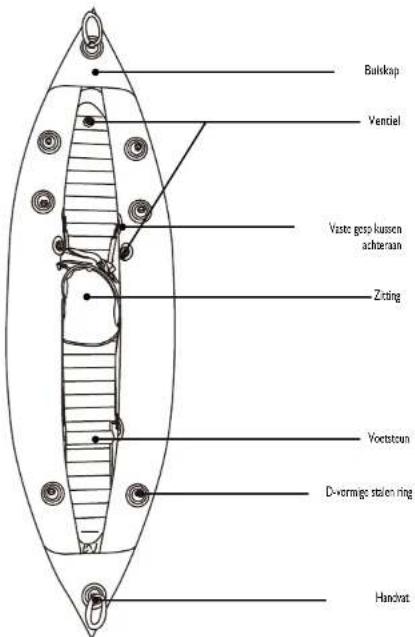

Sketch Map Basic Data

All boats have a CIN (Craft Identification Number) and a manufacturer plate. Do not alter, cover or remove the CIN. It may invalidate the warranty and can get you into legal problems. Record the CIN of your boat in the designated place on the Declaration of Conformity in this manual. Also write it down at a safe place.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INTRODUCTION

Item No.		JL000262N JL000262-1N
Model		PATHFINDER 1 Person Kayak PATHFINDER 2 Person Kayak
Inflated Size		300x90cm118"x36"	400x90cm158"x36"
Capacity(Person)		1	2
		0	0
Max. Load weight		105KG/231LBS 170KG/374LBS

Accessories

Model	PATHFINDER1 Person Kayak	PATHFINDER2 Person Kayak
Repair Kit	1	1
Removable fabric seat	1	2
EVA footrest	1	2
Knee Braces	2	0
Direction Fin	2	2
Foot pump	1	1
Oar	1	2
Carry Bag	1	1
Pressure Gauge	0	0

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

IMPORTANT WARNING INFLATING THE KAYAK

To enhance the enjoyment of your kayak and protect the safety of passengers and operator using the kayak, always strictly observe the following safety warning:

-This is not a life saving device. Use only under competent supervision. Never allow diving into this product. Never leave in or near the water when not in use. Never tow from any vehicle. Adult assembly and operation required.

-Adults should inflate the chambers in numbered.

Excessive inflating the kayak can cause the chambers to burst or cause damage to the welded seams. Not following the operator's instructions, which may detail important inflation and assembly sequences, can cause capsizing and drowning.

-Taking the kayaking safety course and get hands-on training from your kayak dealer or local kayaking authorities. Review all safety requirements regularly. Never navigate alone.

-A personal Flotation Device (PFD) is required for each passenger. It is especially important that children and non-swimmers wear a personal flotation device at all times. Children and non-swimmers need special instruction in the use of PFD.

-Be careful when stepping or climbing aboard the kayak. Step into the center of the kayak for maximum stability. Distribute the weight of passengers, gear, tackle box and accessories evenly so that the kayak sits even front to back and side and to side. Uneven distribution of persons or loads in the boat can cause capsizing and drowning.

-Do not use your kayak if you suspect a puncture or leak. It might be unsafe.

-WARNING:BEWARE OF OFFSHORE WINDS AND CURRENTS. These could be unsafe conditions.

-Follow these rules to avoid drowning, paralysis or other serious injuries.

-WARNING: It is the responsibility of the kayak operator to identify and obey all local and state laws pertaining to kayak safety and required safety equipment. Please consult your local authorities to ensure compliance.

-Do not allow unattended children in the kayak. Always make sure that at least one responsible adult is supervising all children and those who don't know how to swim at all times.

-Always maintain the proper kayak safety equipment in an easily accessible place in your kayak. Indicate clearly emergency phone numbers as well as safety advisories and rules (such as "No jumping or Diving")

-The total number of persons and total weight shall not exceed the information printed on the kayak. Do not exceed the maximum recommended capacities.

Exceeding the data given on the capacity plate can cause capsizing and drowning.

-Select a clean area free of stones, gravel, sticks or other sharp objects.

-Unfold the kayak that it's laid out flat and locate your pump.

-Use a hand or foot operated air pump to inflate the kayak. Do not use high-pressure air compressors. It's very important to follow the numbered sequence: failure to do so will result in an improperly inflated kayak. Fill each chamber until it is stiff. Use printed ruler on the kayak to check the main chamber for proper inflation.

If the kayak is inflated during cold weather or without direct sunlight on the tubes, care must be taken not to over-inflate the tubes. As the air inside the tubes heats up due to temperature rises or sunshine, the pressure will increase. The kayak is not fitted with a safety valve, so the pressure must be monitored at all times.

Built-in Safety Valve illustration Structure of the safety valve

A. Valve cap
B. Inflating mouth
C. Deflation button
D. Protective sheath

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INFLATING THE KAYAK INFLATING THE KAYAK

After the inflation adapter is assembled completely, you can inflate the kayak by number sequence. Do not over inflate. After inflating screw the valve cap A in clockwise direction by hand.

Fill each chamber until it is stiff. Measure the printed ruler to 10cm with the equipped hard ruler to check the main chamber for proper inflation.

Caution: Do not over inflate or use a high-pressure pump. The maximum pressure for air chamber.

= 0.15bar(2.18PSI) for chamber 1,2

= 0.10bar(1.45PSI) for chamber 3

Inflating:

- Unscrew the valve cap A, assemble the Inflation Adapter with inflating mouth B, air pressure meter and the air pump.

Caution: Do not over inflate, or use a high-pressure pump!

Deflating:

Remove the valve cap A, push down the deflation button C and turn the valve clockwise direction by 90° until its is locked, release the valve and the air will flow out. If you want to stop the deflation, push down the deflation button C and turn it in counter-clockwise direction by 90°. The deflation will stop when the valve is released.

Assembly of the oar

Line drawing of three types of elongated objects with internal structures, no text or symbols present

Install the direction fin on the bottom of Kayak. Please refer to below illustration.

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

Preparation before departure

Acquire necessary information and inform other passengers:

1. Get information on local laws, regulation and hazards related to water activities and boat operation.
2. Check weather forecast, local currents, tides and wind conditions.
3. Advise someone on land of the time you plan to be back.
4. Explain basic boat operation to all passengers.
5. Be sure that at least one of your passengers can operate the boat in case of emergency.
6. Learn how to determine the distance you can cover, and remember that bad weather conditional can alter this.

Check the working condition of the boat and equipments

1. Check inflation pressure.
2. Check all safety valves.
3. Check the load is evenly distributed on deck of boat: front to back and side to side.

Check that required safety equipment is on board (Check the laws and regulations of the country or locality in which you're boating)

1. One personal flotation device (PFD) for each passenger.
2. The air pump, oars repair kit and tool kit.
3. The mandatory equipment.
4. The boat papers and your boating license (if applicable).
5. Lights are required if operating after dark.

Rules to observe during navigation

1. Be responsible and strictly follow the safety rules. Do not neglect the safety rules, this could hazard your life and lives of others.
2. Learn to keep control of your kayak.
3. Respect local regulations and practices.
4. Navigate on "sheltered water only."
5. Keep fire away. Do not smoke on board.
6. Remember weather conditions can rapidly deteriorate. Always be sure that you can reach a shelter rapidly.
7. Do not take alcohol or take drugs before or while operating your kayak. All passengers should maintain sobriety in all voyage.
8. Make sure your passengers remain sit.
9. No bow riding. Bow riding is illegal in most areas and is extremely dangerous.
10. Be very careful when landing. Arms and legs might be hurt when hanging off the kayak.
11. Always avoid areas where divers/swimmers are in the water. Keep a sharp lookout especially when operating near beaches and launch sites. The Alpha flag indicates proximity of divers. You MUST stay at a good distance (minimum 50 meters).

MAINTENANCE AND STORAGE TROUBLE SHOOTING

Depending on the parts usage, keep some spare available, all parts suggest must consult local agent for factory authorized parts when servicing system.

Clean your kayak after a trip to prevent damage from sand, salt water or sun exposure. Use a garden hose washing the kayak and a sponge and mild soap can clean most dirt. Make sure the kayak is completely clean and dry before storing, otherwise the kayak will be mouldy.

Do not use solvents to clean the kayak, solvents may damage material or plastic components in system. Store all kayak accessories in a dry storage location with ventilation. Make sure that all parts are dry before storage.

You can store the kayak inflated or deflated.

• Choose a dry and cool place to store the kayak.
  · Don't hang the kayak up.
• Don't place any heavy or sharp objects on it.

The kayak is designed to be storable, seasonal kayak. If you live in a temperate area in which the kayak will not be in use all year-round, it is STRONGLY RECOMMENDED to deflate the kayak and dry it thoroughly, and store it in a protected area for the off-season. This will help extend your kayak and prevent a safety hazard from developing while the kayak is not in use.

Warning:

Certain household cleaning solvents, chemicals and other liquids (such as battery acid, oil and petrol) could damage the PVS fabric. In the event of spill or mishandling, you should check for leaks and inspect for structural integrity.

DISASSEMBLY

1. Remove all the accessories from the kayak: oars, repair-kit....
2. Open all valves and deflate the kayak completely.
3. Fold the kayak (make sure that the kayak is clean and dry. See the above Maintenance
   & Storage chapter)
4. Put kayak and air pump, oars into carry bag for storage.

When you find the boat appears a bit soft, it might not definitely be because of a leak. Firstly you can check if valve caps are loose. If all valves are in good condition, you can consider if it is caused by temperature variation: If the boat was inflated in the day at higher temperature, say, 35 °C (95 °F), and air might cool down to 25 °C (7 7 °F) overnight, so that the pressure on the hull may lower down, and the boat will appear soft the next morning.

If valves and temperature variation are not the reasons, you need to start looking for a leak:

1. Position the leak area: You can check your boat from a few feet away or flip it over and closely check over the outside. Any large leaks should be clearly visible.
2. Pinpoint the location of the leak: spry mild soapy water over the suspicious areas. Any leak will produce bubbles.
3. Check valves system for leak.

REPAIRS

Little holes or puncture can be repaired with the repair kit come along with the boat.

1. Find the leak.

2. Thoroughly clean the area surrounding the leak to remove any dirt or grime.

3. Cut a piece of repair material in round shape, which should be larger than the damaged area.

4. Using a piece of the repair kit, trace outline of the patch lightly.

5. Apply adhesive to the underneath side of the patch and around the area to be repaired. Coat the affected are lightly but completely with glue.

6. Put the patch on the damaged area and press down firmly.

7. Allow 12 hours for repair to dry. After patch has dried, apply glue around the edges for a complete seal (dry 4 hours).

(adhesive not included)

Limited Warranty Card

We warrant all components contained in this Laminated PVC Boat/Kayak/Stand up Paddle Board.,etc against defects in materials and workmanship under normal use and service, for a period of 365days from the date of purchase for the original owner only.

If any of the components have been consumer-replaced, damaged, or misused, the corresponding warranty on those components is invalidated. In this situation, you will be advised of the cost of replacement parts and processing instructions.

If a verifiable manufacturing defect is found during the relevant time period, we agree to repair or replace at its option any product under warranty provided proper proof of purchase is presented.

This limited warranty is not valid if the product is used for commercial purposes, or if the damage is caused by an accident, an act of God, consumer misuse, neglect or abuse, vandalism, improper use of chemicals, exposure to extreme weather conditions or negligence during product set up or disassembly.

We cannot be held responsible for the cost of installation, labor, or transportation expenses incurred due to the replacement of defective parts. This limited warranty, furthermore, does not cover any unauthorized alterations to the product.

In order to submit a claim, kindly please fill in all the parts of this form and send it by email or fax, attaching a copy of the receipt, the description of the problem and two photographs (as explained below, see the step #4). Jilong® is not responsible for any expenditure on the purchase of chemical products, wasted water, neither any consequences of water leakage. The warranty is not valid when defects are not caused by the producer.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

STEP #1

Surname		Name
Address
Postal Code		Country
Telephone		Mobile phone
E-mail		Fax
Retailer		Purchasing date

STEP #2

Problem: □ Air Leakage □ Sewing / joint defect □ Puncture / Leakage □ Components Missing Other:

Please describe the problem in details:

STEP #4 – Photos

a) One detailed photo of the problem
b) One general photo of the set (for example: the pool with its surrounding)

Line drawing of a boat with visible hull, side panels, and decorative swirls (no text or symbols)

PATHFINDER SERIES KAYAK

MANUEL D'INSTRUCTION

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

CONTENU

PRÉFACE----18

DISPOSITIONS IMPORTANTES---- 21

GONFLER LE KAYAK---- 22

INSTRUCTIONS USAGE 25

ENTRETIEN ET CONSERVATION---- 27

DÉMONTAGE---- 28

SOLUTIONS PROBLÈMES---- 28

RÉPARATION---- 28

GARANTIE 29

ISO 6185 BATEAU TYPE III

www.jilong.nl PK-14-FR17

PRÉFACE PRÉFACE

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Schéma d'ensemble

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

DISPOSITIONS IMPORTANTES

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

GONFLER LE KAYAK

Line drawing of three types of elongated objects with pointed tips, shown in different angles (no text or symbols)

INSTRUCTIONS USAGE

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INSTRUCTIONS USAGE

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INSTRUCTIONS USAGE ENTRETIEN ET CONSERVATION

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Top-down line drawing of a boat with visible structural components and branding (Jilong, SPORT) in the corner, no text or symbols on the diagram itself.

PATHFINDER SERIES KAYAK

GEBRAUCHSANLEITUNG

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

VORWORT

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

PRÉFACE

DATEN

Item No.		JL000262N JL000262-1N
Model No.		PATHFINDER 1 Person Kayak PATHFINDER 2 Person Kayak
Maße aufgepumpt		300x90cm118"x36"	400x90cm158"x36"
Kapazität (Personen)		1	2
		0	0
Max. Belastbarkeit		105KG/231LBS 170KG/374LBS

ZUBEHÖR

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

KAJAK AUFPUMPEN UND ENTLEEREN

Technical line drawing of a mechanical component with labeled dimension D (no text or symbols beyond label)

Aufpumpen

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Line drawing of a row of four types of oars or funnels, showing different blade configurations (no text or symbols)

BEDIENUNGSANLEITUNG

Three sequential diagrams showing a curved mechanical component with arrows indicating motion (no text or symbols)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

PROBLEME LÖSEN

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Schritt 1

Line drawing of a boat with visible hull, side panels, and decorative swirls (no text or symbols)

PATHFINDER SERIES KAYAK

MANUALE D'ISTRUZIONE

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

CONTENUTO

PREFAZIONE 48

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Schema

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

GONFIARE IL KAYAK

Line drawing of a multi-armed竿 with pointed tips and segmented rods (no text or symbols)

ISTRUZIONI D'USO

Three-step diagram showing a curved mechanical component before and after rotation, with no text or symbols present.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

ISTRUZIONI OPERATIVE

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Line drawing of a boat with visible structural components and decorative swirls (no text or symbols)

PATHFINDER SERIES KAYAK

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INTRODUCCIÓN

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INTRODUCCIÓN

Datos Básicos

Item No.		JL000262N JL000262-1N
Model No.		PATHFINDER 1 Person Kayak PATHFINDER 2 Person Kayak
Tamaño Inflado		300x90cm118"x36"	400x90cm158"x36"
Capacidad(personas)		1	2
		0	0
Máximo Peso		105KG/231LBS 170KG/374LBS

Accesorios

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INSTALACIÓN

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INSTALACIÓN

Line drawing of a row of elongated objects with pointed tips, arranged in two groups (no text or symbols)

INSTRUCCIONES DE USO

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

REPARACIONES

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Paso 1

Line drawing of a boat with visible hull, side wheels, and decorative swirls (no text or symbols)

KAJAK PATHFINDER-SERIE

Do not return the product to the store Contact your local after sales service center Email address:[e-mail] Telephone Number:1-866-946-3002

76 PK-14-NL

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

INHOUDSOPGAVE

INLEIDING---- 78

BELANGRIJK WAARSCHUWING----81

DE KAJAK OPBLAZEN----82

BEDIENINGSINSTRUCTIE----85

ONDERHOUD EN OPSLAG---- 87

DEMONTAGE---- 87

PROBLEMEN OPLOSSEN---- 88

REPARATIE 88

GARANTIE---- 89

ISO 6185 BOOT Type III

77 PK-14-NLwww.jilong.nl

INLEIDING INLEIDING

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Kort overzicht

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

BELANGRIJKE WAARSCHUWING

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

DE KAJAK OPBLAZEN

Line drawing of a row of elongated objects with internal structures, no text or symbols present

BEDIENINGSINSTRUCTIE

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

BEDIENINGSINSTRUCTIE

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

Line drawing of a boat with decorative swirls and a brand logo (no text or symbols on the boat itself)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

简介

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

安装

Technical line drawing of a mechanical component with a dial indicator and a separate view showing a pin labeled B (no text or symbols present)

安装

内置式安全阀图示安全阀的结构

Line drawing of two elongated objects with pointed tips, connected by a rod (no text or symbols)

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

安装

Three-step diagram showing a mechanical component with arrows indicating motion (no text or symbols)

发动机安装：

© 2014 Shanghai Jilong Plastic Products Co., Ltd. ALL rights reserved. Printed in China.

拆卸

Shanghai Jilong Plastic Products Co. Ltd.

No. 460 Lanxue Road, Huanglou, Pudong Area, Shanghai, 201205, P.R. China

Tel: [phone] E-mail: [e-mail] Web: www.jilong.com
