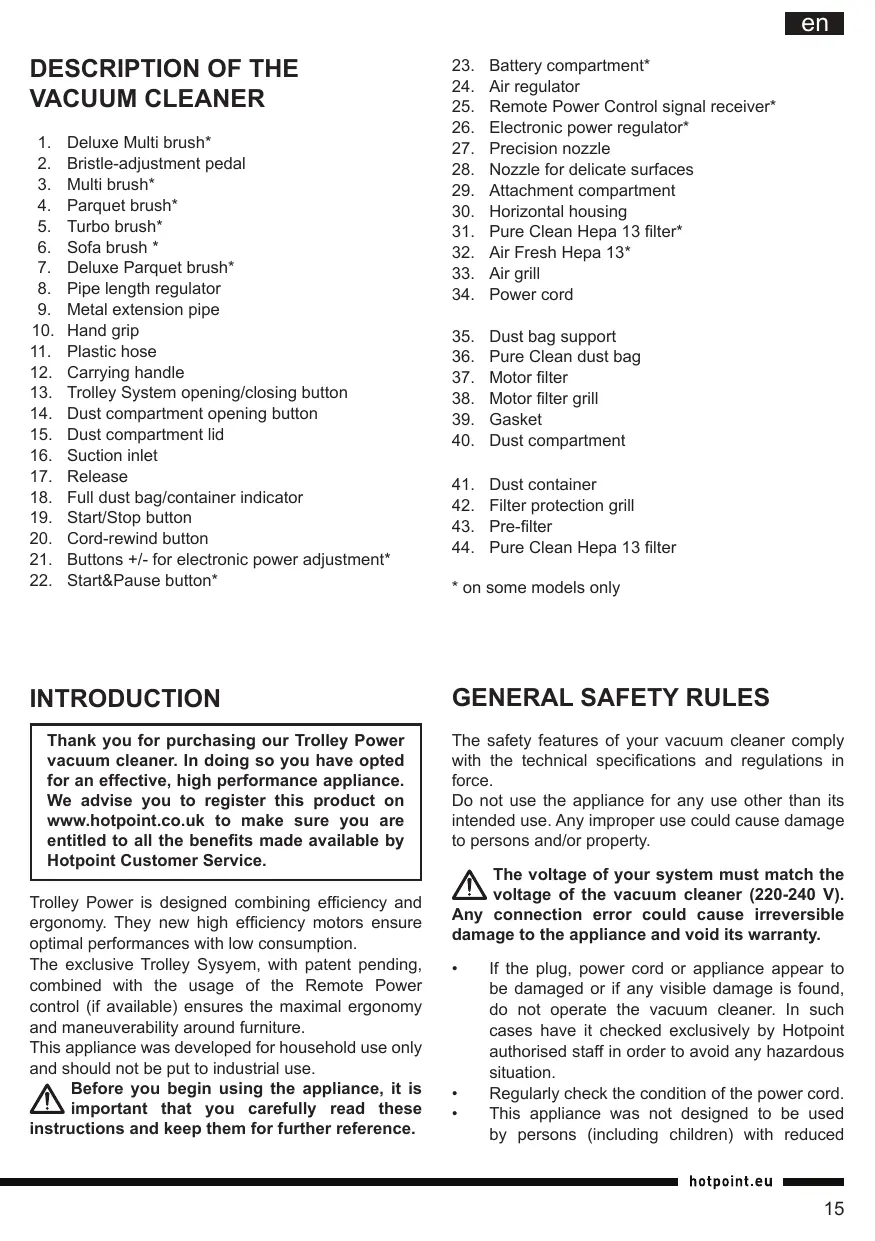

Description of the vacuum cleaner

Deluxe Multi brush* Bristle-adjustment pedal Multi brush* Parquet brush* Turbo brush* Sofa brush * Deluxe Parquet brush* Pipe length regulator Metal extension pipe Hand grip Plastic hose Carrying handle Trolley System opening/closing button Dust compartment opening button Dust compartment lid Suction inlet Release Full dust bag/container indicator Start/Stop button Cord-rewind button Buttons +/- for electronic power adjustment* Start&Pause button* INTRODUCTION Thank you for purchasing our Trolley Power vacuum cleaner. In doing so you have opted for an effective, high performance appliance. We advise you to register this product on www.hotpoint.co.uk to make sure you are entitled to all the benefits made available by Hotpoint Customer Service. Trolley Power is designed combining efficiency and ergonomy. They new high efficiency motors ensure optimal performances with low consumption. The exclusive Trolley Sysyem, with patent pending, combined with the usage of the Remote Power control (if available) ensures the maximal ergonomy and maneuverability around furniture. This appliance was developed for household use only and should not be put to industrial use. Before you begin using the appliance, it is important that you carefully read these instructions and keep them for further reference.

Battery compartment* Air regulator Remote Power Control signal receiver* Electronic power regulator* Precision nozzle Nozzle for delicate surfaces Attachment compartment Horizontal housing Pure Clean Hepa 13 filter* Air Fresh Hepa 13* Air grill Power cord

Dust bag support Pure Clean dust bag Motor filter Motor filter grill Gasket Dust compartment

The safety features of your vacuum cleaner comply with the technical specifications and regulations in force. Do not use the appliance for any use other than its intended use. Any improper use could cause damage to persons and/or property. The voltage of your system must match the voltage of the vacuum cleaner (220-240 V). Any connection error could cause irreversible damage to the appliance and void its warranty.

If the plug, power cord or appliance appear to be damaged or if any visible damage is found, do not operate the vacuum cleaner. In such cases have it checked exclusively by Hotpoint authorised staff in order to avoid any hazardous situation. Regularly check the condition of the power cord. This appliance was not designed to be used by persons (including children) with reduced

physical, sensory or mental capabilities . Nor, in addition, persons lacking experience or familiarity with the product, unless they are supervised or instructed on the use of the appliance by a person responsible for their safety. Supervise children to prevent them from playing with the appliance. Never leave the appliance unattended when it is plugged into an electrical outlet. Never use the power cord to move or carry the appliance around. After use, disconnect the plug from the electrical outlet and rewind the power cord. Do not bend the power cord and keep it away from sharp edges to avoid any damage. Never leave or use the appliance over or close to flames, ovens, flammable materials or other sources of heat. Do not use the vacuum cleaner on persons or animals. Keep the suction ends away from your body while it is in operation. Before changing an attachment, when cleaning or maintaining the appliance, and in any case after every use, unplug it from the electrical outlet. Should you suspect a failure, immediately unplug it from the electrical outlet. Never immerse the vacuum cleaner in water

or any other liquid. Never spray any liquid substances onto the appliance. Do not leave the appliance in the open air and exposed to inclement weather conditions. For safety, we advise you to keep the vacuum cleaner always lower than your own position when cleaning the stairs. Never suck up any liquid or damp substances as this could affect the operation of the appliance. Never suck up any flammable materials or incandescent objects such as ash, cigarette ends etc. Some parts of the vacuum cleaner could catch fire. Never suck up any sharp or cutting objects as this could damage the appliance. If very fine dust or powders are sucked up such as flour, etc. small electrostatic discharges could occur. When sucking up materials previously mentioned, we advise not to use the metal extension pipe, but only the plastic flexible hose and to set a low suction power level. For your safety, every repair or maintenance action should be carried out on the appliance only by Hotpoint authorised staff. No responsibility shall be accepted in case of damage resulting from any improper use of the appliance. Commission delegated regulation (EU) No 665/2013 Brand Hotpoint-Ariston Hotpoint-Ariston Hotpoint-Ariston Model

Energy Efficiency class

Annual energy consumption in kWh/ year, rounded to one decimal place (1)

Carpet cleaning performance class

Hard floor cleaning performance class

Dust re-emission class

Sound power level in db(A)

Rated input power in W

(1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

Remove all adhesives, protective plastic materials and cardboard packaging. Make sure all adhesive parts are removed with a soft damp cloth. Assembling

Fasten the plastic flexible hose (11) to the suction inlet (16) until it clicks into place. To remove it, press the release (17) and pull it out. Fit the metal extension pipe (9) into the hand grip (10) until it locks into place. Use the length regulator (8) to adjust the length of the pipe. Fit the attachment you need (see chapter “Attachments”) into the end of the metal extension pipe until it locks into place. If your appliance is equipped with a Remote Power Control, you will need to insert the batteries supplied (see paragraph “Remote Power Control” under chapter “Features”). USING THE VACUUM CLEANER (A) The appliance is equipped with a safety device that prevents the dust-compartment lid from closing unless the dust bag has been correctly installed. Do not force the dust bag lid to close and make sure all the parts are in the correct position to allow you to close the lid. Do not use the vacuum cleaner without filters, Pure Clean dust bag, dust bag support or dust container, as the appliance could get damaged.

1. Unwind the power cord (34) and plug the

appliance into an electrical outlet (220/240V). We advise you to unwind the entire power cord (yellow marker: 6,5m; red marker: 7m) to avoid any overheating and damage.

Press the start/stop button (19) to start the appliance. Press the Trolley System opening/closing button (13) to extend the carrying handle (12) to the desired length until it locks into place. Then manoeuvre the vacuum cleaner using the carrying handle when cleaning the house. To select the desired suction intensity (based on the model) use the +/- button and electronically adjust the power (21) of the Remote Power Control; or manually rotate the electronic power regulator (26). We advise you to use a low suction power on delicate surfaces such as curtains, fabrics, cushions etc to avoid any damage; or at least open the air regulator to reduce the suction effect.

To pause the vacuum cleaner, if this feature is available, you can use the standby button (22) on the Remote Power Control or the Start & Stop function (based on the model). Just insert the brush into its horizontal housing (30). To switch off the appliance press the start/stop button again. Disconnect the plug from the electrical outlet and press the cord-rewind button (20) until rewinding is complete. Make sure the cord does not get entangled during rewinding.

Secure the floor head into its horizontal / vertical housing and store the appliance. Do not start the vacuum cleaner if the plastic flexible hose is entangled, as this could damage the appliance. FEATURES Electronic power regulator (B) The electronic power regulator (26) (if available) allows to set the suction power required. On some models, the ideal power levels are indicated, according to the surface to be cleaned: awnings, carpets and hard floors. The Eco function (if available) allows to save 25% energy, compared with the consumption relative to max suction power, ensuring at the same time cleaning efficacy. Remote Power Control (C) The Remote power control (if available) enables you to adjust the suction power directly and effortlessly from the hand grip, with no need to bend. When using the vacuum cleaner, you can keep it on standby by pressing the Start & Pause button (22). To insert or change the batteries of your Remote Power Control:

Open the battery compartment (23). Insert two AAA batteries, making sure of the positive and negative poles. Close the battery compartment until it clicks into place.

Trolley System (D) The Trolley System allows you to move your vacuum cleaner easily when cleaning and carry it from room to room effortlessly.

1. Press the opening/closing button on the Trolley

System (13) to pull out the carry handle (12) until it locks into place at the desired length.

2. Having completed your cleaning, press the

opening/closing button on the Trolley System and close the carrying handle until it locks into place. Use the Trolley System's carrying handle to store the appliance, making sure you have correctly locked it into place. Start & Pause (E) CLEANING AND MAINTENANCE Before cleaning or maintaining the vacuum cleaner, make sure it has been unplugged from the electrical outlet. Do not use aggressive substances or abrasive materials to clean the appliance, its internal parts and attachments. Make sure it is thoroughly dry before using again. Make sure all its parts are thoroughly dry before replacing them. We advise you to clean the filter at least every 4 months to restore its filtering power. In any case we recommend replacing the filter at least every year to ensure maximum performance. The Start & Pause function (if available) allows you to keep the vacuum cleaner on stand-by and lock the cleaning head in the park position: just insert the brush into its horizontal housing (30). Use a dry or slightly damp soft cloth to clean the plastic parts (body, dust compartment, flexible hose etc) and the metal extension pipe (9). Dual System (F) Cleaning the dust compartment (G) The Trolley Dual Clean (if available) version of the Trolley Power makes your use of the appliance extremely versatile because it can be used with or without dust bag. Just assemble the conversion kit in the package: it comprises a Pure Clean dust bag (36), dust bag support (35), gasket (39), and motor filter grill (38) already fitted to the motor filter (37). The assembling takes place as follows:

1. Make sure the appliance is disconnected from

the electrical outlet.

2. Press the dust-compartment opening button

(14) to open the dust compartment lid (15) and remove the dust container (41).

3. Fit the gasket into the special groove along the

perimeter of the dust compartment (40).

4. Fit the motor filter grill (already fitted to the motor

filter) into the special dust-compartment guides.

5. Slide the Pure Clean dust bag into the dust bag

support all the way; then place it into the special dust compartment.

6. Close the dust compartment lid until it clicks into

place. To use the vacuum cleaner with the dust container, remember to remove all the following parts: Pure Clean dust bag, dust bag support, gasket, motor filter and motor filter grill. Air Fresh Hepa 13 (I) The Air Fresh Hepa 13 filter (32) (if available), with active carbons treatment, ensures the maximal dust retention (>99,95%) and the filtration of odours.

Cleaning the appliance For the routine cleaning of the dust compartment (40):

Press the dust-compartment opening button (14) to open the dust compartment lid (15). Based on the model, remove the Pure Clean dust bag (36) or the dust container (41). Clean the dust compartment by removing any residual dirt with a small brush. If needed, use a damp soft cloth, taking care to wipe all its parts entirely dry. Re-place the Pure Clean dust bag or dust container correctly and close the dust compartment lid until it clicks into place. Replacing the Pure Clean dust bag (H) We recommend always using Hotpoint original Pure Clean dust bags (on selected models only), because their special fabric allows optimum air filtration, maximum dust/ powder retention, high performances and a long motor life. As the Pure Clean dust bags (36) are made of fabric, they are more resistant than conventional paper bags and can retain very fine dust/powder particles more effectively, thus ensuring maximum hygiene. We recommend replacing the Pure Clean bag as soon as the full-bag indicator illuminates. Change at least once a year to be always sure of the hygienic condition of your vacuum cleaner. The pores of a bag clogged with dust/powder particles reduce the motor's suction

power and can cause damage.

Make sure the appliance is disconnected from the electrical outlet. Press the dust-compartment opening button (14) to open the dust compartment lid (15). Release the bag support (35) and remove the Pure Clean dust bag (36). Dispose of the dust bag in compliance with all local regulations on waste disposal.

Slide a new Pure Clean dust bag into the dust bag support completely; then place it back into the special compartment. Close the dust compartment lid until it clicks into place. If you are finding it difficult to close the dust compartment lid, it is likely that the Pure Clean dust bag and/or its dust bag support have not been assembled correctly. Do not force the dust bag lid to close, make sure both parts are in the correct position to allow lid closure. Cleaning the filters (I) version with dust bag The Pure Clean Hepa 13 filter ensures maximum protection against allergens and maintains high air quality, as the air given back by the appliance is entirely free from dust/ powder residues (filtering power > 99.95 %). To clean the Pure Clean Hepa 13 filter (31):

1. Disassemble the air grill (33) using the opening

2. Remove the Pure Clean Hepa 13 filter by

releasing the opening tab.

3. Wash the filter under running water, taking care

that the jet of water is not too strong.

4. Hold it so that the water flows parallel to its folds.

5. Let it dry at room temperature until all its parts

6. Replace the Pure Clean Hepa 13 filter, paying

attention to the position of the notches.

7. Fit the air grill into its housing until it clicks into

place. To clean the dust compartment filters (40):

8. Press the dust-compartment opening button (14)

to open the dust compartment lid (15).

9. Remove the Pure Clean dust bag (36), motor

filter grill (38) and motor filter (37) from the motor filter grill.

10. Clean the motor filter by washing it under running

water, taking care that the jet of water is not too strong. Then gently shake water loose.

11. When cleaning the motor filter grill, remove

any dust/powder residues with a small brush. If needed, use a damp soft cloth.

12. Fit the motor filter into the motor filter grill again,

taking care to position it gently into the special notches.

13. Slide the motor filter grill assembly into the

special guides in the dust compartment.

14. Fit the Pure Clean dust bag using the special dust

15. Close the dust compartment lid until it clicks into

place. Cleaning the dust container (J) For the routine cleaning of the dust container:

Press the dust-compartment opening button (14) to open the dust compartment (15) and remove the dust container (41). Open the lid and empty the dust container. Remove any residual dirt by washing the dust container under running water. Let it dry at room temperature until all its parts are thoroughly dry. Close the dust container lid until it clicks into place and replace it into the dust compartment. Close the dust compartment lid until it clicks into place. Cleaning the filters (K) version without dust bag This model comprises two Pure Clean Hepa 13 filters. The Pure Clean Hepa 13 filter ensures maximum protection against allergens and high air quality, because the air given back by the appliance is entirely free from dust/powder residues (filtering power >

To clean the Pure Clean Hepa 13 filter (31) in the back:

1. Disassemble the air grill (33) using the opening

2. Remove the Pure Clean Hepa 13 filter by

releasing the opening tab.

3. Wash the filter under running water, taking care

that the jet of water is not too strong.

4. Hold it so that the water flows parallel to its folds.

5. Let it dry at room temperature until all of it’s parts

6. Re-place the Pure Clean Hepa 13 filter, paying

attention to the positions of the notches.

7. Fit the air grill into its housing until it clicks into

To clean the dust compartment filters (40):

8. Press the dust-compartment opening button (14)

to open the dust compartment (15).

9. Remove the dust container (41).

10. Release the opening tab and then remove the

Pure Clean Hepa 13 filter, pre-filter (43) and filter protection grill (42).

11. When cleaning the filter protection grill, remove

any dust/powder residues with a small brush. If needed, use a damp soft cloth.

12. Clean the pre-filter by washing it under running

water, taking care that the jet of water is not too strong. Allow to dry.

13. Wash the Pure Clean Hepa 13 filter under

running water, taking care that the jet of water is not too strong.

14. Hold it so that the water flows parallel to its folds.

15. Let it dry at room temperature until all its parts

16. Fit the pre-filter into the special indentation of the

Pure Clean Hepa 13 filter, locking both filters in place using the protection grill.

17. Fit the pre-filter, Pure Clean Hepa 13 filter

and protection grille assembly onto the dust container, paying attention to the positions of the notches, until it clicks into place.

18. Re-place the dust container into the dust

19. Close the dust compartment lid until it clicks into

place. ATTACHMENTS The attachments can either be supplied as standard features (based on the model) or be purchased separately from Hotpoint authorised centres. Multi brush/Multi Deluxe brush (M/L) The Multi brush (3) is suitable for vacuuming hard floor and carpets on a daily basis. The Multi Deluxe brush (1) is designed optimizing the air flow and is especially suitable for vacuuming hard and smooth floors as well as carpets. Use the bristle-adjustment pedal (2) to clean: Hard floors Carpets Parquet brush (N) The Parquet brush (4) is suitable for vacuuming delicate areas such as wooden floors. The special

natural bristles enable you to use on very delicate surfaces without harm. Turbo brush (O) The Turbo brush (5), with rotating bristles, is especially suitable for the in-depth vacuuming of short-pile carpets and removing pet hair. The special antibacterial treatment prevents the proliferation of bacteria. An arrow under the brush indicates where it can be opened for dislodging trapped objects. Deluxe Parquet brush (P) The Deluxe Parquet brush (7) is suitable for vacuuming delicate and parquet floors. The brush is equipped with very delicate rotating bristles, which are operated by the vacuum cleaner's suction power, and soft wheels protecting delicate floors. To clean the plastic parts of the Deluxe Parquet brush, remove the brush from the metal extension pipe (9) and wipe with a dry or slightly damp soft cloth. To clean the rotating bristles, turn the safety lock into position and remove, then disassemble the rotating brush and start cleaning. Remove any hairs or threads that got entangled using scissors, taking care not to damage the bristles. Upholstery brush (Q) The Upholstery brush (6) is suitable for vacuuming surfaces such as sofas, mattresses, blankets, cushions etc. It is equipped with rotating bristles operated by the vacuum cleaner’s suction power that enable you to clean in depth and remove any fur, hairs or mites from fabrics. The protection grill prevents the bristles from touching the surfaces to be cleaned, thus ensuring maximum on fabrics. Precision nozzle (R) The precision nozzle in the attachment compartment (29) helps you vacuum corners, crevices and other difficult-to-reach areas. Nozzle for delicate surfaces (S) The nozzle for delicate surfaces (28) in the attachment compartment (29) is suitable for vacuuming surfaces requiring special care such as radiators, furniture etc. Its special natural bristles enable you to use it on very delicate surfaces without any harm. Upholstery nozzle (T) The upholstery nozzle is suitable for the precise vacuuming of particular surfaces such as sofas, mattresses, blankets, cuscions, etc.

Disposal of old electrical appliances The European Directive 2002/96/ EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Troubleshooting Problem The vacuum cleaner cannot be switched on. The full dust bag/container indicator lights up although it is not full yet. Possible causes / Solutions

The plug was not inserted or is not making contact.

Change the dust bag. If large quantities of very fine dust/powder are sucked up (e.g. flour, etc), the full dust bag indicator may light up although the bag is not full yet. The reason is that the Pure Clean dust bag is able to retain very fine dust/powder particles, thus ensuring maximum hygiene. Clean the dust container in models without dust bag. Clean the filters and, if needed, replace them. Make sure the expansion pipe, flexible hose and brush are not blocked.

Remote Power not working.

Clean the filters and, if needed, replace them. Make sure the expansion pipe, flexible hose and brush are not blocked. Change the dust bag. If large quantities of very fine dust/powder are sucked up (e.g. flour, etc), the Pure Clean dust bag may become clogged. Clean the dust container and its filters. Battery not charged. The batteries were positioned incorrectly inside the battery compartment. Position the two AAA batteries making sure of the positive and negative poles. Remove batteries; then position them again, making sure of the positive and negative poles. Electronic appliances or obstacles may be interfering or shielding with the infrared signal. Small electrostatic discharges occur while sucking up.

If very fine dust or powders are sucked up such as flour, etc. small electrostatic discharges could occur. When sucking up materials previously mentioned, we advise not to use the metal extension pipe, but only the plastic flexible hose and to set a low suction power level. The vacuum cleaner whistles or vibrates when in use.

One or more attachments were assembled incorrectly. Make sure the filters and brushes were assembled according to these instructions. In the model with dust bag make sure that the gasket is correctly in place too.

The dust bag/container is full. Replace the dust bag or clean the dust container. Clean the filters and, if needed, replace them. The air regulator is open. Make sure it was closed correctly. The brush moves with difficulty.

Reduce suction power, especially on carpets and fabrics in general. Open the air regulator to reduce the “suction effect”. The dust compartment lid cannot be closed.

The Pure Clean dust bag or dust container was assembled incorrectly. Make sure it is correctly in place so that the safety lever will let you close the dust compartment lid.
